Model Electrolux MDE546RES0 DRYER – Common Parts & Diagrams
01 - COVER
02 - CABINET/DRUM

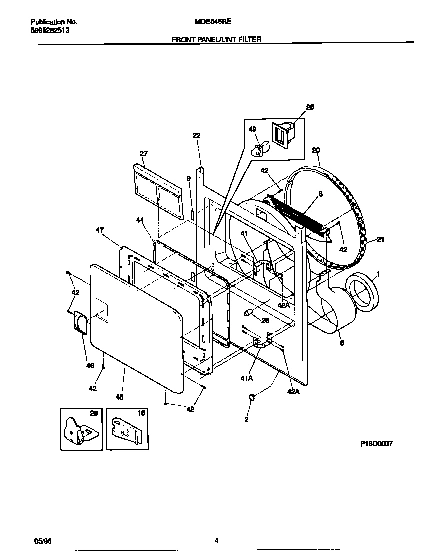

03 - FRONT PANEL/LINT FILTER

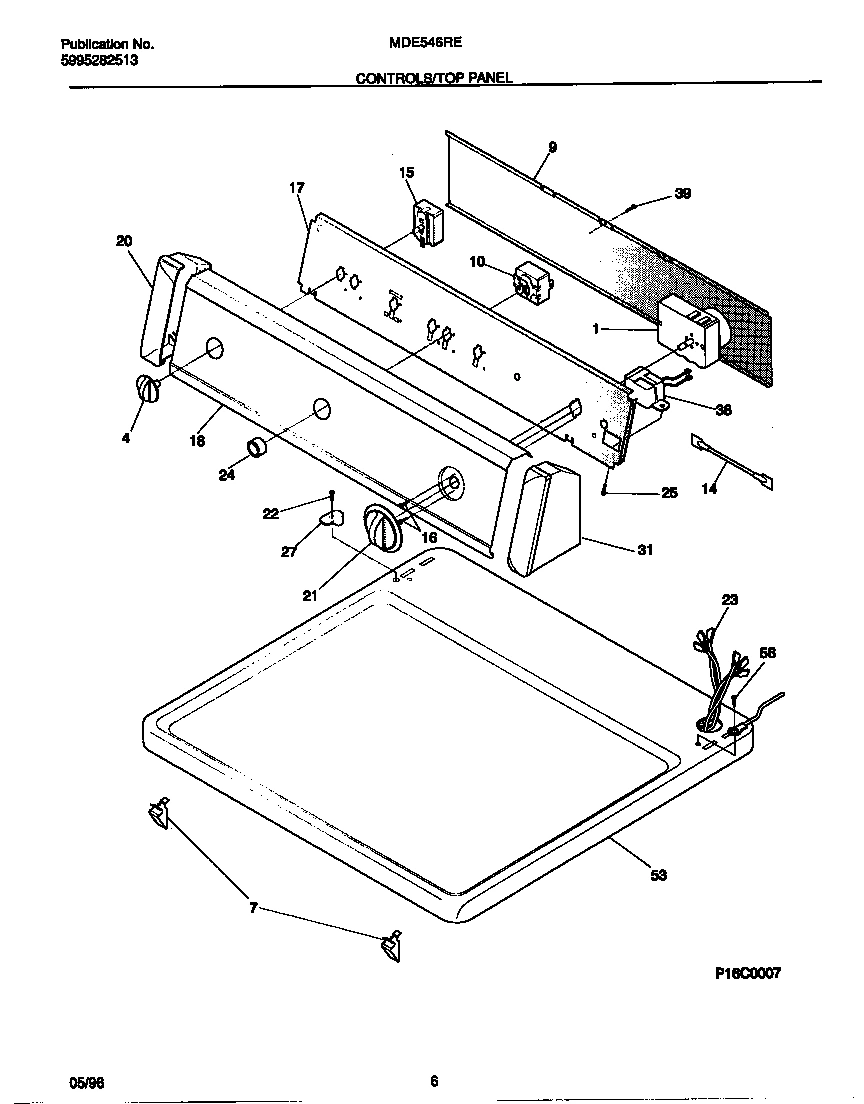

04 - CONTROLS/TOP PANEL

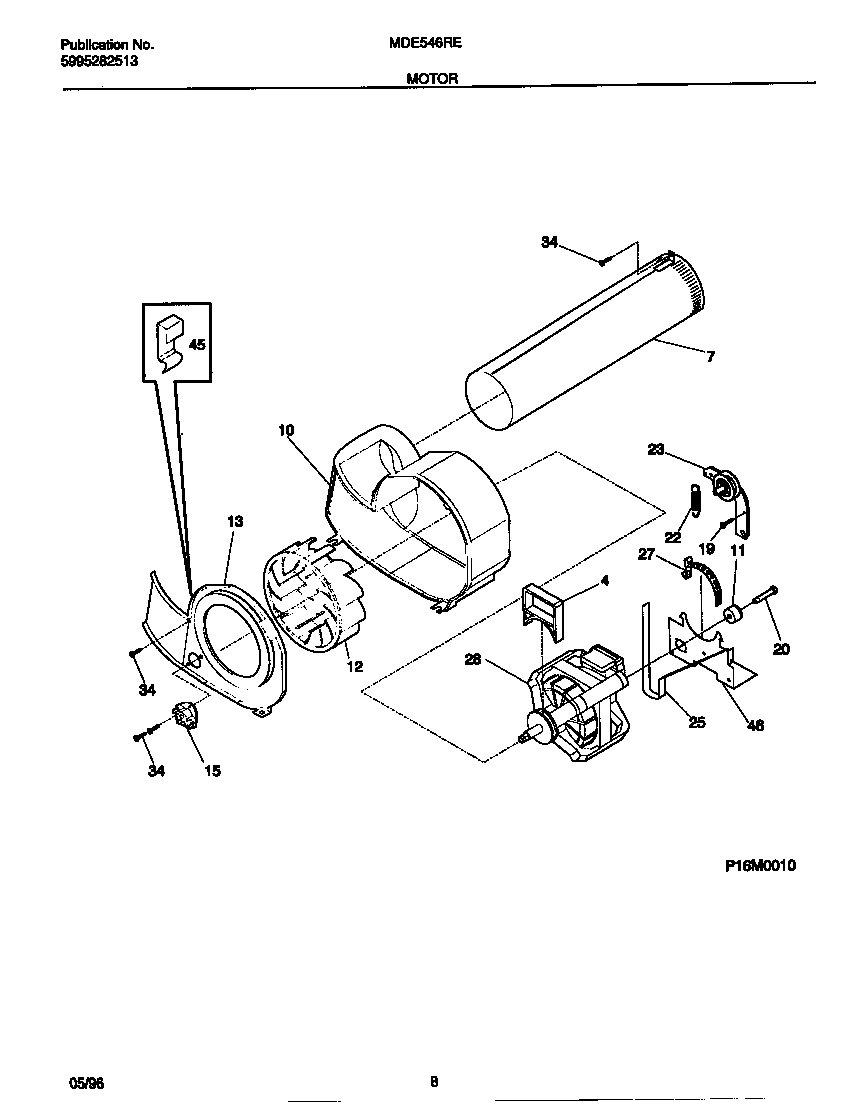

05 - MOTOR
06 - WIRING DIAGRAM
Common parts from model Electrolux MDE546RES0 DRYER
4
WCI 131118603 WCI 131118603 Contact Us For Availability
7
WCI 131451600 WCI 131451600 Contact Us For Availability
9
BACKSHEET-CONSOLE WCI 3205898 Contact Us For Availability
10
SWITCH-PUSH/START WCI 131048000 Contact Us For Availability
11
WCI 5303211428 No Longer Available
11
WCI 131553600 WCI 131553600 Contact Us For Availability
14
RESISTOR-POWER, 4.4K WCI 3205243 Contact Us For Availability
15
WCI 131048100 WCI 131048100 Contact Us For Availability
16
WCI 131063700 WCI 131063700 Contact Us For Availability
17
WCI 131297306 WCI 131297306 Contact Us For Availability
18
WCI 131509400 WCI 131509400 Contact Us For Availability
20
WCI 131469100 WCI 131469100 Contact Us For Availability
20
END CAP, WHITE, LH WCI 5303291343 Contact Us For Availability
21
WCI 5303283286 No Longer Available
21
WCI 131118903 WCI 131118903 Contact Us For Availability
22
WCI 131266310 WCI 131266310 Contact Us For Availability
22
WCI 131421700 WCI 131421700 Contact Us For Availability
23
HARNESS WCI 131515600 Contact Us For Availability
24
KNOB-START SWITCH, WHITE WCI 131111501 Contact Us For Availability
27
WCI 131197000 WCI 131197000 Contact Us For Availability
27
WCI 131419800 WCI 131419800 Contact Us For Availability
28
WCI 131560100 No Longer Available
28
WCI 5303281074 WCI 5303281074 Contact Us For Availability
31
END CAP, WHITE, RH WCI 5303291351 Contact Us For Availability
33
WCI 5303281113 No Longer Available
38
WCI 5303210285 WCI 5303210285 Contact Us For Availability
44
WCI 131527400 WCI 131527400 Contact Us For Availability
45
WCI 131484500 WCI 131484500 Contact Us For Availability
46
WCI 131377500 WCI 131377500 Contact Us For Availability
53
WCI 131391618 WCI 131391618 Contact Us For Availability
× ![]()
