Model Whirlpool MDE3000AYQ ELECTRIC DRYER – Common Parts & Diagrams

Common parts from model Whirlpool MDE3000AYQ ELECTRIC DRYER

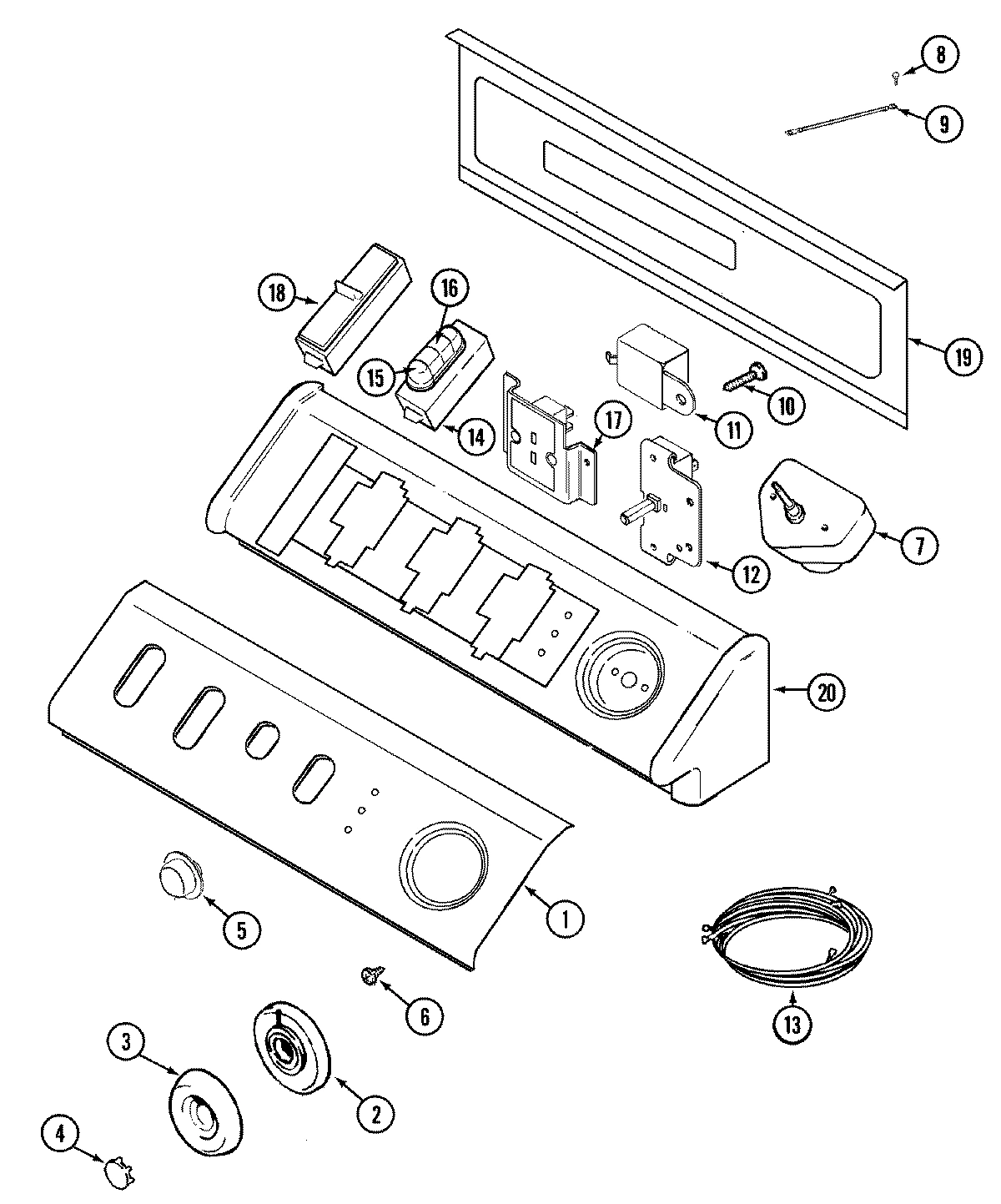

01 - CONTROL PANEL

Print

• This Diagram
• All Diagrams

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 View Details $15.03

View on Model

6

WP90767 Whirlpool Screw In Stock WPL WP90767 View Details $2.60

View on Model

7

WP33001730 Whirlpool Timer In Stock WPL WP33001730 View Details $162.34

View on Model

8

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 View Details $4.73

View on Model

9

WIRE, GROUND WPL 33001859 Contact Us For Availability

View on Model

11

SIGNAL, END OF CYCLE WPL 33001660 Contact Us For Availability

View on Model

11

SIGNAL, END OF CYCLE (CHIME) WPL 33001848 Contact Us For Availability

View on Model

13

WIRE HARNESS, MAIN WPL 33001863 Contact Us For Availability

View on Model

13

WIRE HARNESS, MAIN WPL 33001888 Contact Us For Availability

View on Model

19

BACK, CONSOLE PANEL WPL 33001806 Contact Us For Availability

View on Model

21

MANUAL, USE & CARE WPL 33001874 Contact Us For Availability

View on Model

×
