Model Maytag MDE22PDAGW0 ELECTRIC DRYER – Common Parts & Diagrams

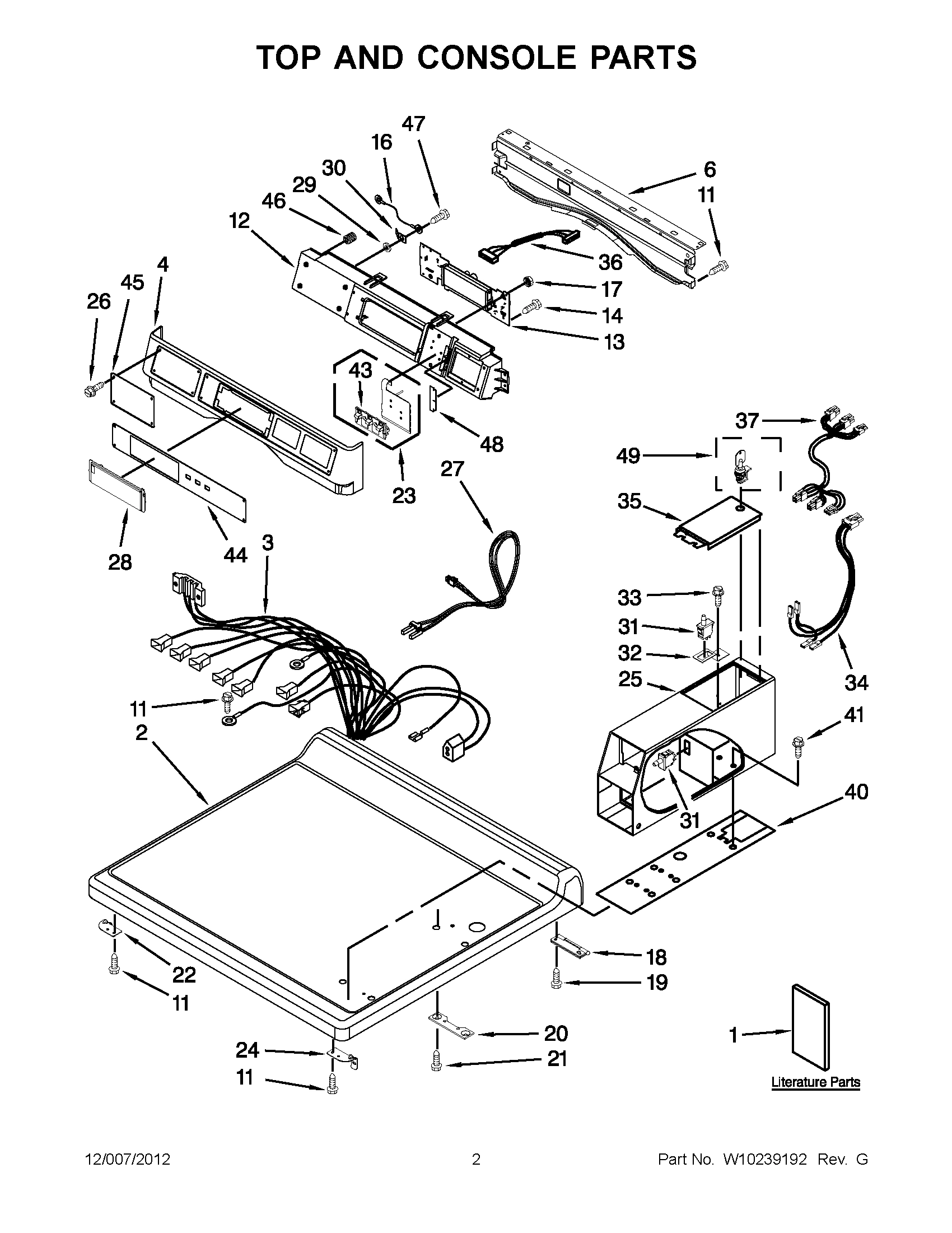

01 - TOP AND CONSOLE PARTS

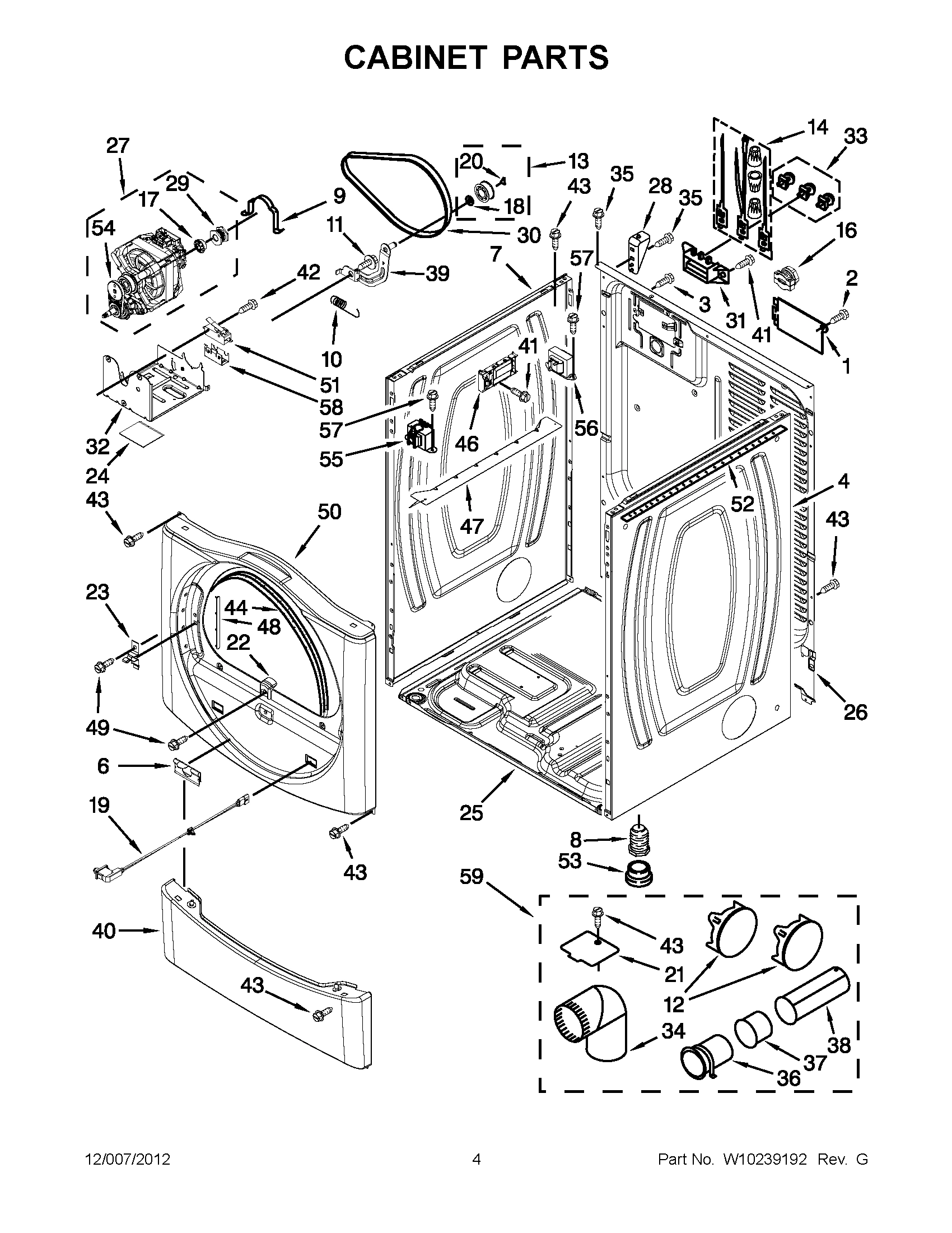

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE22PDAGW0 ELECTRIC DRYER
1
MAY W10233250 MAY W10233250 Contact Us For Availability
1
MAY W10239197 MAY W10239197 Contact Us For Availability
1
MAY W10239198 MAY W10239198 Contact Us For Availability
1
MAY 8576583 MAY 8576583 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
HOLE COVER, HINGE MAY 8565119 Contact Us For Availability
2
MAY W10137411 MAY W10137411 Contact Us For Availability
2
SCREW MAY W10080700 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
ASSEMBLY, DOOR HINGE MAY W10175141 Contact Us For Availability
3
MAY W10111045 MAY W10111045 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10181925 MAY W10181925 Contact Us For Availability
3
MAY W10137467 MAY W10137467 Contact Us For Availability
4
MAY W10137459 MAY W10137459 Contact Us For Availability
4
PANEL, SIDE RIGHT HAND (WHITE) MAY 8565048 Contact Us For Availability
4
LIMITER, THERMAL 192~F (89C) MAY W10167627 Contact Us For Availability
4
SCREW MAY W10080840 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
SCREW MAY 3400618 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
MAY 8519459 MAY 8519459 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
MAY 8579663 MAY 8579663 Contact Us For Availability
7
PANEL, SIDE LEFT HAND (WHITE) MAY 8565054 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
HANDLE, DOOR MAY W10117477 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY W10080210 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
Screen, Lint MAY W10049370 Contact Us For Availability
9
SCREW MAY W10080720 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
ASSEMBLY, DOOR INNER (INCLUDES ILLUS. 1, 14, MAY W10259900 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW, GAS INLET MAY W10080380 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
12
MAY W10137427 MAY W10137427 Contact Us For Availability
12
MAY 49252 MAY 49252 Contact Us For Availability
12
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
12
MAY W10112916 MAY W10112916 Contact Us For Availability
13
MAY W10166343 MAY W10166343 Contact Us For Availability
13
ASSEMBLY, PULLEY MAY 3388672 Contact Us For Availability
13
SCREW MAY W10080820 Contact Us For Availability
13
MAY 8565117 MAY 8565117 Contact Us For Availability
14
Screw MAY 489136 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
14
MAY W10118337 MAY W10118337 Contact Us For Availability
14
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
15
Screw MAY 693995 Contact Us For Availability
15
RETAINER, LOWER WINDOW MAY 8519354 Contact Us For Availability
16
ASSEMBLY, GROUND WIRE MAY W10188087 Contact Us For Availability
16
MAY 8316644 MAY 8316644 Contact Us For Availability
16
NUT, HEX MAY W10080190 Contact Us For Availability
16
DOOR,INTERMEDIATE MAY 8580059 Contact Us For Availability
17
NUT, 6-32 MAY W10139046 Contact Us For Availability
17
MAY 3393657 MAY 3393657 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
18
HINGE & PIN ASSEMBLY (WHITE) MAY 8565018 Contact Us For Availability
18
WASHER (PLASTIC) MAY 233520 Contact Us For Availability
18
MAY W10080960 MAY W10080960 Contact Us For Availability
18
Retainer-Window Upper MAY 8519356 Contact Us For Availability
19
SCREW MAY W10080310 Contact Us For Availability
19
MAY W10251066 MAY W10251066 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
19
SEAL, DOOR MAY W10163915 Contact Us For Availability
20
MAY 3347825 MAY 3347825 Contact Us For Availability
20
WASHER, TRI RING MAY 690997 Contact Us For Availability
20
MAY W10112927 MAY W10112927 Contact Us For Availability
21
SCREW MAY 98445 Contact Us For Availability
21
PLATE, COVER MAY 8066115 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
22
BRACKET, TOP PANEL (LEFT) MAY W10137445 Contact Us For Availability
22
MAY 8565083 MAY 8565083 Contact Us For Availability
22
PIPE, EXHAUST MAY W10225179 Contact Us For Availability
23
SWITCH, MEMBRANE & BACKER PLATE MAY W10135255 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
MAY W10181928 MAY W10181928 Contact Us For Availability
24
BRACKET, TOP PANEL (RIGHT) MAY W10137444 Contact Us For Availability
24
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
24
Element, Heater MAY 3387749 Contact Us For Availability
25
CASE, METER MAY W10171128 Contact Us For Availability
25
MAY W10225178 MAY W10225178 Contact Us For Availability
25
ASSEMBLY, DRUM COMPLETE MAY W10233255 Contact Us For Availability
26
SCREW MAY W10137457 Contact Us For Availability
26
MAY W10225180 MAY W10225180 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
COIN-OPTIC SENSOR ASSEMBLY (WHITE) MAY W10247389 Contact Us For Availability
27
ASSEMBLY, MOTOR (50 HZ.) MAY W10142402 Contact Us For Availability
27
SEAL, DRUM FRONT MAY W10166807 Contact Us For Availability
28
Cover, Display MAY W10131114 Contact Us For Availability
28
MAY W10137398 MAY W10137398 Contact Us For Availability
28
CLIP-SPRING MAY 8066208 Contact Us For Availability
29
MAY W10189075 MAY W10189075 Contact Us For Availability
29
MAY W10167237 MAY W10167237 Contact Us For Availability
29
SCREW MAY W10080280 Contact Us For Availability
30
MAY 3373818 MAY 3373818 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
SCREW MAY W10080640 Contact Us For Availability
31
MAY W10131838 MAY W10131838 Contact Us For Availability
31
MAY 3397659 MAY 3397659 Contact Us For Availability
32
MAY W10133508 MAY W10133508 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY W10119253 MAY W10119253 Contact Us For Availability
33
MAY W10139210 MAY W10139210 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY W10181926 MAY W10181926 Contact Us For Availability
34
MAY W10139456 MAY W10139456 Contact Us For Availability
34
ELBOW MAY 49026 Contact Us For Availability
34
MAY W10153409 MAY W10153409 Contact Us For Availability
35
ASSEMBLY, SERVICE DOOR MAY 3351136 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY W10166307 MAY W10166307 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
MAY 8565061 MAY 8565061 Contact Us For Availability
37
MAY W10166308 MAY W10166308 Contact Us For Availability
37
PIPE, EXHAUST MAY 8563750 Contact Us For Availability
37
MAY W10168564 MAY W10168564 Contact Us For Availability
38
MAY 8563749 MAY 8563749 Contact Us For Availability
38
CUT-OFF, THERMAL MAY W10141623 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10141380 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
40
MAY W10137448 MAY W10137448 Contact Us For Availability
40
Toe Panel (White) MAY 8540621 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
41
MAY W10223792 MAY W10223792 Contact Us For Availability
41
BOLT, METER CASE MOUNTING (SCREW) MAY W10223799 Contact Us For Availability
41
Screw MAY 8533971 Contact Us For Availability
41
SCREW MAY 695240 Contact Us For Availability
42
MAY 3400934 MAY 3400934 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
BUTTON, PUSH MAY W10131113 Contact Us For Availability
43
SCREW MAY 3390647 Contact Us For Availability
43
SCREW MAY W10080360 Contact Us For Availability
44
MAY W10135194 MAY W10135194 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10119255 MAY W10119255 Contact Us For Availability
45
DISPENSER, FASCIA MAY W10137461 Contact Us For Availability
45
ASSEMBLY, LINT DUCT MAY W10119263 Contact Us For Availability
46
Insert MAY W10189313 Contact Us For Availability
46
BOARD, CONTROL MAY W10166301 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
47
Screw 8-32 x 1/4 MAY 488234 Contact Us For Availability
47
Bracket, Control MAY 8563727 Contact Us For Availability
47
THERMOSTAT MAY W10168175 Contact Us For Availability
48
SEAL-CONSOLE MAY W10187276 Contact Us For Availability
48
Plug, Front Panel MAY 8565043 Contact Us For Availability
48
CAP, PLUG MAY W10128544 Contact Us For Availability
49
ASSEMBLY, CAM & SECURITY LOCK MAY 8316526 Contact Us For Availability
49
SCREW MAY W10080710 Contact Us For Availability
49
MAY 279457 MAY 279457 Contact Us For Availability
50
PANEL, FRONT MAY W10255282 Contact Us For Availability
50
MAY 8529007 MAY 8529007 Contact Us For Availability
51
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
52
Seal, Foam MAY 8318396 Contact Us For Availability
53
MAY 3391943 MAY 3391943 Contact Us For Availability
54
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
55
TRANSFORMER MAY W10205520 Contact Us For Availability
56
TRANSFORMER, 240 - 120 VAC MAY W10237958 Contact Us For Availability
58
MAY 8564011 MAY 8564011 Contact Us For Availability
59
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, DRY RACK MAY 8563738 Contact Us For Availability
× ![]()
