Model Maytag MDE20CSAYW0 LAUNDRY, COMMERCIAL, ELECTRIC DRYER – Common Parts & Diagrams

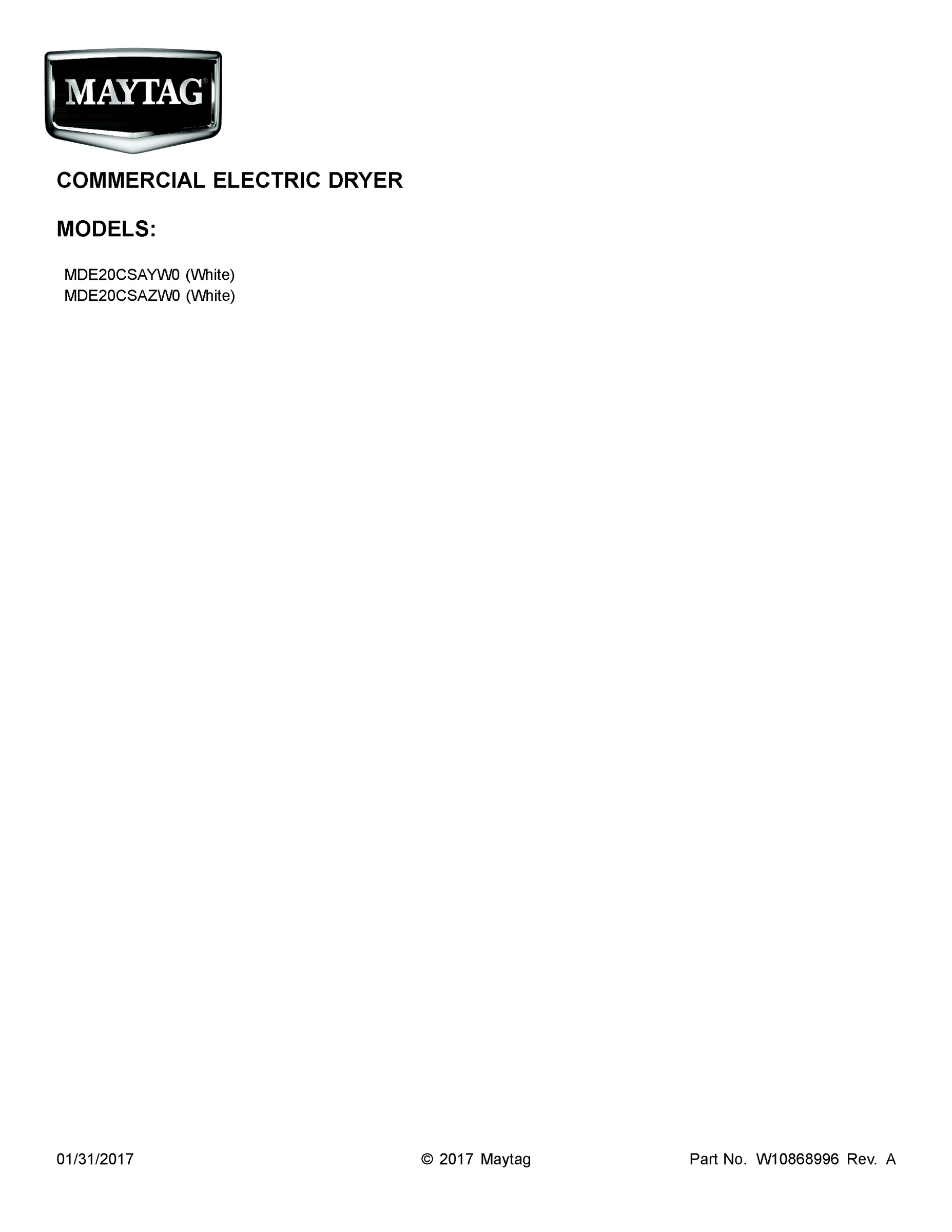

01 - COVER SHEET

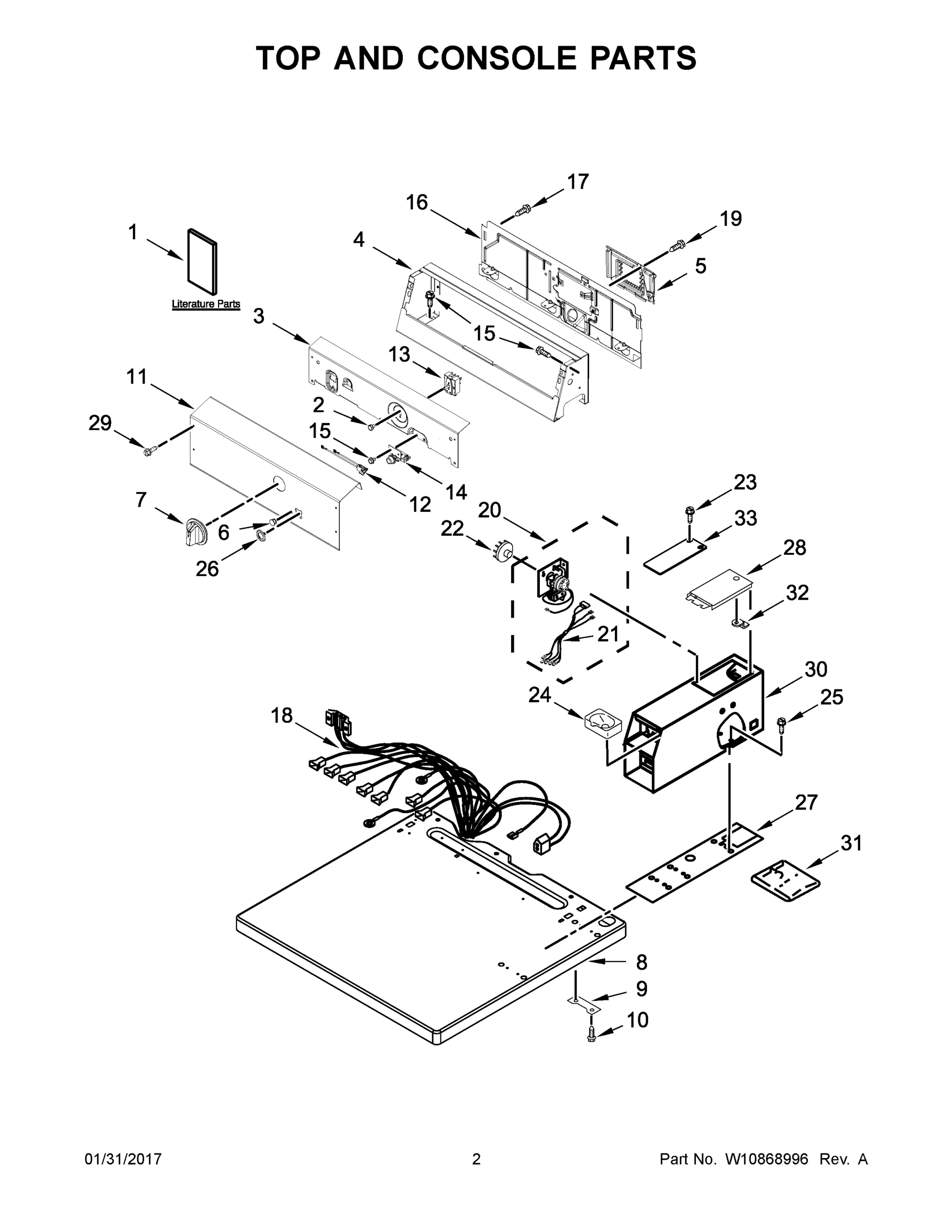

02 - TOP AND CONSOLE PARTS

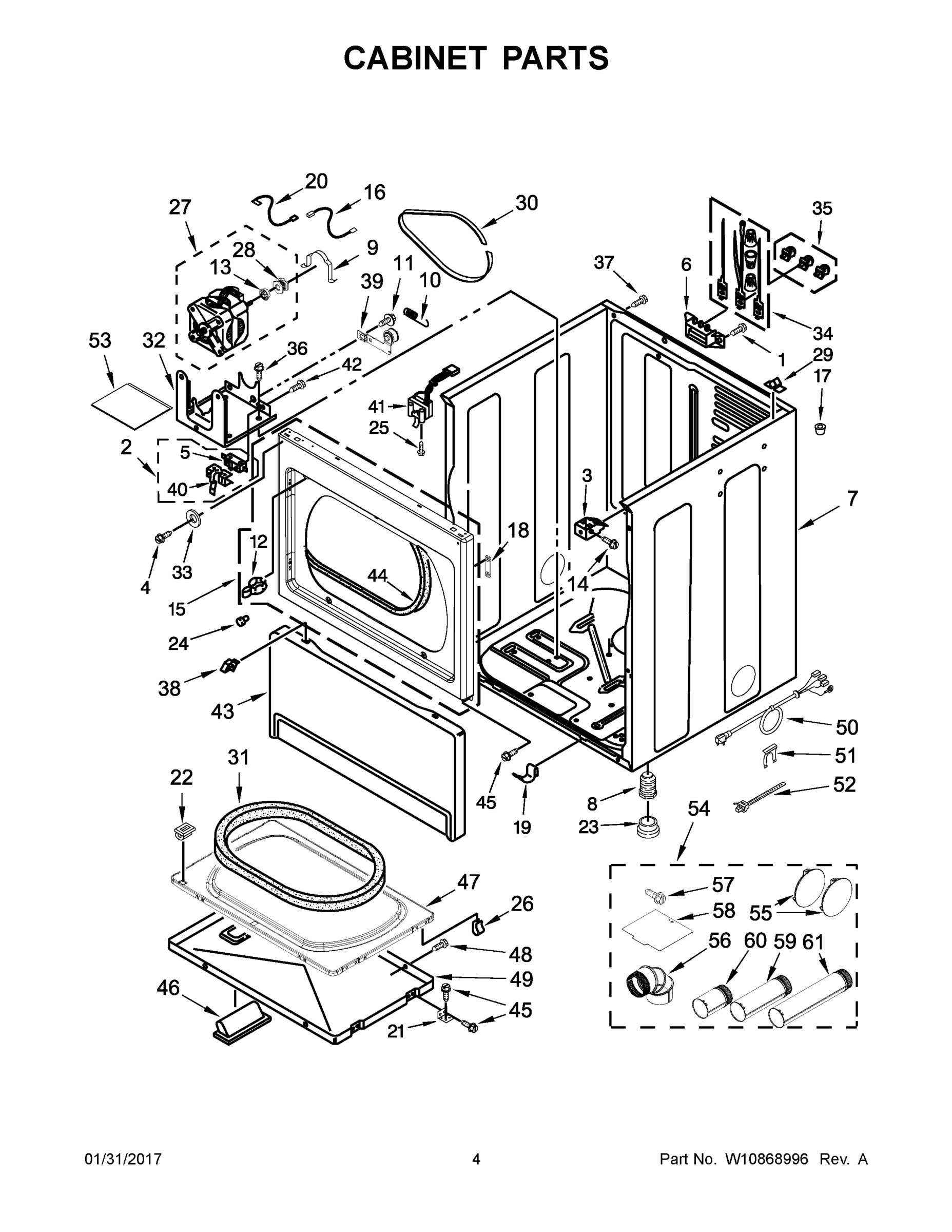

03 - CABINET PARTS

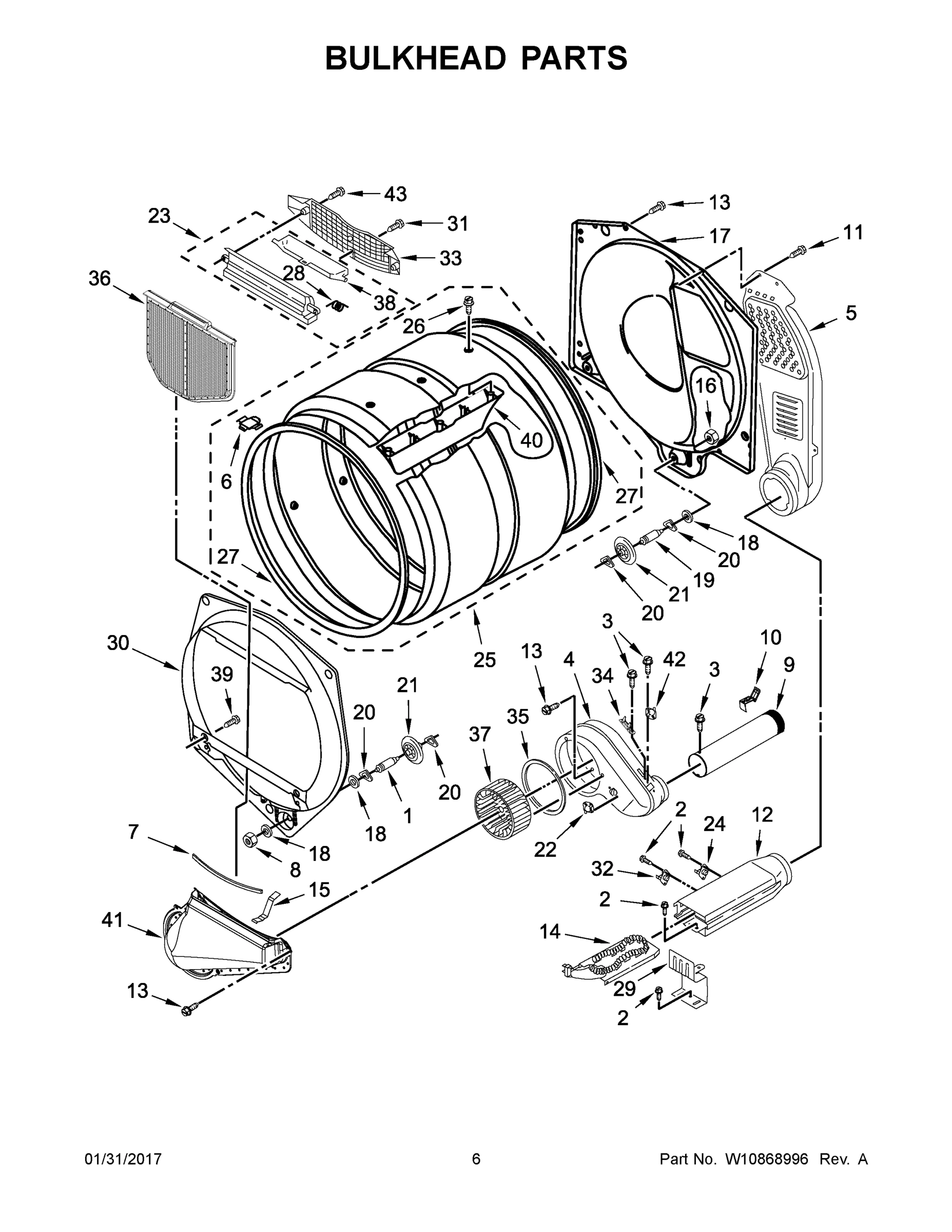

04 - BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE20CSAYW0 LAUNDRY, COMMERCIAL, ELECTRIC DRYER
1
MAY W10868655 MAY W10868655 Contact Us For Availability
1
SCREW MAY 3393008 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1A
WIRING DIAGRAM MDE20CSAYW0 MAY W10296776 Contact Us For Availability
1B
WIRING DIAGRAM MDE20CSAZW0 MAY W10296777 Contact Us For Availability
2
SCREW MAY W10139100 Contact Us For Availability
2
SWITCH ASSEMBLY MAY 8066134 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
BRACKET CONTROL MAY W10461070 Contact Us For Availability
3
SCREW MAY 8533971 Contact Us For Availability
3
CLIP, FRONT PANEL MAY 3391846 Contact Us For Availability
4
CONSOLE MAY W10461094 Contact Us For Availability
4
HOUSING, BLOWER MAY W10135254 Contact Us For Availability
5
COVER, TERMINAL BLOCK MAY W10286180 Contact Us For Availability
5
SWITCH - BELT MAY 3394881 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
INDICATOR LIGHTS ASSEMBLY MAY W10133502 Contact Us For Availability
6
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
6
PLUG, DRUM HOLE MAY 8066086 Contact Us For Availability
7
KNOB MAY W10133507 Contact Us For Availability
7
CABINET (WHITE) MAY W10547697 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
8
TOP (WHITE) MAY W10136707 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
PLATE, MOUNTING MAY 3347825 Contact Us For Availability
9
CLAMP, MOTOR MAY 660658 Contact Us For Availability
9
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
10
SCREW MAY 98445 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
MAY W10845278 MAY W10845278 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 693995 Contact Us For Availability
12
LAMP, INDICATOR MAY W10662107 Contact Us For Availability
12
STRIKE, DOOR MAY 696144 Contact Us For Availability
12
ASSEMBLY, WELD HEATER BOX MAY W10608837 Contact Us For Availability
13
SWITCH, CYCLE SELECTION MAY W10327105 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
14
SWITCH, PUSH TO START MAY W10424310 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
ELEMENT, HEATER MDE20CSAYW0 MAY W10832958 Contact Us For Availability
14A
ELEMENT, HEATER MDE20CSAZW0 MAY W10157669 Contact Us For Availability
15
PANEL, FRONT (WHITE) MAY W10192882 Contact Us For Availability
15
CLIP, SPRING MAY W10345456 Contact Us For Availability
16
MAY W10863354 MAY W10863354 Contact Us For Availability
16
WIRE, BELT SWITCH MAY W10167612 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
CONE, WEDGE MAY 356674 Contact Us For Availability
17
BULKHEAD, REAR MAY 3387809 Contact Us For Availability
18
HARNESS, MAIN MDE20CSAYW0 MAY W10129843 Contact Us For Availability
18
PLUG, HINGE (WHITE) MAY W10191265 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18A
HARNESS, MAIN MDE20CSAZW0 MAY W10164588 Contact Us For Availability
19
SCREW MAY 98139 Contact Us For Availability
19
CLIP MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
TIMER & HARNESS ASSEMBLY MAY W10135259 Contact Us For Availability
20
WIRE, JUMPER (BROKEN BELT SWITCH) MAY 3398948 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
21
HARNESS, TIMER MAY W10177791 Contact Us For Availability
21
ASSEMBLY, HINGE & PIN (SILVER) MAY W10279703 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
TIMING CAM, 3-PIN (60 MINUTES) MAY 3387974 Contact Us For Availability
22
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
22
THERMOSTAT 155~F ELECTRONIC MAY W10178809 Contact Us For Availability
22A
TIMING CAM, 6-PIN (30 MINUTES) MAY 343777 Contact Us For Availability
23
SCREW MAY 96435 Contact Us For Availability
23
BOOT, FOOT MAY 3391943 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
24
FUNNEL, COIN MAY W10133509 Contact Us For Availability
24
BUMPER MAY 693152 Contact Us For Availability
24
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 279973 Contact Us For Availability
25
BOLT MAY 3349065 Contact Us For Availability
25
SCREW MAY 697773 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
26
BEZEL - PTS MAY W10510149 Contact Us For Availability
26
NUT, "U" MAY W10131123 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
27
CUSHION, METER CASE MAY 3954812 Contact Us For Availability
27
MOTOR MAY W10396031 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
28
ASSEMBLY, SERVICE DOOR MAY 3351136 Contact Us For Availability
28
PULLEY, MOTOR MAY 3394341 Contact Us For Availability
28
SPRING, LINT SCREEN DOOR MAY 3394986 Contact Us For Availability
29
SCREW MAY W10386302 Contact Us For Availability
29
LOCK TOP MAY 345670 Contact Us For Availability
29
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
30
METER CASE MAY W10529172 Contact Us For Availability
30
BELT, DRIVE MAY W10131172 Contact Us For Availability
30
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
31
KIT, VERTICAL 8-COIN MAY 3954807 Contact Us For Availability
31
SEAL, DOOR MAY 3390735 Contact Us For Availability
31
SCREW MAY 695240 Contact Us For Availability
32
CAM, COMMERCIAL LOCK MAY W10156125 Contact Us For Availability
32
BRACKET, MOTOR MAY 3387118 Contact Us For Availability
32
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
33
EXTENSION MAY W10153513 Contact Us For Availability
33
WASHER MAY 3392186 Contact Us For Availability
33
GRILL, OUTLET MAY W10692558 Contact Us For Availability
34
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
34
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
35
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
35
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
36
SCREW MAY 343641 Contact Us For Availability
36
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
37
SCREW MAY W10773242 Contact Us For Availability
37
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
38
RETAINER MAY 3388229 Contact Us For Availability
38
DOOR, LINT SCREEN MAY W10685668 Contact Us For Availability
39
PULLEY-IDLER ASSEMBLY MAY W10344193 Contact Us For Availability
39
SCREW MAY 3357011 Contact Us For Availability
40
LEVER SWITCH MAY 8066120 Contact Us For Availability
40
BAFFLE, DRUM MAY 697693 Contact Us For Availability
41
SWITCH, DOOR MAY 3406109 Contact Us For Availability
41
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
42
SCREW MAY 98129 Contact Us For Availability
42
THERMOSTAT MAY W10131836 Contact Us For Availability
43
PANEL, TOE (WHITE) MAY 697215 Contact Us For Availability
43
SCREW MAY 3387230 Contact Us For Availability
44
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
45
SCREW MAY 342055 Contact Us For Availability
46
HANDLE, DOOR MAY W10116360 Contact Us For Availability
47
DOOR, REAR MAY W10323061 Contact Us For Availability
48
SCREW MAY W10139210 Contact Us For Availability
49
DOOR, FRONT MAY W10322546 Contact Us For Availability
50
CORD, POWER MAY W10712173 Contact Us For Availability
51
CLIP, STRAIN RELIEF MAY 694415 Contact Us For Availability
52
CABLE TIE MAY W10155270 Contact Us For Availability
53
MOTOR, SOUND PAD MAY W10836094 Contact Us For Availability
54
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY 279818 Contact Us For Availability
55
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
56
ELBOW MAY 49026 Contact Us For Availability
57
SCREW MAY 488729 Contact Us For Availability
58
PLATE, COVER MAY 3394331 Contact Us For Availability
59
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
60
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
61
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER VENT TESTING MAY 8522199 Contact Us For Availability
× ![]()
