Model Maytag MDE18MNAGW0 ELECTRIC DRYER – Common Parts & Diagrams

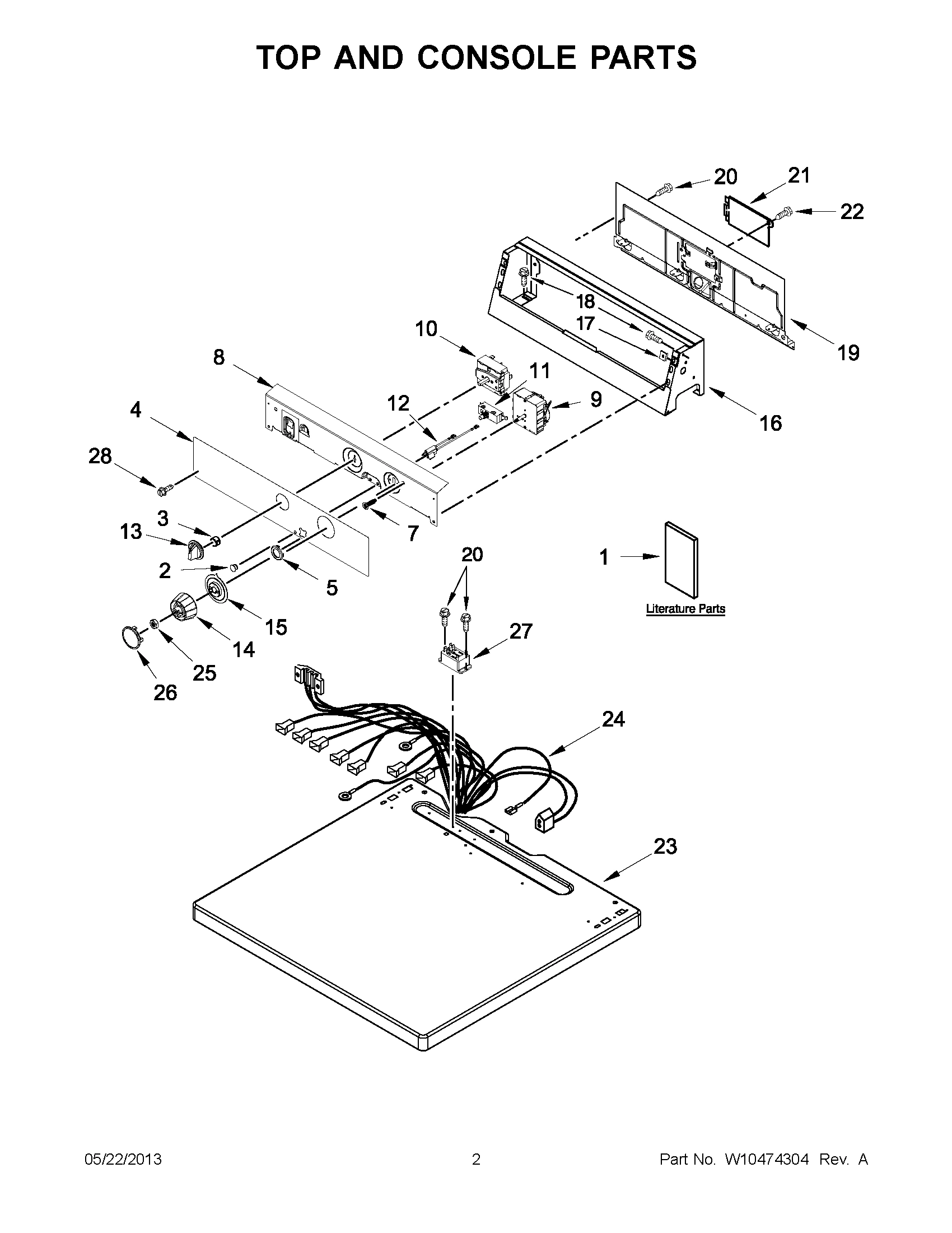

01 - TOP AND CONSOLE PARTS

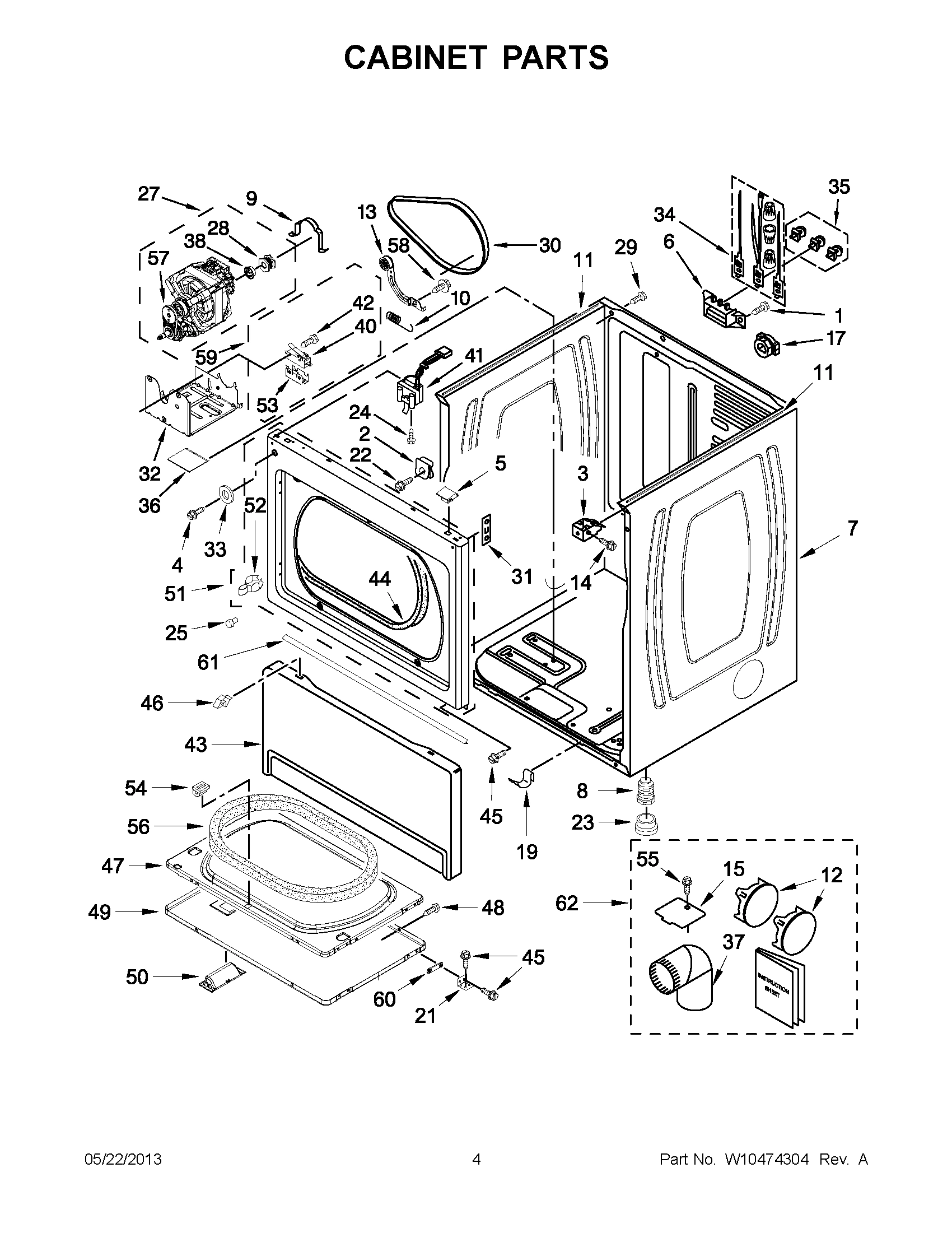

02 - CABINET PARTS

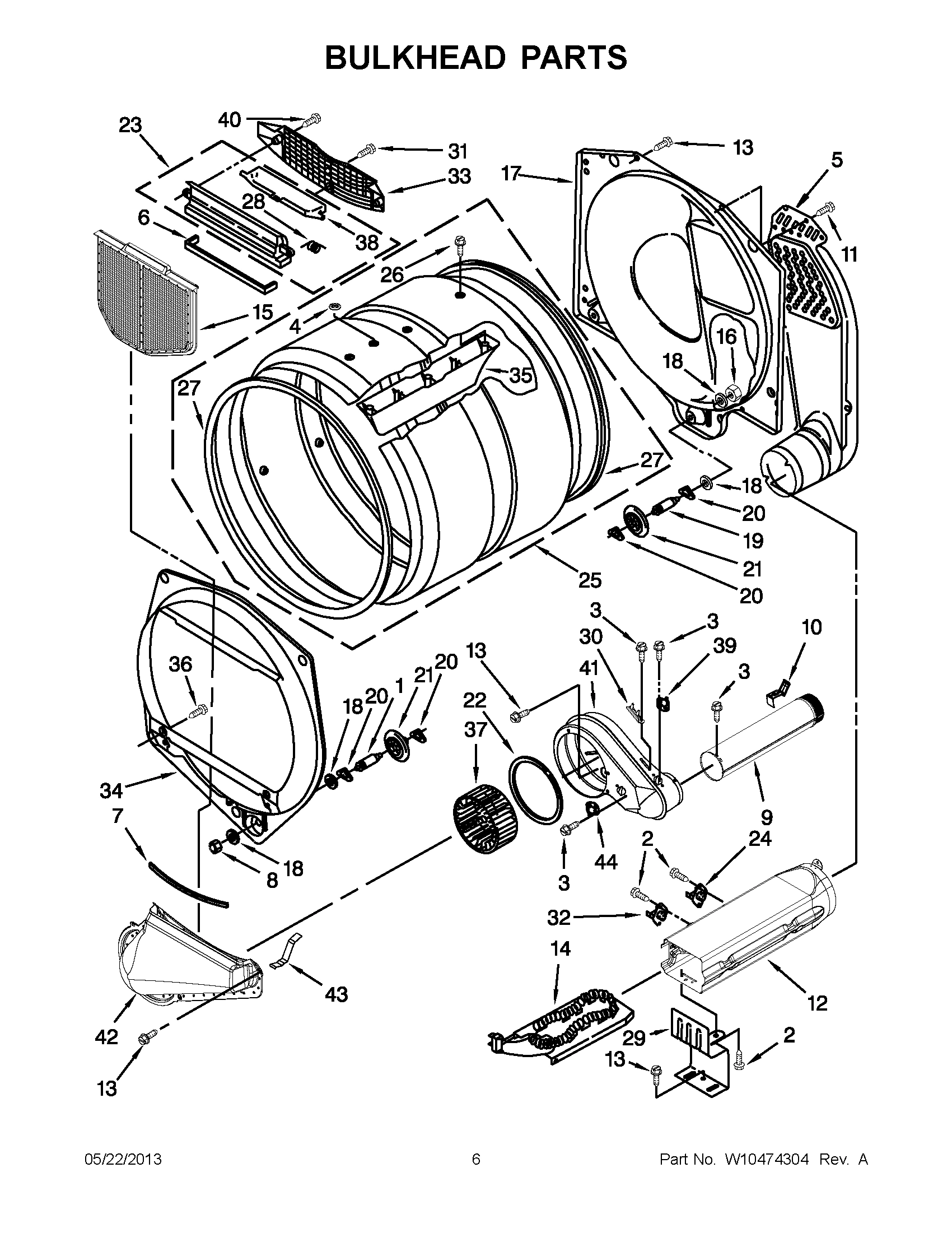

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE18MNAGW0 ELECTRIC DRYER
1
MAY W10396192 MAY W10396192 Contact Us For Availability
1
MAY W10474275 MAY W10474275 Contact Us For Availability
1
MAY 3393008 MAY 3393008 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
2
MAY W10133502 MAY W10133502 Contact Us For Availability
2
NUT, ``U`` MAY W10131123 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
MAY W10140928 MAY W10140928 Contact Us For Availability
3
Screw MAY 8533971 Contact Us For Availability
3
Clip, Front Panel MAY 3391846 Contact Us For Availability
4
MAY W10506025 MAY W10506025 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
CAP, PLUG MAY W10128544 Contact Us For Availability
5
MAY W10510149 MAY W10510149 Contact Us For Availability
5
LOCK-TOP MAY 345670 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
MAY 3397659 MAY 3397659 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY W10139100 MAY W10139100 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
MAY W10461071 MAY W10461071 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
MAY W10157945 MAY W10157945 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY W10121167 MAY W10121167 Contact Us For Availability
10
MAY W10327100 MAY W10327100 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
11
MAY W10488054 MAY W10488054 Contact Us For Availability
11
Seal, Foam MAY 8318396 Contact Us For Availability
11
Screw MAY 693995 Contact Us For Availability
12
Lamp-Indicator MAY W10139459 Contact Us For Availability
12
MULTIVENT PLUG (WHITE) MAY 697750 Contact Us For Availability
12
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
13
MAY W10133507 MAY W10133507 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
Screw MAY 489463 Contact Us For Availability
14
MAY W10133505 MAY W10133505 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
Element, Heater MAY 3387749 Contact Us For Availability
15
MAY W10133506 MAY W10133506 Contact Us For Availability
15
MAY 3394331 MAY 3394331 Contact Us For Availability
15
MAY W10596627 MAY W10596627 Contact Us For Availability
16
MAY W10461095 MAY W10461095 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
MAY 8316644 MAY 8316644 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10121161 MAY W10121161 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
MAY W10096918 MAY W10096918 Contact Us For Availability
21
ASSEMBLY, HINGE & PIN MAY W10279703 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10386302 MAY W10386302 Contact Us For Availability
22
SEAL, PLATE COVER MAY W10181918 Contact Us For Availability
23
TOP (WHITE) MAY W10136704 Contact Us For Availability
23
MAY 3391943 MAY 3391943 Contact Us For Availability
23
MAY W10181927 MAY W10181927 Contact Us For Availability
24
MAY W10386329 MAY W10386329 Contact Us For Availability
24
SCREW MAY 697773 Contact Us For Availability
24
CUT-OFF, THERMAL MAY W10141623 Contact Us For Availability
25
MAY W10155650 MAY W10155650 Contact Us For Availability
25
MAY 693152 MAY 693152 Contact Us For Availability
25
MAY W10545922 MAY W10545922 Contact Us For Availability
26
MAY W10133501 MAY W10133501 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY 1188043 MAY 1188043 Contact Us For Availability
27
ASSEMBLY, MOTOR 50 HZ. MAY W10289662 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10167237 MAY W10167237 Contact Us For Availability
28
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
29
MAY 8533974 MAY 8533974 Contact Us For Availability
29
MAY W10119253 MAY W10119253 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
LIMITER, THERMAL 192~F (89C) MAY W10167627 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
31
SCREW MAY 695240 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
THERMOSTAT MAY W10168175 Contact Us For Availability
33
WASHER MAY 3391948 Contact Us For Availability
33
MAY W10181926 MAY W10181926 Contact Us For Availability
34
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
34
MAY 697557 MAY 697557 Contact Us For Availability
35
MAY 279393 MAY 279393 Contact Us For Availability
35
Baffle, Drum MAY 697693 Contact Us For Availability
36
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
36
SCREW MAY 3357011 Contact Us For Availability
37
ELBOW MAY 49026 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
MAY 3393657 MAY 3393657 Contact Us For Availability
38
MAY W10181925 MAY W10181925 Contact Us For Availability
39
THERMOSTAT, 140° F CYCLING MAY W10194158 Contact Us For Availability
40
ASSEMBLY, SWITCH & ACTUATOR MAY W10410873 Contact Us For Availability
40
SCREW MAY 3387230 Contact Us For Availability
41
MAY W10237959 MAY W10237959 Contact Us For Availability
41
MAY W10119255 MAY W10119255 Contact Us For Availability
42
MAY 3400934 MAY 3400934 Contact Us For Availability
42
ASSEMBLY, LINT DUCT MAY W10286419 Contact Us For Availability
43
TOE PANEL (WHITE) MAY 697215 Contact Us For Availability
43
MAY W10345456 MAY W10345456 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
THERMOSTAT 155°F ELECTRONIC MAY W10206200 Contact Us For Availability
45
MAY 342055 MAY 342055 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
47
MAY W10323061 MAY W10323061 Contact Us For Availability
48
SCREW MAY W10080300 Contact Us For Availability
49
MAY W10322546 MAY W10322546 Contact Us For Availability
50
MAY W10116360 MAY W10116360 Contact Us For Availability
51
FRONT PANEL (WHITE) MAY W10192882 Contact Us For Availability
52
MAY 696144 MAY 696144 Contact Us For Availability
53
MAY 8564011 MAY 8564011 Contact Us For Availability
54
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
55
SCREW MAY 3390647 Contact Us For Availability
56
MAY 3390735 MAY 3390735 Contact Us For Availability
57
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
58
SCREW MAY 3389420 Contact Us For Availability
59
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
60
PLUG, HINGE (WHITE) MAY W10191265 Contact Us For Availability
61
MAY W10576519 MAY W10576519 Contact Us For Availability
62
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
× ![]()
