Model Maytag MDE17PDAYW1 ELECTRIC DRYER – Common Parts & Diagrams

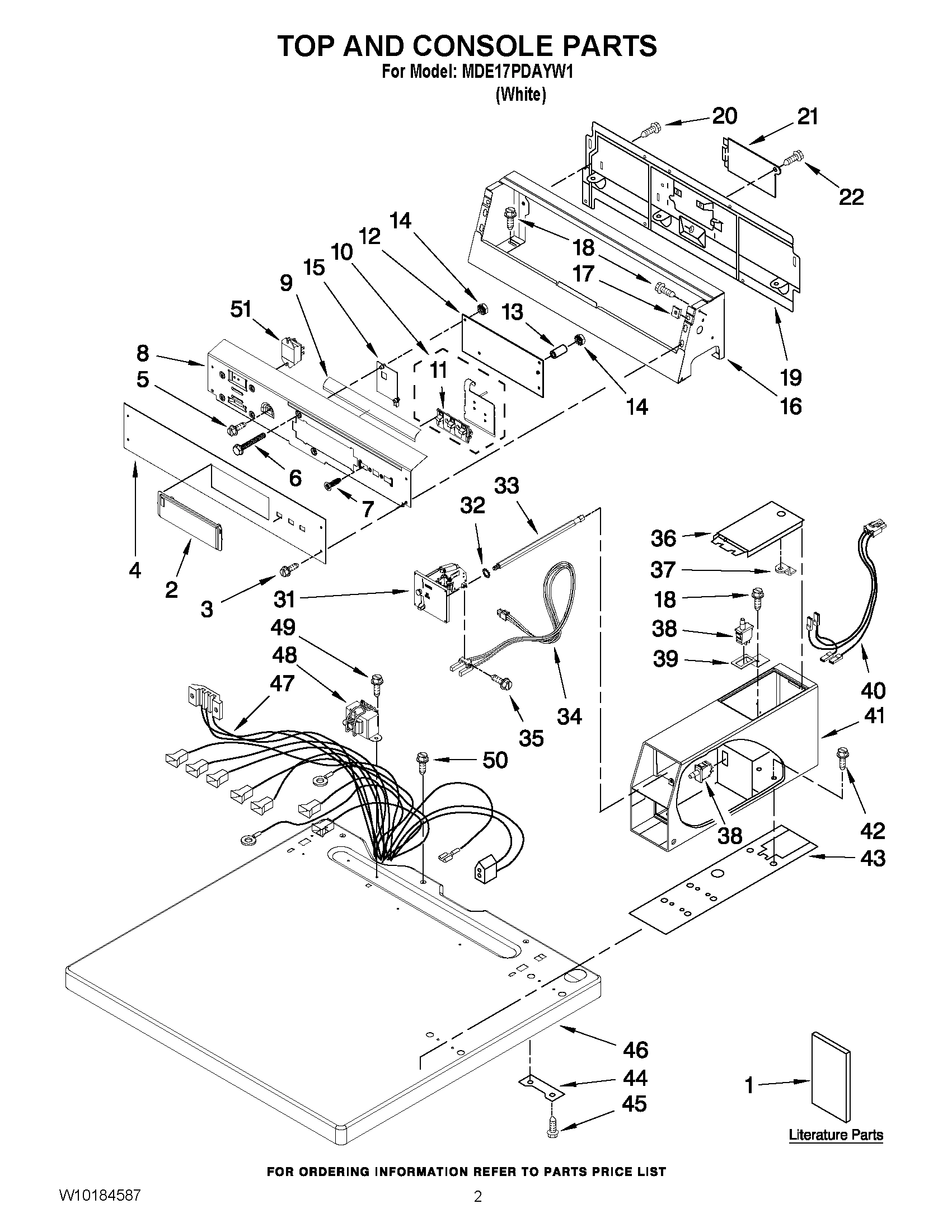

01 - TOP AND CONSOLE PARTS

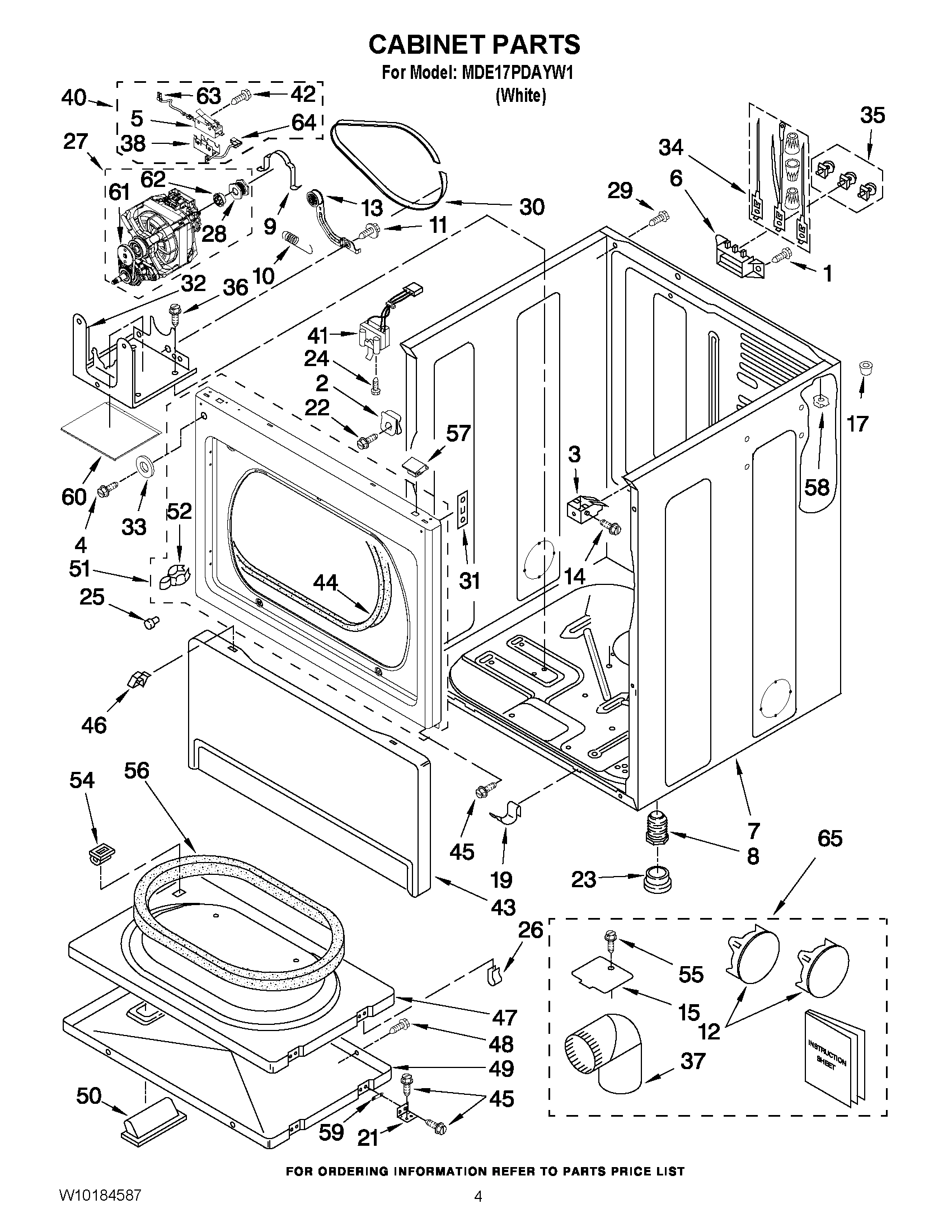

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE17PDAYW1 ELECTRIC DRYER
1
MAY W10183571 MAY W10183571 Contact Us For Availability
1
MAY W10184578 MAY W10184578 Contact Us For Availability
1
MAY W10184587 MAY W10184587 Contact Us For Availability
1
MAY 3393008 MAY 3393008 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
2
Cover, Display MAY W10131114 Contact Us For Availability
2
NUT, No.8 U TYPE MAY W10131123 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
Screw MAY 8533971 Contact Us For Availability
3
Clip, Front Panel MAY 3391846 Contact Us For Availability
4
MAY W10135181 MAY W10135181 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
MAY 8066086 MAY 8066086 Contact Us For Availability
5
Nut, 8-32 x 3/8 MAY W10142728 Contact Us For Availability
5
Switch, Broken Belt MAY 8564010 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
6
SCREW MAY W10137322 Contact Us For Availability
6
MAY 3397659 MAY 3397659 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY W10140652 MAY W10140652 Contact Us For Availability
7
Cabinet MAY 8310656 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
MAY W10124214 MAY W10124214 Contact Us For Availability
8
Foot, Dryer (Plastic) MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
9
Deflector MAY W10133515 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY 8066224 MAY 8066224 Contact Us For Availability
10
Puch Button & Switch Assembly MAY W10135233 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
Clip MAY 8572105 Contact Us For Availability
11
Push Button MAY W10131113 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
Screw MAY 693995 Contact Us For Availability
12
MAY W10130081 MAY W10130081 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 3392537 MAY 3392537 Contact Us For Availability
13
MAY W10133514 MAY W10133514 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
IDLER ASSEMBLY MAY W10141380 Contact Us For Availability
14
NUT, 6-32 MAY W10139046 Contact Us For Availability
14
SCREW MAY 3391915 Contact Us For Availability
14
MAY 3387748 MAY 3387748 Contact Us For Availability
15
MAY W10161476 MAY W10161476 Contact Us For Availability
15
MAY 3394331 MAY 3394331 Contact Us For Availability
15
Screen, Lint MAY W10049370 Contact Us For Availability
16
Console MAY W10205153 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
17
CONE WEDGE MAY 356674 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
18
MAY W10139210 MAY W10139210 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY 3978608 MAY 3978608 Contact Us For Availability
19
CLIP MAY 297092 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
MAY 8576583 MAY 8576583 Contact Us For Availability
21
HINGE AND PIN MAY 3389247 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
22
SCREW MAY W10131119 Contact Us For Availability
22
SCREW MAY 3390814 Contact Us For Availability
22
MAY 697770 MAY 697770 Contact Us For Availability
23
MAY 3391943 MAY 3391943 Contact Us For Availability
23
Housing, Outlet MAY 8563755 Contact Us For Availability
24
SCREW MAY 697773 Contact Us For Availability
24
Cut-Off, Thermal (Includes Illus. 32) MAY 8318314 Contact Us For Availability
25
MAY 693152 MAY 693152 Contact Us For Availability
25
Drum Complete MAY 8318215 Contact Us For Availability
26
NUT, ``U`` MAY 3389249 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MOTOR ASSEMBLY 60 HZ. MAY W10139766 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
PULLEY MAY 3394341 Contact Us For Availability
28
MAY 3394986 MAY 3394986 Contact Us For Availability
29
MAY 8533974 MAY 8533974 Contact Us For Availability
29
MAY 8066099 MAY 8066099 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
THERMAL LIMITER MAY 3392519 Contact Us For Availability
31
MAY W10133242 MAY W10133242 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
31
SCREW MAY 487909 Contact Us For Availability
32
Washer MAY W10068270 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
Thermostat 295 F MAY 3391914 Contact Us For Availability
33
MAY W10137319 MAY W10137319 Contact Us For Availability
33
WASHER MAY 3392186 Contact Us For Availability
33
MAY 8563756 MAY 8563756 Contact Us For Availability
34
Coin Optic Sensor Assembly MAY W10130178 Contact Us For Availability
34
Terminal, Brass & Tinned (3) (Includes Ill. 3 MAY 279318 Contact Us For Availability
34
MAY 697557 MAY 697557 Contact Us For Availability
35
SCREW MAY W10142655 Contact Us For Availability
35
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
35
Baffle, Drum MAY 697693 Contact Us For Availability
36
Door, Service MAY 3351136 Contact Us For Availability
36
SCREW MAY 3390663 Contact Us For Availability
36
SCREW MAY 3357011 Contact Us For Availability
37
MAY W10156125 MAY W10156125 Contact Us For Availability
37
MAY 279731 MAY 279731 Contact Us For Availability
37
MAY W10168564 MAY W10168564 Contact Us For Availability
38
MAY W10131838 MAY W10131838 Contact Us For Availability
38
MAY 8564011 MAY 8564011 Contact Us For Availability
38
MAY 8563758 MAY 8563758 Contact Us For Availability
39
Bracket, Service MAY W10133508 Contact Us For Availability
39
THERMOSTAT 155º F CYCLING MAY W10131836 Contact Us For Availability
40
Harness Wire Sensor Switch MAY W10139456 Contact Us For Availability
40
MAY W10155571 MAY W10155571 Contact Us For Availability
40
SCREW MAY 3387230 Contact Us For Availability
41
MAY W10136645 MAY W10136645 Contact Us For Availability
41
MAY 3406109 MAY 3406109 Contact Us For Availability
41
MAY W10135254 MAY W10135254 Contact Us For Availability
42
Bolt, Meter Case Mounting (5/16-24 X 1.00) MAY 3349065 Contact Us For Availability
42
Bolt, Meter Case Mounting (5/16-18 X 2 1/2) MAY 3353994 Contact Us For Availability
42
MAY W10002600 MAY W10002600 Contact Us For Availability
42
Lint Duct Assembly MAY 8066168 Contact Us For Availability
43
Cushion, Meter Case MAY 3954812 Contact Us For Availability
43
Panel, Toe MAY 697215 Contact Us For Availability
43
CLIP-SPRING MAY 8066208 Contact Us For Availability
44
MAY 3347825 MAY 3347825 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
THERMOSTAT 140°F ELECTRONIC MAY W10193019 Contact Us For Availability
45
SCREW MAY 98445 Contact Us For Availability
45
MAY 342055 MAY 342055 Contact Us For Availability
46
TOP MAY W10136707 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
47
MAY W10130183 MAY W10130183 Contact Us For Availability
47
MAY 3392563 MAY 3392563 Contact Us For Availability
48
TRANSFORMER, 120 TO 22.5 (VAC) MAY W10131839 Contact Us For Availability
48
SCREW MAY 694091 Contact Us For Availability
49
Door, Front MAY 3387872 Contact Us For Availability
50
SCREW MAY 3400000 Contact Us For Availability
50
MAY W10116360 MAY W10116360 Contact Us For Availability
51
MAY W10133335 MAY W10133335 Contact Us For Availability
51
MAY W10192882 MAY W10192882 Contact Us For Availability
52
MAY 696144 MAY 696144 Contact Us For Availability
54
MAY 3392538 MAY 3392538 Contact Us For Availability
56
MAY 3390735 MAY 3390735 Contact Us For Availability
57
LOCK-TOP MAY 345670 Contact Us For Availability
58
Cage Nut MAY 90406 Contact Us For Availability
59
PLUG, HINGE SCREW MAY W10191265 Contact Us For Availability
60
MAY W10212660 MAY W10212660 Contact Us For Availability
61
MAY 3405160 MAY 3405160 Contact Us For Availability
62
BELT, RESTRAIN MAY 3393657 Contact Us For Availability
63
Wire, Belt Switch (To Protector) MAY W10167613 Contact Us For Availability
64
MAY 8539892 MAY 8539892 Contact Us For Availability
65
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Kit, Dryer Repair MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
× ![]()
