Model Maytag MDE17CSBGW0 ELECTRIC DRYER – Common Parts & Diagrams

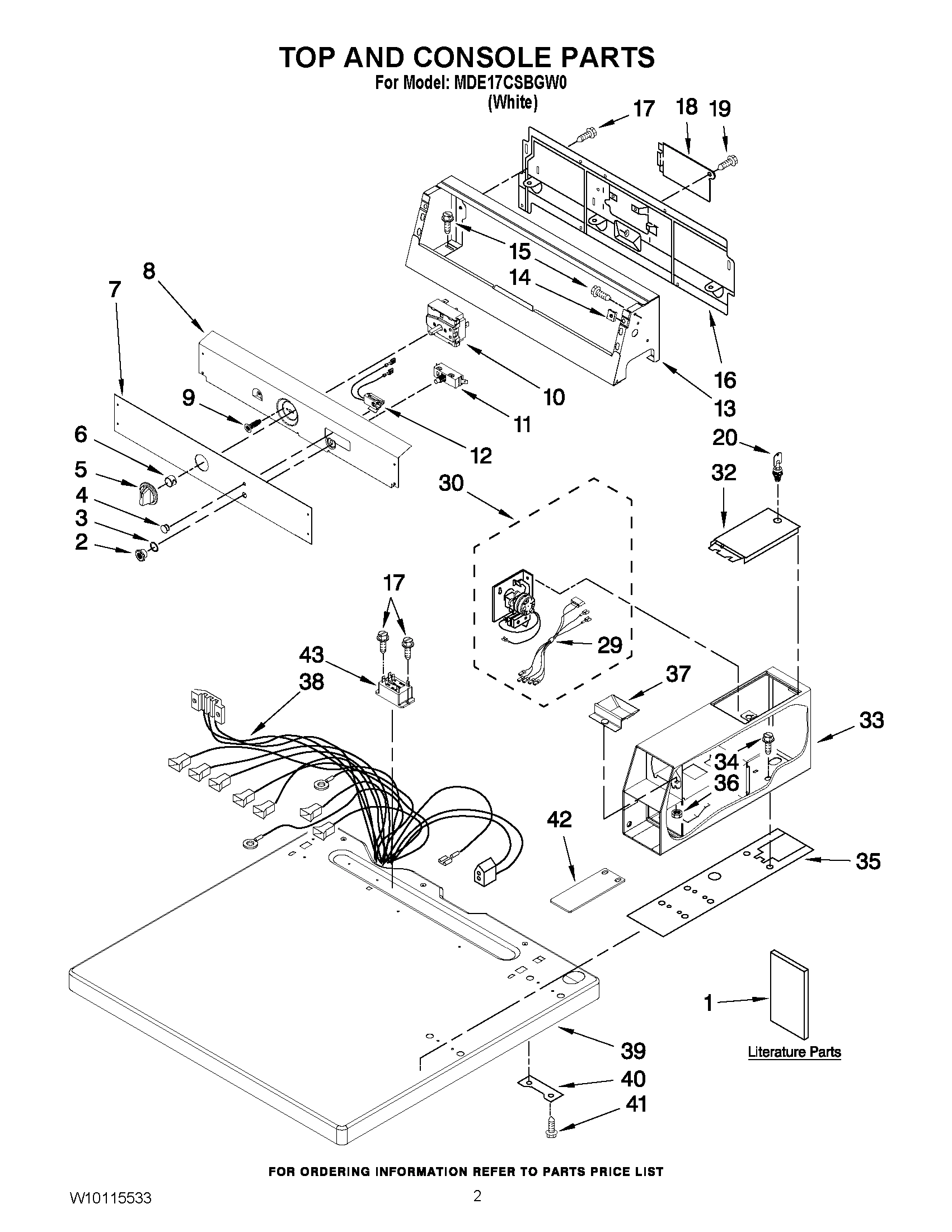

01 - TOP AND CONSOLE PARTS

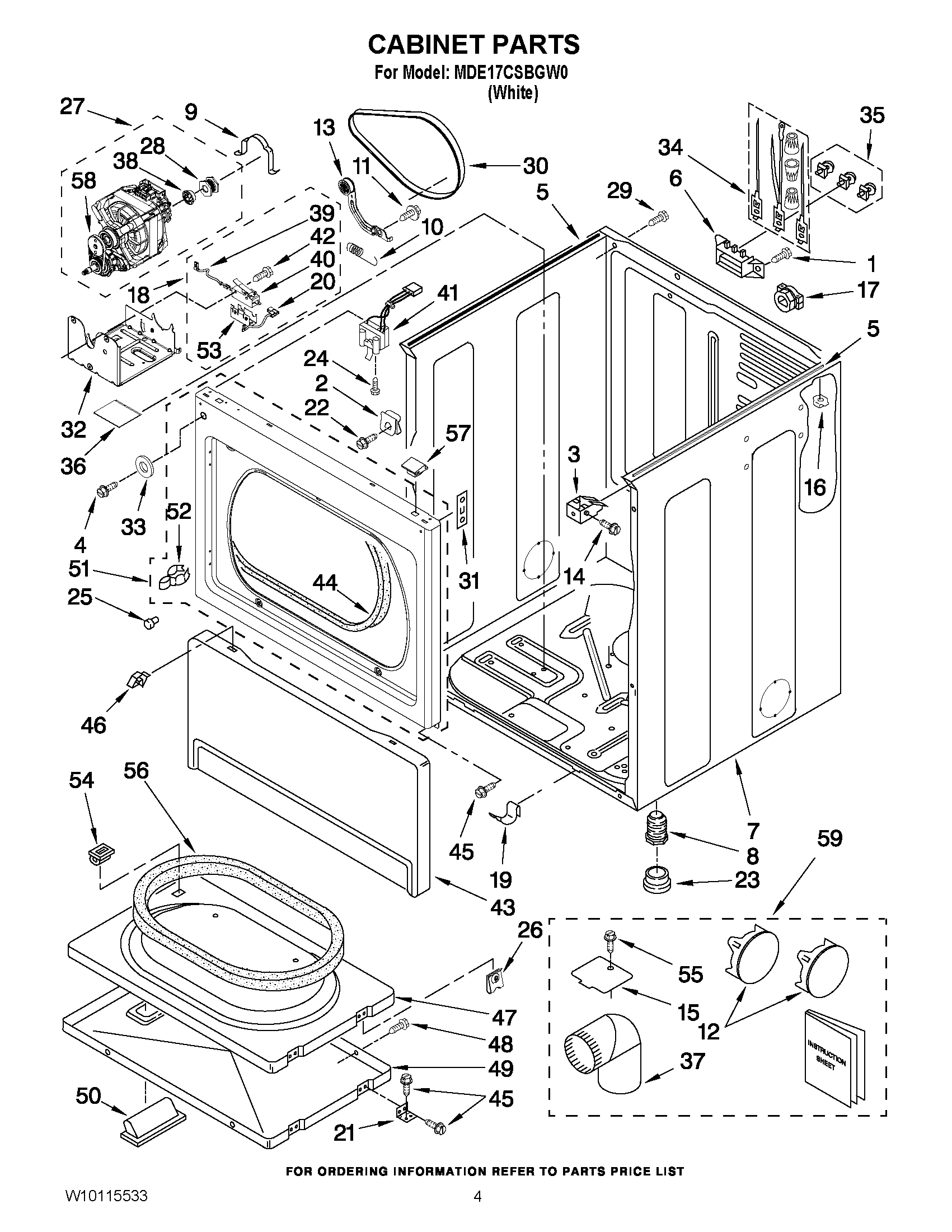

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE17CSBGW0 ELECTRIC DRYER
1
MAY W10115533 MAY W10115533 Contact Us For Availability
1
MAY W10115537 MAY W10115537 Contact Us For Availability
1
MAY W10163150 MAY W10163150 Contact Us For Availability
1
MAY 3393008 MAY 3393008 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
2
MAY W10146429 MAY W10146429 Contact Us For Availability
2
NUT, No.8 U TYPE MAY W10131123 Contact Us For Availability
2
SCREW MAY W10080300 Contact Us For Availability
3
MAY W10139799 MAY W10139799 Contact Us For Availability
3
Clip, Front Panel MAY 3391846 Contact Us For Availability
3
SCREW MAY W10080820 Contact Us For Availability
4
Lens, Pilot Light Amber MAY W10133502 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
MAY 8066086 MAY 8066086 Contact Us For Availability
5
MAY W10133507 MAY W10133507 Contact Us For Availability
5
Foam-Seal MAY 8318396 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
6
MAY W10140928 MAY W10140928 Contact Us For Availability
6
MAY 3397659 MAY 3397659 Contact Us For Availability
6
FOAM-SEAL MAY 697813 Contact Us For Availability
7
MAY W10135190 MAY W10135190 Contact Us For Availability
7
Cabinet MAY 8310656 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
MAY W10124213 MAY W10124213 Contact Us For Availability
8
Foot, Dryer (Plastic) MAY 3392100 Contact Us For Availability
8
NUT, 3/8 X 16 (R.H.) MAY W10080210 Contact Us For Availability
9
MAY W10139100 MAY W10139100 Contact Us For Availability
9
MAY W10121316 MAY W10121316 Contact Us For Availability
9
Exhaust Pipe MAY W10121167 Contact Us For Availability
10
MAY W10137919 MAY W10137919 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
Clip MAY 8572105 Contact Us For Availability
11
MAY W10181931 MAY W10181931 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
Screw MAY 693995 Contact Us For Availability
12
Lamp-Indicator MAY W10139459 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 3392537 MAY 3392537 Contact Us For Availability
13
Console MAY W10205153 Contact Us For Availability
13
SCREW MAY W10080700 Contact Us For Availability
13
IDLER ASSEMBLY MAY W10141380 Contact Us For Availability
14
MAY W10223793 MAY W10223793 Contact Us For Availability
14
Element, Heater MAY 3387749 Contact Us For Availability
15
MAY W10139210 MAY W10139210 Contact Us For Availability
15
MAY 3394331 MAY 3394331 Contact Us For Availability
15
Screen, Lint MAY W10049370 Contact Us For Availability
16
MAY W10135273 MAY W10135273 Contact Us For Availability
16
Cage Nut MAY 90406 Contact Us For Availability
16
THERMOSTAT 155°F ELECTRONIC MAY W10194158 Contact Us For Availability
17
Clip, Strain Relief MAY 8316644 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
18
MAY W10119283 MAY W10119283 Contact Us For Availability
18
MAY W10259136 MAY W10259136 Contact Us For Availability
18
MAY W10080960 MAY W10080960 Contact Us For Availability
19
SCREW MAY W10223801 Contact Us For Availability
19
CLIP MAY 297092 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
SERVICE DOOR LOCK MAY 8316526 Contact Us For Availability
20
MAY 8539892 MAY 8539892 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
HINGE AND PIN MAY 3389247 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
22
SCREW MAY W10131119 Contact Us For Availability
22
FOAM-SEAL MAY 697770 Contact Us For Availability
23
MAY 3391943 MAY 3391943 Contact Us For Availability
23
MAY W10181927 MAY W10181927 Contact Us For Availability
24
SCREW MAY W10080540 Contact Us For Availability
24
Cut-Off, Thermal (Includes Illus. 32) MAY W10141623 Contact Us For Availability
25
MAY 693152 MAY 693152 Contact Us For Availability
25
Drum Complete MAY 8528998 Contact Us For Availability
26
NUT, ``U`` MAY 3389249 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10142402 MAY W10142402 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
MAY W10167237 MAY W10167237 Contact Us For Availability
28
MAY 3394986 MAY 3394986 Contact Us For Availability
29
MAY W10111029 MAY W10111029 Contact Us For Availability
29
MAY 8533974 MAY 8533974 Contact Us For Availability
29
MAY W10119253 MAY W10119253 Contact Us For Availability
30
MAY W10135270 MAY W10135270 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY W10167627 MAY W10167627 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
31
SCREW MAY 487909 Contact Us For Availability
32
Door, Service MAY 3351136 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
THERMOSTAT 250° F MAY W10168175 Contact Us For Availability
33
MAY W10136649 MAY W10136649 Contact Us For Availability
33
WASHER MAY 3391948 Contact Us For Availability
33
Grill, Outlet MAY W10181926 Contact Us For Availability
34
MAY W10223799 MAY W10223799 Contact Us For Availability
34
Terminal, Brass & Tinned (3) (Includes Ill. 3 MAY 279318 Contact Us For Availability
34
MAY 697557 MAY 697557 Contact Us For Availability
35
Cushion, Meter Case MAY 3954812 Contact Us For Availability
35
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
35
Baffle, Drum MAY 697693 Contact Us For Availability
36
MAY W10139060 MAY W10139060 Contact Us For Availability
36
MAY W10212660 MAY W10212660 Contact Us For Availability
36
SCREW MAY W10080590 Contact Us For Availability
37
MAY W10133509 MAY W10133509 Contact Us For Availability
37
MAY 279731 MAY 279731 Contact Us For Availability
37
MAY W10168564 MAY W10168564 Contact Us For Availability
38
MAY W10242914 MAY W10242914 Contact Us For Availability
38
Restrain, Belt MAY 3393657 Contact Us For Availability
38
MAY W10181925 MAY W10181925 Contact Us For Availability
39
TOP MAY W10136707 Contact Us For Availability
39
MAY W10167613 MAY W10167613 Contact Us For Availability
39
THERMOSTAT 140°F CYCLING MAY W10206200 Contact Us For Availability
40
MAY 3347825 MAY 3347825 Contact Us For Availability
40
SWITCH-BELT MAY 8564010 Contact Us For Availability
40
SCREW MAY W10080640 Contact Us For Availability
41
MAY W10223798 MAY W10223798 Contact Us For Availability
41
Door Switch Assembly MAY W10237959 Contact Us For Availability
41
MAY W10119255 MAY W10119255 Contact Us For Availability
42
MAY W10153513 MAY W10153513 Contact Us For Availability
42
MAY 3400934 MAY 3400934 Contact Us For Availability
42
Lint Duct Assembly MAY 8066168 Contact Us For Availability
43
MAY 1188043 MAY 1188043 Contact Us For Availability
43
Panel, Toe MAY 697215 Contact Us For Availability
43
CLIP-SPRING MAY 8066208 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10080190 MAY W10080190 Contact Us For Availability
45
SCREW MAY W10080310 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
47
MAY 3392563 MAY 3392563 Contact Us For Availability
49
Door, Front MAY 3387872 Contact Us For Availability
50
MAY W10116360 MAY W10116360 Contact Us For Availability
51
FRONT PANEL MAY W10234293 Contact Us For Availability
52
Strike, Door MAY W10080240 Contact Us For Availability
53
MAY 8564011 MAY 8564011 Contact Us For Availability
54
MAY 3392538 MAY 3392538 Contact Us For Availability
55
SCREW MAY 3390647 Contact Us For Availability
56
MAY 3390735 MAY 3390735 Contact Us For Availability
57
LOCK-TOP MAY 345670 Contact Us For Availability
58
POLY V, BELT MAY 3405160 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Kit, Dryer Repair MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
× ![]()
