Model Maytag MDE17CSAGW0 ELECTRIC DRYER – Common Parts & Diagrams

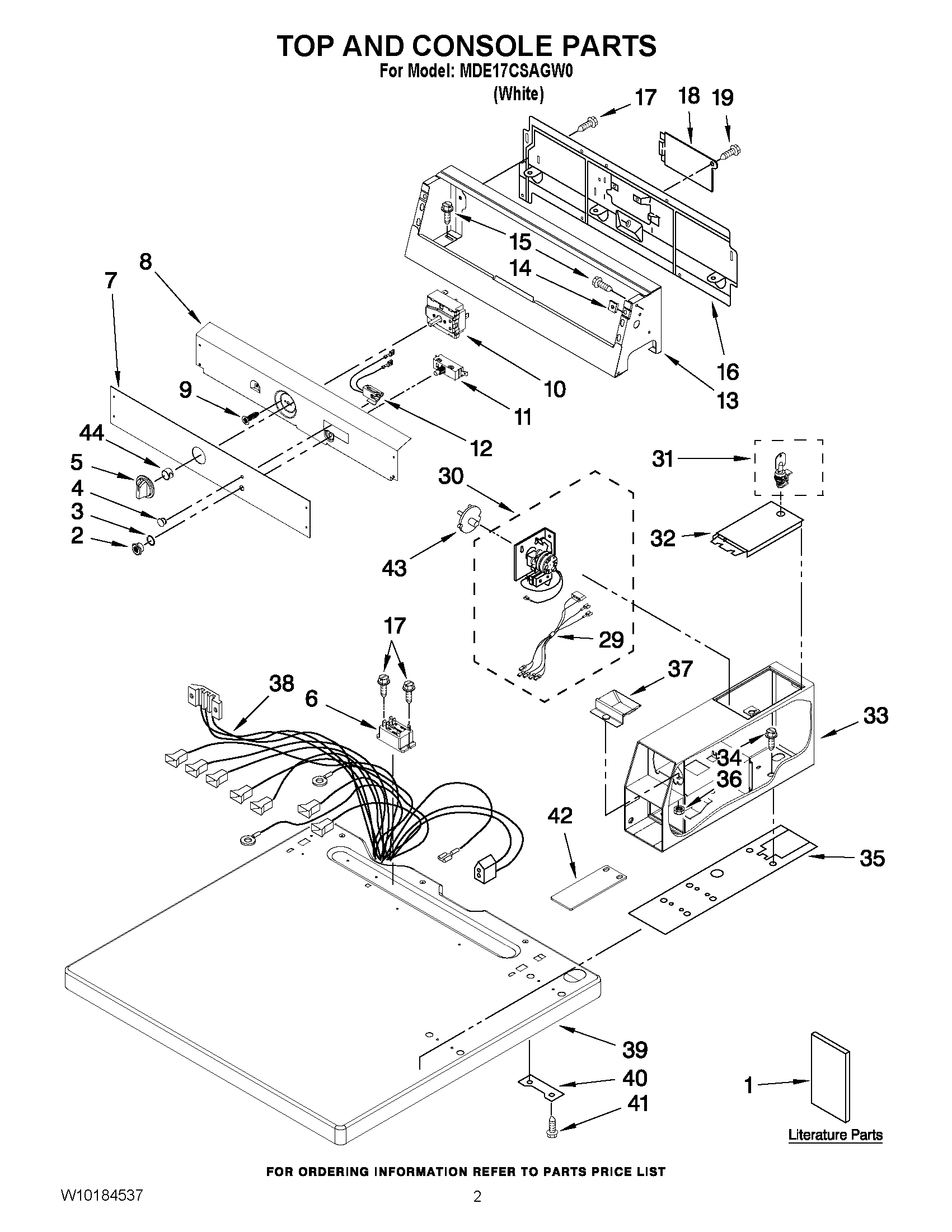

01 - TOP AND CONSOLE PARTS

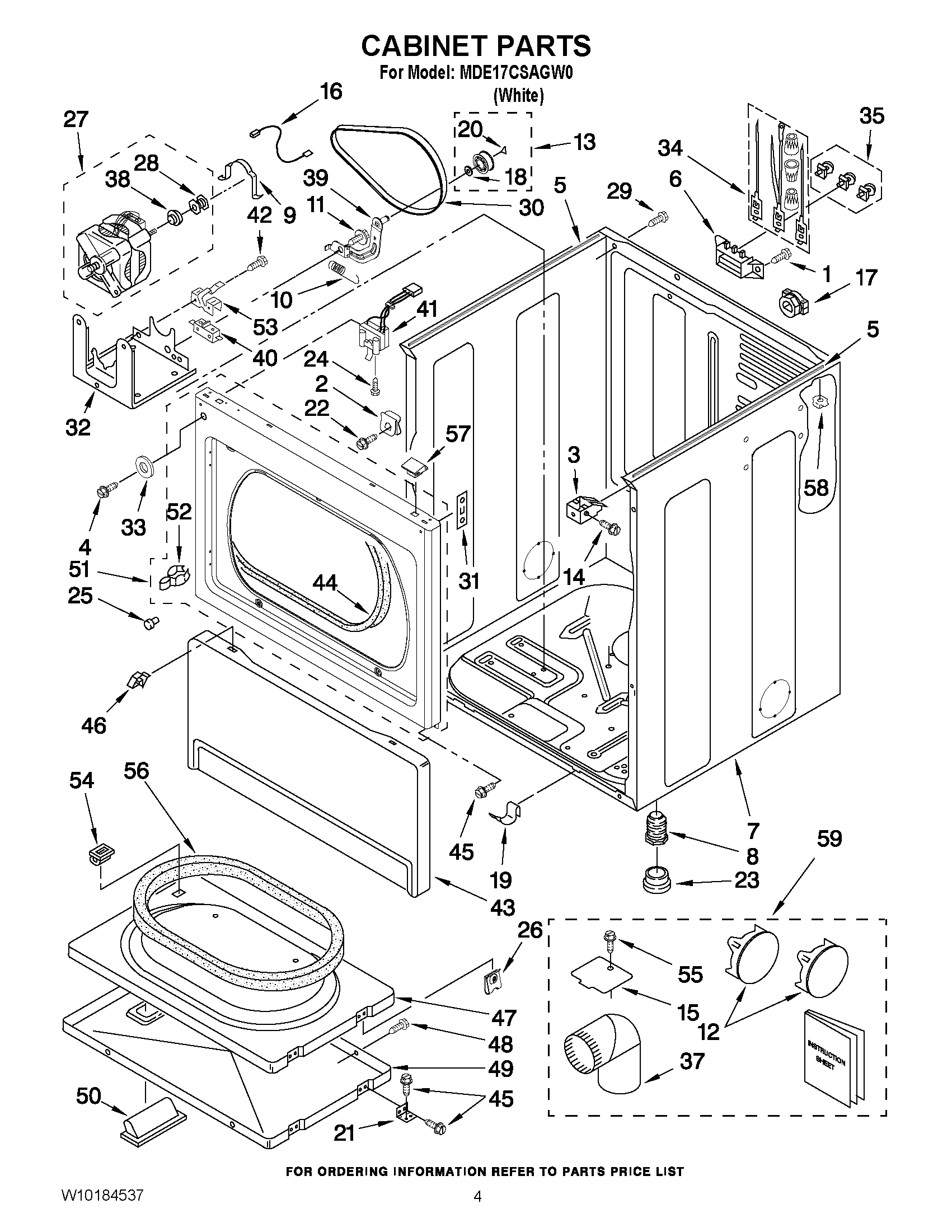

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDE17CSAGW0 ELECTRIC DRYER
1
MAY W10163150 MAY W10163150 Contact Us For Availability
1
MAY W10184536 MAY W10184536 Contact Us For Availability
1
MAY W10184537 MAY W10184537 Contact Us For Availability
1
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
2
MAY W10146429 MAY W10146429 Contact Us For Availability
2
NUT, No.8 U TYPE MAY W10131123 Contact Us For Availability
2
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
3
MAY W10139799 MAY W10139799 Contact Us For Availability
3
MAY 3391846 MAY 3391846 Contact Us For Availability
3
MAY W10080820 MAY W10080820 Contact Us For Availability
4
Lens, Pilot Light Amber MAY W10133502 Contact Us For Availability
4
Screw, 10-16 x 1/2 MAY 3400077 Contact Us For Availability
4
MAY 8066086 MAY 8066086 Contact Us For Availability
5
MAY W10133507 MAY W10133507 Contact Us For Availability
5
Foam-Seal MAY 8318396 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
6
MAY 1188043 MAY 1188043 Contact Us For Availability
6
MAY 3397659 MAY 3397659 Contact Us For Availability
6
FOAM-SEAL MAY 697813 Contact Us For Availability
7
MAY W10135190 MAY W10135190 Contact Us For Availability
7
Cabinet MAY 8310656 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
MAY W10124213 MAY W10124213 Contact Us For Availability
8
Foot, Dryer (Plastic) MAY 3392100 Contact Us For Availability
8
NUT, 3/8 X 16 (R.H.) MAY W10080210 Contact Us For Availability
9
Screw, 8-32 X 1/4 MAY W10139100 Contact Us For Availability
9
Clamp, Motor (2) MAY 660658 Contact Us For Availability
9
Exhaust Pipe MAY W10121167 Contact Us For Availability
10
MAY W10137919 MAY W10137919 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
Clip MAY 8572105 Contact Us For Availability
11
MAY W10181931 MAY W10181931 Contact Us For Availability
11
Screw MAY W10080670 Contact Us For Availability
11
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
12
Lamp-Indicator MAY W10139459 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 3392537 MAY 3392537 Contact Us For Availability
13
Console MAY W10205153 Contact Us For Availability
13
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
14
MAY 3391915 MAY 3391915 Contact Us For Availability
14
Element, Heater MAY 3387749 Contact Us For Availability
15
Screw, 8-18 x 5/16 MAY W10139210 Contact Us For Availability
15
MAY 3394331 MAY 3394331 Contact Us For Availability
15
Screen, Lint MAY W10049370 Contact Us For Availability
16
MAY W10135273 MAY W10135273 Contact Us For Availability
16
MAY 3394081 MAY 3394081 Contact Us For Availability
16
THERMOSTAT 155°F ELECTRONIC MAY W10206200 Contact Us For Availability
17
Clip, Strain Relief MAY 8316644 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
18
MAY W10119283 MAY W10119283 Contact Us For Availability
18
MAY 233520 MAY 233520 Contact Us For Availability
18
MAY W10080960 MAY W10080960 Contact Us For Availability
19
MAY W10223801 MAY W10223801 Contact Us For Availability
19
Clip (2) MAY 297092 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
MAY 3389247 MAY 3389247 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
22
Screw, 8-18 X 5/16 MAY W10131119 Contact Us For Availability
22
MAY W10181918 MAY W10181918 Contact Us For Availability
23
MAY 3391943 MAY 3391943 Contact Us For Availability
23
MAY W10181927 MAY W10181927 Contact Us For Availability
24
MAY W10080540 MAY W10080540 Contact Us For Availability
24
Cut-Off, Thermal (Includes Illus. 32) MAY W10141623 Contact Us For Availability
25
MAY 693152 MAY 693152 Contact Us For Availability
25
Drum Complete MAY 8528998 Contact Us For Availability
26
MAY 3389249 MAY 3389249 Contact Us For Availability
26
Screw, 11-16 x 3/4 MAY W10219342 Contact Us For Availability
27
Motor Assembly (50 Hz.) MAY 3404470 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
PULLEY MAY 3394341 Contact Us For Availability
28
MAY 3394986 MAY 3394986 Contact Us For Availability
29
MAY W10111029 MAY W10111029 Contact Us For Availability
29
Screw, 10-32 x 1/2 MAY 8533974 Contact Us For Availability
29
MAY W10119253 MAY W10119253 Contact Us For Availability
30
MAY W10135270 MAY W10135270 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY W10167627 MAY W10167627 Contact Us For Availability
31
SERVICE DOOR LOCK MAY 8316526 Contact Us For Availability
31
MAY 3390902 MAY 3390902 Contact Us For Availability
31
MAY 487909 MAY 487909 Contact Us For Availability
32
Door, Service MAY 3351136 Contact Us For Availability
32
MAY 3387118 MAY 3387118 Contact Us For Availability
32
THERMOSTAT 250° F MAY W10168175 Contact Us For Availability
33
MAY W10136649 MAY W10136649 Contact Us For Availability
33
WASHER MAY 3392186 Contact Us For Availability
33
Grill, Outlet MAY W10181926 Contact Us For Availability
34
Bolt, Meter Case Mounting (5/16-18 X 2 1/2) MAY 3353994 Contact Us For Availability
34
MAY W10223799 MAY W10223799 Contact Us For Availability
34
Terminal, Brass & Tinned (3) (Includes Ill. 3 MAY 279318 Contact Us For Availability
34
MAY 697557 MAY 697557 Contact Us For Availability
35
Cushion, Meter Case MAY 3954812 Contact Us For Availability
35
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
35
MAY 697693 MAY 697693 Contact Us For Availability
36
MAY W10139060 MAY W10139060 Contact Us For Availability
36
MAY 3357011 MAY 3357011 Contact Us For Availability
37
MAY W10133509 MAY W10133509 Contact Us For Availability
37
MAY 279731 MAY 279731 Contact Us For Availability
37
MAY W10168564 MAY W10168564 Contact Us For Availability
38
MAY W10111042 MAY W10111042 Contact Us For Availability
38
Restrain, Belt MAY 3393657 Contact Us For Availability
38
MAY W10181925 MAY W10181925 Contact Us For Availability
39
TOP MAY W10136707 Contact Us For Availability
39
Bracket, Idler MAY W10118754 Contact Us For Availability
39
THERMOSTAT, 140° F CYCLING MAY W10194158 Contact Us For Availability
40
Plate Mounting (2) MAY 3347825 Contact Us For Availability
40
Switch-Belt MAY 8318457 Contact Us For Availability
40
Screw, 10-16 x 3/4 MAY W10080640 Contact Us For Availability
41
MAY 98445 MAY 98445 Contact Us For Availability
41
Door Switch Assembly MAY W10237959 Contact Us For Availability
41
MAY W10151271 MAY W10151271 Contact Us For Availability
42
MAY W10153513 MAY W10153513 Contact Us For Availability
42
Screw, 6-20 x 1.00 MAY W10118188 Contact Us For Availability
42
Lint Duct Assembly MAY 8066168 Contact Us For Availability
43
TIMING CAM (CAM - 4 PIN) MAY 339855 Contact Us For Availability
43
Panel, Toe MAY 697215 Contact Us For Availability
43
CLIP-SPRING MAY 8066208 Contact Us For Availability
44
MAY W10140928 MAY W10140928 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10080190 MAY W10080190 Contact Us For Availability
45
MAY W10080310 MAY W10080310 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
47
MAY 3392563 MAY 3392563 Contact Us For Availability
48
MAY 694091 MAY 694091 Contact Us For Availability
49
Door, Front MAY 3387872 Contact Us For Availability
50
MAY W10116360 MAY W10116360 Contact Us For Availability
51
Front Panel MAY 3393081 Contact Us For Availability
52
Strike, Door MAY W10080240 Contact Us For Availability
53
MAY W10083220 MAY W10083220 Contact Us For Availability
54
MAY 3392538 MAY 3392538 Contact Us For Availability
56
MAY 3390735 MAY 3390735 Contact Us For Availability
57
LOCK-TOP MAY 345670 Contact Us For Availability
58
Cage Nut MAY 90406 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279818 MAY 279818 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Kit, Dryer Repair MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
× ![]()
