Model Electrolux MDD40WW4 DEHUMIDIFIER – Common Parts & Diagrams

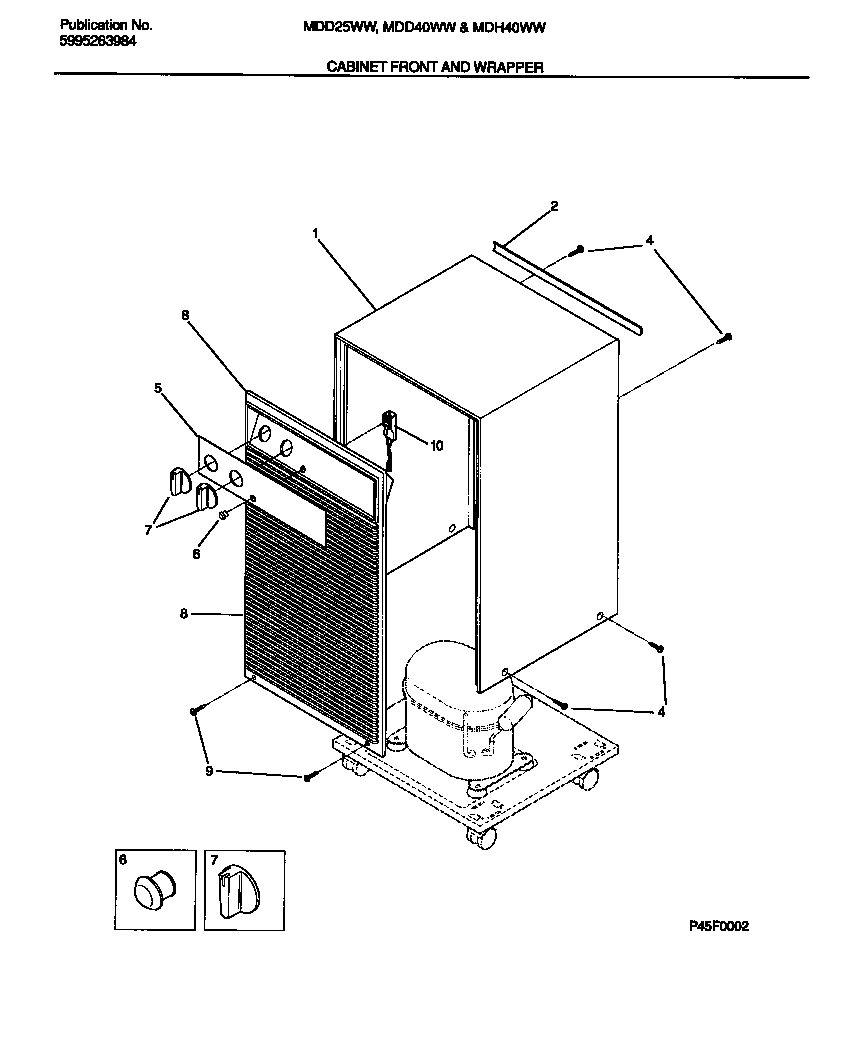

02 - CABINET FRONT AND WRAPPER

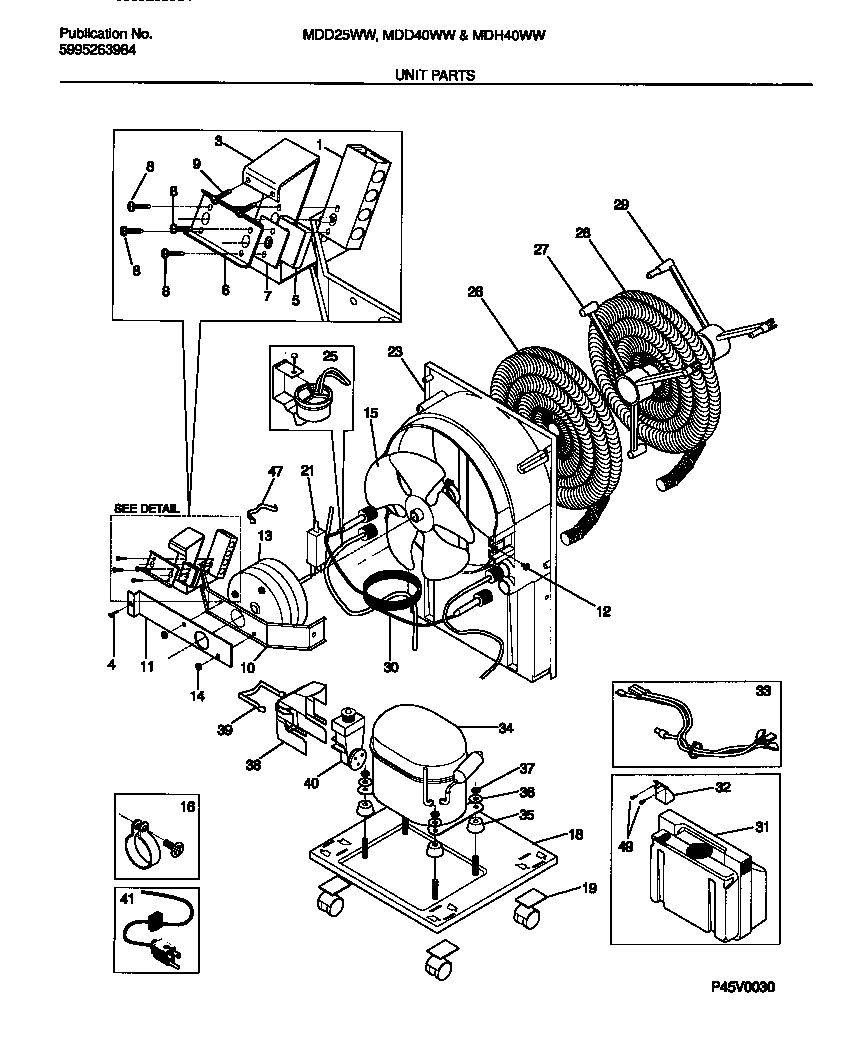

03 - UNIT PARTS

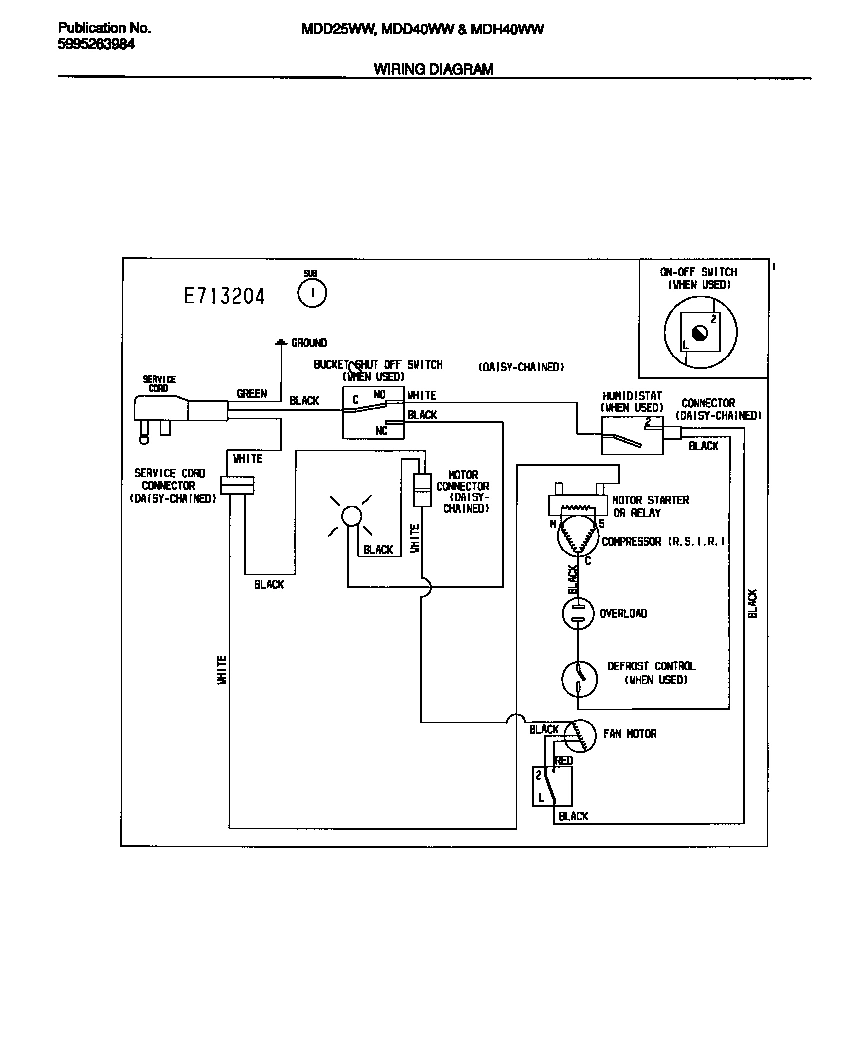

04 - WIRING DIAGRAM

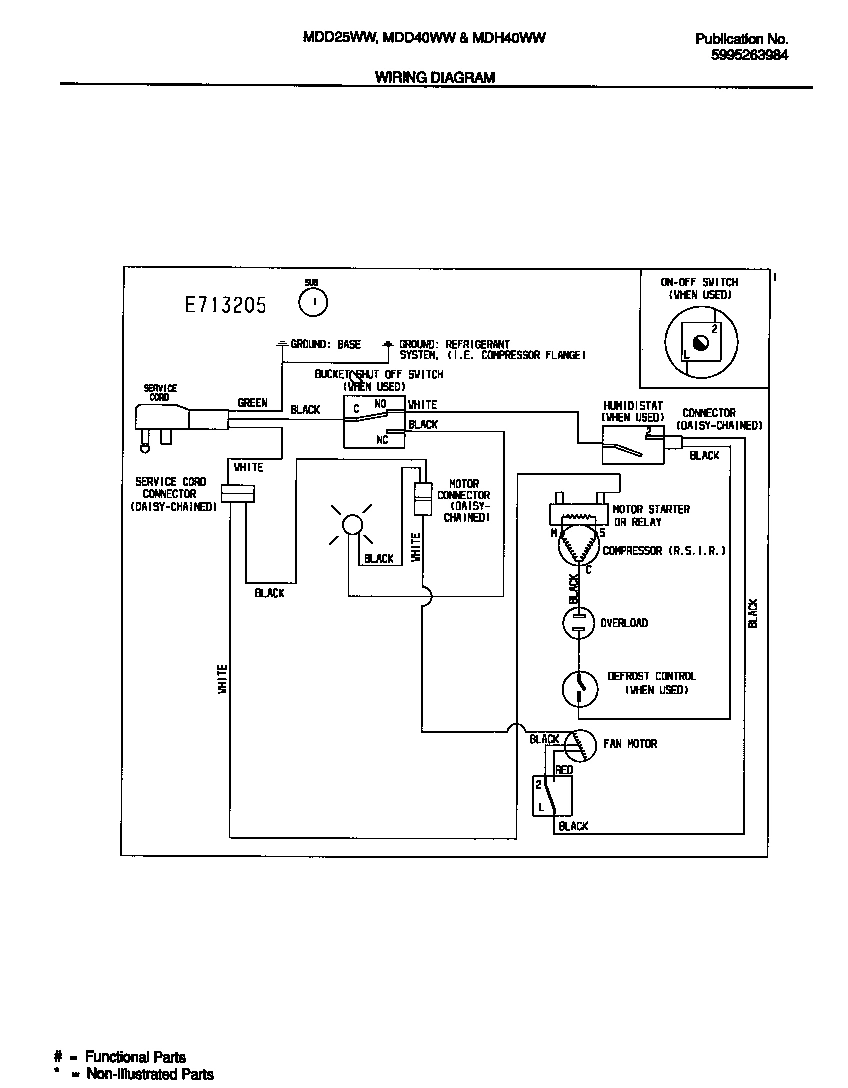

05 - WIRING DIAGRAM

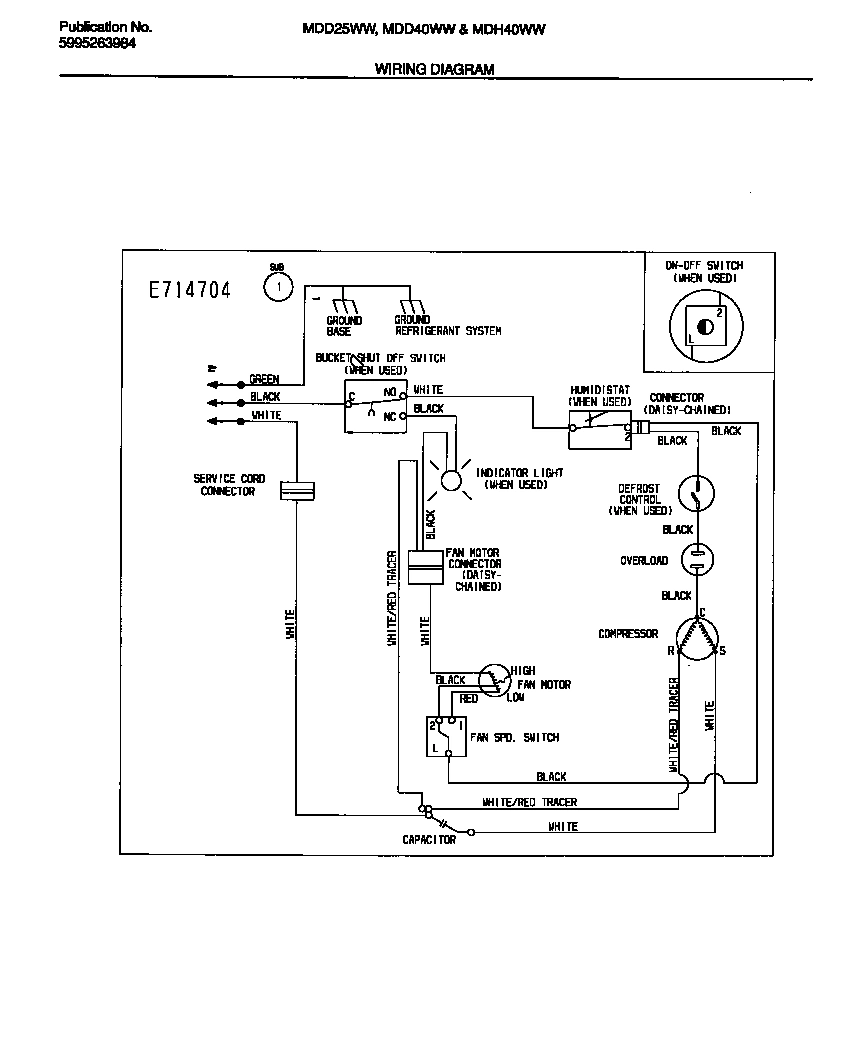

06 - WIRING DIAGRAM

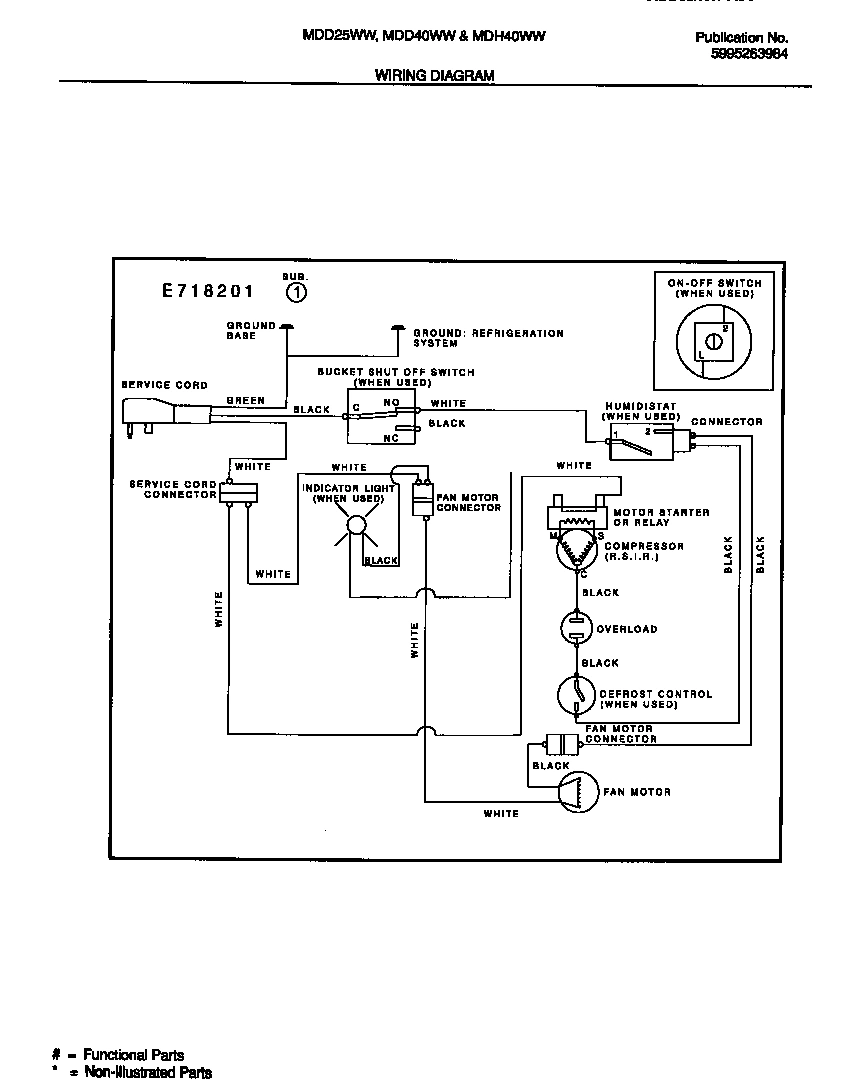

07 - WIRING DIAGRAM

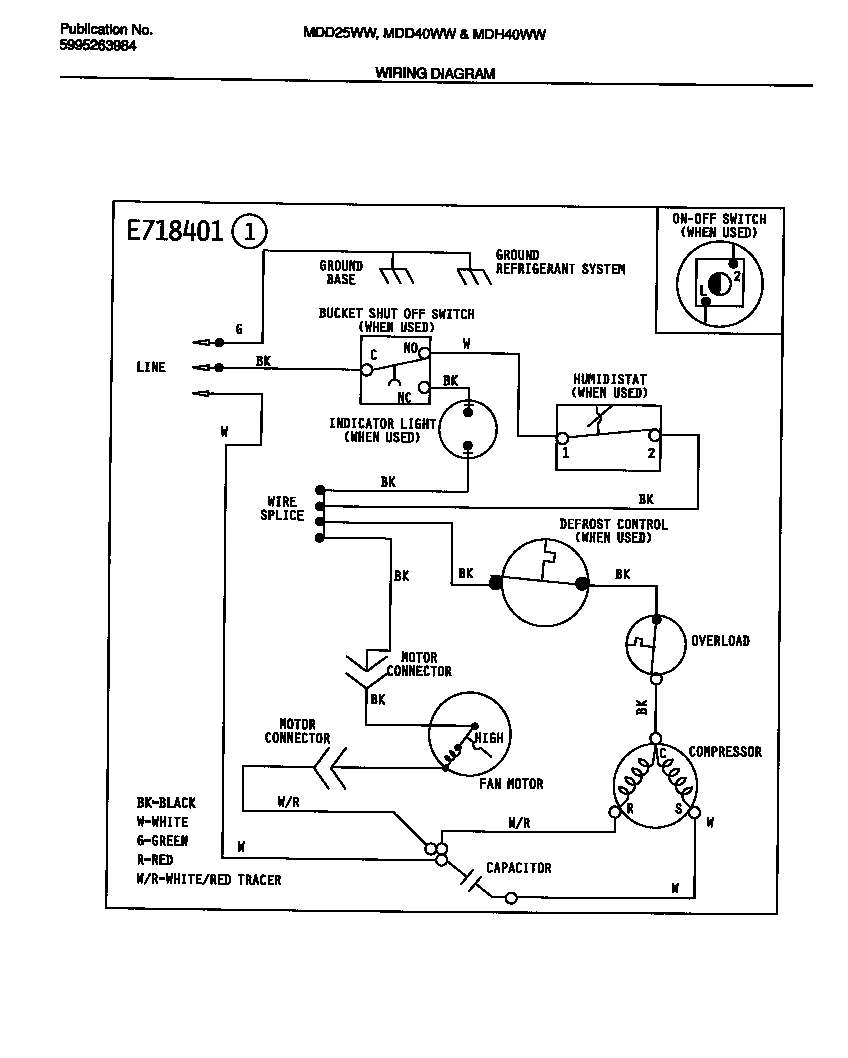

08 - WIRING DIAGRAM
Common parts from model Electrolux MDD40WW4 DEHUMIDIFIER
1
WCI 5303296823 WCI 5303296823 Contact Us For Availability
3
BRACKET-CONTROL WCI 5303211050 Contact Us For Availability
5
WCI 327602001 WCI 327602001 Contact Us For Availability
5
WCI 5303012345 WCI 5303012345 Contact Us For Availability
6
LENS-LIGHT WCI 08012705 Contact Us For Availability
6
WCI 5303296824 WCI 5303296824 Contact Us For Availability
7
KNOB-CONTROL, (2) WCI 5303017300 Contact Us For Availability
7
WCI 3016093 WCI 3016093 Contact Us For Availability
8
WCI 5303007620 WCI 5303007620 Contact Us For Availability
8
WCI 5308016464 WCI 5308016464 Contact Us For Availability
9
WCI 5303271346 WCI 5303271346 Contact Us For Availability
9
WCI 5303304774 WCI 5303304774 Contact Us For Availability
10
WCI 5303300828 WCI 5303300828 Contact Us For Availability
10
WCI 5303296828 WCI 5303296828 Contact Us For Availability
11
WCI 5303296829 WCI 5303296829 Contact Us For Availability
12
WCI 3002801 WCI 3002801 Contact Us For Availability
13
WCI 5303279144 WCI 5303279144 Contact Us For Availability
14
WCI 08007481 WCI 08007481 Contact Us For Availability
15
FAN BLADE WCI 5308016448 Contact Us For Availability
16
CAPILLARY TUBE, CUT TO 50`` WCI 3203179 Contact Us For Availability
16
WCI 5303303699 WCI 5303303699 Contact Us For Availability
18
WCI 5303303502 WCI 5303303502 Contact Us For Availability
19
WCI 5303275278 WCI 5303275278 Contact Us For Availability
21
WCI 5308016437 WCI 5308016437 Contact Us For Availability
23
WCI 5303303501 WCI 5303303501 Contact Us For Availability
25
WCI 5303300829 WCI 5303300829 Contact Us For Availability
26
WCI 5303307379 WCI 5303307379 Contact Us For Availability
27
CLAMP-EVAPORATOR INNER WCI 08016455 Contact Us For Availability
28
EVAPORATOR, W/CLAMPS WCI 5303279277 Contact Us For Availability
29
CLAMP-EVAPORATOR OUTER WCI 08016454 Contact Us For Availability
31
WCI 5303305671 WCI 5303305671 Contact Us For Availability
32
WCI 5303272520 WCI 5303272520 Contact Us For Availability
33
WCI 5303306635 WCI 5303306635 Contact Us For Availability
34
WCI 5303307380 WCI 5303307380 Contact Us For Availability
35
WCI 5303001777 WCI 5303001777 Contact Us For Availability
36
WASHER-COMPRESSOR WCI 08002956 Contact Us For Availability
37
NUT-COMPRESSOR WCI 08012645 Contact Us For Availability
38
COVER-TERMINAL WCI 3017774 Contact Us For Availability
39
STRAP-COVER WCI 5308002985 Contact Us For Availability
41
CORD-POWER WCI 5303279151 Contact Us For Availability
43
WCI 5303307377 WCI 5303307377 Contact Us For Availability
44
WCI 3012010 WCI 3012010 Contact Us For Availability
45
GASKET-COVER WCI 3017773 Contact Us For Availability
46
CAPACITOR WCI 5303303824 Contact Us For Availability
47
WCI 327100001 WCI 327100001 Contact Us For Availability
48
WCI 5303303821 WCI 5303303821 Contact Us For Availability
49
WCI 5303296826 WCI 5303296826 Contact Us For Availability
× ![]()
