Model Electrolux MDD25WF1 DEHUMIDIFIER – Common Parts & Diagrams

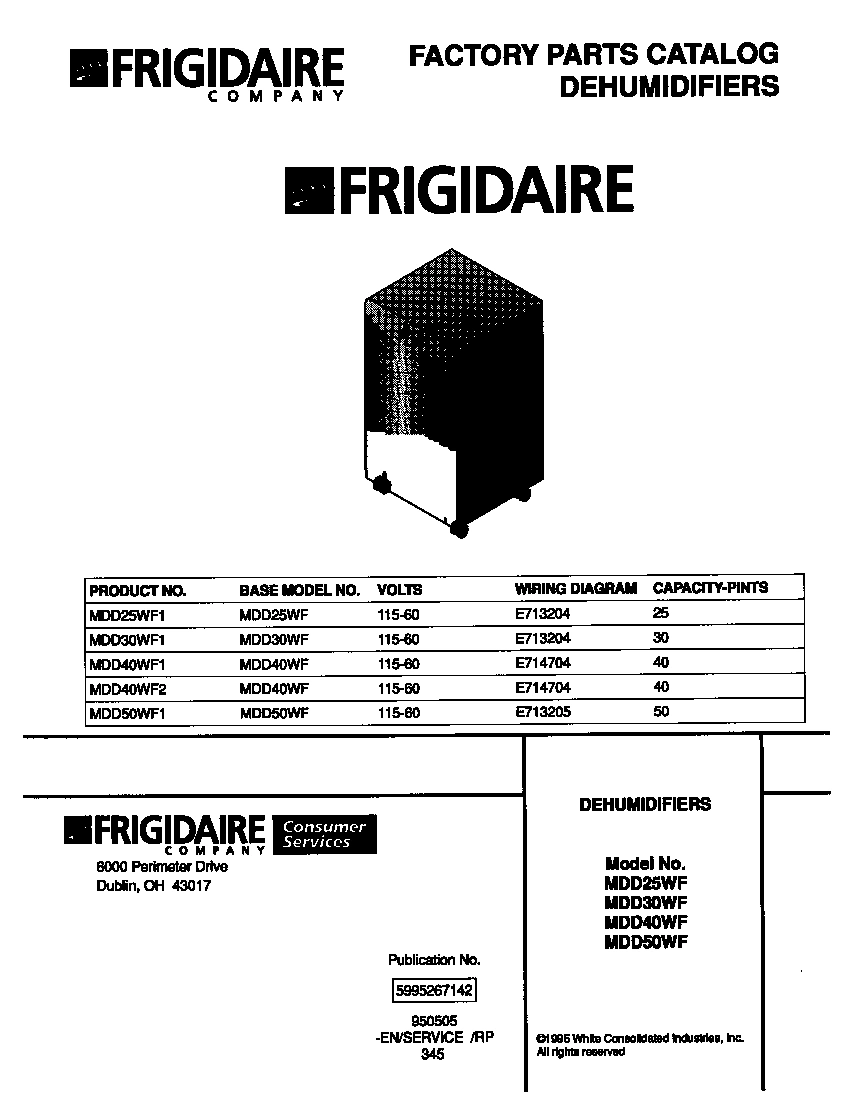

01 - COVER

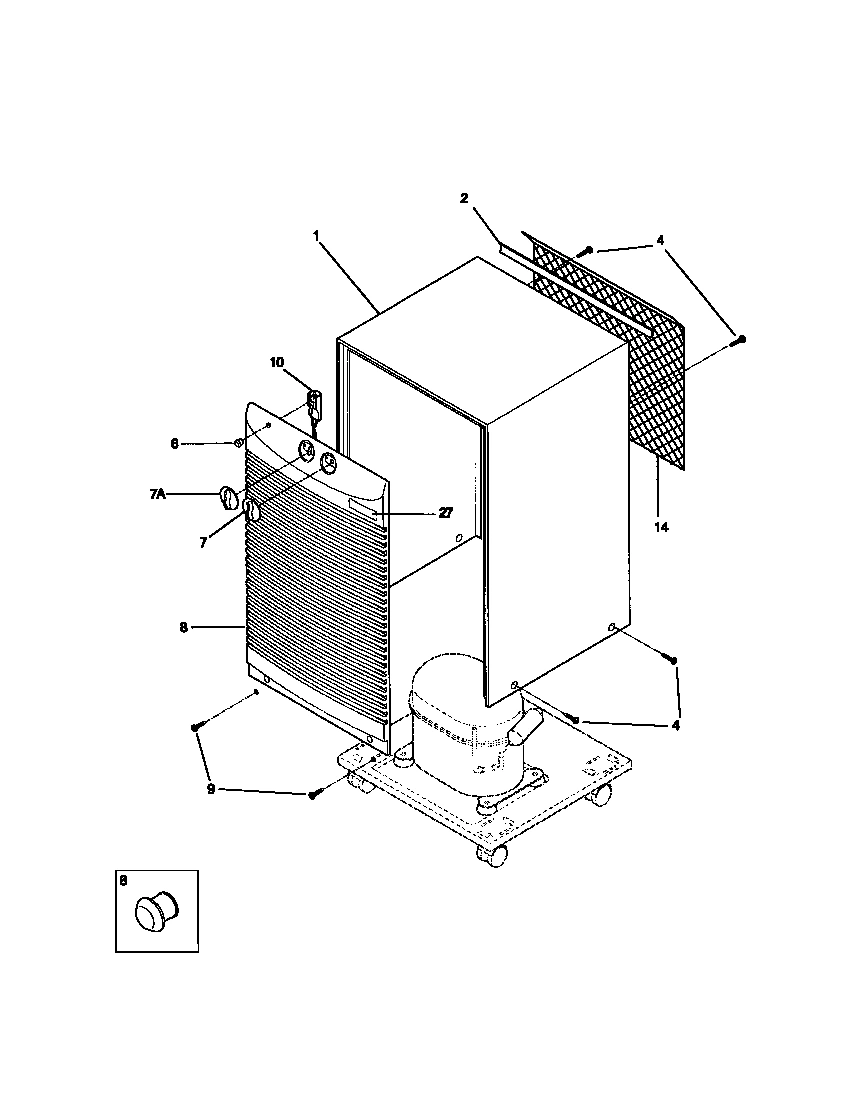

02 - CABINET FRONT

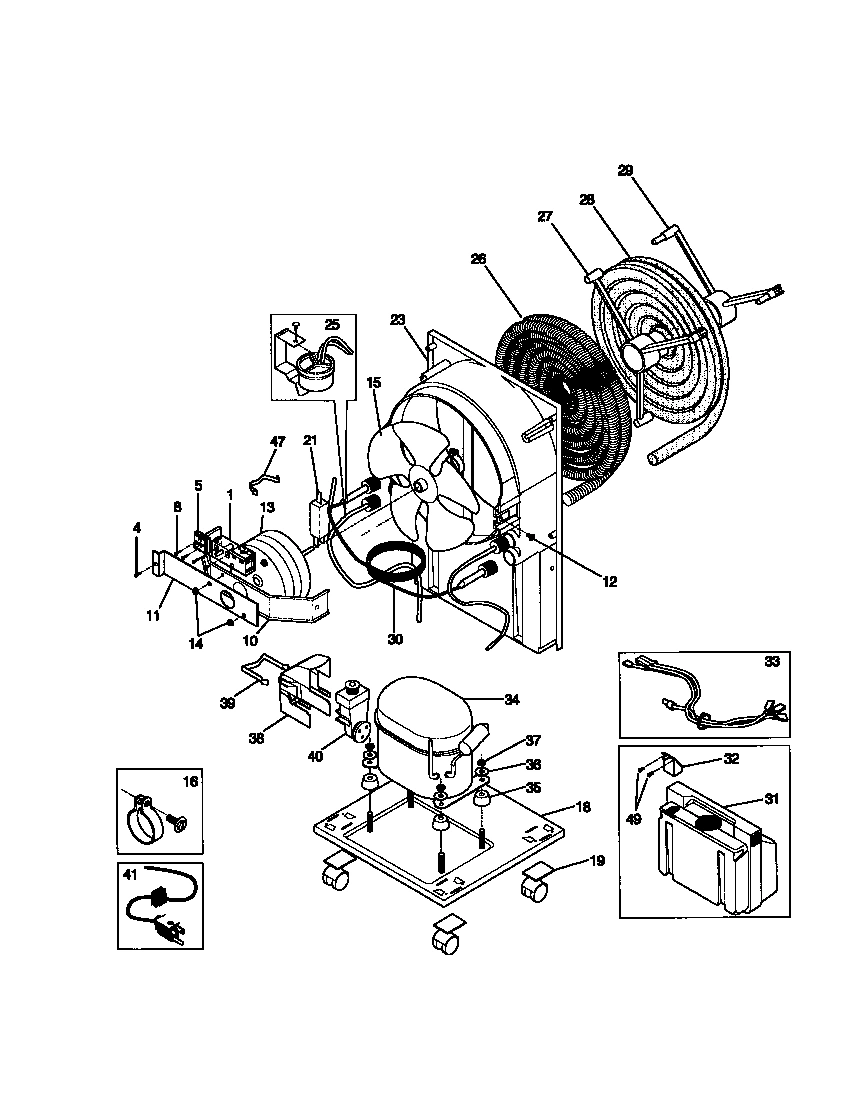

03 - UNIT P45V0041

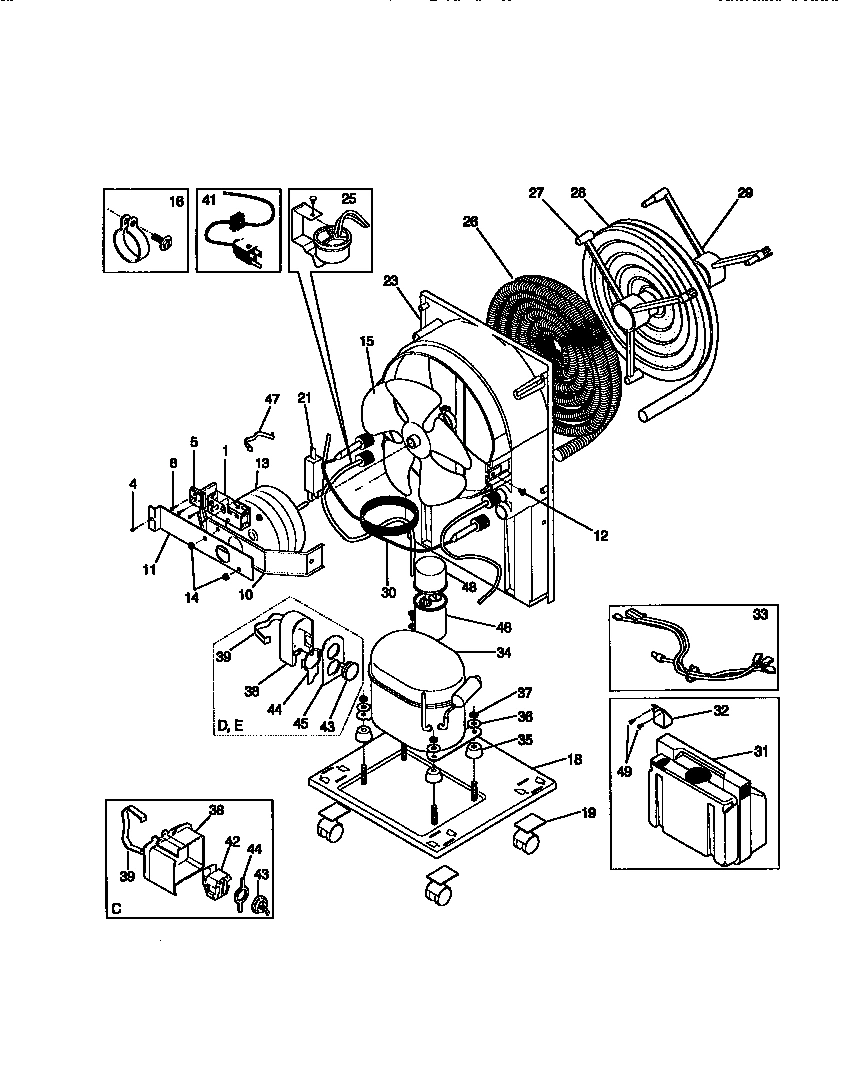

04 - UNIT

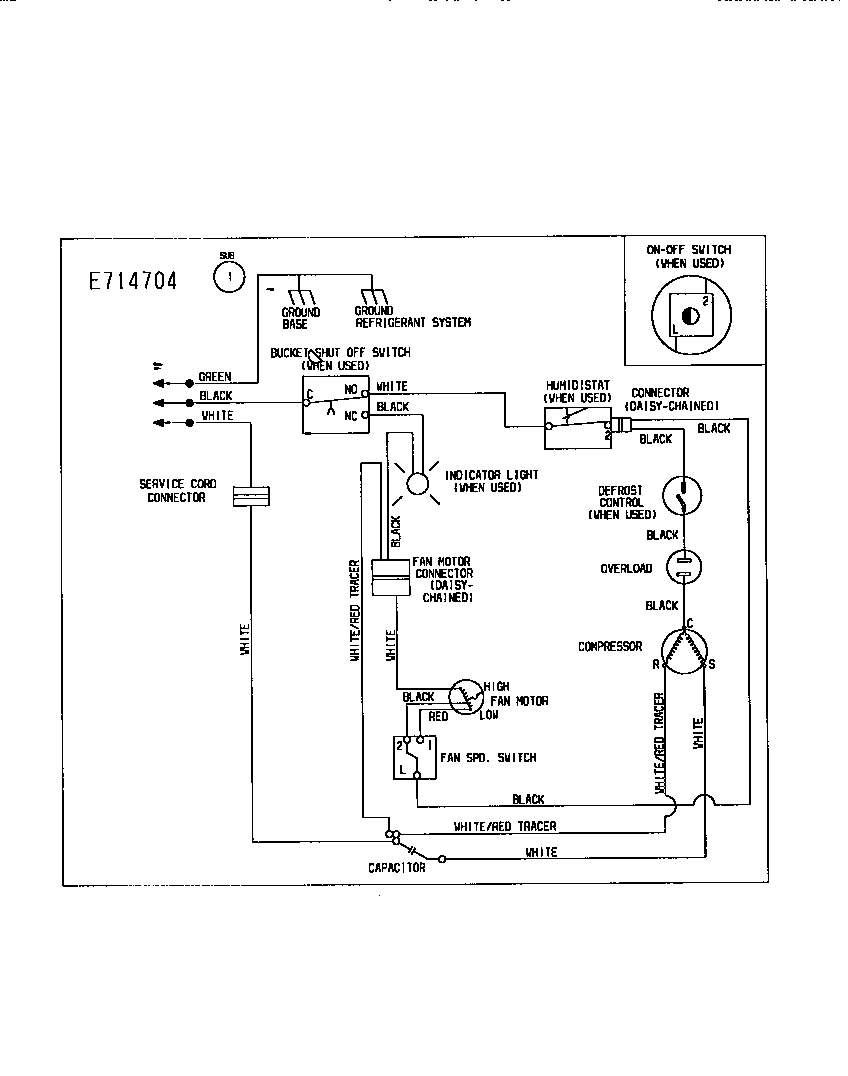

05 - WIRING DIAGRAM

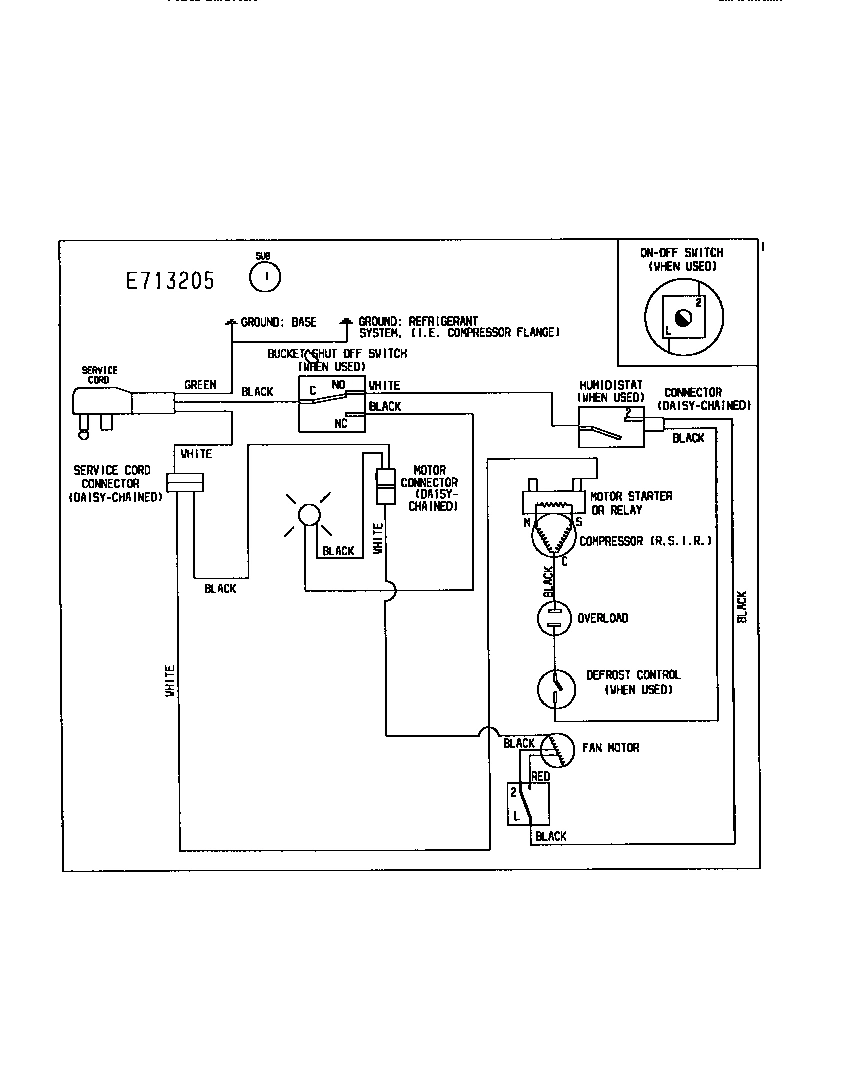

06 - WIRING DIAGRAM

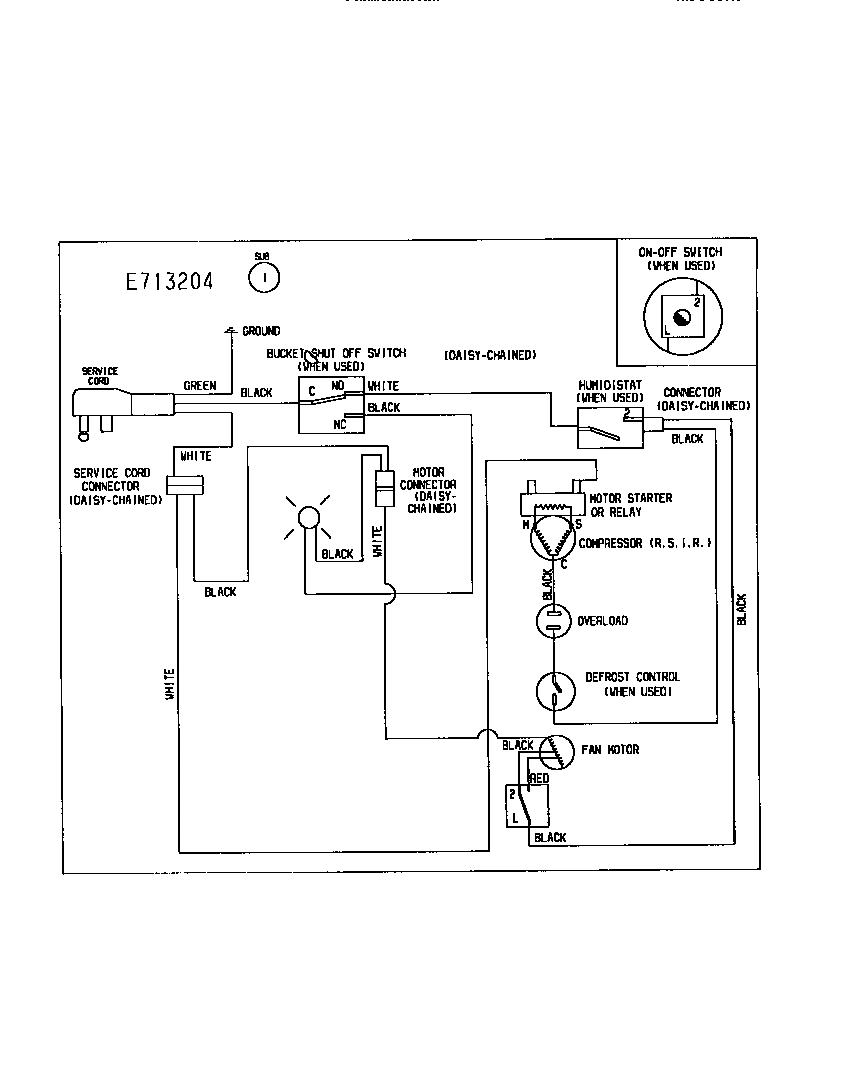

07 - WIRING DIAGRAM
Common parts from model Electrolux MDD25WF1 DEHUMIDIFIER
1
CONTROL-HUMIDISTAT WCI 5303296823 Contact Us For Availability
5
WCI 5303012345 WCI 5303012345 Contact Us For Availability
7
WCI 327300703 WCI 327300703 Contact Us For Availability
7A
WCI 327300704 WCI 327300704 Contact Us For Availability
8
WCI 5303007620 WCI 5303007620 Contact Us For Availability
8
WCI 327602103 WCI 327602103 Contact Us For Availability
9
SCREW,TRUSS HEAD,8-18AB X 0.7 WCI 5303271346 Contact Us For Availability
10
WCI 5303925261 WCI 5303925261 Contact Us For Availability
10
WCI 5303296828 WCI 5303296828 Contact Us For Availability
11
WCI 5303296829 WCI 5303296829 Contact Us For Availability
13
WCI 5303307853 WCI 5303307853 Contact Us For Availability
14
WCI 08007481 WCI 08007481 Contact Us For Availability
15
FAN BLADE WCI 5308016448 Contact Us For Availability
16
WCI 5303303699 WCI 5303303699 Contact Us For Availability
16
WCI 3203179 WCI 3203179 Contact Us For Availability
16
WCI 5308017120 WCI 5308017120 Contact Us For Availability
18
WCI 5303303502 WCI 5303303502 Contact Us For Availability
19
WCI 5303275278 WCI 5303275278 Contact Us For Availability
21
WCI 5308016437 WCI 5308016437 Contact Us For Availability
23
WCI 5303303501 WCI 5303303501 Contact Us For Availability
24
WCI 3002801 WCI 3002801 Contact Us For Availability
25
WCI 5303308266 WCI 5303308266 Contact Us For Availability
25
WCI 5303308291 WCI 5303308291 Contact Us For Availability
26
WCI 3017458 WCI 3017458 Contact Us For Availability
26
WCI 5303300822 WCI 5303300822 Contact Us For Availability
26
WCI 5303307379 WCI 5303307379 Contact Us For Availability
27
WCI 327300005 WCI 327300005 Contact Us For Availability
27
CLAMP-EVAPORATOR INNER WCI 08016455 Contact Us For Availability
28
EVAPORATOR, W/CLAMPS WCI 3017954 Contact Us For Availability
28
EVAPORATOR, W/CLAMPS WCI 3015172 Contact Us For Availability
28
EVAPORATOR, W/CLAMPS WCI 5303279277 Contact Us For Availability
29
CLAMP-EVAPORATOR OUTER WCI 08016454 Contact Us For Availability
30
CAPILLARY TUBE, CUT TO 28`` WCI 3014461 Contact Us For Availability
31
WCI 5303305671 WCI 5303305671 Contact Us For Availability
32
WCI 5303272520 WCI 5303272520 Contact Us For Availability
33
HARNESS WCI 5303307855 Contact Us For Availability
33
WCI 5303307856 WCI 5303307856 Contact Us For Availability
34
WCI 5303271878 WCI 5303271878 Contact Us For Availability
34
WCI 3017370 WCI 3017370 Contact Us For Availability
34
WCI 5303307380 WCI 5303307380 Contact Us For Availability
34
WCI 5303307537 WCI 5303307537 Contact Us For Availability
35
WCI 5303001777 WCI 5303001777 Contact Us For Availability
36
WASHER-COMPRESSOR WCI 08002956 Contact Us For Availability
37
NUT-COMPRESSOR WCI 08012645 Contact Us For Availability
38
COVER-TERMINAL WCI 3003005 Contact Us For Availability
38
COVER-TERMINAL WCI 3017774 Contact Us For Availability
38
COVER-TERMINAL WCI 5303273999 Contact Us For Availability
39
STRAP-COVER WCI 3003006 Contact Us For Availability
39
STRAP-COVER WCI 5308002985 Contact Us For Availability
40
WCI 5303003020 WCI 5303003020 Contact Us For Availability
41
CORD-ELECTRIC POWER WCI 5303279143 Contact Us For Availability
41
CORD-POWER WCI 5303279151 Contact Us For Availability
43
WCI 3017369 WCI 3017369 Contact Us For Availability
43
WCI 5303273996 WCI 5303273996 Contact Us For Availability
43
WCI 5303307377 WCI 5303307377 Contact Us For Availability
44
WCI 3012010 WCI 3012010 Contact Us For Availability
44
WCI 5303273997 WCI 5303273997 Contact Us For Availability
45
GASKET-COVER WCI 3017773 Contact Us For Availability
46
CAPACITOR WCI 5303303824 Contact Us For Availability
47
CLIP-SWITCH WCI 327100001 Contact Us For Availability
49
WCI 5303296826 WCI 5303296826 Contact Us For Availability
× ![]()
