Model Maytag MDC4809AWW0 DISHWASHER – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL PARTS
03 - DOOR AND LATCH PARTS

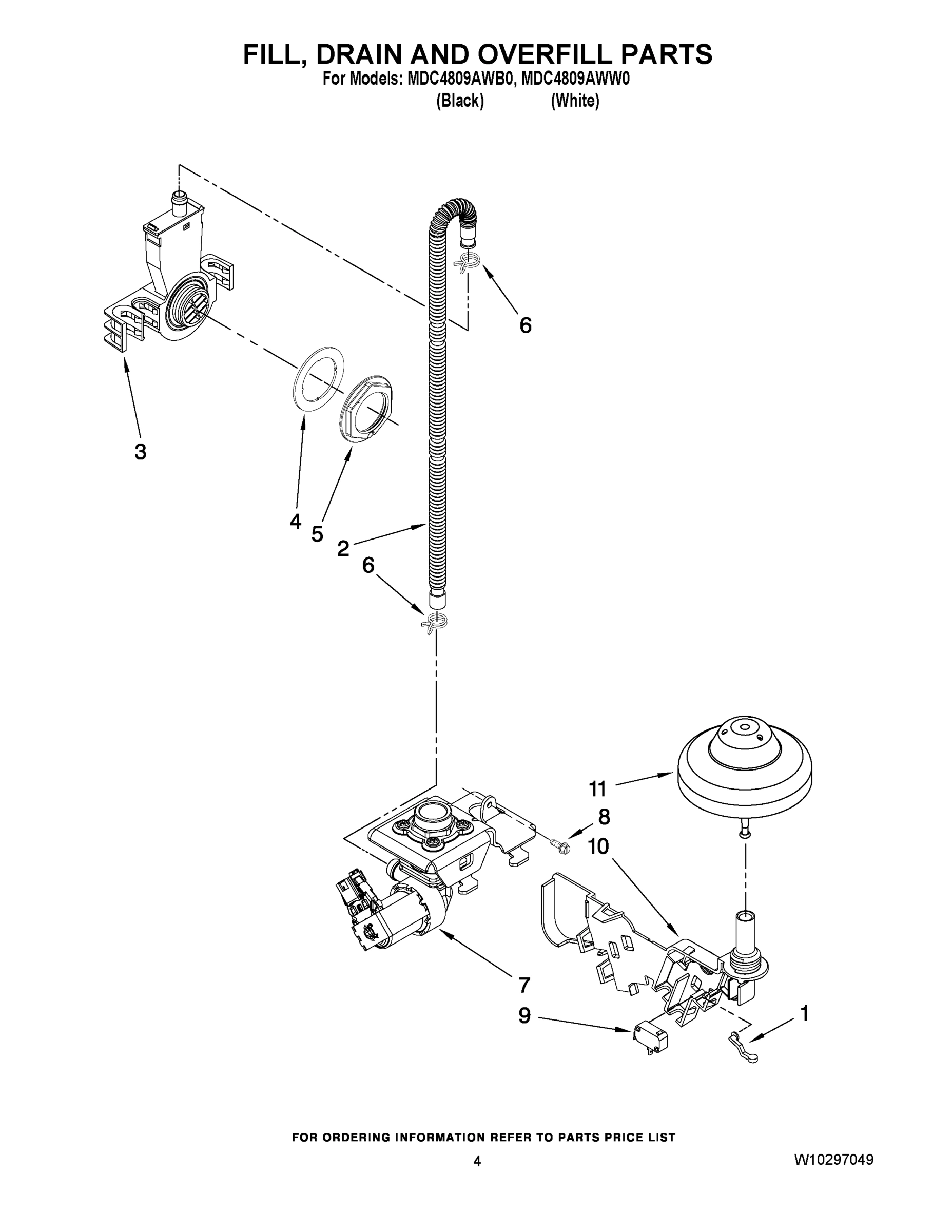

04 - FILL, DRAIN AND OVERFILL PARTS

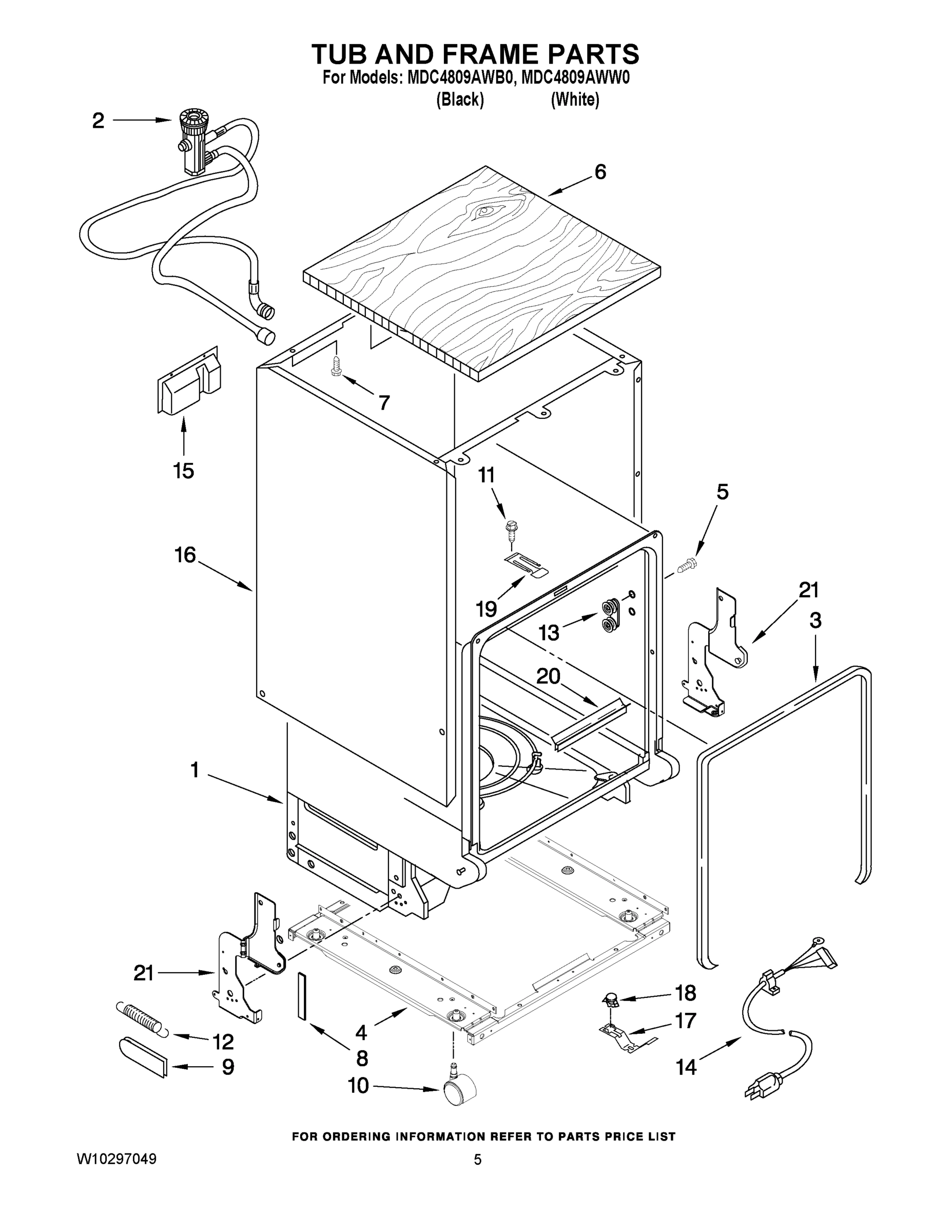

05 - TUB AND FRAME PARTS
06 - PUMP AND MOTOR PARTS

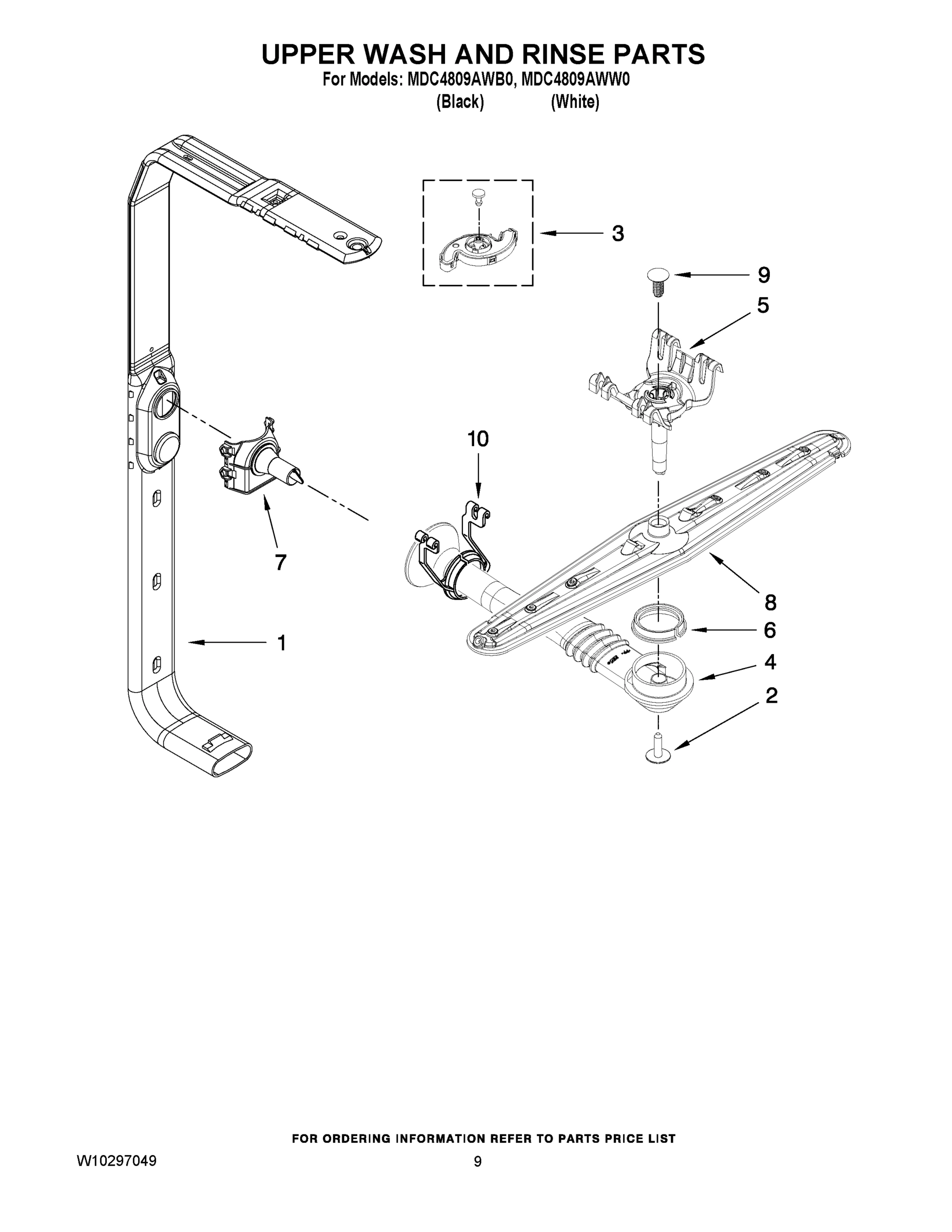

07 - UPPER WASH AND RINSE PARTS

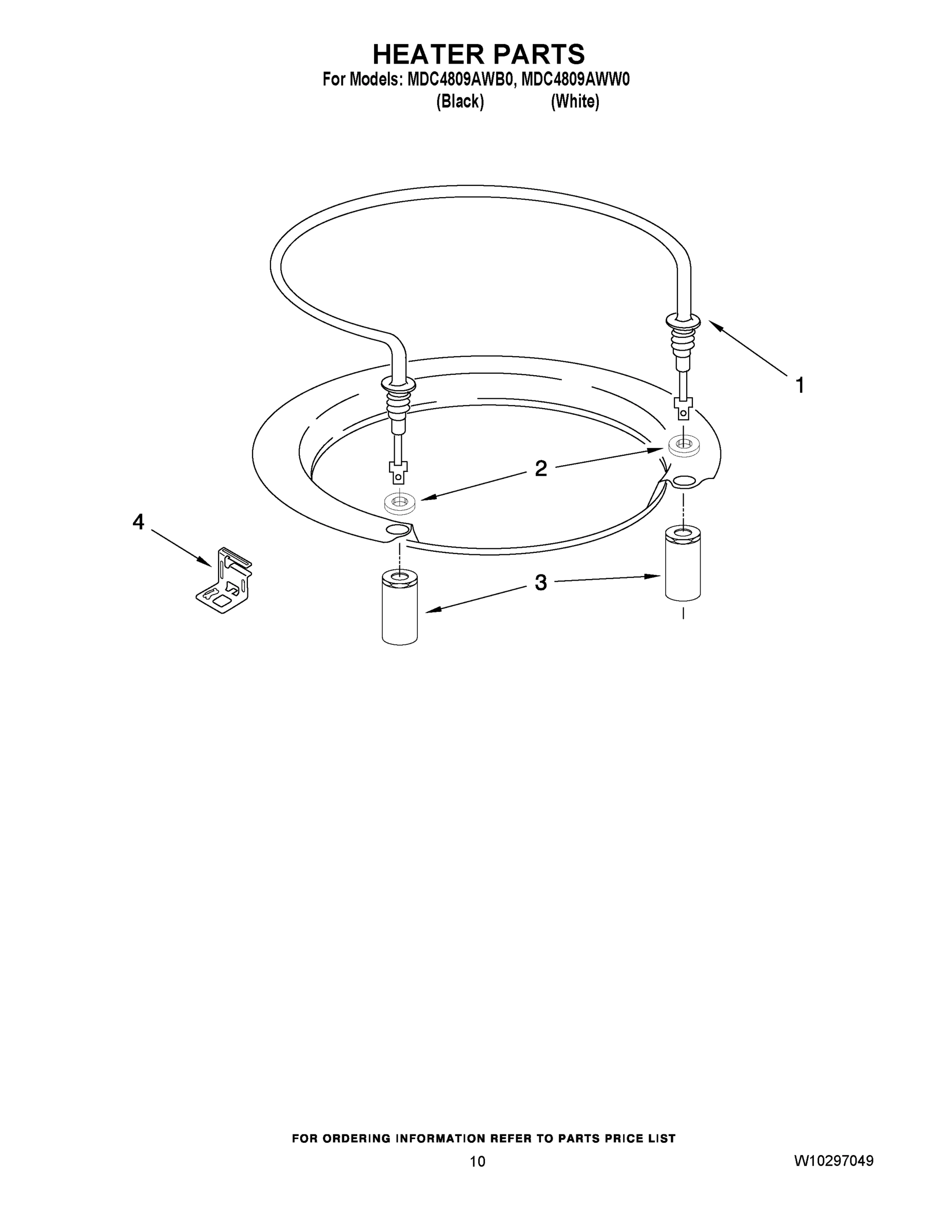

08 - HEATER PARTS

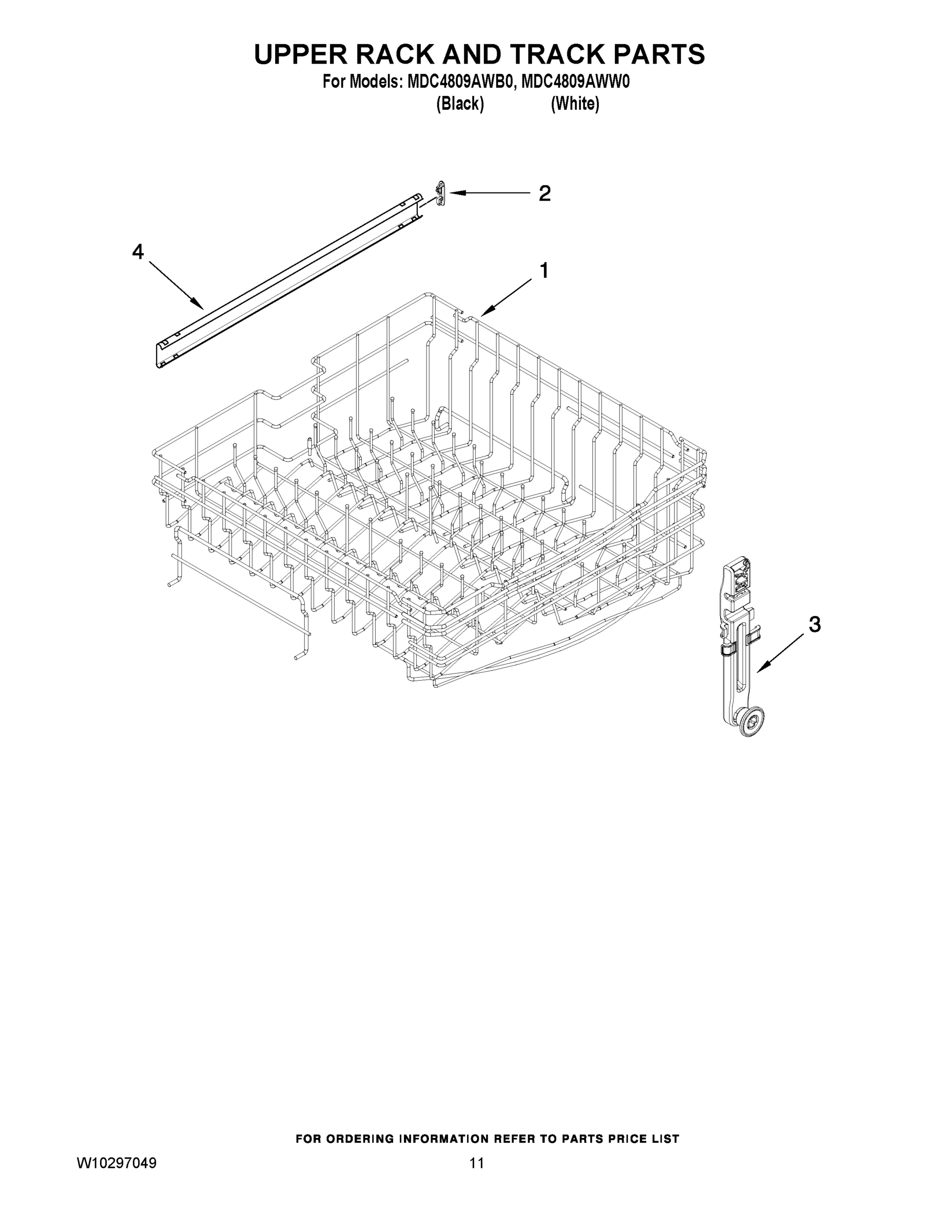

09 - UPPER RACK AND TRACK PARTS

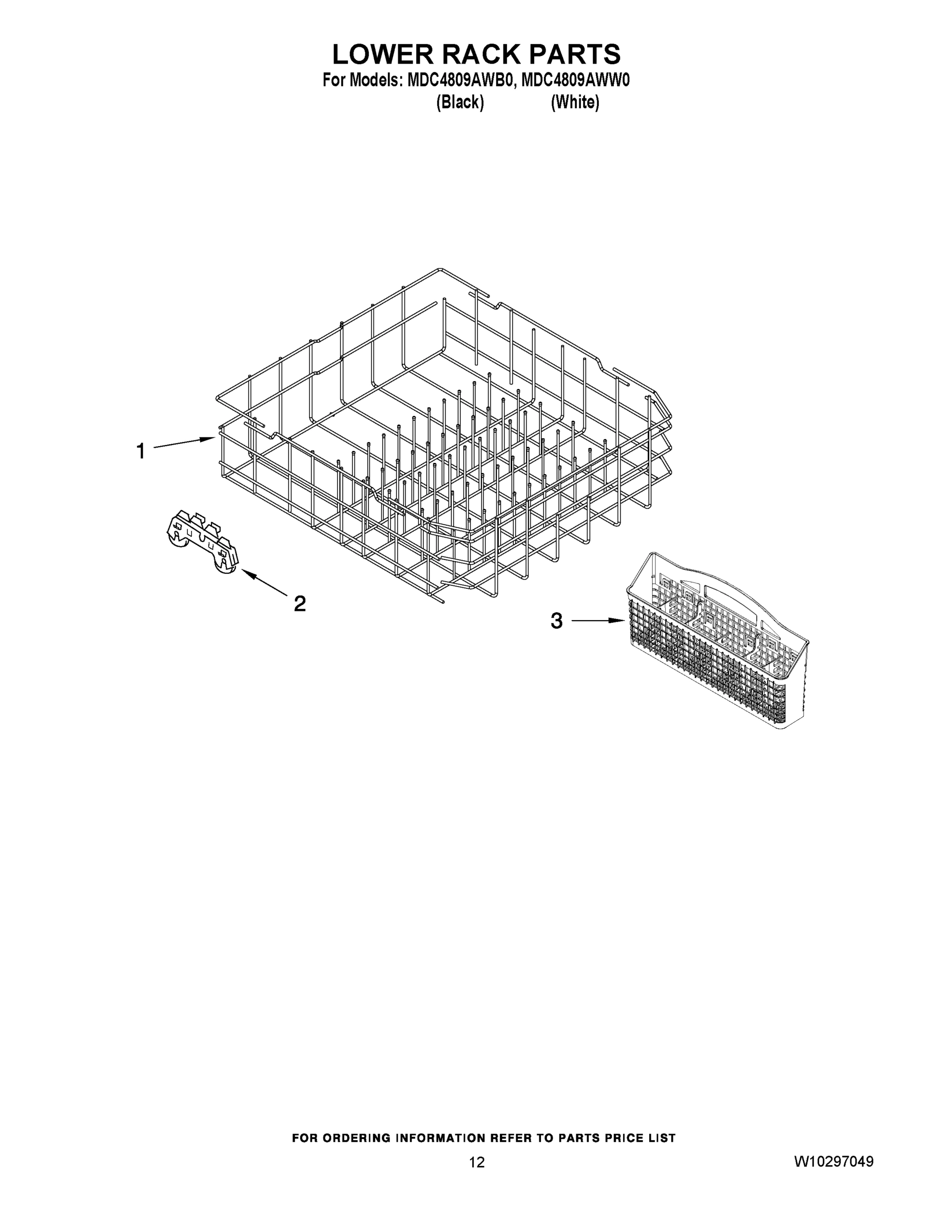

10 - LOWER RACK PARTS

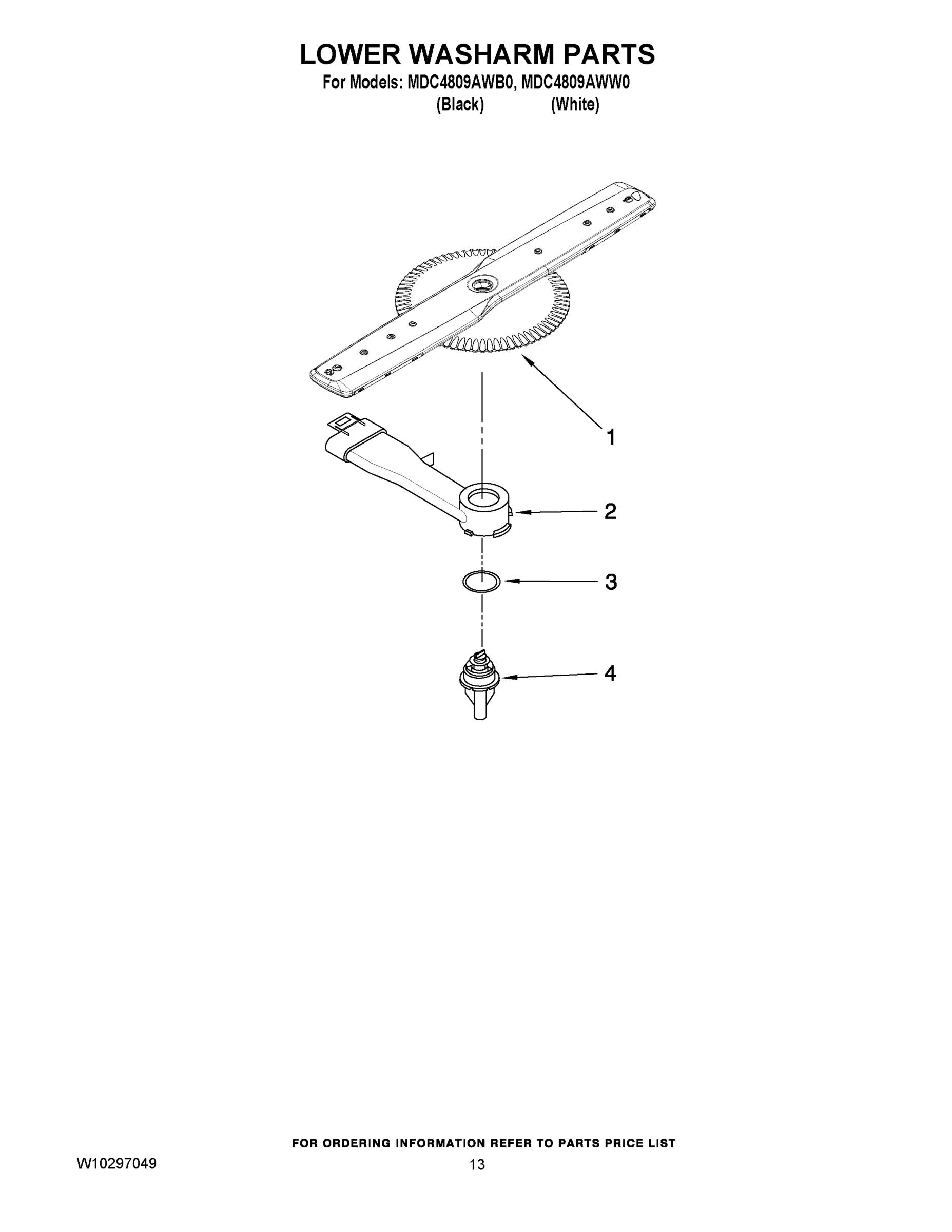

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDC4809AWW0 DISHWASHER
1
TECH SHEET MAY W10142800 Contact Us For Availability
1
MAY W10240116 MAY W10240116 Contact Us For Availability
1
MAY W10240117 MAY W10240117 Contact Us For Availability
1
MAY W10255008 MAY W10255008 Contact Us For Availability
1
MAY W10255025 MAY W10255025 Contact Us For Availability
1
MAY W10255002 MAY W10255002 Contact Us For Availability
1
MAY W10255003 MAY W10255003 Contact Us For Availability
1
SCREW, DOOR MAY 3369051 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
MAY W10254860 MAY W10254860 Contact Us For Availability
1
MAY 8534952 MAY 8534952 Contact Us For Availability
1
FEED TUBE SILVERWARE ZONE (ALSO INC. No.3) MAY 8579224 Contact Us For Availability
1
MAY W10134009 MAY W10134009 Contact Us For Availability
1
MAY W10164198 MAY W10164198 Contact Us For Availability
1
MAY 8193795 MAY 8193795 Contact Us For Availability
1
MAY 8268311 MAY 8268311 Contact Us For Availability
2
MAY W10143373 MAY W10143373 Contact Us For Availability
2
MAY W10143374 MAY W10143374 Contact Us For Availability
2
MAY 8546546 MAY 8546546 Contact Us For Availability
2
MAY 8545608 MAY 8545608 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
COUPLER ASSY MAY W10219674 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY 8533889 MAY 8533889 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
STOP, TRACK (NON-REMOVABLE) MAY 8565920 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
2
CAP, INTERNAL REAR FEED MAY 8268317 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
CONTROL ELECTRONIC MAY W10208673 Contact Us For Availability
3
INNER DOOR MASTIC ASSEMBLY MAY 3378179 Contact Us For Availability
3
MAY W10195536 MAY W10195536 Contact Us For Availability
3
MAY 8268888 MAY 8268888 Contact Us For Availability
3
MAY 3400069 MAY 3400069 Contact Us For Availability
3
MAY 8557720 MAY 8557720 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
WHEEL MAY 8575281 Contact Us For Availability
3
SILVERWARE, BASKET ASSEMBLY (INCLUDES ITEM 8) MAY 8562045 Contact Us For Availability
3
MAY 8268340 MAY 8268340 Contact Us For Availability
4
MAY W10240060 MAY W10240060 Contact Us For Availability
4
MAY W10240061 MAY W10240061 Contact Us For Availability
4
MAY 8269209 MAY 8269209 Contact Us For Availability
4
SHIELD, DISPENSER MAY 8531865 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
FRAME ASSY MAY 8559928 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
TUBE, FEED MAY 8268845 Contact Us For Availability
4
MAY 8269262 MAY 8269262 Contact Us For Availability
4
TRACK, RACK MAY 3385089 Contact Us For Availability
4
SUPPORT, LOWER SPRAYARM MAY 8268342 Contact Us For Availability
5
ACCESS PANEL MAY W10268978 Contact Us For Availability
5
MAY W10240053 MAY W10240053 Contact Us For Availability
5
VENT ASSEMBLY MAY W10164259 Contact Us For Availability
5
MAY 8531326 MAY 8531326 Contact Us For Availability
5
SCREW MAY 8533836 Contact Us For Availability
5
MAY 8268375 MAY 8268375 Contact Us For Availability
5
MOUNT,SPRAY ARM MAY 3385159 Contact Us For Availability
6
MAY 489470 MAY 489470 Contact Us For Availability
6
MAY 661663 MAY 661663 Contact Us For Availability
6
MAY 8269259 MAY 8269259 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
PANEL-TOP MAY 3373199 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY 8268433 MAY 8268433 Contact Us For Availability
7
SCREW (BLACK) MAY 302868 Contact Us For Availability
7
SCREW MAY 304231 Contact Us For Availability
7
MAY 8558991 MAY 8558991 Contact Us For Availability
7
MAY W10195049 MAY W10195049 Contact Us For Availability
7
SCREW MAY 304428 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
NOZZLE-FEED MAY 8562095 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY W10240154 MAY W10240154 Contact Us For Availability
8
MAY W10240155 MAY W10240155 Contact Us For Availability
8
MAY W10240176 MAY W10240176 Contact Us For Availability
8
MAY 8268961 MAY 8268961 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
MAY 8535083 MAY 8535083 Contact Us For Availability
9
COVER,CNTRL ASSY MAY W10158350 Contact Us For Availability
9
SEAL, FRONT MAY 8269258 Contact Us For Availability
9
SWITCH, OVERFILL MAY 8268909 Contact Us For Availability
9
BUSHING, DOOR MAY 8268990 Contact Us For Availability
9
MAY W10231538 MAY W10231538 Contact Us For Availability
9
RETAINER, PUSH-IN MAY 3400919 Contact Us For Availability
10
BRKT, DISPENSER MAY 8535637 Contact Us For Availability
10
STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13) MAY W10175383 Contact Us For Availability
10
MAY 8559933 MAY 8559933 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
10
MAY 3385160 MAY 3385160 Contact Us For Availability
11
MAY W10199683 MAY W10199683 Contact Us For Availability
11
MAY 8268913 MAY 8268913 Contact Us For Availability
11
MAY W10165274 MAY W10165274 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
MAY W10219670 MAY W10219670 Contact Us For Availability
12
MAY 8524473 MAY 8524473 Contact Us For Availability
12
MAY W10237168 MAY W10237168 Contact Us For Availability
13
MAY W10177098 MAY W10177098 Contact Us For Availability
13
MAY 8270016 MAY 8270016 Contact Us For Availability
13
MAY 8269524 MAY 8269524 Contact Us For Availability
14
MAY 8269296 MAY 8269296 Contact Us For Availability
14
CORD-POWER MAY W10219671 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
MAY W10219673 MAY W10219673 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
SHELL ASSY (BLACK) MAY W10219676 Contact Us For Availability
16
SHELL ASSY (WHITE) MAY W10219677 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEM 21) MAY W10142656 Contact Us For Availability
17
MAY 3378595 MAY 3378595 Contact Us For Availability
17
MAY 8531018 MAY 8531018 Contact Us For Availability
18
MAY 661566 MAY 661566 Contact Us For Availability
18
MAY W10226459 MAY W10226459 Contact Us For Availability
19
STRIKE, LATCH MAY 8580309 Contact Us For Availability
19
MAY 8268401 MAY 8268401 Contact Us For Availability
20
PROTECTOR, EDGE (LONG) MAY W10219682 Contact Us For Availability
20
PROTECTOR, EDGE (SHORT) MAY W10254751 Contact Us For Availability
20
IMPELLER KIT MAY 8531017 Contact Us For Availability
21
HINGE BRACKET (LEFT) MAY W10185368 Contact Us For Availability
21
HINGE BRACKET (RIGHT) MAY W10185369 Contact Us For Availability
21
FACE SEAL ASSEMBLY MAY 8268403 Contact Us For Availability
22
MAY W10216724 MAY W10216724 Contact Us For Availability
23
MAY W10134017 MAY W10134017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
MAY 6-919539 MAY 6-919539 Contact Us For Availability
NI
MAY 6-920543 MAY 6-920543 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171555 MAY 8171555 Contact Us For Availability
NI
MAY 8171556 MAY 8171556 Contact Us For Availability
NI
MAY 8171557 MAY 8171557 Contact Us For Availability
NI
MAY 8171558 MAY 8171558 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
× ![]()
