Model Accelerated Cooking Products MDC182K-P2003632M Amana Menumaster MDC182K – Common Parts & Diagrams

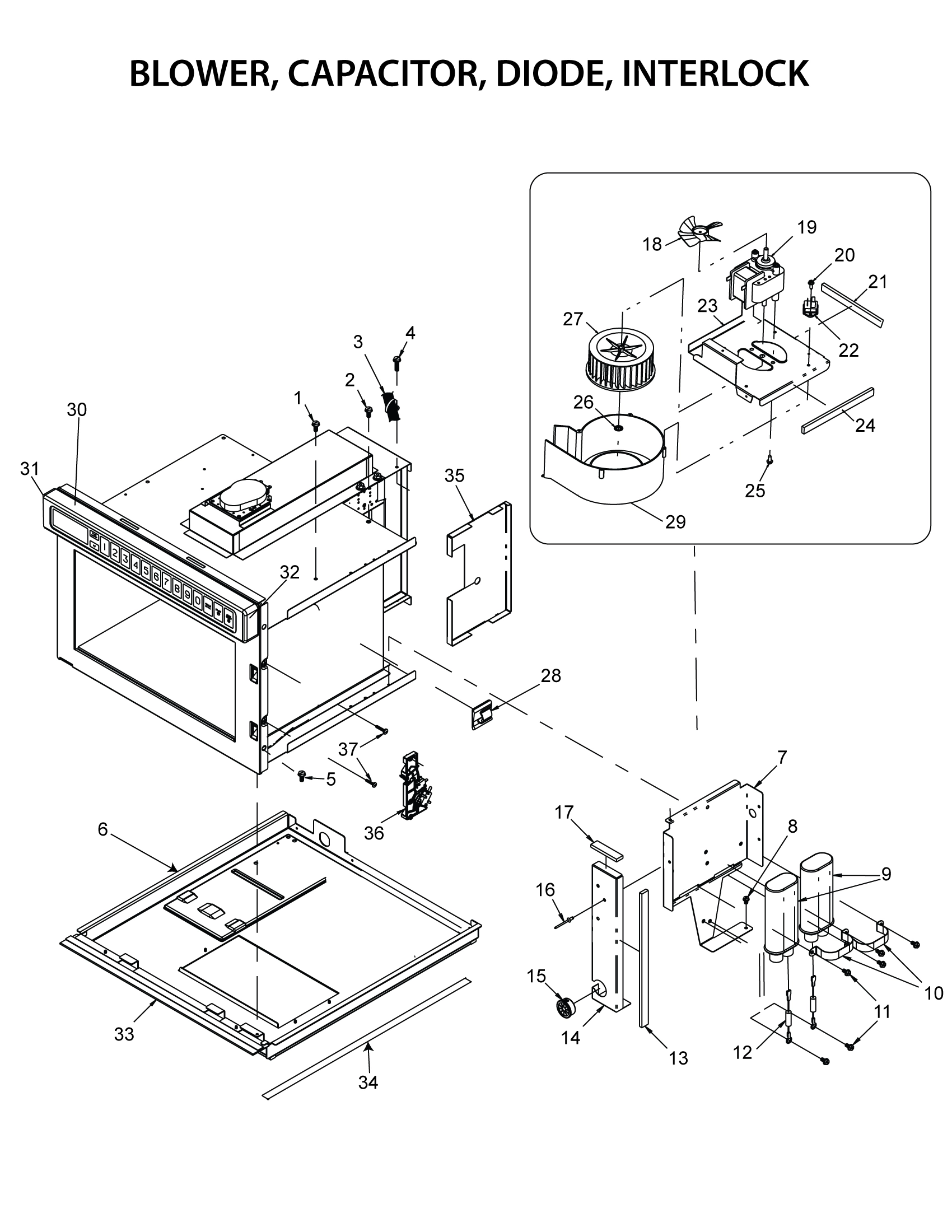

BLOWER, CAPACITOR, DIODE, INTERLOCK

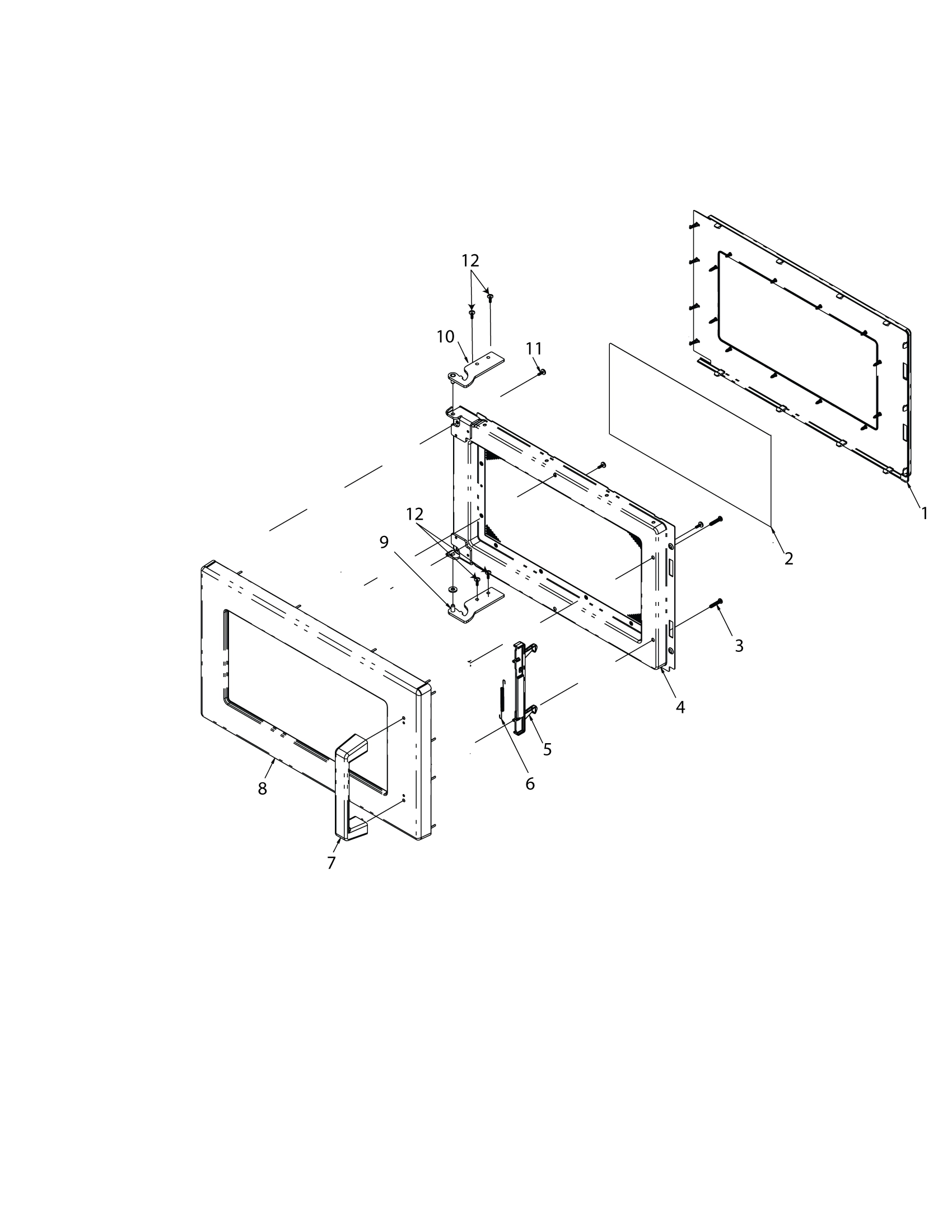

DOOR
LV / HV CONTROL, MAGNETRONS, DUCTS, FUSE
TRAY, CAVITY, ANTENNAS
WIRING / SCHEMATIC DIAGRAMS, SUPPLEMENTAL
WRAPPER / REAR COVER / LAMP
Common parts from model Accelerated Cooking Products MDC182K-P2003632M Amana Menumaster MDC182K
1
INNER DOOR ACP 59114168 Contact Us For Availability
1
KIT, CAVITY- 18 & 21 ACP 14159099 Contact Us For Availability
1
ACCESS PANEL-E CT ACP 12296806 Contact Us For Availability
2
KIT, HV/LV BOARD ACP 14090032 Contact Us For Availability
2
WINDOW-INNER DOOR ACP 20181801 Contact Us For Availability
2
HARNESS, HV ACP 20039703 Contact Us For Availability
3
GASKET, PER FT ACP 59002162 Contact Us For Availability
4
WELD, DOOR & WINDOW ACP 59114170 Contact Us For Availability
4
THERMAL CUTOUT ACP B5684121 Contact Us For Availability
4
SHIELD-SPILL ACP 12160602 Contact Us For Availability
5
MAGNETRON ACP 59004013 Contact Us For Availability
5
KIT, CERAMIC TRAY & SEALER ACP 14159092 Contact Us For Availability
5
LATCH, DOOR ACP 59114175 Contact Us For Availability
5
TAPE-TRANSFER (ROLL) ACP 59214767 Contact Us For Availability
6
SEALER ACP 59002167 Contact Us For Availability
6
SPRING-DOOR LATCH ACP 20045102 Contact Us For Availability
6
CLIP-CORD ACP M0104106 Contact Us For Availability
7
KIT, ANTENNA & MOTOR- BOTTOM ACP 14179122 Contact Us For Availability
8
FUSE-30A ACP M0805304 Contact Us For Availability
8
MOTOR, ANTENNA- TOP ACP 14179118 Contact Us For Availability
8
OUTER DOOR ASSY- MM ACP 14119064 Contact Us For Availability
8
SCREW-SM/HEX RoHS ACP 12990525 Contact Us For Availability
9
CAPACITOR-.74 ACP 59174535 Contact Us For Availability
9
ANTENNA SHIELD ACP 59124202 Contact Us For Availability
10
FILTER, AIR ACP 59001659 Contact Us For Availability
10
KIT, HINGE- TOP ACP 14179128 Contact Us For Availability
10
KIT, RECEPTACLE ACP 59194649 Contact Us For Availability
11
KIT, WINDOW ACP R9900114 Contact Us For Availability
11
WRAPPER ACP 12408503Q Contact Us For Availability
12
DIODE ACP 20057401 Contact Us For Availability
12
COVER-LIGHT ACP 59174559 Contact Us For Availability
13
SCREW ACP 13095201 Contact Us For Availability
15
TRANSFORMER, HV ACP 59114143 Contact Us For Availability
18
THERMAL CUTOUT, CAVITY ACP B5795319 Contact Us For Availability
18
BLADE, FAN ACP B5706704 Contact Us For Availability
19
MOTOR, BLOWER ACP 59174526 Contact Us For Availability
20
DUCT, MAG INLET ACP 12107304 Contact Us For Availability
22
KIT, TRIAC ACP 59174520 Contact Us For Availability
22
WINDOW-OVEN LIGHT ACP 59174523 Contact Us For Availability
26
RETAINER ACP 20020502 Contact Us For Availability
27
WHEEL, BLOWER ACP 12138201 Contact Us For Availability
30
TOUCH PANEL ASSY ACP 59174529 Contact Us For Availability
31
ENDCAP-ESC LEFT ACP 12131002 Contact Us For Availability
32
ENDCAP-ESC RIGHT ACP 12131001 Contact Us For Availability
34
GASKET, BASEPAN - 90 in (228 cm) ACP R0000413 Contact Us For Availability
36
SWITCH, INTERLOCK ASSY ACP 14179126 Contact Us For Availability
× ![]()
