Accelerated Cooking Products MDC12A2-P1333127M Amana Menumaster MDC12A2 Parts List

1

12408503Q Amana Wrapper Backorder ACP 12408503Q $182.28

View on Model

1

59004007 Amana Inner Door Assembly Backorder ACP 59004007 $112.56

View on Model

1

59174529 Amana Touch Panel Assembly Backorder ACP 59174529 $157.92

View on Model

1

R0150186 Amana Antenna Motor Kit Backorder ACP R0150186 $80.46

View on Model

1

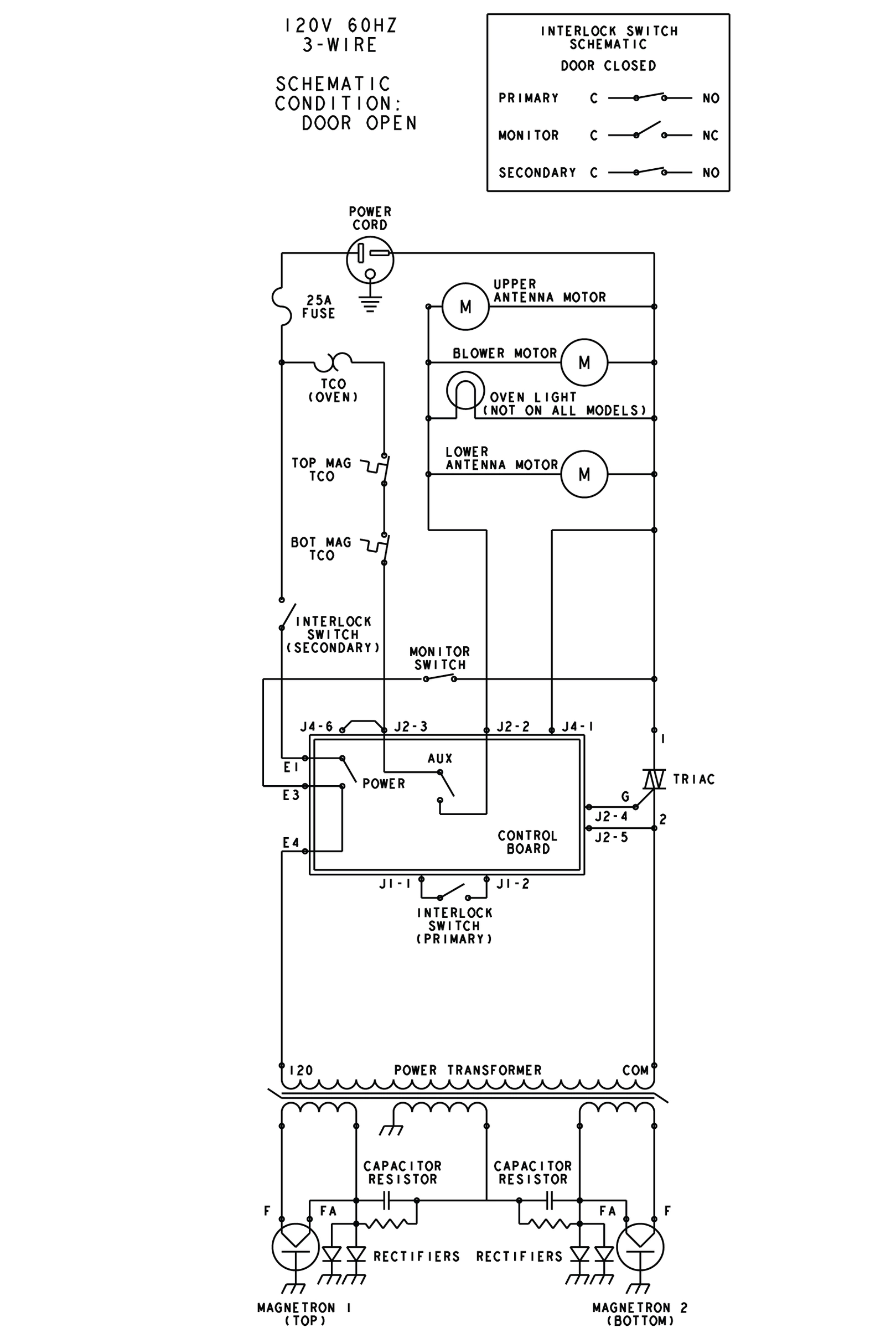

WIRING DIAGRAM ACP 13063702 Contact Us For Availability

View on Model

2

12131001 Amana Right ESC End Cap Backorder ACP 12131001 $5.85

View on Model

2

ACCESS PANEL-E CT ACP 12296806 Contact Us For Availability

View on Model

3

12131002 Amana End Cap ESC Backorder ACP 12131002 $5.85

View on Model

4

12990525 Amana Screw - Small Head Backorder ACP 12990525 $4.82

View on Model

4

59004111 Amana HV/LV Board Backorder ACP 59004111 $290.64

View on Model

4

TECH SHEET-COMM'L MICRO **NO ACP RT2240005 Contact Us For Availability

View on Model

5

59114167 Amana Interlock Switch Assembly In Stock ACP 59114167 $97.49

View on Model

5

CLIP-GUIDE ACP M0118705 Contact Us For Availability

View on Model

6

13095201 Amana Screw, Oval Backorder ACP 13095201 $4.82

View on Model

6

13098101 Amana Welded Door Ring Backorder ACP 13098101 $45.68

View on Model

6

59174534 Amana Capacitor and Diode Kit In Stock ACP 59174534 $47.65

View on Model

6

59174559 Amana Light Cover Hardware Backorder ACP 59174559 $27.62

View on Model

6

SPACER-RUBBER ACP M0274072 Contact Us For Availability

View on Model

7

20057401 Amana Diode In Stock ACP 20057401 $7.57

View on Model

7

R9900114 Amana Window Kit Backorder ACP R9900114 $23.54

View on Model

7

HARNESS, OVEN ACP 20034701 Contact Us For Availability

View on Model

8

HARNESS- HI VOLT ACP 13017901 Contact Us For Availability

View on Model

9

5210001001 Amana Nylon Bushing Backorder ACP 5210001001 $4.82

View on Model

9

59124202 Amana Antenna Shield In Stock ACP 59124202 $37.68

View on Model

9

R9800022 Amana Diode Kit Backorder ACP R9800022 $73.90

View on Model

9

HARNESS, LW ANTENNA ACP 13017801 Contact Us For Availability

View on Model

10

12155702 Amana Menu Label Backorder ACP 12155702 $5.71

View on Model

10

14159092 Amana Ceramic Tray and Sealer Kit In Stock ACP 14159092 $109.20

View on Model

10

14179128 Amana Hinge Kit Top & Bottom Backorder ACP 14179128 $39.77

View on Model

10

59002161 Amana Power Cord Backorder ACP 59002161 $30.71

View on Model

11

12107304 Amana MAG Inlet Duct Backorder ACP 12107304 $15.64

View on Model

11

BASEPAN & GASKET ASSY ACP 59184621 Contact Us For Availability

View on Model

12

B5795319 Amana Cavity Thermal Cutout Backorder ACP B5795319 $12.20

View on Model

13

59001659 Amana Screen Filter In Stock ACP 59001659 $20.63

View on Model

13

59004013 Amana Magnetron In Stock ACP 59004013 $101.60

View on Model

13

R9900667 Amana Bottom Antenna Motor Kit Backorder ACP R9900667 $48.99

View on Model

14

R9900585 Amana Installation Kit Backorder ACP R9900585 $64.90

View on Model

14

SCREW-SM/KNIFE RoHS ACP 12991101 Contact Us For Availability

View on Model

14

TRIM, OC ACP 12873701 Contact Us For Availability

View on Model

15

14119064 Amana Door Assembly Kit MM Backorder ACP 14119064 $354.42

View on Model

15

20173001 Amana Rotary Igniter Backorder ACP 20173001 $14.83

View on Model

15

R0150185 Amana Antenna Retainer Assembly Backorder ACP R0150185 $26.31

View on Model

16

12990522 Amana Screw SM/HEX RoHS Backorder ACP 12990522 $4.82

View on Model

16

B5684121 Amana Thermal Cutout In Stock ACP B5684121 $5.44

View on Model

16

B5706704 Amana Motor Fan Blade Backorder ACP B5706704 $6.65

View on Model

17

59174524 Amana Blower Motor Assembly Backorder ACP 59174524 $192.36

View on Model

17

R0000413 Amana Base Pan Gasket 90 Inch Backorder ACP R0000413 $41.34

View on Model

18

59002167 Amana Sealer In Stock ACP 59002167 $14.95

View on Model

18

BRKT-BLOWER WSH ACP 12271103 Contact Us For Availability

View on Model

19

C8893502 Amana Door Latch Spring Backorder ACP C8893502 $4.82

View on Model

19

GASKET, PER FT ACP 59002162 Contact Us For Availability

View on Model

20

12138201 Amana Blower Wheel Backorder ACP 12138201 $13.68

View on Model

21

12138302 Amana Blower Scroll Backorder ACP 12138302 $7.24

View on Model

22

59174520 Amana TRIAC (40A) & Snubber Kit In Stock ACP 59174520 $54.35

View on Model

22

M0805201 Amana Fuse In Stock ACP M0805201 $5.31

View on Model

23

12126901 Amana Door Latch Backorder ACP 12126901 $4.82

View on Model

23

20020502 Amana Retainer Backorder ACP 20020502 $4.82

View on Model

23

59002017 Amana Snubber Assembly Backorder ACP 59002017 $36.09

View on Model

24

14159098 Amana HDC12A2 Cavity Backorder ACP 14159098 $609.84

View on Model
