Model Maytag MDB8969SDE0 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams
01 - COVER SHEET
02 - DOOR AND PANEL PARTS

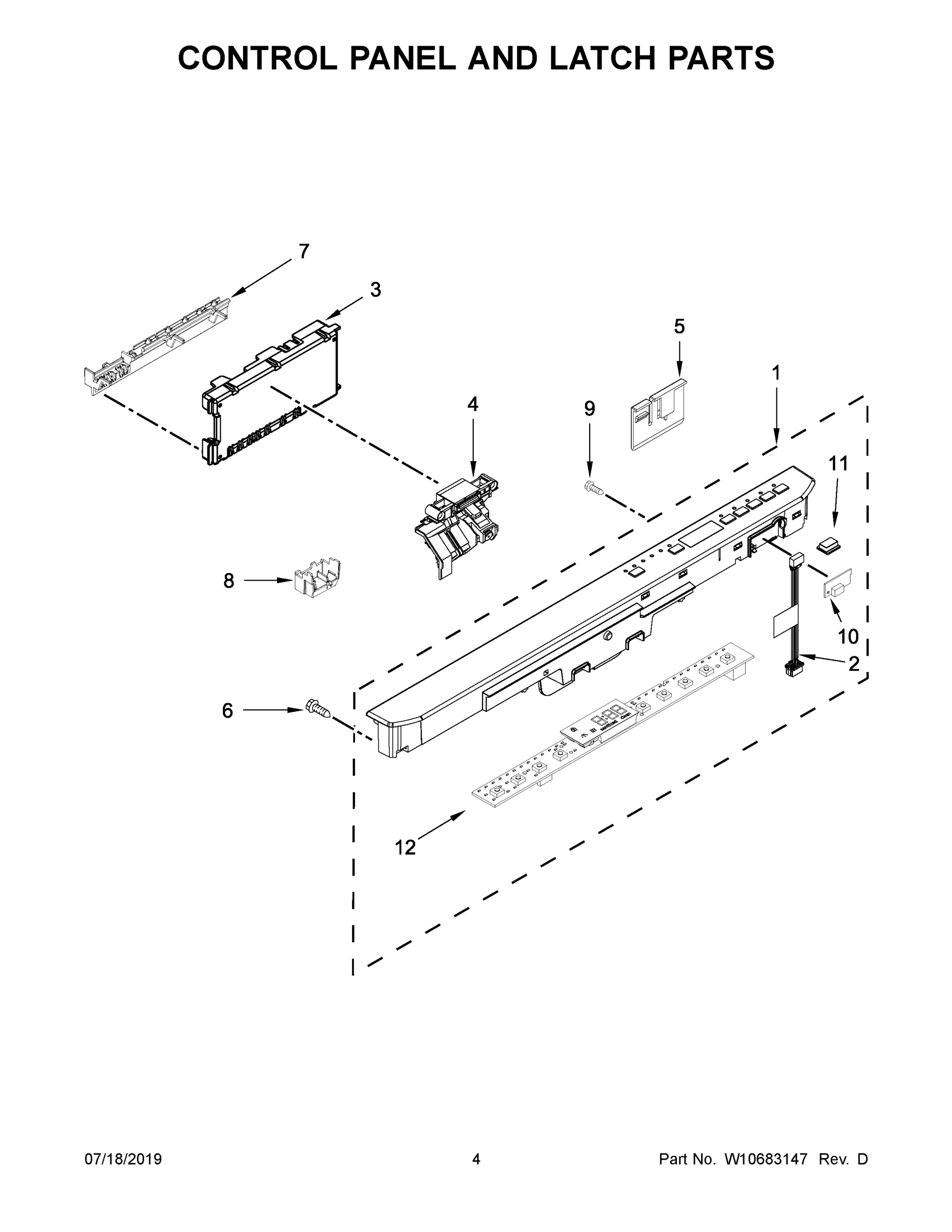

03 - CONTROL PANEL AND LATCH PARTS

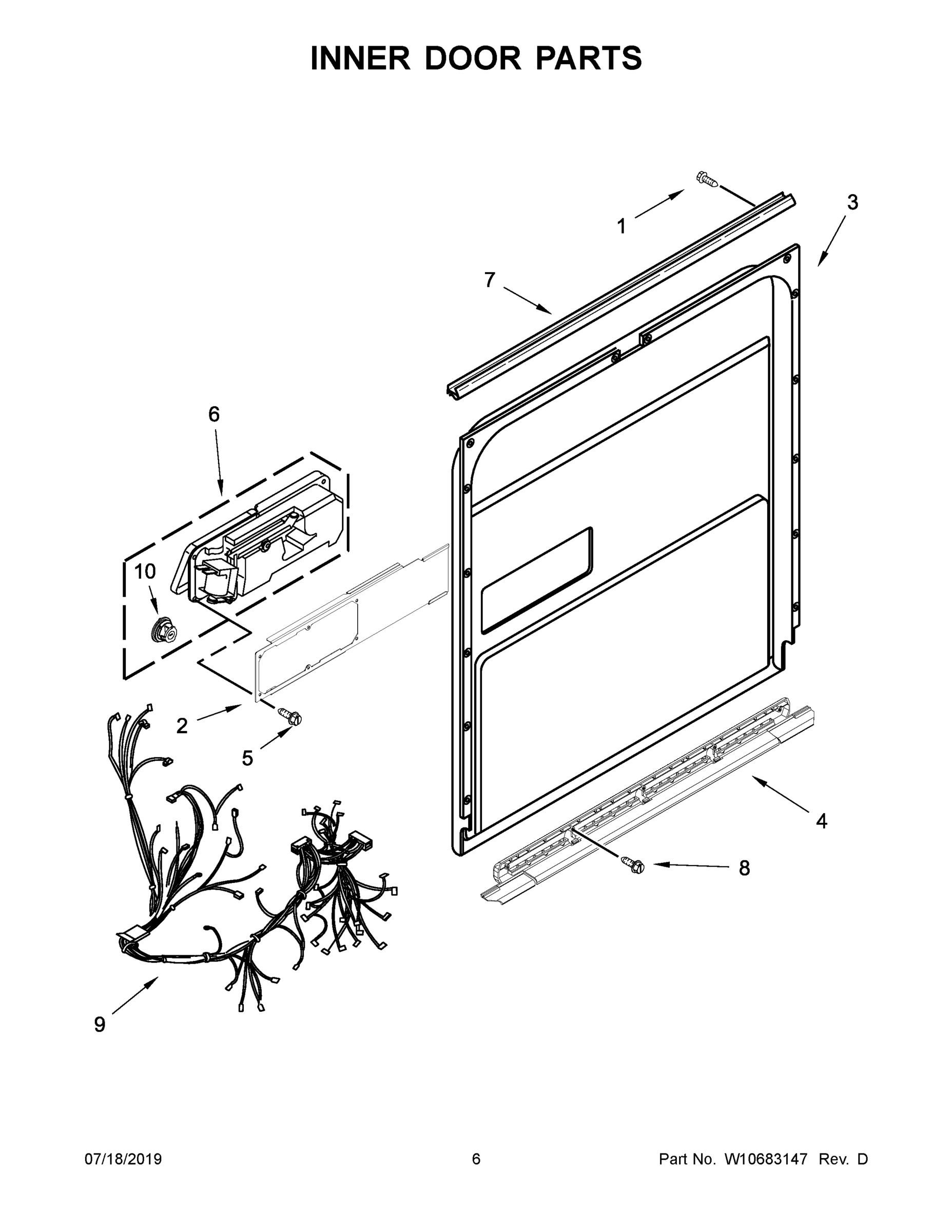

04 - INNER DOOR PARTS

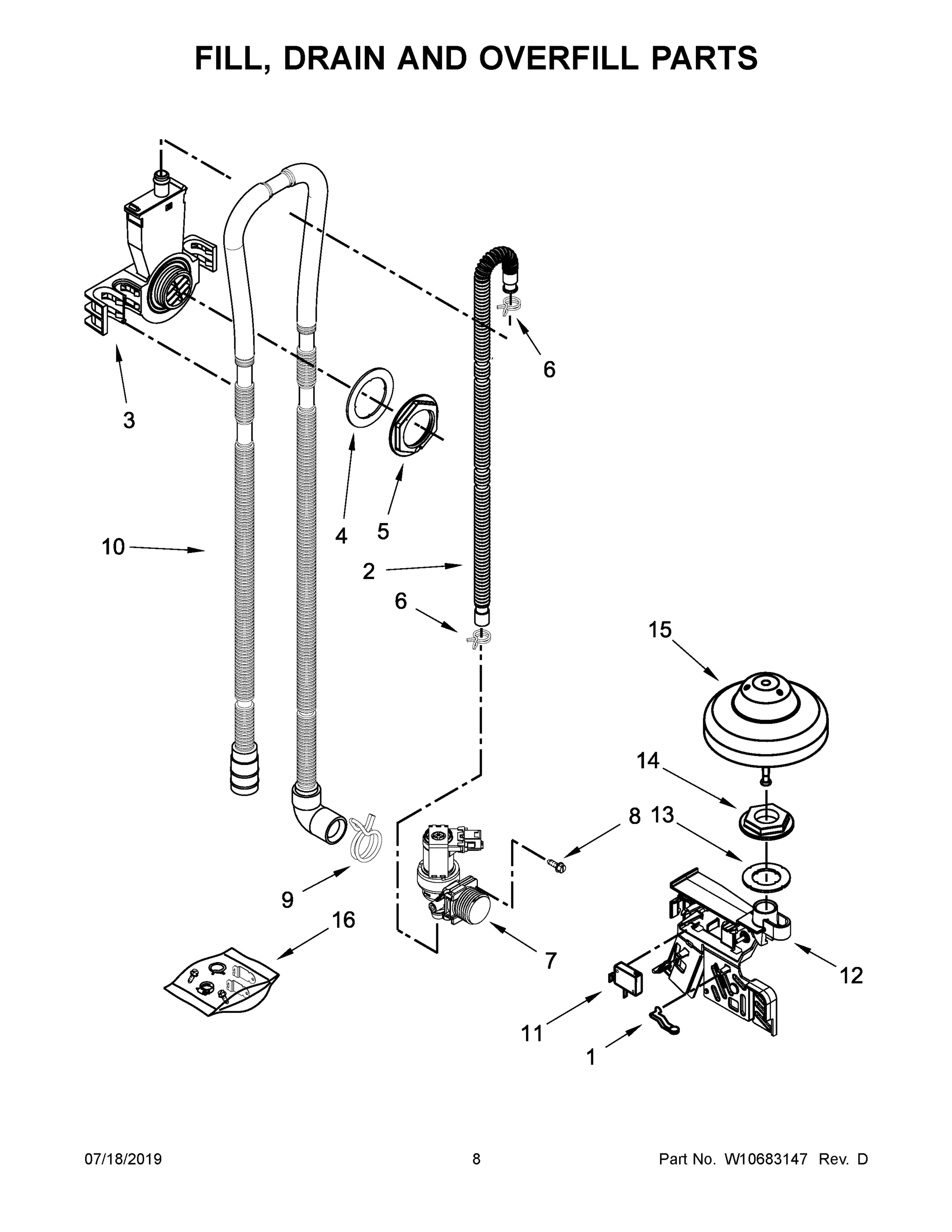

05 - FILL, DRAIN AND OVERFILL PARTS

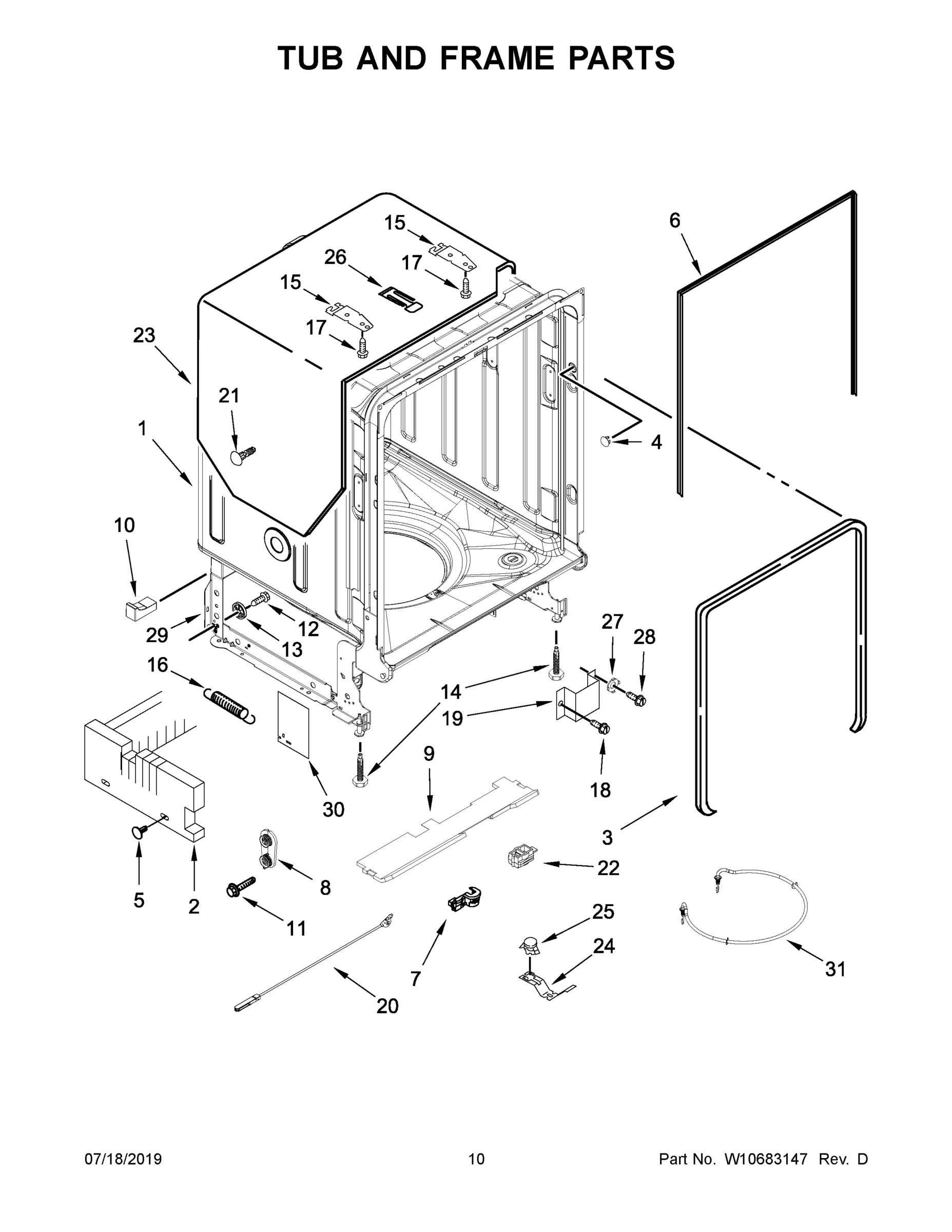

06 - TUB AND FRAME PARTS

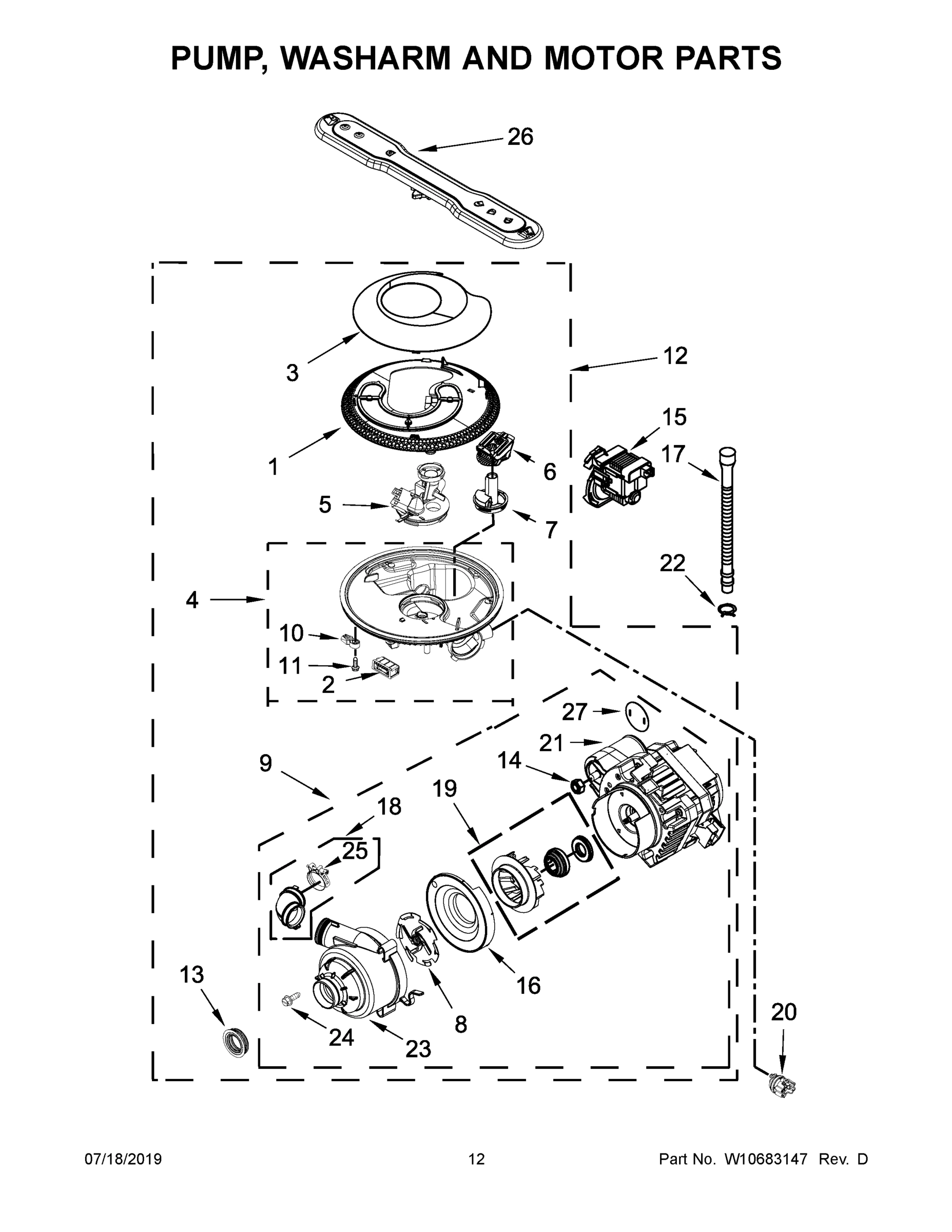

07 - PUMP, WASHARM AND MOTOR PARTS

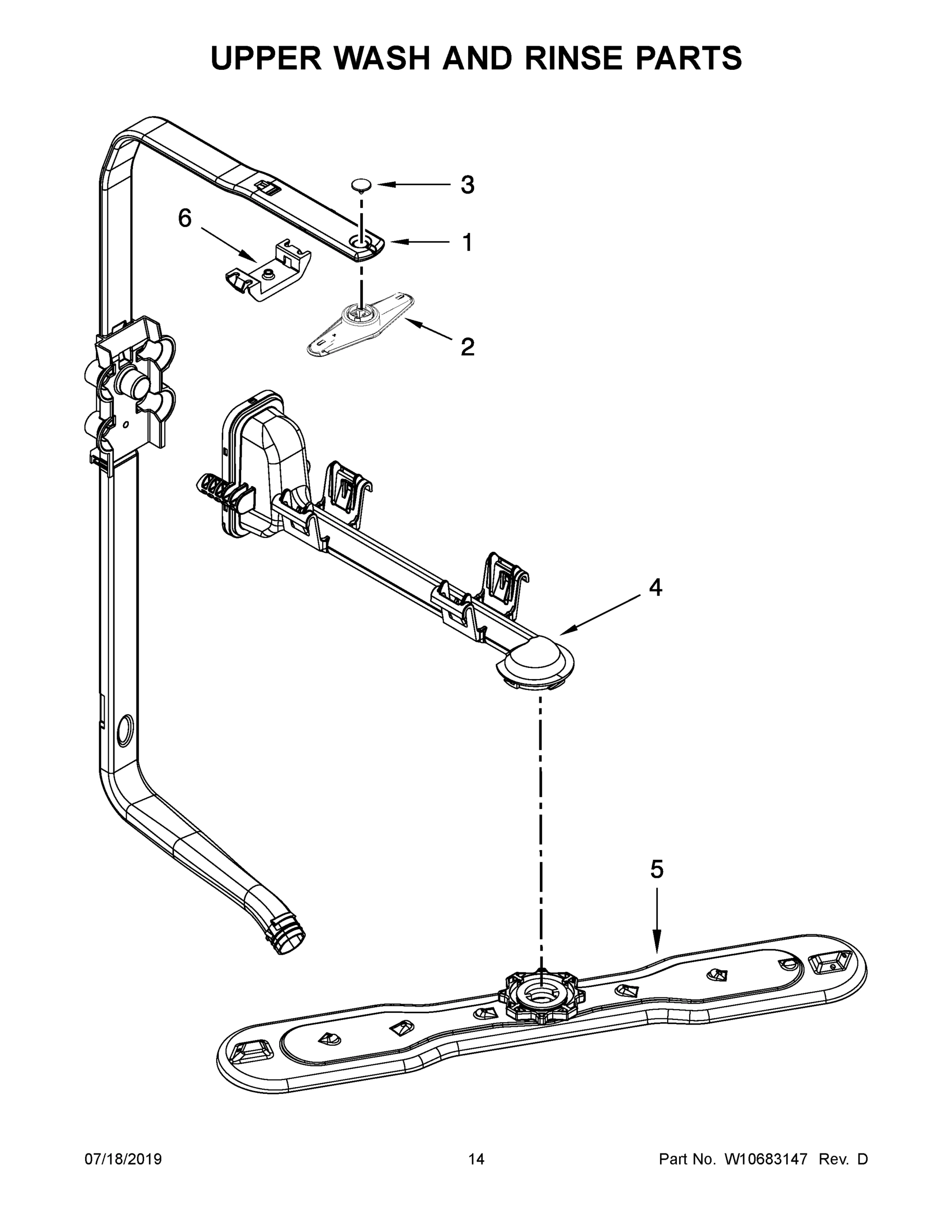

08 - UPPER WASH AND RINSE PARTS

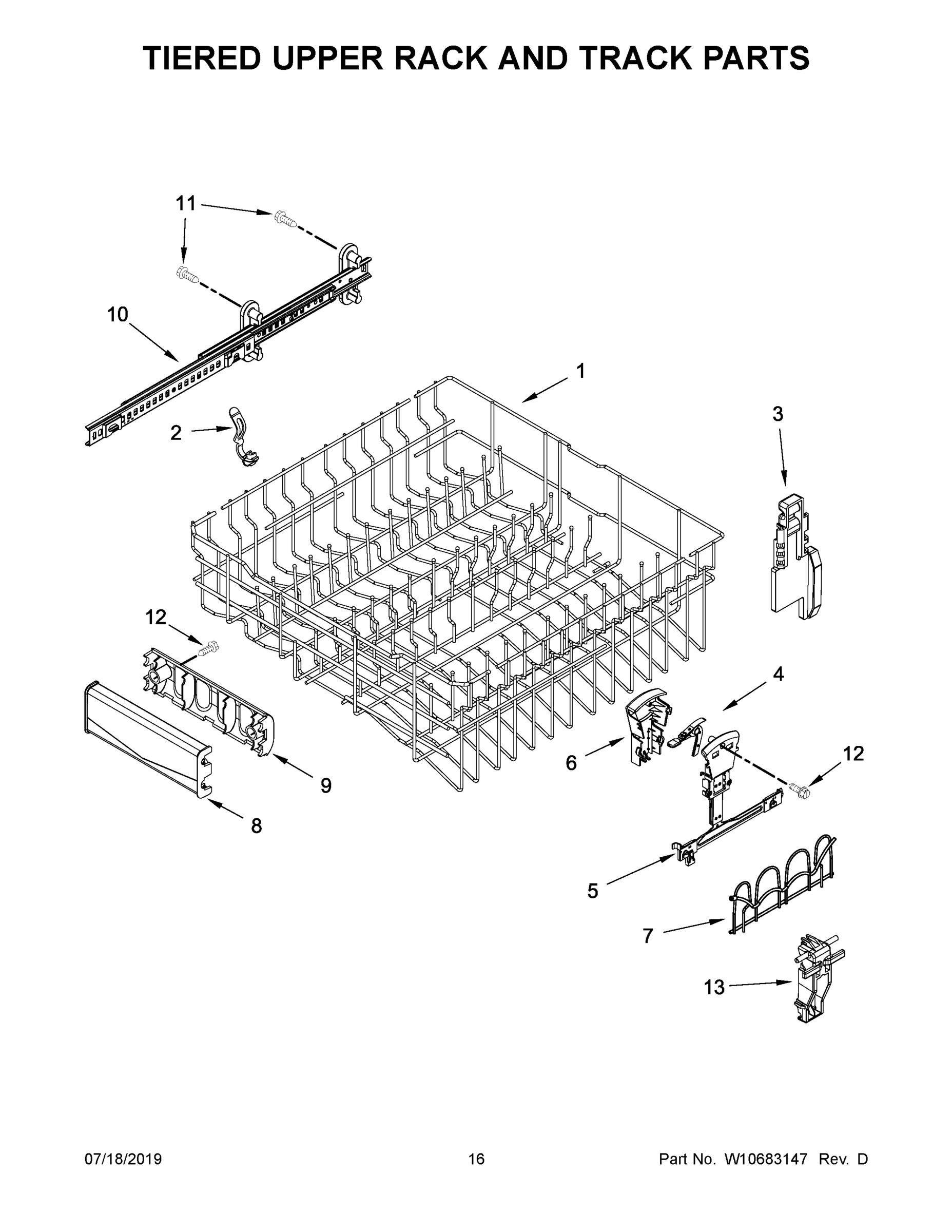

09 - TIERED UPPER RACK AND TRACK PARTS

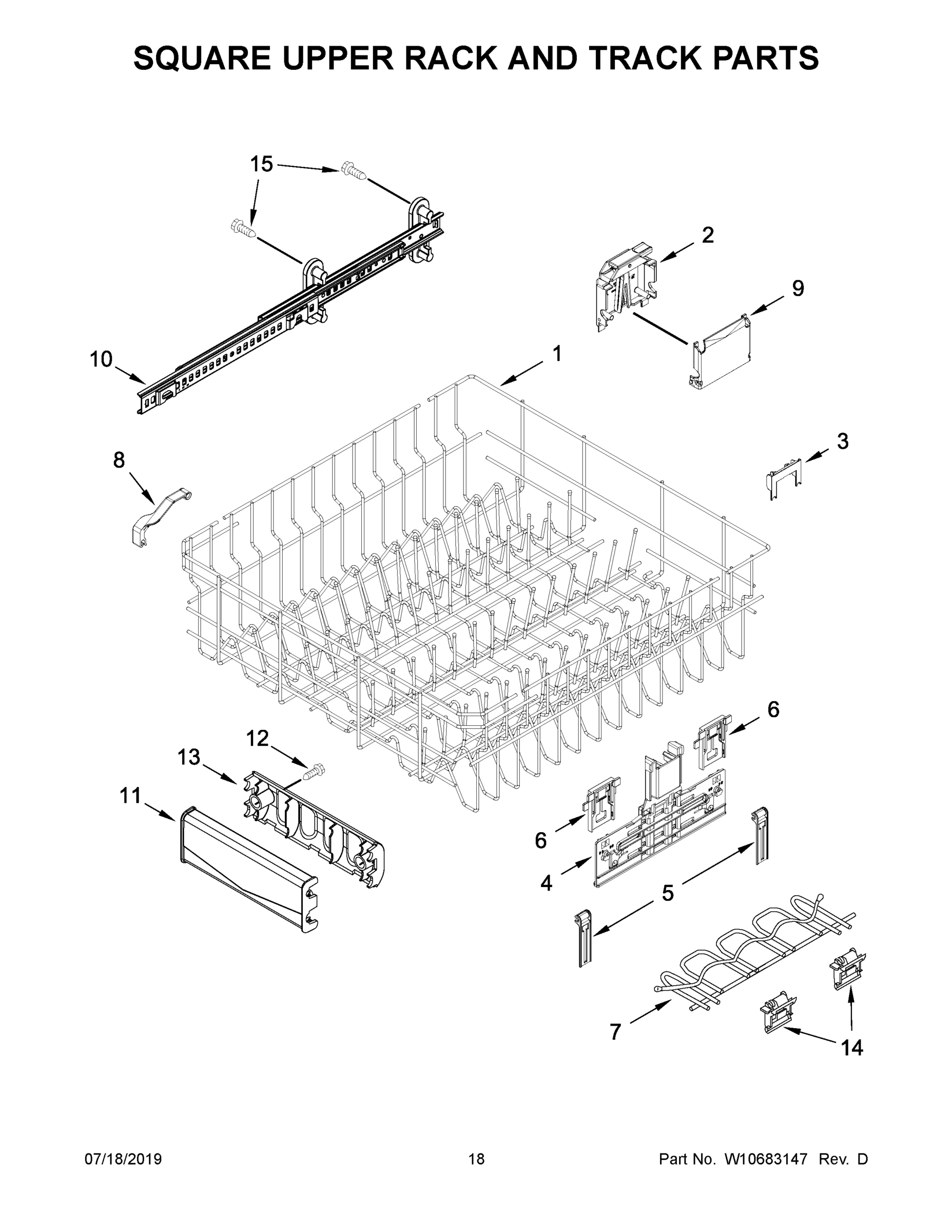

10 - SQUARE UPPER RACK AND TRACK PARTS

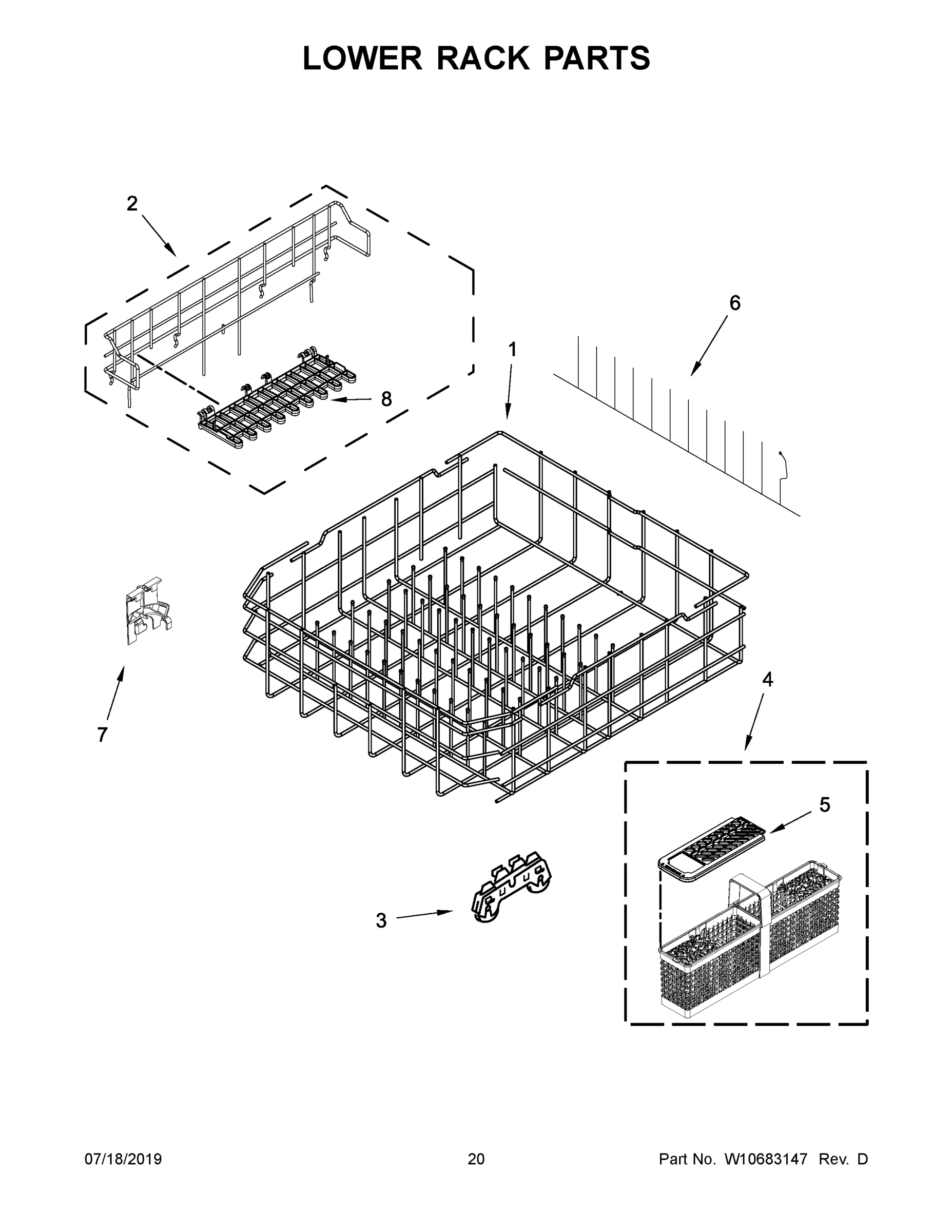

11 - LOWER RACK PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB8969SDE0 DISHWASHER, UNDERCOUNTER
1
INSTALLATION INSTRUCTIONS MAY W10649077 Contact Us For Availability
1
CONSOLE ASSEMBLY (BLACK) MAY W10620450 Contact Us For Availability
1
SCREW MAY W10348409 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10511208 Contact Us For Availability
1
ACCUMULATOR ASSEMBLY MAY W10591545 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3) MAY W10340745 Contact Us For Availability
1
DISHRACK, UPPER MAY W10599523 Contact Us For Availability
1
DISHRACK, UPPER MAY W10599464 Contact Us For Availability
1
DISHRACK, LOWER MAY W10525645 Contact Us For Availability
1A
ENERGY GUIDE MAY W10810681 Contact Us For Availability
1A
CONSOLE ASSEMBLY (WHITE) MAY W10620451 Contact Us For Availability
1B
USE & CARE GUIDE MAY W10599529 Contact Us For Availability
1B
CONSOLE ASSEMBLY (GREY) MAY W10620452 Contact Us For Availability
1C
TECH SHEET, ENGLISH MAY W10610054 Contact Us For Availability
1D
TECH SHEET, FRENCH MAY W10610057 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
JUMPER, 4-WIRE MAY W10566903 Contact Us For Availability
2
BRACKET, DISPENSER MAY W10767097 Contact Us For Availability
2
HOSE MAY 8531412 Contact Us For Availability
2
INSULATION, U-WRAP MAY W10380052 Contact Us For Availability
2
MOTOR, ISOLATOR MAY W10195086 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
CLIP, LITE ITEM MAY W10630203 Contact Us For Availability
2
HOUSING, ADJUSTER (LEFT HAND) MAY W10588164 Contact Us For Availability
2
CUPSHELF ASSEMBLY, SIDE MAY W10630208 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
2A
HOUSING, ADJUSTER (RIGHT HAND) MAY W10588165 Contact Us For Availability
3
BARRIER, VAPOR MAY W10844384 Contact Us For Availability
3
CONTROL, ELECTRONIC MAY W10712071 Contact Us For Availability
3
INNER DOOR MAY W10480715 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
GASKET, TUB MAY W10660528 Contact Us For Availability
3
COVER, ACCUMULATOR MAY W10736968 Contact Us For Availability
3
RETAINER MAY 3400918 Contact Us For Availability
3
STABILIZER, RACK MAY W10609586 Contact Us For Availability
3
CLIP, ADJUSTER MAY W10250160 Contact Us For Availability
3
WHEEL & TRANSPORT ASSEMBLY MAY W10195416 Contact Us For Availability
4
PANEL FRONT (INCLUDES ITEMS 8, 13, 14 & 16) ( MAY W10562144 Contact Us For Availability
4
LATCH ASSEMBLY (INCLUDES SWITCH) MAY W10653840 Contact Us For Availability
4
SEAL, DOOR BOTTOM MAY W10497235 Contact Us For Availability
4
GASKET MAY 8531323 Contact Us For Availability
4
PLUG, TUB MAY W10082838 Contact Us For Availability
4
SUMP WITH SEAL (ALSO ORDER ITEMS 13 & 18) MAY W10482462 Contact Us For Availability
4
MANIFOLD (FOR SQUARE RACK) MAY W10340542 Contact Us For Availability
4
LEVER, RACK ADJUSTER MAY W10627763 Contact Us For Availability
4
ADJUSTER ASSEMBLY MAY W10546503 Contact Us For Availability
4
SILVERWARE BASKET ASSEMBLY MAY W10552271 Contact Us For Availability
4A
PANEL FRONT (INCLUDES ITEMS 8, 13, 14 & 16) ( MAY W10562145 Contact Us For Availability
4A
MANIFOLD (FOR TIERED RACK) MAY W10571946 Contact Us For Availability
4B
PANEL FRONT (INCLUDES ITEMS 8, 13, 14 & 16) ( MAY W10562146 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY W10852733 Contact Us For Availability
5
CLIP, CONTROL MAY W10195237 Contact Us For Availability
5
SCREW MAY W10177098 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
RETAINER MAY W10486051 Contact Us For Availability
5
COVER, OUTLET MAY W10463892 Contact Us For Availability
5
SPRAYARM, UPPER MAY W10605345 Contact Us For Availability
5
ADJUSTER, RACK (LEFT HAND) MAY W10609580 Contact Us For Availability
5
STRAP, TETHER ADJUSTER MAY W10195839 Contact Us For Availability
5
LID, SILVERWARE BASKET MAY W10580746 Contact Us For Availability
5A
ACCESS PANEL (WHITE) MAY W10852732 Contact Us For Availability
5A
ADJUSTER, RACK (RIGHT HAND) MAY W10609581 Contact Us For Availability
6
U-NUT MAY W10853886 Contact Us For Availability
6
DISPENSER ASSEMBLY MAY W10629971 Contact Us For Availability
6
CLAMP, HOSE MAY 371505 Contact Us For Availability
6
SEAL, CABINET MAY W10179427 Contact Us For Availability
6
PROTECTOR, INLET MAY W10591547 Contact Us For Availability
6
BRACKET, FEED TUBE MAY W10195690 Contact Us For Availability
6
COVER, RACK ADJUSTER MAY W10251047 Contact Us For Availability
6
POSITIONER, ADJUSTER MAY W10195840 Contact Us For Availability
6
TINE ROW, FOLD DOWN MAY W10082907 Contact Us For Availability
7
INSULATION, FRONT PANEL MAY W10315897 Contact Us For Availability
7
BRACE, CONNECTOR MAY W10194937 Contact Us For Availability
7
SEAL, CONSOLE/DOOR MAY W10195007 Contact Us For Availability
7
FILL VALVE ASSEMBLY MAY W10327249 Contact Us For Availability
7
STRAIN RELIEF MAY W10337661 Contact Us For Availability
7
ADAPTER, DRAIN MAY W10591540 Contact Us For Availability
7
CUPSHELF MAY W10663575 Contact Us For Availability
7
CUPSHELF ASSEMBLY MAY W10669976 Contact Us For Availability
7
RETAINER, TINE ROW MAY W10175279 Contact Us For Availability
8
BADGE MAY W10612925 Contact Us For Availability
8
SCREW MAY 304392 Contact Us For Availability
8
BOX, CONNECTOR MAY W10756253 Contact Us For Availability
8
SCREW MAY 8281217 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
CHOPPER ASSEMBLY MAY W10591562 Contact Us For Availability
8
CLIP, DISPENSER GUARD MAY W10267076 Contact Us For Availability
8
CUPSHELF MAY W10630204 Contact Us For Availability
9
BRACKET, CONTROL MAY W10641745 Contact Us For Availability
9
SCREW (LONG) MAY W10348408 Contact Us For Availability
9
WIRING HARNESS MAY W10566920 Contact Us For Availability
9
SOUND INSULATION, BOTTOM MAY W10819539 Contact Us For Availability
9
MOTOR ASSEMBLY (ALSO ORDER ITEM 13) MAY W10591569 Contact Us For Availability
9
COVER, ADJUSTER MAY W10250162 Contact Us For Availability
10
SCREW (BLACK) MAY 302868 Contact Us For Availability
10
LIGHT, STATUS MAY W10195836 Contact Us For Availability
10
KNOB, RINSE AID MAY W10524919 Contact Us For Availability
10
DRAIN LOOP WITH CHECK VALVE ASSEMBLY MAY W10545278 Contact Us For Availability
10
TUB SPACER (LEFT HAND) MAY W10195630 Contact Us For Availability
10
TAB, SUMP MAY W10372113 Contact Us For Availability
10
TRACK ASSEMBLY (LEFT HAND) MAY W10462359 Contact Us For Availability
10
TRACK ASSEMBLY (LEFT HAND) MAY W11192640 Contact Us For Availability
10A
TUB SPACER (RIGHT HAND) MAY W10195631 Contact Us For Availability
10A
TRACK ASSEMBLY (RIGHT HAND) MAY W10462358 Contact Us For Availability
10A
TRACK ASSEMBLY (RIGHT HAND) MAY W11192638 Contact Us For Availability
11
BUTTON, CONTROL (BLACK) MAY W10613680 Contact Us For Availability
11
SWITCH, OVERFILL CONTROL MAY W10195039 Contact Us For Availability
11
SCREW MAY 3400074 Contact Us For Availability
11
SCREW MAY W10348407 Contact Us For Availability
11
HANDLE, DISHRACK (FRONT) MAY W10635042 Contact Us For Availability
11A
BUTTON, CONTROL (WHITE) MAY W10613681 Contact Us For Availability
12
SCREW MAY 3400071 Contact Us For Availability
12
USER INTERFACE MAY W10619841 Contact Us For Availability
12
HOUSING, OVERFILL (ALSO ORDER ITEM 13) MAY W10195035 Contact Us For Availability
12
SCREW MAY W10348411 Contact Us For Availability
12
SUMP & MOTOR ASSEMBLY MAY W10591570 Contact Us For Availability
12
SCREW MAY 9741232 Contact Us For Availability
13
SCREW MAY W10316572 Contact Us For Availability
13
GASKET, FLAT MAY 8531743 Contact Us For Availability
13
WHEEL LEG MAY W10190778 Contact Us For Availability
13
GROMMET MAY W10538166 Contact Us For Availability
13
HANDLE, DISHRACK (REAR) MAY W10562068 Contact Us For Availability
13
MOUNT, CUPSHELF MAY W10663572 Contact Us For Availability
14
STUD, MOUNTING MAY W11049903 Contact Us For Availability
14
NUT, STANDPIPE MAY W10195038 Contact Us For Availability
14
LEVELER, LEG MAY W10619352 Contact Us For Availability
14
NUT MAY 8533949 Contact Us For Availability
14
CLIP, CUPSHELF MAY 8562026 Contact Us For Availability
15
HANDLE (STAINLESS) MAY W10786153 Contact Us For Availability
15
FLOAT & RETAINER ASSEMBLY MAY W10195036 Contact Us For Availability
15
BRACKET, UNDERCOUNTER MAY 8269145 Contact Us For Availability
15
PUMP, DRAIN MAY W10348269 Contact Us For Availability
15
SCREW MAY W10309090 Contact Us For Availability
16
LIGHT, PIPE MAY W10319007 Contact Us For Availability
16
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10786175 Contact Us For Availability
16
SPRING, DOOR BALANCE MAY 8270020 Contact Us For Availability
16
ENCLOSURE, MOTOR MAY W10591561 Contact Us For Availability
17
SCREW MAY 3367670 Contact Us For Availability
17
HOSE, DRAIN MAY 8269144 Contact Us For Availability
18
SCREW MAY 3400892 Contact Us For Availability
18
HOSE ASSEMBLY (INCLUDES 2 CLAMPS) MAY W10445975 Contact Us For Availability
19
COVER, TERMINAL BOX MAY 8268991 Contact Us For Availability
19
IMPELLER ASSEMBLY MAY W10591558 Contact Us For Availability
20
CABLE, DOOR MAY W10158291 Contact Us For Availability
20
INDICATOR, OPTICAL WASH MAY W10705575 Contact Us For Availability
21
RETAINER MAY 304666 Contact Us For Availability
21
CAPACITOR MAY W10591575 Contact Us For Availability
22
CLAMP, HOSE MAY 370445 Contact Us For Availability
22
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
23
SHIELD, TUB SOUND MAY W10866980 Contact Us For Availability
23
HOUSING, PUMP (ALSO ORDER ITEMS 13 & 18) MAY W10618403 Contact Us For Availability
24
BRACKET, THERMOSTAT MAY W10300703 Contact Us For Availability
24
SCREW MAY W10467002 Contact Us For Availability
25
THERMOSTAT MAY W10195091 Contact Us For Availability
25
CLAMP, HOSE MAY W10169167 Contact Us For Availability
26
STRIKE, LATCH MAY W10544004 Contact Us For Availability
26
SPRAYARM, LOWER MAY W10605800 Contact Us For Availability
27
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
27
SHIELD, CAPACITOR MAY W10710432 Contact Us For Availability
28
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
29
SUPPORT ASSEMBLY, REAR MAY W10190776 Contact Us For Availability
30
COVER, FILL VALVE MAY W10609495 Contact Us For Availability
31
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASH MAY W10696509 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
ACCE MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
