Model Maytag MDB8959SFE2 DISHWASHER, UNDERCOUNTER – Common Parts & Diagrams
01 - COVER SHEET
02 - DOOR AND PANEL PARTS

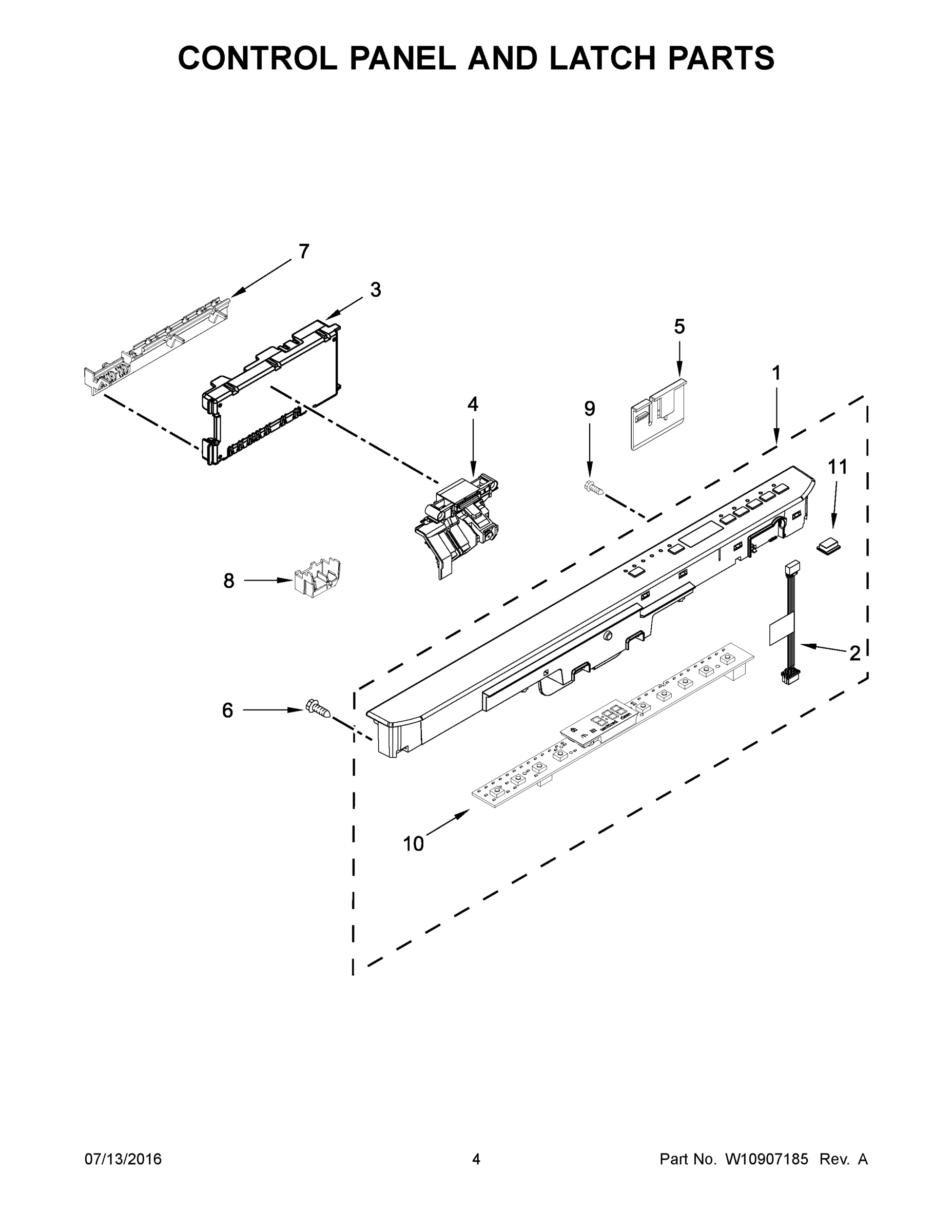

03 - CONTROL PANEL AND LATCH PARTS

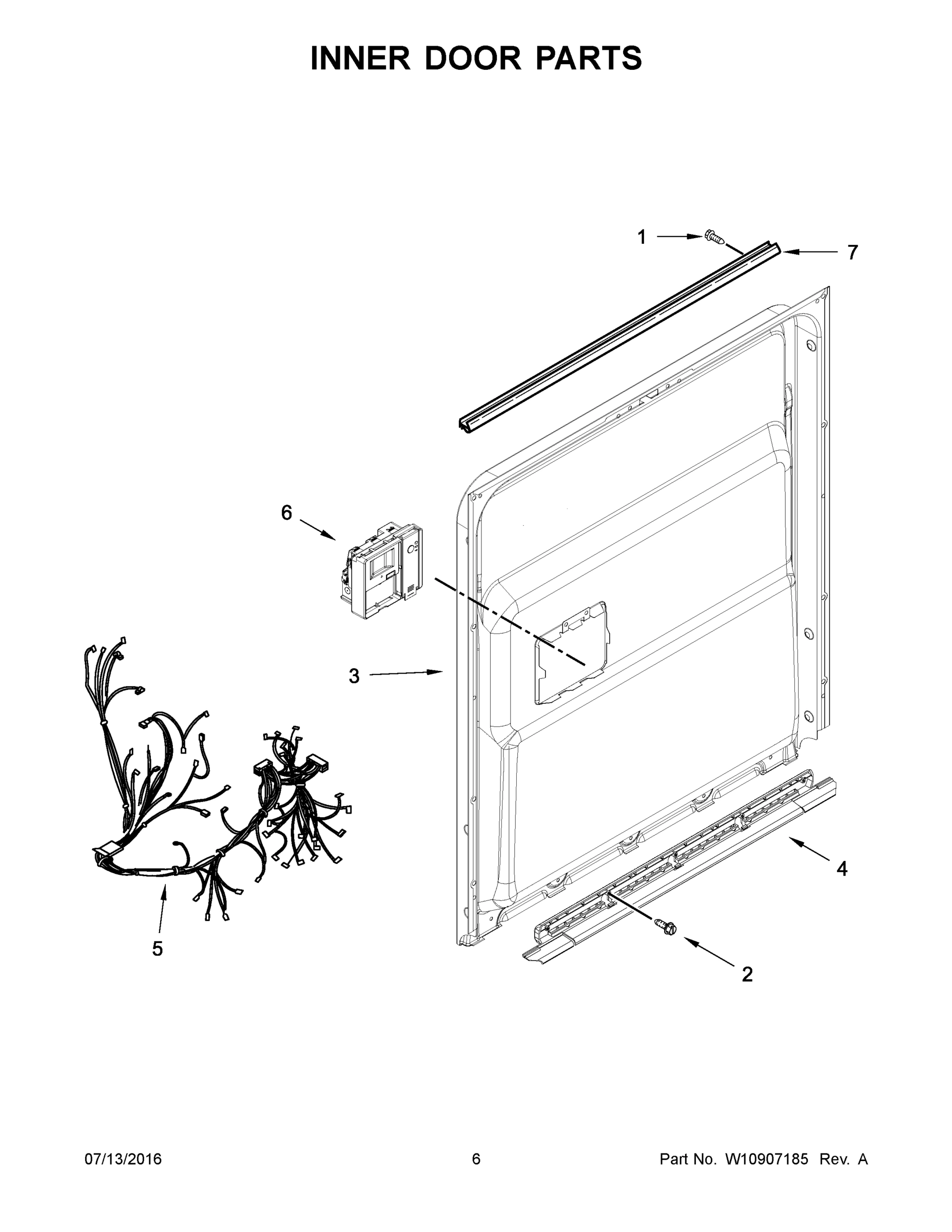

04 - INNER DOOR PARTS

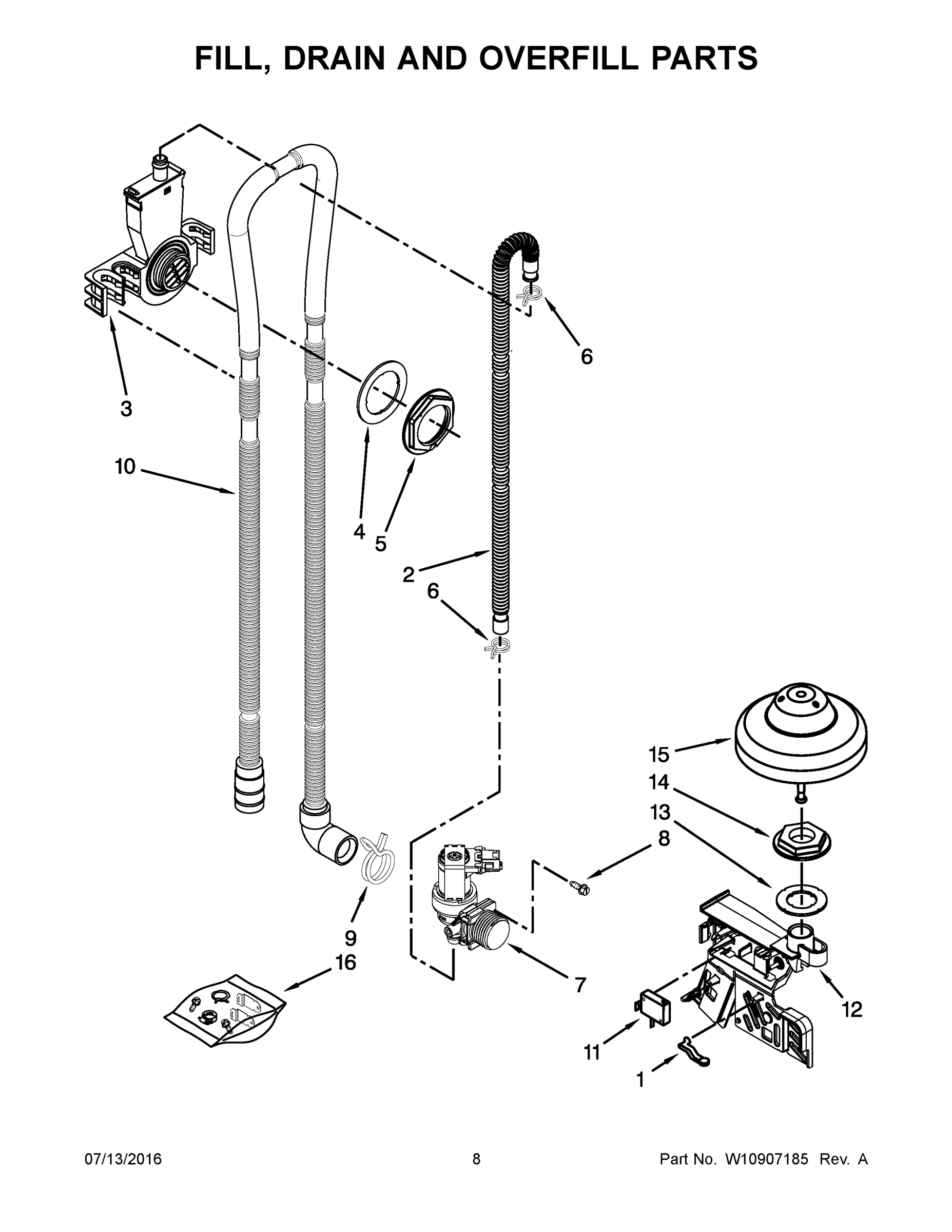

05 - FILL, DRAIN AND OVERFILL PARTS

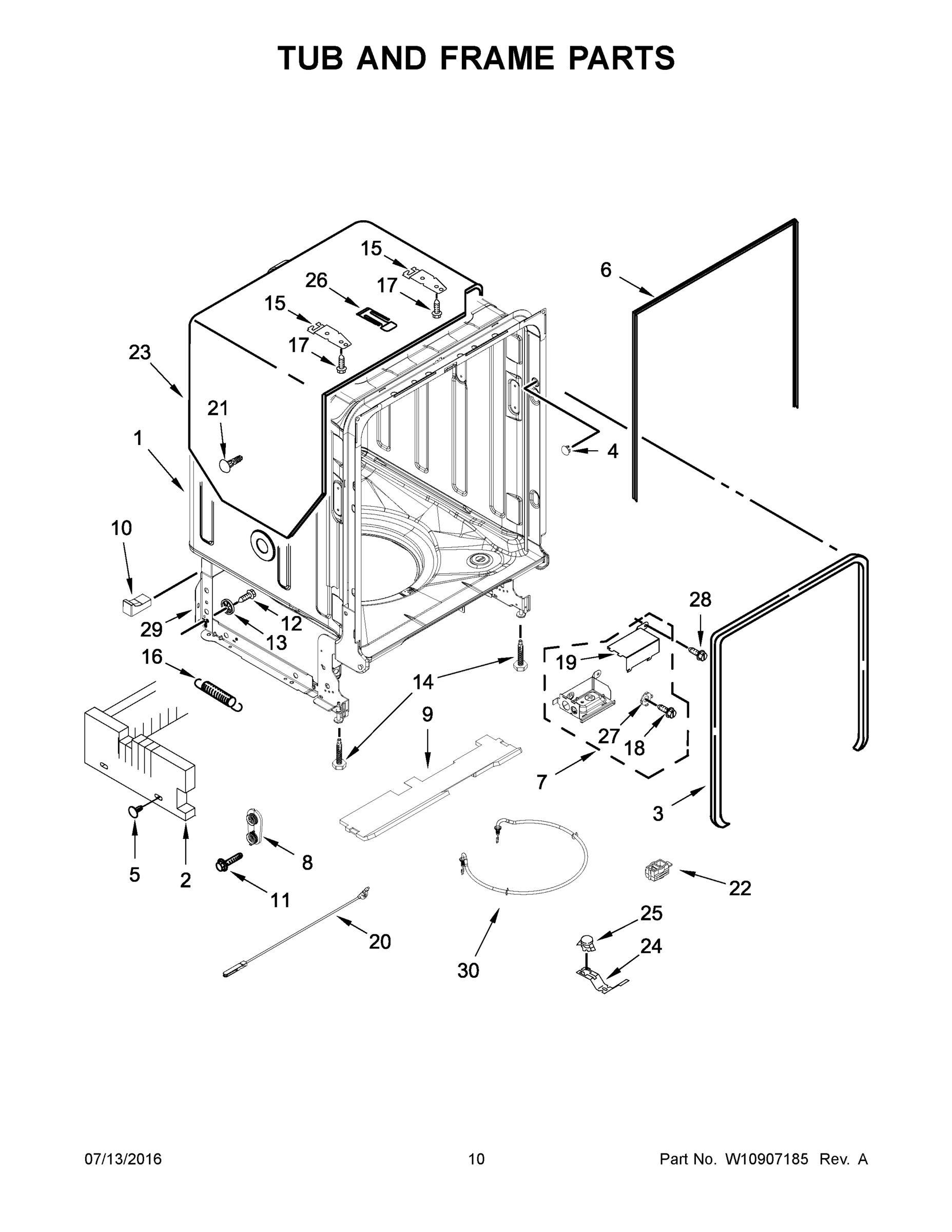

06 - TUB AND FRAME PARTS

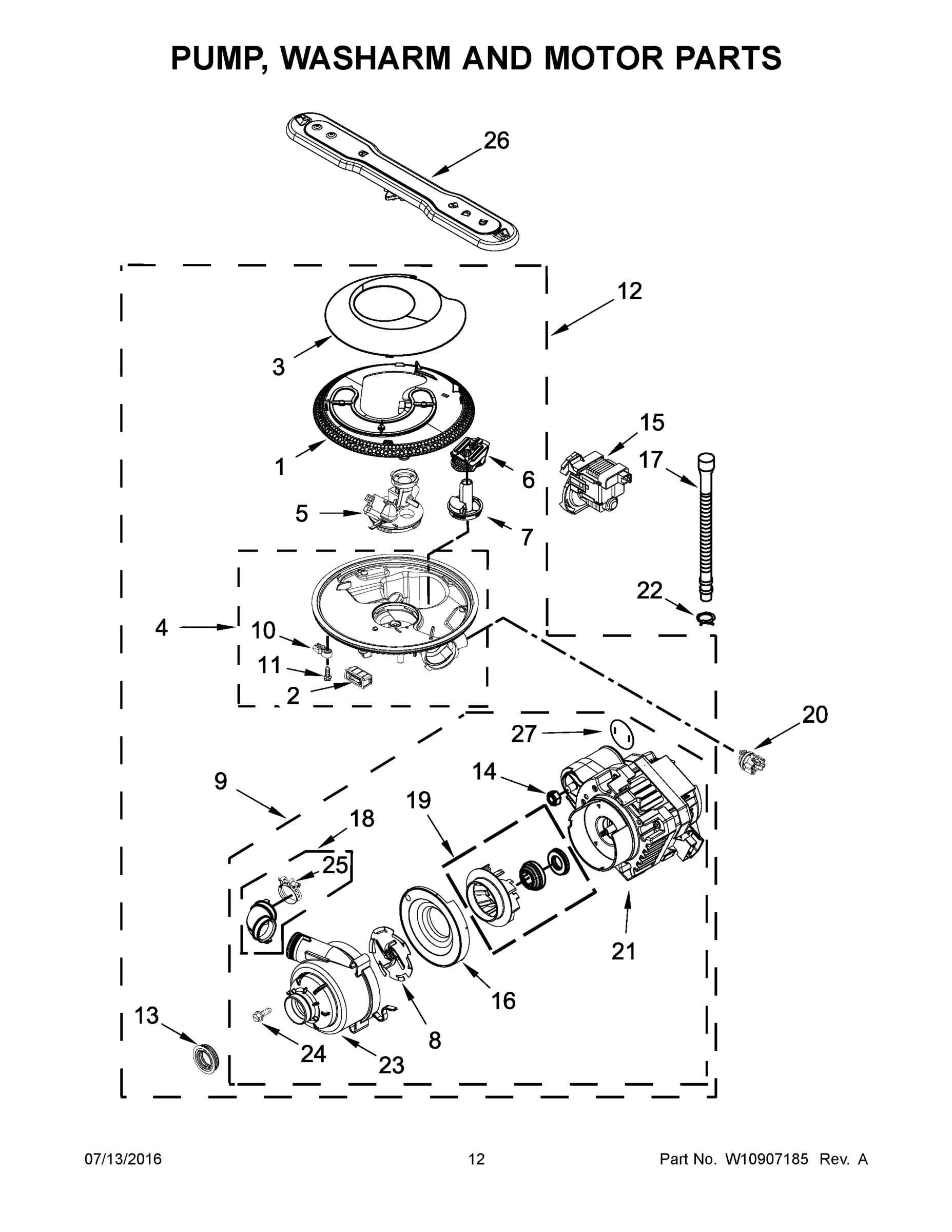

07 - PUMP, WASHARM AND MOTOR PARTS

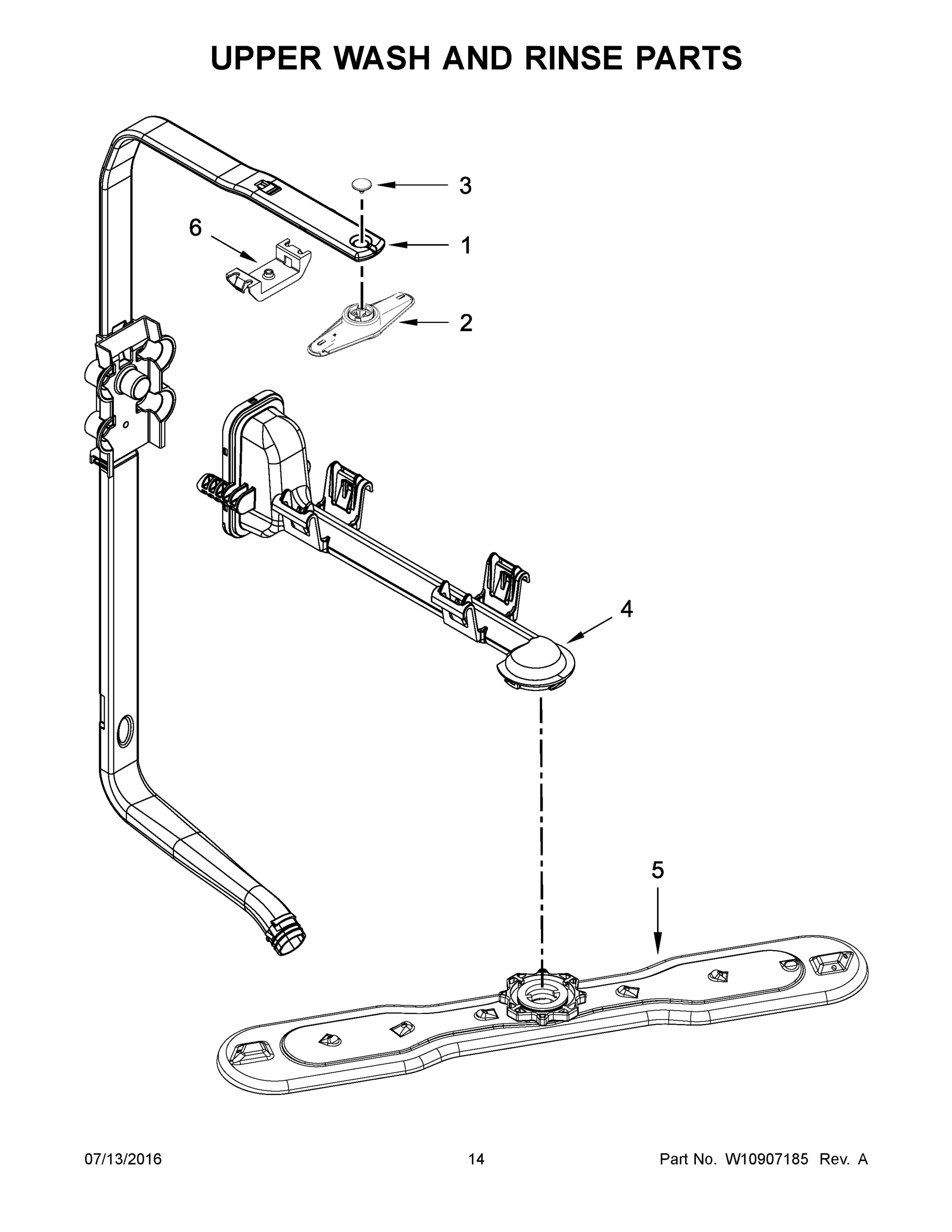

08 - UPPER WASH AND RINSE PARTS

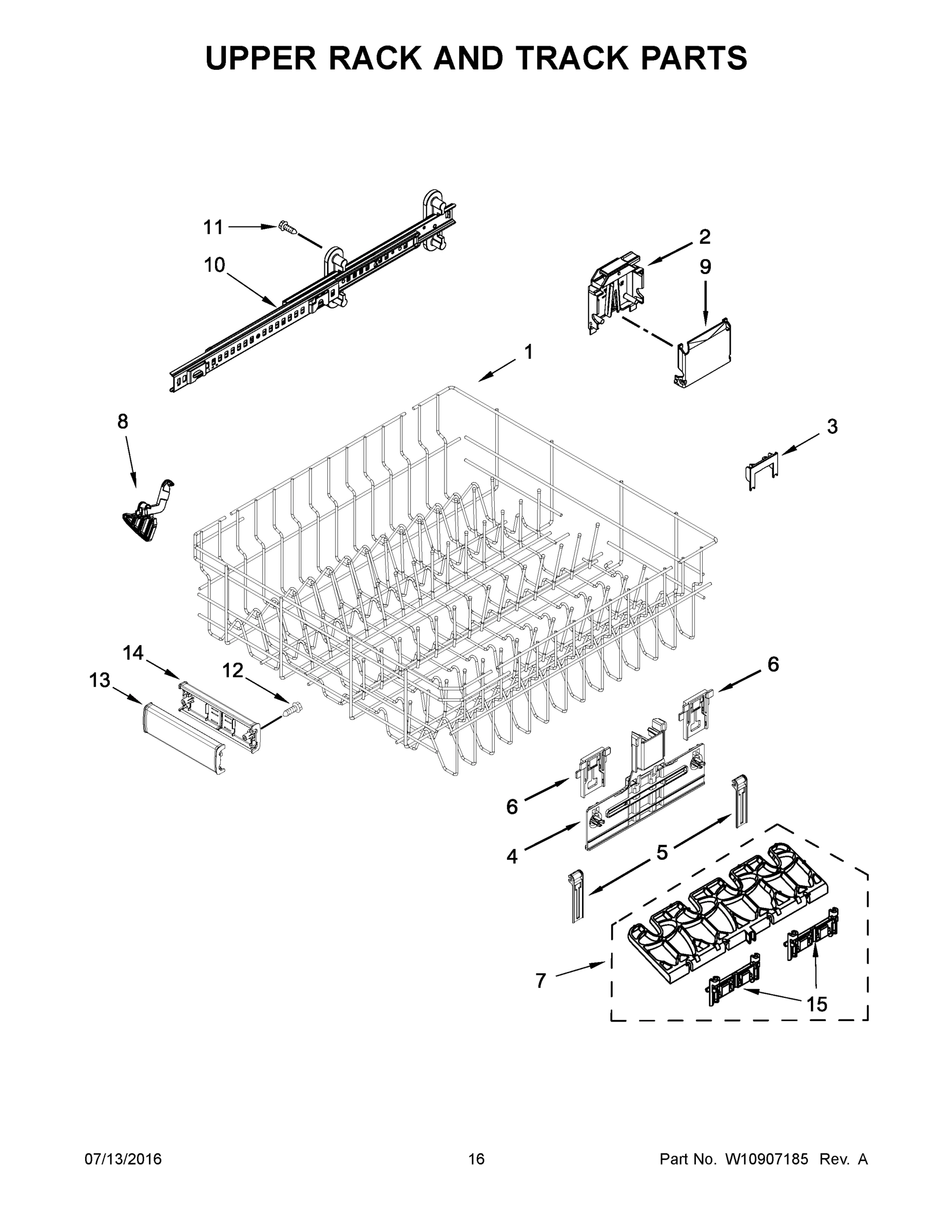

09 - UPPER RACK AND TRACK PARTS

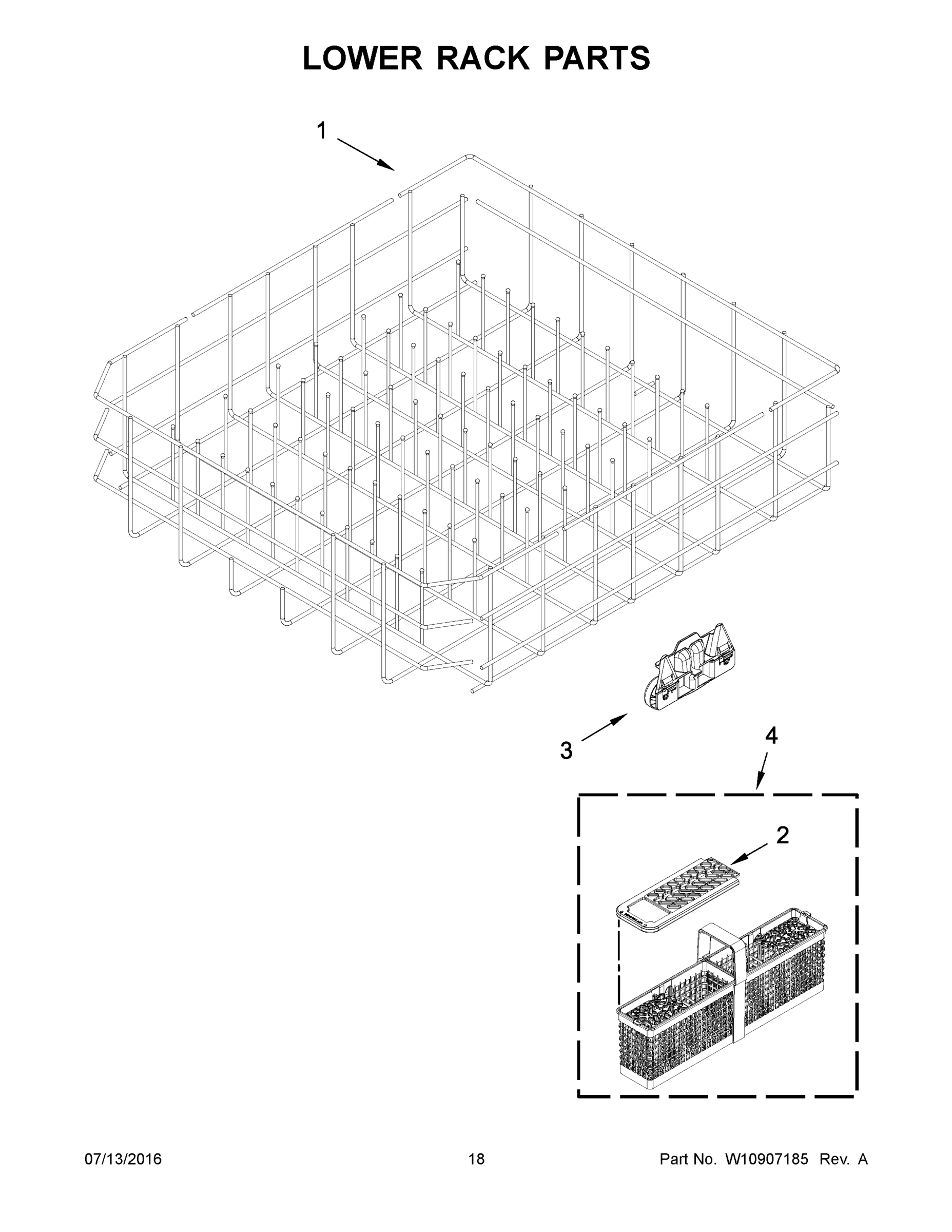

10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB8959SFE2 DISHWASHER, UNDERCOUNTER
1
MAY W10741197 MAY W10741197 Contact Us For Availability
1
MAY W10831197 MAY W10831197 Contact Us For Availability
1
SCREW MAY W10348409 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
MAY W10681492 MAY W10681492 Contact Us For Availability
1
MAY W10591545 MAY W10591545 Contact Us For Availability
1
MAY W10340745 MAY W10340745 Contact Us For Availability
1
MAY W10599464 MAY W10599464 Contact Us For Availability
1
MAY W10525642 MAY W10525642 Contact Us For Availability
1A
MAY W10879782 MAY W10879782 Contact Us For Availability
1A
MAY W10831198 MAY W10831198 Contact Us For Availability
1B
MAY W10832285 MAY W10832285 Contact Us For Availability
1B
MAY W10831199 MAY W10831199 Contact Us For Availability
1C
MAY W10751162 MAY W10751162 Contact Us For Availability
1D
MAY W10751165 MAY W10751165 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
MAY W10566903 MAY W10566903 Contact Us For Availability
2
MAY 8281217 MAY 8281217 Contact Us For Availability
2
MAY W10769066 MAY W10769066 Contact Us For Availability
2
MAY W10750120 MAY W10750120 Contact Us For Availability
2
MAY W10195086 MAY W10195086 Contact Us For Availability
2
SPRAYARM, THIRD LEVEL MAY W10327455 Contact Us For Availability
2
HOUSING ADJUSTER (LEFT HAND) MAY W10195372 Contact Us For Availability
2
MAY W10580746 MAY W10580746 Contact Us For Availability
2A
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
2A
HOUSING ADJUSTER (RIGHT HAND) MAY W10195373 Contact Us For Availability
3
MAY W10844384 MAY W10844384 Contact Us For Availability
3
MAY W10843730 MAY W10843730 Contact Us For Availability
3
MAY W10712597 MAY W10712597 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
GASKET, TUB MAY W10300924 Contact Us For Availability
3
MAY W10736968 MAY W10736968 Contact Us For Availability
3
MAY 3400918 MAY 3400918 Contact Us For Availability
3
CLIP, ADJUSTER MAY W10250160 Contact Us For Availability
3
MAY W10195416 MAY W10195416 Contact Us For Availability
4
MAY W10830494 MAY W10830494 Contact Us For Availability
4
MAY W10653840 MAY W10653840 Contact Us For Availability
4
MAY W10667473 MAY W10667473 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10813122 MAY W10813122 Contact Us For Availability
4
SUMP WITH SEAL (ALSO ORDER ITEMS 13 & 18) MAY W10482462 Contact Us For Availability
4
MAY W10340542 MAY W10340542 Contact Us For Availability
4
MAY W10546503 MAY W10546503 Contact Us For Availability
4
MAY W10552271 MAY W10552271 Contact Us For Availability
4A
MAY W10830495 MAY W10830495 Contact Us For Availability
4B
MAY W10867164 MAY W10867164 Contact Us For Availability
5
MAY W10526105 MAY W10526105 Contact Us For Availability
5
CLIP, CONTROL MAY W10195237 Contact Us For Availability
5
MAY W10752246 MAY W10752246 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
MAY W10486051 MAY W10486051 Contact Us For Availability
5
MAY W10463892 MAY W10463892 Contact Us For Availability
5
MAY W10605345 MAY W10605345 Contact Us For Availability
5
MAY W10195839 MAY W10195839 Contact Us For Availability
6
MAY W10853886 MAY W10853886 Contact Us For Availability
6
DISPENSER ASSEMBLY MAY W10620296 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY W10835073 MAY W10835073 Contact Us For Availability
6
MAY W10591547 MAY W10591547 Contact Us For Availability
6
MAY W10195690 MAY W10195690 Contact Us For Availability
6
POSITIONER, ADJUSTER MAY W10195840 Contact Us For Availability
7
INSULATION, FRONT PANEL MAY W10315897 Contact Us For Availability
7
MAY W10194937 MAY W10194937 Contact Us For Availability
7
MAY W10195007 MAY W10195007 Contact Us For Availability
7
MAY W10327249 MAY W10327249 Contact Us For Availability
7
MAY W10713315 MAY W10713315 Contact Us For Availability
7
MAY W10591540 MAY W10591540 Contact Us For Availability
7
MAY W10082649 MAY W10082649 Contact Us For Availability
8
MAY W10839529 MAY W10839529 Contact Us For Availability
8
MAY W10756253 MAY W10756253 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
MAY W10591562 MAY W10591562 Contact Us For Availability
8
MAY W10752617 MAY W10752617 Contact Us For Availability
9
MAY W10641745 MAY W10641745 Contact Us For Availability
9
SCREW (LONG) MAY W10348408 Contact Us For Availability
9
MAY W10819539 MAY W10819539 Contact Us For Availability
9
MAY W10591569 MAY W10591569 Contact Us For Availability
9
MAY W10250162 MAY W10250162 Contact Us For Availability
10
SCREW (BLACK) MAY 302868 Contact Us For Availability
10
MAY W10619841 MAY W10619841 Contact Us For Availability
10
MAY W10545278 MAY W10545278 Contact Us For Availability
10
TUB SPACER (LEFT HAND) MAY W10195630 Contact Us For Availability
10
MAY W10372113 MAY W10372113 Contact Us For Availability
10
TRACK ASSEMBLY (LEFT HAND) MAY W10781301 Contact Us For Availability
10A
TUB SPACER (RIGHT HAND) MAY W10195631 Contact Us For Availability
10A
TRACK ASSEMBLY (RIGHT HAND) MAY W10781305 Contact Us For Availability
11
MAY W10852733 MAY W10852733 Contact Us For Availability
11
MAY W10613680 MAY W10613680 Contact Us For Availability
11
MAY W10734532 MAY W10734532 Contact Us For Availability
11
SCREW MAY 3400074 Contact Us For Availability
11
MAY W10348407 MAY W10348407 Contact Us For Availability
11
MAY W10309090 MAY W10309090 Contact Us For Availability
11A
MAY W10852732 MAY W10852732 Contact Us For Availability
11A
BUTTON, CONSOLE (DOLPHIN GREY) MAY W10620464 Contact Us For Availability
11B
MAY W10683135 MAY W10683135 Contact Us For Availability
12
SCREW MAY 3400071 Contact Us For Availability
12
HOUSING, OVERFILL (ALSO ORDER ITEM 13) MAY W10647205 Contact Us For Availability
12
MAY W10348411 MAY W10348411 Contact Us For Availability
12
MAY W10591570 MAY W10591570 Contact Us For Availability
12
MAY 9741232 MAY 9741232 Contact Us For Availability
13
MAY 8531743 MAY 8531743 Contact Us For Availability
13
MAY W10190778 MAY W10190778 Contact Us For Availability
13
MAY W10538166 MAY W10538166 Contact Us For Availability
13
MAY W10635042 MAY W10635042 Contact Us For Availability
14
MAY W10195038 MAY W10195038 Contact Us For Availability
14
MAY W10619352 MAY W10619352 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
14
MAY W10562068 MAY W10562068 Contact Us For Availability
15
MAY W10195036 MAY W10195036 Contact Us For Availability
15
MAY 8269145 MAY 8269145 Contact Us For Availability
15
MAY W10348269 MAY W10348269 Contact Us For Availability
15
CLIP, CUPSHELF MAY W10082848 Contact Us For Availability
16
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
16
MAY 8270020 MAY 8270020 Contact Us For Availability
16
MAY W10591561 MAY W10591561 Contact Us For Availability
17
MAY 3367670 MAY 3367670 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
18
MAY W10445975 MAY W10445975 Contact Us For Availability
19
MAY W10653292 MAY W10653292 Contact Us For Availability
19
MAY W10591558 MAY W10591558 Contact Us For Availability
20
CABLE, DOOR MAY W10158291 Contact Us For Availability
20
MAY W10705575 MAY W10705575 Contact Us For Availability
21
RETAINER MAY 304666 Contact Us For Availability
21
MAY W10591575 MAY W10591575 Contact Us For Availability
22
MAY 370445 MAY 370445 Contact Us For Availability
22
SHIELD, THERMOSTAT MAY W10292870 Contact Us For Availability
23
MAY W10866980 MAY W10866980 Contact Us For Availability
23
HOUSING, PUMP (ALSO ORDER ITEMS 13 & 18) MAY W10618403 Contact Us For Availability
24
MAY W10300703 MAY W10300703 Contact Us For Availability
24
MAY W10467002 MAY W10467002 Contact Us For Availability
25
MAY W10195091 MAY W10195091 Contact Us For Availability
25
CLAMP, HOSE MAY W10169167 Contact Us For Availability
26
MAY W10544004 MAY W10544004 Contact Us For Availability
26
MAY W10605800 MAY W10605800 Contact Us For Availability
27
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
27
MAY W10710432 MAY W10710432 Contact Us For Availability
28
SCREW MAY 304392 Contact Us For Availability
29
MAY W10681564 MAY W10681564 Contact Us For Availability
30
MAY W10696509 MAY W10696509 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
MAY W10702080 MAY W10702080 Contact Us For Availability
NI
MAY W10702081 MAY W10702081 Contact Us For Availability
× ![]()
