Model Maytag MDB7759AWS0 DISHWASHER – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL PARTS

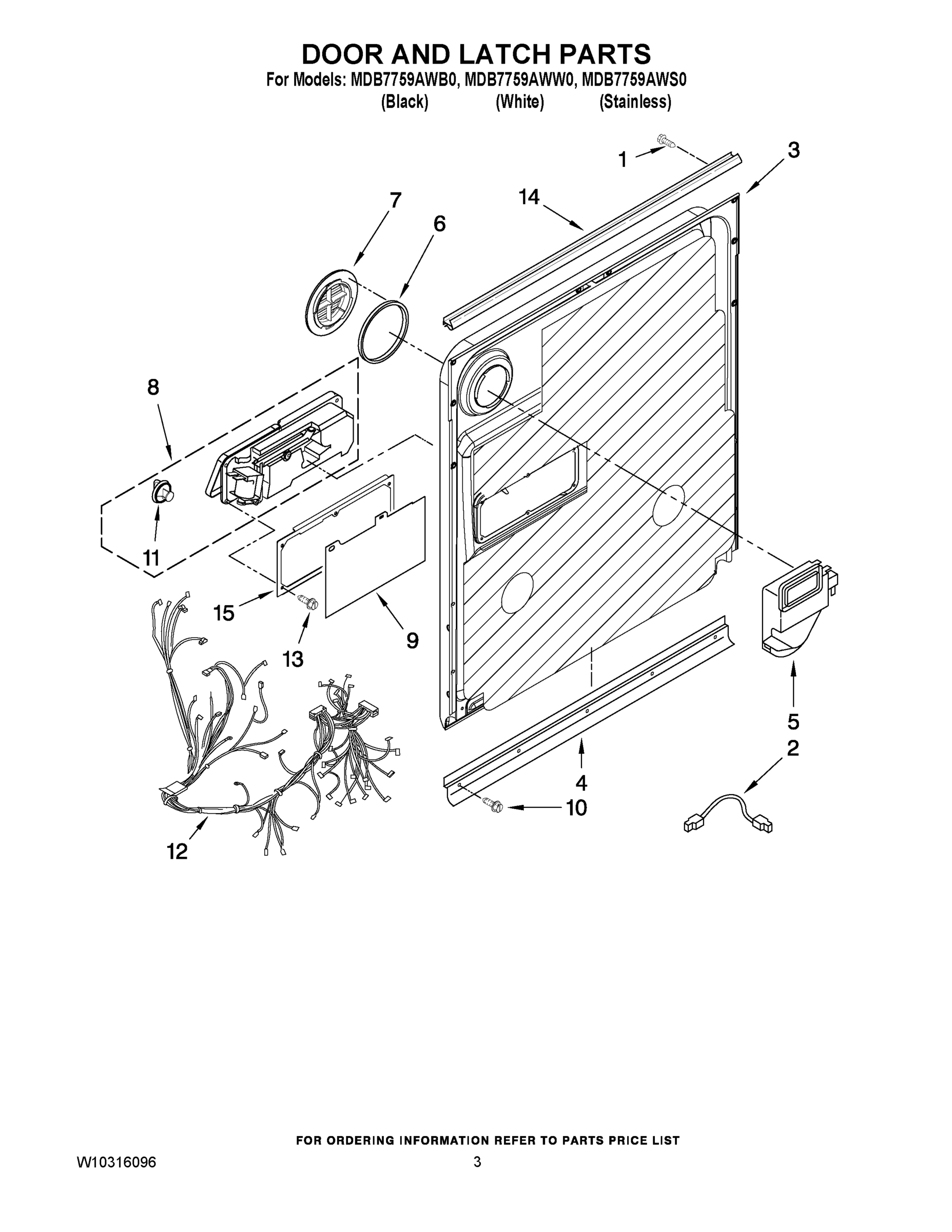

03 - DOOR AND LATCH PARTS

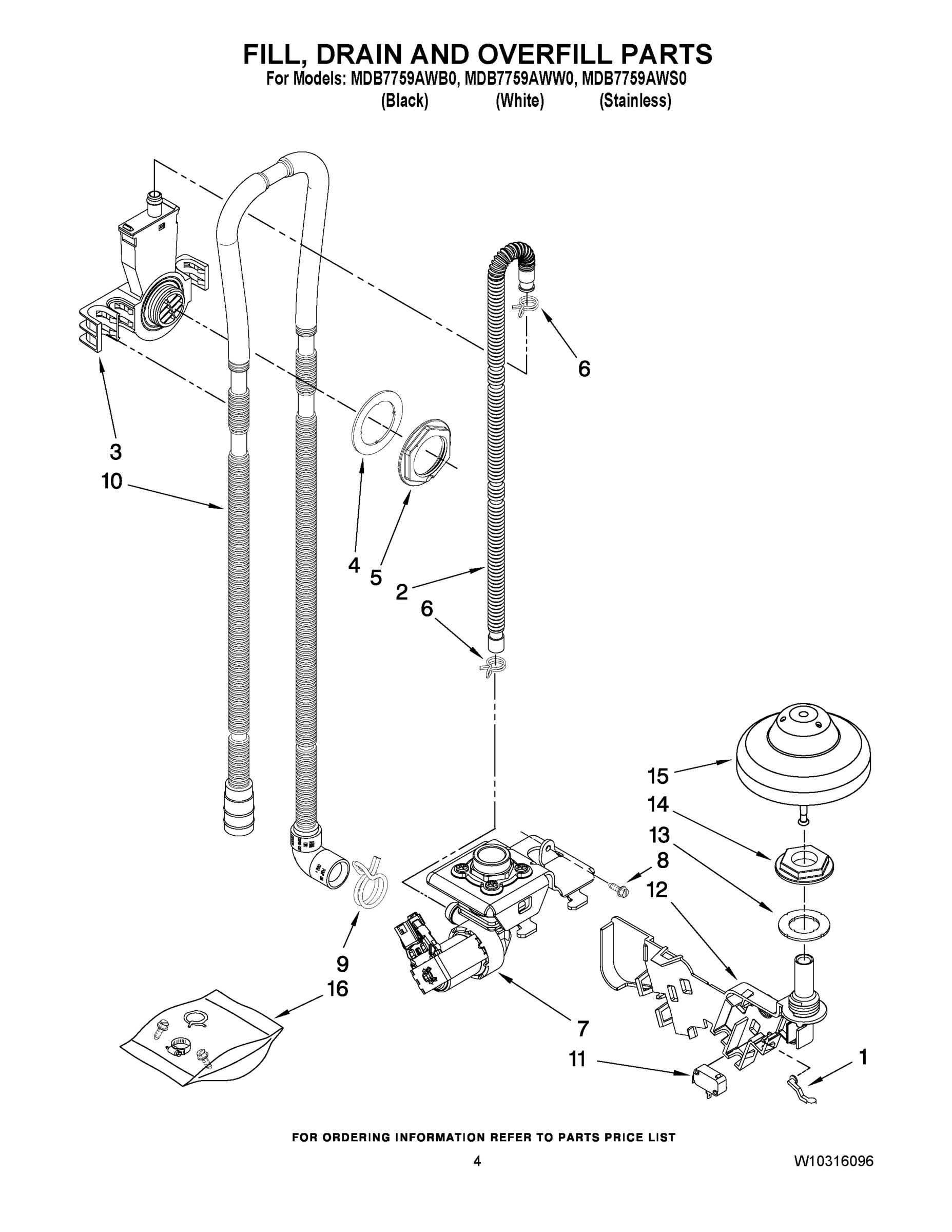

04 - FILL, DRAIN AND OVERFILL PARTS

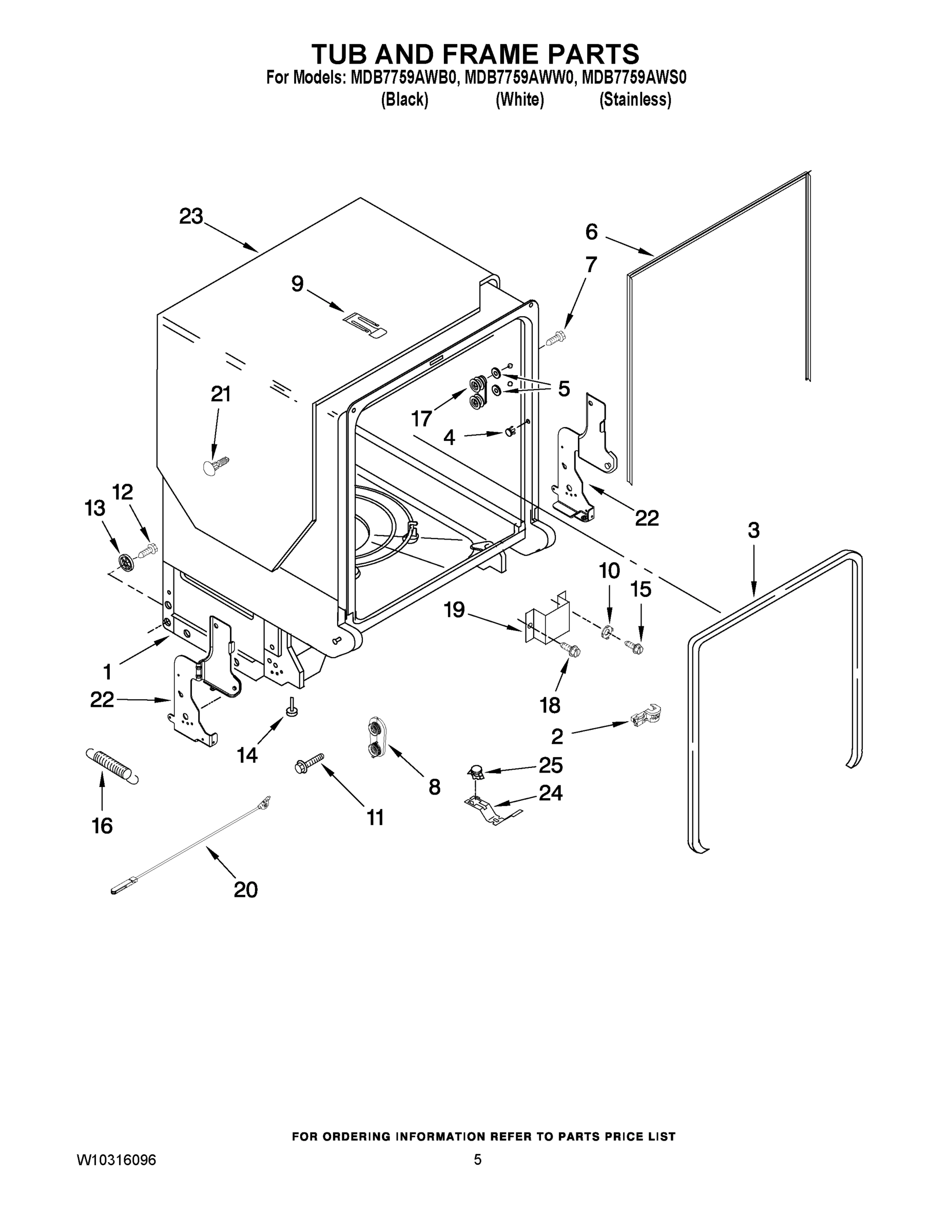

05 - TUB AND FRAME PARTS

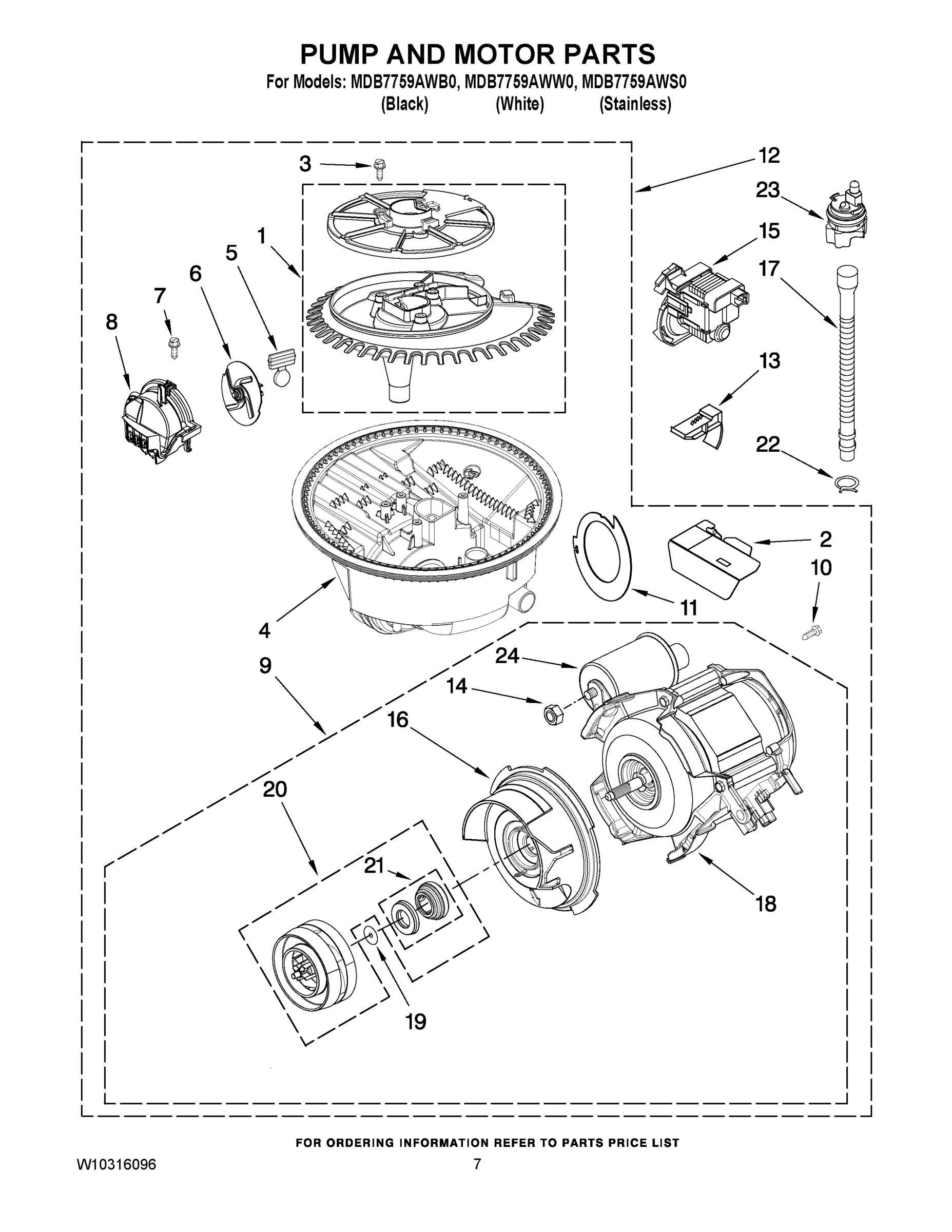

06 - PUMP AND MOTOR PARTS

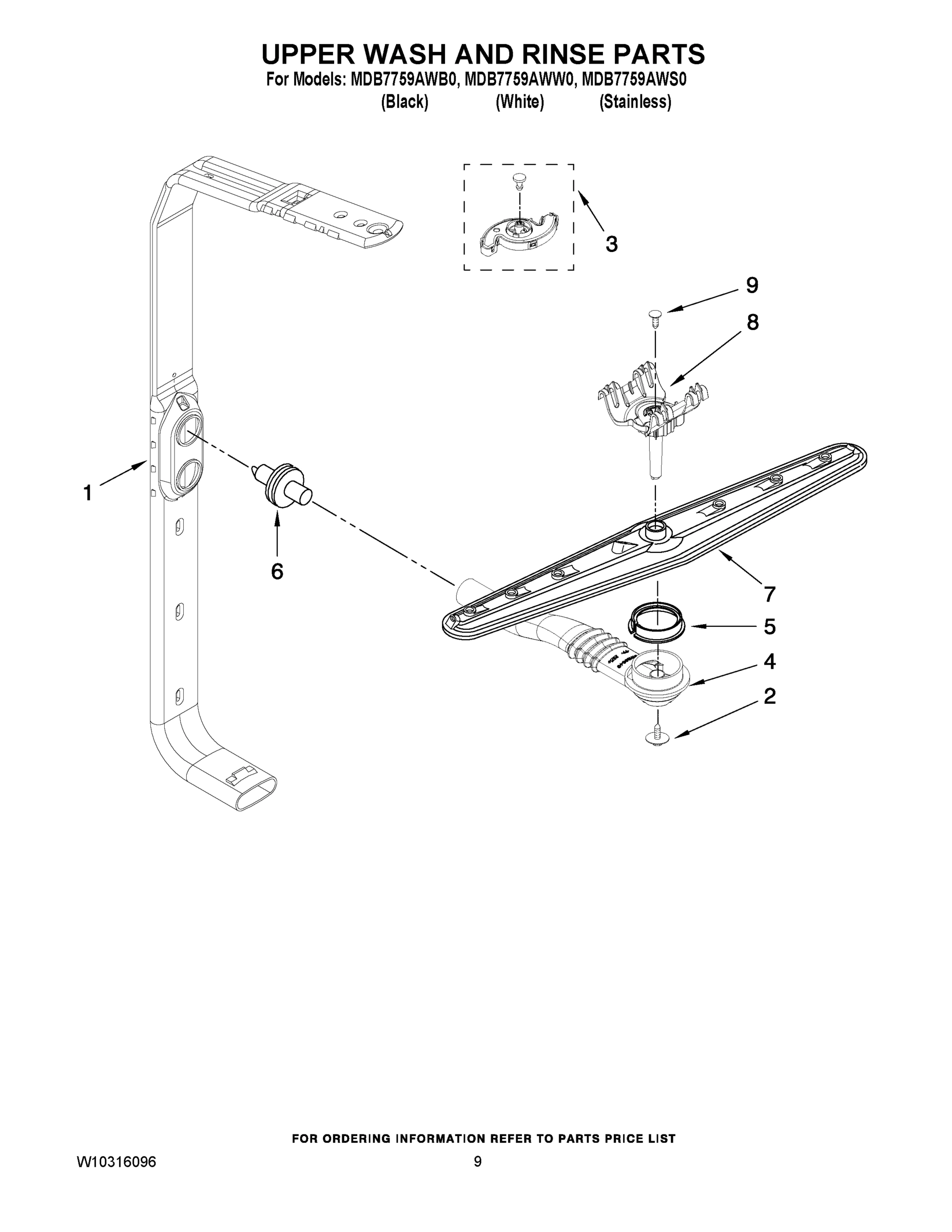

07 - UPPER WASH AND RINSE PARTS

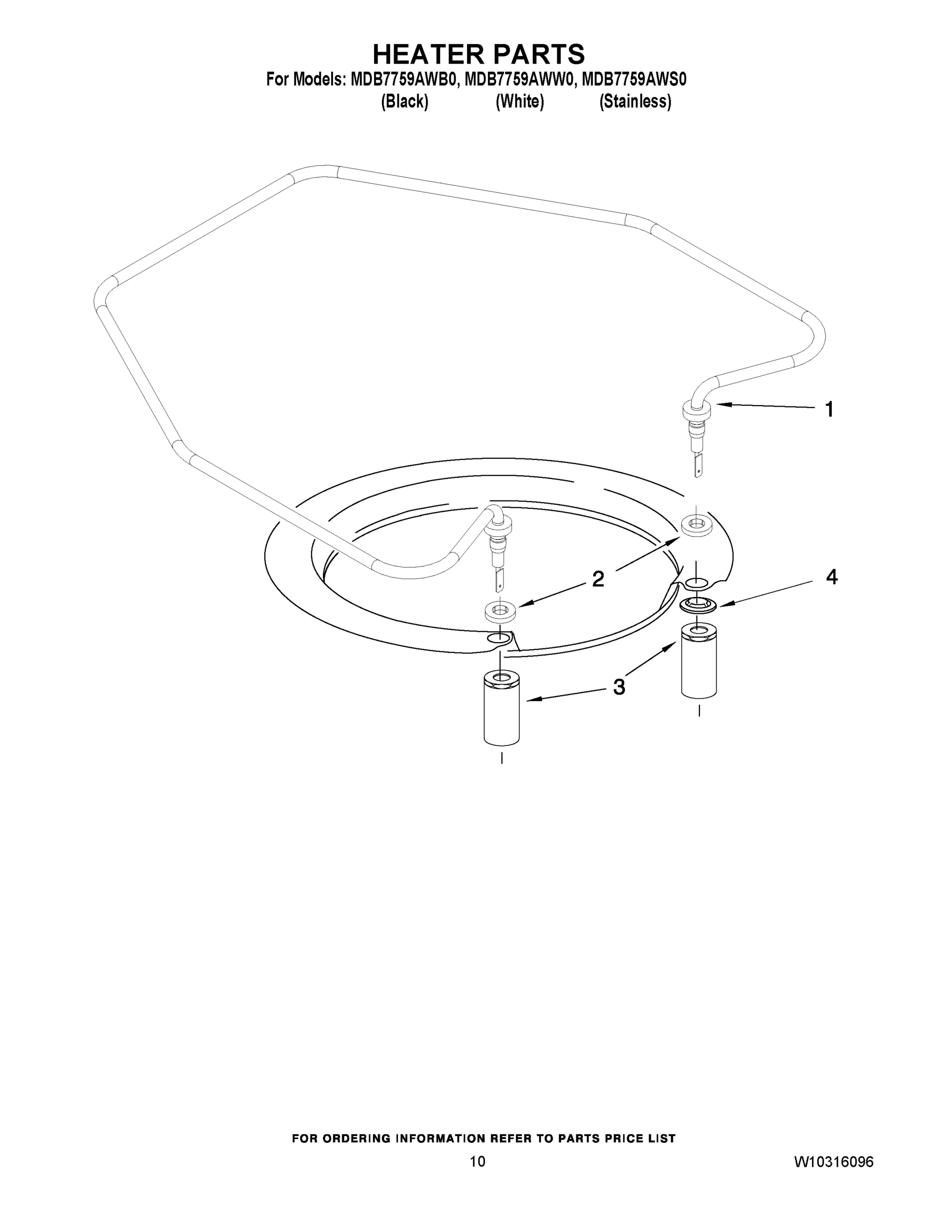

08 - HEATER PARTS

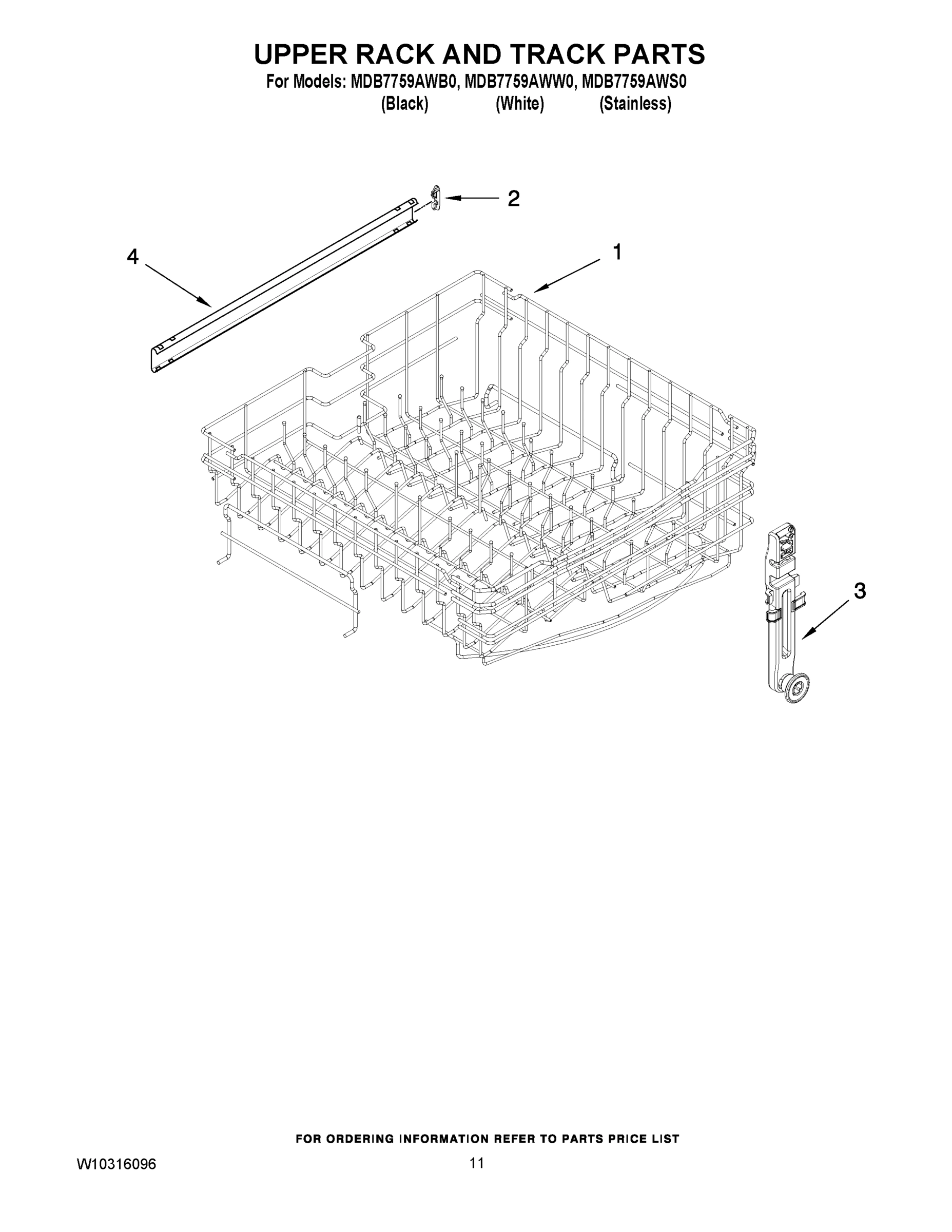

09 - UPPER RACK AND TRACK PARTS

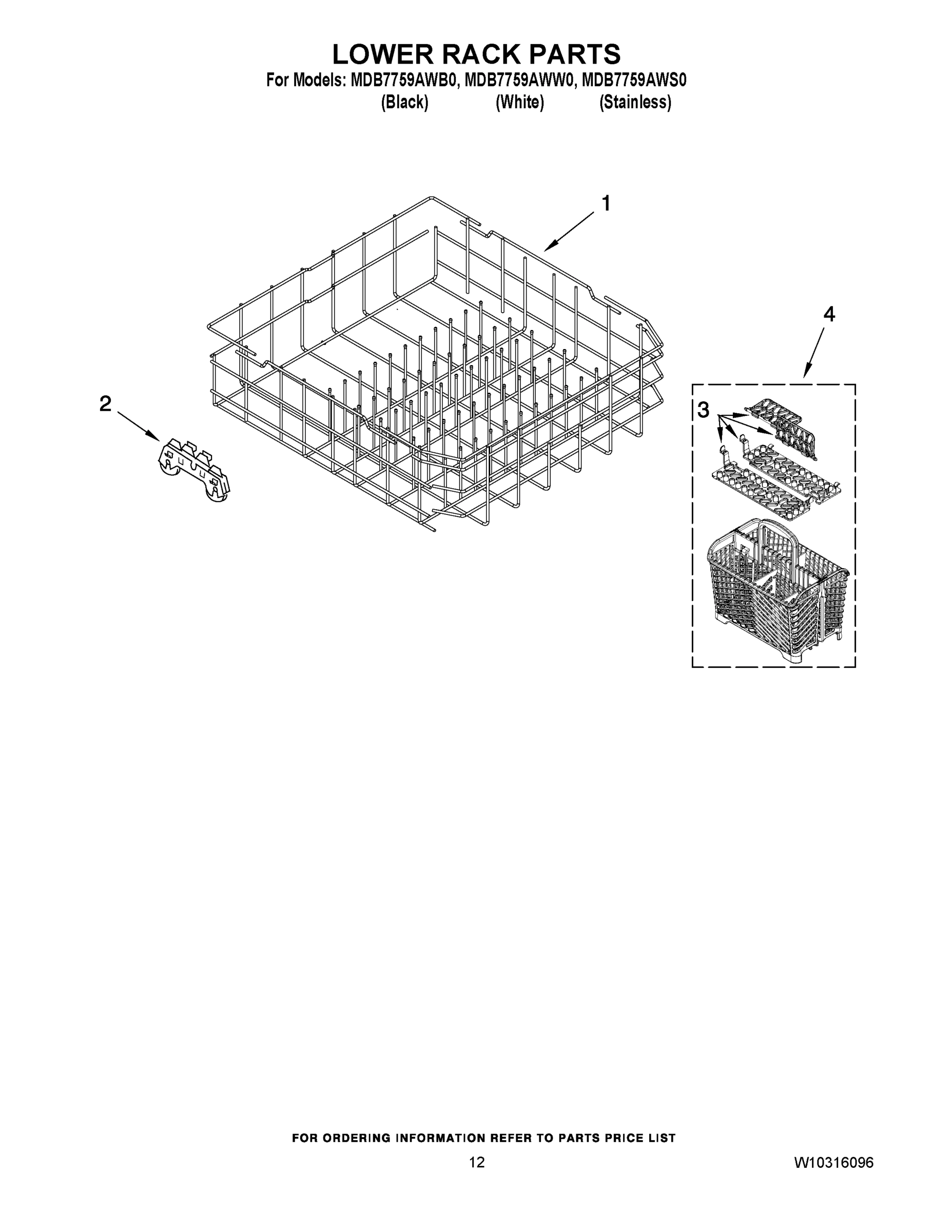

10 - LOWER RACK PARTS

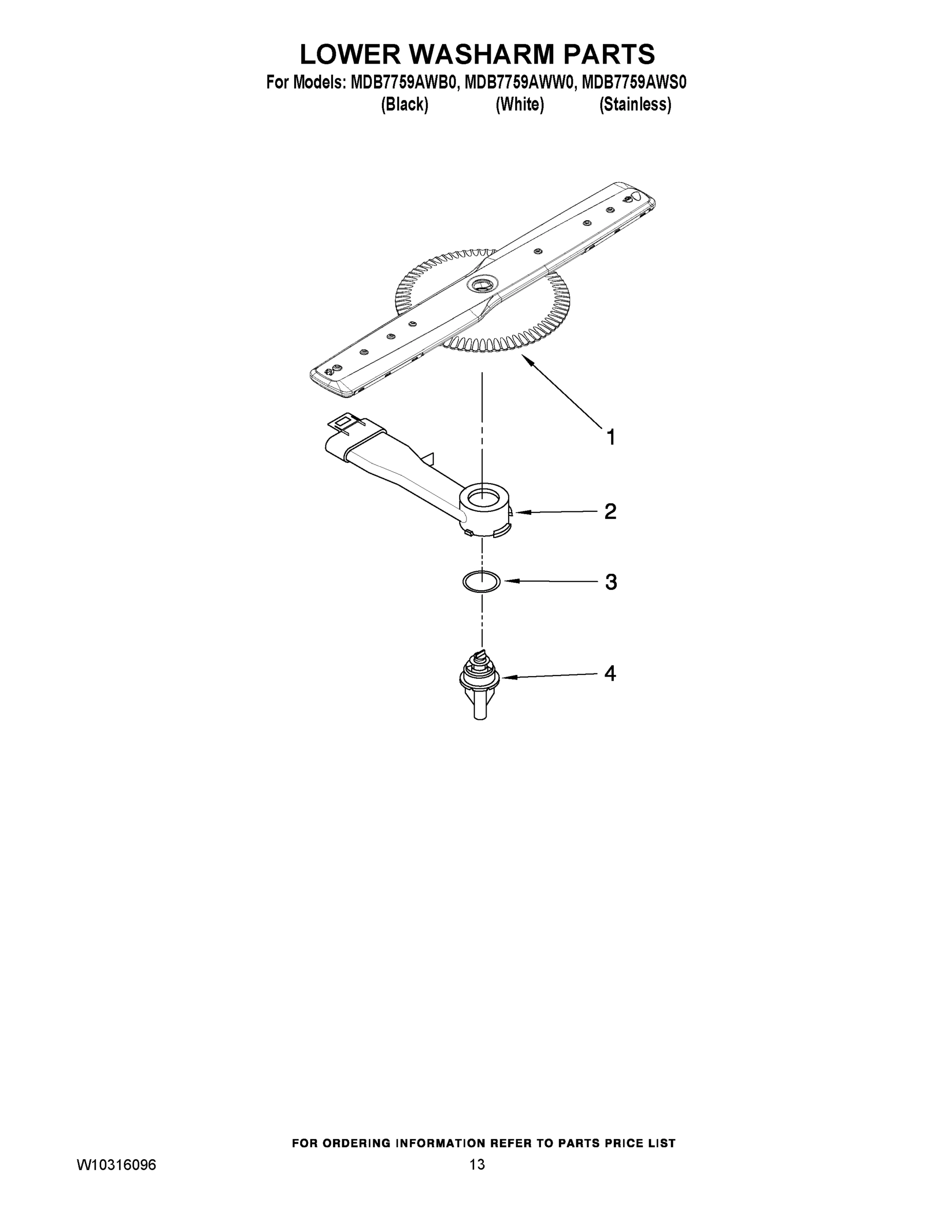

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB7759AWS0 DISHWASHER
1
TECH SHEET MAY W10142800 Contact Us For Availability
1
MAY W10199658 MAY W10199658 Contact Us For Availability
1
MAY W10199707 MAY W10199707 Contact Us For Availability
1
MAY W10298361 MAY W10298361 Contact Us For Availability
1
MAY W10199766 MAY W10199766 Contact Us For Availability
1
MAY W10199767 MAY W10199767 Contact Us For Availability
1
MAY W10199782 MAY W10199782 Contact Us For Availability
1
SCREW, DOOR MAY 3369051 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
MAY W10213822 MAY W10213822 Contact Us For Availability
1
MAY 8534952 MAY 8534952 Contact Us For Availability
1
FEED TUBE SILVERWARE ZONE (ALSO INCLUDES ITEM MAY 8559850 Contact Us For Availability
1
MAY W10082892 MAY W10082892 Contact Us For Availability
1
MAY W10240139 MAY W10240139 Contact Us For Availability
1
MAY W10199774 MAY W10199774 Contact Us For Availability
1
MAY W10240183 MAY W10240183 Contact Us For Availability
2
MAY 8534853 MAY 8534853 Contact Us For Availability
2
MAY 8534854 MAY 8534854 Contact Us For Availability
2
MAY 8546546 MAY 8546546 Contact Us For Availability
2
MAY 8545608 MAY 8545608 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
MAY 8573061 MAY 8573061 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY 8533889 MAY 8533889 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
2
MAY W10261335 MAY W10261335 Contact Us For Availability
2
CAP, INTERNAL REAR FEED MAY 8268343 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
CONTROL ELECTRONIC MAY W10208673 Contact Us For Availability
3
INNER DOOR MASTIC ASSEMBLY MAY W10056249 Contact Us For Availability
3
MAY W10195537 MAY W10195537 Contact Us For Availability
3
MAY W10112096 MAY W10112096 Contact Us For Availability
3
MAY 3400069 MAY 3400069 Contact Us For Availability
3
MAY 8557720 MAY 8557720 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
MAY W10254909 MAY W10254909 Contact Us For Availability
3
MAY W10199681 MAY W10199681 Contact Us For Availability
3
MAY 8268340 MAY 8268340 Contact Us For Availability
4
MAY W10199762 MAY W10199762 Contact Us For Availability
4
MAY W10199768 MAY W10199768 Contact Us For Availability
4
MAY W10199769 MAY W10199769 Contact Us For Availability
4
MAY 8269209 MAY 8269209 Contact Us For Availability
4
MAY 8268937 MAY 8268937 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10082838 MAY W10082838 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MAY W10240137 MAY W10240137 Contact Us For Availability
4
MAY 3400931 MAY 3400931 Contact Us For Availability
4
TRACK, RACK MAY 3385089 Contact Us For Availability
4
SILVERWARE, BASKET ASSEMBLY (INCLUDES ITEM 6) MAY W10199701 Contact Us For Availability
4
SUPPORT, LOWER SPRAYARM MAY W10077898 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY 8573255 Contact Us For Availability
5
MAY 8573256 MAY 8573256 Contact Us For Availability
5
MAY W10077360 MAY W10077360 Contact Us For Availability
5
VENT ASSEMBLY MAY 8572611 Contact Us For Availability
5
MAY W10213825 MAY W10213825 Contact Us For Availability
5
MAY 9743002 MAY 9743002 Contact Us For Availability
5
MAY 8268375 MAY 8268375 Contact Us For Availability
5
MAY 8268433 MAY 8268433 Contact Us For Availability
6
CLIP, GROUNDING MAY 8269016 Contact Us For Availability
6
MAY 661663 MAY 661663 Contact Us For Availability
6
MAY 8269259 MAY 8269259 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY 8269110 MAY 8269110 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY W10082831 MAY W10082831 Contact Us For Availability
7
MAY W10073520 MAY W10073520 Contact Us For Availability
7
MAY 8545536 MAY 8545536 Contact Us For Availability
7
MAY W10195049 MAY W10195049 Contact Us For Availability
7
SCREW MAY 3400072 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
SPRAY ARM MAY W10082841 Contact Us For Availability
8
TOE PANEL (INCLUDES ITEM 9) (BLACK) MAY W10205336 Contact Us For Availability
8
TOE PANEL (INCLUDES ITEM 9) (WHITE) MAY W10205337 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY W10199696 MAY W10199696 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
MAY W10199808 MAY W10199808 Contact Us For Availability
9
INSULATION TOE PANEL MAY W10073540 Contact Us For Availability
9
SHIELD, DISPENSER MAY 8531865 Contact Us For Availability
9
MAY W10077370 MAY W10077370 Contact Us For Availability
9
MAY W10231537 MAY W10231537 Contact Us For Availability
9
RETAINER, PUSH-IN MAY W10118464 Contact Us For Availability
10
SCREW (BLACK) MAY 302868 Contact Us For Availability
10
MAY 8281217 MAY 8281217 Contact Us For Availability
10
MAY W10137608 MAY W10137608 Contact Us For Availability
10
WASHER, PRONGED UNDERCOUNTER MAY 3378128 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
11
MAY W10199683 MAY W10199683 Contact Us For Availability
11
SWITCH, OVERFILL MAY 8268909 Contact Us For Availability
11
SCREW MAY 3400074 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
SCREW MAY 3400071 Contact Us For Availability
12
MAY W10078201 MAY W10078201 Contact Us For Availability
12
STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13) MAY 8545946 Contact Us For Availability
12
SCREW MAY 3370389 Contact Us For Availability
12
MAY W10298344 MAY W10298344 Contact Us For Availability
13
MAY W10199635 MAY W10199635 Contact Us For Availability
13
MAY W10199637 MAY W10199637 Contact Us For Availability
13
MAY W10199639 MAY W10199639 Contact Us For Availability
13
MAY W10177098 MAY W10177098 Contact Us For Availability
13
MAY 8531743 MAY 8531743 Contact Us For Availability
13
WHEEL, LEG MAY 8268977 Contact Us For Availability
13
MAY 8269524 MAY 8269524 Contact Us For Availability
14
MAY 8564951 MAY 8564951 Contact Us For Availability
14
MAY 8535660 MAY 8535660 Contact Us For Availability
14
MAY 9741998 MAY 9741998 Contact Us For Availability
14
MAY 8524584 MAY 8524584 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
PLATE, BACKING MAY W10142904 Contact Us For Availability
15
BRACKET, DISPENSER MAY 8535637 Contact Us For Availability
15
MAY 8268895 MAY 8268895 Contact Us For Availability
15
MAY 3400014 MAY 3400014 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
MAY W10123421 MAY W10123421 Contact Us For Availability
16
MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & MAY 8269297 Contact Us For Availability
16
MAY 8270020 MAY 8270020 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEM 21) MAY W10142656 Contact Us For Availability
17
WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6) MAY 8270019 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 3400892 MAY 3400892 Contact Us For Availability
18
MAY W10200940 MAY W10200940 Contact Us For Availability
19
MAY 8268991 MAY 8268991 Contact Us For Availability
19
MAY 8531018 MAY 8531018 Contact Us For Availability
20
MAY W10158291 MAY W10158291 Contact Us For Availability
20
IMPELLER KIT MAY 8531017 Contact Us For Availability
21
RETAINER, PUSH MAY 304666 Contact Us For Availability
21
FACE SEAL ASSEMBLY MAY 8268403 Contact Us For Availability
22
MAY 356138 MAY 356138 Contact Us For Availability
22
BRACKET, HINGE (LEFT) MAY W10185368 Contact Us For Availability
23
MAY 8573240 MAY 8573240 Contact Us For Availability
23
MAY W10134017 MAY W10134017 Contact Us For Availability
24
MAY 9742648 MAY 9742648 Contact Us For Availability
24
MAY W10216724 MAY W10216724 Contact Us For Availability
25
MAY 661566 MAY 661566 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
MAY 6-919539 MAY 6-919539 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171555 MAY 8171555 Contact Us For Availability
NI
MAY 8171556 MAY 8171556 Contact Us For Availability
NI
MAY 8171557 MAY 8171557 Contact Us For Availability
NI
MAY 8171558 MAY 8171558 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
× ![]()
