Model Maytag MDB7609AWW2 DISHWASHER – Common Parts & Diagrams
01 - COVER SHEET

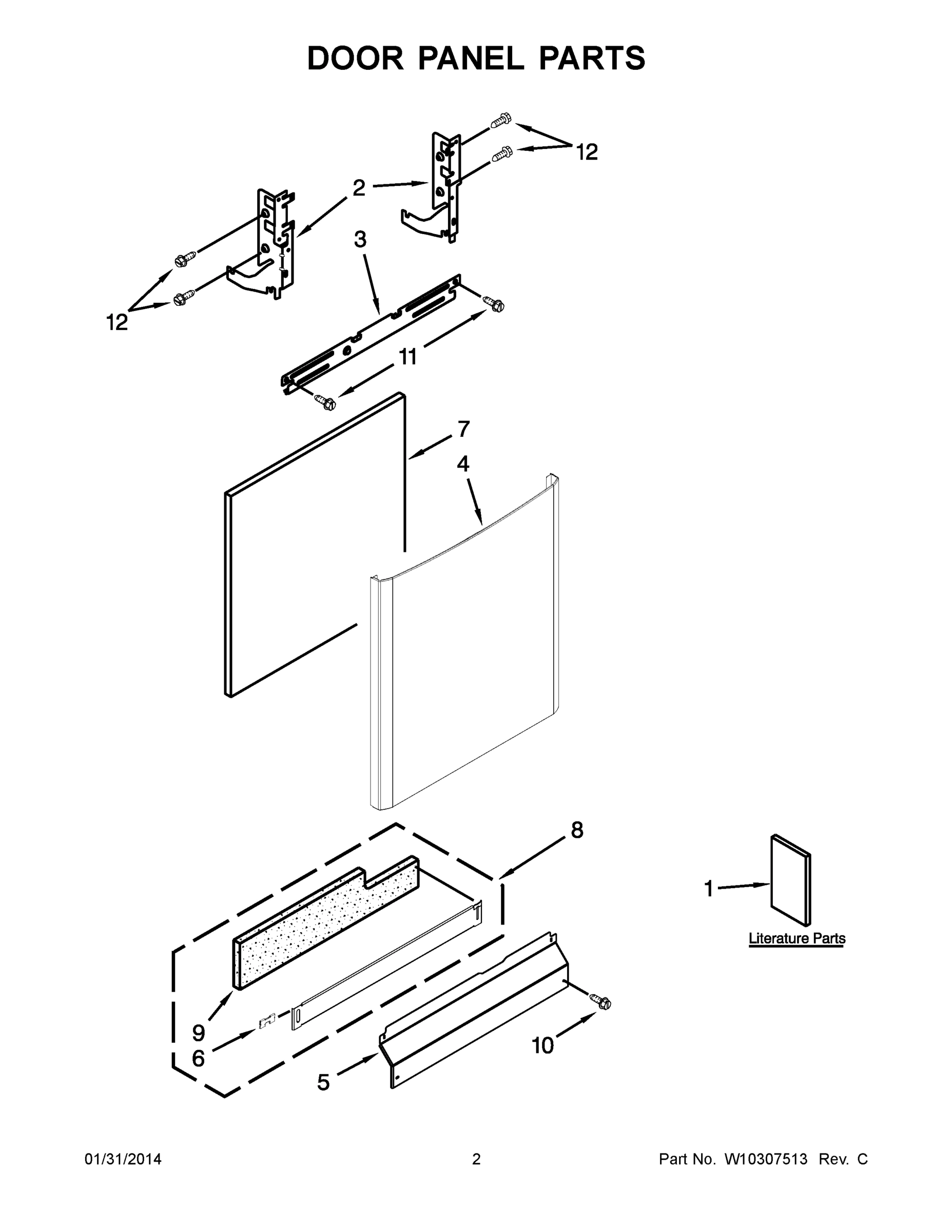

02 - DOOR PANEL PARTS

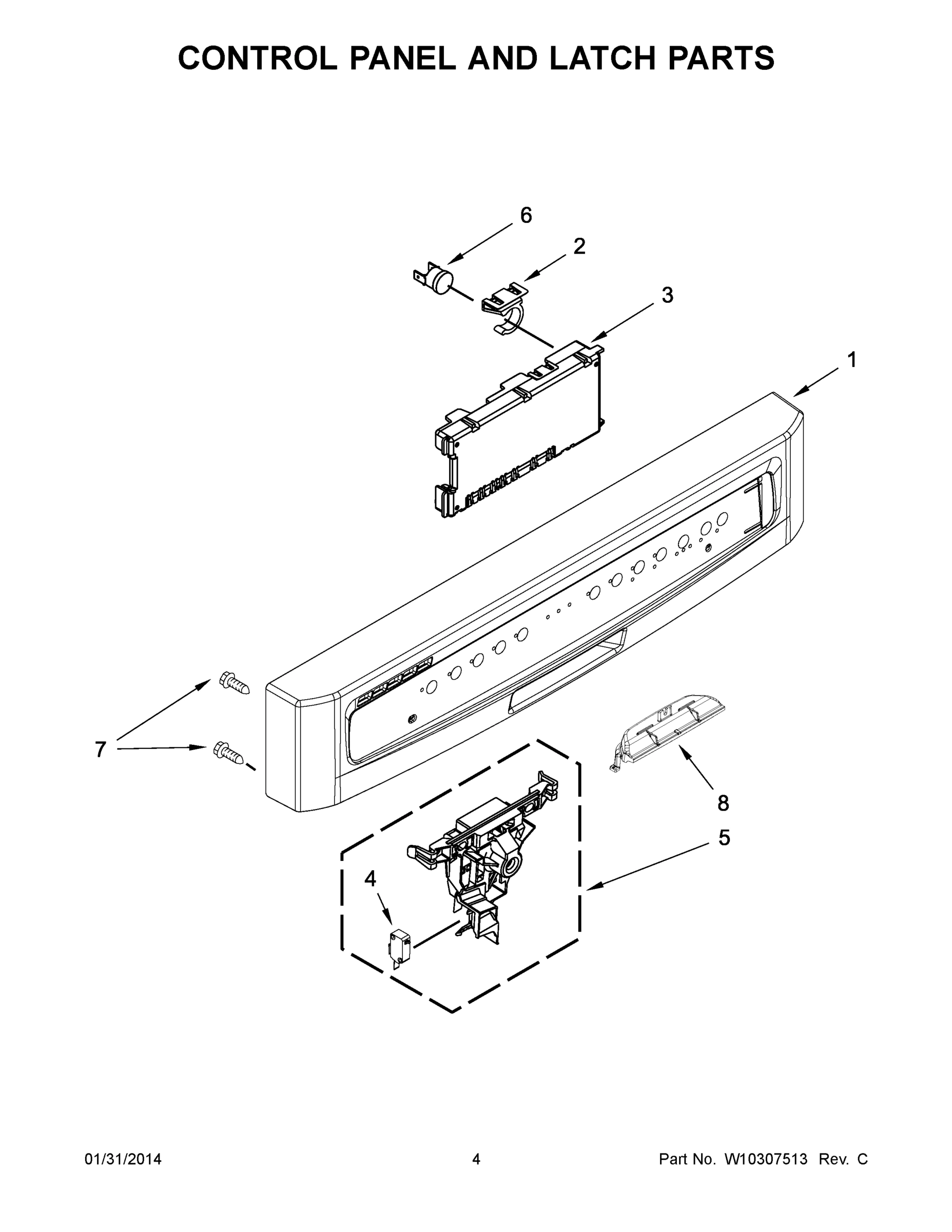

03 - CONTROL PANEL AND LATCH PARTS

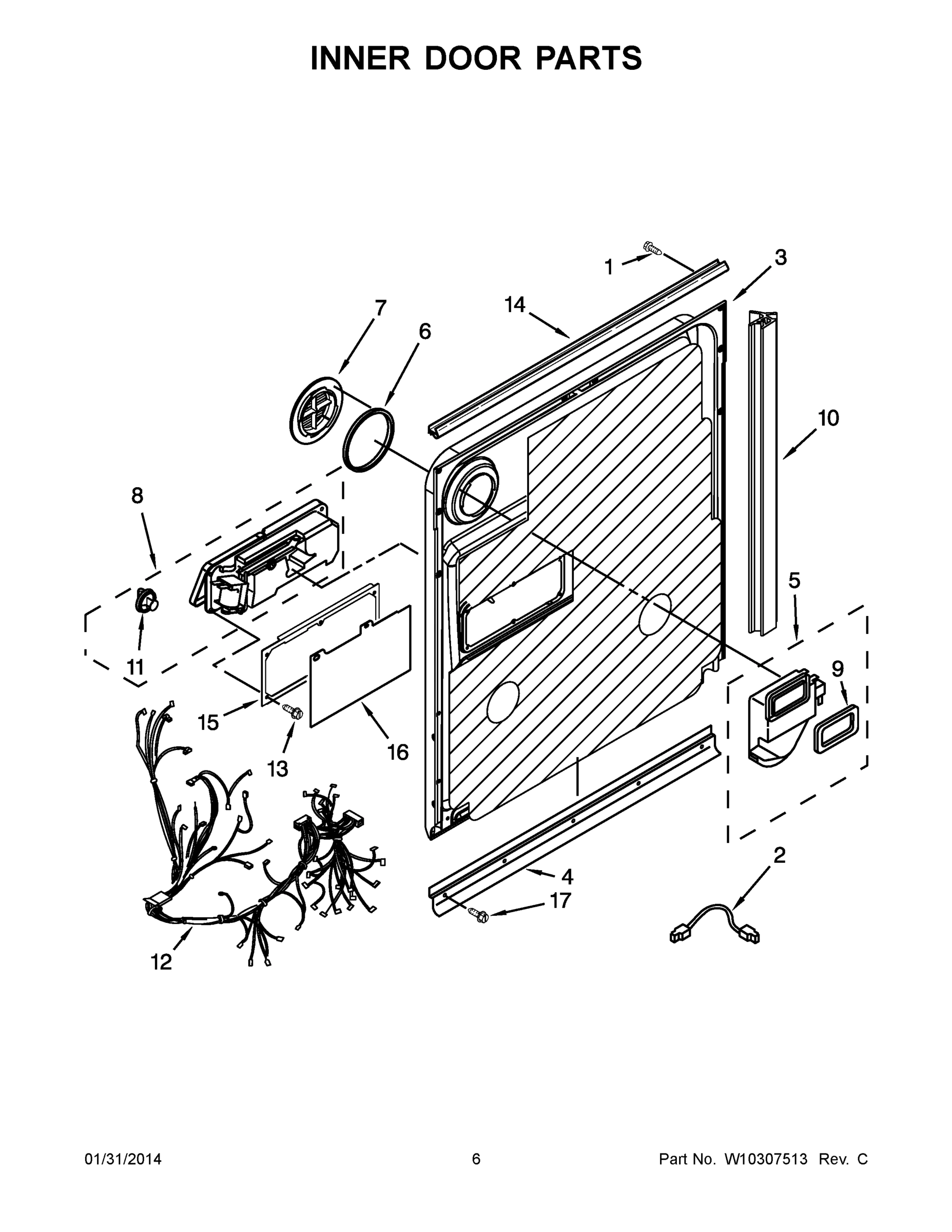

04 - INNER DOOR PARTS

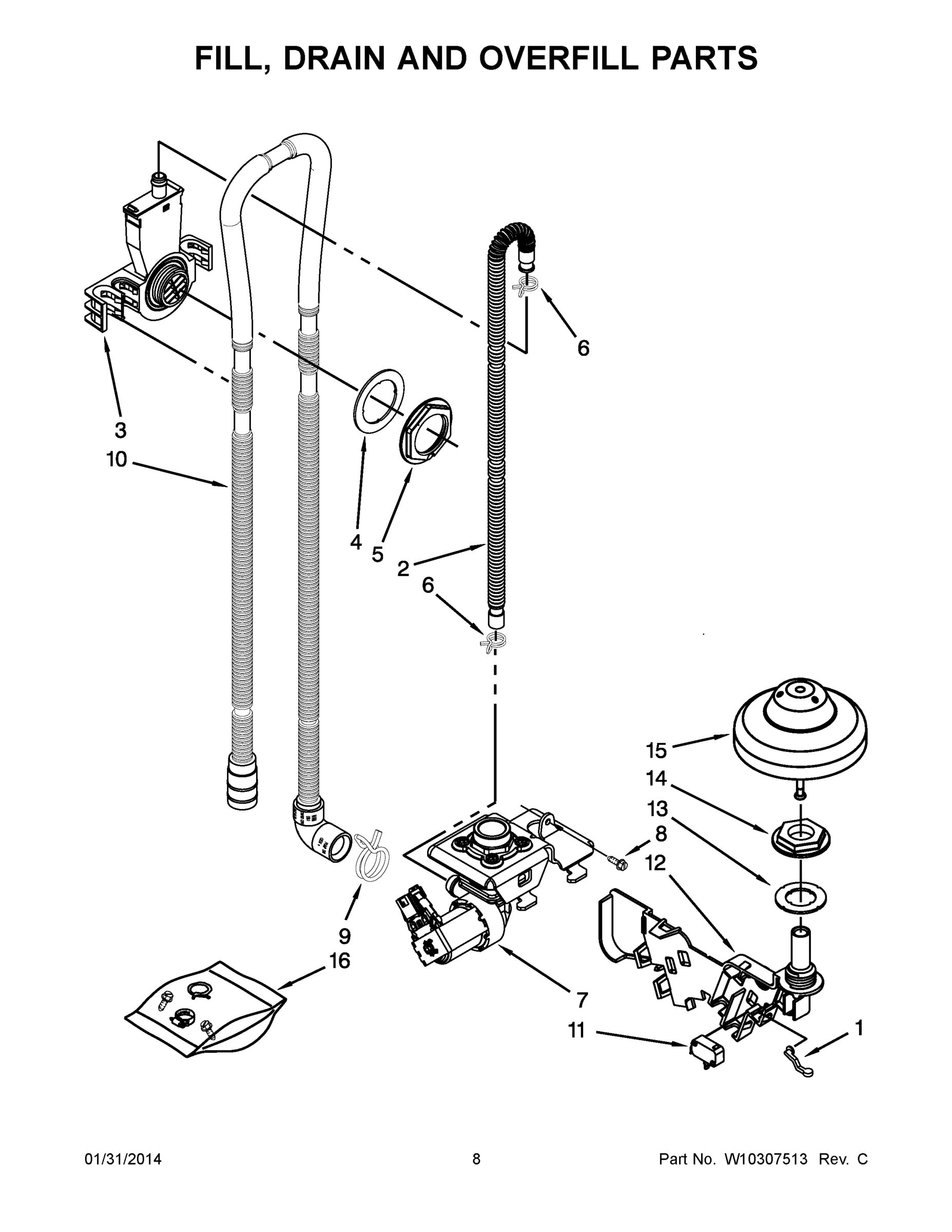

05 - FILL, DRAIN AND OVERFILL PARTS

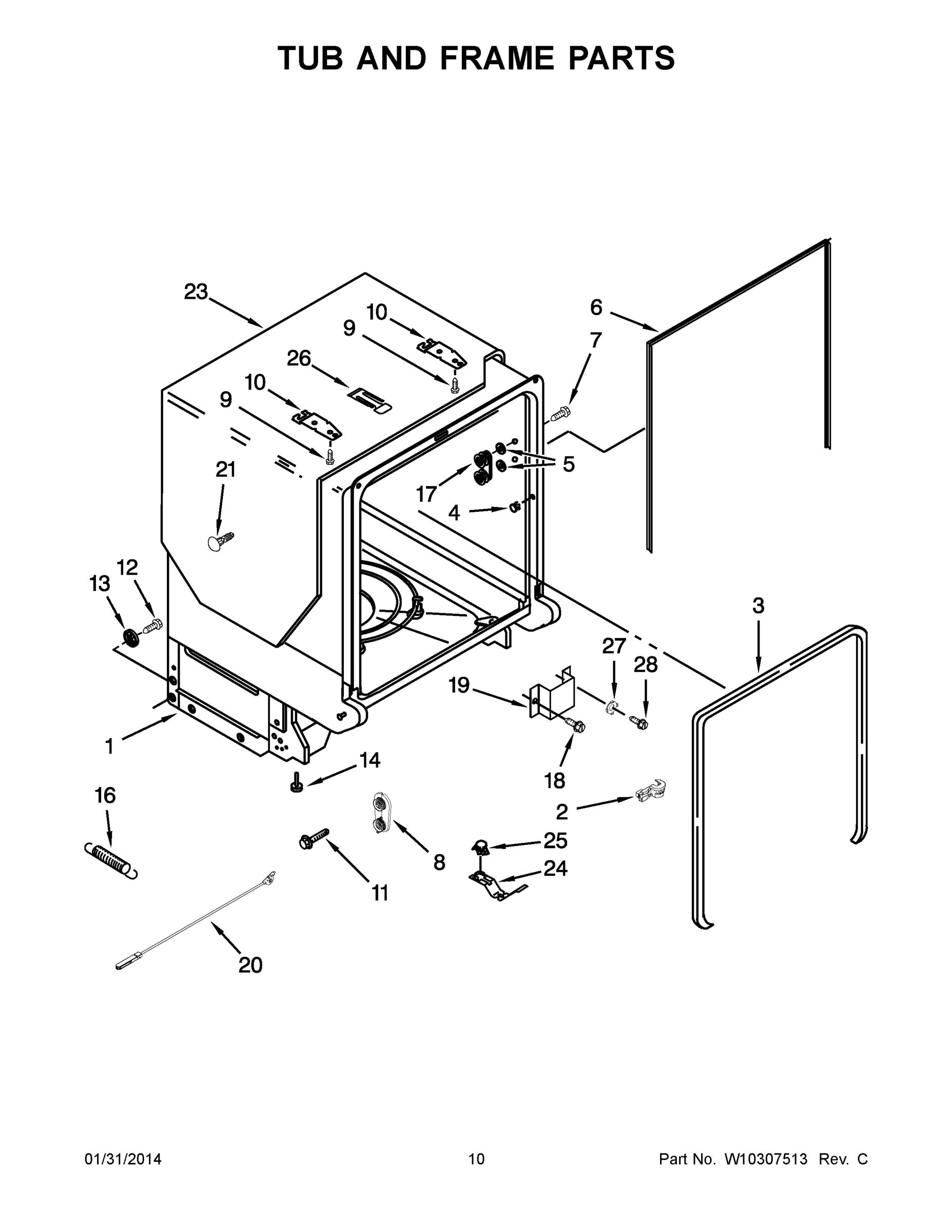

06 - TUB AND FRAME PARTS

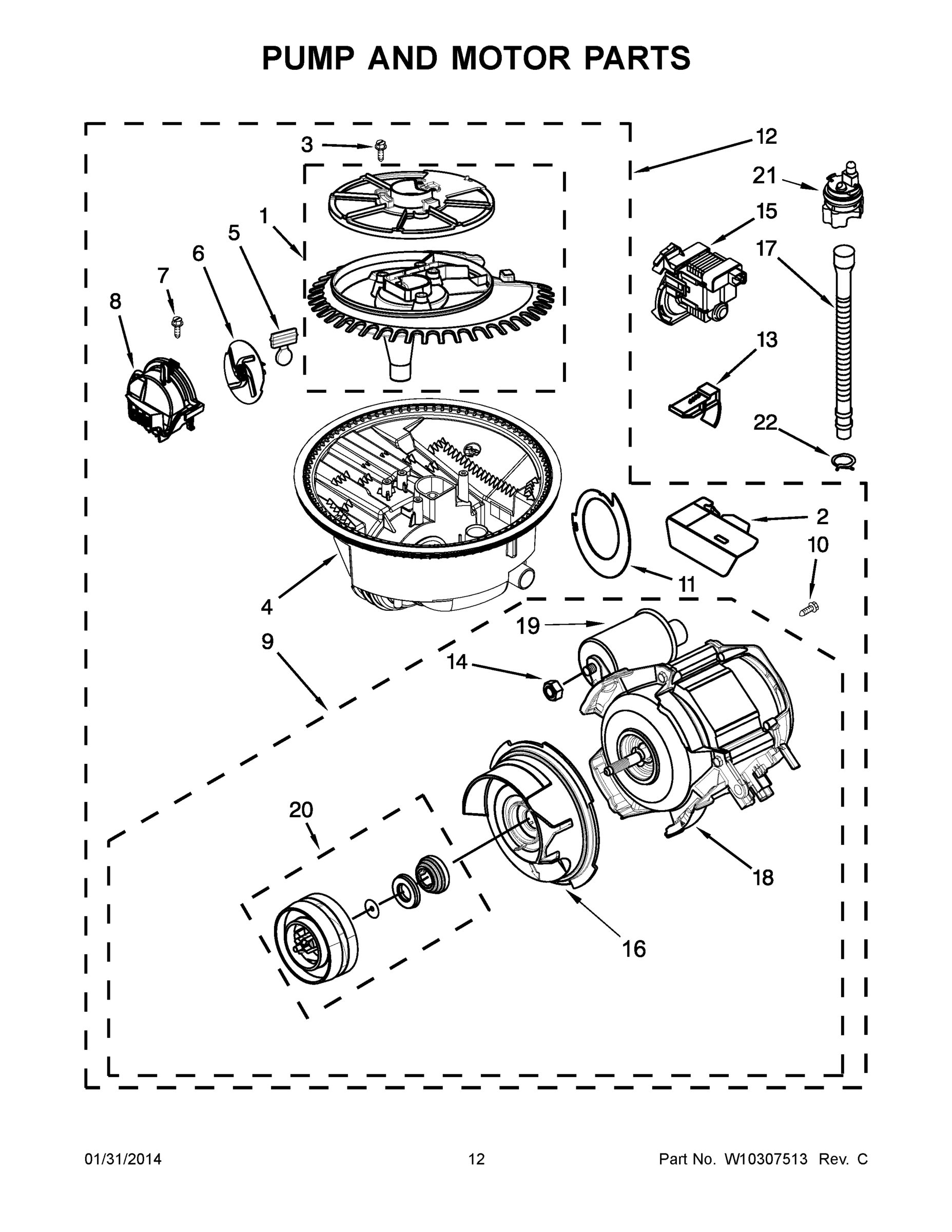

07 - PUMP AND MOTOR PARTS

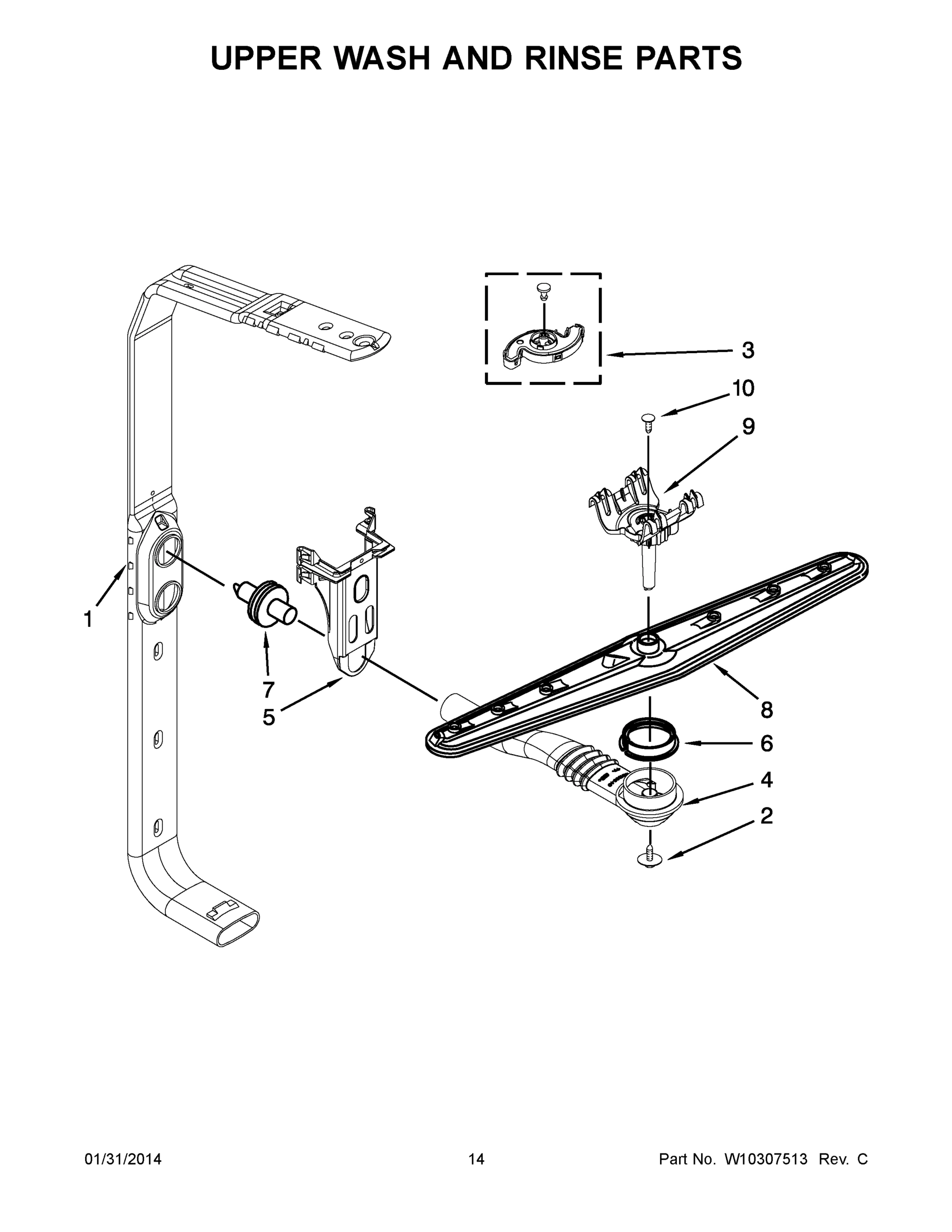

08 - UPPER WASH AND RINSE PARTS

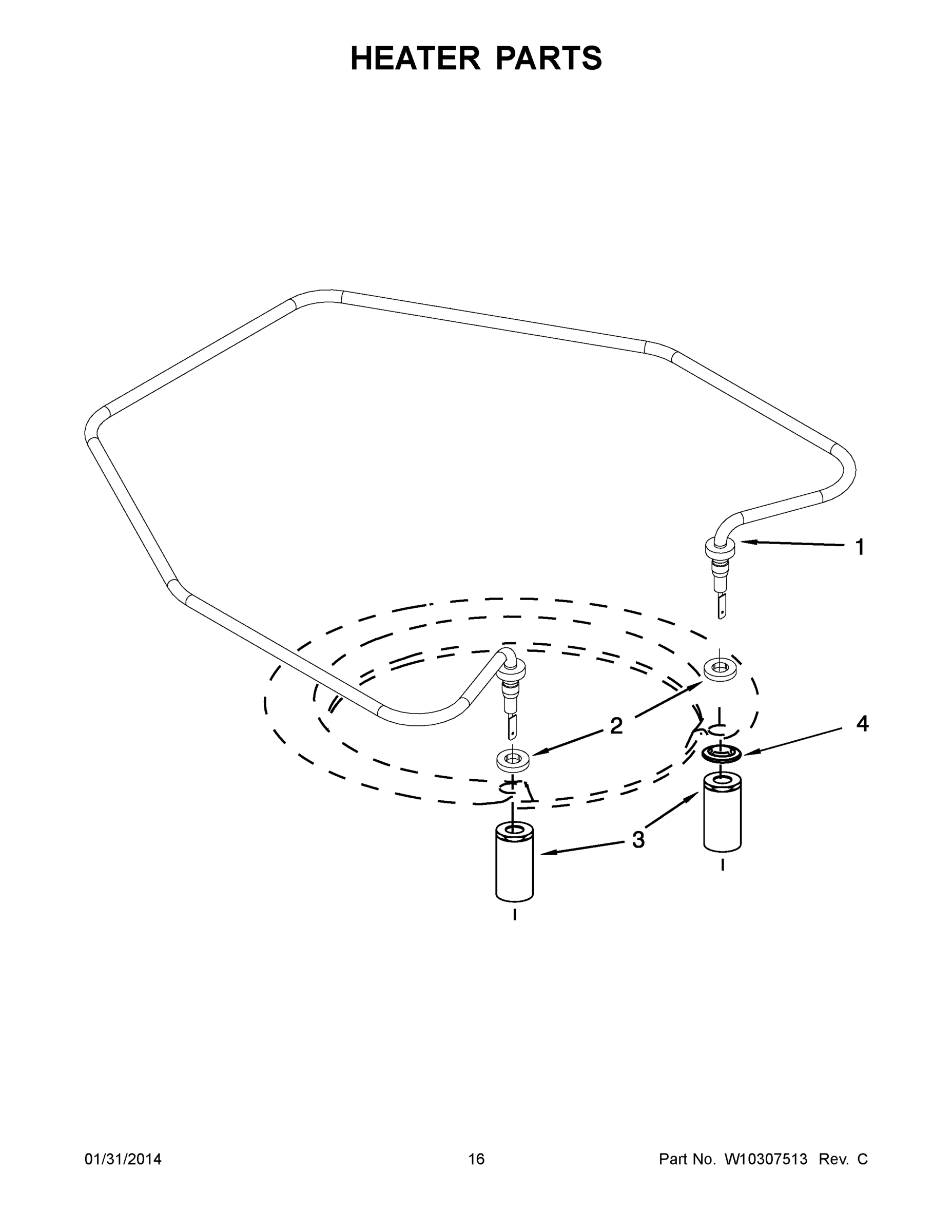

09 - HEATER PARTS

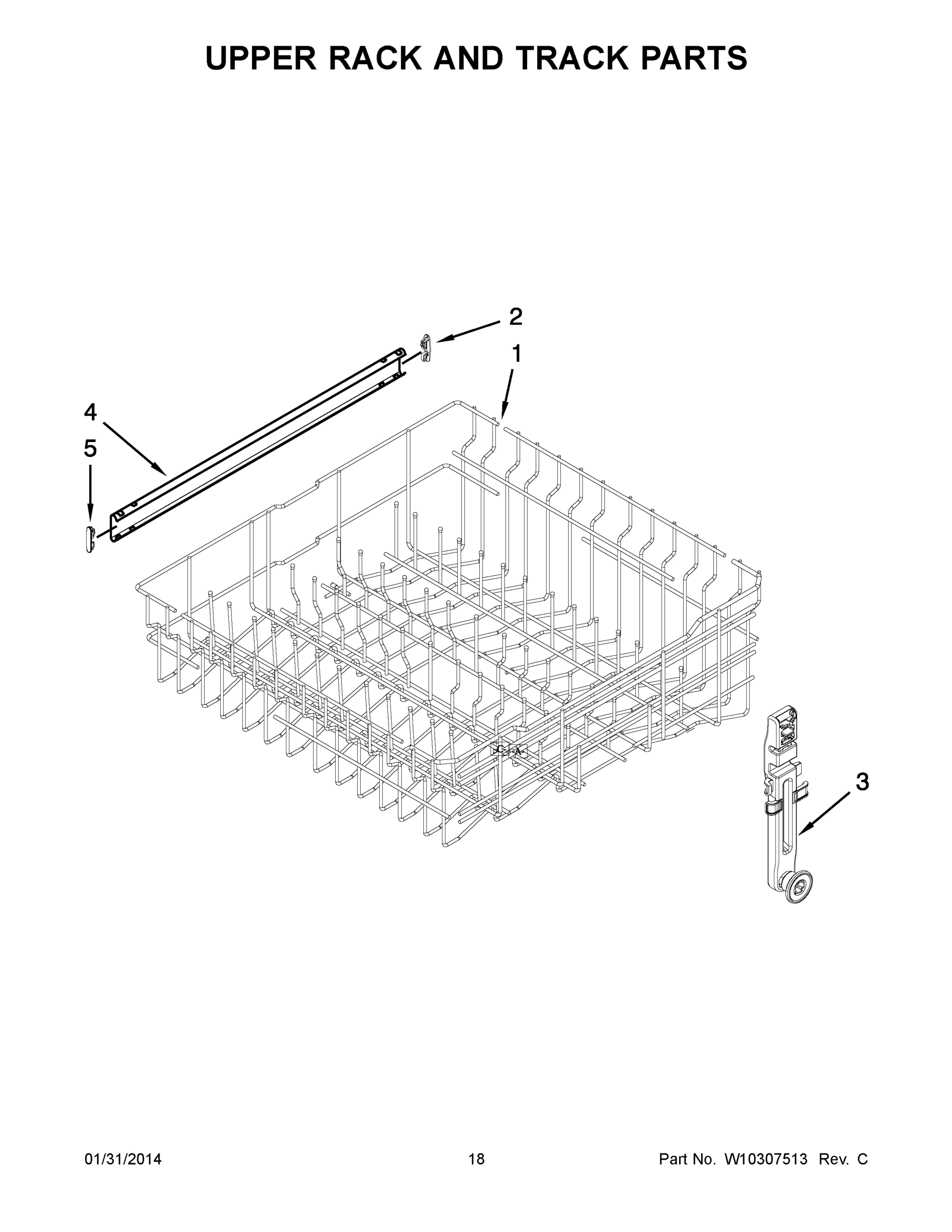

10 - UPPER RACK AND TRACK PARTS

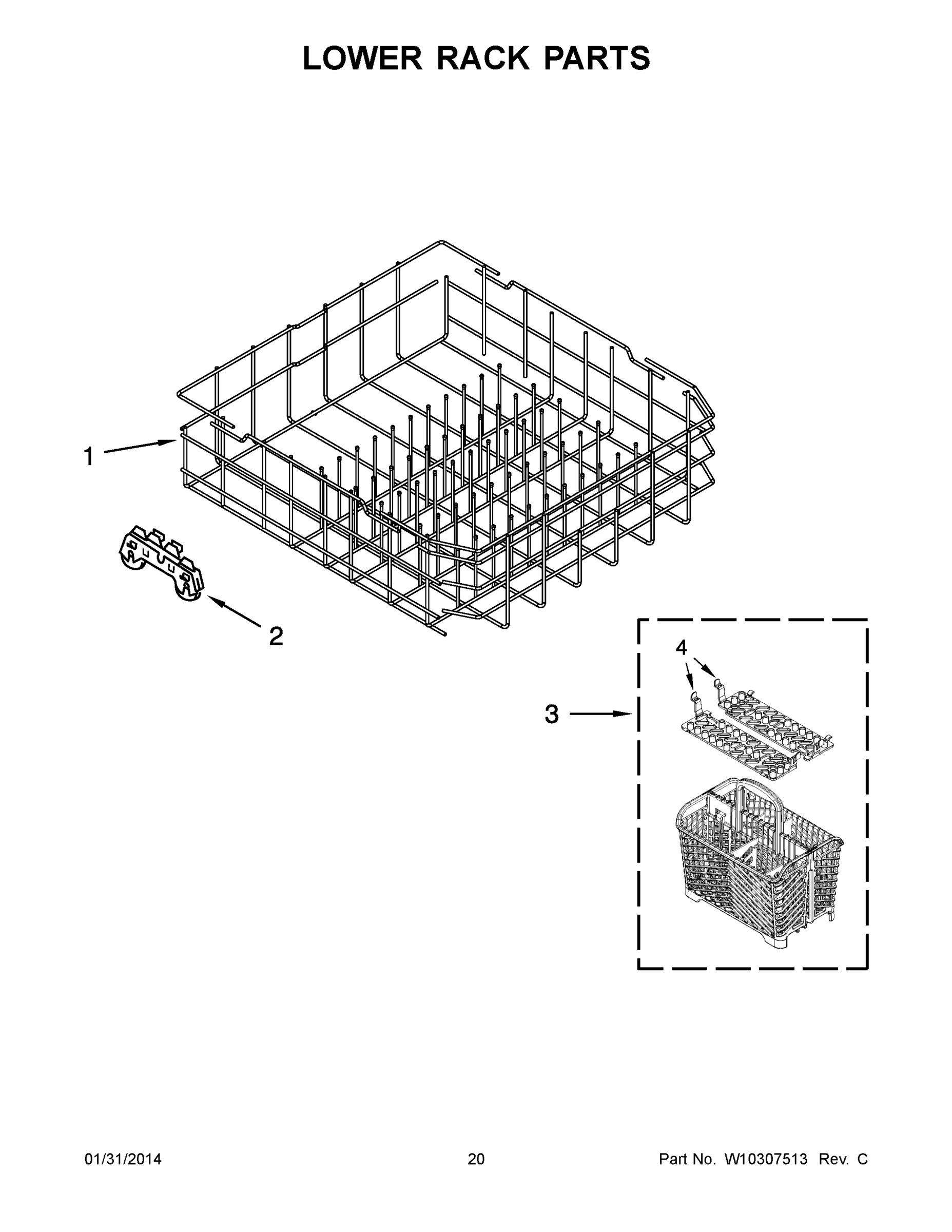

11 - LOWER RACK PARTS

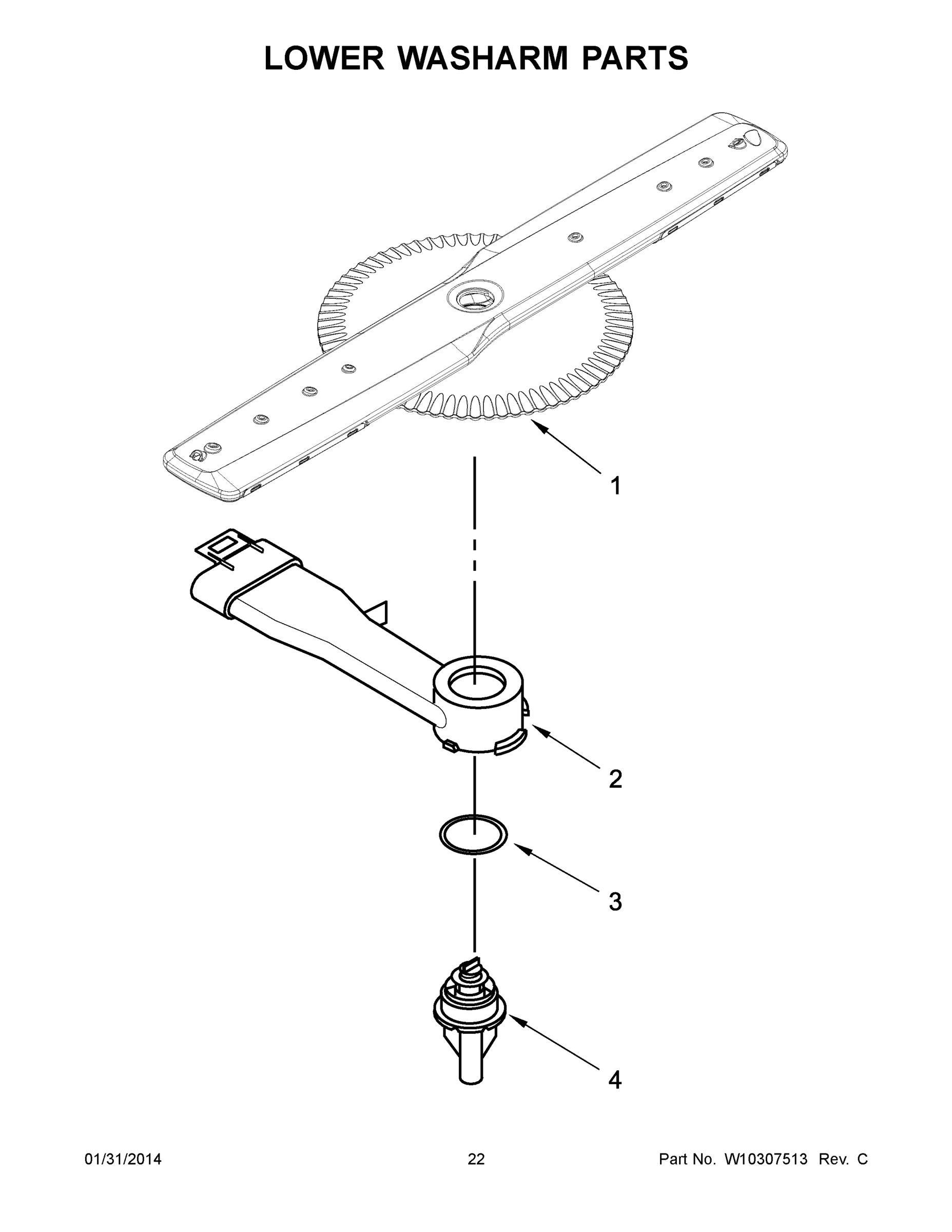

12 - LOWER WASHARM PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB7609AWW2 DISHWASHER
1
TECH SHEET MAY W10142800 Contact Us For Availability
1
MAY W10255026 MAY W10255026 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION MAY W10255095 Contact Us For Availability
1
MAY W10255114 MAY W10255114 Contact Us For Availability
1
CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & I MAY W10240112 Contact Us For Availability
1
CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & I MAY W10240113 Contact Us For Availability
1
SCREW MAY 3369051 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
TUB ASSEMBLY (ALSO INCLUDES HEATER ASSEMBLY) MAY W10213822 Contact Us For Availability
1
ACCUMULATOR ASSEMBLY MAY 8534952 Contact Us For Availability
1
FEED TUBE ASSEMBLY (INCLUDES ITEM 3) MAY 8559850 Contact Us For Availability
1
MAY W10082892 MAY W10082892 Contact Us For Availability
1
MAY W10240139 MAY W10240139 Contact Us For Availability
1
MAY W10199774 MAY W10199774 Contact Us For Availability
1
MAY W10240183 MAY W10240183 Contact Us For Availability
2
ARM, HINGE (RIGHT HAND) MAY 8534853 Contact Us For Availability
2
ARM, HINGE (LEFT HAND) MAY 8534854 Contact Us For Availability
2
MAY 8546546 MAY 8546546 Contact Us For Availability
2
HARNESS, VENT MAY 8545608 Contact Us For Availability
2
HOSE MAY 8531412 Contact Us For Availability
2
RELIEF, STRAIN MAY 8573061 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY 8533889 MAY 8533889 Contact Us For Availability
2
WASHER, RUBBER MAY 717273 Contact Us For Availability
2
STOP, TRACK (NON-REMOVABLE) MAY 8565925 Contact Us For Availability
2
MAY W10261335 MAY W10261335 Contact Us For Availability
2
MAY 8268343 MAY 8268343 Contact Us For Availability
3
BRACE, DOOR CROSS MAY 8268983 Contact Us For Availability
3
MAY W10250166 MAY W10250166 Contact Us For Availability
3
INNER DOOR ASSEMBLY (ALSO ORDER ITEM 6) MAY W10056249 Contact Us For Availability
3
INLET, WATER (ALSO ORDER ITEM 4) MAY W10195536 Contact Us For Availability
3
GASKET, TUB MAY W10112096 Contact Us For Availability
3
MAY 3400069 MAY 3400069 Contact Us For Availability
3
SPRAYARM, THIRD LEVEL MAY 8557720 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
WHEEL ASSEMBLY MAY W10254909 Contact Us For Availability
3
SILVERWARE, BASKET ASSEMBLY MAY W10199701 Contact Us For Availability
3
BEARING, LOWER SPRAYARM MAY 8268340 Contact Us For Availability
4
MAY W10199758 MAY W10199758 Contact Us For Availability
4
MAY W10199759 MAY W10199759 Contact Us For Availability
4
MAY W10199761 MAY W10199761 Contact Us For Availability
4
MAY 8269209 MAY 8269209 Contact Us For Availability
4
MAY 8268937 MAY 8268937 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10082838 MAY W10082838 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MAY W10240137 MAY W10240137 Contact Us For Availability
4
NUT, SPEED MAY 3400931 Contact Us For Availability
4
TRACK, DISHRACK MAY 3385089 Contact Us For Availability
4
MAY W10199681 MAY W10199681 Contact Us For Availability
4
MAY W10077898 MAY W10077898 Contact Us For Availability
5
ACCESS PANEL (BLACK) MAY 8573255 Contact Us For Availability
5
MAY 8573256 MAY 8573256 Contact Us For Availability
5
MAY W10077360 MAY W10077360 Contact Us For Availability
5
MAY W10164259 MAY W10164259 Contact Us For Availability
5
NUT, WATER INLET (ALSO ORDER ITEM 4) MAY W10213825 Contact Us For Availability
5
GASKET, MOUNTING BRACKET MAY 9743002 Contact Us For Availability
5
CHECK VALVE, SUMP ASSEMBLY MAY 8268375 Contact Us For Availability
5
MAY W10199807 MAY W10199807 Contact Us For Availability
5
MAY W10199682 MAY W10199682 Contact Us For Availability
6
MAY 8269016 MAY 8269016 Contact Us For Availability
6
MAY 661663 MAY 661663 Contact Us For Availability
6
MAY 8269259 MAY 8269259 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
SEAL KIT MAY 8269110 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY 8268433 MAY 8268433 Contact Us For Availability
7
MAY W10073520 MAY W10073520 Contact Us For Availability
7
MAY 8545536 MAY 8545536 Contact Us For Availability
7
MAY W10219505 MAY W10219505 Contact Us For Availability
7
SCREW MAY 3400072 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
PROBE, MANIFOLD MAY W10082831 Contact Us For Availability
8
TOE PANEL (BLACK) MAY W10205336 Contact Us For Availability
8
TOE PANEL (WHITE) MAY W10205337 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY W10205889 MAY W10205889 Contact Us For Availability
8
MAY W10205890 MAY W10205890 Contact Us For Availability
8
MAY W10199696 MAY W10199696 Contact Us For Availability
8
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
SPRAY ARM, UPPER MAY W10082841 Contact Us For Availability
9
INSULATION TOE PANEL MAY W10073540 Contact Us For Availability
9
SEAL, FRONT MAY 8269258 Contact Us For Availability
9
MAY 3367670 MAY 3367670 Contact Us For Availability
9
MAY W10231538 MAY W10231538 Contact Us For Availability
9
MAY W10199808 MAY W10199808 Contact Us For Availability
10
SCREW (BLACK) MAY 302868 Contact Us For Availability
10
SEAL, SIDE MAY 8574160 Contact Us For Availability
10
MAY W10137608 MAY W10137608 Contact Us For Availability
10
MAY 8269145 MAY 8269145 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
10
FASTENER, PUSH-IN MAY W10118464 Contact Us For Availability
11
MAY W10199683 MAY W10199683 Contact Us For Availability
11
SWITCH, OVERFILL SUPPORT MAY 8268909 Contact Us For Availability
11
SCREW MAY 3400074 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
SCREW MAY 3400071 Contact Us For Availability
12
MAY W10078201 MAY W10078201 Contact Us For Availability
12
HOUSING, OVERFILL (INCLUDES ITEM 13) MAY 8545946 Contact Us For Availability
12
SCREW MAY 3370389 Contact Us For Availability
12
MAY W10237168 MAY W10237168 Contact Us For Availability
13
MAY W10177098 MAY W10177098 Contact Us For Availability
13
MAY 8531743 MAY 8531743 Contact Us For Availability
13
WHEEL, LEG MAY 8268977 Contact Us For Availability
13
MAY 8269524 MAY 8269524 Contact Us For Availability
14
MAY 8535660 MAY 8535660 Contact Us For Availability
14
MAY 9741998 MAY 9741998 Contact Us For Availability
14
LEG, LEVELING MAY 8524584 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
BRACKET, DISPENSER MAY 8535637 Contact Us For Availability
15
FLOAT AND RETAINER ASSEMBLY MAY 8268895 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
COVER, DISPENSER MAY 8531865 Contact Us For Availability
16
MICELLANEOUS PARTS BAG (INCLUDES 2 SCREWS AND MAY 8269297 Contact Us For Availability
16
MAY 8270020 MAY 8270020 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEM 20) MAY W10142656 Contact Us For Availability
17
MAY 8281217 MAY 8281217 Contact Us For Availability
17
WHEEL AND MOUNT ASSEMBLY MAY 8270019 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 3400892 MAY 3400892 Contact Us For Availability
18
MAY W10226459 MAY W10226459 Contact Us For Availability
19
MAY 8268991 MAY 8268991 Contact Us For Availability
19
MAY W10216724 MAY W10216724 Contact Us For Availability
20
CABLE, DOOR MAY W10158291 Contact Us For Availability
20
IMPELLER KIT MAY 8531017 Contact Us For Availability
21
RETAINER MAY 304666 Contact Us For Availability
21
INDICATOR, OPTICAL WASH MAY W10134017 Contact Us For Availability
22
MAY 356138 MAY 356138 Contact Us For Availability
23
SHIELD, TUB SOUND MAY 8573240 Contact Us For Availability
24
MAY 9742648 MAY 9742648 Contact Us For Availability
25
MAY 661566 MAY 661566 Contact Us For Availability
26
STRIKE, PLATE MAY W10077370 Contact Us For Availability
27
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
28
SCREW, GROUNDING MAY 3400014 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, DRAIN HOSE 12 FT. MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
POWER CORD KIT (INCLUDED CORD & MISC. HARDWAR MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (WHITE) MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (GREY) MAY 4396840 Contact Us For Availability
NI
ACCESSORIES, SEAL KIT METAL CHOPPER MAY 6-919539 Contact Us For Availability
NI
DISHRACK REPAIR (WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR (GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
ACCESSORIES, CUSTOM PANEL & TRIM KIT (BLACK) MAY 8171555 Contact Us For Availability
NI
ACCESSORIES, CUSTOM PANEL & TRIM KIT (WHITE) MAY 8171556 Contact Us For Availability
NI
ACCESSORIES, CUSTOM PANEL & TRIM KIT (BISCUIT MAY 8171557 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (WHITE) MAY 8171656 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BLACK) MAY 8171657 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE) MAY 8171658 Contact Us For Availability
NI
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL MAY 8171659 Contact Us For Availability
× ![]()
