Model Electrolux MDB662RCS0 DISHWASHER – Common Parts & Diagrams

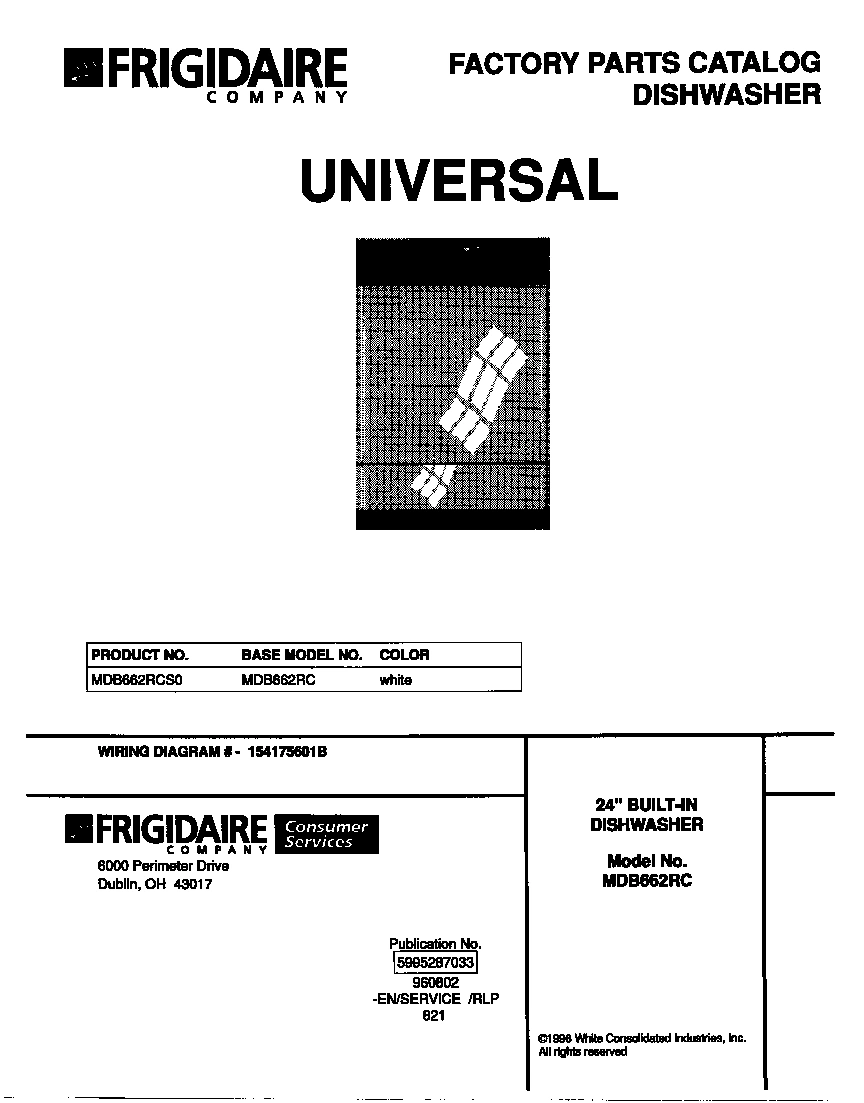

01 - COVER

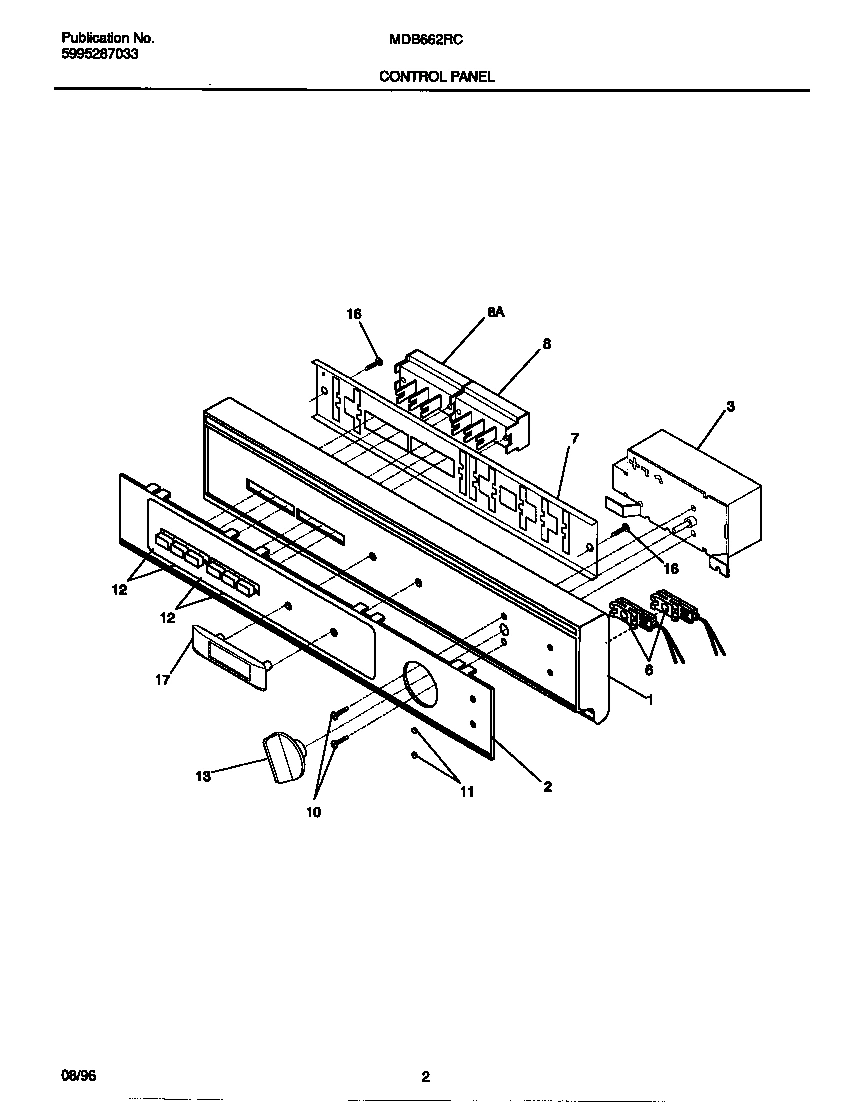

02 - CONTROL PANEL

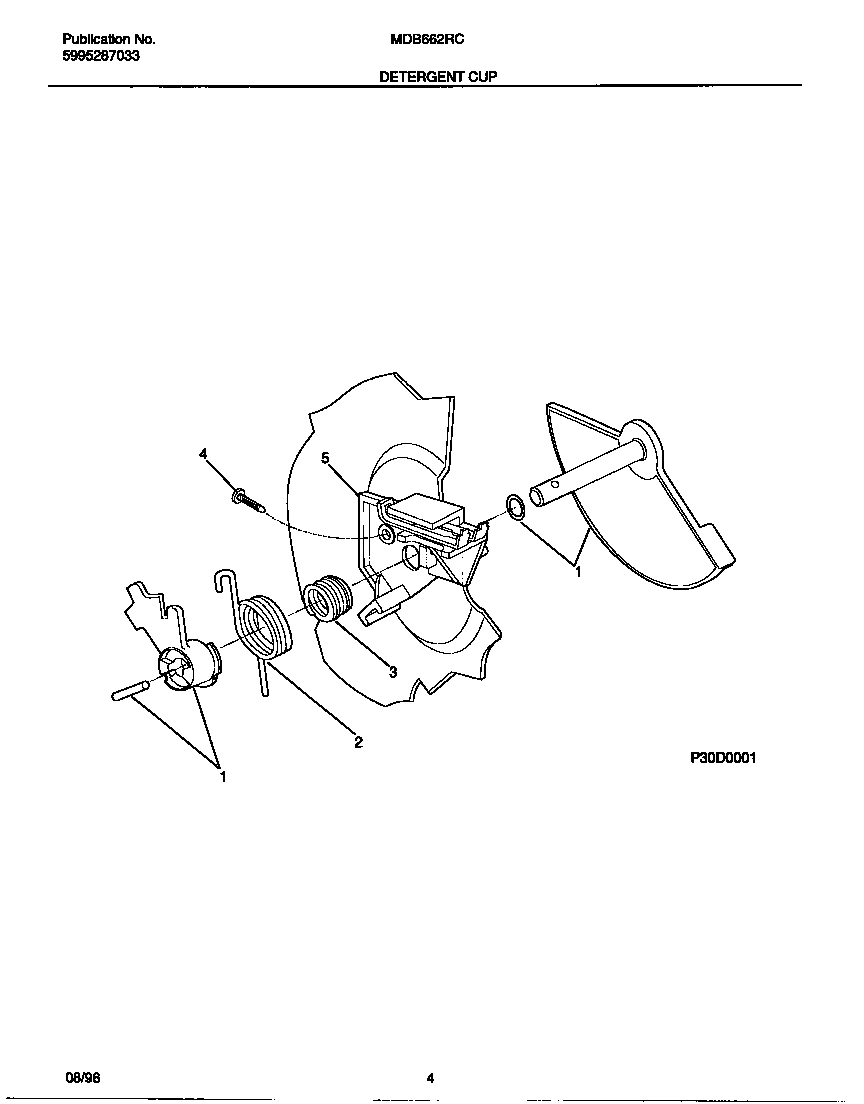

03 - DETERGENT CUP

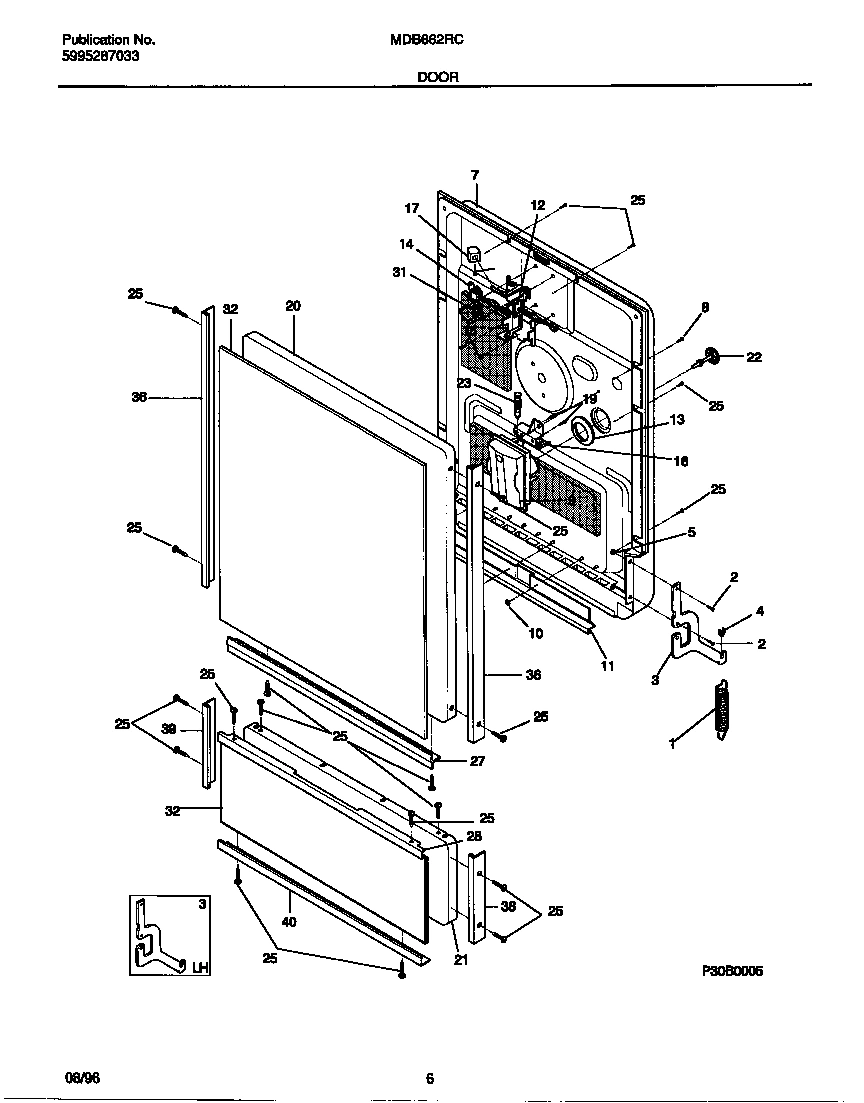

04 - DOOR

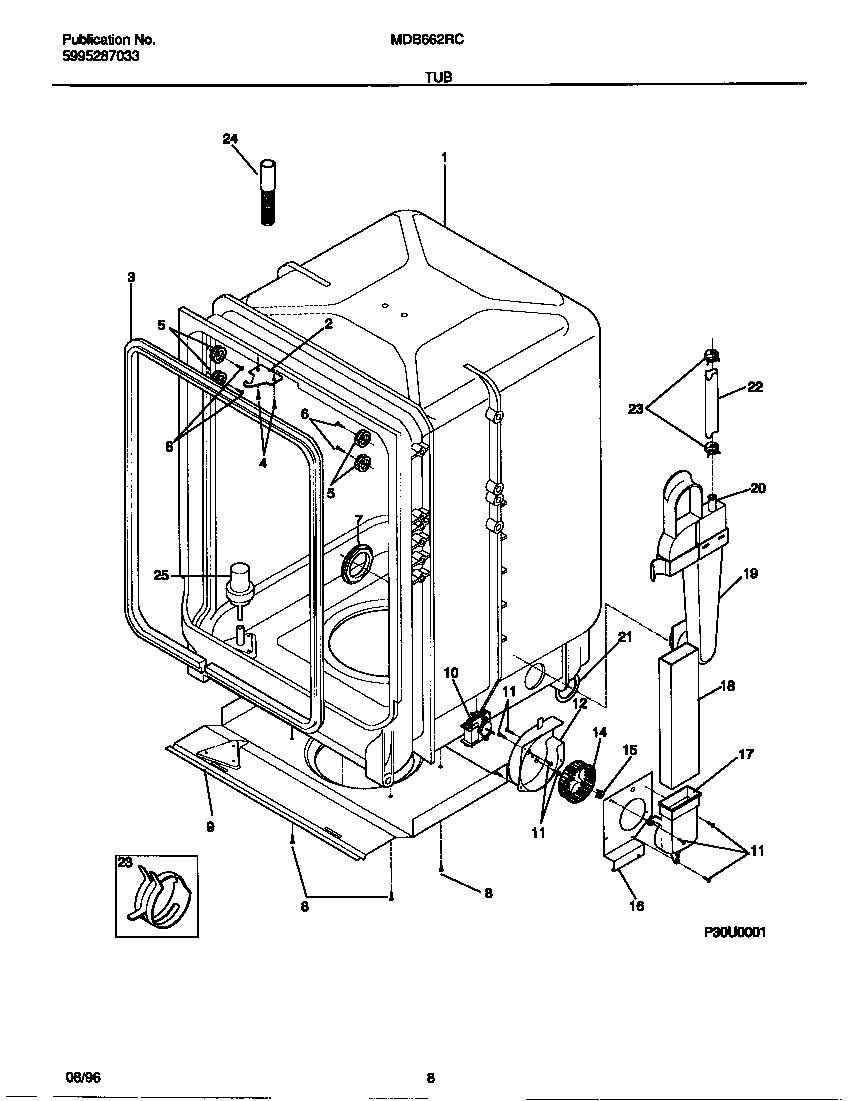

05 - TUB

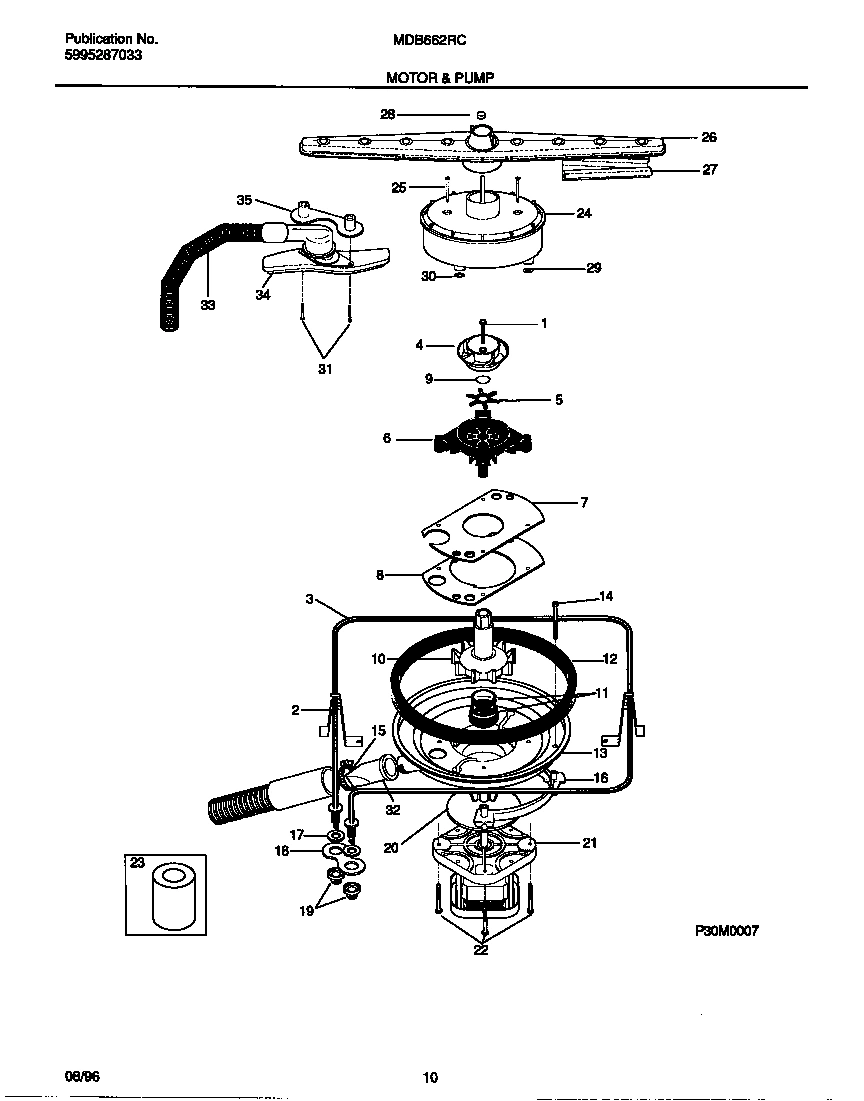

06 - MOTOR & PUMP

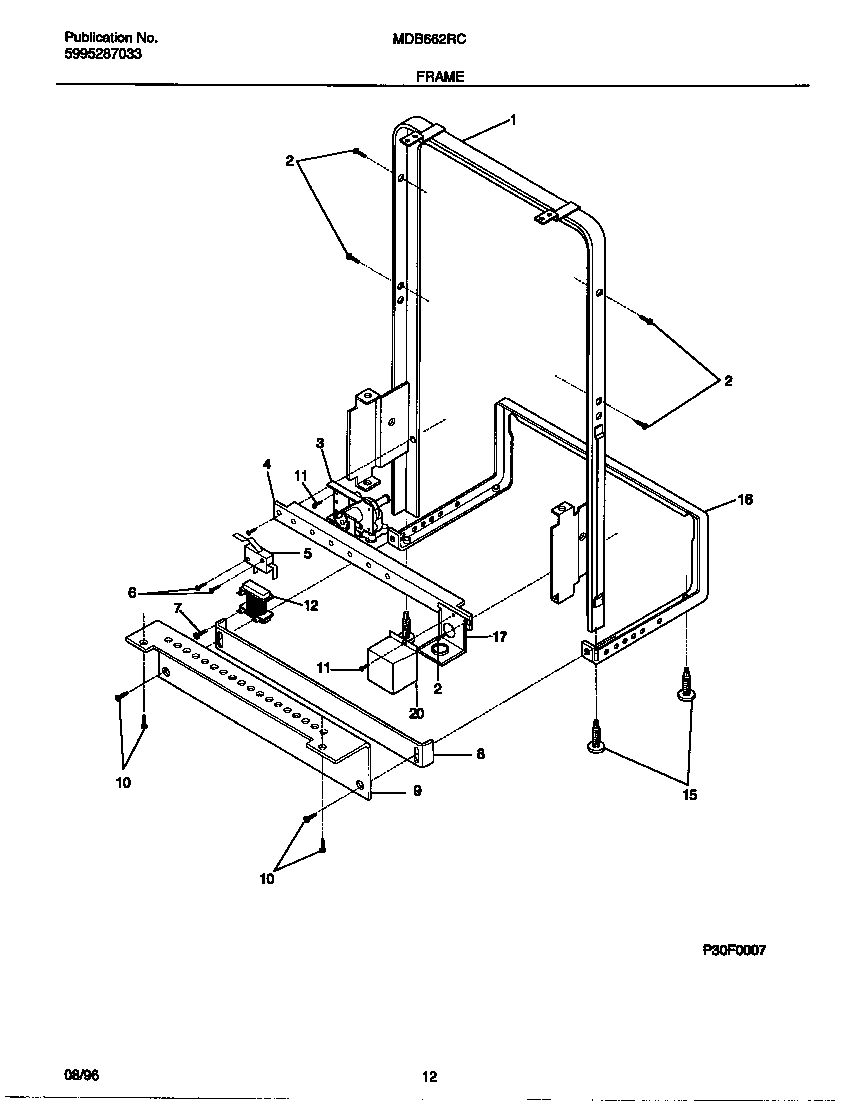

07 - FRAME

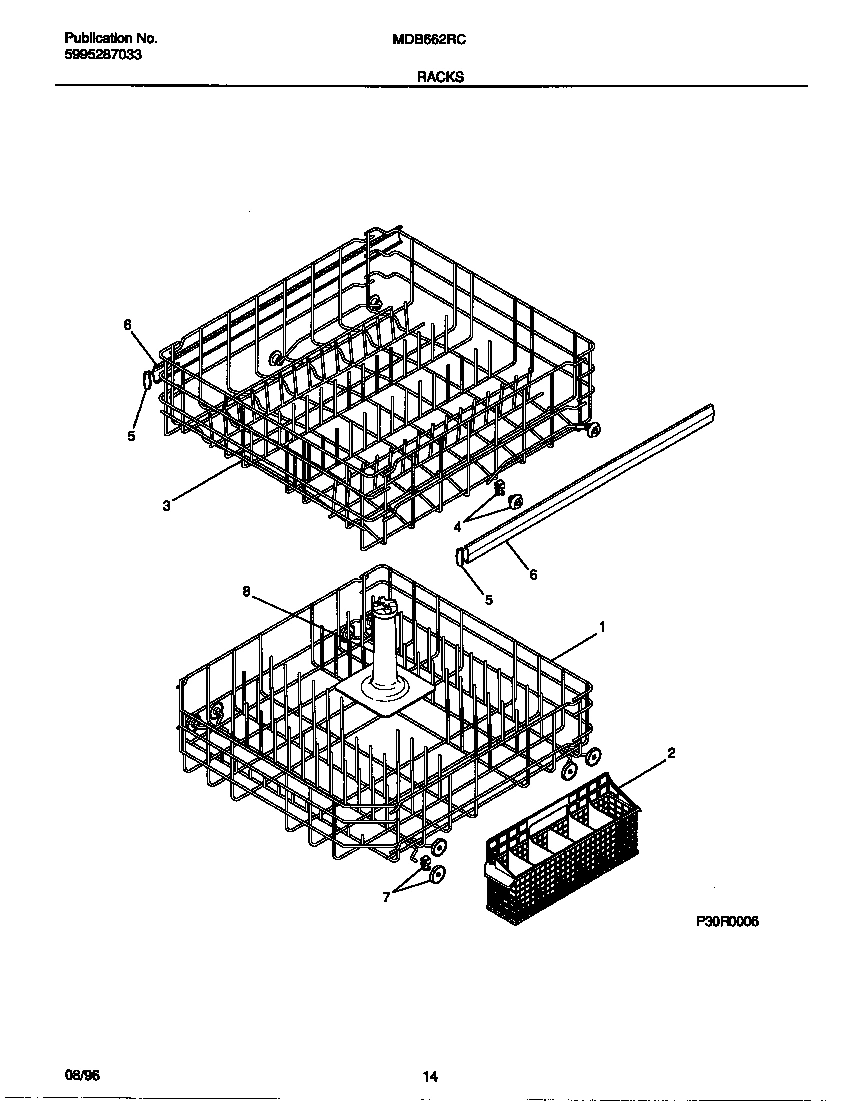

08 - RACKS
Common parts from model Electrolux MDB662RCS0 DISHWASHER
*40527
WCI 154216601 WCI 154216601 Contact Us For Availability
*40528
WCI 5300809937 WCI 5300809937 Contact Us For Availability
*40529
SCREW,TRUSS HEAD TORX ,10 .875 ,PLATE WCI 154103701 Contact Us For Availability
*40531
SCREW-10-16 X 3/8 WCI 154200601 Contact Us For Availability
1
TUB ASSY W/GASKET WCI 5303943090 Contact Us For Availability
1
WCI 154188901 WCI 154188901 Contact Us For Availability
1
WCI 5300809972 WCI 5300809972 Contact Us For Availability
1
WCI 154112624 WCI 154112624 Contact Us For Availability
2
STRIKE DOOR WCI 5300809610 Contact Us For Availability
2
BRACKET-HEATER WCI 5300809585 Contact Us For Availability
2
SCREW-HEATER BRACKET (NOT ILLUSTRATED) WCI 5300810094 Contact Us For Availability
3
ARM ASSY, RH & LH WCI 5303270031 No Longer Available
3
GASKET TUB WCI 5300809611 Contact Us For Availability
3
WCI 154169101 WCI 154169101 Contact Us For Availability
3
VALVE-WATER WCI 5303303957 Contact Us For Availability
3
WCI 5300810014 WCI 5300810014 Contact Us For Availability
4
SCREW-STRIKE, (2) WCI 154151901 Contact Us For Availability
4
PLATE-SPACER WCI 5300809921 Contact Us For Availability
4
BRACE-FRONT WCI 5303286368 Contact Us For Availability
5
WCI 154183301 WCI 154183301 Contact Us For Availability
5
SWITCH-FLOAT WCI 154144601 Contact Us For Availability
6
PLATE - PUMP WCI 5300809006 Contact Us For Availability
6
WCI 154201001 WCI 154201001 Contact Us For Availability
6
SLIDE-RACK, (2) WCI 5300809941 Contact Us For Availability
7
WCI 5300809920 WCI 5300809920 Contact Us For Availability
7
NUT-BLOWER WCI 5300809724 Contact Us For Availability
7
SCREW-RELAY WCI 5300804672 Contact Us For Availability
8
WCI 154156901 WCI 154156901 Contact Us For Availability
8
WCI 154200201 WCI 154200201 Contact Us For Availability
8
TOEPLATE-ADJUSTABLE WCI 5300809303 Contact Us For Availability
9
BODY-DISPENSER WCI 5300806753 Contact Us For Availability
9
WCI 5303316289 WCI 5303316289 Contact Us For Availability
9
WCI 5300809765 WCI 5300809765 Contact Us For Availability
10
WCI 5303943113 WCI 5303943113 Contact Us For Availability
11
WCI 154202301 WCI 154202301 Contact Us For Availability
12
IMPELLER-LOWER WCI 5300809909 Contact Us For Availability
12
WCI 154160101 WCI 154160101 Contact Us For Availability
12
RELAY-MOTOR WCI 5303351059 Contact Us For Availability
13
GROMMET-RINSE AGENT WCI 5300805631 Contact Us For Availability
13
GASKET - PUMP WCI 5300809007 Contact Us For Availability
14
SWITCH-DOOR LATCH WCI 154105301 Contact Us For Availability
14
WHEEL-BLOWER WCI 08016015 Contact Us For Availability
14
WCI 5303943122 WCI 5303943122 Contact Us For Availability
15
CLAMP-BLOWER WCI 5300809728 Contact Us For Availability
15
SCREW-LEVELING WCI 154026101 Contact Us For Availability
16
BI-METAL-RINSE DISP WCI 5300809782 Contact Us For Availability
16
WCI 154158702 WCI 154158702 Contact Us For Availability
16
FRAME-REAR WCI 5303211181 Contact Us For Availability
17
VENT-BLOWER WCI 5300809729 Contact Us For Availability
17
BRACKET-JUNCTION BOX WCI 154112901 Contact Us For Availability
18
WCI 154161701 WCI 154161701 Contact Us For Availability
18
MOTOR WCI 5300809984 Contact Us For Availability
19
INLET-BLOWER WCI 5300809616 Contact Us For Availability
19
SPRAY ARM-UPPER WCI 154119401 Contact Us For Availability
20
CAP-WATER INLET WCI 5300809730 Contact Us For Availability
20
PLATE-MOUNTING, UPPER SPRAY ARM WCI 154126401 Contact Us For Availability
20
COVER-JUNCTION BOX WCI 154128301 Contact Us For Availability
21
GASKET BLOWER WCI 5300809618 Contact Us For Availability
22
TUBING-WATER INLET WCI 5303300865 Contact Us For Availability
23
WCI 154190401 WCI 154190401 Contact Us For Availability
24
SPRAY ARM-LOWER WCI 154156602 Contact Us For Availability
25
WCI 154144301 WCI 154144301 Contact Us For Availability
27
SCREW-UPPER IMPELLER WCI 5300806353 Contact Us For Availability
28
IMPELLER-UPPER WCI 5300809918 Contact Us For Availability
28
TRIM-ACCESS TOP, CHROME WCI 5300808346 Contact Us For Availability
29
SCREW-FILTER HOUSING, HEX HD SS, 10 2.875 WCI 5300809012 Contact Us For Availability
30
WCI 5303943124 WCI 5303943124 Contact Us For Availability
31
WCI 154142901 WCI 154142901 Contact Us For Availability
31
SHIELD-SPRAY ARM, (2) WCI 5300809938 Contact Us For Availability
32
INSERT-DOOR/ACCESS, WHT/CLEAR WCI 5303943093 Contact Us For Availability
32
TUBE, DELIVERY WCI 154119301 Contact Us For Availability
33
WASHER-HEATER WCI 5300809587 Contact Us For Availability
34
WASHER-INSULATING WCI 154064901 Contact Us For Availability
35
WCI 154200901 WCI 154200901 Contact Us For Availability
36
TRIM-DOOR,CHROME ,RH & LH WCI 5303943080 Contact Us For Availability
37
TOOL WCI 5300803923 Contact Us For Availability
38
TRIM-ACCESS PANEL,CHROME ,RH WCI 5303272124 Contact Us For Availability
39
SEAL KIT WCI 5300803903 Contact Us For Availability
39
TRIM-ACCESS PANEL,CHROME ,LH WCI 5303272125 Contact Us For Availability
40
TRIM-ACCESS, CHROME, BOTTOM WCI 5300809994 Contact Us For Availability
43
CLAMP,PUMP WCI 5300809590 Contact Us For Availability
47
WCI 5300809366 WCI 5300809366 Contact Us For Availability
49
SCREW,TRUSS SS ,8 .625 WCI 5303316032 Contact Us For Availability
52
WCI 154207501 WCI 154207501 Contact Us For Availability
× ![]()
