Model Maytag MDB3601AWB0 DISHWASHER – Common Parts & Diagrams

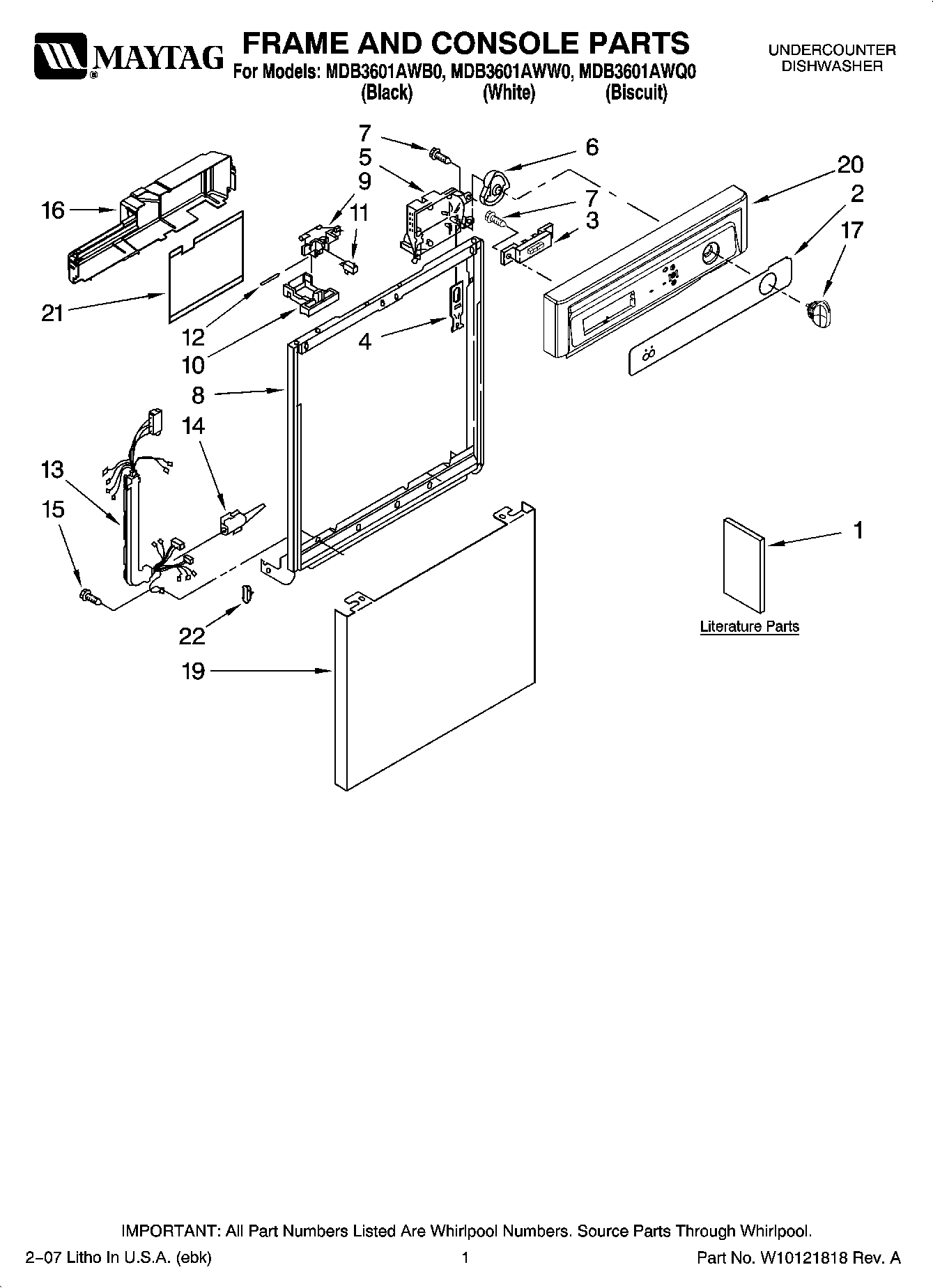

01 - FRAME AND CONSOLE PARTS

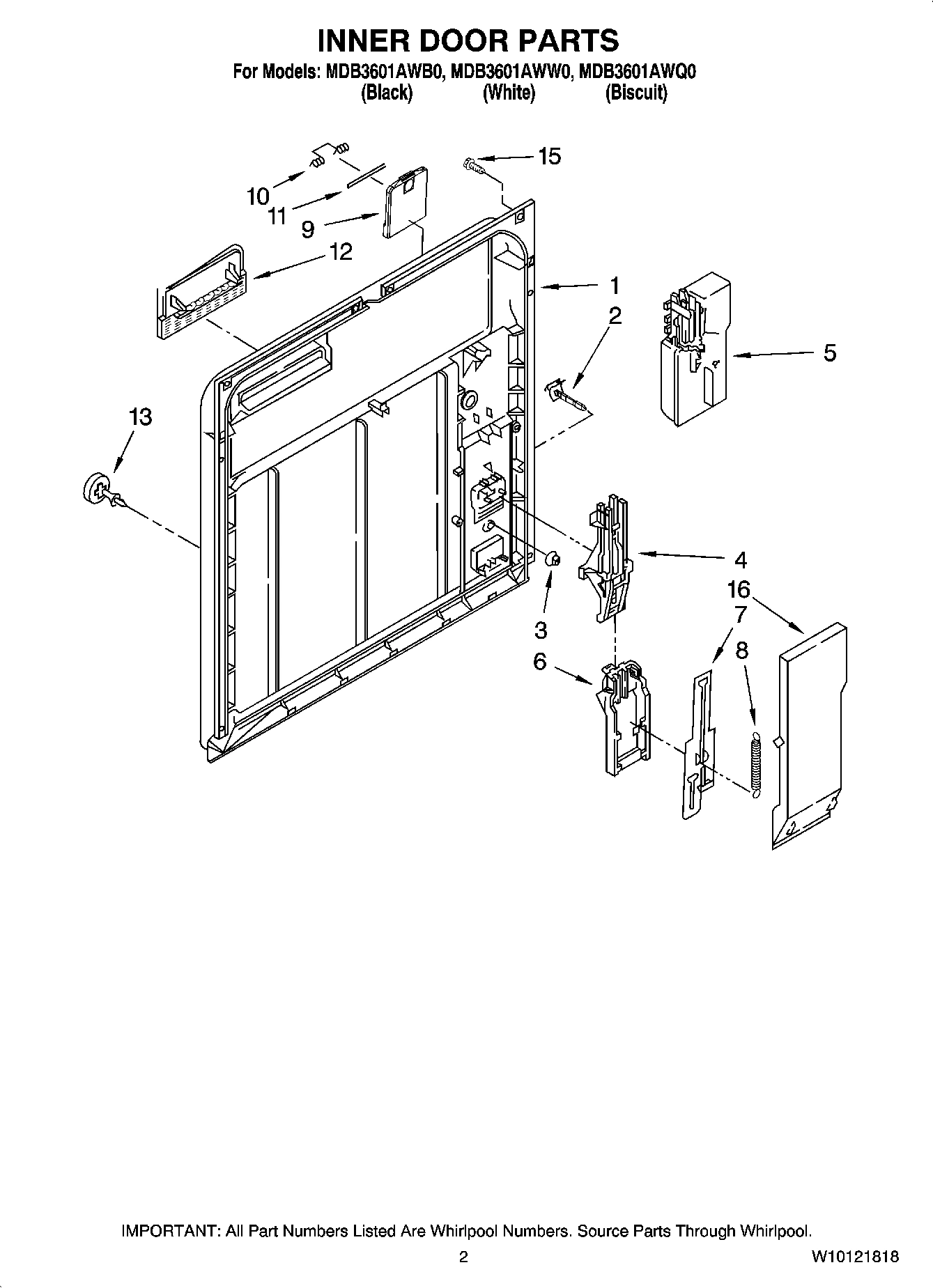

02 - INNER DOOR PARTS

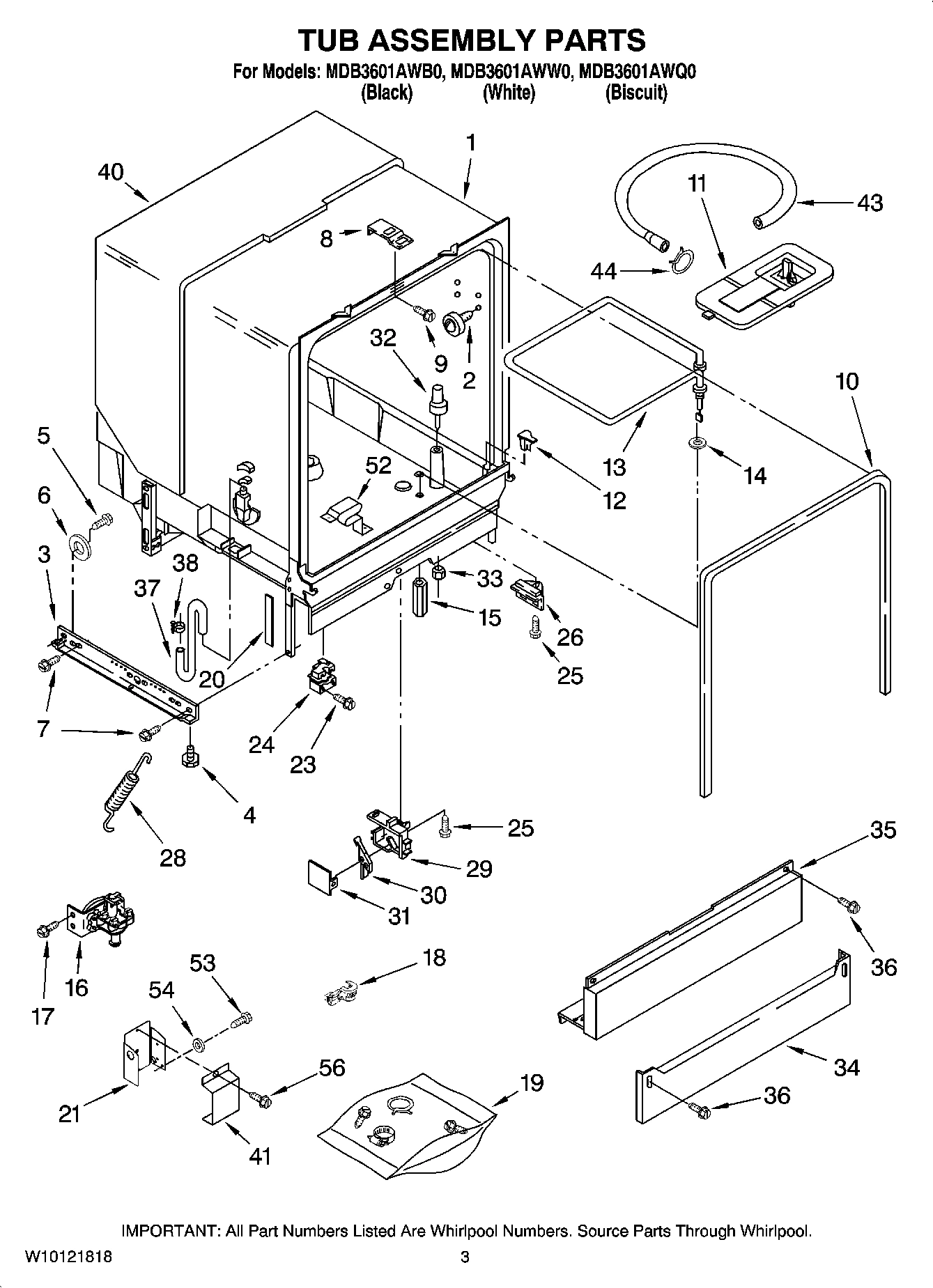

03 - TUB ASSEMBLY PARTS

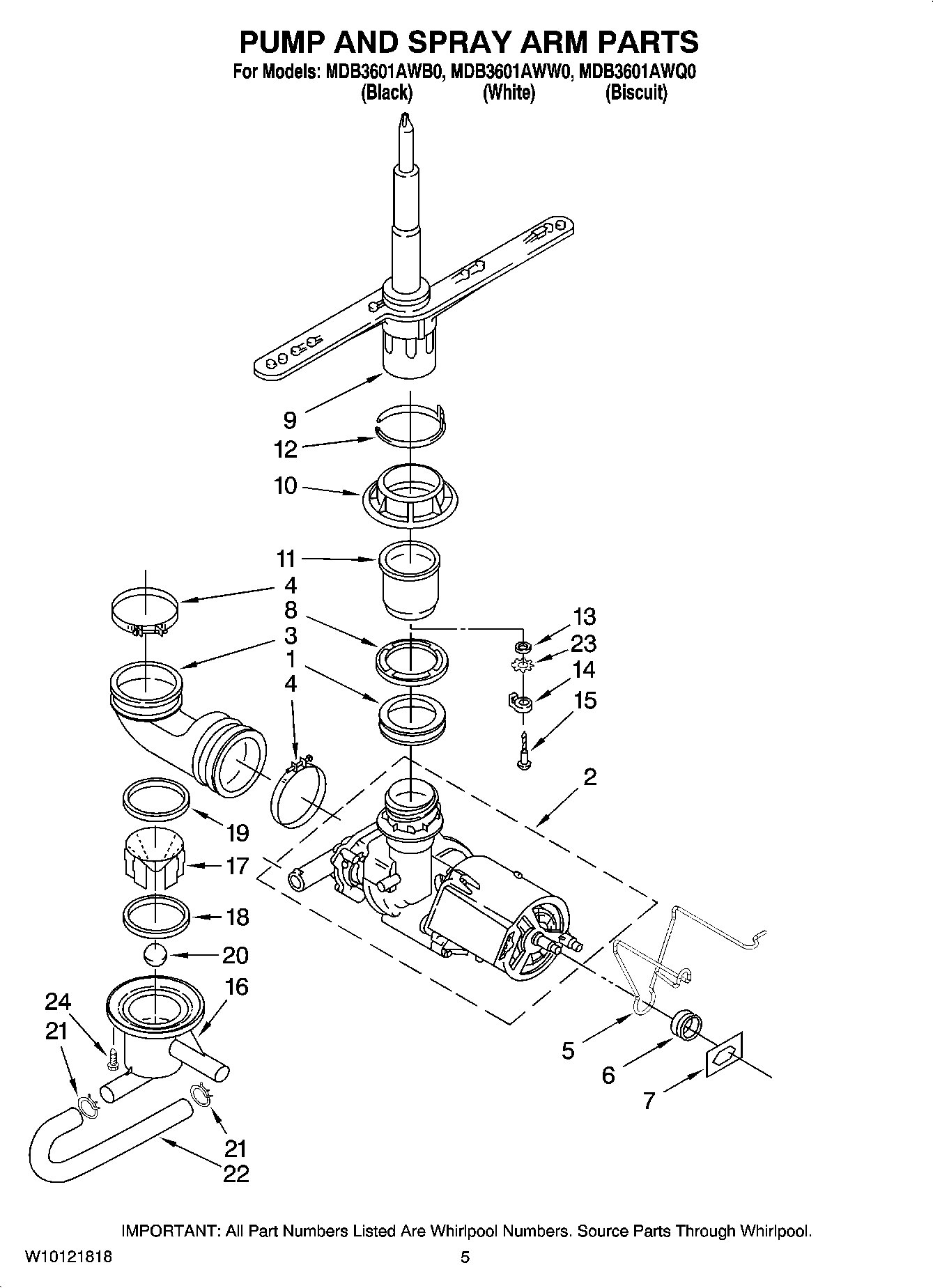

04 - PUMP AND SPRAY ARM PARTS

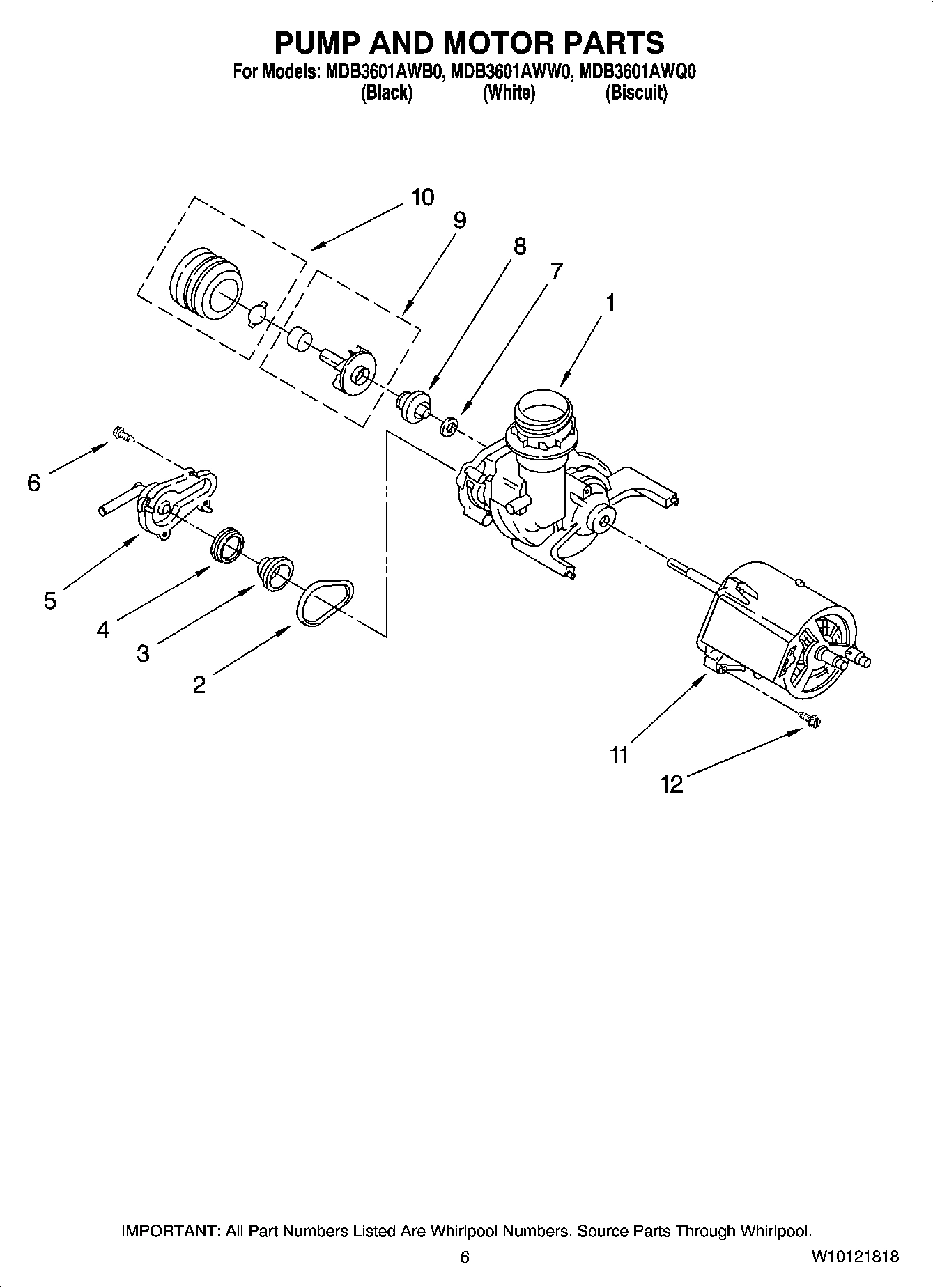

05 - PUMP AND MOTOR PARTS

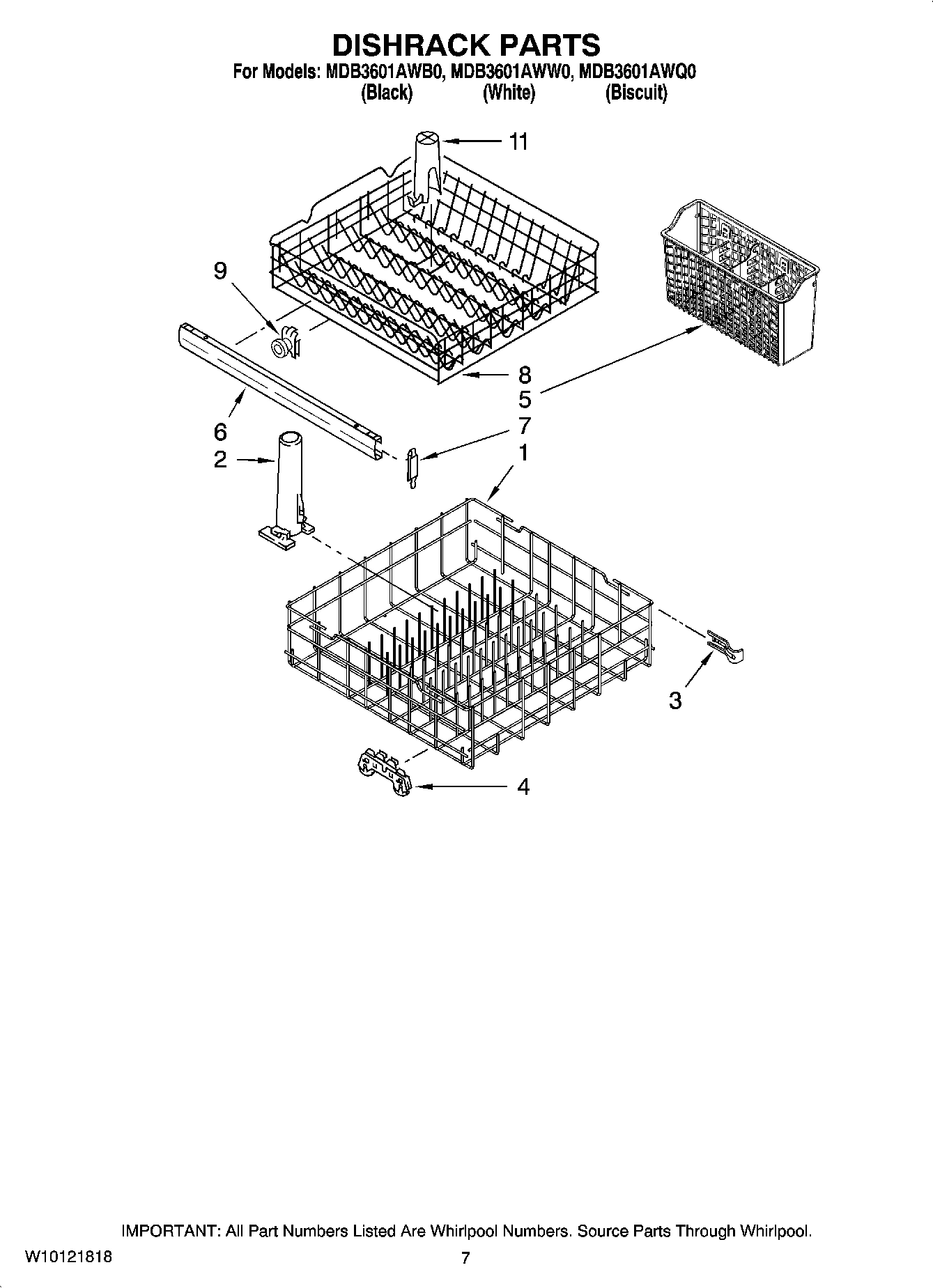

06 - DISHRACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MDB3601AWB0 DISHWASHER
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
MAY 3385556 MAY 3385556 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
MAY 4317824 MAY 4317824 Contact Us For Availability
Heavy Duty Spring Kit (Spring) MAY 4318050 Contact Us For Availability
MAY 4378867 MAY 4378867 Contact Us For Availability
MAY 4378868 MAY 4378868 Contact Us For Availability
MAY 4378869 MAY 4378869 Contact Us For Availability
MAY 4378968 MAY 4378968 Contact Us For Availability
MAY 4392899 MAY 4392899 Contact Us For Availability
PAINT, TOUCH-UP (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
MAY 4392901 MAY 4392901 Contact Us For Availability
MAY 4396277 MAY 4396277 Contact Us For Availability
MAY 4396838 MAY 4396838 Contact Us For Availability
MAY 4396840 MAY 4396840 Contact Us For Availability
MAY 4396853 MAY 4396853 Contact Us For Availability
MAY 4396854 MAY 4396854 Contact Us For Availability
MAY 675775 MAY 675775 Contact Us For Availability
MAY 675776 MAY 675776 Contact Us For Availability
MAY 675788 MAY 675788 Contact Us For Availability
MAY 675809 MAY 675809 Contact Us For Availability
VINYL TOUCH-UP (4OZ.) (WHITE) MAY 676453 Contact Us For Availability
VINYL TOUCH-UP (4OZ.) (GREY) MAY 676455 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
PAINT, TOUCH-UP (1 qt.) (White (Uncut)) MAY 799344 Contact Us For Availability
1
MAY 3367007 MAY 3367007 Contact Us For Availability
1
MAY 3385497 MAY 3385497 Contact Us For Availability
1
Do-It Yourself Manual MAY 677967 Contact Us For Availability
1
MAY 8535436 MAY 8535436 Contact Us For Availability
1
MAY W10102583 MAY W10102583 Contact Us For Availability
1
MAY W10102585 MAY W10102585 Contact Us For Availability
1
Inner Door (Includes Items 2 & 3) MAY 8528310 Contact Us For Availability
1
MAY W10082657 MAY W10082657 Contact Us For Availability
1
MAY 3369037 MAY 3369037 Contact Us For Availability
1
MAY 3369011 MAY 3369011 Contact Us For Availability
1
MAY 8561705 MAY 8561705 Contact Us For Availability
2
MAY W10102620 MAY W10102620 Contact Us For Availability
2
MAY W10102621 MAY W10102621 Contact Us For Availability
2
MAY W10102622 MAY W10102622 Contact Us For Availability
2
Latch, Detergent Dispenser (Includes Item 3) MAY 3376066 Contact Us For Availability
2
MAY 8528831 MAY 8528831 Contact Us For Availability
2
PUMP & MOTOR ASSEMBLY (FOR BREAKDOWN OF PUMP MAY 3369015 Contact Us For Availability
2
MAY 3369031 MAY 3369031 Contact Us For Availability
2
MAY 8268825 MAY 8268825 Contact Us For Availability
3
MAY 8269366 MAY 8269366 Contact Us For Availability
3
Snap, Detergent Dispenser (Includes Item 2) MAY 3369061 Contact Us For Availability
3
MAY 3368933 MAY 3368933 Contact Us For Availability
3
MAY 3369035 MAY 3369035 Contact Us For Availability
3
MAY 8563504 MAY 8563504 Contact Us For Availability
3
MAY 3385142 MAY 3385142 Contact Us For Availability
4
MAY 3369529 MAY 3369529 Contact Us For Availability
4
MAY 8519606 MAY 8519606 Contact Us For Availability
4
MAY 3374849 MAY 3374849 Contact Us For Availability
4
MAY 3400959 MAY 3400959 Contact Us For Availability
4
MAY 3369029 MAY 3369029 Contact Us For Availability
4
MAY 8268645 MAY 8268645 Contact Us For Availability
5
MAY 8535368 MAY 8535368 Contact Us For Availability
5
MAY 8052027 MAY 8052027 Contact Us For Availability
5
MAY 3370389 MAY 3370389 Contact Us For Availability
5
MAY W10113908 MAY W10113908 Contact Us For Availability
5
MAY 3369030 MAY 3369030 Contact Us For Availability
5
MAY 8539066 MAY 8539066 Contact Us For Availability
6
MAY 8271510 MAY 8271510 Contact Us For Availability
6
Draw Bar (Upper Dispenser) MAY 3369000 Contact Us For Availability
6
MAY 302819 MAY 302819 Contact Us For Availability
6
MAY 8535657 MAY 8535657 Contact Us For Availability
6
MAY 3368921 MAY 3368921 Contact Us For Availability
6
MAY 3385089 MAY 3385089 Contact Us For Availability
7
MAY 8066017 MAY 8066017 Contact Us For Availability
7
Screw, 10-16 x 1/2 (4) MAY 343641 Contact Us For Availability
7
Pushnut, Motor Support MAY 3370856 Contact Us For Availability
7
MAY 3369020 MAY 3369020 Contact Us For Availability
7
MAY 8565920 MAY 8565920 Contact Us For Availability
8
MAY 9743028 MAY 9743028 Contact Us For Availability
8
MAY 3368999 MAY 3368999 Contact Us For Availability
8
MAY 3378149 MAY 3378149 Contact Us For Availability
8
MAY 3369038 MAY 3369038 Contact Us For Availability
8
MAY 3385557 MAY 3385557 Contact Us For Availability
8
MAY 8539222 MAY 8539222 Contact Us For Availability
9
MAY 3380854 MAY 3380854 Contact Us For Availability
9
MAY 3378138 MAY 3378138 Contact Us For Availability
9
MAY 3374720 MAY 3374720 Contact Us For Availability
9
MAY 8268870 MAY 8268870 Contact Us For Availability
9
MAY 3369013 MAY 3369013 Contact Us For Availability
9
MAY 8268852 MAY 8268852 Contact Us For Availability
10
MAY 3380778 MAY 3380778 Contact Us For Availability
10
MAY 3380779 MAY 3380779 Contact Us For Availability
10
MAY 3384155 MAY 3384155 Contact Us For Availability
10
MAY 8066018 MAY 8066018 Contact Us For Availability
10
MAY 3376927 MAY 3376927 Contact Us For Availability
10
MAY 8268883 MAY 8268883 Contact Us For Availability
10
MAY 3369012 MAY 3369012 Contact Us For Availability
11
MAY 3369325 MAY 3369325 Contact Us For Availability
11
MAY 3372028 MAY 3372028 Contact Us For Availability
11
MAY 3369322 MAY 3369322 Contact Us For Availability
11
MAY 3371745 MAY 3371745 Contact Us For Availability
11
MAY 8283457 MAY 8283457 Contact Us For Availability
11
MAY 8519550 MAY 8519550 Contact Us For Availability
12
MAY 3368955 MAY 3368955 Contact Us For Availability
12
MAY 3371710 MAY 3371710 Contact Us For Availability
12
MAY 8528862 MAY 8528862 Contact Us For Availability
12
MAY 3369045 MAY 3369045 Contact Us For Availability
12
MAY 3368922 MAY 3368922 Contact Us For Availability
13
MAY 8573183 MAY 8573183 Contact Us For Availability
13
MAY 3378134 MAY 3378134 Contact Us For Availability
13
Heater MAY 8519827 Contact Us For Availability
13
MAY 3369044 MAY 3369044 Contact Us For Availability
14
MAY 3376405 MAY 3376405 Contact Us For Availability
14
MAY 717273 MAY 717273 Contact Us For Availability
14
MAY 3371746 MAY 3371746 Contact Us For Availability
15
MAY 3400892 MAY 3400892 Contact Us For Availability
15
MAY 3400815 MAY 3400815 Contact Us For Availability
15
MAY 8268548 MAY 8268548 Contact Us For Availability
15
MAY 3371744 MAY 3371744 Contact Us For Availability
16
Cover, Control MAY 3379954 Contact Us For Availability
16
MAY 3371569 MAY 3371569 Contact Us For Availability
16
MAY 8283345 MAY 8283345 Contact Us For Availability
16
Collector Assembly w/Check Valve MAY 8520839 Contact Us For Availability
17
MAY 3379290 MAY 3379290 Contact Us For Availability
17
MAY 3379291 MAY 3379291 Contact Us For Availability
17
MAY 3384821 MAY 3384821 Contact Us For Availability
17
Screw, 8-18 x 1/2 MAY 304392 Contact Us For Availability
17
MAY 8520841 MAY 8520841 Contact Us For Availability
18
MAY 8573061 MAY 8573061 Contact Us For Availability
18
MAY 8520843 MAY 8520843 Contact Us For Availability
19
Panel, Front (Black) MAY 3379375 Contact Us For Availability
19
Panel, Front (White) MAY 3379376 Contact Us For Availability
19
Panel, Front (Biscuit) MAY 8054178 Contact Us For Availability
19
Miscellaneous Parts Bag (Includes 2 Screws & MAY 3369816 Contact Us For Availability
19
MAY 3369177 MAY 3369177 Contact Us For Availability
20
MAY W10102614 MAY W10102614 Contact Us For Availability
20
MAY W10102615 MAY W10102615 Contact Us For Availability
20
MAY W10102616 MAY W10102616 Contact Us For Availability
20
Pad, Friction MAY 8052018 Contact Us For Availability
20
MAY 3369178 MAY 3369178 Contact Us For Availability
21
MAY 3379671 MAY 3379671 Contact Us For Availability
21
MAY 8573951 MAY 8573951 Contact Us For Availability
21
Clamp, Hose MAY 371499 Contact Us For Availability
22
Bearing, Spring, (2) MAY 3373234 Contact Us For Availability
22
MAY 8520842 MAY 8520842 Contact Us For Availability
23
MAY 3370225 MAY 3370225 Contact Us For Availability
23
MAY 3371634 MAY 3371634 Contact Us For Availability
24
MAY 3369063 MAY 3369063 Contact Us For Availability
24
Screw, 10-16, Hi-Lo (4) MAY 8534039 Contact Us For Availability
25
SCREW MAY 304231 Contact Us For Availability
26
MAY 3368928 MAY 3368928 Contact Us For Availability
28
MAY 3379383 MAY 3379383 Contact Us For Availability
29
MAY 8318218 MAY 8318218 Contact Us For Availability
30
MAY 3369067 MAY 3369067 Contact Us For Availability
31
MAY 8318219 MAY 8318219 Contact Us For Availability
32
MAY 8519552 MAY 8519552 Contact Us For Availability
33
MAY 717488 MAY 717488 Contact Us For Availability
34
Panel, Toe (Black) MAY 3368942 Contact Us For Availability
34
Panel, Toe (Biscuit) MAY 8054181 Contact Us For Availability
34
MAY 9742861 MAY 9742861 Contact Us For Availability
35
MAY 3379387 MAY 3379387 Contact Us For Availability
35
MAY 3379388 MAY 3379388 Contact Us For Availability
35
MAY 8054180 MAY 8054180 Contact Us For Availability
36
Screw, 8-18 x 1/2 (4) MAY 302868 Contact Us For Availability
37
MAY 3369414 MAY 3369414 Contact Us For Availability
38
Clamp MAY 301958 Contact Us For Availability
40
MAY 8573243 MAY 8573243 Contact Us For Availability
41
Cover Assembly, Terminal Box MAY 300068 Contact Us For Availability
43
MAY 3374077 MAY 3374077 Contact Us For Availability
44
Hose Clamp MAY 356138 Contact Us For Availability
52
Support, Heater (3) MAY 3379740 Contact Us For Availability
53
MAY 3400014 MAY 3400014 Contact Us For Availability
54
MAY 3378128 MAY 3378128 Contact Us For Availability
56
Screw, 8-18 MAY 3369138 Contact Us For Availability
× ![]()
