Model Maytag MD458 DISHWASHER – Common Parts & Diagrams

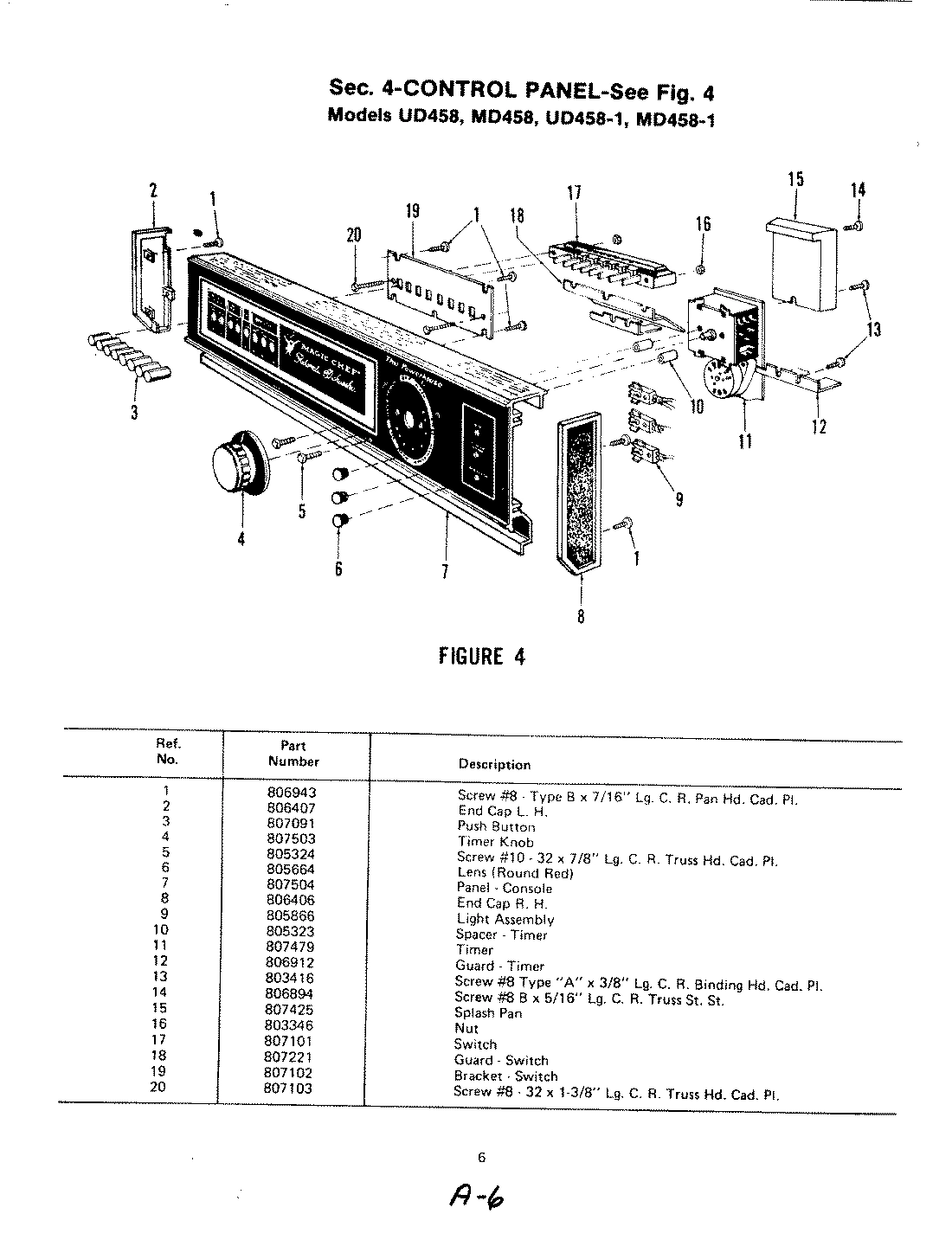

01 - CONTROL PANEL

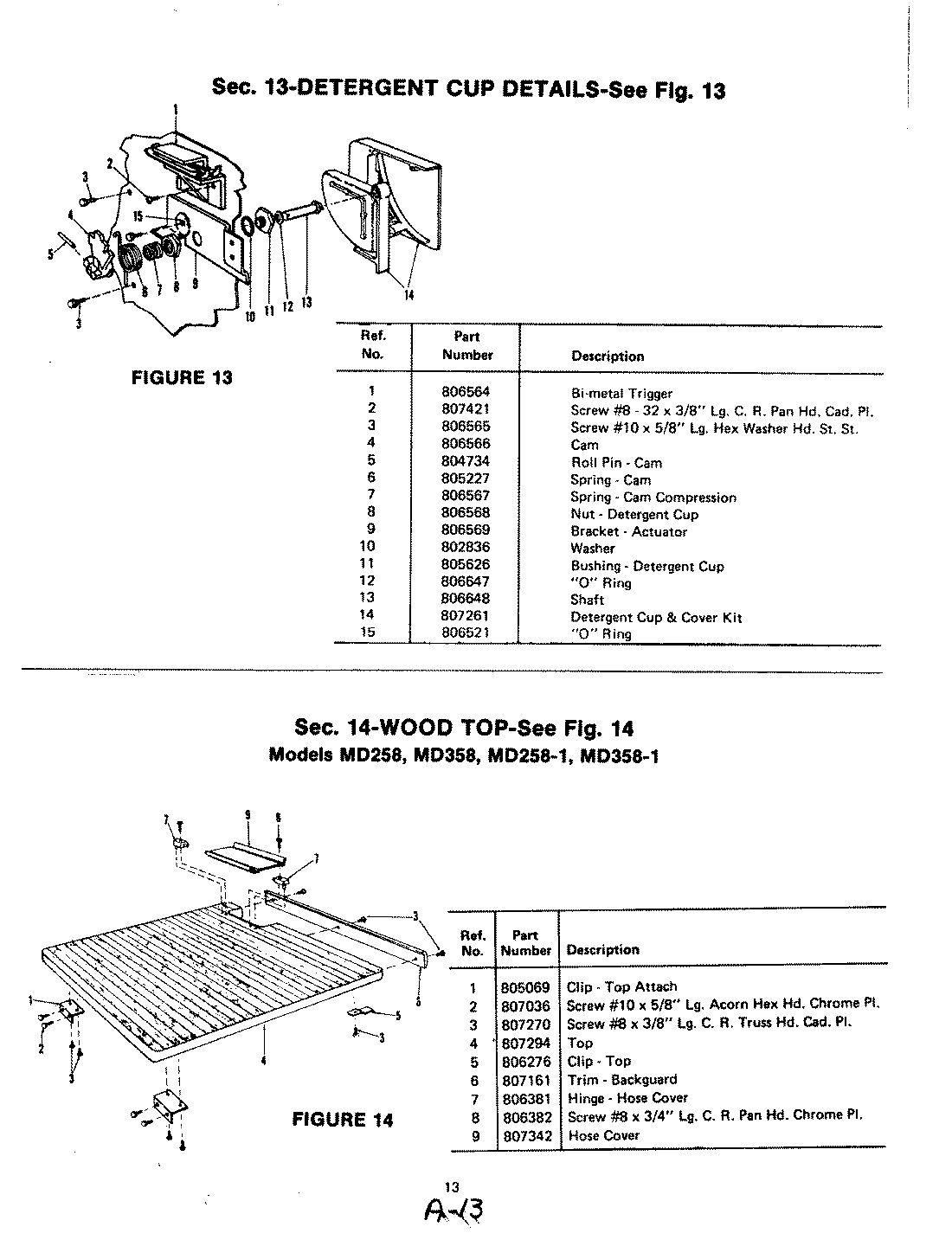

02 - DETERGENT CUP
03 - DOOR DETAILS (MD458, MD458-1)
04 - FRAME ASSEMBLY (MD458, MD458-1)
05 - FRAME ASSEMBLY (UD458)
06 - RACK (UD458, MD458)
07 - TUB (MD458)
08 - WOOD TOP (MD458, MD458-1)
Common parts from model Maytag MD458 DISHWASHER
1
SCREW MAY 806943 Contact Us For Availability
1
MAY 806564 MAY 806564 Contact Us For Availability
1
LATCH ASM MAY 807016 Contact Us For Availability
1
MAY 806902 MAY 806902 Contact Us For Availability
1
MAY 807692 MAY 807692 Contact Us For Availability
1
MAY 805706 MAY 805706 Contact Us For Availability
1
CLIP MAY 805069 Contact Us For Availability
2
LH END CAP MAY 806407 Contact Us For Availability
2
MAY 807421 MAY 807421 Contact Us For Availability
2
INSULATOR MAY 806846 Contact Us For Availability
2
MAY 807171 MAY 807171 Contact Us For Availability
2
MAY 807296 MAY 807296 Contact Us For Availability
2
MAY 807454 MAY 807454 Contact Us For Availability
2
SCREW MAY 807036 Contact Us For Availability
3
PUSH BUTTON MAY 807091 Contact Us For Availability
3
SCREW MAY 806565 Contact Us For Availability
3
MAY 805221 MAY 805221 Contact Us For Availability
3
MAY 806539 MAY 806539 Contact Us For Availability
3
MAY 806235 MAY 806235 Contact Us For Availability
3
WHEEL ASM MAY 807957 Contact Us For Availability
3
MAY 807270 MAY 807270 Contact Us For Availability
4
MAY 807503 MAY 807503 Contact Us For Availability
4
MAY 806566 MAY 806566 Contact Us For Availability
4
MAY 807043 MAY 807043 Contact Us For Availability
4
SCREW MAY 806663 Contact Us For Availability
4
END CAP MAY 807234 Contact Us For Availability
4
STRIKE SHIM MAY 807073 Contact Us For Availability
4
MAY 807299 MAY 807299 Contact Us For Availability
5
MAY 805324 MAY 805324 Contact Us For Availability
5
ROLLPIN MAY 804734 Contact Us For Availability
5
MAY 807295 MAY 807295 Contact Us For Availability
5
MAY 807288 MAY 807288 Contact Us For Availability
5
MAY 806276 MAY 806276 Contact Us For Availability
6
RED LENS MAY 805664 Contact Us For Availability
6
SPRING MAY 805227 Contact Us For Availability
6
MAY 806398 MAY 806398 Contact Us For Availability
6
SILVRWR BASKET MAY 807512 Contact Us For Availability
6
STRIKE MAY 807015 Contact Us For Availability
6
MAY 807161 MAY 807161 Contact Us For Availability
7
MAY 807504 MAY 807504 Contact Us For Availability
7
SPRING MAY 806567 Contact Us For Availability
7
MAY 807373 MAY 807373 Contact Us For Availability
7
WHEEL ASM MAY 807008 Contact Us For Availability
7
MAY 806890 MAY 806890 Contact Us For Availability
7
MAY 806381 MAY 806381 Contact Us For Availability
8
RH END CAP MAY 806406 Contact Us For Availability
8
NUT MAY 806568 Contact Us For Availability
8
OUTER PANEL MAY 807262 Contact Us For Availability
8
MAY 807595 MAY 807595 Contact Us For Availability
8
MAY 807641 MAY 807641 Contact Us For Availability
8
MAY 807642 MAY 807642 Contact Us For Availability
8
MAY 807643 MAY 807643 Contact Us For Availability
8
MAY 804982 MAY 804982 Contact Us For Availability
8
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
8
SCREW MAY 806382 Contact Us For Availability
9
LIGHT ASM MAY 805866 Contact Us For Availability
9
MAY 806569 MAY 806569 Contact Us For Availability
9
SCREW MAY 806830 Contact Us For Availability
9
INNER PANEL MAY 807194 Contact Us For Availability
9
MAY 807212 MAY 807212 Contact Us For Availability
9
HOSE WASHER MAY 800787 Contact Us For Availability
9
MAY 807342 MAY 807342 Contact Us For Availability
10
MAY 805323 MAY 805323 Contact Us For Availability
10
GASKET MAY 802836 Contact Us For Availability
10
MAY 806854 MAY 806854 Contact Us For Availability
10
MAY 806243 MAY 806243 Contact Us For Availability
10
CLAMP MAY 806723 Contact Us For Availability
10
MAY 807486 MAY 807486 Contact Us For Availability
11
MAY 807479 MAY 807479 Contact Us For Availability
11
MAY 805626 MAY 805626 Contact Us For Availability
11
MAY 806171 MAY 806171 Contact Us For Availability
11
MAY 807179 MAY 807179 Contact Us For Availability
12
O RING MAY 806647 Contact Us For Availability
12
MAY 805340 MAY 805340 Contact Us For Availability
12
MAY 806903 MAY 806903 Contact Us For Availability
12
LH GUIDE MAY 807470 Contact Us For Availability
13
MAY 806648 MAY 806648 Contact Us For Availability
13
LH ARM MAY 805682 Contact Us For Availability
13
RH GUIDE MAY 807471 Contact Us For Availability
14
SCREW MAY 806894 Contact Us For Availability
14
DETRG CUP KIT MAY 807261 Contact Us For Availability
14
GROUND TERMINAL MAY 807213 Contact Us For Availability
14
POWER CORD MAY 805046 Contact Us For Availability
14
CHANNEL MAY 806290 Contact Us For Availability
14
MAY 804630 MAY 804630 Contact Us For Availability
15
MAY 807425 MAY 807425 Contact Us For Availability
15
O RING MAY 806521 Contact Us For Availability
15
MAY 806842 MAY 806842 Contact Us For Availability
15
MAY 804426 MAY 804426 Contact Us For Availability
16
DISPENSER MAY 806753 Contact Us For Availability
16
SCREW MAY 804518 Contact Us For Availability
16
MAY 807374 MAY 807374 Contact Us For Availability
16
MAY 803319 MAY 803319 Contact Us For Availability
17
MAY 807101 MAY 807101 Contact Us For Availability
17
MAY 806757 MAY 806757 Contact Us For Availability
17
MAY 807501 MAY 807501 Contact Us For Availability
17
MAY 805669 MAY 805669 Contact Us For Availability
18
MAY 807221 MAY 807221 Contact Us For Availability
18
BRACKET MAY 806756 Contact Us For Availability
18
MAY 807372 MAY 807372 Contact Us For Availability
18
MAY 806966 MAY 806966 Contact Us For Availability
18
ROLLER MAY 807180 Contact Us For Availability
19
MAY 807102 MAY 807102 Contact Us For Availability
19
MAY 806843 MAY 806843 Contact Us For Availability
19
MAY 805351 MAY 805351 Contact Us For Availability
19
MAY 804619 MAY 804619 Contact Us For Availability
19
SCREW MAY 807181 Contact Us For Availability
20
MAY 807103 MAY 807103 Contact Us For Availability
20
MAY 805063 MAY 805063 Contact Us For Availability
20
MAY 805746 MAY 805746 Contact Us For Availability
20
SCREW MAY 807001 Contact Us For Availability
20
MAY 803367 MAY 803367 Contact Us For Availability
21
HOSE GUIDE MAY 805859 Contact Us For Availability
21
MAY 806977 MAY 806977 Contact Us For Availability
21
SEALER MAY 805776 Contact Us For Availability
22
MAY 806976 MAY 806976 Contact Us For Availability
22
HOSE CLAMP MAY 806142 Contact Us For Availability
22
TOE PLATE MAY 806295 Contact Us For Availability
22
MAY 807500 MAY 807500 Contact Us For Availability
23
MAY 807044 MAY 807044 Contact Us For Availability
23
HOSE SUPPORT MAY 806143 Contact Us For Availability
23
MAY 806900 MAY 806900 Contact Us For Availability
23
MAY 807018 MAY 807018 Contact Us For Availability
24
MAY 806912 MAY 806912 Contact Us For Availability
24
MAY 803393 MAY 803393 Contact Us For Availability
24
MAY 807172 MAY 807172 Contact Us For Availability
24
MAY 807177 MAY 807177 Contact Us For Availability
25
SCREW MAY 803416 Contact Us For Availability
25
MAY 806904 MAY 806904 Contact Us For Availability
25
MAY 807702 MAY 807702 Contact Us For Availability
25
MAY 807703 MAY 807703 Contact Us For Availability
25
MAY 807704 MAY 807704 Contact Us For Availability
25
MAY 807705 MAY 807705 Contact Us For Availability
25
ADAPTOR MAY 800782 Contact Us For Availability
25
MAY 807173 MAY 807173 Contact Us For Availability
26
SCREW MAY 806810 Contact Us For Availability
26
MAY 803390 MAY 803390 Contact Us For Availability
26
MAY 807174 MAY 807174 Contact Us For Availability
26
MAY 806962 MAY 806962 Contact Us For Availability
27
MAY 803051 MAY 803051 Contact Us For Availability
27
MAY 806436 MAY 806436 Contact Us For Availability
27
MAY 803391 MAY 803391 Contact Us For Availability
27
MAY 803702 MAY 803702 Contact Us For Availability
28
MAY 803346 MAY 803346 Contact Us For Availability
28
DOOR SPRING MAY 805683 Contact Us For Availability
28
U PACKING MAY 806584 Contact Us For Availability
28
MAY 806889 MAY 806889 Contact Us For Availability
29
RH ARM MAY 805681 Contact Us For Availability
29
MAY 807490 MAY 807490 Contact Us For Availability
29
TERMINAL COVER MAY 800222 Contact Us For Availability
29
MAY 806698 MAY 806698 Contact Us For Availability
30
SPRING PAD MAY 805884 Contact Us For Availability
30
RELIEF KIT MAY 807498 Contact Us For Availability
30
BRACKET MAY 807019 Contact Us For Availability
30
MAY 805815 MAY 805815 Contact Us For Availability
31
MAY 803311 MAY 803311 Contact Us For Availability
31
HOSE ASM MAY 807496 Contact Us For Availability
31
MAY 807037 MAY 807037 Contact Us For Availability
31
MAY 807475 MAY 807475 Contact Us For Availability
32
ARM BRACKET MAY 806717 Contact Us For Availability
32
MAY 804895 MAY 804895 Contact Us For Availability
32
MAY 806100 MAY 806100 Contact Us For Availability
32
MAY 807267 MAY 807267 Contact Us For Availability
33
MAY 800923 MAY 800923 Contact Us For Availability
33
TERMINAL BLOCK MAY 807175 Contact Us For Availability
34
GROMMET MAY 805631 Contact Us For Availability
34
MAY 806593 MAY 806593 Contact Us For Availability
35
SCREW MAY 806863 Contact Us For Availability
35
MAY 804672 MAY 804672 Contact Us For Availability
36
SCREW MAY 806967 Contact Us For Availability
36
SUB 805255 MAY 806121 Contact Us For Availability
37
DOOR GUIDE MAY 807449 Contact Us For Availability
37
MAY 807176 MAY 807176 Contact Us For Availability
38
SWITCH COVER MAY 807450 Contact Us For Availability
38
WASHER MAY 803573 Contact Us For Availability
39
MAY 806470 MAY 806470 Contact Us For Availability
40
MAY 806366 MAY 806366 Contact Us For Availability
41
MAY 806899 MAY 806899 Contact Us For Availability
42
MAY 807375 MAY 807375 Contact Us For Availability
× ![]()
