Model Maytag MD258-1 DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL
02 - DETERGENT CUP

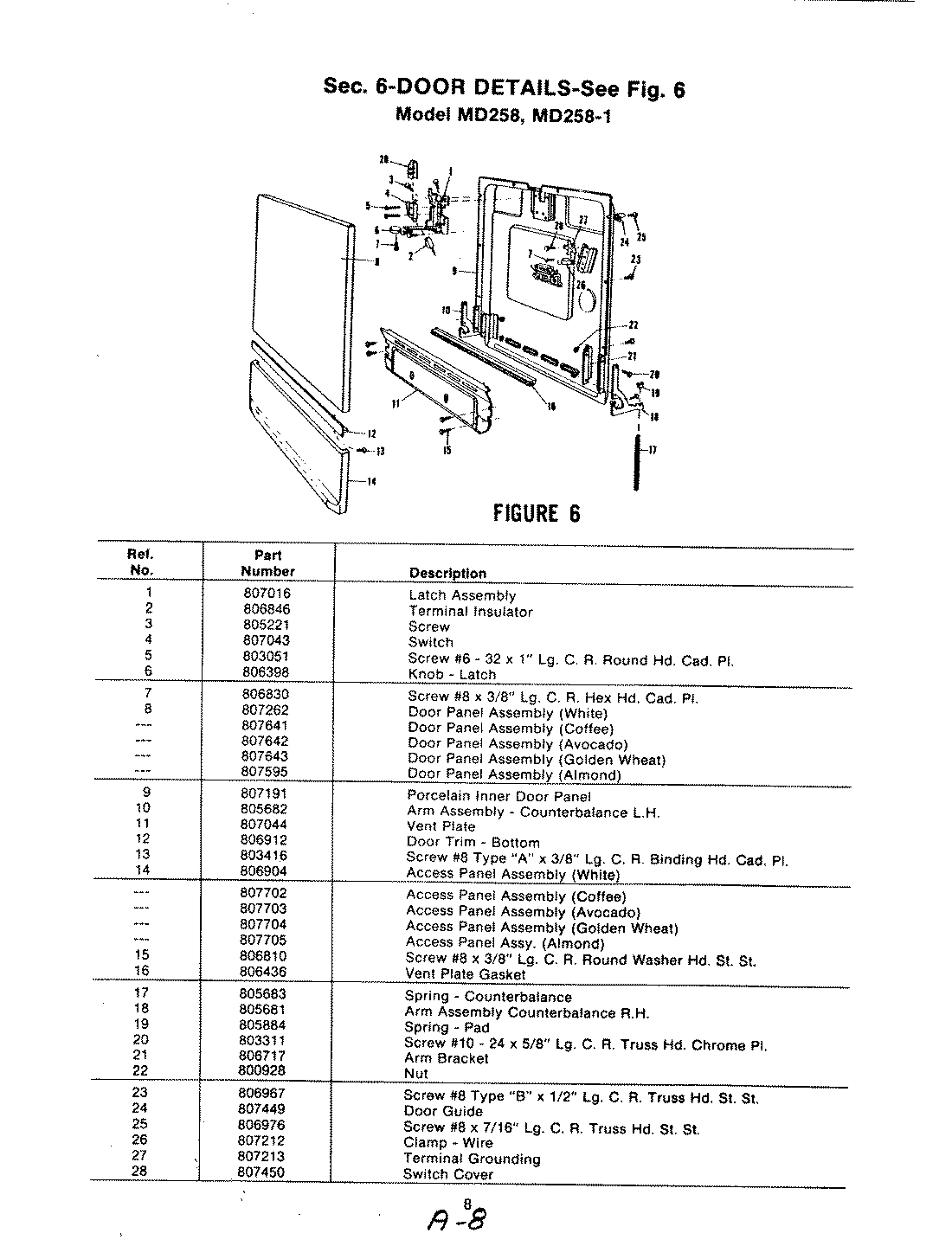

03 - DOOR DETAILS (MD258, MD258-1)

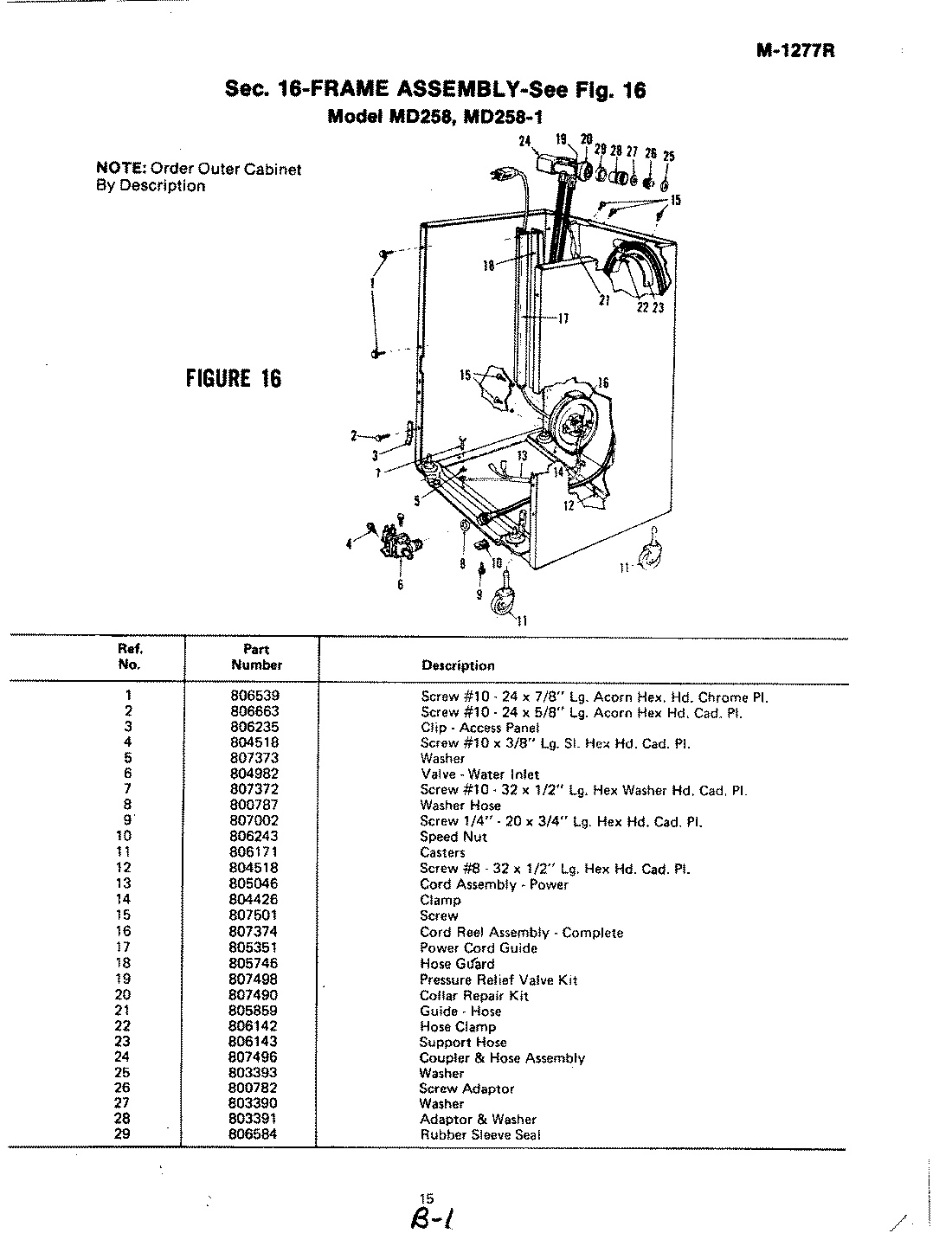

04 - FRAME ASSEMBLY (MD258, MD258-1)

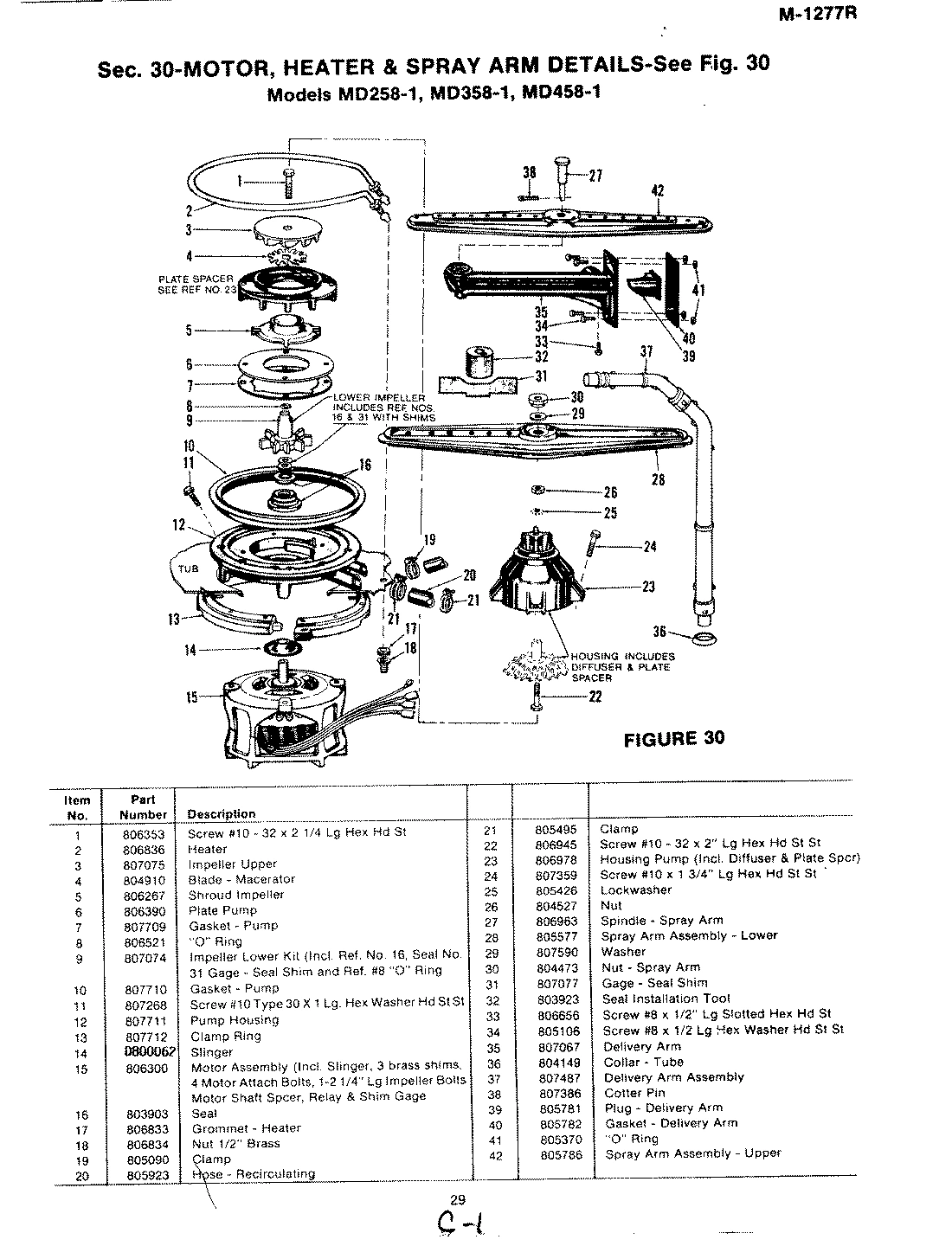

05 - MOTOR, HEATER & SPRAY ARM

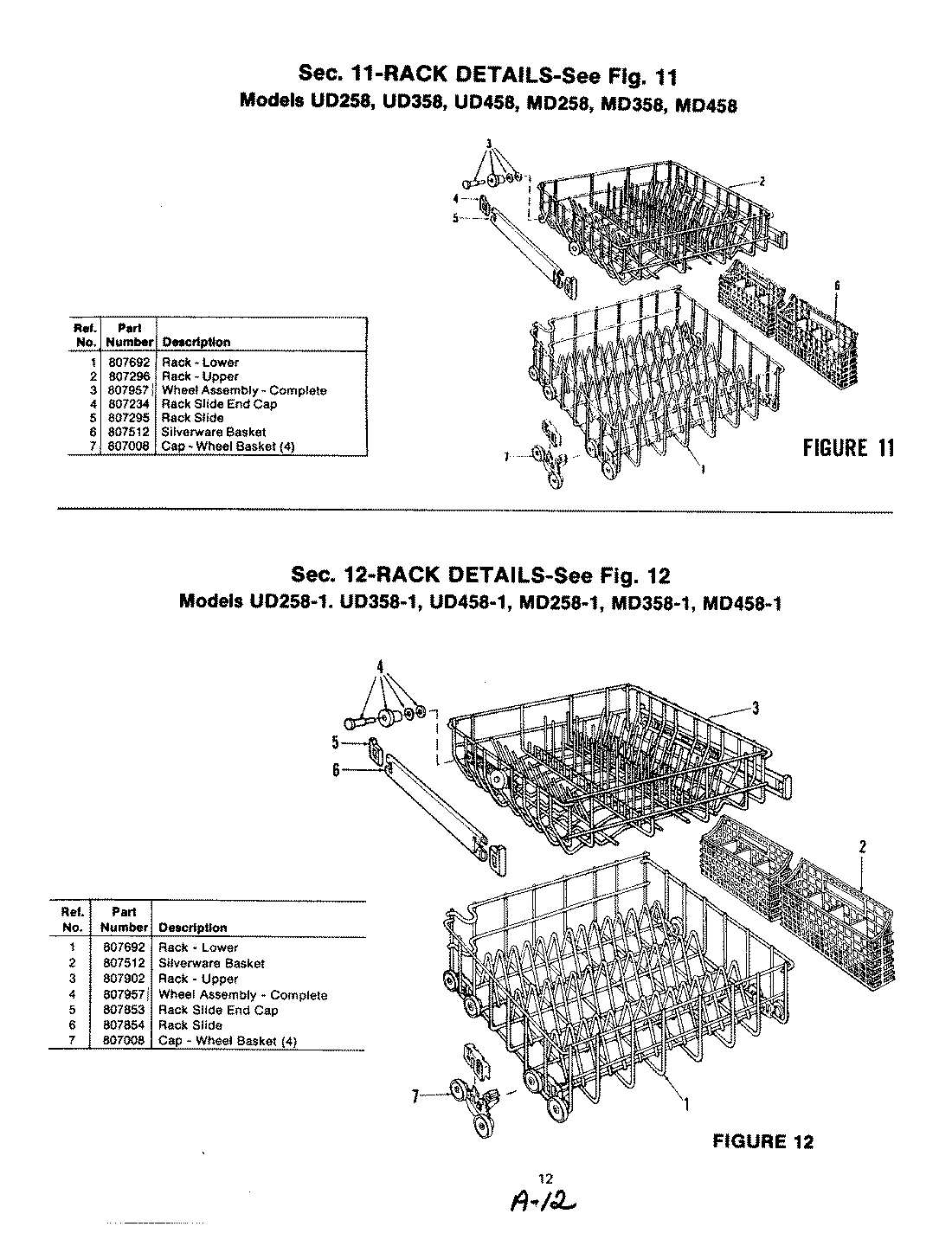

06 - RACK (UD258-1, MD258-1)

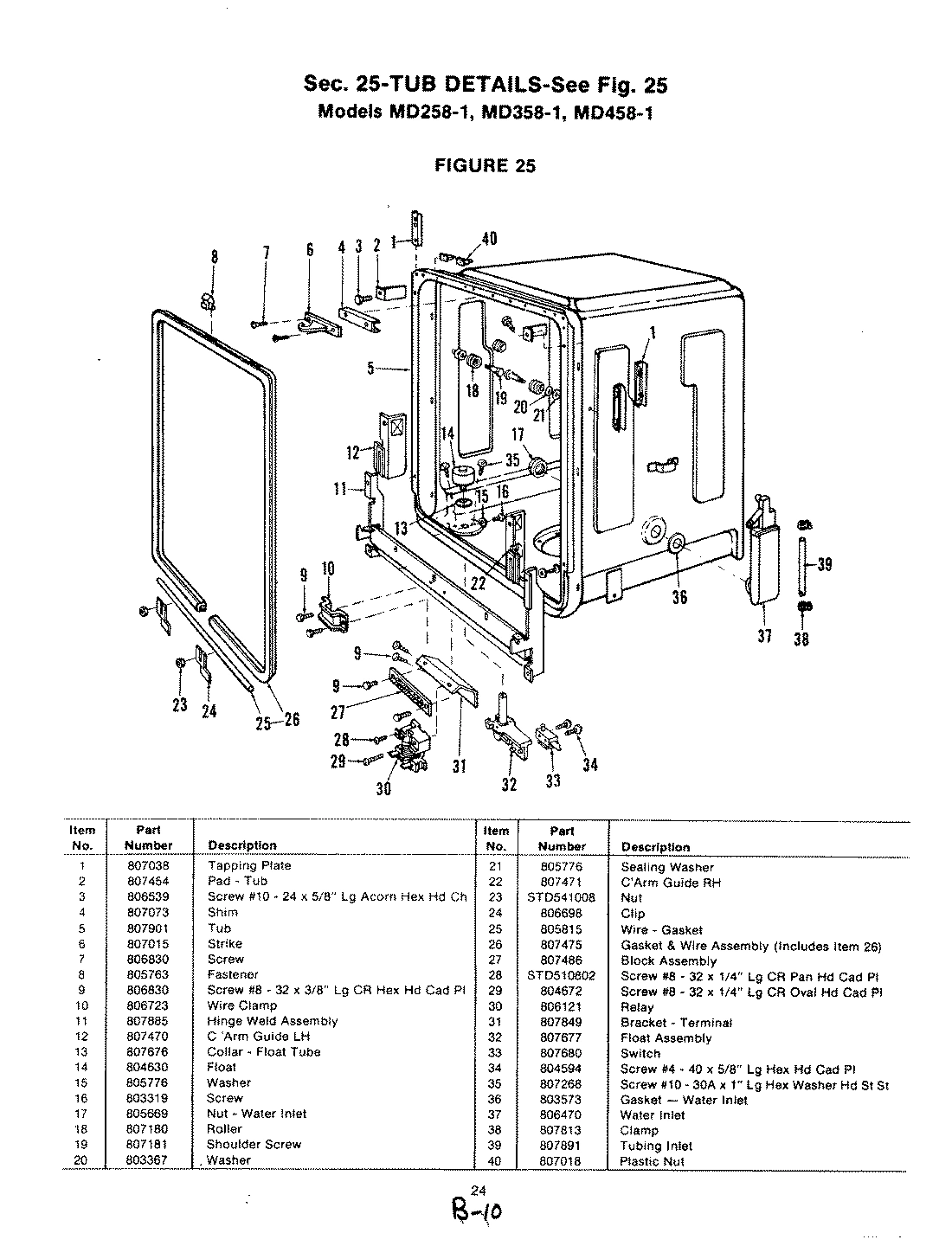

07 - TUB (MD258-1)

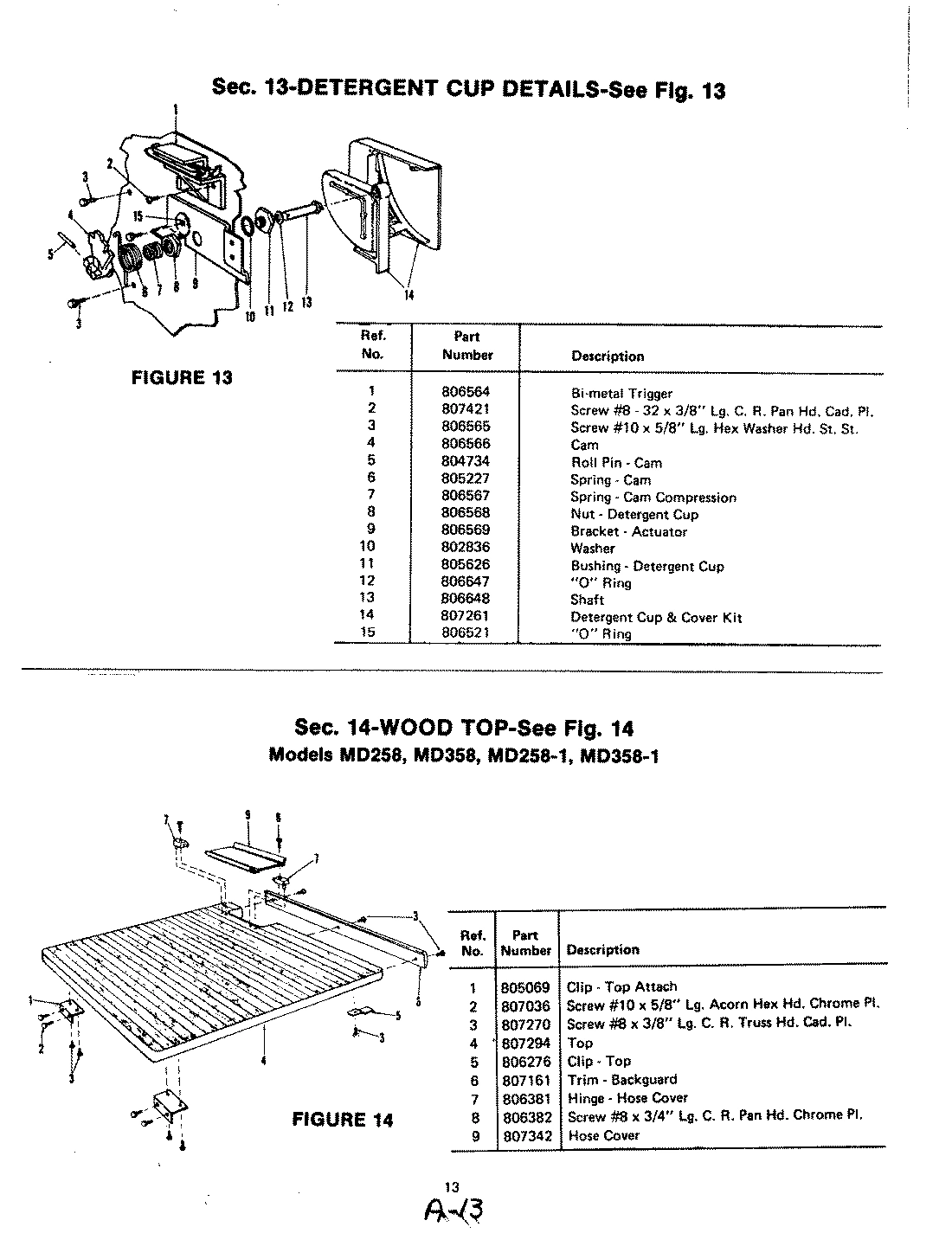

08 - WOOD TOP
Common parts from model Maytag MD258-1 DISHWASHER
1
SCREW MAY 806943 Contact Us For Availability
1
MAY 806564 MAY 806564 Contact Us For Availability
1
LATCH ASM MAY 807016 Contact Us For Availability
1
MAY 807692 MAY 807692 Contact Us For Availability
1
TAPPING PLATE MAY 807038 Contact Us For Availability
1
CLIP MAY 805069 Contact Us For Availability
2
MAY 806402 MAY 806402 Contact Us For Availability
2
MAY 807421 MAY 807421 Contact Us For Availability
2
INSULATOR MAY 806846 Contact Us For Availability
2
SCREW MAY 806663 Contact Us For Availability
2
MAY 807171 MAY 807171 Contact Us For Availability
2
HEATER KIT MAY 806836 Contact Us For Availability
2
SILVRWR BASKET MAY 807512 Contact Us For Availability
2
MAY 807454 MAY 807454 Contact Us For Availability
2
SCREW MAY 807036 Contact Us For Availability
3
PUSH BUTTON MAY 807091 Contact Us For Availability
3
SCREW MAY 806565 Contact Us For Availability
3
MAY 805221 MAY 805221 Contact Us For Availability
3
MAY 806539 MAY 806539 Contact Us For Availability
3
MAY 806235 MAY 806235 Contact Us For Availability
3
MAY 807075 MAY 807075 Contact Us For Availability
3
UPPER RACK MAY 807902 Contact Us For Availability
3
MAY 807270 MAY 807270 Contact Us For Availability
4
MAY 806603 MAY 806603 Contact Us For Availability
4
MAY 806566 MAY 806566 Contact Us For Availability
4
MAY 807043 MAY 807043 Contact Us For Availability
4
MAY 804910 MAY 804910 Contact Us For Availability
4
WHEEL ASM MAY 807957 Contact Us For Availability
4
STRIKE SHIM MAY 807073 Contact Us For Availability
4
MAY 807294 MAY 807294 Contact Us For Availability
5
MAY 805324 MAY 805324 Contact Us For Availability
5
ROLLPIN MAY 804734 Contact Us For Availability
5
MAY 807172 MAY 807172 Contact Us For Availability
5
MAY 807373 MAY 807373 Contact Us For Availability
5
SHROUD MAY 806267 Contact Us For Availability
5
END CAP MAY 807853 Contact Us For Availability
5
MAY 807901 MAY 807901 Contact Us For Availability
5
MAY 806276 MAY 806276 Contact Us For Availability
6
RED LENS MAY 805664 Contact Us For Availability
6
SPRING MAY 805227 Contact Us For Availability
6
MAY 806398 MAY 806398 Contact Us For Availability
6
MAY 804982 MAY 804982 Contact Us For Availability
6
MAY 807173 MAY 807173 Contact Us For Availability
6
MAY 806390 MAY 806390 Contact Us For Availability
6
MAY 807854 MAY 807854 Contact Us For Availability
6
STRIKE MAY 807015 Contact Us For Availability
6
MAY 807161 MAY 807161 Contact Us For Availability
7
MAY 807507 MAY 807507 Contact Us For Availability
7
SPRING MAY 806567 Contact Us For Availability
7
MAY 807174 MAY 807174 Contact Us For Availability
7
MAY 807372 MAY 807372 Contact Us For Availability
7
GASKET MAY 807709 Contact Us For Availability
7
WHEEL ASM MAY 807008 Contact Us For Availability
7
MAY 806381 MAY 806381 Contact Us For Availability
8
MAY 806401 MAY 806401 Contact Us For Availability
8
NUT MAY 806568 Contact Us For Availability
8
O RING MAY 806521 Contact Us For Availability
8
MAY 803051 MAY 803051 Contact Us For Availability
8
OUTER PANEL MAY 807262 Contact Us For Availability
8
MAY 807595 MAY 807595 Contact Us For Availability
8
MAY 807641 MAY 807641 Contact Us For Availability
8
MAY 807642 MAY 807642 Contact Us For Availability
8
MAY 807643 MAY 807643 Contact Us For Availability
8
HOSE WASHER MAY 800787 Contact Us For Availability
8
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
8
SCREW MAY 806382 Contact Us For Availability
9
LIGHT ASM MAY 805866 Contact Us For Availability
9
MAY 806569 MAY 806569 Contact Us For Availability
9
SCREW MAY 806830 Contact Us For Availability
9
INNER PANEL MAY 807191 Contact Us For Availability
9
MAY 807212 MAY 807212 Contact Us For Availability
9
SCREW MAY 807002 Contact Us For Availability
9
MAY 807074 MAY 807074 Contact Us For Availability
9
MAY 807342 MAY 807342 Contact Us For Availability
10
MAY 805323 MAY 805323 Contact Us For Availability
10
GASKET MAY 802836 Contact Us For Availability
10
LH ARM MAY 805682 Contact Us For Availability
10
CLAMP MAY 806723 Contact Us For Availability
10
MAY 806243 MAY 806243 Contact Us For Availability
10
MAY 807710 MAY 807710 Contact Us For Availability
11
MAY 807483 MAY 807483 Contact Us For Availability
11
MAY 805626 MAY 805626 Contact Us For Availability
11
MAY 807044 MAY 807044 Contact Us For Availability
11
MAY 806171 MAY 806171 Contact Us For Availability
11
MAY 806593 MAY 806593 Contact Us For Availability
11
HINGE MAY 807885 Contact Us For Availability
12
MAY 806912 MAY 806912 Contact Us For Availability
12
O RING MAY 806647 Contact Us For Availability
12
PUMP HOUSING MAY 807711 Contact Us For Availability
12
LH GUIDE MAY 807470 Contact Us For Availability
13
MAY 806648 MAY 806648 Contact Us For Availability
13
POWER CORD MAY 805046 Contact Us For Availability
13
CLAMP RING MAY 807712 Contact Us For Availability
13
MAY 807676 MAY 807676 Contact Us For Availability
14
SCREW MAY 806894 Contact Us For Availability
14
DETRG CUP KIT MAY 807261 Contact Us For Availability
14
MAY 806904 MAY 806904 Contact Us For Availability
14
MAY 807702 MAY 807702 Contact Us For Availability
14
MAY 807703 MAY 807703 Contact Us For Availability
14
MAY 807704 MAY 807704 Contact Us For Availability
14
MAY 807705 MAY 807705 Contact Us For Availability
14
MAY 804426 MAY 804426 Contact Us For Availability
14
CHANNEL MAY 806290 Contact Us For Availability
14
MAY D800062 MAY D800062 Contact Us For Availability
14
MAY 807630 MAY 807630 Contact Us For Availability
15
MAY 807425 MAY 807425 Contact Us For Availability
15
SCREW MAY 806810 Contact Us For Availability
15
MAY 807176 MAY 807176 Contact Us For Availability
15
MAY 807501 MAY 807501 Contact Us For Availability
15
MOTOR MAY 806300 Contact Us For Availability
16
MAY 807281 MAY 807281 Contact Us For Availability
16
MAY 806436 MAY 806436 Contact Us For Availability
16
SCREW MAY 804518 Contact Us For Availability
16
MAY 807374 MAY 807374 Contact Us For Availability
16
GASKET MAY 803903 Contact Us For Availability
16
MAY 803319 MAY 803319 Contact Us For Availability
17
MAY 807221 MAY 807221 Contact Us For Availability
17
DOOR SPRING MAY 805683 Contact Us For Availability
17
MAY 804895 MAY 804895 Contact Us For Availability
17
MAY 805351 MAY 805351 Contact Us For Availability
17
GROMMET MAY 806833 Contact Us For Availability
17
MAY 805669 MAY 805669 Contact Us For Availability
18
MAY 806594 MAY 806594 Contact Us For Availability
18
RH ARM MAY 805681 Contact Us For Availability
18
MAY 805746 MAY 805746 Contact Us For Availability
18
MAY 806966 MAY 806966 Contact Us For Availability
18
NUT MAY 806834 Contact Us For Availability
18
ROLLER MAY 807180 Contact Us For Availability
19
MAY 806618 MAY 806618 Contact Us For Availability
19
SPRING PAD MAY 805884 Contact Us For Availability
19
MAY 804619 MAY 804619 Contact Us For Availability
19
RELIEF KIT MAY 807498 Contact Us For Availability
19
CLAMP MAY 806090 Contact Us For Availability
19
SCREW MAY 807181 Contact Us For Availability
20
MAY 803311 MAY 803311 Contact Us For Availability
20
SCREW MAY 807001 Contact Us For Availability
20
MAY 807490 MAY 807490 Contact Us For Availability
20
MAY 805923 MAY 805923 Contact Us For Availability
20
MAY 803367 MAY 803367 Contact Us For Availability
21
ARM BRACKET MAY 806717 Contact Us For Availability
21
HOSE GUIDE MAY 805859 Contact Us For Availability
21
MAY 806977 MAY 806977 Contact Us For Availability
21
CLAMP MAY 805495 Contact Us For Availability
21
SEALER MAY 805776 Contact Us For Availability
22
MAY 800928 MAY 800928 Contact Us For Availability
22
HOSE CLAMP MAY 806142 Contact Us For Availability
22
TOE PLATE MAY 806295 Contact Us For Availability
22
MAY 806945 MAY 806945 Contact Us For Availability
22
RH GUIDE MAY 807471 Contact Us For Availability
23
SCREW MAY 806967 Contact Us For Availability
23
HOSE SUPPORT MAY 806143 Contact Us For Availability
23
MAY 806900 MAY 806900 Contact Us For Availability
23
PUMPHOUSING KIT MAY 806978 Contact Us For Availability
23
MAY 806698 MAY 806698 Contact Us For Availability
24
DOOR GUIDE MAY 807449 Contact Us For Availability
24
MAY 807177 MAY 807177 Contact Us For Availability
24
HOSE ASM MAY 807496 Contact Us For Availability
24
SCREW MAY 807359 Contact Us For Availability
24
MAY 805815 MAY 805815 Contact Us For Availability
25
SCREW MAY 803416 Contact Us For Availability
25
MAY 806976 MAY 806976 Contact Us For Availability
25
MAY 803393 MAY 803393 Contact Us For Availability
25
MAY 805426 MAY 805426 Contact Us For Availability
25
MAY 807475 MAY 807475 Contact Us For Availability
26
MAY 807486 MAY 807486 Contact Us For Availability
26
ADAPTOR MAY 800782 Contact Us For Availability
26
MAY 806962 MAY 806962 Contact Us For Availability
26
MAY 804527 MAY 804527 Contact Us For Availability
27
GROUND TERMINAL MAY 807213 Contact Us For Availability
27
MAY 804672 MAY 804672 Contact Us For Availability
27
MAY 803390 MAY 803390 Contact Us For Availability
27
MAY 803702 MAY 803702 Contact Us For Availability
27
MAY 806963 MAY 806963 Contact Us For Availability
28
SWITCH COVER MAY 807450 Contact Us For Availability
28
SUB 805255 MAY 806121 Contact Us For Availability
28
MAY 803391 MAY 803391 Contact Us For Availability
28
MAY 806889 MAY 806889 Contact Us For Availability
28
LWR SPRAY ARM MAY 805577 Contact Us For Availability
29
TERMINAL COVER MAY 800222 Contact Us For Availability
29
U PACKING MAY 806584 Contact Us For Availability
29
WASHER MAY 807590 Contact Us For Availability
29
MAY 807849 MAY 807849 Contact Us For Availability
30
BRACKET MAY 807019 Contact Us For Availability
30
MAY 804473 MAY 804473 Contact Us For Availability
30
FLOAT ASM MAY 807677 Contact Us For Availability
31
MAY 807037 MAY 807037 Contact Us For Availability
31
SHIM GAUGE MAY 807077 Contact Us For Availability
31
FLOAT SWITCH MAY 807680 Contact Us For Availability
32
MAY 806100 MAY 806100 Contact Us For Availability
32
MAY 807267 MAY 807267 Contact Us For Availability
32
SEAL TOOL MAY 803923 Contact Us For Availability
32
BOLT MAY 804594 Contact Us For Availability
33
MAY 807268 MAY 807268 Contact Us For Availability
33
MAY 806656 MAY 806656 Contact Us For Availability
34
SCREW MAY 805106 Contact Us For Availability
34
WASHER MAY 803573 Contact Us For Availability
35
MAY 807067 MAY 807067 Contact Us For Availability
35
MAY 806470 MAY 806470 Contact Us For Availability
36
MAY 804149 MAY 804149 Contact Us For Availability
36
MAY 807813 MAY 807813 Contact Us For Availability
37
MAY 807487 MAY 807487 Contact Us For Availability
37
INLET TUBE MAY 807891 Contact Us For Availability
38
MAY 807386 MAY 807386 Contact Us For Availability
38
MAY 807018 MAY 807018 Contact Us For Availability
39
MAY 805781 MAY 805781 Contact Us For Availability
40
MAY 805782 MAY 805782 Contact Us For Availability
41
MAY 805370 MAY 805370 Contact Us For Availability
42
MAY 805786 MAY 805786 Contact Us For Availability
× ![]()
