Model Electrolux MCT860L6 MICROWAVE – Common Parts & Diagrams

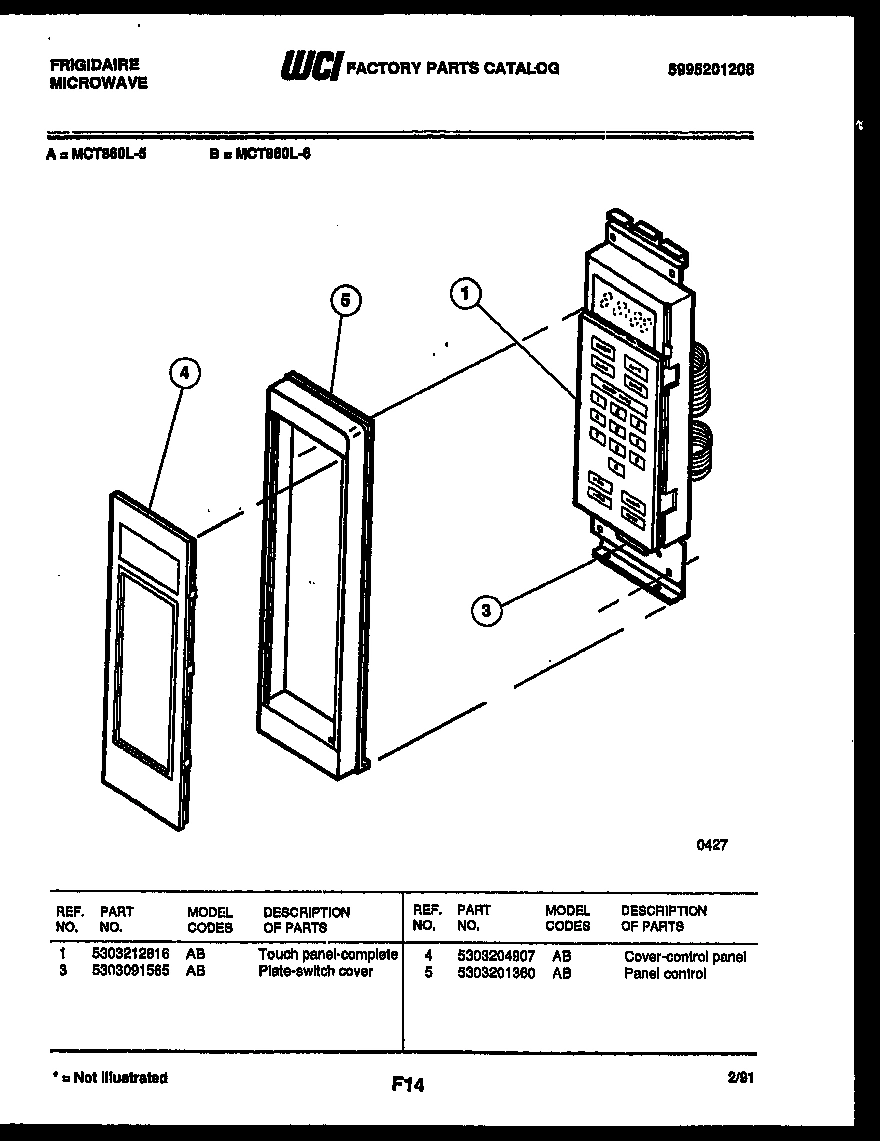

02 - CONTROL PANEL

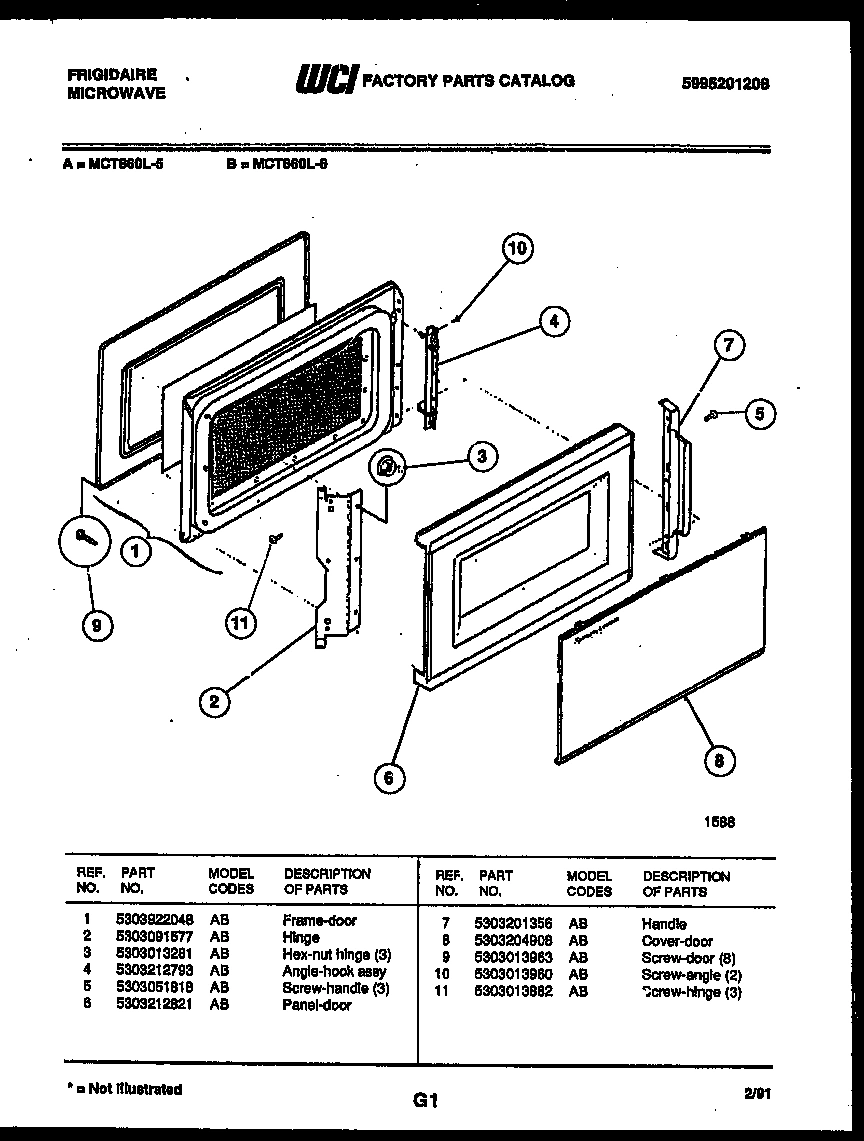

03 - DOOR PARTS
04 - FUNCTIONAL PARTS
05 - WRAPPER AND BODY PARTS
Common parts from model Electrolux MCT860L6 MICROWAVE
*36113
WCI 5303017865 WCI 5303017865 Contact Us For Availability
*36113
WCI 5303203239 WCI 5303203239 Contact Us For Availability
*36113
WCI 5303212796 WCI 5303212796 Contact Us For Availability
1
FRAME-DOOR WCI 5303922048 Contact Us For Availability
1
WCI 5303212767 WCI 5303212767 Contact Us For Availability
1
WCI 5303212766 WCI 5303212766 Contact Us For Availability
2
HINGE WCI 5303091577 Contact Us For Availability
2
WCI 5303011556 WCI 5303011556 Contact Us For Availability
2
WCI 5303011555 WCI 5303011555 Contact Us For Availability
3
WCI 5303922044 WCI 5303922044 Contact Us For Availability
3
HEX-NUT HINGE (3) WCI 5303013281 Contact Us For Availability
3
BUSHING-STRAIN RELIEF/FUSE HOLDER WCI 5303212769 Contact Us For Availability
4
ANGLE-HOOK ASSY WCI 5303212793 Contact Us For Availability
4
WCI 5303206781 WCI 5303206781 Contact Us For Availability
4
COLLAR-STIRRER-(INCLUDES SUPPORT, COLLAR AND WCI 5303922010 Contact Us For Availability
5
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
5
WCI 5303201360 WCI 5303201360 Contact Us For Availability
5
WCI 5303212775 WCI 5303212775 Contact Us For Availability
6
WCI 5303212821 WCI 5303212821 Contact Us For Availability
6
FUSE WCI 5303011670 Contact Us For Availability
6
COVER-STIRRER WCI 5303200541 Contact Us For Availability
7
WCI 5303201356 WCI 5303201356 Contact Us For Availability
7
WCI 5303212773 WCI 5303212773 Contact Us For Availability
7
WCI 5303269958 WCI 5303269958 Contact Us For Availability
8
WCI 5303204908 WCI 5303204908 Contact Us For Availability
8
CORD-POWER WCI 5303212774 Contact Us For Availability
8
WCI 5303271017 WCI 5303271017 Contact Us For Availability
9
WCI 5303013963 WCI 5303013963 Contact Us For Availability
9
FAN-STIRRER WCI 5303202397 Contact Us For Availability
10
SCREW-ANGLE (2) WCI 5303013960 Contact Us For Availability
10
WCI 5303212783 WCI 5303212783 Contact Us For Availability
10
PLUG BUTTON (3) WCI 5303091555 Contact Us For Availability
11
SCREW-HINGE (3) WCI 5303013882 Contact Us For Availability
11
SUPPORT-THERMAL PROTECTOR (2) WCI 5303212788 Contact Us For Availability
12
WCI 5303212787 WCI 5303212787 Contact Us For Availability
12
WCI 5308037677 WCI 5308037677 Contact Us For Availability
13
HARNESS-DIODE WCI 5303212799 Contact Us For Availability
13
WCI 5303012322 WCI 5303012322 Contact Us For Availability
14
LAMP-120V WCI 5303212801 Contact Us For Availability
15
WCI 5303203150 WCI 5303203150 Contact Us For Availability
15
WCI 5303212795 WCI 5303212795 Contact Us For Availability
16
MOTOR-FAN, 120 V, INCLUDES MOTOR, FAN DUCT, F WCI 5303922053 Contact Us For Availability
16
HARNESS-FIRE PROTECTOR WCI 5303212800 Contact Us For Availability
17
PLUG-BUTTON (PROBE) WCI 5303201365 Contact Us For Availability
17
RIVET-COVER STIRRER (4) WCI 5303013807 Contact Us For Availability
18
WCI 5303013626 WCI 5303013626 Contact Us For Availability
18
WCI 5303202402 WCI 5303202402 Contact Us For Availability
19
PLUG BUTTON-RACK (4) WCI 5308037664 Contact Us For Availability
19
WCI 5303202403 WCI 5303202403 Contact Us For Availability
20
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
20
WCI 5303202404 WCI 5303202404 Contact Us For Availability
21
WCI 5303018849 WCI 5303018849 Contact Us For Availability
21
TRAY-OVEN WCI 5303091188 Contact Us For Availability
22
WCI 5303013771 WCI 5303013771 Contact Us For Availability
22
WCI 5303212823 WCI 5303212823 Contact Us For Availability
23
WCI 5303212803 WCI 5303212803 Contact Us For Availability
23
WCI 3200767 WCI 3200767 Contact Us For Availability
23A
SCREW-WRAPPER (21) (NON-ILLUSTRATED) WCI 5303091100 Contact Us For Availability
23B
SHIELD-OVEN LIGHT (NON-ILLUSTRATED) WCI 5303212809 Contact Us For Availability
23E
HANG KIT (NON-ILLUSTRATED) WCI 5303269631 Contact Us For Availability
24
SCREW-FAN MOTOR (2) WCI 5308014502 Contact Us For Availability
24
RIVET WCI 5303269846 Contact Us For Availability
25
SOCKET-LAMP WCI 5303212810 Contact Us For Availability
25
SCREW-TAMPER PROOF (2) WCI 5303271024 Contact Us For Availability
26
WCI 5303203151 WCI 5303203151 Contact Us For Availability
27
WCI 5303014097 WCI 5303014097 Contact Us For Availability
28
WCI 5303203636 WCI 5303203636 Contact Us For Availability
29
TAPE-FOAM SEAL CUT TO SIZE WCI 5303212845 Contact Us For Availability
30
TAPE-FOAM SEAL CUT TO SIZE WCI 5303017864 Contact Us For Availability
31
TRANSFORMER WCI 5303212811 Contact Us For Availability
32
WASHER-TURNTABLE-(PLACE UNDEMEATH-BETWEEN MOT WCI 5303203152 Contact Us For Availability
× ![]()
