Model Electrolux MCT1395A2 MICROWAVE – Common Parts & Diagrams

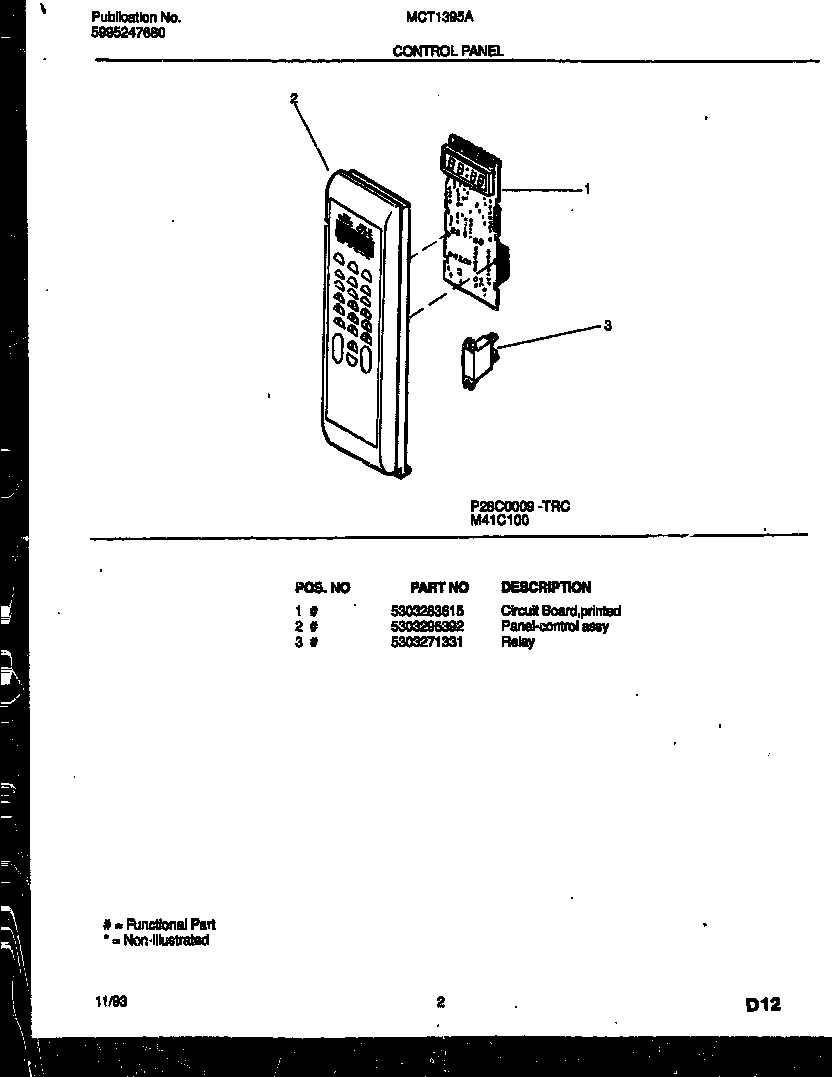

02 - CONTROL PANEL

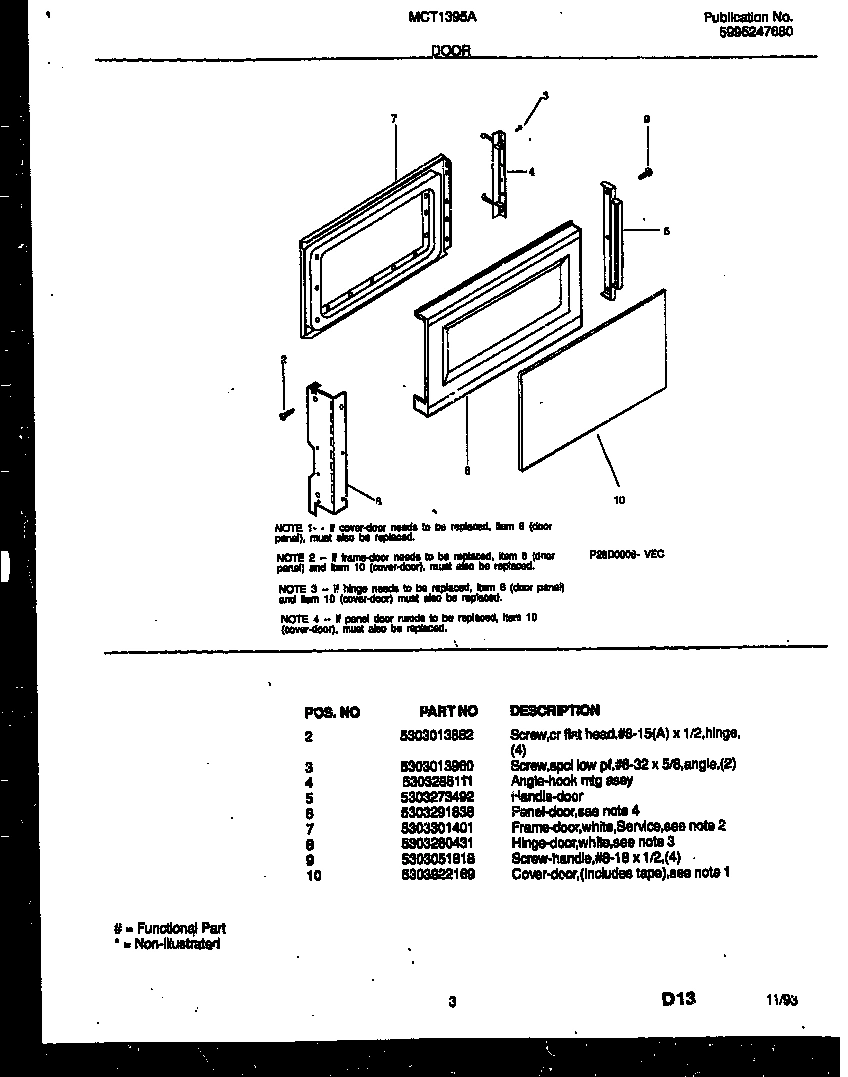

03 - DOOR PARTS

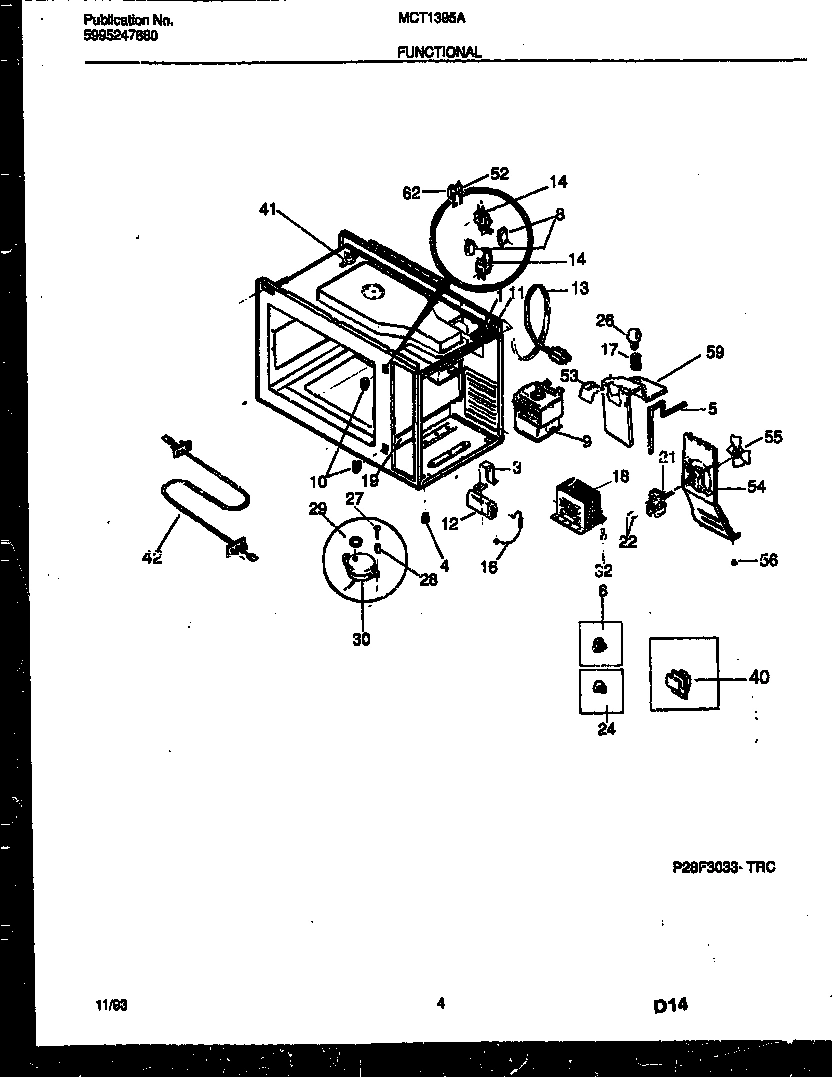

04 - FUNCTIONAL PARTS

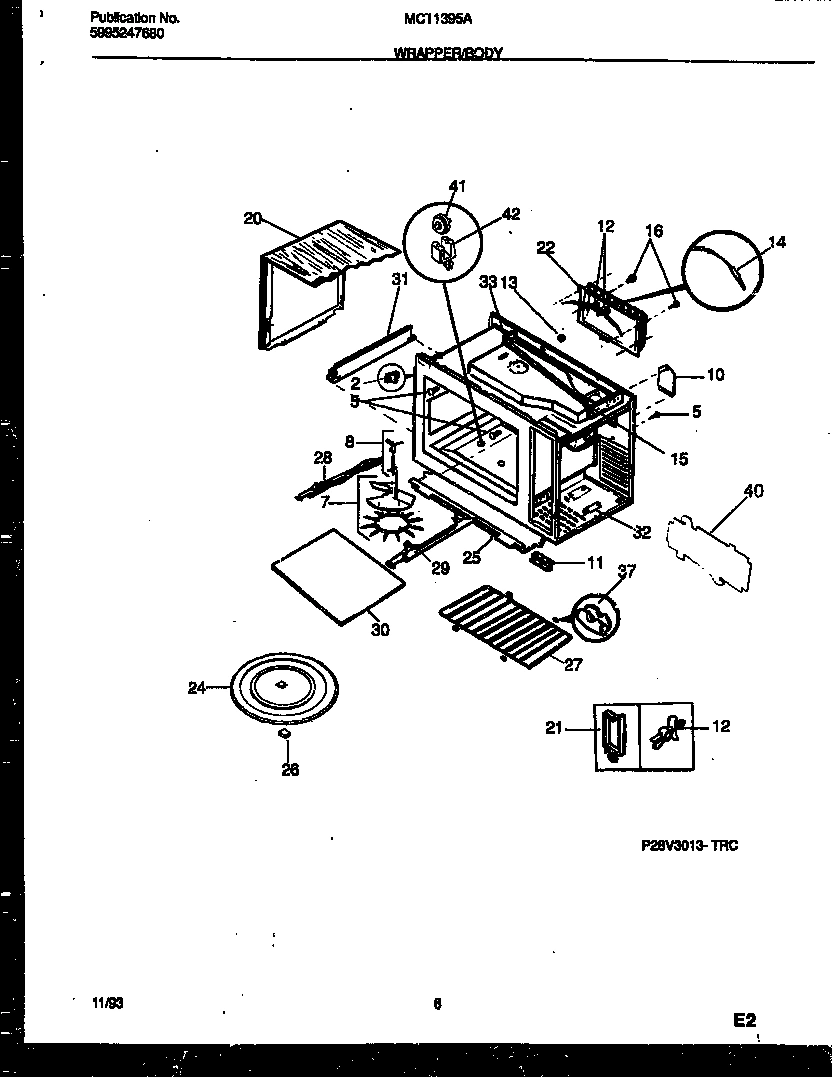

05 - WRAPPER AND BODY PARTS
Common parts from model Electrolux MCT1395A2 MICROWAVE
*89372
HARNESS-WIRING, MAIN WCI 317000408 Contact Us For Availability
*89377
SHIELD OVEN LIGHT-MYLAR WCI 5303269841 Contact Us For Availability
*89377
TAPE-FOAM SEAL, DUCT, CAVITY INTERNAL WCI 5303270946 Contact Us For Availability
1
WCI 5303011670 WCI 5303011670 Contact Us For Availability
2
WCI 5303296392 WCI 5303296392 Contact Us For Availability
2
SCREW, CR FLAT HEAD, 8-15(A) X 1/2, HINGE, (4 WCI 5303013882 Contact Us For Availability
3
WCI 5303271331 WCI 5303271331 Contact Us For Availability
3
WCI 5303013960 WCI 5303013960 Contact Us For Availability
3
WCI 5303013771 WCI 5303013771 Contact Us For Availability
4
WCI 5303285111 WCI 5303285111 Contact Us For Availability
4
WCI 5303295314 WCI 5303295314 Contact Us For Availability
5
HANDLE-DOOR WCI 5303273492 Contact Us For Availability
5
WCI 5303017864 WCI 5303017864 Contact Us For Availability
5
WCI 5303291811 WCI 5303291811 Contact Us For Availability
6
WCI 5303291838 WCI 5303291838 Contact Us For Availability
6
WCI 5303201365 WCI 5303201365 Contact Us For Availability
7
FRAME-DOOR, WHITE, SERVICE, (IF FRAME-DOOR NE WCI 5303301401 Contact Us For Availability
7
WCI 5303274930 WCI 5303274930 Contact Us For Availability
8
HINGE-DOOR, WHITE, (IF HINGE NEEDS TO BE REPL WCI 5303280431 Contact Us For Availability
8
WCI 5303203636 WCI 5303203636 Contact Us For Availability
8
WCI 5303922010 WCI 5303922010 Contact Us For Availability
9
WCI 5303286175 WCI 5303286175 Contact Us For Availability
10
WCI 5303922169 WCI 5303922169 Contact Us For Availability
10
WCI 5303212767 WCI 5303212767 Contact Us For Availability
10
WCI 5303212775 WCI 5303212775 Contact Us For Availability
11
WCI 5303212769 WCI 5303212769 Contact Us For Availability
11
WCI 5303270384 WCI 5303270384 Contact Us For Availability
11A
SCREW, BRACKET MTG, 8-18(AB) X 3/8, CONTROL P WCI 5303273916 Contact Us For Availability
12
WCI 5303269608 WCI 5303269608 Contact Us For Availability
12
WCI 5303212788 WCI 5303212788 Contact Us For Availability
13
WCI 317005403 WCI 317005403 Contact Us For Availability
13
WCI 5303280263 WCI 5303280263 Contact Us For Availability
14
WCI 317000702 WCI 317000702 Contact Us For Availability
14
WCI 317000501 WCI 317000501 Contact Us For Availability
15
WCI 5303212803 WCI 5303212803 Contact Us For Availability
16
HARNESS AND DIODE, HV WCI 5303269837 Contact Us For Availability
16
SCREW, TAMPER PROOF, 8-15(A) X 1/2, (2) WCI 394027600 Contact Us For Availability
17
WCI 5303212810 WCI 5303212810 Contact Us For Availability
18
WCI 317016902 WCI 317016902 Contact Us For Availability
19
WCI 5303273954 WCI 5303273954 Contact Us For Availability
20
WCI 5303293167 WCI 5303293167 Contact Us For Availability
20A
WCI 5303273263 WCI 5303273263 Contact Us For Availability
21
WCI 5303922053 WCI 5303922053 Contact Us For Availability
21
CLIP, WIRES WCI 5308037677 Contact Us For Availability
22
WCI 317004703 WCI 317004703 Contact Us For Availability
22
WCI 5303269958 WCI 5303269958 Contact Us For Availability
24
PLUG-BUTTON, WHITE, TRAY WCI 5308037665 Contact Us For Availability
24
WCI 5308037674 WCI 5308037674 Contact Us For Availability
25
WCI 317009404 WCI 317009404 Contact Us For Availability
26
WCI 5303212801 WCI 5303212801 Contact Us For Availability
26
WCI 5303212919 WCI 5303212919 Contact Us For Availability
27
WCI 317009501 WCI 317009501 Contact Us For Availability
27
WCI 5303922178 WCI 5303922178 Contact Us For Availability
28
SPACER-TURNTABLE MTR, (2) WCI 5303203151 Contact Us For Availability
28
CHANNEL-SUPPORT, LH, GLASS STIR COVR WCI 5303272823 Contact Us For Availability
29
WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & WCI 5303203152 Contact Us For Availability
29
CHANNEL-SUPPORT, RH, GLASS STIR COVR WCI 5303272824 Contact Us For Availability
30
WCI 317005501 WCI 317005501 Contact Us For Availability
30
COVER-STIRRER, GLASS WCI 5303012681 Contact Us For Availability
30A
WCI 5303292336 WCI 5303292336 Contact Us For Availability
30B
WCI 5303273297 WCI 5303273297 Contact Us For Availability
31
WCI 5303011773 WCI 5303011773 Contact Us For Availability
32
WCI 5303013944 WCI 5303013944 Contact Us For Availability
32
WCI 5303269830 WCI 5303269830 Contact Us For Availability
33
SEAL-FOAM WCI 5308037640 Contact Us For Availability
37
WCI 5303018581 WCI 5303018581 Contact Us For Availability
40
WCI 5303014221 WCI 5303014221 Contact Us For Availability
40
WCI 5303283613 WCI 5303283613 Contact Us For Availability
41
WCI 5303283522 WCI 5303283522 Contact Us For Availability
41
WCI 317005701 WCI 317005701 Contact Us For Availability
42
WCI 5303212785 WCI 5303212785 Contact Us For Availability
42
WCI 317008401 WCI 317008401 Contact Us For Availability
42A
WCI 317006202 WCI 317006202 Contact Us For Availability
52
WCI 317005104 WCI 317005104 Contact Us For Availability
53
WCI 5303269832 WCI 5303269832 Contact Us For Availability
54
WCI 5303269833 WCI 5303269833 Contact Us For Availability
55
FAN BLADE WCI 5303269834 Contact Us For Availability
56
RIVET, PLASTIC, FAN AIR DUCT, (2) WCI 5303269846 Contact Us For Availability
59
WCI 5303286094 WCI 5303286094 Contact Us For Availability
62
WCI 317005103 WCI 317005103 Contact Us For Availability
× ![]()
