Model Electrolux MCT1390P1 MICROWAVE – Common Parts & Diagrams

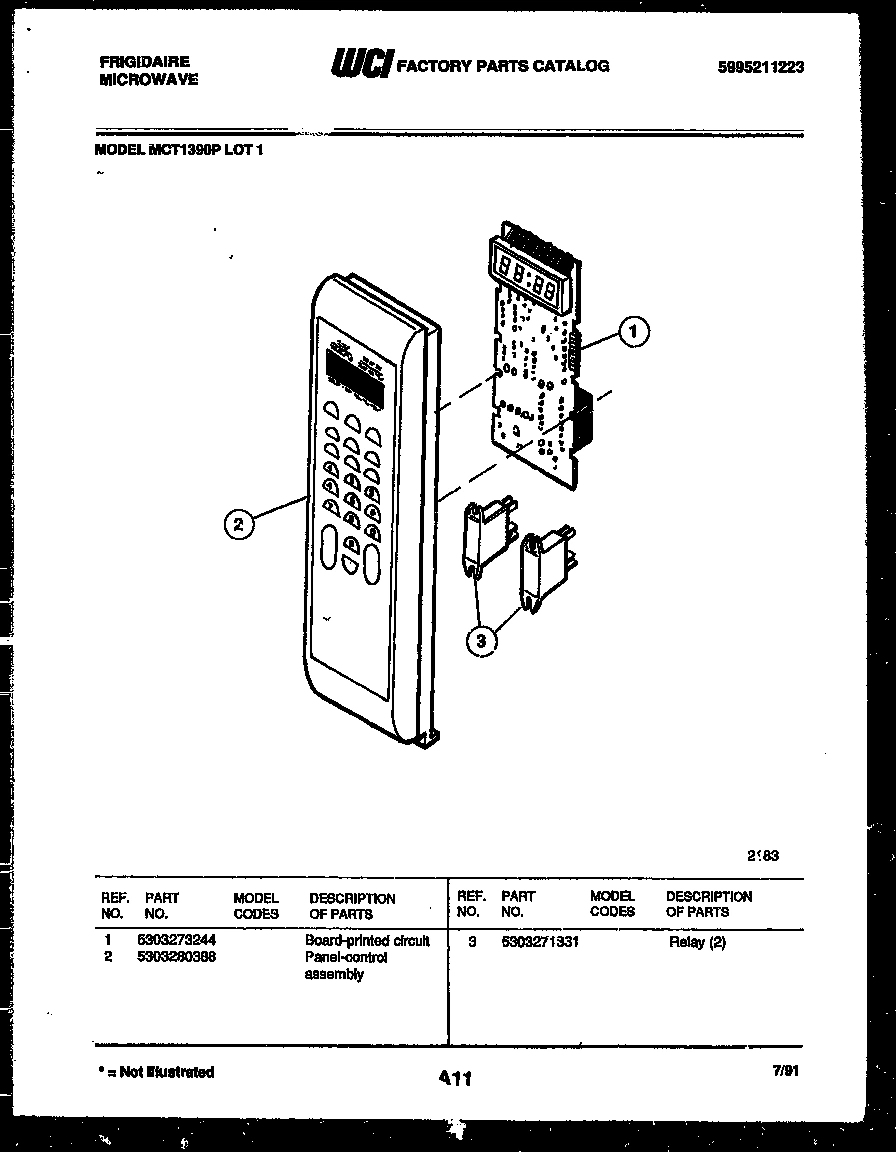

02 - CONTROL PANEL

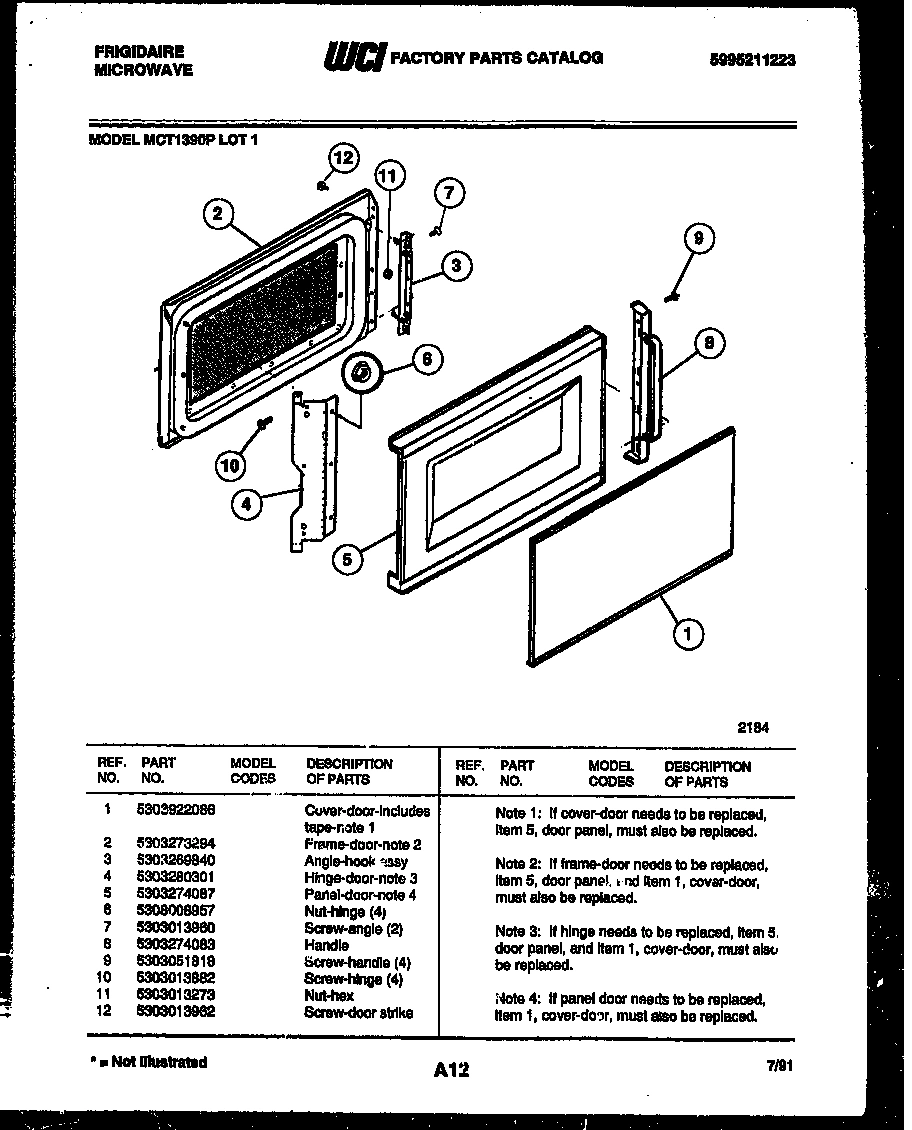

03 - DOOR PARTS
04 - FUNCTIONAL PARTS
05 - WRAPPER AND BODY PARTS
Common parts from model Electrolux MCT1390P1 MICROWAVE
1
WCI 5303922086 WCI 5303922086 Contact Us For Availability
1
WCI 5303212767 WCI 5303212767 Contact Us For Availability
1
BRACKET-CONTROL PANEL SUPPORT WCI 5303270384 Contact Us For Availability
2
FRAME-DOOR-(IF FRAME-DOOR NEEDS TO BE REPLACE WCI 5303273294 Contact Us For Availability
2
WCI 5303280317 WCI 5303280317 Contact Us For Availability
2
BUSHING-MOTOR WCI 5303212919 Contact Us For Availability
3
WCI 5303269840 WCI 5303269840 Contact Us For Availability
3
BUSHING-STRAIN RELIEF/FUSE HOLDER WCI 5303212769 Contact Us For Availability
3
TRAY-OVEN WCI 5308037674 Contact Us For Availability
4
HINGE-DOOR-(IF HINGE NEEDS TO BE REPLACED, IT WCI 5303280301 Contact Us For Availability
4
WCI 5303206781 WCI 5303206781 Contact Us For Availability
4
WCI 5303272824 WCI 5303272824 Contact Us For Availability
5
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
5
PANEL-DOOR-(IF PANEL DOOR NEEDS TO BE REPLACE WCI 5303274087 Contact Us For Availability
5
WCI 5303011773 WCI 5303011773 Contact Us For Availability
6
FUSE WCI 5303011670 Contact Us For Availability
6
CHANNEL-STIRRER GLASS SUPPORT-LH WCI 5303272823 Contact Us For Availability
7
SCREW-ANGLE (2) WCI 5303013960 Contact Us For Availability
7
SPACER WCI 5308037724 Contact Us For Availability
7
WCI 5303269830 WCI 5303269830 Contact Us For Availability
8
HANDLE WCI 5303274083 Contact Us For Availability
8
WCI 5303269608 WCI 5303269608 Contact Us For Availability
8
COLLAR-STIRRER-(INCLUDES SUPPORT, COLLAR AND WCI 5303922010 Contact Us For Availability
9
CORD-POWER 120V WCI 5303212774 Contact Us For Availability
9
WCI 5303212775 WCI 5303212775 Contact Us For Availability
10
SCREW-HINGE (4) WCI 5303013882 Contact Us For Availability
10
WCI 5303269831 WCI 5303269831 Contact Us For Availability
10
WCI 5303269958 WCI 5303269958 Contact Us For Availability
11
WCI 5303269832 WCI 5303269832 Contact Us For Availability
11
SEAL-FOAM WCI 5308037640 Contact Us For Availability
12
SCREW-DOOR STRIKE WCI 5303013962 Contact Us For Availability
12
WCI 5303269833 WCI 5303269833 Contact Us For Availability
13
WCI 5303212785 WCI 5303212785 Contact Us For Availability
13
FAN-AIR ASSY WCI 5303274930 Contact Us For Availability
14
WCI 5303269834 WCI 5303269834 Contact Us For Availability
14
PLUG BUTTON-WHITE (3) WCI 5303091555 Contact Us For Availability
15
WCI 5308037644 WCI 5308037644 Contact Us For Availability
15
SUPPORT-THERMAL PROTECTOR (2) WCI 5303212788 Contact Us For Availability
16
LAMP-120V WCI 5303212801 Contact Us For Availability
16
WCI 5308037677 WCI 5308037677 Contact Us For Availability
17
WCI 5303212920 WCI 5303212920 Contact Us For Availability
17
WCI 5303012322 WCI 5303012322 Contact Us For Availability
18
MOTOR-FAN (FAN DUCT AND FAN BLADE GO TO .8 MI WCI 5303922053 Contact Us For Availability
19
WCI 5303212803 WCI 5303212803 Contact Us For Availability
19
COVER-GLASS STIRRER WCI 5303012681 Contact Us For Availability
20
WCI 5303212795 WCI 5303212795 Contact Us For Availability
21
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
21
WCI 5303206085 WCI 5303206085 Contact Us For Availability
22
CLAMP - CAPACITOR WCI 5303013771 Contact Us For Availability
22
WCI 5303273508 WCI 5303273508 Contact Us For Availability
23
SUPPORT-ROLLERS WCI 5303091004 Contact Us For Availability
23
RIVET-DUCT-AIR-FAN (2) WCI 5303269846 Contact Us For Availability
24
SOCKET-LAMP WCI 5303212810 Contact Us For Availability
24
WRAPPER-BLACK WCI 5303280391 Contact Us For Availability
24A
WCI 5303270946 WCI 5303270946 Contact Us For Availability
25
WCI 5303014097 WCI 5303014097 Contact Us For Availability
25
HARNESS-FIRE PROTECTOR WCI 5303212800 Contact Us For Availability
26
SUPPORT RACK (8) WCI 5303014221 Contact Us For Availability
26
LABEL-COOKING GUIDE WCI 5303271795 Contact Us For Availability
26A
SCREW-WRAPPER (NON-ILLUSTRATED) WCI 5303273263 Contact Us For Availability
26B
WCI 5303269841 WCI 5303269841 Contact Us For Availability
27
WCI 5303203636 WCI 5303203636 Contact Us For Availability
27
SCREW-TAMPER PROOF (2) WCI 5303271024 Contact Us For Availability
28
WCI 5303212811 WCI 5303212811 Contact Us For Availability
29
WCI 5303203152 WCI 5303203152 Contact Us For Availability
30
WCI 5303269837 WCI 5303269837 Contact Us For Availability
31
TAPE-FOAM SEAL WCI 5303212845 Contact Us For Availability
32
TAPE-FOAM SEAL CUT TO SIZE WCI 5303017864 Contact Us For Availability
33
SCREW-FAN MOTOR (2) WCI 5308014502 Contact Us For Availability
34
WCI 5303203151 WCI 5303203151 Contact Us For Availability
35
WCI 3200767 WCI 3200767 Contact Us For Availability
35A
HARNESS-MAIN (NON-ILLUSTRATED) WCI 5303273296 Contact Us For Availability
35B
HARNESS-BROWNER (NON-ILLUSTRATED) WCI 5303274084 Contact Us For Availability
35C
NUT-FAN MOTOR (2) (NON-ILLUSTRATED) WCI 5303013273 Contact Us For Availability
35D
SCREW-TRANSFORMER (2) (NON-ILLUSTRATED) WCI 5303013944 Contact Us For Availability
35E
TAPE-FOAM SEAL-WRAPPER-RIGHT FRONT CUT TO SIZ WCI 5303017865 Contact Us For Availability
35F
HARNESS-TURNTABLE (NON-ILLUSTRATED) WCI 5303274085 Contact Us For Availability
35G
NUT-RECEPTACLE PROBE (NON-ILLUSTRATED) WCI 5303013283 Contact Us For Availability
36
WCI 5303011684 WCI 5303011684 Contact Us For Availability
37
WCI 5303013702 WCI 5303013702 Contact Us For Availability
× ![]()
