Model Electrolux MCT1375L5 MICROWAVE – Common Parts & Diagrams

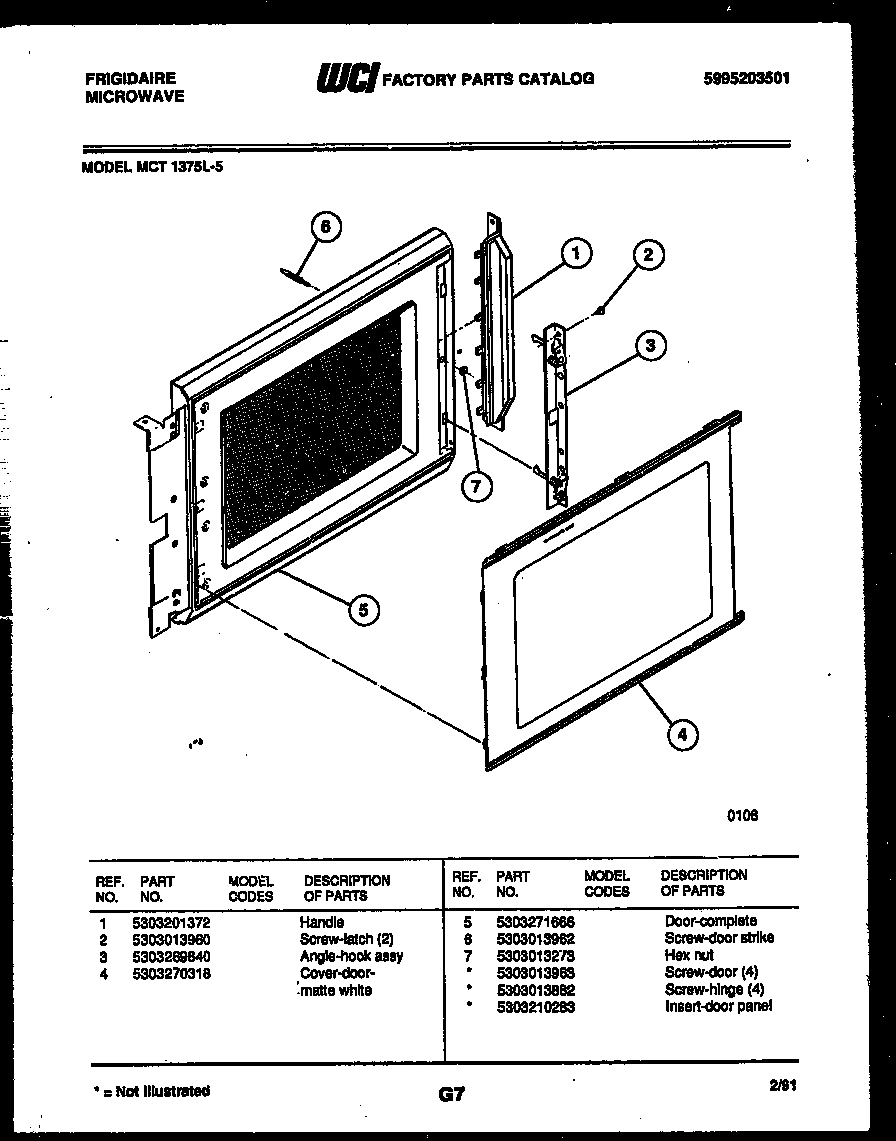

02 - DOOR PARTS

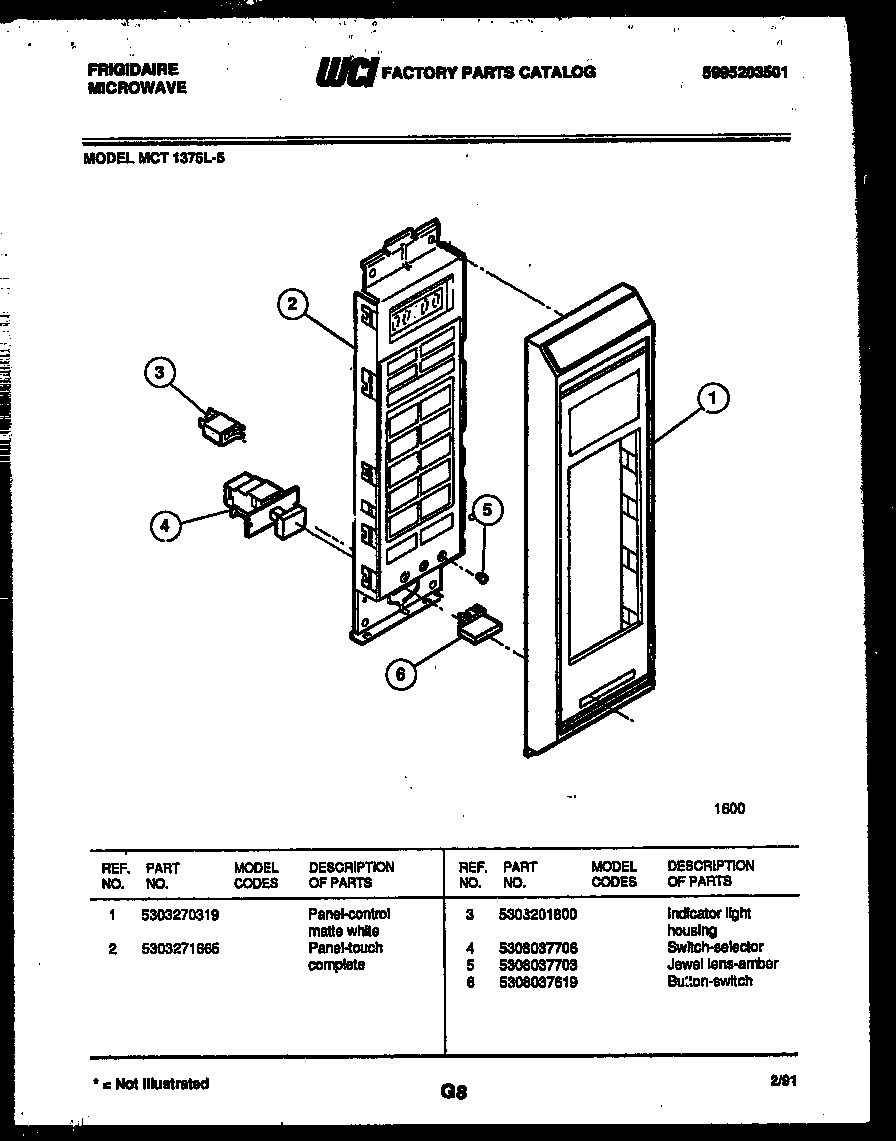

03 - CONTROL PANEL

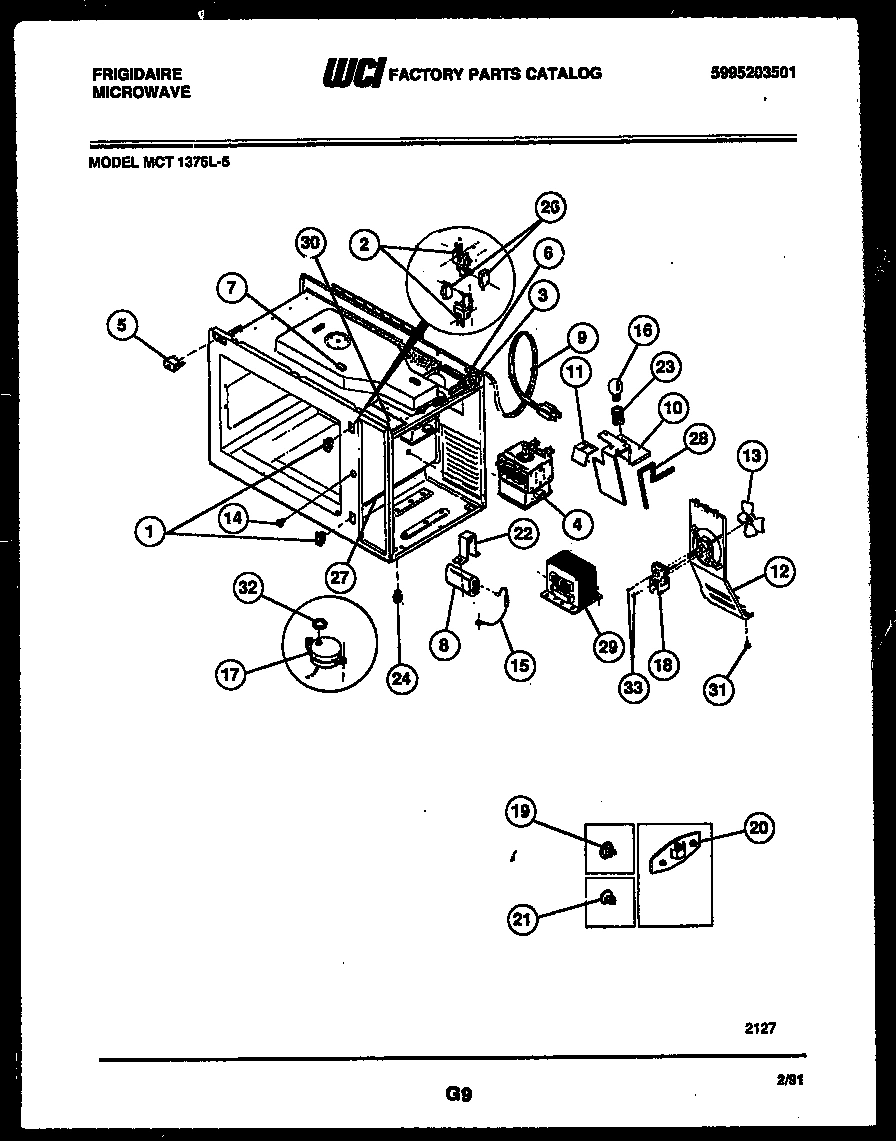

04 - FUNCTIONAL PARTS

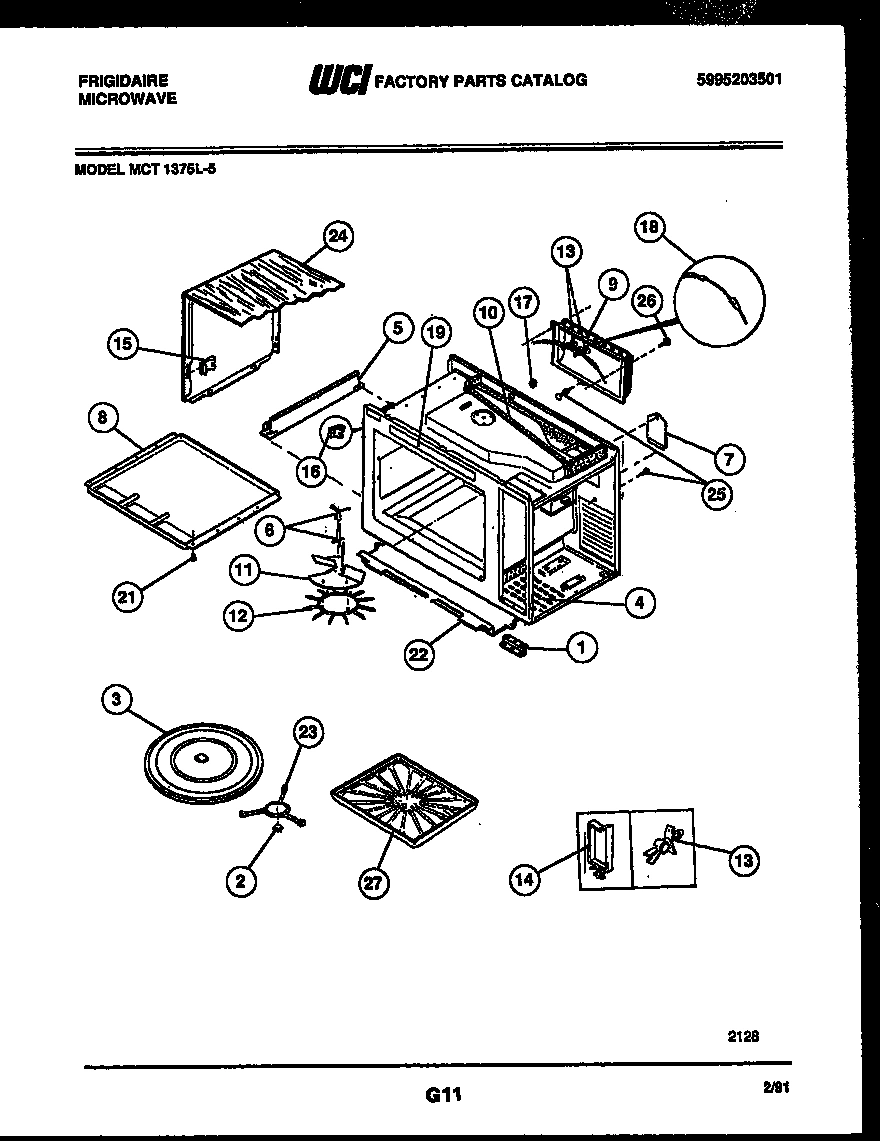

05 - WRAPPER AND BODY PARTS
Common parts from model Electrolux MCT1375L5 MICROWAVE
*42186
PLUG BUTTON RACK (8) WCI 5308037664 Contact Us For Availability
1
WCI 5303270319 WCI 5303270319 Contact Us For Availability
1
WCI 5303212767 WCI 5303212767 Contact Us For Availability
1
WCI 5303011555 WCI 5303011555 Contact Us For Availability
2
WCI 5303922044 WCI 5303922044 Contact Us For Availability
2
SCREW-LATCH (2) WCI 5303013960 Contact Us For Availability
2
WCI 5303271665 WCI 5303271665 Contact Us For Availability
2
WCI 5303011556 WCI 5303011556 Contact Us For Availability
3
WCI 5303269840 WCI 5303269840 Contact Us For Availability
3
INDICATOR LIGHT HOUSING WCI 5303201800 Contact Us For Availability
3
BUSHING-STRAIN RELIEF/FUSE HOLDER WCI 5303212769 Contact Us For Availability
3
TRAY-OVEN WCI 5308037674 Contact Us For Availability
4
WCI 5303270318 WCI 5303270318 Contact Us For Availability
4
WCI 5308037706 WCI 5308037706 Contact Us For Availability
4
WCI 5303206781 WCI 5303206781 Contact Us For Availability
4
WCI 5303269830 WCI 5303269830 Contact Us For Availability
5
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
5
WCI 5303271666 WCI 5303271666 Contact Us For Availability
5
JEWEL LENS-AMBER WCI 5308037703 Contact Us For Availability
5
WCI 5303011773 WCI 5303011773 Contact Us For Availability
6
SCREW-DOOR STRIKE WCI 5303013962 Contact Us For Availability
6
WCI 5308037619 WCI 5308037619 Contact Us For Availability
6
FUSE WCI 5303011670 Contact Us For Availability
6
COLLAR-STIRRER-(INCLUDES SUPPORT, COLLAR AND WCI 5303922010 Contact Us For Availability
7
SPACER WCI 5308037724 Contact Us For Availability
7
WCI 5303212775 WCI 5303212775 Contact Us For Availability
8
WCI 5303269608 WCI 5303269608 Contact Us For Availability
8
COVER, STIRRER WCI 5303212887 Contact Us For Availability
9
CORD-POWER WCI 5303212774 Contact Us For Availability
9
WCI 5303269958 WCI 5303269958 Contact Us For Availability
10
WCI 5303269831 WCI 5303269831 Contact Us For Availability
10
SEAL-FOAM WCI 5308037640 Contact Us For Availability
11
WCI 5303269832 WCI 5303269832 Contact Us For Availability
11
WCI 5303269835 WCI 5303269835 Contact Us For Availability
12
WCI 5303269833 WCI 5303269833 Contact Us For Availability
12
WCI 5303269836 WCI 5303269836 Contact Us For Availability
13
WCI 5303269834 WCI 5303269834 Contact Us For Availability
13
SUPPORT-THERMAL PROTECTOR (2) WCI 5303212788 Contact Us For Availability
14
WCI 5308037644 WCI 5308037644 Contact Us For Availability
14
WCI 5308037677 WCI 5308037677 Contact Us For Availability
15
WCI 5303269837 WCI 5303269837 Contact Us For Availability
15
WCI 5303012322 WCI 5303012322 Contact Us For Availability
16
LAMP-120V WCI 5303212801 Contact Us For Availability
17
WCI 5303922046 WCI 5303922046 Contact Us For Availability
17
WCI 5303212795 WCI 5303212795 Contact Us For Availability
18
MOTOR-FAN WCI 5303212802 Contact Us For Availability
18
HARNESS-FIRE PROTECTOR WCI 5303212800 Contact Us For Availability
19
PLUG-BUTTON (PROBE) WCI 5303201365 Contact Us For Availability
19
WCI 5303018849 WCI 5303018849 Contact Us For Availability
20
WCI 5303013626 WCI 5303013626 Contact Us For Availability
21
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
21
RIVET-COVER-STIRRER WCI 5303013807 Contact Us For Availability
22
WCI 5303013771 WCI 5303013771 Contact Us For Availability
22
SHIELD - BOTTOM WCI 3014060 Contact Us For Availability
23
SUPPORT-ROLLERS WCI 5303091004 Contact Us For Availability
23
SOCKET-LAMP WCI 5303212810 Contact Us For Availability
24
WCI 5303014097 WCI 5303014097 Contact Us For Availability
24
WRAPPER-WHITE WCI 5303271501 Contact Us For Availability
25
PLUG, BUTTON, WHITE, (2) WCI 5303091555 Contact Us For Availability
25A
SCREW-WRAPPER (27) (NON-ILLUSTRATED) WCI 5303091100 Contact Us For Availability
25B
SHIELD-OVEN LAMP-MYLAR (NON-ILLUSTRATED) WCI 5303269841 Contact Us For Availability
26
WCI 5303203636 WCI 5303203636 Contact Us For Availability
26
SCREW-TAMPER PROOF (2) WCI 5303271024 Contact Us For Availability
27
TAPE-FOAM SEAL CUT TO SIZE WCI 5303212845 Contact Us For Availability
27
WCI 5303011698 WCI 5303011698 Contact Us For Availability
28
TAPE-FOAM SEAL CUT TO SIZE WCI 5303017864 Contact Us For Availability
29
TRANSFORMER WCI 5303212811 Contact Us For Availability
30
WCI 5303212803 WCI 5303212803 Contact Us For Availability
31
RIVET-DUCT-AIR-FAN (2) WCI 5303269846 Contact Us For Availability
31A
WCI 5303269843 WCI 5303269843 Contact Us For Availability
32
WASHER-TURNTABLE (PLACE UNDERNEATH - BETWEEN WCI 5303017094 Contact Us For Availability
32A
HARNESS-TURNTABLE (NON-ILLUSTRATED) WCI 5303203239 Contact Us For Availability
32B
NUT-FAN MOTOR (2) (NON-ILLUSTRATED) WCI 5303013273 Contact Us For Availability
32C
SCREW-TRANSFORMER (2) (NON-ILLUSTRATED) WCI 5303013944 Contact Us For Availability
33
SCREW-FAN MOTOR (2) WCI 5308014502 Contact Us For Availability
× ![]()
