Model Electrolux MCT1370E3 MICROWAVE – Common Parts & Diagrams

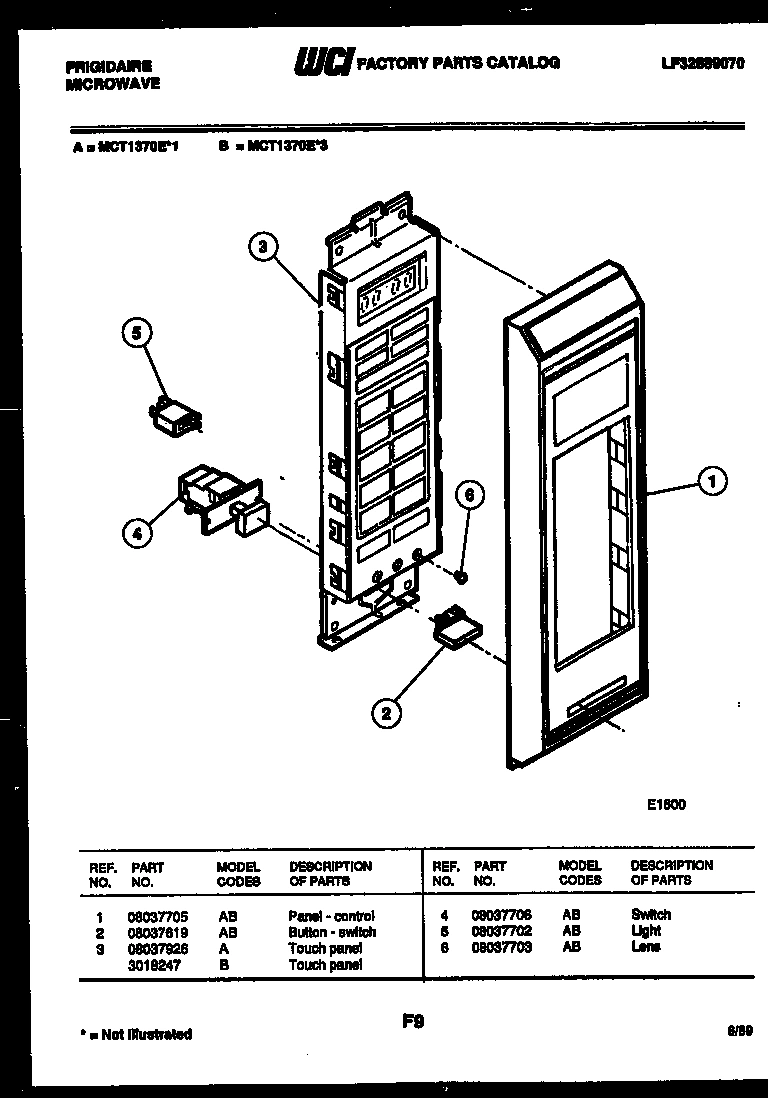

02 - CONTROL PANEL

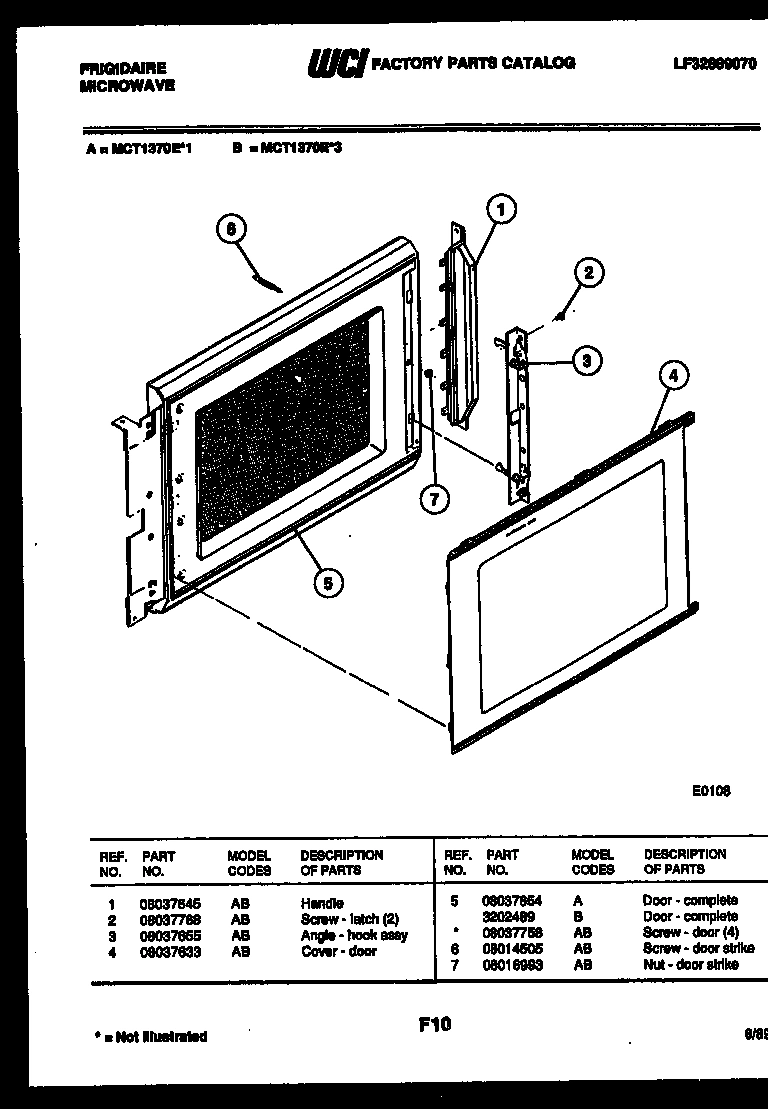

03 - DOOR PARTS

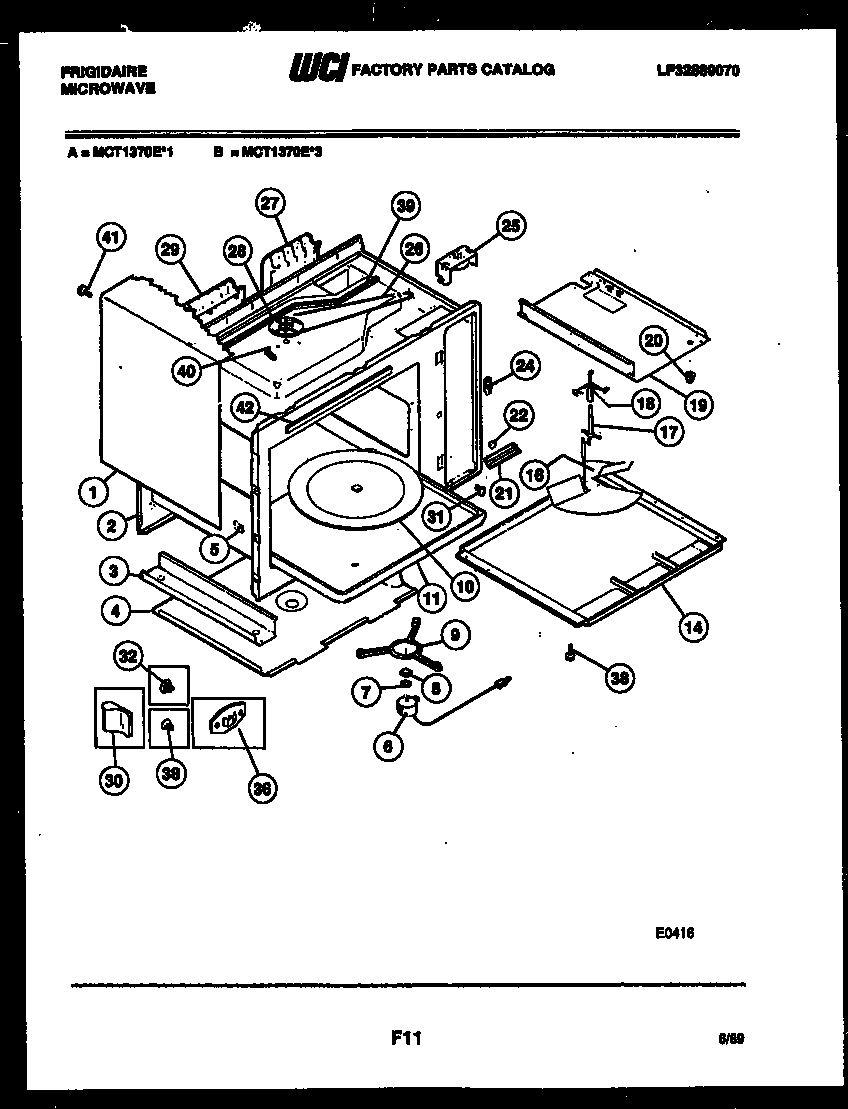

04 - BODY PARTS

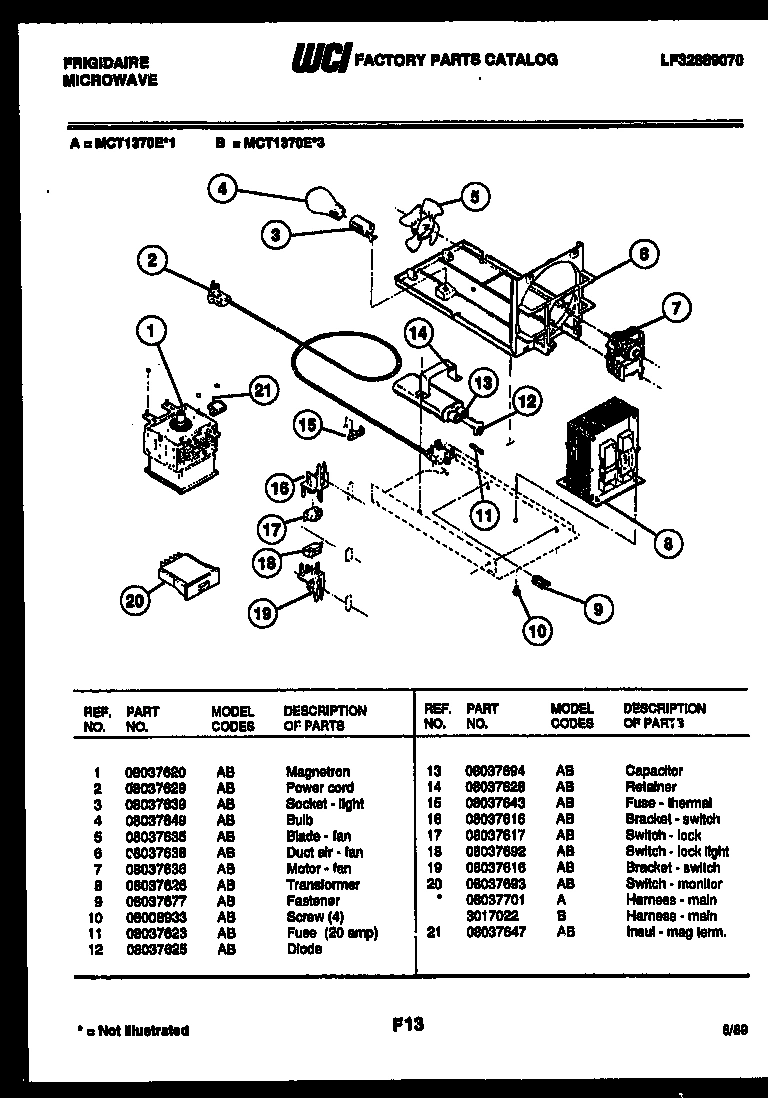

05 - POWER CONTROL
Common parts from model Electrolux MCT1370E3 MICROWAVE
*22166
WCI 3922012 WCI 3922012 Contact Us For Availability
*22166
WCI 3922013 WCI 3922013 Contact Us For Availability
*22167
SHIELD - OVEN LIGHT WCI 08037621 Contact Us For Availability
1
WCI 08037705 WCI 08037705 Contact Us For Availability
1
WCI 08037645 WCI 08037645 Contact Us For Availability
1
WRAPPER - OLIVE GRAY WCI 08037672 Contact Us For Availability
1
MAGNETRON WCI 08037620 Contact Us For Availability
2
BUTTON - SWITCH WCI 08037619 Contact Us For Availability
2
SCREW, LATCH (2) WCI 08037768 Contact Us For Availability
2
WCI 08037629 WCI 08037629 Contact Us For Availability
3
WCI 3018247 WCI 3018247 Contact Us For Availability
3
WCI 08037655 WCI 08037655 Contact Us For Availability
3
WCI 08037630 WCI 08037630 Contact Us For Availability
3
SOCKET LIGHT WCI 08037639 Contact Us For Availability
4
SWITCH WCI 08037706 Contact Us For Availability
4
WCI 08037633 WCI 08037633 Contact Us For Availability
4
WCI 08037669 WCI 08037669 Contact Us For Availability
5
LIGHT WCI 08037702 Contact Us For Availability
5
WCI 3202489 WCI 3202489 Contact Us For Availability
5
BLADE - FAN WCI 08037635 Contact Us For Availability
5A
SCREW - DOOR (4) (NON-ILLUSTRATED) WCI 08037758 Contact Us For Availability
6
WCI 08037703 WCI 08037703 Contact Us For Availability
6
SCREW, DOOR STRIKE WCI 08014505 Contact Us For Availability
6
WCI 08037704 WCI 08037704 Contact Us For Availability
6
WCI 08037638 WCI 08037638 Contact Us For Availability
7
NUT - DOOR STRIKE WCI 08016993 Contact Us For Availability
7
SEAL - WASHER WCI 08037781 Contact Us For Availability
7
WCI 08037636 WCI 08037636 Contact Us For Availability
8
MOTOR - BUSHING WCI 08037618 Contact Us For Availability
8
WCI 08037626 WCI 08037626 Contact Us For Availability
9
WCI 08037675 WCI 08037675 Contact Us For Availability
9
FASTENER WCI 08037677 Contact Us For Availability
10
TRAY, CIRCULAR WCI 08037674 Contact Us For Availability
10
WCI 08008933 WCI 08008933 Contact Us For Availability
11
TRAY, GLASS WCI 08037673 Contact Us For Availability
11
FUSE - 20 AMP WCI 08037623 Contact Us For Availability
12
WCI 08037625 WCI 08037625 Contact Us For Availability
13
CAPACITOR WCI 08037694 Contact Us For Availability
14
WCI 3200554 WCI 3200554 Contact Us For Availability
14
WCI 08037628 WCI 08037628 Contact Us For Availability
15
WCI 08037643 WCI 08037643 Contact Us For Availability
16
FAN, STIRRER WCI 08037642 Contact Us For Availability
17
WCI 08037670 WCI 08037670 Contact Us For Availability
17
SWITCH LOCK WCI 08037617 Contact Us For Availability
18
WCI 08037631 WCI 08037631 Contact Us For Availability
18
SWITCH LOCK LIGHT WCI 08037692 Contact Us For Availability
19
WCI 08037707 WCI 08037707 Contact Us For Availability
19
BRACKET - SWITCH WCI 08037616 Contact Us For Availability
20
FOOT (4) WCI 08037784 Contact Us For Availability
20
WCI 08037693 WCI 08037693 Contact Us For Availability
20
HARNESS - MAIN WCI 3017022 Contact Us For Availability
21
WCI 08037615 WCI 08037615 Contact Us For Availability
21
INSUL - MAG TERM. WCI 08037647 Contact Us For Availability
22
WCI 08037644 WCI 08037644 Contact Us For Availability
24
BEZEL LATCH (WHITE) WCI 3200551 Contact Us For Availability
25
MOTOR STIRRER W/ BELT WCI 08037650 Contact Us For Availability
26
WCI 08037651 WCI 08037651 Contact Us For Availability
27
WCI 08037641 WCI 08037641 Contact Us For Availability
28
WCI 08037667 WCI 08037667 Contact Us For Availability
29
WCI 08037634 WCI 08037634 Contact Us For Availability
30
CLIP WCI 08037709 Contact Us For Availability
31
PLUG - BUTTON WCI 08037666 Contact Us For Availability
32
WCI 08037665 WCI 08037665 Contact Us For Availability
36
WCI 08037691 WCI 08037691 Contact Us For Availability
38
WCI 08037668 WCI 08037668 Contact Us For Availability
39
WCI 08037640 WCI 08037640 Contact Us For Availability
40
WCI 08014510 WCI 08014510 Contact Us For Availability
41
SCREW - WRAPPER WCI 3091100 Contact Us For Availability
42
LABEL - WHITE WCI 3018849 Contact Us For Availability
× ![]()
