Model Accelerated Cooking Products MCS10TS-P2002403M Amana Menumaster MCS10TS – Common Parts & Diagrams

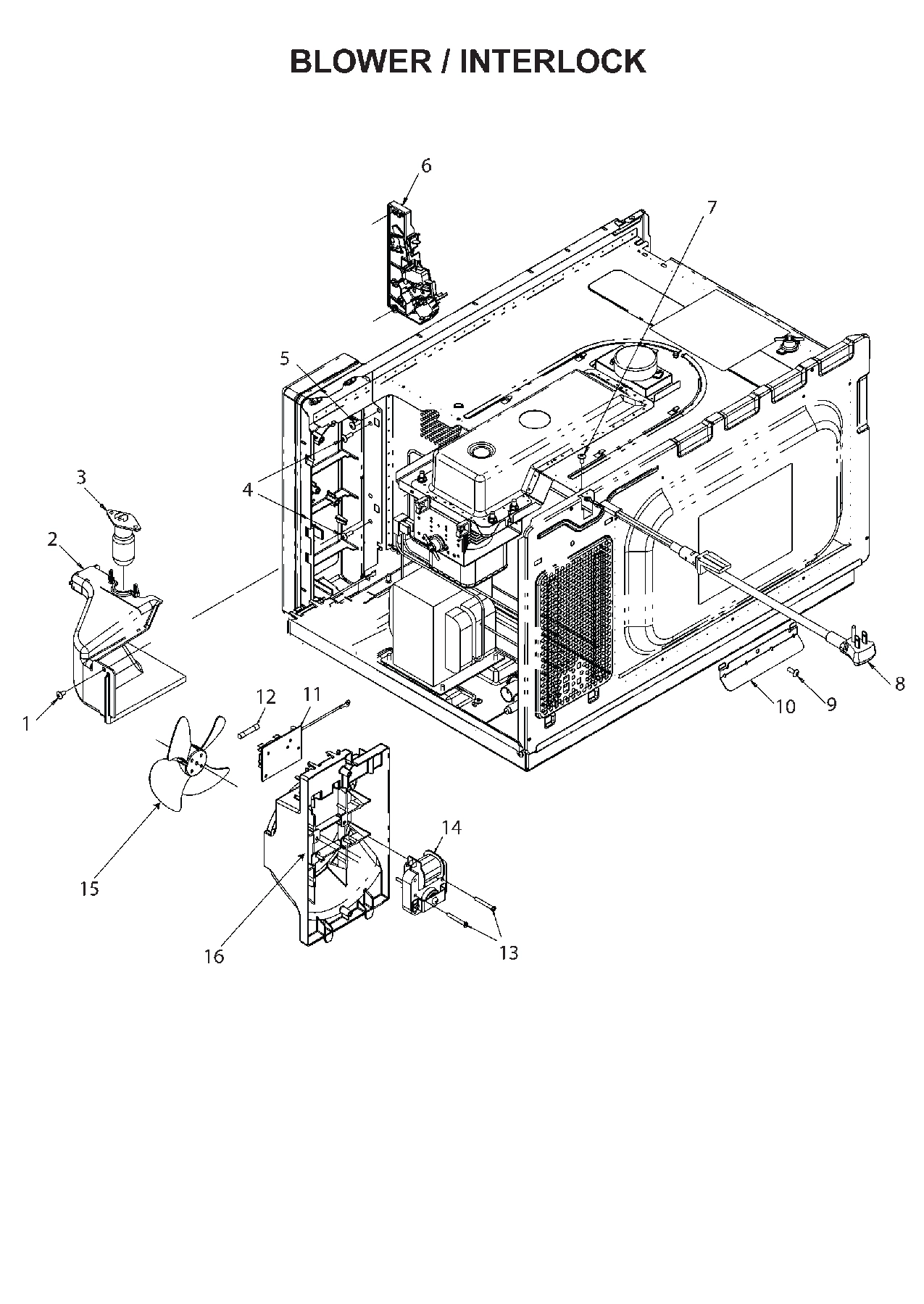

BLOWER / INTERLOCK

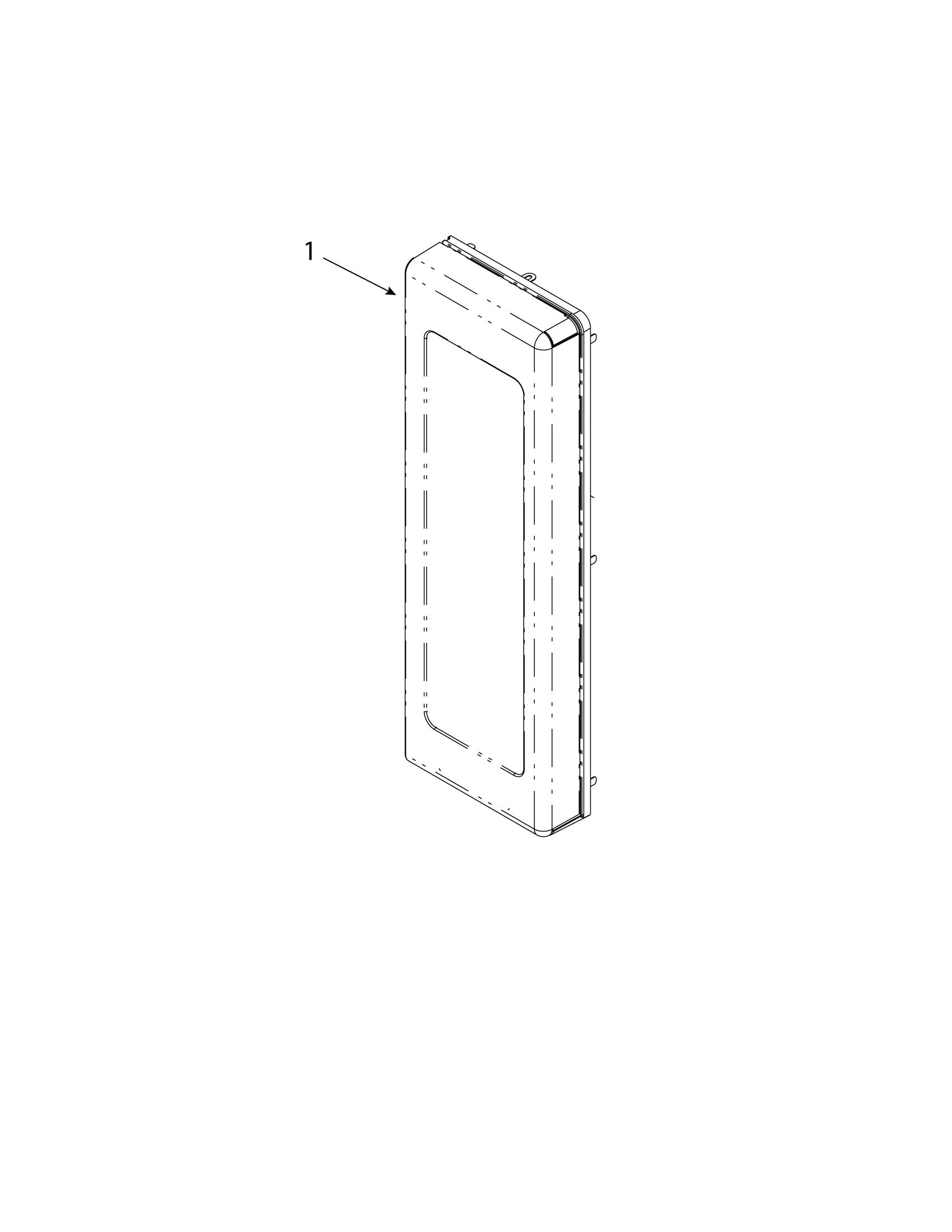

CONTROL ASSY

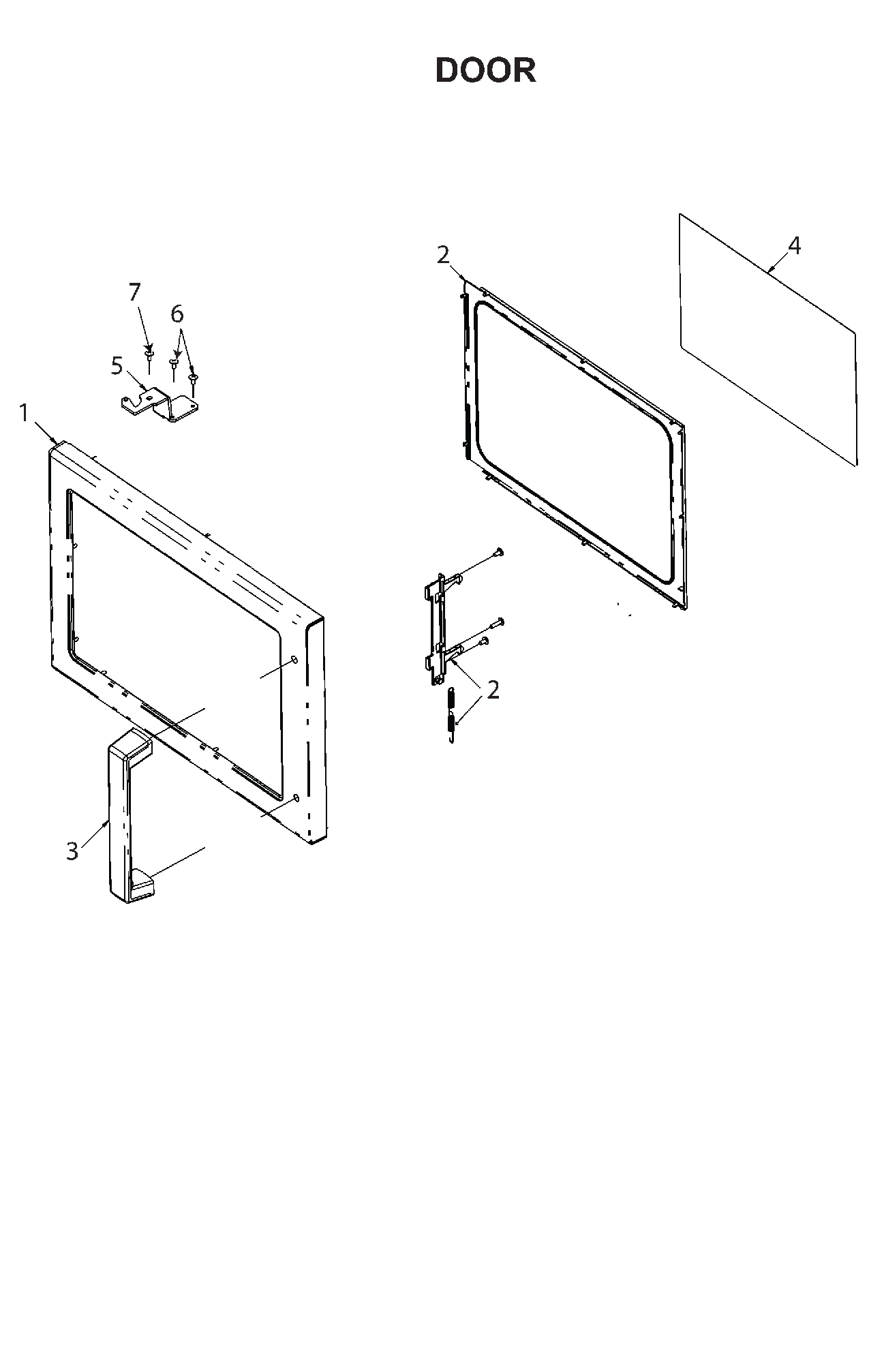

DOOR

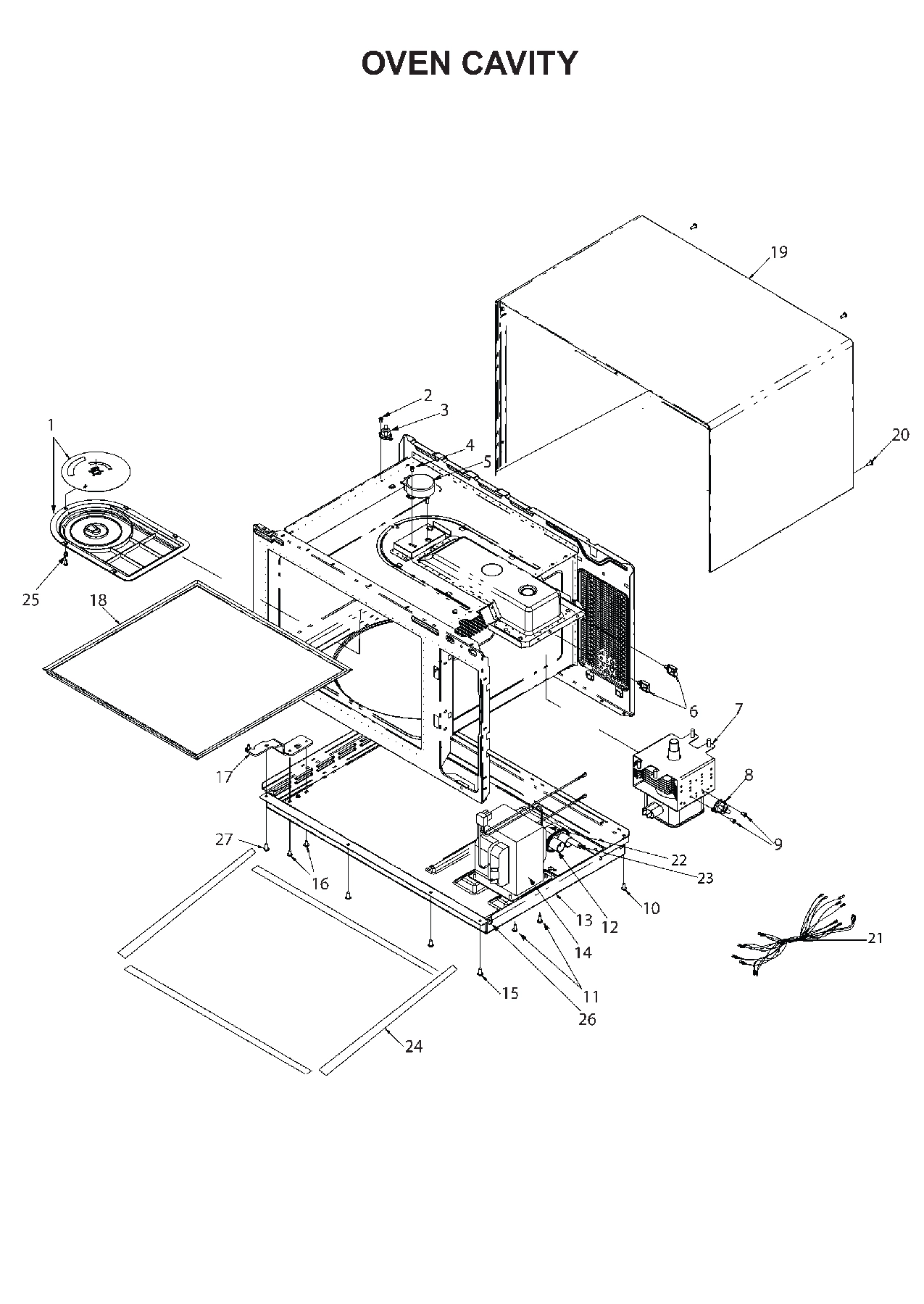

OVEN CAVITY
Common parts from model Accelerated Cooking Products MCS10TS-P2002403M Amana Menumaster MCS10TS
1
KIT, COVER/STIRRER BLADE/RIVETS ACP 12002625 Contact Us For Availability
1
DOOR ASSY- MM ACP 54157101 Contact Us For Availability
2
KIT, SPRING/LATCH/CHOKE COVER ACP 14124068 Contact Us For Availability
3
THERMAL CUTOUT, CAVITY ACP 54127037 Contact Us For Availability
3
KIT, DOOR HANDLE ACP 14124069 Contact Us For Availability
3
LAMP/SOCKET ASSY ACP 54127049 Contact Us For Availability
4
WINDOW, INNER ACP 54127026 Contact Us For Availability
5
MOTOR, ANTENNA ACP 56002013 Contact Us For Availability
7
KIT, MAGNETRON ACP 59004010 Contact Us For Availability
8
THERMAL CUTOUT, MAG ACP 54116023 Contact Us For Availability
8
POWER CORD ACP 20241101 Contact Us For Availability
11
FUSE BLOCK/FILTER ASSY ACP 14174131 Contact Us For Availability
12
FUSE, 20 A ACP 20034003 Contact Us For Availability
12
CAPACITOR, 1.05 ACP 54127015 Contact Us For Availability
14
TRANSFORMER, HV ACP 54127011 Contact Us For Availability
14
MOTOR, BLOWER & BLADE ACP 54127056 Contact Us For Availability
16
BRKT, BLOWER ACP 54127059 Contact Us For Availability
18
TRAY, CERAMIC ACP 54127018 Contact Us For Availability
23
DIODE, SLEEVED ACP 20057401 Contact Us For Availability
24
GASKET, BASEPAN - 90 in (228 cm) ACP R0000413 Contact Us For Availability
25
RIVET ASSY ACP 54116064 Contact Us For Availability
× ![]()
