Model Maytag MCHDC521 COMMERCIAL MICROWAVE – Common Parts & Diagrams

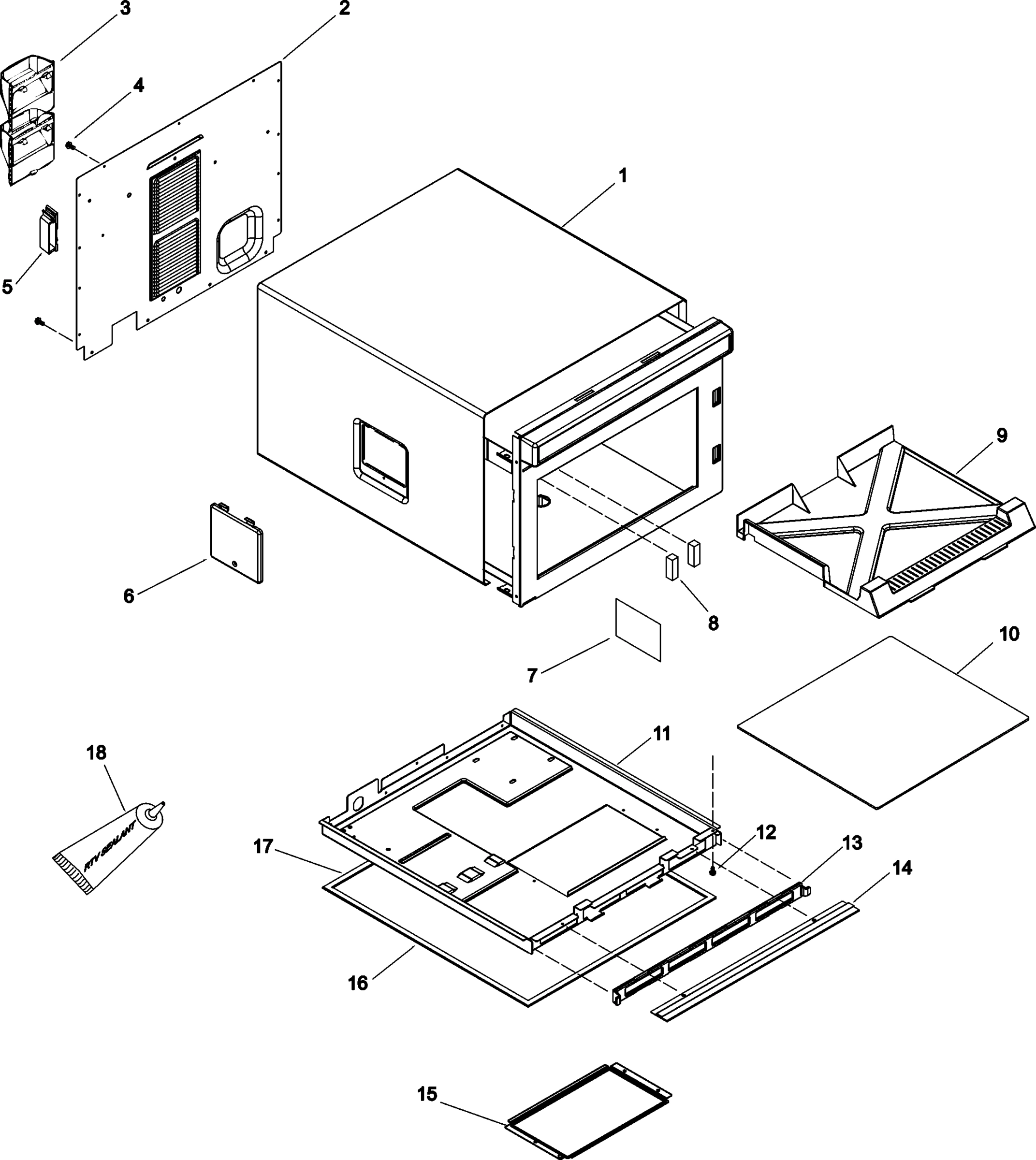

01 - TRAY, GREASE SHIELD, CABINET

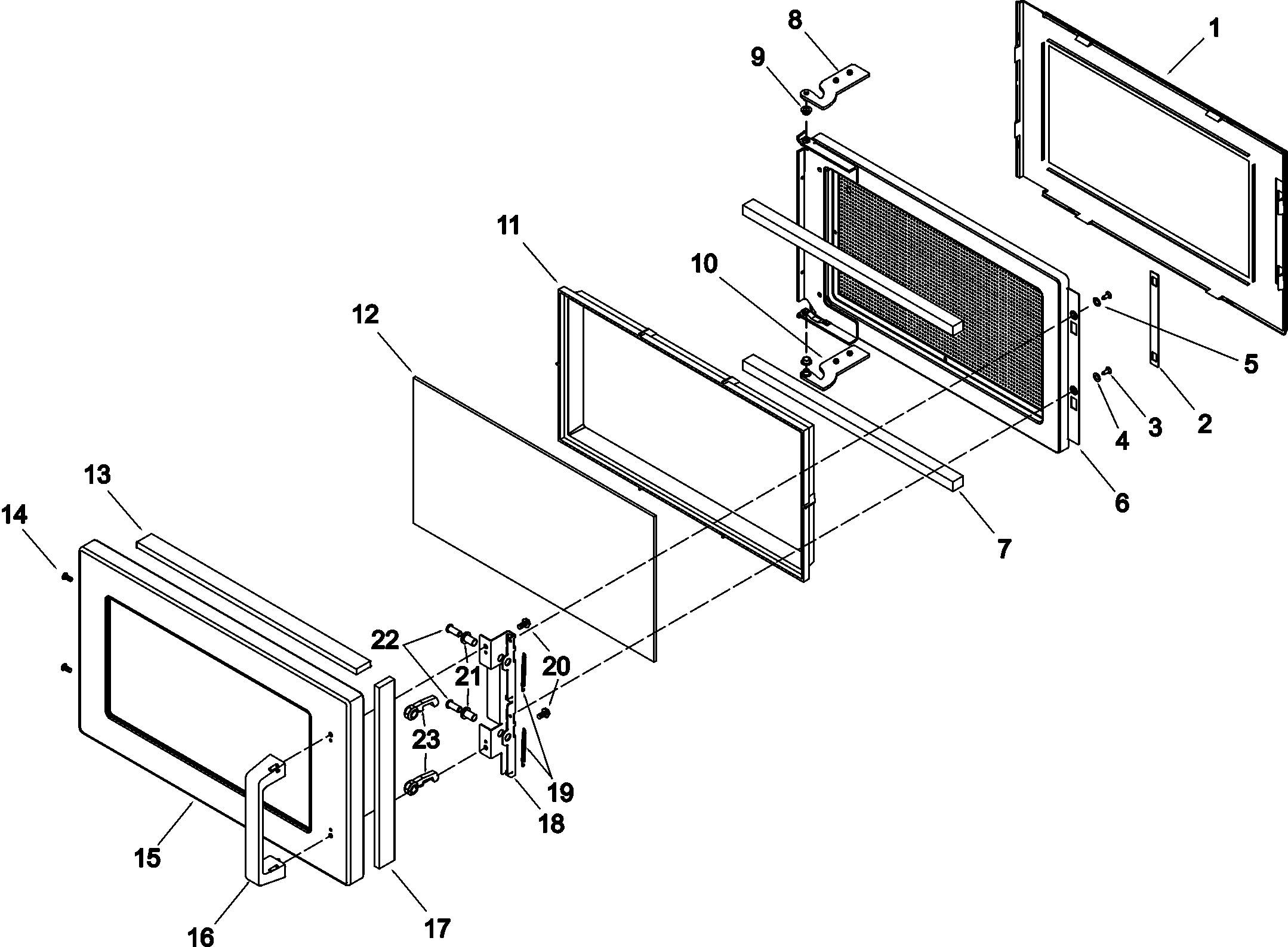

02 - DOOR

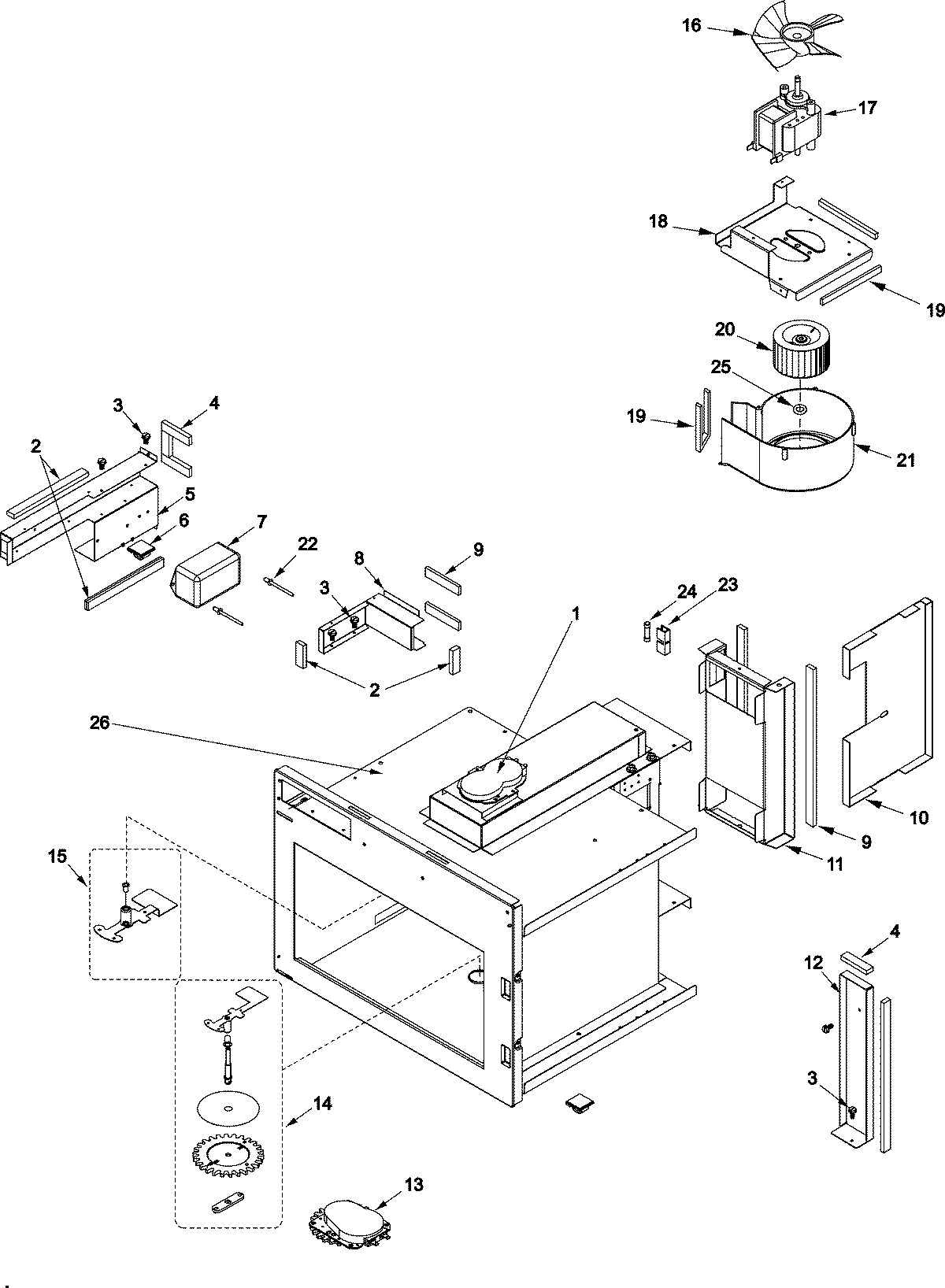

03 - FUSES, ANTENNAS, BLOWER, DUCTS
04 - ELECTRICAL COMPONENTS
05 - SUPPLEMENTAL INFORMATION

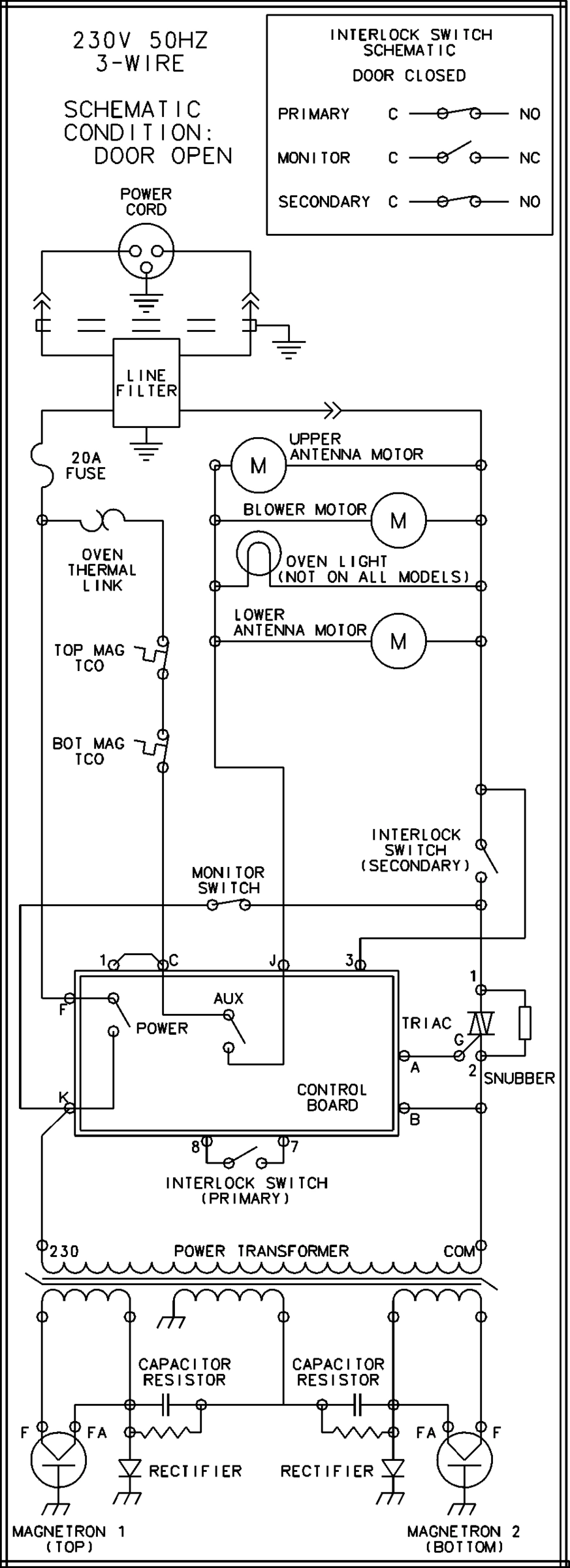

06 - WIRING INFORMATION

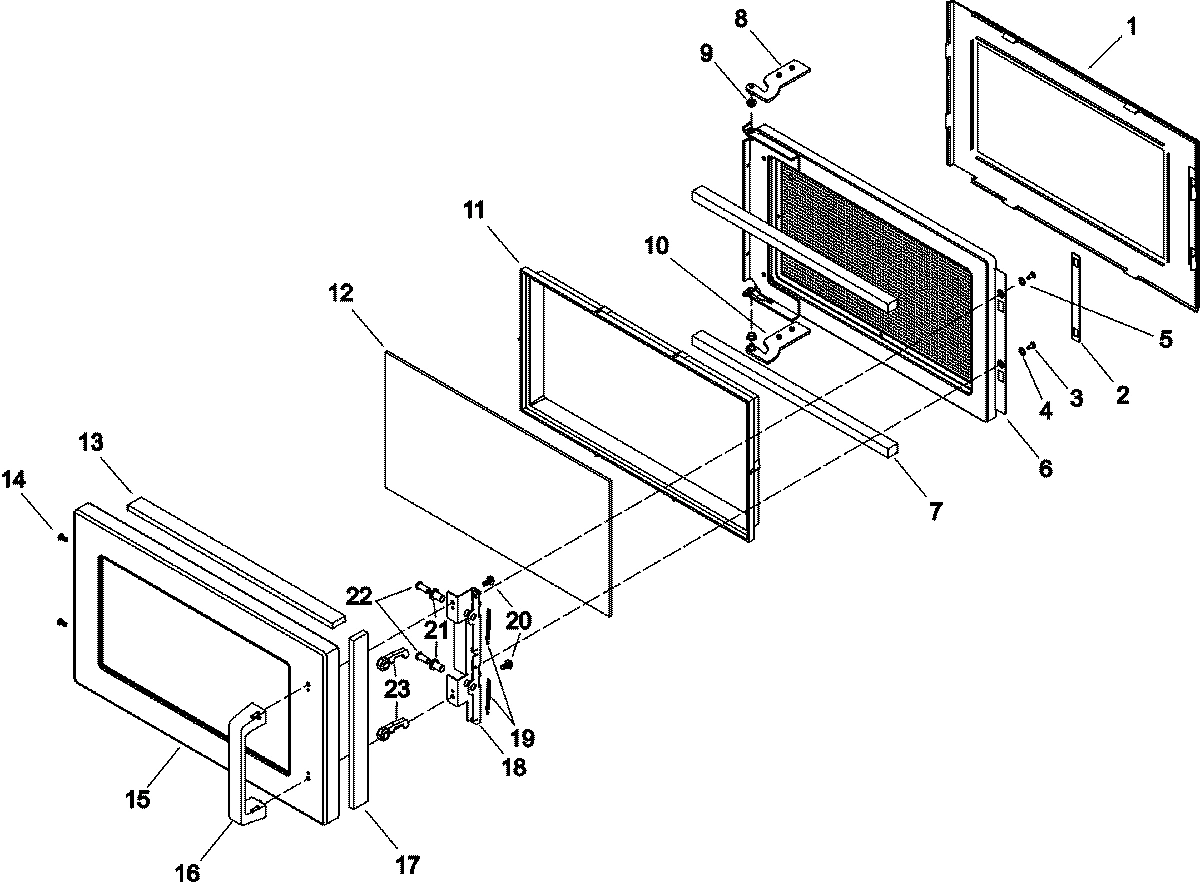

01 - DOOR

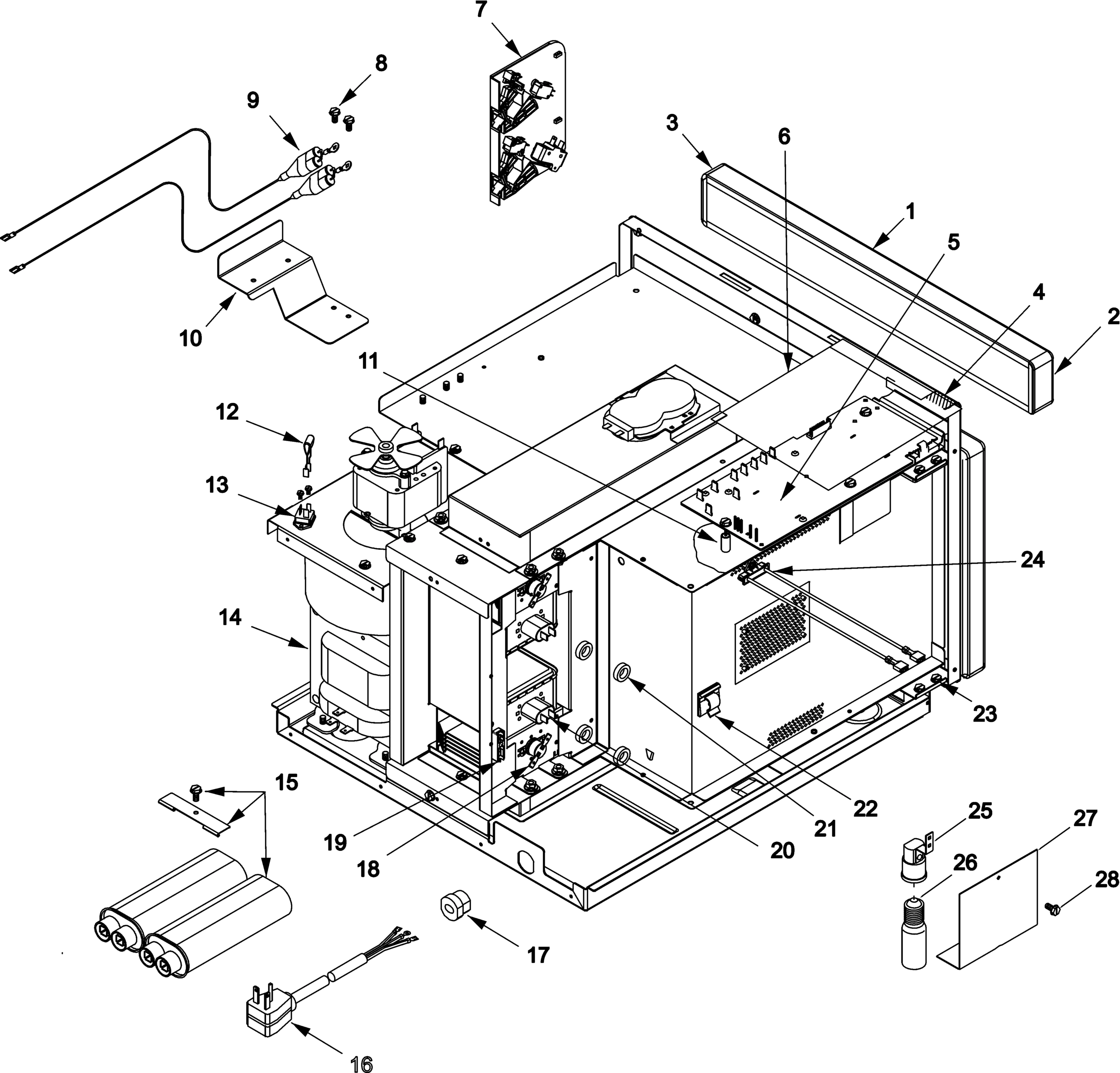

02 - ELECTRICAL COMPONENTS

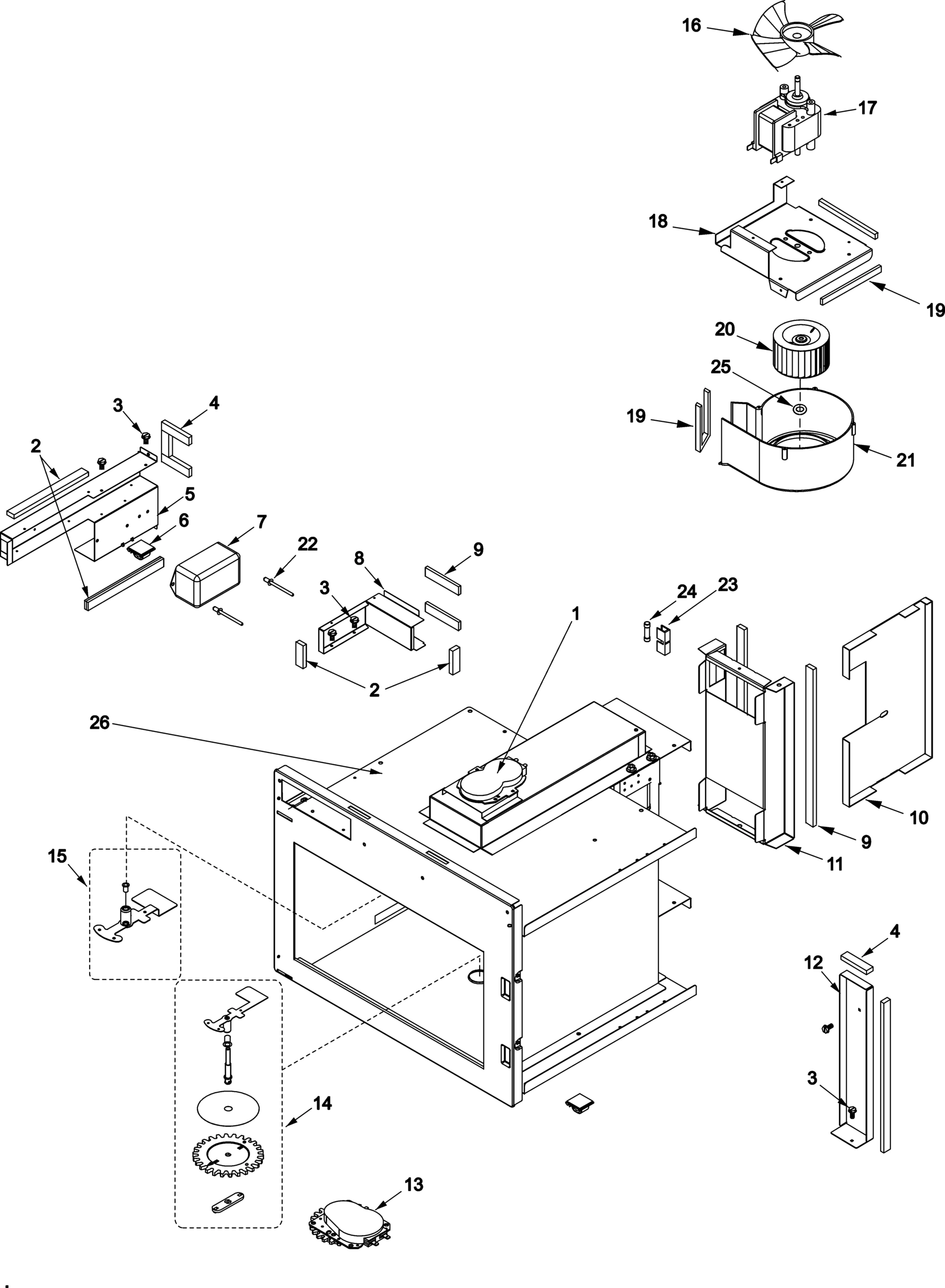

03 - FUSES, ANTENNAS, BLOWER, DUCTS
04 - SUPPLEMENTAL INFORMATION
05 - TRAY, GREASE SHIELD, CABINET
06 - WIRING INFORMATION
Common parts from model Maytag MCHDC521 COMMERCIAL MICROWAVE
1
MAY 13067001 MAY 13067001 Contact Us For Availability
001
ASSY, TOUCH PANEL MAY R0000244 Contact Us For Availability
1
MAY R9900111 MAY R9900111 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
1
MAY RS5320013 MAY RS5320013 Contact Us For Availability
1
MAY 59002063 MAY 59002063 Contact Us For Availability
2
MAY 59001618 MAY 59001618 Contact Us For Availability
2
MAY 59002067 MAY 59002067 Contact Us For Availability
3
MAY 13047402 MAY 13047402 Contact Us For Availability
3
MAY 12131002 MAY 12131002 Contact Us For Availability
3
MAY 13062001 MAY 13062001 Contact Us For Availability
3
MAY 12296601 MAY 12296601 Contact Us For Availability
4
MAY M0274066 MAY M0274066 Contact Us For Availability
4
MAY M0275163 MAY M0275163 Contact Us For Availability
4
MAY 59002059 MAY 59002059 Contact Us For Availability
4
MAY 12990525 MAY 12990525 Contact Us For Availability
5
MAY M0118705 MAY M0118705 Contact Us For Availability
5
WASHER MAY M0272503 Contact Us For Availability
5
MAY 12135604 MAY 12135604 Contact Us For Availability
5
MAY 59002070 MAY 59002070 Contact Us For Availability
5
MAY R0193551 MAY R0193551 Contact Us For Availability
6
COVER LIGHT (SS) MAY 10785608 Contact Us For Availability
6
MAY 13042002 MAY 13042002 Contact Us For Availability
6
MAY M0274072 MAY M0274072 Contact Us For Availability
6
MAY 12160602 MAY 12160602 Contact Us For Availability
6
MAY 13018101 MAY 13018101 Contact Us For Availability
7
MAY R9900114 MAY R9900114 Contact Us For Availability
7
MAY 59001893 MAY 59001893 Contact Us For Availability
7
MAY 12993002 MAY 12993002 Contact Us For Availability
7
MAY 59002060 MAY 59002060 Contact Us For Availability
7
MAY 59002065 MAY 59002065 Contact Us For Availability
8
MAY 12126805 MAY 12126805 Contact Us For Availability
8
MAY 12135704 MAY 12135704 Contact Us For Availability
8
MAY 59002066 MAY 59002066 Contact Us For Availability
9
MAY 12126601 MAY 12126601 Contact Us For Availability
9
MAY 5210001001 MAY 5210001001 Contact Us For Availability
9
MAY 10839706 MAY 10839706 Contact Us For Availability
9
KIT, DIODE MAY R9800022 Contact Us For Availability
9
MAY 16027613 MAY 16027613 Contact Us For Availability
10
MAY R0150144 MAY R0150144 Contact Us For Availability
10
MAY 12126806 MAY 12126806 Contact Us For Availability
10
MAY 59002000 MAY 59002000 Contact Us For Availability
10
MAY 12529501 MAY 12529501 Contact Us For Availability
11
MAY R0000036 MAY R0000036 Contact Us For Availability
11
MAY R0150147 MAY R0150147 Contact Us For Availability
11
MAY 59001558 MAY 59001558 Contact Us For Availability
11
MAY M0308801 MAY M0308801 Contact Us For Availability
12
MAY 12990524 MAY 12990524 Contact Us For Availability
12
MAY 59001236 MAY 59001236 Contact Us For Availability
12
MAY 12525701 MAY 12525701 Contact Us For Availability
12
MAY 59002017 MAY 59002017 Contact Us For Availability
13
MAY 59001659 MAY 59001659 Contact Us For Availability
13
MAY 12210804 MAY 12210804 Contact Us For Availability
13
MAY 12990523 MAY 12990523 Contact Us For Availability
13
MAY R0157373 MAY R0157373 Contact Us For Availability
14
MAY 59002068 MAY 59002068 Contact Us For Availability
14
MAY 12990402 MAY 12990402 Contact Us For Availability
14
MAY R9900585 MAY R9900585 Contact Us For Availability
14
MAY 12991606 MAY 12991606 Contact Us For Availability
14
MAY 59001993 MAY 59001993 Contact Us For Availability
15
MAY 12486002 MAY 12486002 Contact Us For Availability
15
MAY 12990522 MAY 12990522 Contact Us For Availability
015
MAY R9800008 MAY R9800008 Contact Us For Availability
15
MAY R9900567 MAY R9900567 Contact Us For Availability
15
ASSY, ANTENNA/RETAINER MAY R0150149 Contact Us For Availability
15
MAY 12132501 MAY 12132501 Contact Us For Availability
15
MAY 59001167 MAY 59001167 Contact Us For Availability
16
MAY 59001643 MAY 59001643 Contact Us For Availability
16
MAY B5706704 MAY B5706704 Contact Us For Availability
016
MAY 59002001 MAY 59002001 Contact Us For Availability
17
MAY 59001642 MAY 59001642 Contact Us For Availability
17
MAY 12210803 MAY 12210803 Contact Us For Availability
17
MAY 12138105 MAY 12138105 Contact Us For Availability
17
MAY M0370009 MAY M0370009 Contact Us For Availability
18
MAY M0275598 MAY M0275598 Contact Us For Availability
18
MAY 12114401 MAY 12114401 Contact Us For Availability
18
MAY 12271103 MAY 12271103 Contact Us For Availability
18
MAY 12991607 MAY 12991607 Contact Us For Availability
18
MAY B5684129 MAY B5684129 Contact Us For Availability
18
MAY B8380601 MAY B8380601 Contact Us For Availability
19
MAY C8893502 MAY C8893502 Contact Us For Availability
19
MAY A3030330 MAY A3030330 Contact Us For Availability
19
MAY B5677203 MAY B5677203 Contact Us For Availability
20
MAY 12138201 MAY 12138201 Contact Us For Availability
20
MAY 59001997 MAY 59001997 Contact Us For Availability
21
MAY M0800501 MAY M0800501 Contact Us For Availability
21
MAY 12138302 MAY 12138302 Contact Us For Availability
21
TOROID (ARC SUPPRESSOR) MAY 44780P01 Contact Us For Availability
22
MAY 59002069 MAY 59002069 Contact Us For Availability
22
MAY A4539638 MAY A4539638 Contact Us For Availability
23
MAY 12126901 MAY 12126901 Contact Us For Availability
23
MAY M0805203 MAY M0805203 Contact Us For Availability
23
MAY 13048901 MAY 13048901 Contact Us For Availability
24
FUSE HOLDER MAY 10091101 Contact Us For Availability
24
MAY 12990606 MAY 12990606 Contact Us For Availability
24
MAY 13041801 MAY 13041801 Contact Us For Availability
24
MAY 59001874 MAY 59001874 Contact Us For Availability
25
MAY M0118901 MAY M0118901 Contact Us For Availability
25
MAY 12163802 MAY 12163802 Contact Us For Availability
26
MAY 59002071 MAY 59002071 Contact Us For Availability
27
MAY 12544201 MAY 12544201 Contact Us For Availability
28
MAY 12992307 MAY 12992307 Contact Us For Availability
NI
MAY 15003511 MAY 15003511 Contact Us For Availability
× ![]()
