Model Whirlpool MCE04XW0 – Common Parts & Diagrams

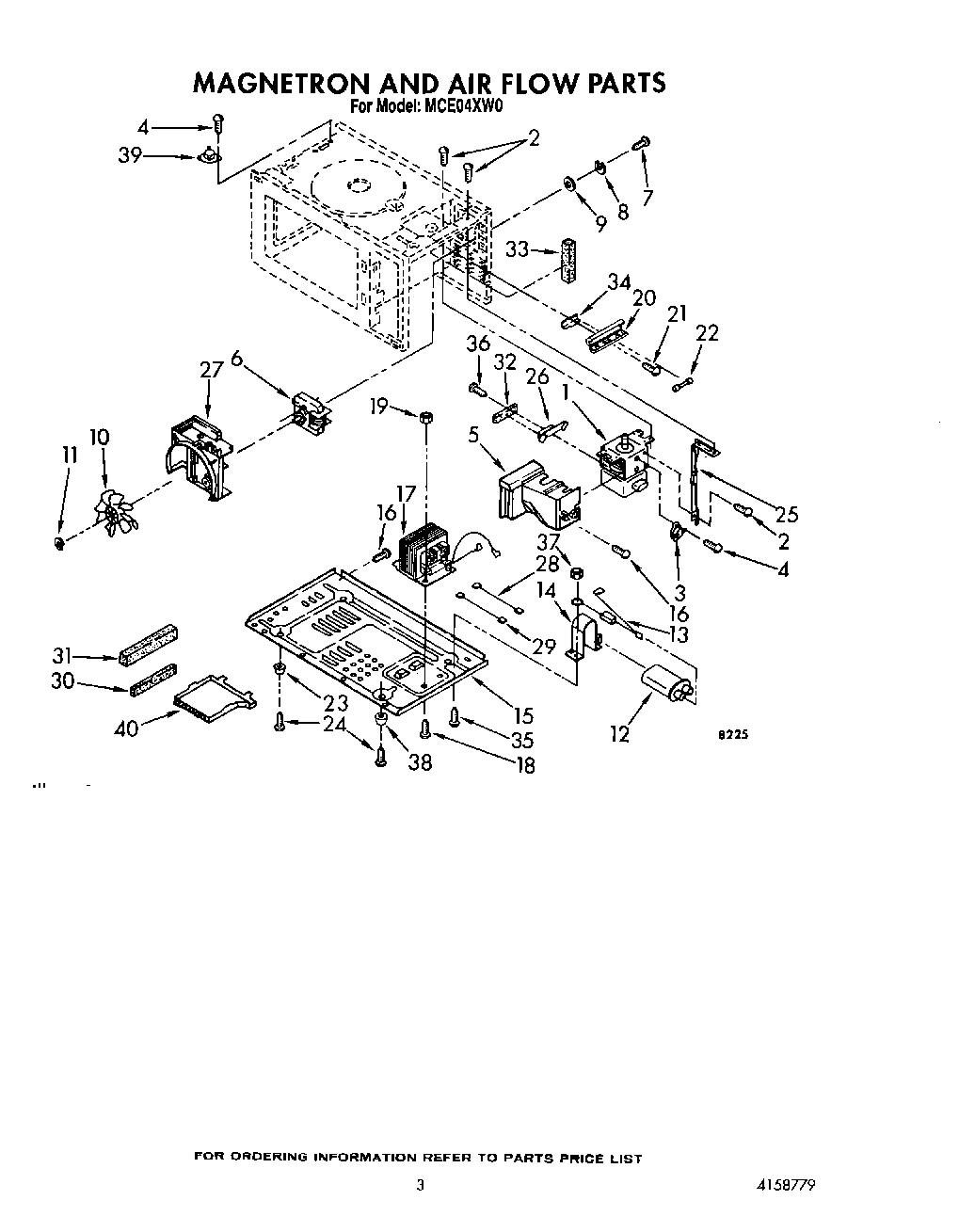

03 - MAGNETRON AND AIR FLOW

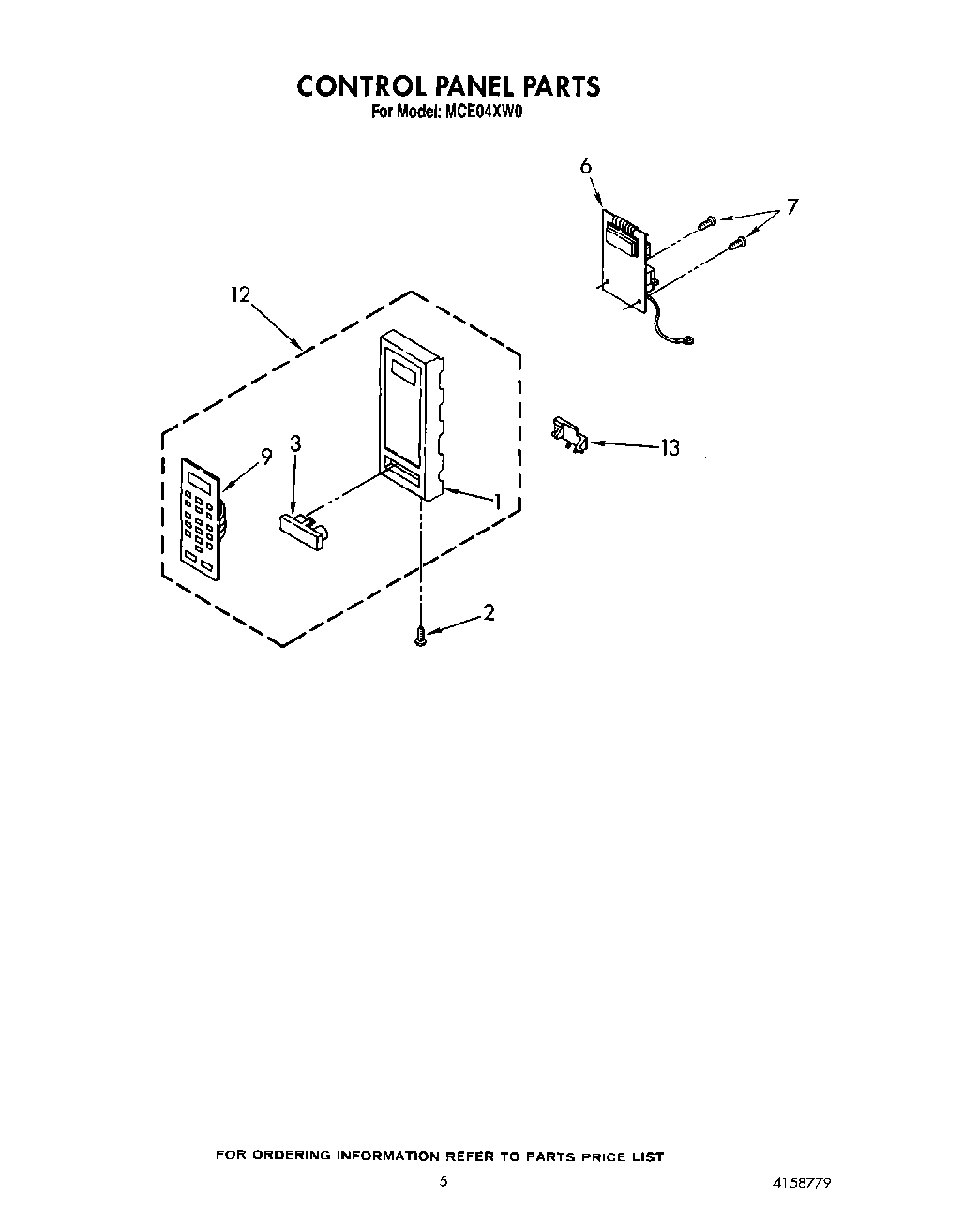

05 - CONTROL PANEL

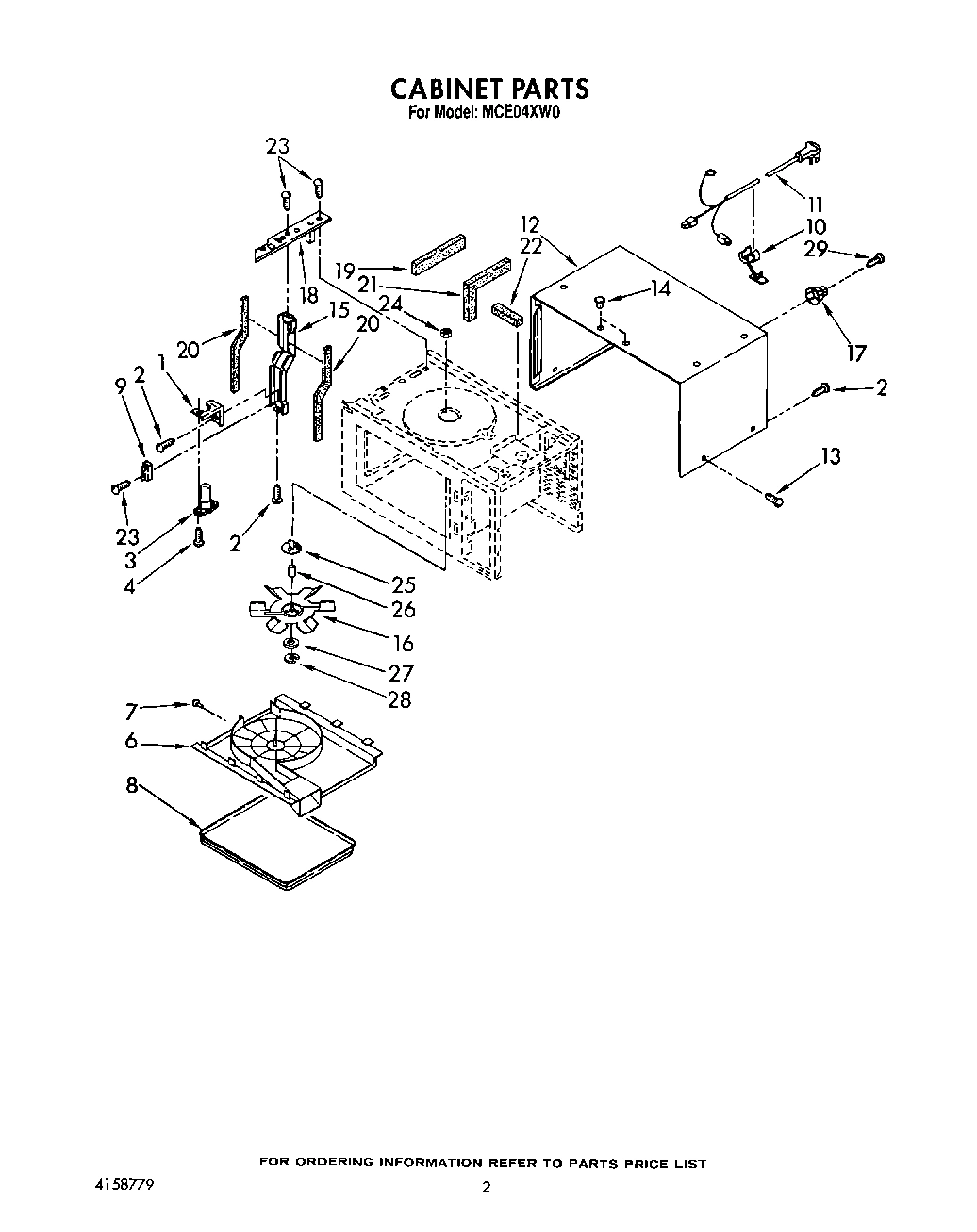

02 - CABINET

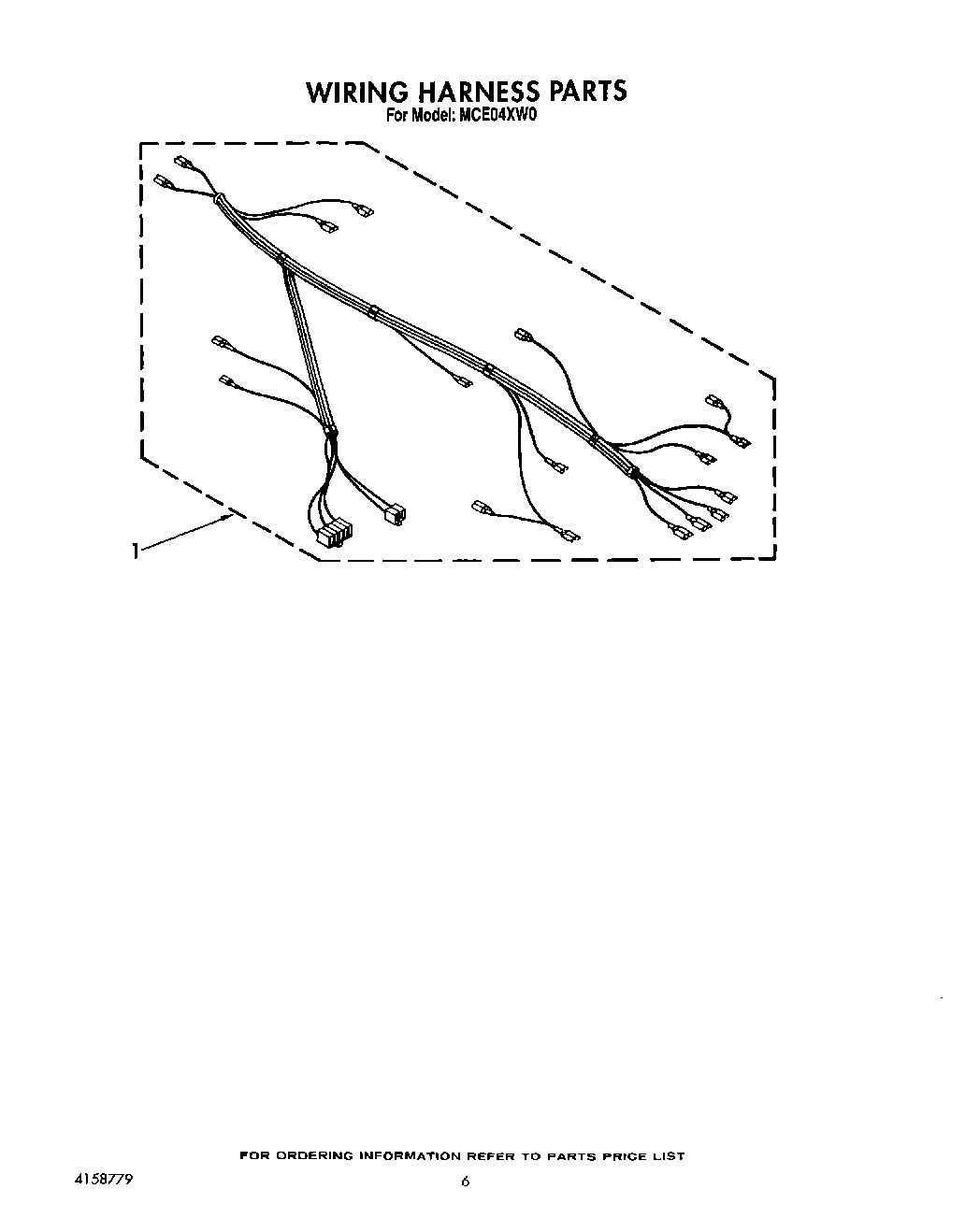

06 - WIRING HARNESS, LIT/OPTIONAL

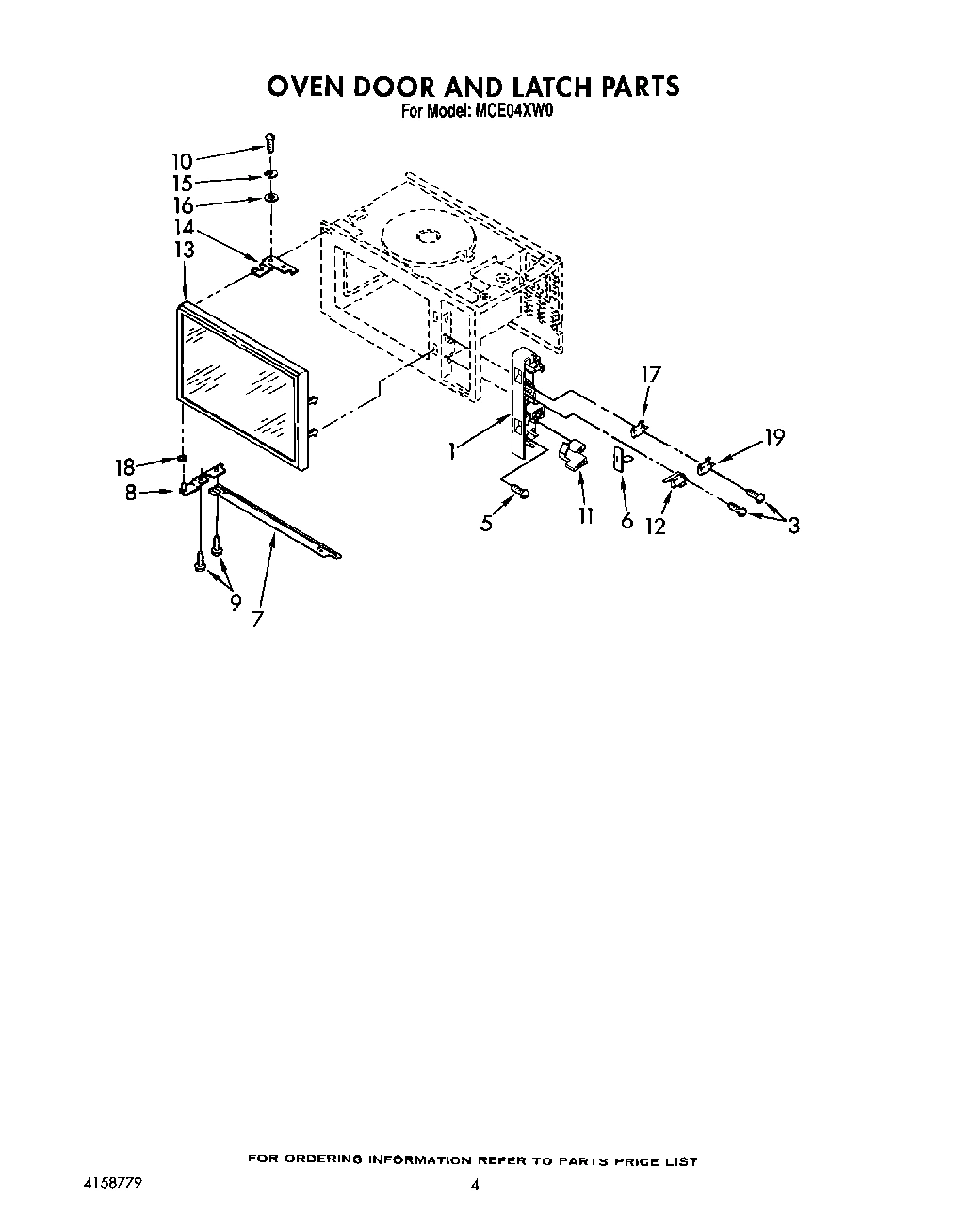

04 - OVEN DOOR AND LATCH
Common parts from model Whirlpool MCE04XW0
Guide, Use & Care WPL LIT4158663 Contact Us For Availability
Tech Sheet WPL LIT4158682 Contact Us For Availability
List, Repair Parts WPL LIT4158779 Contact Us For Availability
1
Frame, Control Panel (Not Serviceable) WPL ARI117882A Contact Us For Availability
1
Bracket, Light WPL 4158096 Contact Us For Availability
1
Under The cabinet Mounting Kit WPL 4158693 Contact Us For Availability
1
Installation Instructions for 4158693 Kit WPL 4158695 Contact Us For Availability
1
Wall Template WPL 4158698 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4158762 Contact Us For Availability
1
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
1
Cord Brown (13 Oz.) WPL 830881 Contact Us For Availability
1
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
1
Latch Board WPL 4158767 Contact Us For Availability
2
Screw, 4 x 10 mm WPL 4158076 Contact Us For Availability
3
Button, Push To Start WPL 4158776 Contact Us For Availability
3
Base Less Light WPL 4158586 Contact Us For Availability
3
Screw, 3 x 20mm WPL 4158078 Contact Us For Availability
5
Duct, Air WPL 4158759 Contact Us For Availability
5
Screw WPL 4158187 Contact Us For Availability
6
Motor, Fan WPL 4158756 Contact Us For Availability
6
Microcomputer WPL 4158778 Contact Us For Availability
6
Cover, Stirrer WPL 4158743 Contact Us For Availability
6
Rod, Release WPL 4158070 Contact Us For Availability
7
Screw, 4 x 10 mm WPL 4158077 Contact Us For Availability
7
Screw, 3 x 8 mm WPL 4158186 Contact Us For Availability
7
Rivet (3) WPL 4339374 Contact Us For Availability
7
Pin, Protector WPL 4158745 Contact Us For Availability
8
Washer WPL 4158088 Contact Us For Availability
8
Shelf, Cavity WPL 4158744 Contact Us For Availability
8
Hinge Plate, Lower WPL 4158740 Contact Us For Availability
9
Washer WPL 4158085 Contact Us For Availability
9
Touch Panel (Not Serviceable) WPL ARI117883A Contact Us For Availability
9
Fuse, Thermal WPL 4158562 Contact Us For Availability
10
Strain Relief WPL 4158092 Contact Us For Availability
10
Screw, 5 x 16mm WPL 4158080 Contact Us For Availability
11
E-Ring WPL 4158063 Contact Us For Availability
11
Cord, Power WPL 4158760 Contact Us For Availability
11
Lever Switch WPL 4158738 Contact Us For Availability
12
Capacitor WPL 4158752 Contact Us For Availability
12
Control Panel Complete WPL 4158775 Contact Us For Availability
12
Wrapper, Cabinet WPL 4158746 Contact Us For Availability
13
Diode Cable WPL 4158298 Contact Us For Availability
13
Lever, Release WPL 4158777 Contact Us For Availability
13
Door, Complete WPL 4158774 Contact Us For Availability
14
Bracket, Capacitor WPL 4158753 Contact Us For Availability
14
Plug, Hole WPL 4158748 Contact Us For Availability
14
Hinge Plate, Upper WPL 4158739 Contact Us For Availability
15
Plate, Base WPL 4158580 Contact Us For Availability
15
Air Guide WPL 4158286 Contact Us For Availability
15
Washer WPL 4158086 Contact Us For Availability
16
Blade, Stirrer WPL 4158742 Contact Us For Availability
16
Washer WPL 4339331 Contact Us For Availability
17
Transformer WPL 4158749 Contact Us For Availability
17
Spacer WPL 4339376 Contact Us For Availability
18
Screw, 5 x 12mm WPL 4158103 Contact Us For Availability
18
Bracket WPL 4339326 Contact Us For Availability
18
Washer WPL 4158117 Contact Us For Availability
19
Seal, Foam WPL 4158228 Contact Us For Availability
20
Holder, Fuse WPL 4158761 Contact Us For Availability
20
Seal, Foam WPL 4158230 Contact Us For Availability
21
Screw, 4 x 10 mm WPL 4158072 Contact Us For Availability
21
Seal, Foam WPL 4158297 Contact Us For Availability
22
Fuse WPL 4158378 Contact Us For Availability
22
Seal, Foam WPL 4158118 Contact Us For Availability
23
Foot, Left (2) WPL 4158764 Contact Us For Availability
23
Screw WPL 4158079 Contact Us For Availability
24
Nut WPL 4158053 Contact Us For Availability
24
Screw WPL 4158472 Contact Us For Availability
25
Cover WPL 4158284 Contact Us For Availability
25
Holder, Stirrer WPL 4158741 Contact Us For Availability
26
Bracket, Magnetron WPL 4158283 Contact Us For Availability
26
Bushing WPL 4339341 Contact Us For Availability
27
Cover, Fan WPL 4158757 Contact Us For Availability
27
Washer WPL 4158252 Contact Us For Availability
28
Lead, High Voltage WPL 4158751 Contact Us For Availability
28
Retainer WPL 4158253 Contact Us For Availability
29
Lead, High Voltage WPL 4158750 Contact Us For Availability
29
Screw, 4 x 21mm WPL 4158307 Contact Us For Availability
30
Seal, Foam WPL 4158039 Contact Us For Availability
31
Seal, Foam WPL 4158041 Contact Us For Availability
32
Seal, Foam WPL 4158057 Contact Us For Availability
33
Seal, Foam WPL 4158119 Contact Us For Availability
34
Plate, Discharge WPL 4158126 Contact Us For Availability
35
Screw, 4 x 8 mm WPL 4158073 Contact Us For Availability
36
Screw, 4 x 6 mm WPL 4158074 Contact Us For Availability
37
Nut WPL 4158233 Contact Us For Availability
38
Foot, Right (2) WPL 4158763 Contact Us For Availability
39
Thermostat WPL 4158765 Contact Us For Availability
40
Bracket, Base WPL 4158766 Contact Us For Availability
× ![]()
