Model Maytag MCD2358WEB01 REFRIGERATOR – Common Parts & Diagrams

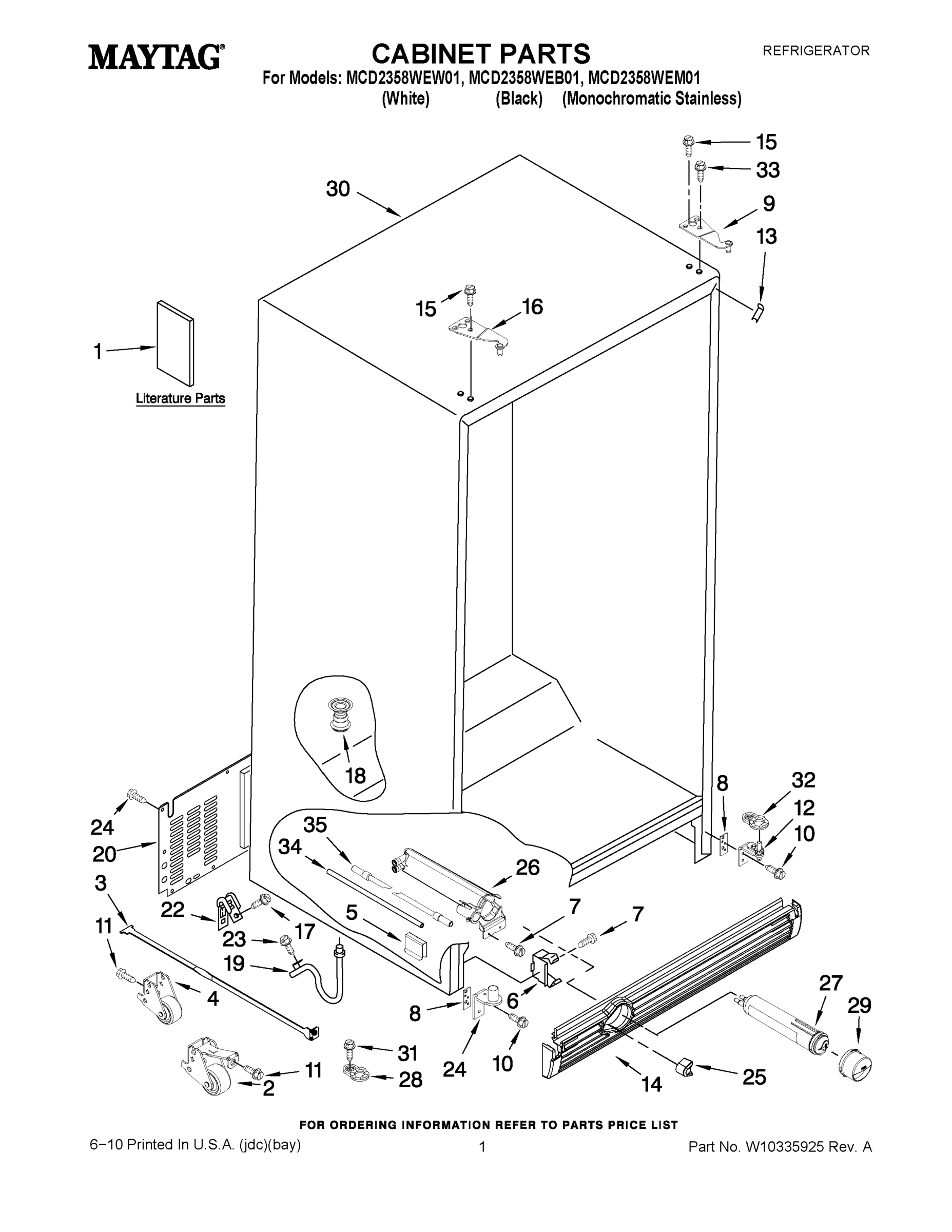

01 - CABINET PARTS

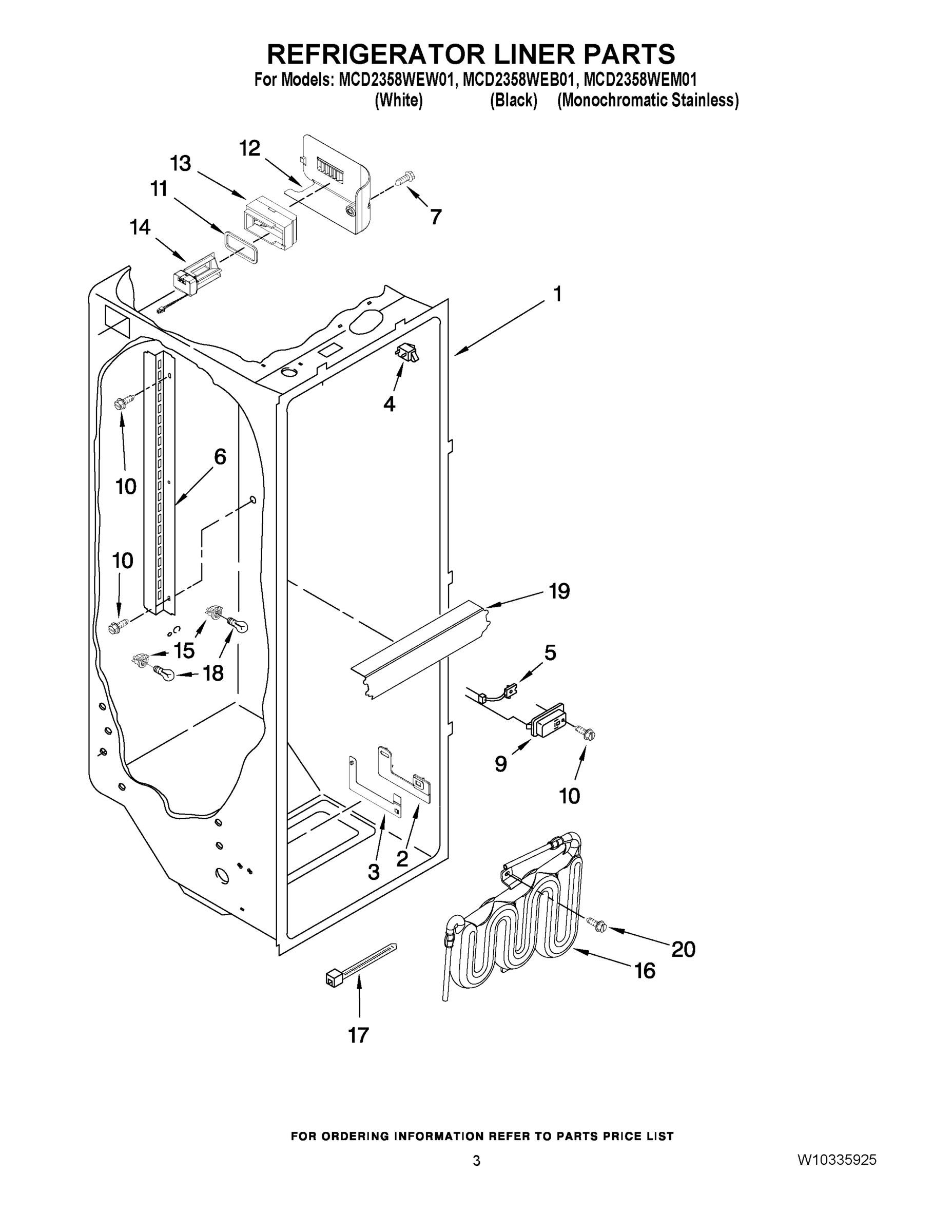

02 - REFRIGERATOR LINER PARTS
03 - REFRIGERATOR SHELF PARTS
04 - FREEZER LINER PARTS
05 - MOTOR AND ICE CONTAINER PARTS
06 - REFRIGERATOR DOOR PARTS
07 - FREEZER DOOR PARTS
08 - DISPENSER FRONT PARTS
09 - AIR FLOW PARTS
10 - CONTROL PARTS
11 - UNIT PARTS
12 - ICEMAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MCD2358WEB01 REFRIGERATOR
1
MAY 2220407 MAY 2220407 Contact Us For Availability
1
MAY 2223996 MAY 2223996 Contact Us For Availability
1
MAY W10168310 MAY W10168310 Contact Us For Availability
1
MAY W10184974 MAY W10184974 Contact Us For Availability
1
SERVICE & WIRING SHEET MAY W10203129 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
SHELF ASSY, PAN MAY W10141750 Contact Us For Availability
1
MAY 2223317 MAY 2223317 Contact Us For Availability
1
MAY W10168248 MAY W10168248 Contact Us For Availability
1
MAY W10168249 MAY W10168249 Contact Us For Availability
1
MAY W10257858 MAY W10257858 Contact Us For Availability
1
MAY W10201420B MAY W10201420B Contact Us For Availability
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO MAY W10201420W Contact Us For Availability
1
MAY W10269445 MAY W10269445 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY 2223882 MAY 2223882 Contact Us For Availability
1
SCREW MAY 777070 Contact Us For Availability
2
MAY W10199222 MAY W10199222 Contact Us For Availability
2
MAY W10199223 MAY W10199223 Contact Us For Availability
2
MAY 2223524 MAY 2223524 Contact Us For Availability
2
BUTTON, HUMIDITY MAY 2179343 Contact Us For Availability
2
MAY 3400893 MAY 3400893 Contact Us For Availability
2
CRUSHER BIN MAY W10130497 Contact Us For Availability
2
Trim, Shelf MAY 2203087 Contact Us For Availability
2
MAY W10170743 MAY W10170743 Contact Us For Availability
2
MAY W10170749 MAY W10170749 Contact Us For Availability
2
MAY W10170750 MAY W10170750 Contact Us For Availability
2
Screw MAY 3196537 Contact Us For Availability
2
MAY 2223733 MAY 2223733 Contact Us For Availability
2
MAY 2223506 MAY 2223506 Contact Us For Availability
2
FAN BLADE MAY W10139483 Contact Us For Availability
2
FITTING, WATER TUBE MAY W10271542 Contact Us For Availability
3
MAY W10199260 MAY W10199260 Contact Us For Availability
3
MAY 2223339 MAY 2223339 Contact Us For Availability
3
SLIDE, HUMIDITY MAY 2179342 Contact Us For Availability
3
MAY 2223980 MAY 2223980 Contact Us For Availability
3
MAY 2317280 MAY 2317280 Contact Us For Availability
3
MAY 2255421 MAY 2255421 Contact Us For Availability
3
MAY W10193334 MAY W10193334 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
Light Socket MAY 2223857 Contact Us For Availability
3
MAY W10193018 MAY W10193018 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
MAY W10173132 MAY W10173132 Contact Us For Availability
4
MAY 489478 MAY 489478 Contact Us For Availability
4
Switch, Rocker Arm MAY 1118894 Contact Us For Availability
4
COVER, MEAT PAN MAY W10270150 Contact Us For Availability
4
MAY 2223500 MAY 2223500 Contact Us For Availability
4
MAY 2258220 MAY 2258220 Contact Us For Availability
4
DOOR BIN MAY 2304235 Contact Us For Availability
4
Badge (Maytag) MAY W10170766 Contact Us For Availability
4
MAY W10224328 MAY W10224328 Contact Us For Availability
4
MAY W10256500 MAY W10256500 Contact Us For Availability
4
MAY 2326255 MAY 2326255 Contact Us For Availability
4
MAY 8533859 MAY 8533859 Contact Us For Availability
5
MAY 2223388 MAY 2223388 Contact Us For Availability
5
MAY 2188820 MAY 2188820 Contact Us For Availability
5
SNACK PAN MAY 2188667 Contact Us For Availability
5
Spacer, Flat (6) MAY 1119007 Contact Us For Availability
5
MAY 3400012 MAY 3400012 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 2223771 MAY 2223771 Contact Us For Availability
5
MAY 3400524 MAY 3400524 Contact Us For Availability
5
MAY W10210603 MAY W10210603 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
MAY 2319866 MAY 2319866 Contact Us For Availability
6
Cover, Crisper MAY 2209698 Contact Us For Availability
6
MAY 2223782 MAY 2223782 Contact Us For Availability
6
MAY 2317248 MAY 2317248 Contact Us For Availability
6
MAY W10129563 MAY W10129563 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY W10225581 MAY W10225581 Contact Us For Availability
6
MAY W10199261 MAY W10199261 Contact Us For Availability
6
Tube Clip MAY 2208136 Contact Us For Availability
7
GLASS COVER MAY 2179259 Contact Us For Availability
7
MAY 2223787 MAY 2223787 Contact Us For Availability
7
MAY 2223788 MAY 2223788 Contact Us For Availability
7
BLADE, ROTARY MAY W10278733 Contact Us For Availability
7
MAY 2223841 MAY 2223841 Contact Us For Availability
7
MAY 2223911 MAY 2223911 Contact Us For Availability
7
SHELF BIN MAY 2171157 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
MAY 2259385 MAY 2259385 Contact Us For Availability
7
MAY 2223351 MAY 2223351 Contact Us For Availability
7
COVER MAY W10289690 Contact Us For Availability
8
MAY 2223545 MAY 2223545 Contact Us For Availability
8
MAY 2174478 MAY 2174478 Contact Us For Availability
8
MAY 2223681 MAY 2223681 Contact Us For Availability
8
Spacer, Step (2) MAY 1119005 Contact Us For Availability
8
MAY 2223850 MAY 2223850 Contact Us For Availability
8
MAY 2223912 MAY 2223912 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
MAY 488649 MAY 488649 Contact Us For Availability
9
MAY 2307008AP MAY 2307008AP Contact Us For Availability
9
MAY 2307008B MAY 2307008B Contact Us For Availability
9
MAY 2307008W MAY 2307008W Contact Us For Availability
9
MAY 2317105 MAY 2317105 Contact Us For Availability
9
MAY 2188212 MAY 2188212 Contact Us For Availability
9
MAY 2223981 MAY 2223981 Contact Us For Availability
9
MAY 2257020 MAY 2257020 Contact Us For Availability
9
TRIVET MAY W10307494 Contact Us For Availability
9
MAY W10171993 MAY W10171993 Contact Us For Availability
9
MAY W10323445 MAY W10323445 Contact Us For Availability
9
GRILLE, OVERFLOW (BLACK) MAY W10323446 Contact Us For Availability
9
Gasket MAY 2304241 Contact Us For Availability
9
INSULATIION, SOUND MAY 2169104 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
MAY 3400113 MAY 3400113 Contact Us For Availability
10
MAY 489211 MAY 489211 Contact Us For Availability
10
MAY 489427 MAY 489427 Contact Us For Availability
10
BLADE, ROTARY MAY W10278732 Contact Us For Availability
10
MAY 2223879 MAY 2223879 Contact Us For Availability
10
MAY 2308091 MAY 2308091 Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
MAY 2223986 MAY 2223986 Contact Us For Availability
10
MAY W10165989 MAY W10165989 Contact Us For Availability
10
MAY W10272168 MAY W10272168 Contact Us For Availability
11
MAY 3400243 MAY 3400243 Contact Us For Availability
11
MAY 489464 MAY 489464 Contact Us For Availability
11
MAY 2304597 MAY 2304597 Contact Us For Availability
11
CRISPER PAN MAY W10178772 Contact Us For Availability
11
CLIP, AIR DUCT (2) MAY 2315163 Contact Us For Availability
11
MAY 2317239 MAY 2317239 Contact Us For Availability
11
DOOR CLOSER, UPPER CAM MAY W10132977 Contact Us For Availability
11
MAY W10152853 MAY W10152853 Contact Us For Availability
11
MAY W10152854 MAY W10152854 Contact Us For Availability
11
MAY W10152855 MAY W10152855 Contact Us For Availability
11
MAY W10155161 MAY W10155161 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
HINGE ASSEMBLY, BOTTOM-RC MAY 2307179 Contact Us For Availability
12
MAY 2223403 MAY 2223403 Contact Us For Availability
12
MAY 2318569 MAY 2318569 Contact Us For Availability
12
MAY 2224137 MAY 2224137 Contact Us For Availability
12
MAY 2224138 MAY 2224138 Contact Us For Availability
12
MAY 489229 MAY 489229 Contact Us For Availability
12
MAY 2307048 MAY 2307048 Contact Us For Availability
12
MAY 489420 MAY 489420 Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
MAY W10297478 MAY W10297478 Contact Us For Availability
12
ELEK CTRL, PYTHON MAY W10120824 Contact Us For Availability
12
ICE STRIPER MAY W10272161 Contact Us For Availability
13
MAY 2223893AP MAY 2223893AP Contact Us For Availability
13
MAY 2223893B MAY 2223893B Contact Us For Availability
13
MAY 2223893W MAY 2223893W Contact Us For Availability
13
MAY 2224076 MAY 2224076 Contact Us For Availability
13
SHELF AND FRAME ASSEMBLY MAY W10235943 Contact Us For Availability
13
MAY 2259487 MAY 2259487 Contact Us For Availability
13
BLADE, ROTARY MAY W10278731 Contact Us For Availability
13
BRACKET, DOOR STOP (CHROME) MAY W10215319 Contact Us For Availability
13
MAY W10215323 MAY W10215323 Contact Us For Availability
13
MAY 2305571 MAY 2305571 Contact Us For Availability
13
Gasket Cover MAY 2155789 Contact Us For Availability
13
MAY W10293050 MAY W10293050 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
MAY W10184057 MAY W10184057 Contact Us For Availability
14
MAY W10194047 MAY W10194047 Contact Us For Availability
14
MAY W10194061 MAY W10194061 Contact Us For Availability
14
MAY 2220377 MAY 2220377 Contact Us For Availability
14
MAY 489261 MAY 489261 Contact Us For Availability
14
MAY 8534064 MAY 8534064 Contact Us For Availability
14
MAY 489235 MAY 489235 Contact Us For Availability
14
SPACER, SWITCH MAY 625834 Contact Us For Availability
14
MAY 2203876 MAY 2203876 Contact Us For Availability
14
CLAMP, CABLE MAY 1115374 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
MAY 3400108 MAY 3400108 Contact Us For Availability
15
MAY 2223487 MAY 2223487 Contact Us For Availability
15
MAY 2198635 MAY 2198635 Contact Us For Availability
15
MAY 2198661 MAY 2198661 Contact Us For Availability
15
Bracket, Door Stop (Chrome) MAY 2306940 Contact Us For Availability
15
MAY 2306940B MAY 2306940B Contact Us For Availability
15
MAY W10206221 MAY W10206221 Contact Us For Availability
15
MAY 2223413 MAY 2223413 Contact Us For Availability
15
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
16
MAY 2307007AP MAY 2307007AP Contact Us For Availability
16
MAY 2307007B MAY 2307007B Contact Us For Availability
16
MAY 2307007W MAY 2307007W Contact Us For Availability
16
MAY 2307107 MAY 2307107 Contact Us For Availability
16
MAY 2203029 MAY 2203029 Contact Us For Availability
16
MAY 2198634 MAY 2198634 Contact Us For Availability
16
MAY 2188918 MAY 2188918 Contact Us For Availability
16
SWITCH, BRACKET MAY 2162361 Contact Us For Availability
16
Screw (6) MAY 8281159 Contact Us For Availability
16
INVERTER BOX ASSY MAY W10186719 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
MAY 2205813 MAY 2205813 Contact Us For Availability
17
MAY W10173126 MAY W10173126 Contact Us For Availability
17
MAY 2198665 MAY 2198665 Contact Us For Availability
17
MAY 8281164 MAY 8281164 Contact Us For Availability
17
MAY 2224173 MAY 2224173 Contact Us For Availability
17
MAY W10152858 MAY W10152858 Contact Us For Availability
17
MAY W10152859 MAY W10152859 Contact Us For Availability
17
MAY W10152860 MAY W10152860 Contact Us For Availability
17
MAY W10155162 MAY W10155162 Contact Us For Availability
17
MAY 2325479 MAY 2325479 Contact Us For Availability
17
MAY 489276 MAY 489276 Contact Us For Availability
18
MAY 2304888 MAY 2304888 Contact Us For Availability
18
MAY W10191954 MAY W10191954 Contact Us For Availability
18
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
18
MAY 2156006 MAY 2156006 Contact Us For Availability
18
MAY 489000 MAY 489000 Contact Us For Availability
18
MAY 2223395 MAY 2223395 Contact Us For Availability
18
ELECTRONIC CONTROL MAY W10209635 Contact Us For Availability
18
MAY 2187467 MAY 2187467 Contact Us For Availability
19
MAY 2254566 MAY 2254566 Contact Us For Availability
19
MAY 2223663 MAY 2223663 Contact Us For Availability
19
MAY W10173127 MAY W10173127 Contact Us For Availability
19
MAY W10193840 MAY W10193840 Contact Us For Availability
19
MAY W10136850 MAY W10136850 Contact Us For Availability
19
BEZEL, DISP (BLACK, STAINLESS) MAY W10136851 Contact Us For Availability
19
MAY W10136852 MAY W10136852 Contact Us For Availability
19
BEZEL, DISP (MONO SATINA) MAY W10139842 Contact Us For Availability
19
BEZEL, DISP (MONO STAINLESS) MAY W10171988 Contact Us For Availability
19
MAY 2203596 MAY 2203596 Contact Us For Availability
19
MAY 2306932 MAY 2306932 Contact Us For Availability
19
Bracket, Ice Maker Mounting MAY 2303583 Contact Us For Availability
20
MAY 2223409 MAY 2223409 Contact Us For Availability
20
SCREW MAY W10080380 Contact Us For Availability
20
MAY W10191952 MAY W10191952 Contact Us For Availability
20
MAY W10185438 MAY W10185438 Contact Us For Availability
20
MAY 2317277 MAY 2317277 Contact Us For Availability
20
MAY 2304673 MAY 2304673 Contact Us For Availability
20
MAY 626691 MAY 626691 Contact Us For Availability
21
Slide, Ice Maker Mounting (Right Side) MAY 2212321 Contact Us For Availability
21
MAY 2306900 MAY 2306900 Contact Us For Availability
21
MAY 2198608 MAY 2198608 Contact Us For Availability
21
MAY 2195051 MAY 2195051 Contact Us For Availability
21
Evaporator MAY 2188823 Contact Us For Availability
21
MAY 626683 MAY 626683 Contact Us For Availability
22
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
22
MAY 3400065 MAY 3400065 Contact Us For Availability
22
Clamp MAY 2161324 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
Screw MAY 489214 Contact Us For Availability
23
Screw MAY 8281163 Contact Us For Availability
23
MAY W10245284 MAY W10245284 Contact Us For Availability
23
Fan, Motor MAY 2188874 Contact Us For Availability
24
MAY 2307152 MAY 2307152 Contact Us For Availability
24
Light Socket MAY 2162085 Contact Us For Availability
24
MAY 2188919 MAY 2188919 Contact Us For Availability
24
FASCIA ASSY, DISP (WHITE) MAY W10204997 Contact Us For Availability
24
FASCIA ASSY, DISP (BLACK) MAY W10204998 Contact Us For Availability
24
MAY W10236475 MAY W10236475 Contact Us For Availability
24
MAY 2223398 MAY 2223398 Contact Us For Availability
25
MAY 2260503B MAY 2260503B Contact Us For Availability
25
Button, Water Filter (Midnight Grey) MAY 2260503MG Contact Us For Availability
25
Button, Water Filter (White) MAY 2260503W Contact Us For Availability
25
MAY W10311505 MAY W10311505 Contact Us For Availability
25
MAY 2317243 MAY 2317243 Contact Us For Availability
25
GASKET (2) MAY W10194025 Contact Us For Availability
25
MAY 2224022 MAY 2224022 Contact Us For Availability
26
MAY W10121140 MAY W10121140 Contact Us For Availability
26
MAY 8281185 MAY 8281185 Contact Us For Availability
26
MAY 2198628 MAY 2198628 Contact Us For Availability
26
MAY W10170412 MAY W10170412 Contact Us For Availability
26
Drier MAY W10177049 Contact Us For Availability
27
MAY 4396841 MAY 4396841 Contact Us For Availability
27
MAY 2198633 MAY 2198633 Contact Us For Availability
27
Divider Chamber MAY 2317250 Contact Us For Availability
27
CTRL-ELEK, DISP MAY W10175973 Contact Us For Availability
27
COMPRESSOR (INCLUDES ITEM 16 & 35) MAY W10186723 Contact Us For Availability
28
MAY 2307051 MAY 2307051 Contact Us For Availability
28
MAY W10173569 MAY W10173569 Contact Us For Availability
28
MAY 2188916 MAY 2188916 Contact Us For Availability
28
MAY 2223800 MAY 2223800 Contact Us For Availability
29
MAY 2260502B MAY 2260502B Contact Us For Availability
29
MAY 2260502MG MAY 2260502MG Contact Us For Availability
29
MAY 2260502W MAY 2260502W Contact Us For Availability
29
MAY 2315398 MAY 2315398 Contact Us For Availability
29
MAY 2322488 MAY 2322488 Contact Us For Availability
29
MAY W10129751 MAY W10129751 Contact Us For Availability
30
MAY W10290817 MAY W10290817 Contact Us For Availability
30
DISPENSER, MOTOR MAY W10215646 Contact Us For Availability
30
MAY 2224024 MAY 2224024 Contact Us For Availability
31
MAY 489483 MAY 489483 Contact Us For Availability
31
MAY 2198643 MAY 2198643 Contact Us For Availability
31
MAY 2212305 MAY 2212305 Contact Us For Availability
31
MAY 2323199 MAY 2323199 Contact Us For Availability
32
Door Closer, RC MAY 2307049 Contact Us For Availability
32
MAY 2198589 MAY 2198589 Contact Us For Availability
32
SLEEVE, COUPLING MAY 2315559 Contact Us For Availability
32
MAY 2304287 MAY 2304287 Contact Us For Availability
33
MAY 3400858 MAY 3400858 Contact Us For Availability
33
MAY 2212340 MAY 2212340 Contact Us For Availability
33
WIRE HARNESS, IDI MOTOR MAY W10193342 Contact Us For Availability
33
Screw (4) MAY 489373 Contact Us For Availability
34
MAY 2224020 MAY 2224020 Contact Us For Availability
34
Bracket, Ice Maker Cover MAY 2198641 Contact Us For Availability
35
MAY W10212512 MAY W10212512 Contact Us For Availability
35
Socket, Light MAY 2155597 Contact Us For Availability
35
Grommet (4) MAY 1100826 Contact Us For Availability
36
MAY 2198609 MAY 2198609 Contact Us For Availability
36
MAY 2198610 MAY 2198610 Contact Us For Availability
36
MAY 2223394 MAY 2223394 Contact Us For Availability
37
MAY 2303378 MAY 2303378 Contact Us For Availability
37
MAY 2155547 MAY 2155547 Contact Us For Availability
38
GROMMET-COND-(4) MAY 2319835 Contact Us For Availability
39
MAY 2187737 MAY 2187737 Contact Us For Availability
40
CONNECTOR, WATER TUBE MAY 2303216 Contact Us For Availability
100
ICE CONTAINER ASSEMBLY MAY W10130500 Contact Us For Availability
100
MAY W10272869 MAY W10272869 Contact Us For Availability
NI
REFRIGERANT CHARGE (6.00 OZ. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (BISCUIT) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (WHITE) MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (BLACK) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
REFINISHING MATERIAL (GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10134625 MAY W10134625 Contact Us For Availability
× ![]()
