Model Whirlpool MC8991XT0 – Common Parts & Diagrams
03 - MAGNETRON AND AIRFLOW

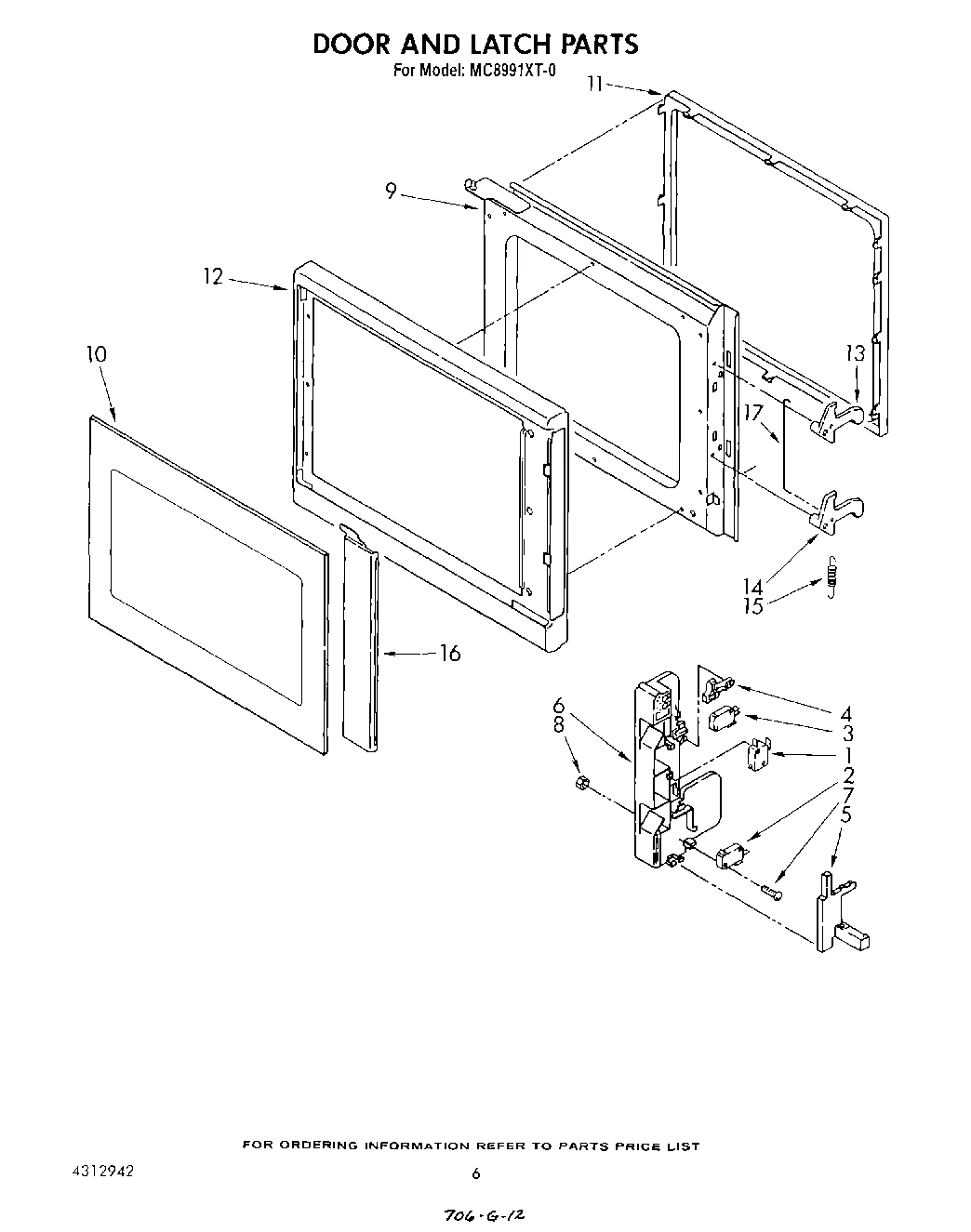

05 - DOOR AND LATCH
07 - WIRING HARNESS
04 - CABINET
06 - CONTROL PANEL
02 - CABINET AND STIRRER , LITERATURE AN
Common parts from model Whirlpool MC8991XT0
WPL LIT4312801 WPL LIT4312801 Contact Us For Availability
WPL LIT4312804 WPL LIT4312804 Contact Us For Availability
WPL LIT4312810 WPL LIT4312810 Contact Us For Availability
WPL LIT4312942 WPL LIT4312942 Contact Us For Availability
1
Switch and Fuse Assembly WPL 4312819 Contact Us For Availability
1
Power Cord WPL 4312818 Contact Us For Availability
1
Microcomputer WPL 4312848 Contact Us For Availability
2
Clip, Harness WPL 4312926 Contact Us For Availability
2
Fuse, 20 Amp WPL 4312924 Contact Us For Availability
2
Frame, Control Panel WPL 4312934 Contact Us For Availability
2
Light Socket WPL 4174730 Contact Us For Availability
3
Jack Assy. WPL 4312816 Contact Us For Availability
3
Clip, Harness WPL 4312927 Contact Us For Availability
3
Fuse Holder WPL 4312820 Contact Us For Availability
3
Push Button WPL 4312935 Contact Us For Availability
4
Magnetron WPL 4312833 Contact Us For Availability
4
Hook, Lever WPL 4312877 Contact Us For Availability
4
Clip, Harness WPL 4312928 Contact Us For Availability
4
Transformer WPL 4312866 Contact Us For Availability
4
Spring, Button WPL 4312851 Contact Us For Availability
4
Motor, Fan Cooling WPL 4312829 Contact Us For Availability
5
Thermal Protector (2) WPL 4312830 Contact Us For Availability
5
Latch Lever WPL 4312878 Contact Us For Availability
5
Harness, Base Plate WPL 4312910 Contact Us For Availability
5
Capacitor WPL 4312831 Contact Us For Availability
5
Plate, Mounting WPL 4312852 Contact Us For Availability
5
Sensor Assy. WPL 4312925 Contact Us For Availability
6
Heating Element WPL 4312825 Contact Us For Availability
6
Latch Hook WPL 4312879 Contact Us For Availability
6
Rectifier WPL 4312867 Contact Us For Availability
6
Release Lever WPL 4312853 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI117881A Contact Us For Availability
7
Thermistor WPL 4312824 Contact Us For Availability
7
Screw WPL 4312917 Contact Us For Availability
7
Jumper Wire WPL 4312911 Contact Us For Availability
7
Outer Cabinet WPL 4312930 Contact Us For Availability
7
Mounting Pin WPL 4312854 Contact Us For Availability
7
Stirrer Cover Assy. WPL 4312856 Contact Us For Availability
8
Motor, Fan (Convection) WPL 4312828 Contact Us For Availability
8
Nut WPL 4312923 Contact Us For Availability
8
Wire, Ground WPL 4312912 Contact Us For Availability
8
Cabinet Base WPL 4312839 Contact Us For Availability
8
Bracket, Mounting WPL 4312855 Contact Us For Availability
8
Stirrer Fan Assy. WPL 4312857 Contact Us For Availability
9
Heater Duct Assy. WPL 4312835 Contact Us For Availability
9
Liner, Door WPL 4312896 Contact Us For Availability
9
Rubber Foot WPL 4312841 Contact Us For Availability
9
Screw (5) WPL 4312920 Contact Us For Availability
9
Support, Chassis WPL 4312858 Contact Us For Availability
10
Fan Blade (Convection) WPL 4312836 Contact Us For Availability
10
Panel, Glass WPL 4312938 Contact Us For Availability
10
Cabinet Rear WPL 4312842 Contact Us For Availability
10
Screw (2) WPL 4312921 Contact Us For Availability
10
Insulation (L.H.) WPL 4312859 Contact Us For Availability
10
Insulation (R.H.) WPL 4312886 Contact Us For Availability
11
Fan Blade (Reflection) WPL 4312837 Contact Us For Availability
11
Retainer Ring WPL 4312898 Contact Us For Availability
11
Capacitor Holder WPL 4312844 Contact Us For Availability
11
Panel, Oven Cavity (L.H.) WPL 4312860 Contact Us For Availability
11
Panel, Oven Cavity (R.H.) WPL 4312883 Contact Us For Availability
12
Plate, Motor Mounting WPL 4312873 Contact Us For Availability
12
Door Frame WPL 4312939 Contact Us For Availability
12
Lower Hinge WPL 4312931 Contact Us For Availability
12
Stirrer Fan Duct WPL 4312861 Contact Us For Availability
13
Clip, Element (2) WPL 4312880 Contact Us For Availability
13
Upper Latch WPL 4312900 Contact Us For Availability
13
Extension, Cabinet Base WPL 4312843 Contact Us For Availability
13
Glass, Oven Light WPL 4312862 Contact Us For Availability
14
Collar WPL 4312881 Contact Us For Availability
14
Lower Latch WPL 4312901 Contact Us For Availability
14
Block, Foam WPL 4312846 Contact Us For Availability
14
Mounting Plate, Oven Light WPL 4312863 Contact Us For Availability
15
Plate, Protector WPL 4312882 Contact Us For Availability
15
Spring, Latch WPL 4312902 Contact Us For Availability
15
Vibration Block WPL 4312847 Contact Us For Availability
15
Upper Hinge WPL 4312936 Contact Us For Availability
16
Plate, Thermal Protector WPL 4312884 Contact Us For Availability
16
Cover, Frame WPL 4312940 Contact Us For Availability
16
Screw (9) WPL 4312913 Contact Us For Availability
16
Divider Plate WPL 4312865 Contact Us For Availability
17
Insulation WPL 4312885 Contact Us For Availability
17
Shaft, Latch WPL 4312904 Contact Us For Availability
17
Screw (2) WPL 4312914 Contact Us For Availability
17
Exhaust Duct Assy. WPL 4312868 Contact Us For Availability
18
Cover, Thermal Protector WPL 4312887 Contact Us For Availability
18
Screw (3) WPL 4312915 Contact Us For Availability
18
Cooling Duct Magnetron WPL 4312869 Contact Us For Availability
19
Foam Block WPL 4312890 Contact Us For Availability
19
Screw WPL 4312922 Contact Us For Availability
19
Fan Blade Assy. WPL 4312871 Contact Us For Availability
20
Screw (2) WPL 4312919 Contact Us For Availability
20
Clip, Retainer WPL 4312872 Contact Us For Availability
21
Plastic Screw WPL 4312874 Contact Us For Availability
22
Foam Block WPL 4312893 Contact Us For Availability
22
Rack Support (L.H.) WPL 4312875 Contact Us For Availability
22
Rack Support (R.H.) WPL 4312876 Contact Us For Availability
23
Block, Foam WPL 4312892 Contact Us For Availability
25
Block, Foam WPL 4312888 Contact Us For Availability
27
Block, Foam WPL 4312895 Contact Us For Availability
28
Cookie Sheet WPL 4312905 Contact Us For Availability
29
Rack (Upper) WPL 4312906 Contact Us For Availability
30
Rack (Lower) WPL 4312907 Contact Us For Availability
31
Tray, Cooking WPL 4312908 Contact Us For Availability
32
Block, Foam WPL 4312909 Contact Us For Availability
33
Block, Foam WPL 4312894 Contact Us For Availability
34
Temperature Probe Assy. WPL 4312815 Contact Us For Availability
35
Screw WPL 4312916 Contact Us For Availability
36
Block, Foam WPL 4312889 Contact Us For Availability
37
Magnetron Duct Assy. WPL 4312870 Contact Us For Availability
38
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
38
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
38
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
38
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
38
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
38
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
38
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
38
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
38
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
38
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
38
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
38
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
38
Screw WPL 4314918 Contact Us For Availability
38
WPL 591014 WPL 591014 Contact Us For Availability
38
WPL 830881 WPL 830881 Contact Us For Availability
38
WPL 832889 WPL 832889 Contact Us For Availability
× ![]()
