Model Whirlpool MC8131XEB0 – Common Parts & Diagrams

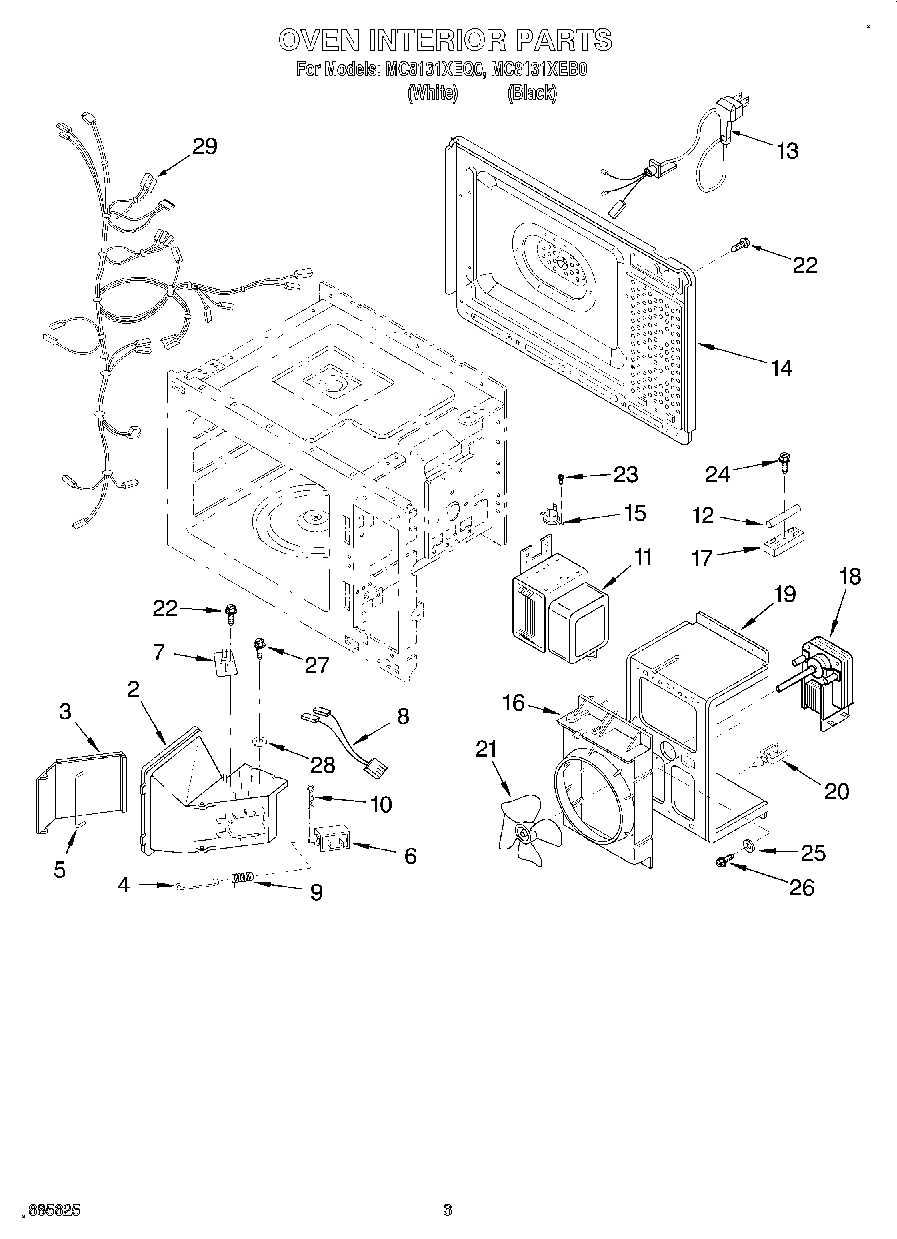

02 - OVEN INTERIOR

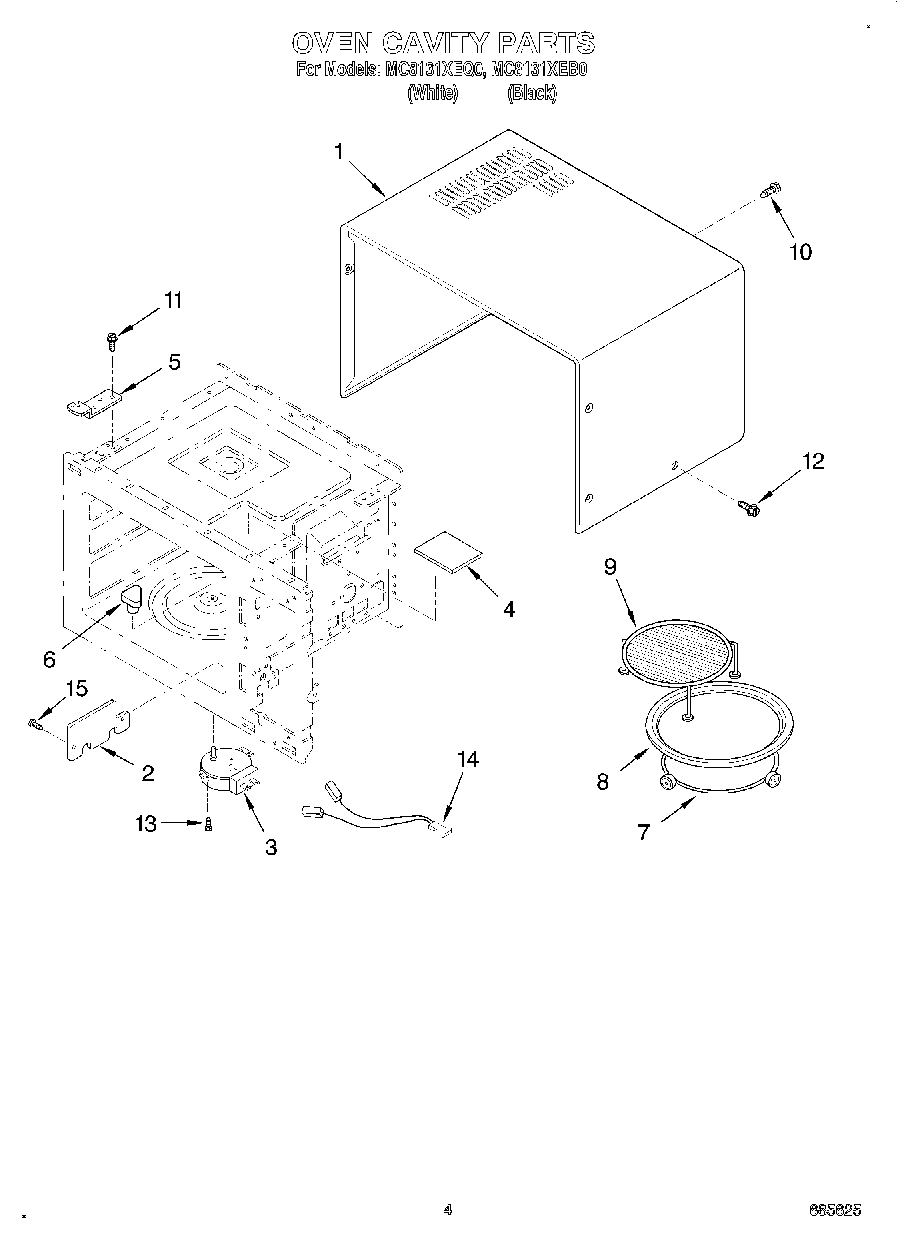

03 - OVEN CAVITY

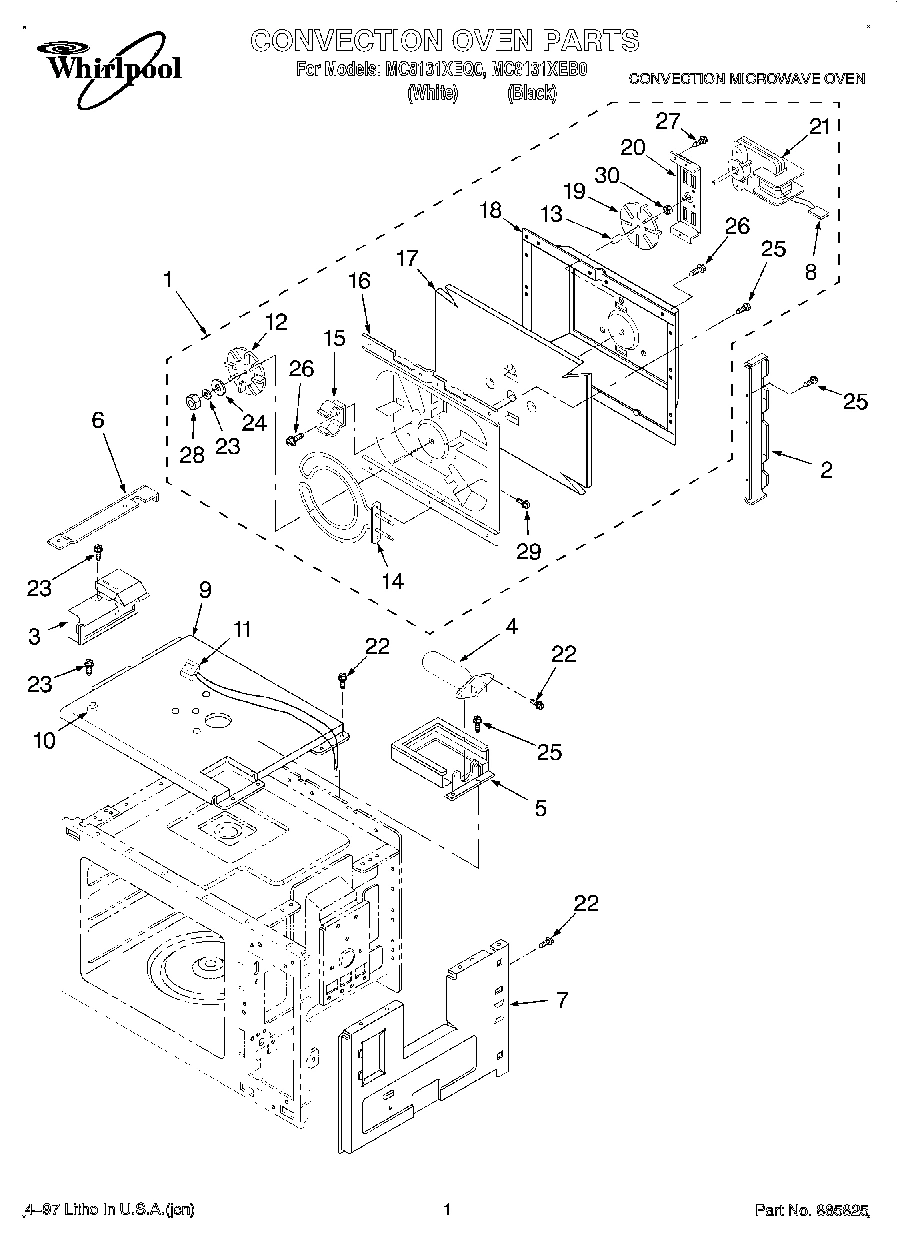

01 - CONVECTION OVEN

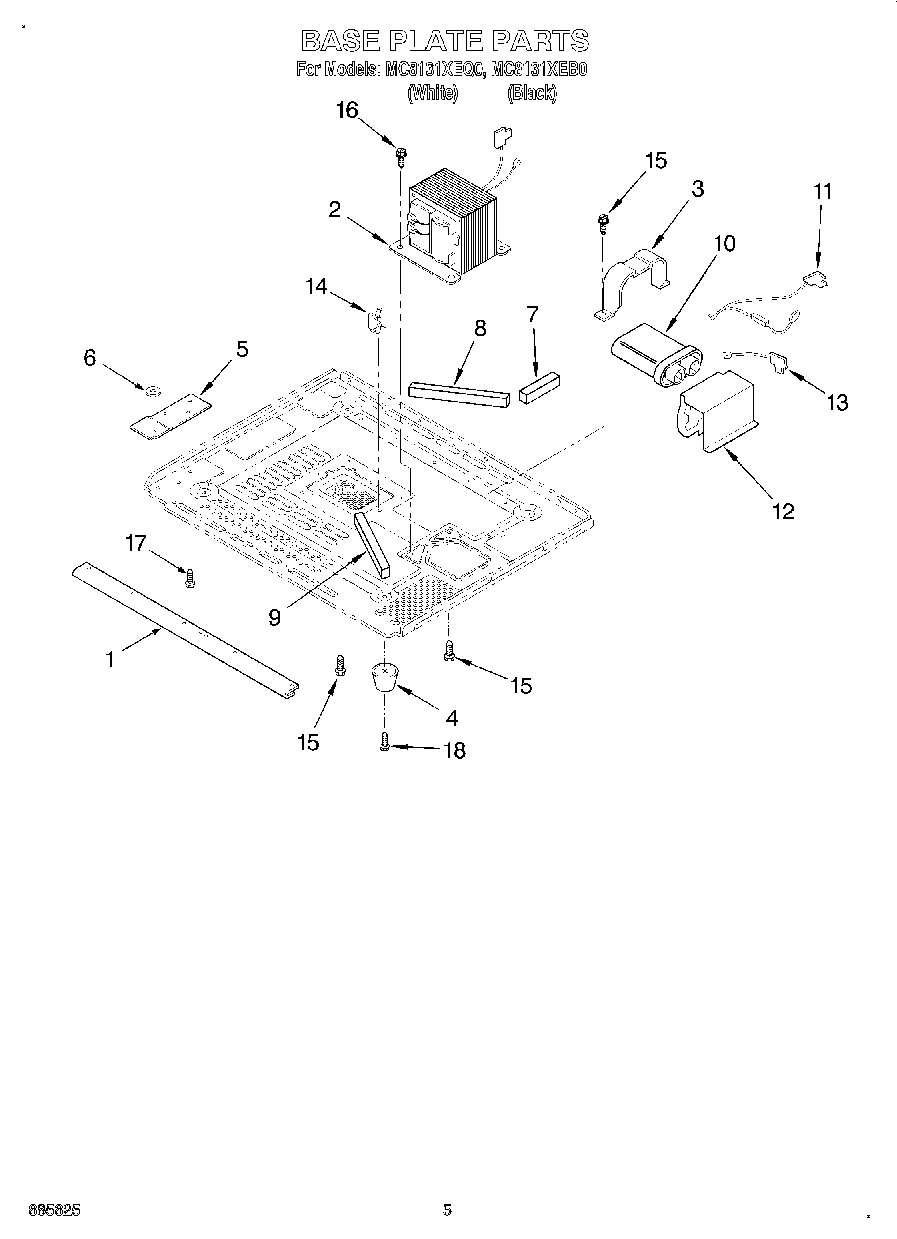

04 - BASE PLATE

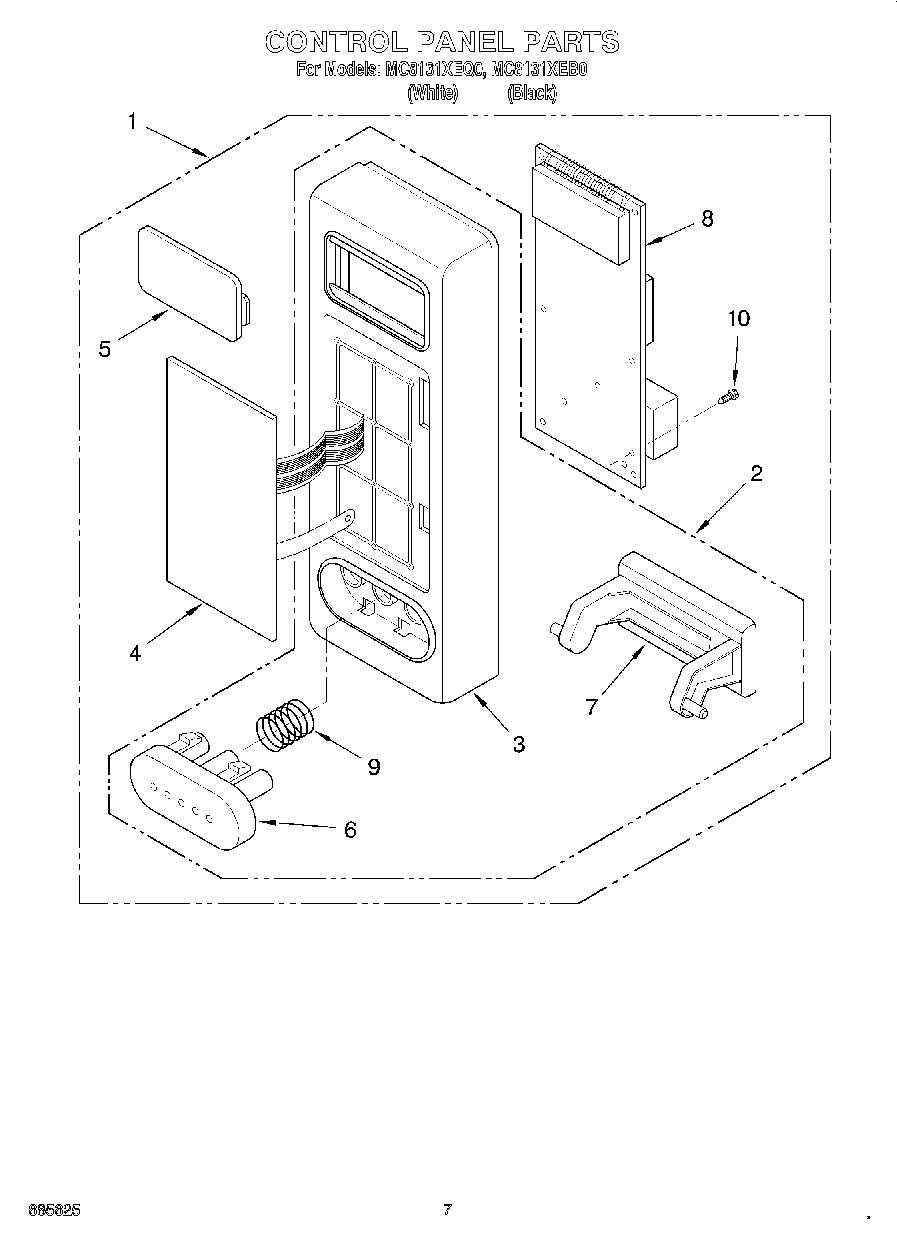

06 - CONTROL PANEL

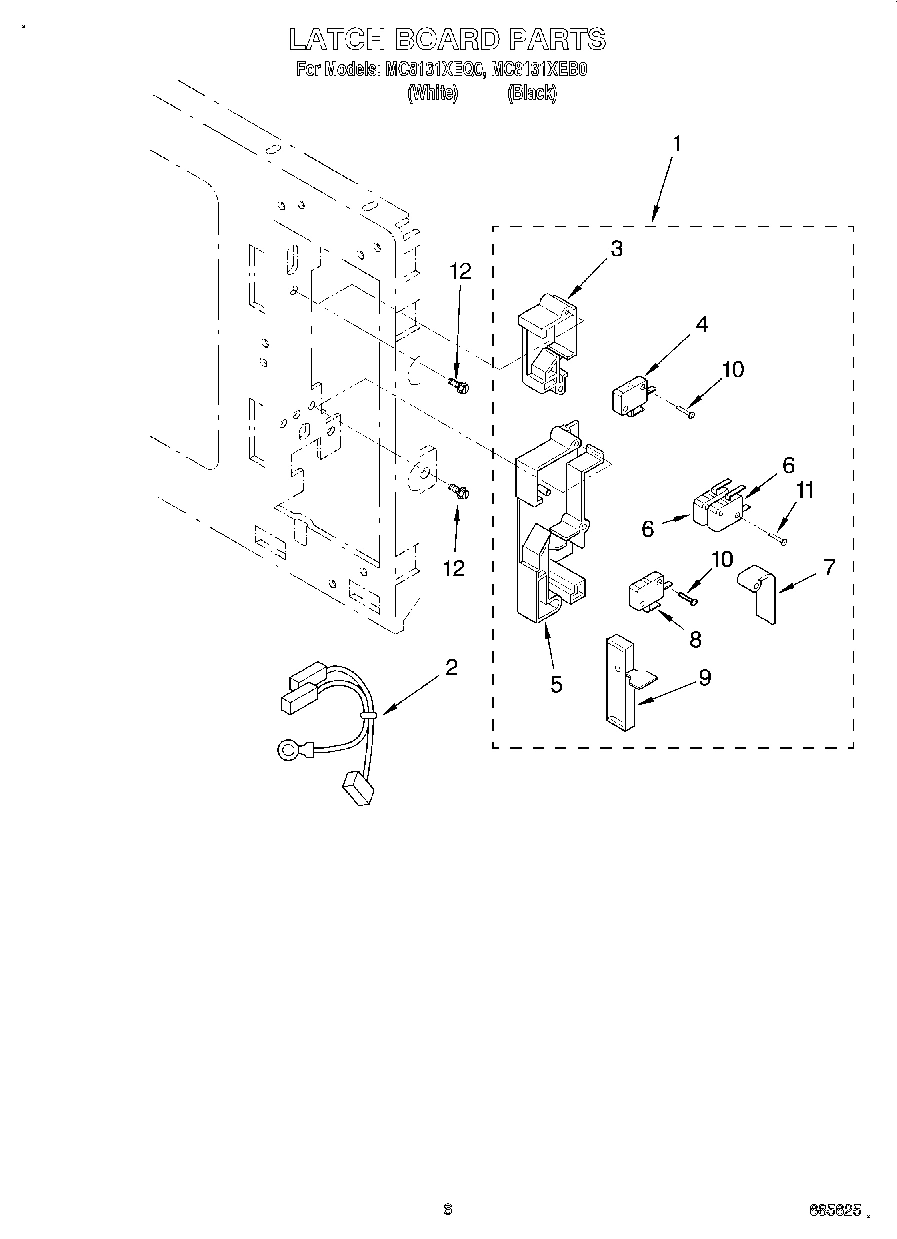

05 - LATCH BOARD

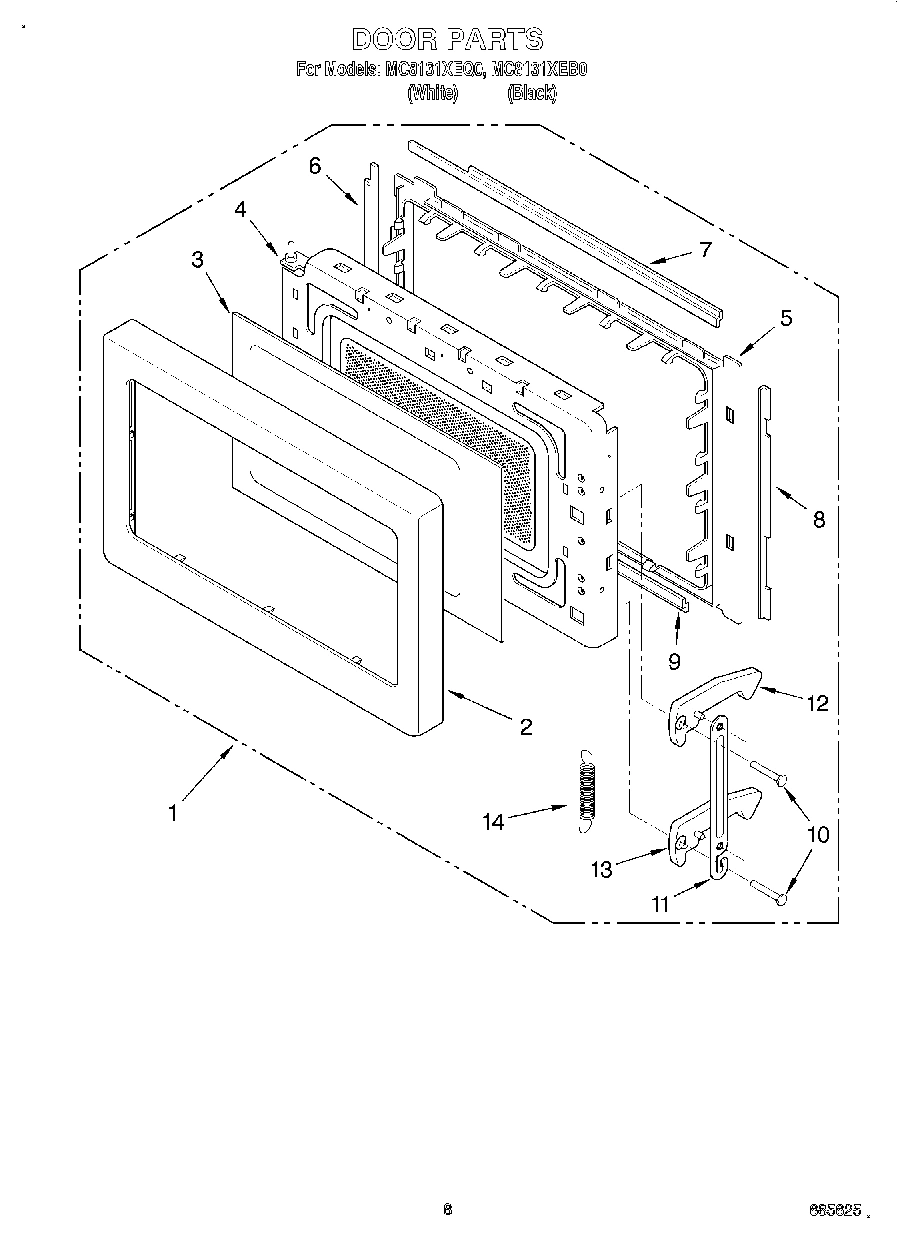

07 - DOOR, LIT/OPTIONAL
Common parts from model Whirlpool MC8131XEB0
Cookbook WPL LIT4358415 Contact Us For Availability
Use & Care Guide WPL LIT4359327 Contact Us For Availability
Cooking Guide WPL LIT4359328 Contact Us For Availability
Tech Sheet WPL LIT4359329 Contact Us For Availability
1
Outer Case (White Model) WPL 4359362 Contact Us For Availability
1
Outer Case (Black Model) WPL 4359363 Contact Us For Availability
1
Chamber Assembly WPL 4359406 Contact Us For Availability
1
Deco WPL 4358490 Contact Us For Availability
1
Assembly, Control (Non-Serviceable) (White Mo WPL 4359345 Contact Us For Availability
1
Assembly, Control (Non-Serviceable) (Black Mo WPL 4359346 Contact Us For Availability
1
Assembly, Latch WPL 4359409 Contact Us For Availability
1
Door Assembly (White Model) WPL 4359357 Contact Us For Availability
1
Door Assembly (Black Model) WPL 4359358 Contact Us For Availability
2
Cover, Outlet WPL 4358421 Contact Us For Availability
2
Bracket, Support WPL 4358454 Contact Us For Availability
2
Transformer WPL 4359410 Contact Us For Availability
2
Control Sub Assembly (Black Model) WPL 4359392 Contact Us For Availability
2
Control Sub Assembly (White Model) WPL 4359393 Contact Us For Availability
2
Harness, Latch WPL 4358863 Contact Us For Availability
2
Panel, Door (White Model) WPL 4359359 Contact Us For Availability
2
Panel, Door (Black Model) WPL 4359360 Contact Us For Availability
3
Motor, Turntable WPL 4359365 Contact Us For Availability
3
Air Tunnel WPL 4358455 Contact Us For Availability
3
Bracket, Capacitor WPL 4358494 Contact Us For Availability
3
Control Panel (White Model) WPL 4359355 Contact Us For Availability
3
Control Panel (Black Model) WPL 4359356 Contact Us For Availability
3
Latch Board WPL 4358480 Contact Us For Availability
3
Glass (Black Model) WPL 4359379 Contact Us For Availability
3
Glass (White Model) WPL 4359380 Contact Us For Availability
4
Connector, Damper WPL 4359395 Contact Us For Availability
4
Glass, Lamp WPL 4358424 Contact Us For Availability
4
Lamp WPL 4358470 Contact Us For Availability
4
Foot WPL 4358487 Contact Us For Availability
4
Membrane (White Model) WPL 4359351 Contact Us For Availability
4
Membrane (Black Model) WPL 4359353 Contact Us For Availability
4
Assembly, Door Frame WPL 4359381 Contact Us For Availability
5
Shaft WPL 4358440 Contact Us For Availability
5
Hinge WPL 4358423 Contact Us For Availability
5
Bracket, Lamp WPL 4358471 Contact Us For Availability
5
Hinge WPL 4358488 Contact Us For Availability
5
Window WPL 4359347 Contact Us For Availability
5
Latch Board WPL 4358481 Contact Us For Availability
5
Choke Cover WPL 4359382 Contact Us For Availability
6
Washer WPL 4359331 Contact Us For Availability
6
Soleniod WPL 4359396 Contact Us For Availability
6
Shaft, Turntable WPL 4358420 Contact Us For Availability
6
Cover WPL 4358472 Contact Us For Availability
6
Button (White Model) WPL 4359349 Contact Us For Availability
6
Button (Black Model) WPL 4359350 Contact Us For Availability
6
Side Trim, Door WPL 4359383 Contact Us For Availability
7
Rectifier WPL 4359397 Contact Us For Availability
7
Ring Assembly WPL 4359394 Contact Us For Availability
7
Insulator WPL 4358452 Contact Us For Availability
7
Cushion WPL 4358492 Contact Us For Availability
7
Lever, Release WPL 4359348 Contact Us For Availability
7
Lever, Switch WPL 4358482 Contact Us For Availability
7
Top Trim, Door WPL 4359384 Contact Us For Availability
8
Harness, Rectifier WPL 4359398 Contact Us For Availability
8
Tray WPL 4358431 Contact Us For Availability
8
Motor Wire WPL 4358453 Contact Us For Availability
8
Cushion WPL 4358493 Contact Us For Availability
8
PCB Sub Assembly WPL 4359340 Contact Us For Availability
8
Side Trim, Door WPL 4359385 Contact Us For Availability
9
Spring, Solenoid WPL 4358442 Contact Us For Availability
9
Rack WPL 4358429 Contact Us For Availability
9
Insulator WPL 4358456 Contact Us For Availability
9
Cushion WPL 4158864 Contact Us For Availability
9
Spring WPL 4158809 Contact Us For Availability
9
Rod, Release WPL 4358483 Contact Us For Availability
9
Bottom Trim, Door WPL 4359386 Contact Us For Availability
10
Pin WPL 4359399 Contact Us For Availability
10
Screw Black Model (Non-Serviceable) WPL 4358188 Contact Us For Availability
10
Thermostat WPL 4358457 Contact Us For Availability
10
Capacitor WPL 4158947 Contact Us For Availability
10
Screw WPL 4358357 Contact Us For Availability
10
Pin, Latch WPL 4359387 Contact Us For Availability
11
Magnatron WPL 4358059 Contact Us For Availability
11
Thermistor WPL 4359407 Contact Us For Availability
11
Diode WPL 4158828 Contact Us For Availability
11
Screw WPL 4358484 Contact Us For Availability
11
Lever, Latch WPL 4359388 Contact Us For Availability
12
Screw WPL 4358271 Contact Us For Availability
12
Fuse WPL 4358704 Contact Us For Availability
12
Fan WPL 4359408 Contact Us For Availability
12
Insulator WPL 4359411 Contact Us For Availability
12
Latch WPL 4359389 Contact Us For Availability
13
Cord, Power WPL 4158832 Contact Us For Availability
13
Bushing WPL 4358460 Contact Us For Availability
13
Cable WPL 4359412 Contact Us For Availability
13
Latch WPL 4359390 Contact Us For Availability
14
Cover, Back WPL 4358447 Contact Us For Availability
14
Holder, Wire WPL 4158267 Contact Us For Availability
14
Harness, Turntable WPL 4358497 Contact Us For Availability
14
Convection Element WPL 4358461 Contact Us For Availability
14
Spring WPL 4359391 Contact Us For Availability
14
27`` Built-In Kit MK8137XAQ (White) WPL 4378055 Contact Us For Availability
14
27`` Built-In Kit MK8137XAB (Black) WPL 4378056 Contact Us For Availability
14
30`` Built-In Kit MK8130XAQ (White) WPL 4378057 Contact Us For Availability
14
30`` Built-In Kit MK8130XAB (Black) WPL 4378058 Contact Us For Availability
15
Thermostat WPL 4358117 Contact Us For Availability
15
Clip, Convection Element WPL 4358462 Contact Us For Availability
16
Suction, Guide WPL 4359400 Contact Us For Availability
16
Duct, Magnatron WPL 4358463 Contact Us For Availability
17
Holder, Fuse WPL 4358785 Contact Us For Availability
17
Insulation WPL 4358464 Contact Us For Availability
17
Screw WPL 4358067 Contact Us For Availability
18
Motor, Fan WPL 4358444 Contact Us For Availability
18
Insulation Shield, Back WPL 4358465 Contact Us For Availability
18
Screw WPL 4358381 Contact Us For Availability
19
Mount, Motor WPL 4359401 Contact Us For Availability
19
Fan Blade WPL 4358466 Contact Us For Availability
20
Bracket, Convection Motor WPL 4358467 Contact Us For Availability
21
Fan WPL 4358446 Contact Us For Availability
21
Convection Motor WPL 4358468 Contact Us For Availability
23
Screw WPL 4358450 Contact Us For Availability
24
Screw WPL 4358451 Contact Us For Availability
24
Washer WPL 4358478 Contact Us For Availability
25
Washer WPL 4359402 Contact Us For Availability
27
Screw WPL 4359404 Contact Us For Availability
28
Washer WPL 4359405 Contact Us For Availability
28
Nut WPL 4358476 Contact Us For Availability
29
Harness, Main WPL 4359364 Contact Us For Availability
30
Nut WPL 4358475 Contact Us For Availability
× ![]()
