Model Whirlpool MC8130XAB0 – Common Parts & Diagrams

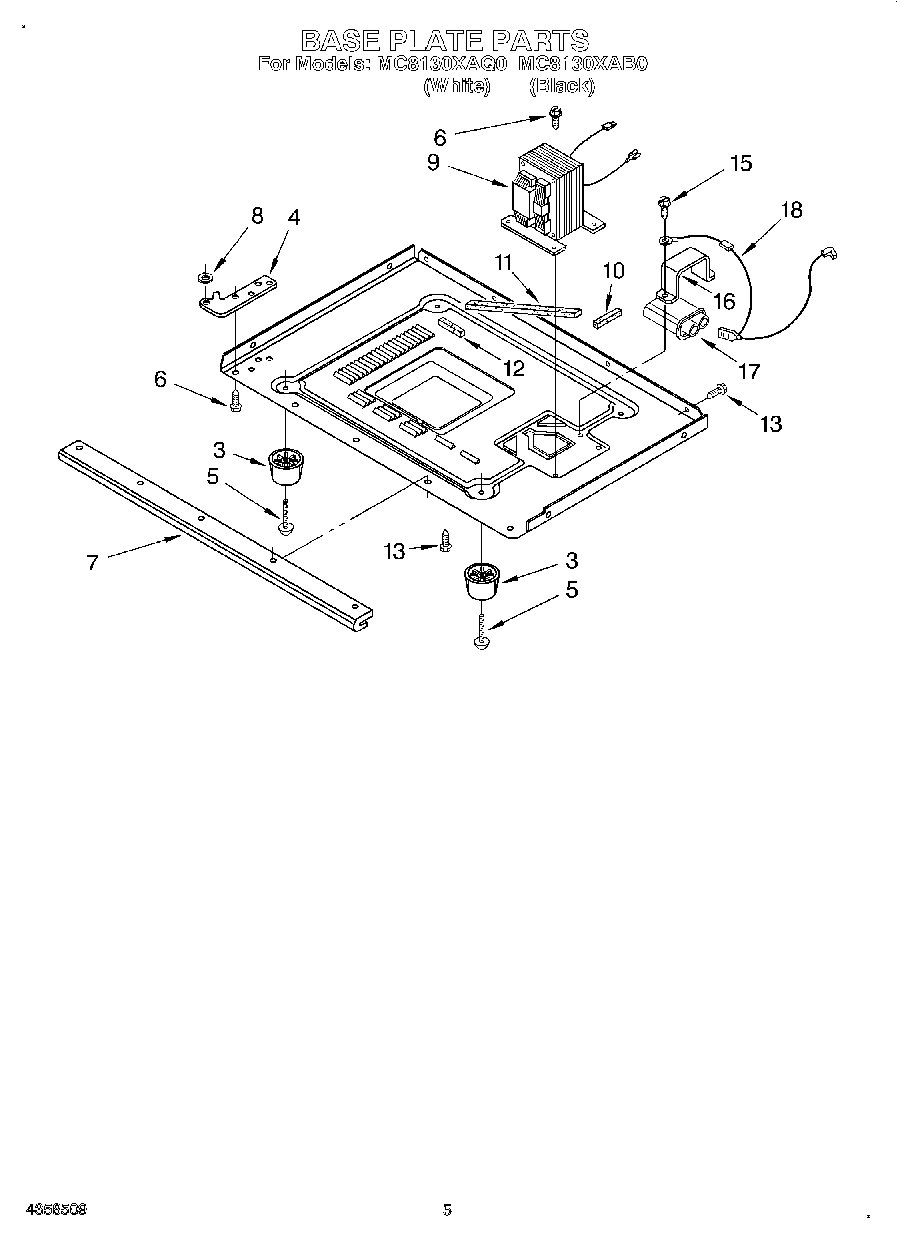

04 - BASE PLATE

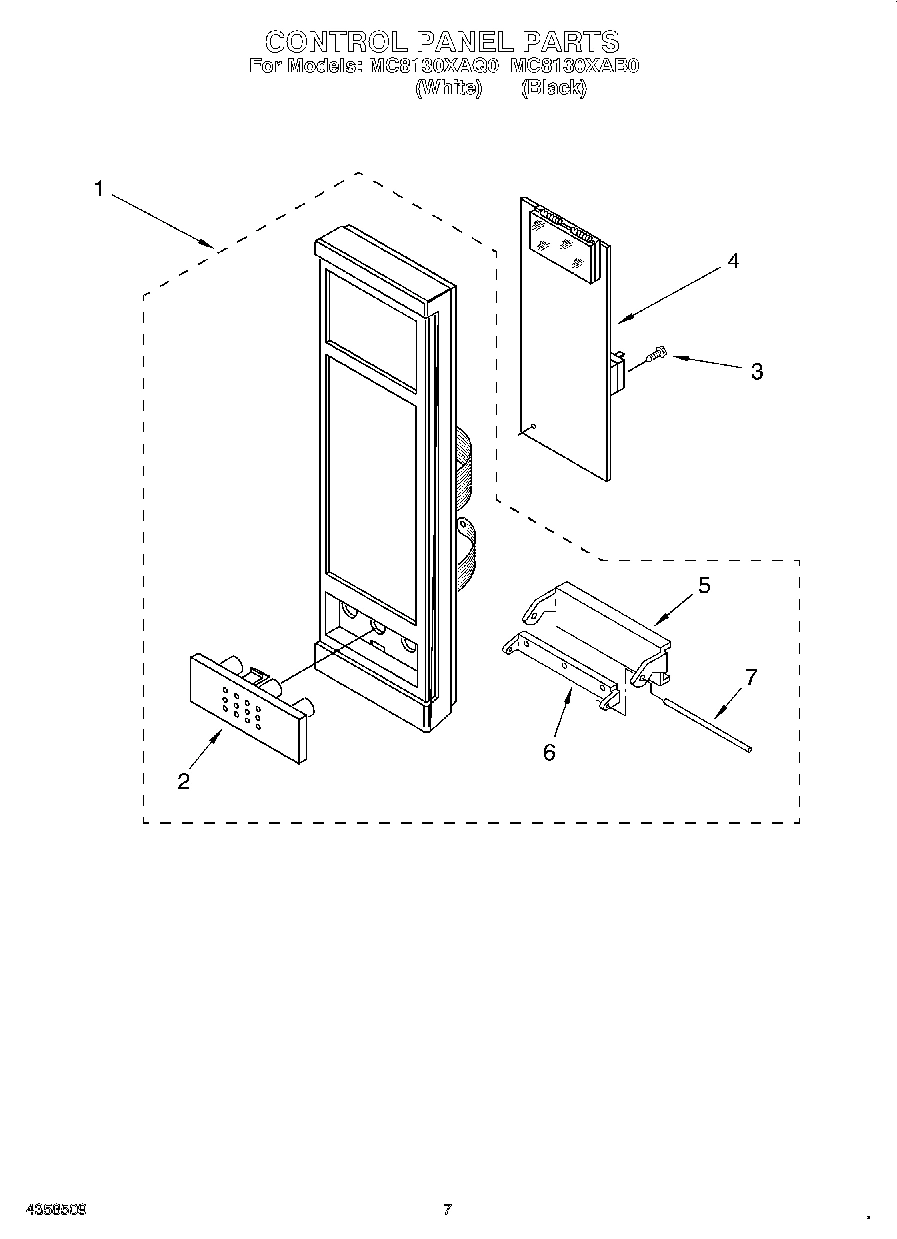

06 - CONTROL PANEL

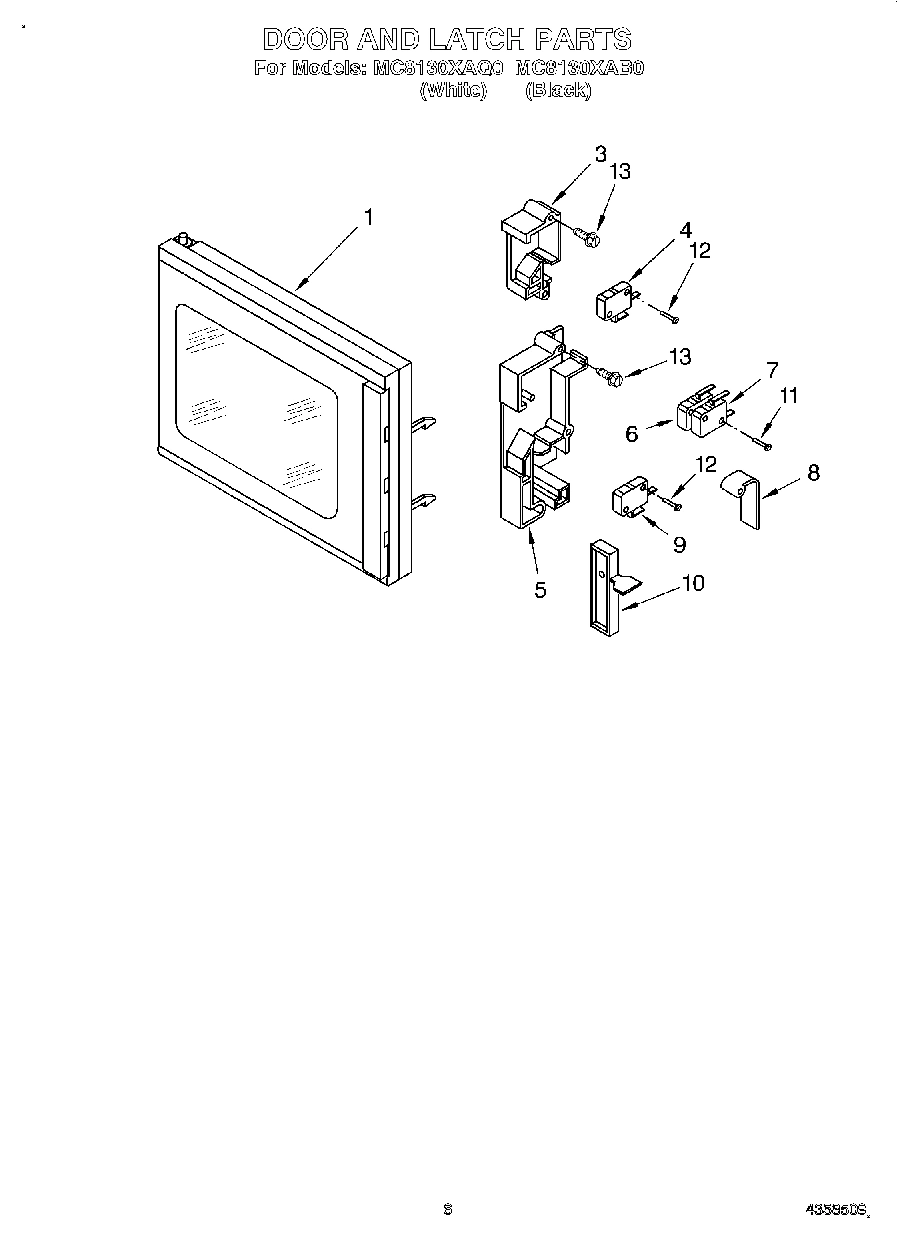

05 - DOOR AND LATCH

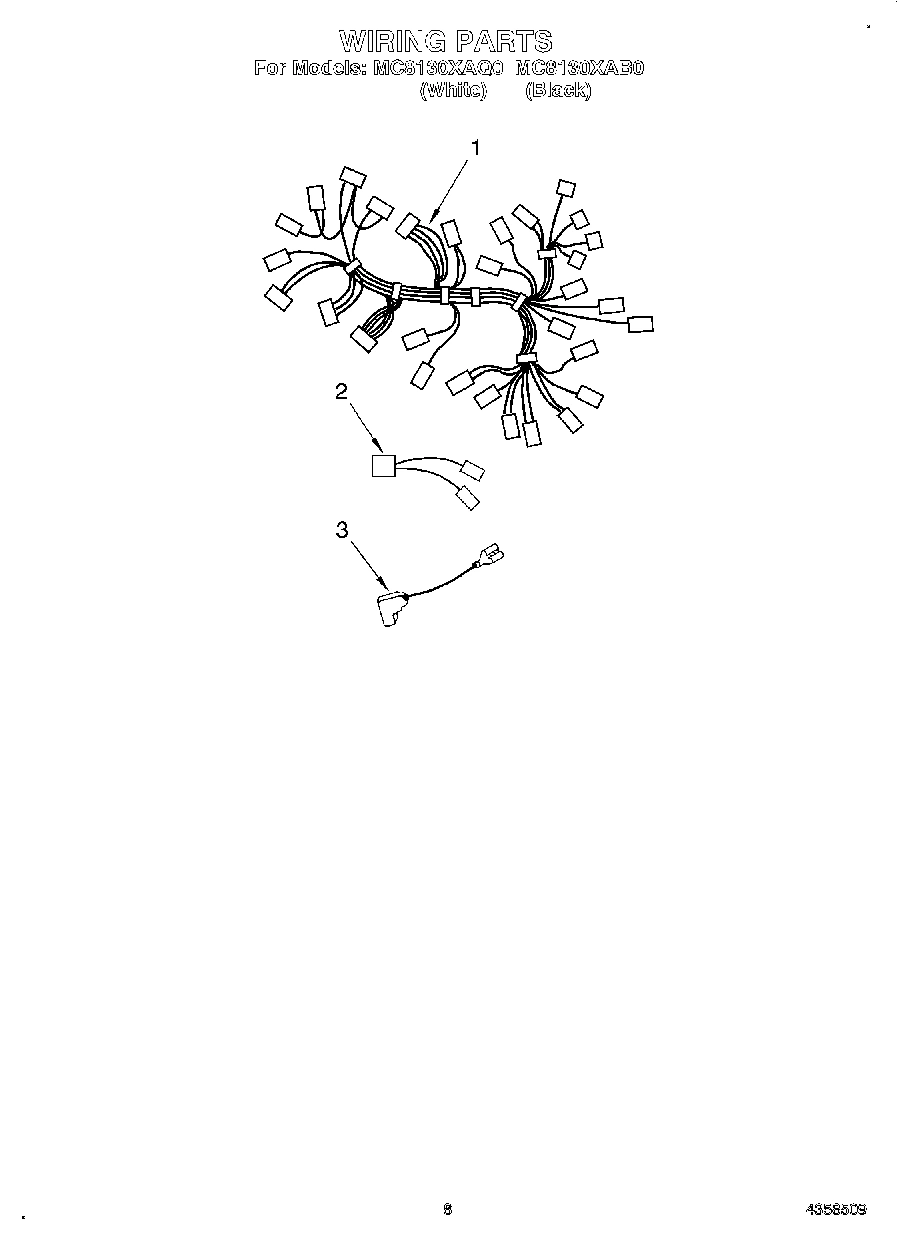

07 - WIRING, LITERATURE

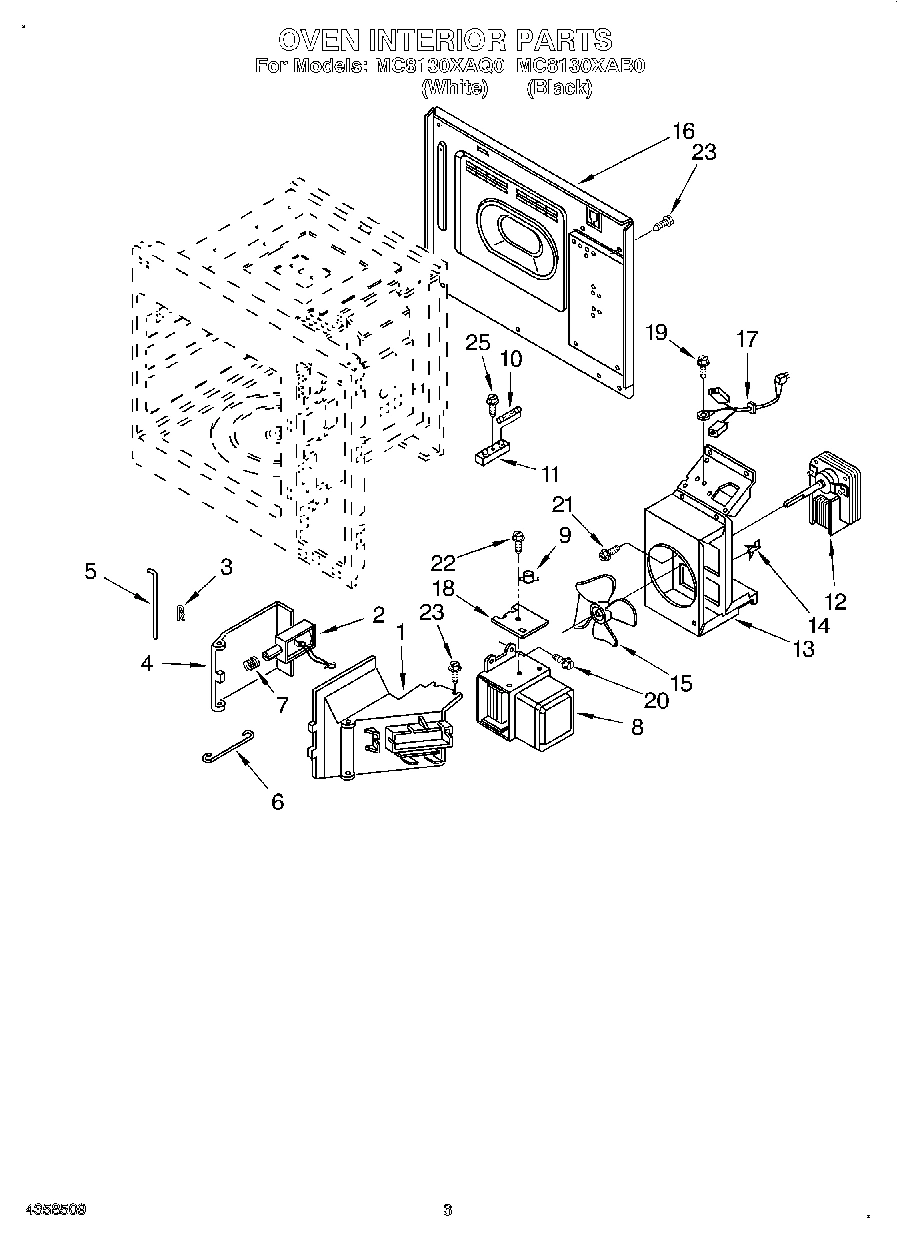

02 - OVEN INTERIOR

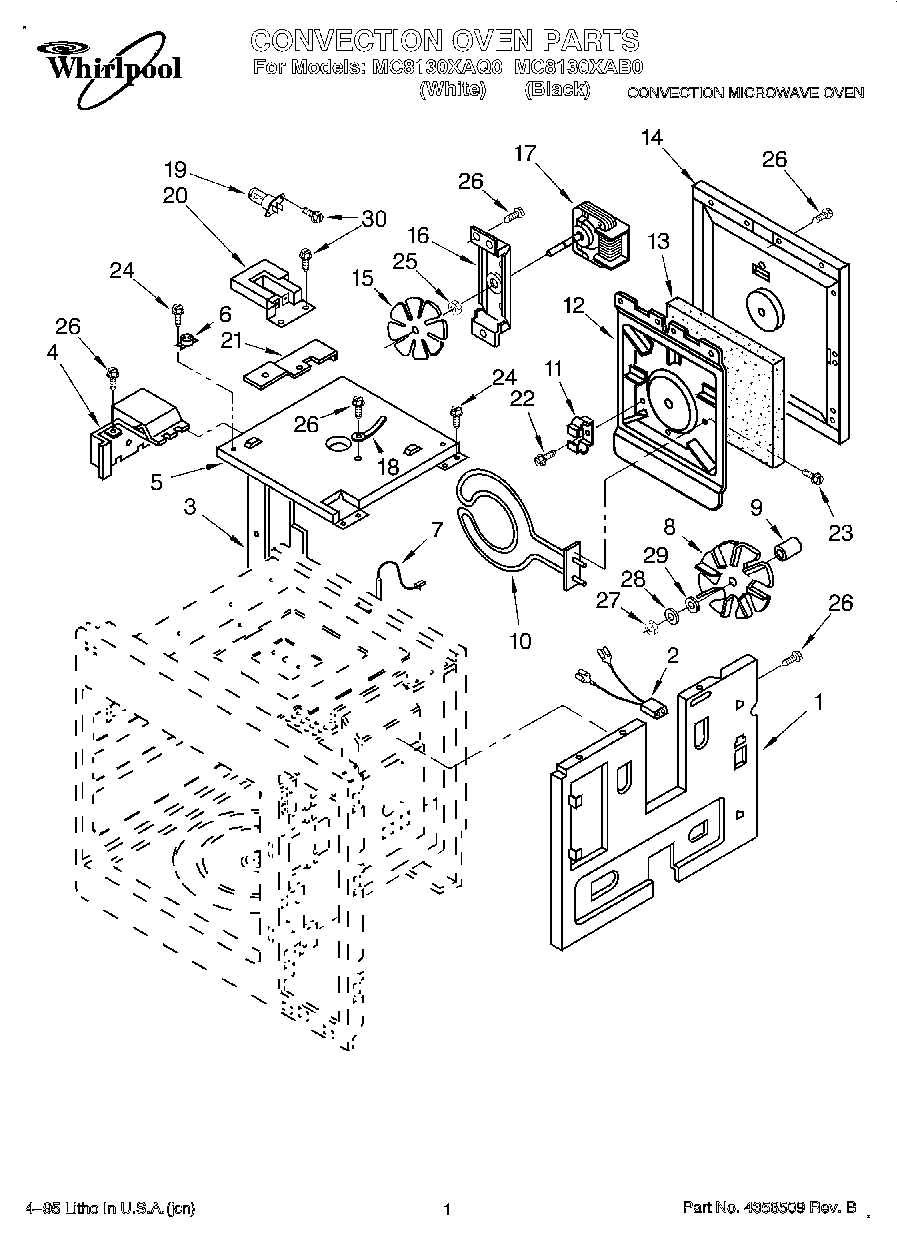

01 - CONVECTION OVEN

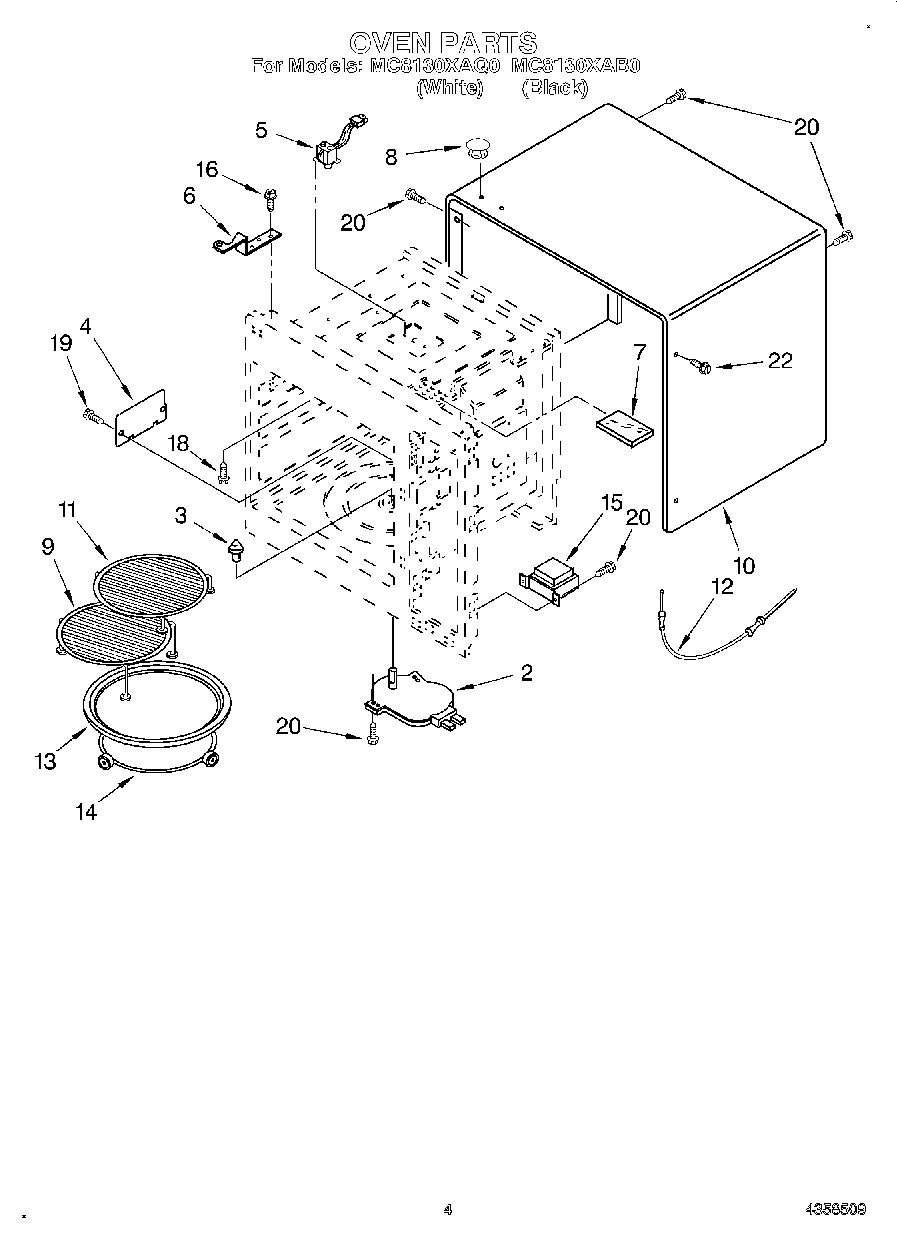

03 - OVEN
Common parts from model Whirlpool MC8130XAB0
Black Model WPL 4386541 Contact Us For Availability
White Model WPL 4386560 Contact Us For Availability
Installation, Instructions WPL LIT4358409 Contact Us For Availability
Use & Care Guide WPL LIT4358412 Contact Us For Availability
Cook Guide Label WPL LIT4358413 Contact Us For Availability
Tech Sheet WPL LIT4358414 Contact Us For Availability
Cookbook WPL LIT4358415 Contact Us For Availability
Repair Parts List WPL LIT4358509 Contact Us For Availability
1
Control Panel Assembly (White) WPL 4358503 Contact Us For Availability
1
Control Panel Assembly (Black) WPL 4358504 Contact Us For Availability
1
Door, Complete (White) WPL 4358416 Contact Us For Availability
1
Door, Complete (Black) WPL 4358417 Contact Us For Availability
1
Lead Wire Assembly WPL 4358496 Contact Us For Availability
1
Air Duct WPL 4358436 Contact Us For Availability
1
Insulation Shield, Side WPL 4358452 Contact Us For Availability
2
Base Plate WPL 4358486 Contact Us For Availability
2
Button, Open (Black) WPL 4358498 Contact Us For Availability
2
Button, Open (White) WPL 4358499 Contact Us For Availability
2
Turn Table Wire Assembly WPL 4358497 Contact Us For Availability
2
Solenoid WPL 4358437 Contact Us For Availability
2
Wire Assembly, Convection Motor WPL 4358453 Contact Us For Availability
2
Motor, Turntable WPL 4358419 Contact Us For Availability
3
Foot WPL 4358487 Contact Us For Availability
3
Latch Board, Upper WPL 4358480 Contact Us For Availability
3
High Voltage Wire Assembly WPL 4158827 Contact Us For Availability
3
Clip WPL 4358438 Contact Us For Availability
3
Bracket, Support WPL 4358454 Contact Us For Availability
3
Shaft, Turntable WPL 4358420 Contact Us For Availability
4
Hinge, Lower WPL 4358488 Contact Us For Availability
4
Microcomputer WPL 4358418 Contact Us For Availability
4
Bracket, Damper WPL 4358439 Contact Us For Availability
4
Exhaust Duct WPL 4358455 Contact Us For Availability
4
Cover WPL 4358421 Contact Us For Availability
5
Screw WPL 4358381 Contact Us For Availability
5
Lever, Release WPL 4359323 Contact Us For Availability
5
Latch Board, Lower WPL 4358481 Contact Us For Availability
5
Shaft WPL 4358440 Contact Us For Availability
5
Insulation Shield, Top WPL 4358456 Contact Us For Availability
5
Probe Jack Assembly WPL 4358422 Contact Us For Availability
6
Base, Lever WPL 4359324 Contact Us For Availability
6
Connector, Damper WPL 4358441 Contact Us For Availability
6
Thermostat WPL 4358457 Contact Us For Availability
6
Hinge, Upper WPL 4358423 Contact Us For Availability
7
Decorator Panel WPL 4358490 Contact Us For Availability
7
Pin, Lever WPL 4359325 Contact Us For Availability
7
Spring, Solenoid WPL 4358442 Contact Us For Availability
7
Thermistor WPL 4358458 Contact Us For Availability
7
Light Lens WPL 4358424 Contact Us For Availability
8
Washer WPL 4339331 Contact Us For Availability
8
Lever, Switch WPL 4358482 Contact Us For Availability
8
Magnatron WPL 4358059 Contact Us For Availability
8
Fan Motor, Convection WPL 4358459 Contact Us For Availability
8
Button Plug (White) WPL 4358425 Contact Us For Availability
8
Button Plug (Black) WPL 4358426 Contact Us For Availability
9
Transformer WPL 4358491 Contact Us For Availability
9
Thermostat, Magnatron WPL 4358443 Contact Us For Availability
9
Bushing WPL 4358460 Contact Us For Availability
9
Rack WPL 4358427 Contact Us For Availability
10
Foam Seal WPL 4358492 Contact Us For Availability
10
Release Lever WPL 4358483 Contact Us For Availability
10
Fuse WPL 4358263 Contact Us For Availability
10
Convection Element WPL 4358461 Contact Us For Availability
10
Cabinet Wrapper (White) WPL 4358428 Contact Us For Availability
10
Cabinet Wrapper (Black) WPL 4358510 Contact Us For Availability
11
Foam Seal WPL 4358493 Contact Us For Availability
11
Screw WPL 4358484 Contact Us For Availability
11
Holder, Fuse WPL 4158581 Contact Us For Availability
11
Clip, Convection Element WPL 4358462 Contact Us For Availability
11
Rack WPL 4358429 Contact Us For Availability
12
Foam Seal WPL 4158864 Contact Us For Availability
12
Screw WPL 4358357 Contact Us For Availability
12
Motor, Fan WPL 4358444 Contact Us For Availability
12
Duct, Magnatron WPL 4358463 Contact Us For Availability
12
Temperature Probe WPL 4358430 Contact Us For Availability
13
Screw WPL 4358051 Contact Us For Availability
13
Bracket, Mount WPL 4358445 Contact Us For Availability
13
Insulation WPL 4358464 Contact Us For Availability
13
Tray WPL 4358431 Contact Us For Availability
14
Insulation Shield, Back WPL 4358465 Contact Us For Availability
14
Rotating Ring WPL 4358432 Contact Us For Availability
15
Fan Blade WPL 4358446 Contact Us For Availability
15
Fan Blade WPL 4358466 Contact Us For Availability
15
Transformer, Power WPL 4358433 Contact Us For Availability
16
Bracket, Capacitor WPL 4358494 Contact Us For Availability
16
Cover, Back WPL 4358447 Contact Us For Availability
16
Bracket, Convection Motor WPL 4358467 Contact Us For Availability
17
Capacitor WPL 4158466 Contact Us For Availability
17
Cord, Power WPL 4158832 Contact Us For Availability
17
Convection Motor WPL 4358468 Contact Us For Availability
18
High Voltage Diode Cable WPL 4358495 Contact Us For Availability
18
Bracket, Thermostat WPL 4358060 Contact Us For Availability
18
Ground Strap WPL 4358469 Contact Us For Availability
18
Screw WPL 4358434 Contact Us For Availability
19
Screw WPL 4358448 Contact Us For Availability
19
Lamp WPL 4358470 Contact Us For Availability
19
Screw WPL 4358435 Contact Us For Availability
20
Bracket, Lamp WPL 4358471 Contact Us For Availability
21
Cover WPL 4358472 Contact Us For Availability
22
Screw WPL 4358450 Contact Us For Availability
24
Screw WPL 4358376 Contact Us For Availability
25
Screw WPL 4358451 Contact Us For Availability
25
Nut WPL 4358475 Contact Us For Availability
27
Nut WPL 4358476 Contact Us For Availability
29
Washer WPL 4358478 Contact Us For Availability
30
Screw WPL 4358479 Contact Us For Availability
× ![]()
