Model Accelerated Cooking Products MC23MPTW2-P1332807M Amana Menumaster MC23MPTW2 – Common Parts & Diagrams

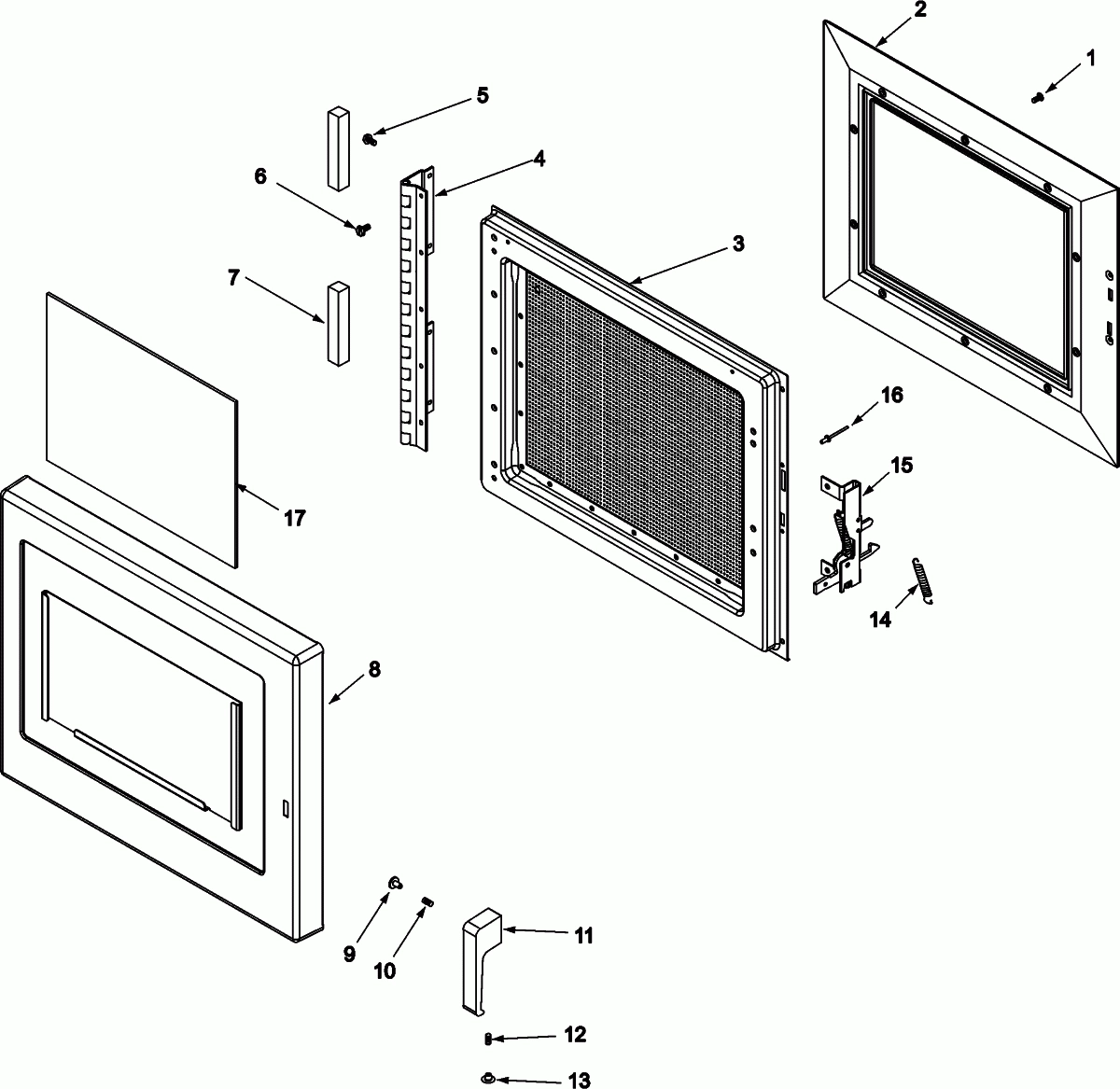

DOOR
ELECTRICAL COMPONENTS

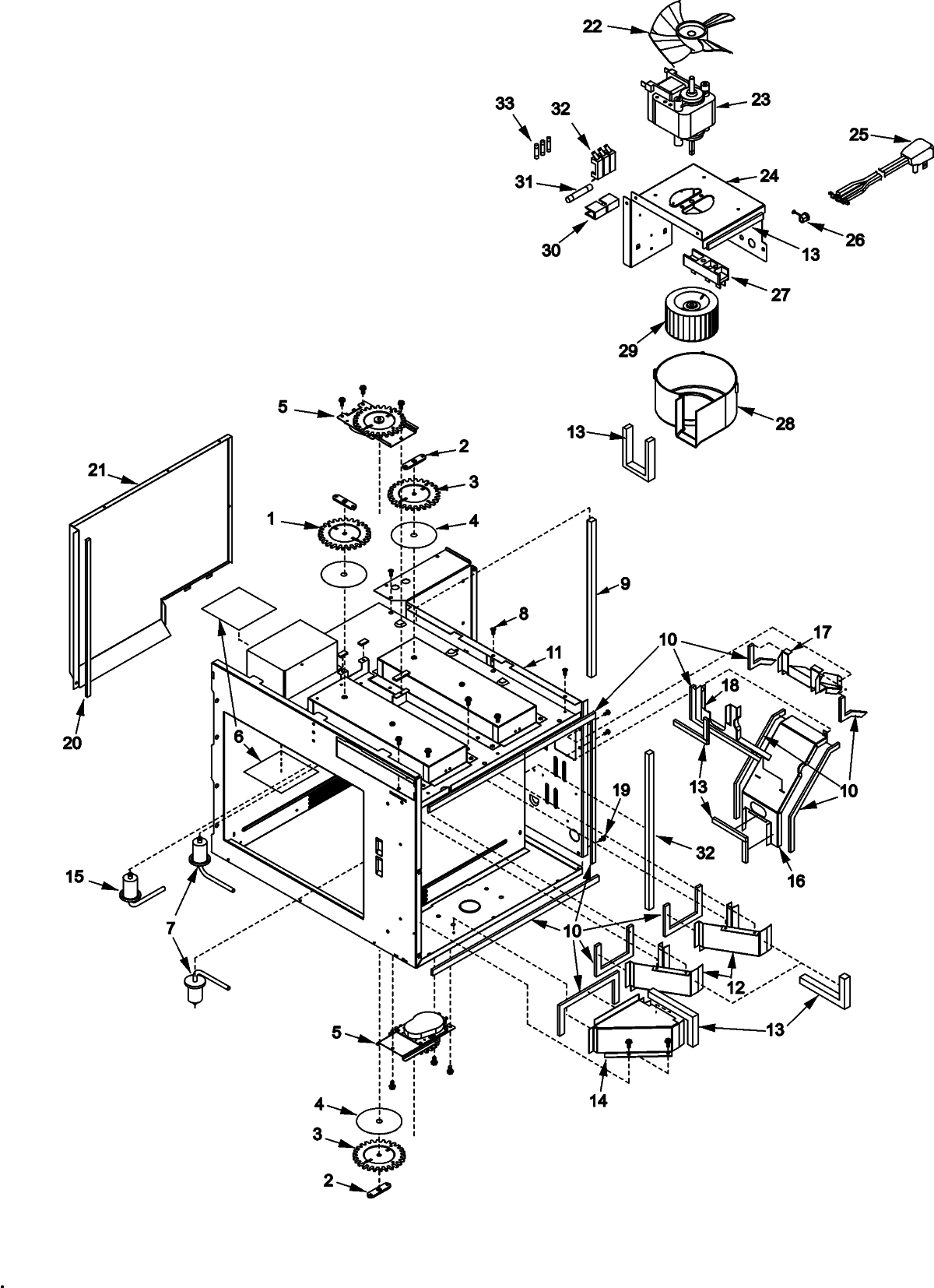

FUSES, ANTENNAS, BLOWER, DUCTS,
SUPPLEMENTAL INFORMATION

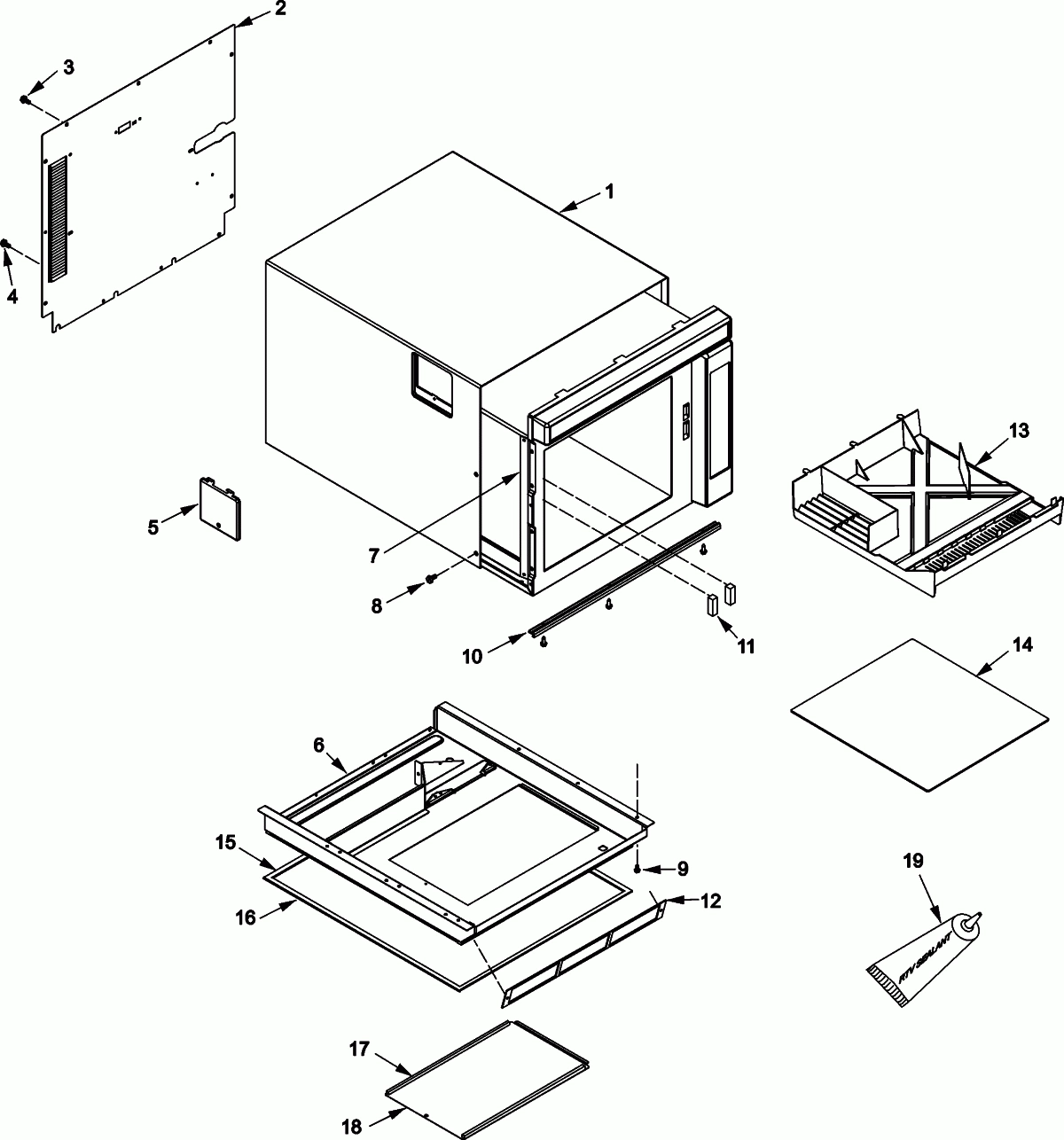

TRAY, GREASE SHIELD, CABINET,
Common parts from model Accelerated Cooking Products MC23MPTW2-P1332807M Amana Menumaster MC23MPTW2
1
TOUCH PANEL ASSY- TOP ACP R0130110 Contact Us For Availability
1
SCREW-HI LO Y-DRIVE HEAD ACP M1260218 Contact Us For Availability
1
WRAPPER- STAINLESS ACP 10908909Q Contact Us For Availability
2
INNER DOOR ASSY (NO SCREWS) ACP 59002015 Contact Us For Availability
2
PANEL, ACCESS- REAR ACP 10781607 Contact Us For Availability
3
TOUCH PANEL ASSY- SIDE ACP R0130109 Contact Us For Availability
4
KIT, INTERLOCK SWITCH ACP 12002636 Contact Us For Availability
4
WASHER-SPUR GEAR ACP 10903002 Contact Us For Availability
4
HINGE-DOOR ACP 14179139 Contact Us For Availability
4
SCREW ACP M0216716 Contact Us For Availability
5
MOTOR, ANTENNA (230V) ACP R0130263 Contact Us For Availability
5
NON-MAGNETIC Y-DRIVE BIT ACP 20001136 Contact Us For Availability
5
SCREW, TF ACP 12992302 Contact Us For Availability
5
CLIP ACP 59174559 Contact Us For Availability
6
BASE PAN & GASKET ASSY ACP 10790306Q Contact Us For Availability
6
KIT, HARNESS- HVB/DISPLAY ACP R0130265 Contact Us For Availability
7
MAGNETRON-2M248H ACP 59004010 Contact Us For Availability
7
KIT, ANTENNA ACP 14179133 Contact Us For Availability
7
HARNESS, INTERLOCK/DISPLAY BD ACP 59001635 Contact Us For Availability
7
BRKT-HINGE SUPPORT ACP 12189003 Contact Us For Availability
8
OUTER DOOR ASSY- SOLID MH ACP R0156920 Contact Us For Availability
8
DIODE ACP 20057401 Contact Us For Availability
8
HARNESS, LOWER ANTENNA MOTOR ACP 13018801 Contact Us For Availability
9
PLUG-HOLE ACP 12360703 Contact Us For Availability
9
HARNESS, OVEN ACP 59001631 Contact Us For Availability
9
SCREW ACP 12991605 Contact Us For Availability
10
CAPACITOR- .55 ACP 59174532 Contact Us For Availability
10
SCREW, T F ACP 13095201 Contact Us For Availability
10
SCREW, SET ACP 13046901 Contact Us For Availability
10
HARNESS, HV ACP 12696201 Contact Us For Availability
10
TRIM ACP 59174560 Contact Us For Availability
11
TRANSFORMER, HV ACP 59001626 Contact Us For Availability
11
HANDLE-DOOR ACP 59004023 Contact Us For Availability
11
KIT, CAVITY- 3 TUBE "S" CHASSIS ACP 59214763 Contact Us For Availability
12
SCREW, DECORATIVE ACP 59174548 Contact Us For Availability
12
SCREW, SET ACP 13047001 Contact Us For Availability
12
WASHER-NYLON ACP M0274066 Contact Us For Availability
13
ANTENNA SHIELD ACP 59004008 Contact Us For Availability
14
KIT, CERAMIC TRAY W/SEALER ACP R0156942 Contact Us For Availability
14
SPRING-DOOR LATCH ACP C8893502 Contact Us For Availability
15
KIT, LATCH- RC CHASSIS ACP 12002757 Contact Us For Availability
15
KIT, ANTENNA- TOP FRONT- BLUE ACP 14179134 Contact Us For Availability
16
GASKET, BASEPAN- CUT ACP R0000413 Contact Us For Availability
16
SNUBBER ASSY ACP 59002017 Contact Us For Availability
16
RIVET, POP ACP A4539601 Contact Us For Availability
18
SCREW ACP 12990525 Contact Us For Availability
18
BOTTOM ACCESS-E CT ACP 20172101 Contact Us For Availability
19
SEALER ACP 59002167 Contact Us For Availability
20
THERMAL CUTOUT ACP B5795315 Contact Us For Availability
22
BLADE, FAN ACP B5706704 Contact Us For Availability
23
KIT, BLOWER MOTOR ACP 59174555 Contact Us For Availability
24
KIT, TRIAC ACP 59174520 Contact Us For Availability
25
TRANSFORMER, AUTO ACP 59174581 Contact Us For Availability
27
RELAY ACP 59001981 Contact Us For Availability
28
SCROLL, BLOWER ACP 12552001 Contact Us For Availability
29
WHEEL-BLOWER ACP C3670809 Contact Us For Availability
30
BLOCK-FUSE ACP 10091101 Contact Us For Availability
31
FUSE-30A ACP M0805205 Contact Us For Availability
32
BLOCK, FUSE- 3 POLE ACP 59001682 Contact Us For Availability
32
SCREW ACP M0234117 Contact Us For Availability
33
FUSE-12A ACP M0805105 Contact Us For Availability
× ![]()
