Model Accelerated Cooking Products MC22MP-P1198706M Amana Menumaster MC22MP – Common Parts & Diagrams

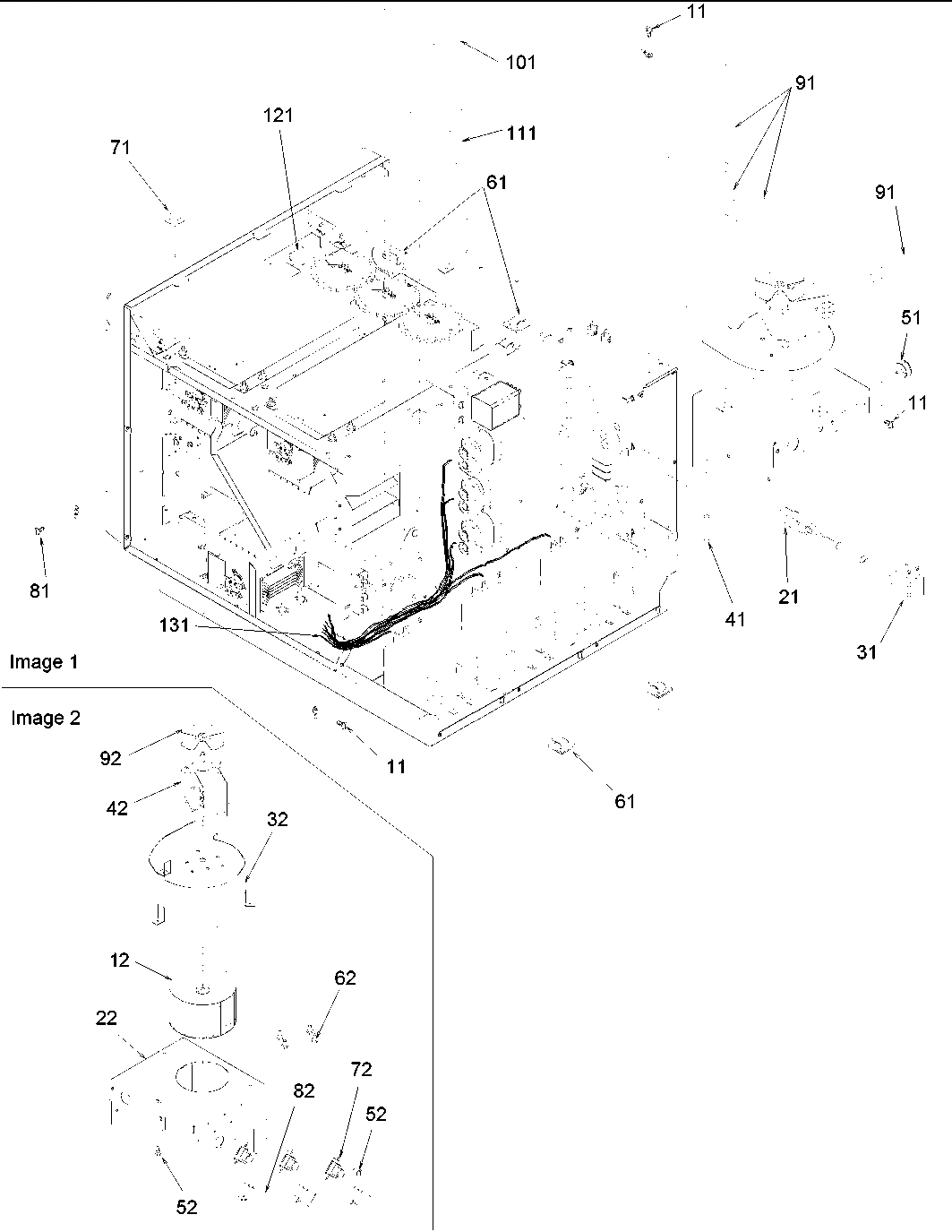

CHASSIS & BLOWER-TRIAC ASSEMBLY PARTS
CHASSIS ASSEMBLY PARTS
MISCELLAEOUS INFORMATION
OUTERCASE & DOOR ASSEMBLY
Common parts from model Accelerated Cooking Products MC22MP-P1198706M Amana Menumaster MC22MP
3
MAGNETIC Y-DRIVE BIT ACP 20001136 Contact Us For Availability
5
KIT, CAVITY- 3 TUBE ACP R0000108 Contact Us For Availability
6
KIT, FUSE- 15 AMP ACP 12001916 Contact Us For Availability
11
WRAPPER- STAINLESS ACP 10908909Q Contact Us For Availability
12
SPRING-DOOR LATCH ACP C8893502 Contact Us For Availability
12
WHEEL-BLOWER ACP C3670809 Contact Us For Availability
21
ANTENNA SHIELD ACP 59004008 Contact Us For Availability
21
SCREW ACP M0216716 Contact Us For Availability
22
HINGE, DOOR ACP 12003801 Contact Us For Availability
32
HANDLE, DOOR ACP 59004023 Contact Us For Availability
41
SCREW, T F ACP 13042001 Contact Us For Availability
51
ANTENNA ASSY, PLAIN TIP ACP 10787601 Contact Us For Availability
51
SCREW-TC ACP 20095801 Contact Us For Availability
51
BOTTOM ACCESS-E CT ACP 20172101 Contact Us For Availability
51
PANEL, ACCESS ACP 10781607 Contact Us For Availability
52
SET SCREW #10 X .25 ACP 13046901 Contact Us For Availability
61
SWITCH, INTERLOCK ASSY ACP 12002636 Contact Us For Availability
61
KIT, GEAR ACP R0156917 Contact Us For Availability
61
CAPACITOR ACP 10366915 Contact Us For Availability
61
SCREW ACP M0213815 Contact Us For Availability
61
PLATE-PARTITION ACP 20172301 Contact Us For Availability
71
THERMAL CUTOUT ACP B5795315 Contact Us For Availability
71
DIODE ACP 20057401 Contact Us For Availability
71
KIT, ANTENNA MOTOR ACP R0150102 Contact Us For Availability
71
BLOCK-FUSE ACP 10091101 Contact Us For Availability
71
SHIELD, SPILL ACP 12160601 Contact Us For Availability
71
TRIM ACP 59174560 Contact Us For Availability
72
TRIAC ACP 59174520 Contact Us For Availability
72
SCREW, SET ACP 13047001 Contact Us For Availability
81
GRILLE-AIR INLET ACP 59174548 Contact Us For Availability
81
SCREW, TF ACP 12992302 Contact Us For Availability
81
BLOCK-TERMINAL ACP B5677203 Contact Us For Availability
81
SHIELD-SPILL ACP 12160602 Contact Us For Availability
81
BUSHING-TERMINAL ACP M0325401 Contact Us For Availability
81
NUT-SELF CLINCH ACP M0294701 Contact Us For Availability
81
PANEL-MENU ACP 10432501 Contact Us For Availability
82
PLUG-HOLE (BLK) ACP 12360703 Contact Us For Availability
82
SNUBBER ASSY ACP 59002017 Contact Us For Availability
91
MAGNETRON ACP D7831006 Contact Us For Availability
91
TOUCH PANEL ASSY-TOP ACP R0156971 Contact Us For Availability
91
TRANSFORMER, AUTO ACP C8901507 Contact Us For Availability
92
BLADE, FAN ACP B5706704 Contact Us For Availability
92
PLUG-WHITE BUTTON ACP M0310305 Contact Us For Availability
101
TRANSFORMER, HV ACP 59001626 Contact Us For Availability
101
RIVET, POP ACP A4539605 Contact Us For Availability
101
PIN, COTTER ACP M1200005 Contact Us For Availability
101
TOUCH PANEL ASSY- SIDE ACP R0156974 Contact Us For Availability
101
STRAP, CAPACITOR ACP A4055406 Contact Us For Availability
101
CLIP ACP 59174559 Contact Us For Availability
102
OUTER DOOR ASSY- SOLID MH ACP R0156920 Contact Us For Availability
111
WASHER-SPUR GEAR ACP 10903002 Contact Us For Availability
111
THERMAL CUTOUT ACP B5684106 Contact Us For Availability
111
SCREW-SM/KNIFE RoHS ACP 12991101 Contact Us For Availability
111
SCREW, TF ACP M0231604 Contact Us For Availability
111
GASKET ACP A3263904 Contact Us For Availability
112
KIT, INNER DOOR & WELD ACP R0156921 Contact Us For Availability
121
SCREW-"Y"DRIVE HEAD** ACP 12990525 Contact Us For Availability
121
THERMAL CUTOUT ACP B5684118 Contact Us For Availability
121
SCREW ACP M0234117 Contact Us For Availability
121
WINDOW, OVEN LIGHT ACP 59174554 Contact Us For Availability
122
KIT, LATCH ACP 12002757 Contact Us For Availability
131
FUSE-30A ACP M0805205 Contact Us For Availability
131
BRACKET, HINGE SUPPORT ACP 12189001 Contact Us For Availability
131
GASKET ACP 59002162 Contact Us For Availability
131
SCREW ACP 12991605 Contact Us For Availability
131
WASHER-NYLON ACP M0274066 Contact Us For Availability
132
DOOR GLASS ASSY ACP 59002015 Contact Us For Availability
141
STANDOFF-POLY ACP R0156942 Contact Us For Availability
141
SUPPORT ACP 59174558 Contact Us For Availability
151
GASKET-NEOPRENE ACP 10966601 Contact Us For Availability
161
SCREW ACP 13041505 Contact Us For Availability
161
KIT, EXT MEM BOARD- MCD ACP R0163319 Contact Us For Availability
171
SEALER ACP 59002167 Contact Us For Availability
171
ANTENNA ASSY, BLUE TIP ACP 10787602 Contact Us For Availability
181
GASKET, PER FT ACP 59004077 Contact Us For Availability
181
HARNESS, EMB/JPCB ACP 10944101 Contact Us For Availability
191
BARRIER, LV BOARD ACP 12160801 Contact Us For Availability
201
BARRIER, EXT MEM BD ACP 12160701 Contact Us For Availability
211
HARNESS, TRANSFORMER ACP 12424801 Contact Us For Availability
221
HARNESS, WIRE ACP 12495801 Contact Us For Availability
231
RELAY, CONTROL ACP C8873928 Contact Us For Availability
241
HARNESS, LVB/EXM ACP 10859701 Contact Us For Availability
× ![]()
