Model Electrolux MC1350P1 MICROWAVE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS

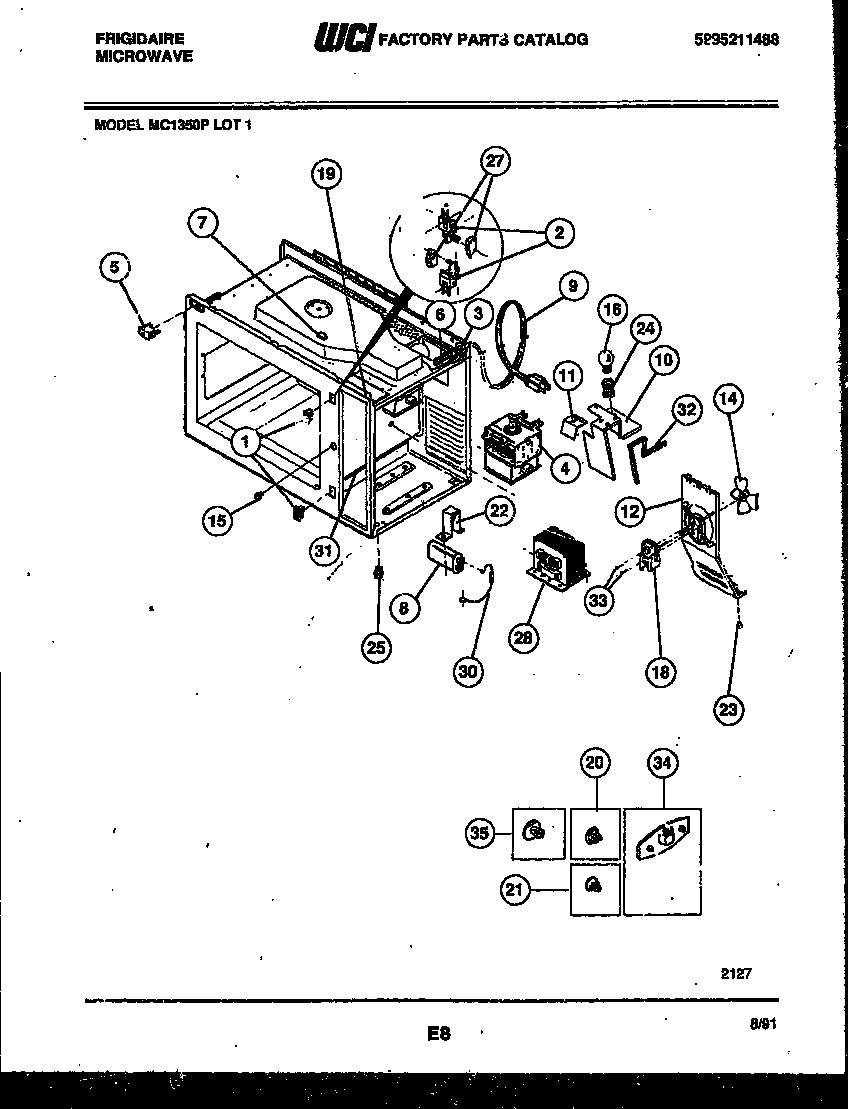

04 - FUNCTIONAL PARTS

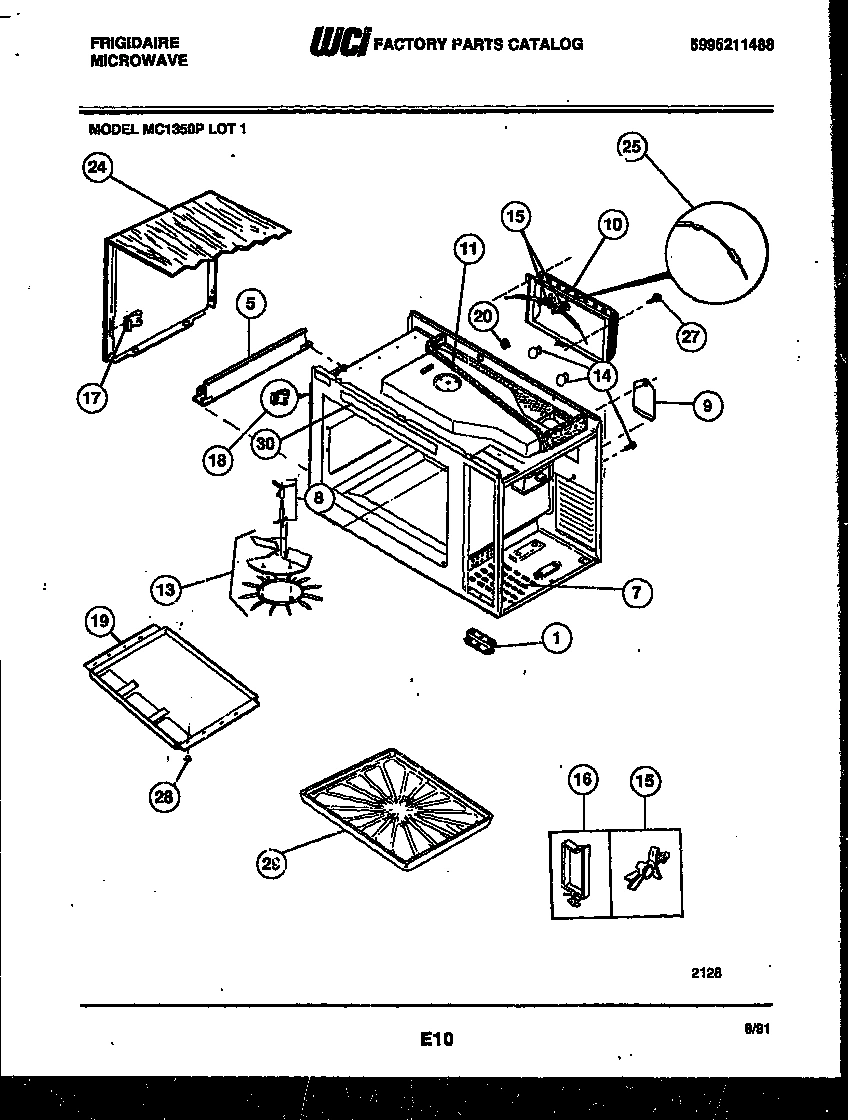

05 - WRAPPER AND BODY PARTS
Common parts from model Electrolux MC1350P1 MICROWAVE
*50944
NUT-FAN MOTOR (2) WCI 5303013273 Contact Us For Availability
*50944
SCREW-TRANSFORMER (2) WCI 5303013944 Contact Us For Availability
*50944
WCI 5303273296 WCI 5303273296 Contact Us For Availability
*50945
SHIELD OVEN LIGHT-MYLAR WCI 5303269841 Contact Us For Availability
*50945
SCREW-WRAPPER WCI 5303273263 Contact Us For Availability
1
WCI 5303922086 WCI 5303922086 Contact Us For Availability
1
WCI 5303212767 WCI 5303212767 Contact Us For Availability
1
BRACKET-CONTROL PANEL SUPPORT WCI 5303270384 Contact Us For Availability
2
FRAME-DOOR-(IF FRAME-DOOR NEEDS TO BE REPLACE WCI 5303273294 Contact Us For Availability
2
WCI 5303280317 WCI 5303280317 Contact Us For Availability
3
WCI 5393269840 WCI 5393269840 Contact Us For Availability
3
BUSHING-STRAIN RELIEF/FUSE HOLDER WCI 5303212769 Contact Us For Availability
4
HINGE-DOOR-(IF HINGE NEEDS TO BE REPLACED, IT WCI 5303280301 Contact Us For Availability
4
WCI 5303206781 WCI 5303206781 Contact Us For Availability
5
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
5
PANEL-DOOR-(IF PANEL DOOR NEEDS TO BE REPLACE WCI 5303274087 Contact Us For Availability
5
WCI 5303272823 WCI 5303272823 Contact Us For Availability
6
FUSE WCI 5303011670 Contact Us For Availability
7
SCREW-ANGLE (2) WCI 5303013960 Contact Us For Availability
7
SPACER WCI 5308037724 Contact Us For Availability
7
WCI 5303269830 WCI 5303269830 Contact Us For Availability
8
HANDLE WCI 5303274083 Contact Us For Availability
8
WCI 5303269608 WCI 5303269608 Contact Us For Availability
8
COLLAR-STIRRER-(INCLUDES SUPPORT, COLLAR AND WCI 5303922010 Contact Us For Availability
9
CORD-POWER 120V WCI 5303212774 Contact Us For Availability
9
WCI 5303212775 WCI 5303212775 Contact Us For Availability
10
SCREW-HINGE (4) WCI 5303013882 Contact Us For Availability
10
WCI 5303269831 WCI 5303269831 Contact Us For Availability
10
WCI 5303269958 WCI 5303269958 Contact Us For Availability
11
WCI 5303269832 WCI 5303269832 Contact Us For Availability
11
SEAL-FOAM WCI 5308037640 Contact Us For Availability
12
SCREW-DOOR STRIKE WCI 5303013962 Contact Us For Availability
12
WCI 5303269833 WCI 5303269833 Contact Us For Availability
13
FAN-AIR ASSY WCI 5303274930 Contact Us For Availability
14
WCI 5303269834 WCI 5303269834 Contact Us For Availability
14
PLUG BUTTON-WHITE (3) WCI 5303091555 Contact Us For Availability
15
WCI 5308037644 WCI 5308037644 Contact Us For Availability
15
SUPPORT-THERMAL PROTECTOR (2) WCI 5303212788 Contact Us For Availability
16
LAMP-120V WCI 5303212801 Contact Us For Availability
16
WCI 5308037677 WCI 5308037677 Contact Us For Availability
17
WCI 5303012322 WCI 5303012322 Contact Us For Availability
18
MOTOR-FAN 120V-(FAN DUCT AND FAN BLADE GO TO WCI 5303922053 Contact Us For Availability
19
WCI 5303212803 WCI 5303212803 Contact Us For Availability
19
COVER, STIRRER WCI 5303212887 Contact Us For Availability
20
PLUG-BUTTON (PROBE) WCI 5303201365 Contact Us For Availability
20
WCI 5303212795 WCI 5303212795 Contact Us For Availability
21
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
22
CLAMP - CAPACITOR WCI 5303013771 Contact Us For Availability
23
RIVET-DUCT-AIR-FAN (2) WCI 5303269846 Contact Us For Availability
24
SOCKET-LAMP WCI 5303212810 Contact Us For Availability
24
WRAPPER-BLACK WCI 5303280391 Contact Us For Availability
25
WCI 5303014097 WCI 5303014097 Contact Us For Availability
25
HARNESS-FIRE PROTECTOR WCI 5303212800 Contact Us For Availability
27
WCI 5303203636 WCI 5303203636 Contact Us For Availability
27
SCREW-TAMPER PROOF (2) WCI 5303271024 Contact Us For Availability
28
WCI 5303212811 WCI 5303212811 Contact Us For Availability
28
RIVET-COVER STIRRER (8) WCI 5303013807 Contact Us For Availability
29
WCI 5303011698 WCI 5303011698 Contact Us For Availability
30
WCI 5303269837 WCI 5303269837 Contact Us For Availability
30
LABEL-COOKING GUIDE WCI 5303271795 Contact Us For Availability
31
TAPE-FOAM SEAL WCI 5303212845 Contact Us For Availability
32
TAPE-FOAM SEAL CUT TO SIZE WCI 5303017864 Contact Us For Availability
32A
TAPE-FOAM SEAL-WRAPPER-RIGHT FRONT CUT TO SIZ WCI 5303017865 Contact Us For Availability
33
SCREW-FAN MOTOR (2) WCI 5308014502 Contact Us For Availability
34
WCI 5303013626 WCI 5303013626 Contact Us For Availability
35
PLUG BUTTON RACK (8) WCI 5308037664 Contact Us For Availability
× ![]()
