Model Whirlpool MB7120XYB1 – Common Parts & Diagrams

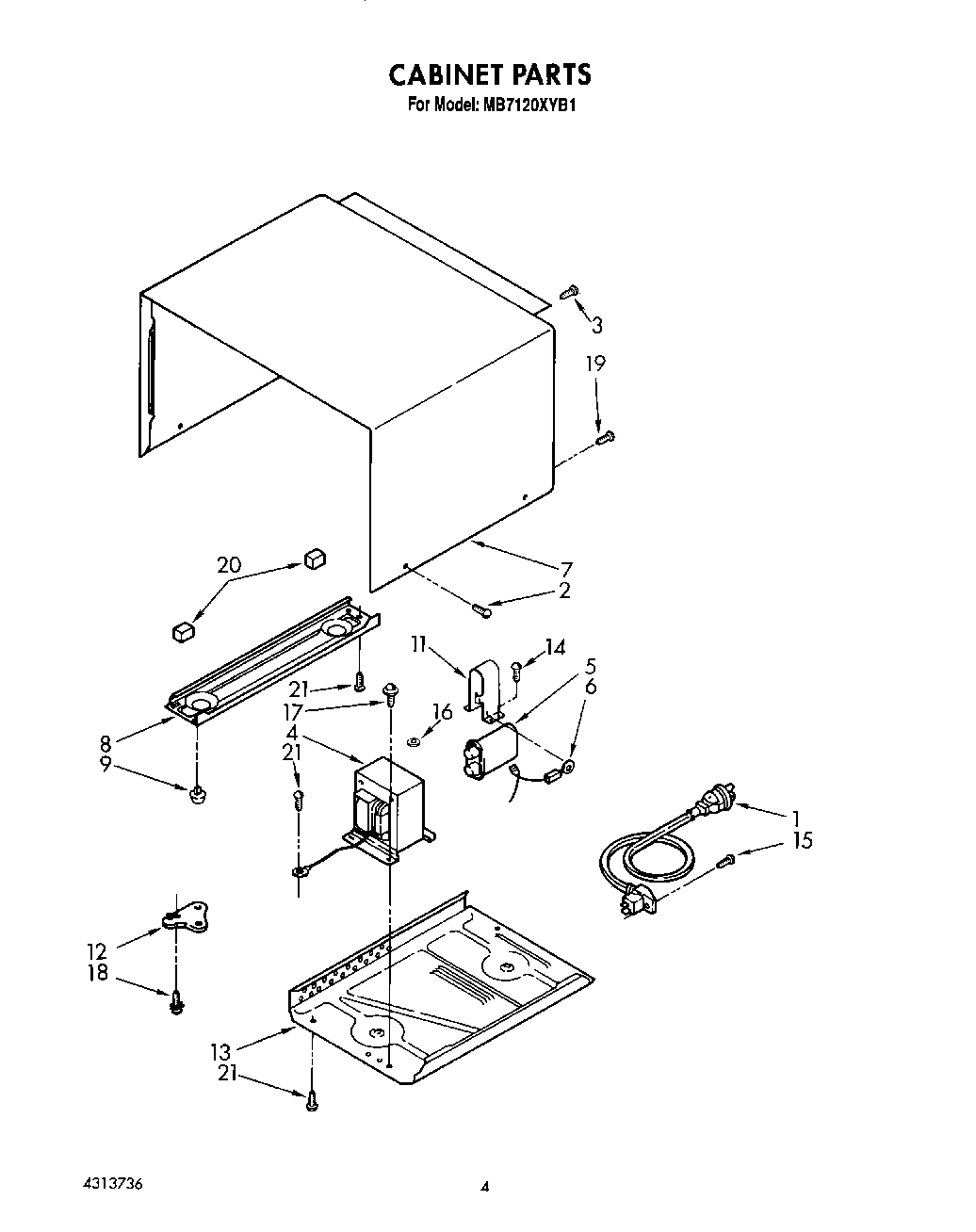

04 - CABINET

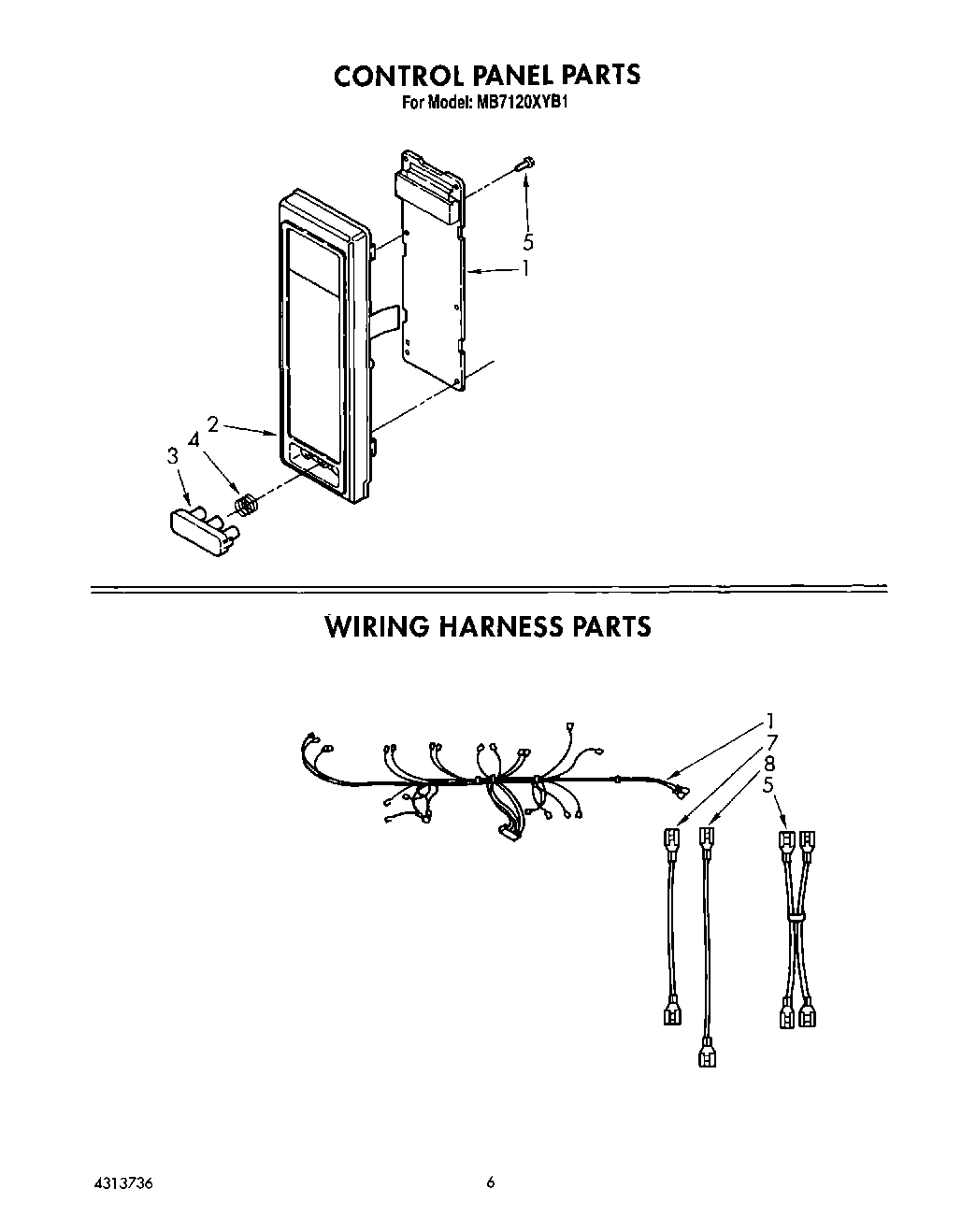

06 - CONTROL PANEL, WIRING HARNESS

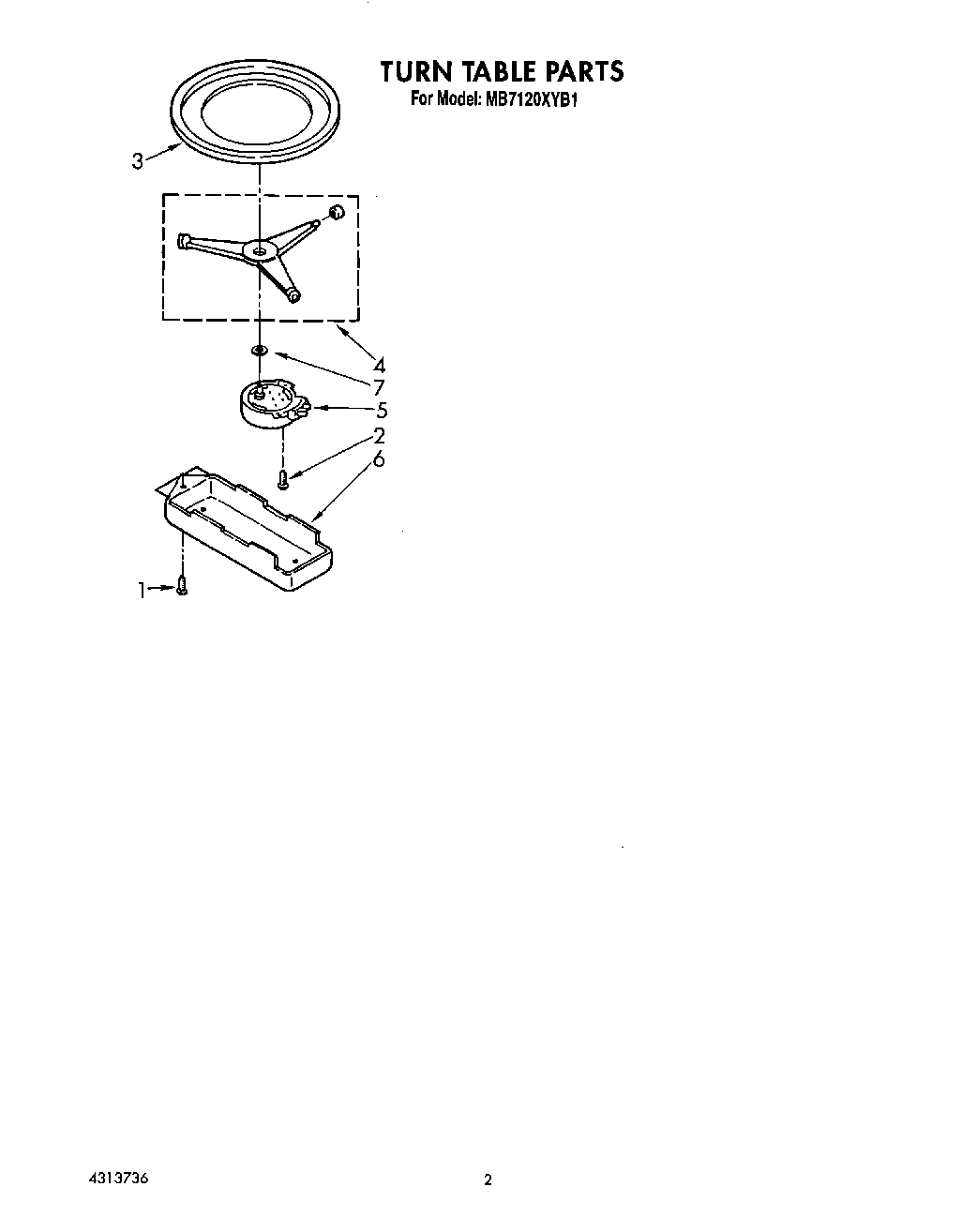

02 - TURN TABLE, LIT/OPTIONAL

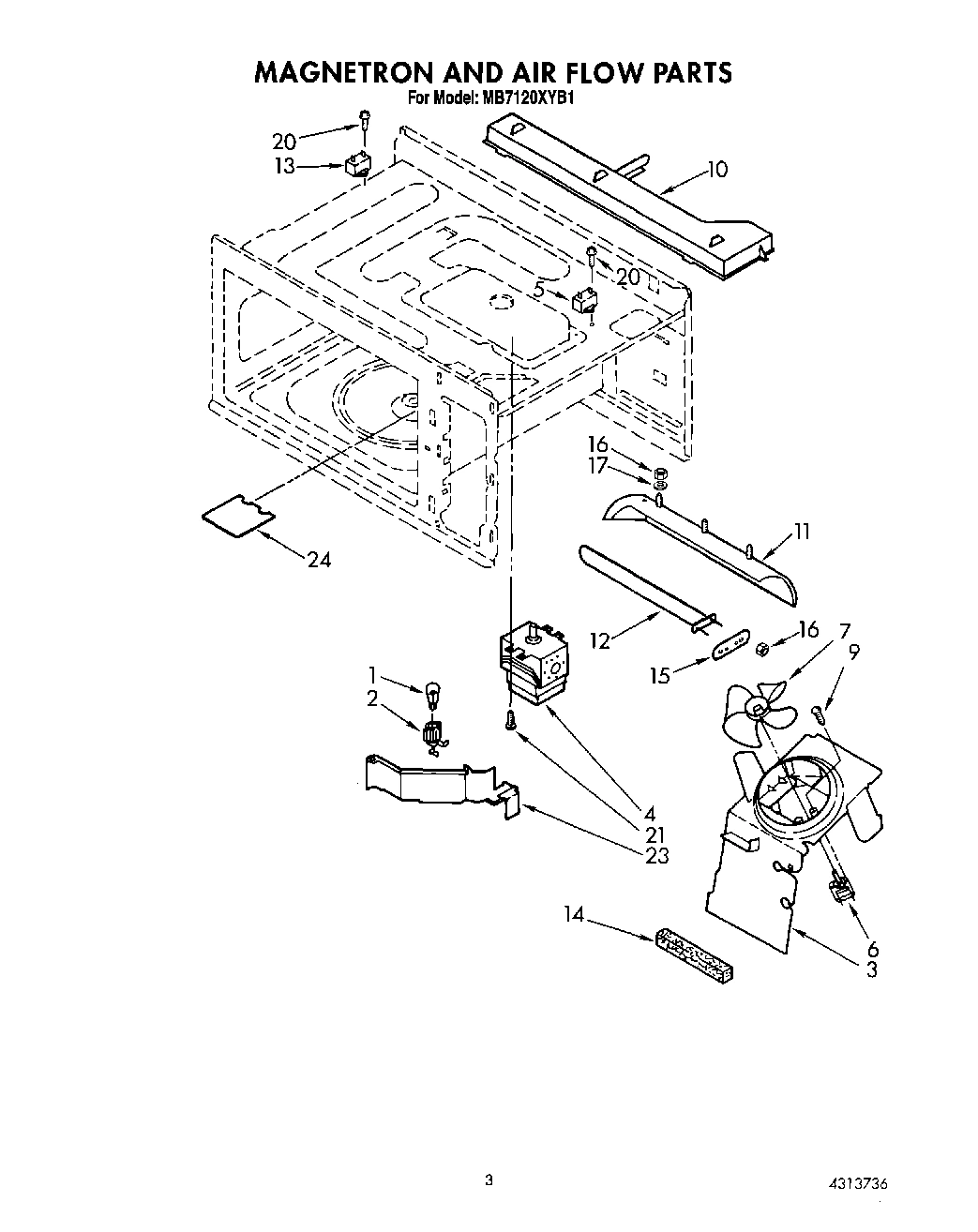

03 - MAGNETRON AND AIR FLOW

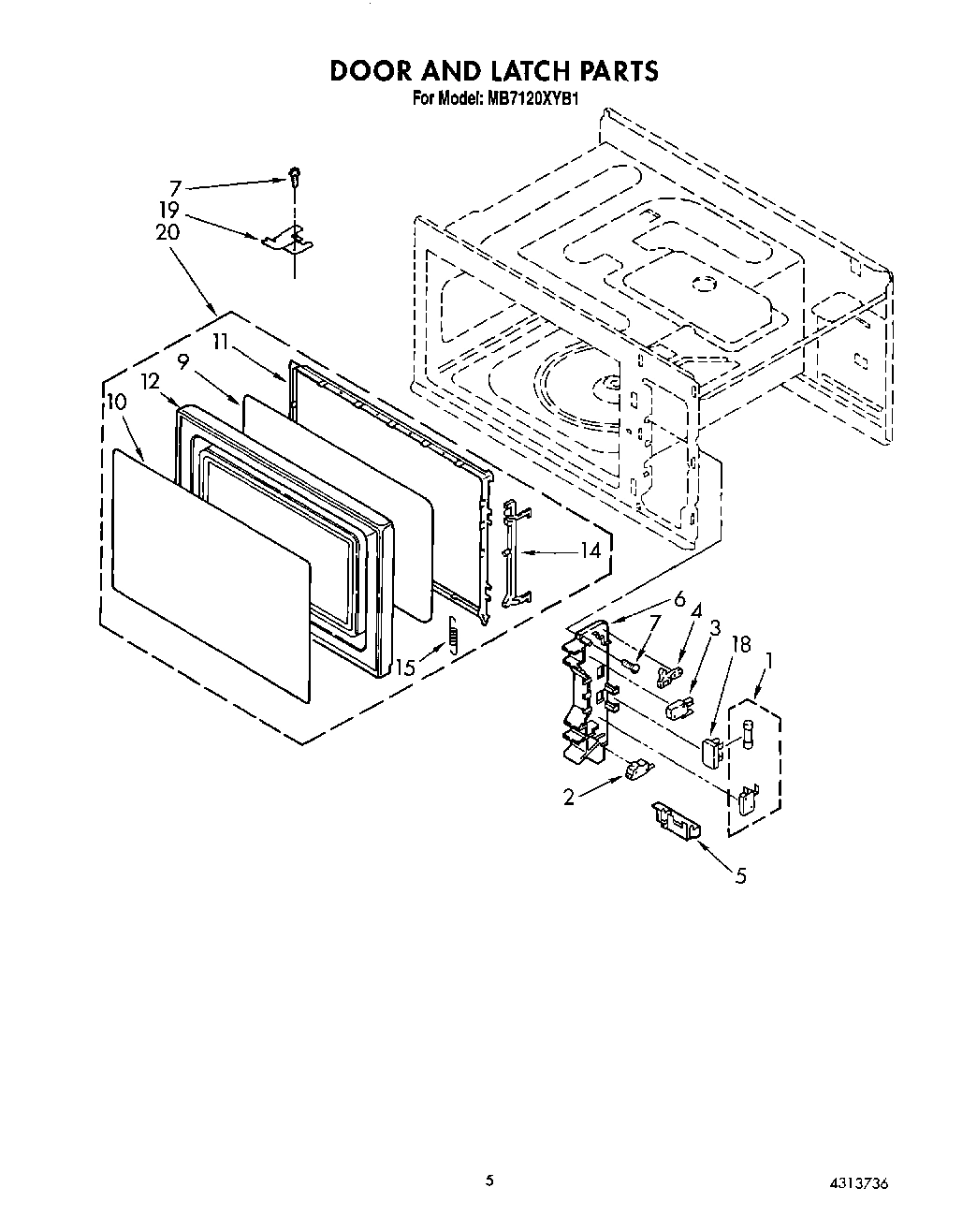

05 - DOOR AND LATCH
Common parts from model Whirlpool MB7120XYB1
27`` Built-In Kit WPL 4313601 Contact Us For Availability
24`` Built-In Kit WPL 4313648 Contact Us For Availability
Manual, Operation WPL LIT4313707 Contact Us For Availability
Tech Sheet WPL LIT4313735 Contact Us For Availability
List, Repair Parts WPL LIT4313736 Contact Us For Availability
1
Screw, 4 x 8 mm WPL 4313661 Contact Us For Availability
1
Harness, Main WPL 4365531 Contact Us For Availability
1
Microcomputer WPL 4365533 Contact Us For Availability
1
Lamp, Oven WPL 4313608 Contact Us For Availability
1
Switch and Fuse Assembly WPL 4313673 Contact Us For Availability
2
Control Panel WPL 4365534 Contact Us For Availability
2
Screw, 3 x 8 mm WPL 4174757 Contact Us For Availability
2
Socket, Lamp WPL 4313607 Contact Us For Availability
3
Push Button WPL 4313696 Contact Us For Availability
3
Duct, Fan WPL 4365510 Contact Us For Availability
4
Transformer WPL 4365502 Contact Us For Availability
4
Support, Turntable WPL 4313639 Contact Us For Availability
4
Magnetron WPL 4365503 Contact Us For Availability
4
Hook, Lever WPL 4312877 Contact Us For Availability
5
Capacitor WPL 4313605 Contact Us For Availability
5
Screw WPL 4357320 Contact Us For Availability
5
Harness, Wiring Thermal Protection WPL 4365506 Contact Us For Availability
5
Motor, Turntable WPL 4313614 Contact Us For Availability
5
Thermostat, Magnetron WPL 4313613 Contact Us For Availability
5
Latch Lever WPL 4313624 Contact Us For Availability
6
Rectifier WPL 4313606 Contact Us For Availability
6
Cover, Motor WPL 4365508 Contact Us For Availability
6
Motor, Fan WPL 4313672 Contact Us For Availability
6
Latch Hook WPL 4313620 Contact Us For Availability
7
Outer Cabinet WPL 4365507 Contact Us For Availability
7
H.V. Wire Magnetron To Capacitor WPL 4313657 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
7
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
7
Gasket, Turntable WPL 4313642 Contact Us For Availability
7
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
7
Cord Brown (1/2 Oz.) WPL 832889 Contact Us For Availability
7
Blade, Fan WPL 4174669 Contact Us For Availability
8
Base Plate, Left Side WPL 4313622 Contact Us For Availability
8
H.V. Wire Transformer To Capacitor WPL 4313658 Contact Us For Availability
9
Foot (4) WPL 4313684 Contact Us For Availability
9
Screw, 4 x 12 mm WPL 4313701 Contact Us For Availability
9
Seal, Door (Not a Serviceable Part) WPL ARI117876A Contact Us For Availability
10
Duct, Cooling WPL 4365509 Contact Us For Availability
10
Panel, Door (Not Serviceable) WPL ARI117877A Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
11
Reflector, Heat WPL 4365511 Contact Us For Availability
11
Choke Cover WPL 4313650 Contact Us For Availability
12
Hinge, Lower WPL 4313619 Contact Us For Availability
12
Element, Browning WPL 4365505 Contact Us For Availability
12
Frame, Door (Not Serviceable) WPL ARI117878A Contact Us For Availability
13
Base Plate, Right Side WPL 4365532 Contact Us For Availability
13
Fuse, Cavity Temperature WPL 4313674 Contact Us For Availability
14
Screw, Capacitor Mounting WPL 4174811 Contact Us For Availability
14
Cushion, Motor WPL 4174824 Contact Us For Availability
14
Latch, Door WPL 4313652 Contact Us For Availability
15
Screw WPL 4313666 Contact Us For Availability
15
Bracket, Element WPL 4365512 Contact Us For Availability
15
Spring, Latch WPL 4174992 Contact Us For Availability
16
Washer, Trans. Ground WPL 4365501 Contact Us For Availability
16
Nut, Reflector Mounting WPL 4174843 Contact Us For Availability
17
Screw WPL 4365530 Contact Us For Availability
17
Washer, Element Mounting WPL 4174786 Contact Us For Availability
18
Screw WPL 4313664 Contact Us For Availability
18
Holder, Fuse WPL 4174899 Contact Us For Availability
19
Hinge, Upper WPL 4313638 Contact Us For Availability
20
Shield, Wire (2) WPL 4313644 Contact Us For Availability
20
Screw WPL 4174826 Contact Us For Availability
20
Door, Complete WPL 4365515 Contact Us For Availability
21
Screw WPL 4365500 Contact Us For Availability
23
Duct, Magnetron WPL 4313633 Contact Us For Availability
24
Cover, Wave Guide WPL 4313635 Contact Us For Availability
× ![]()
