Model Whirlpool MB1110SLQ MICROWAVE OVEN 1.1 CUBIC FOOT – Common Parts & Diagrams

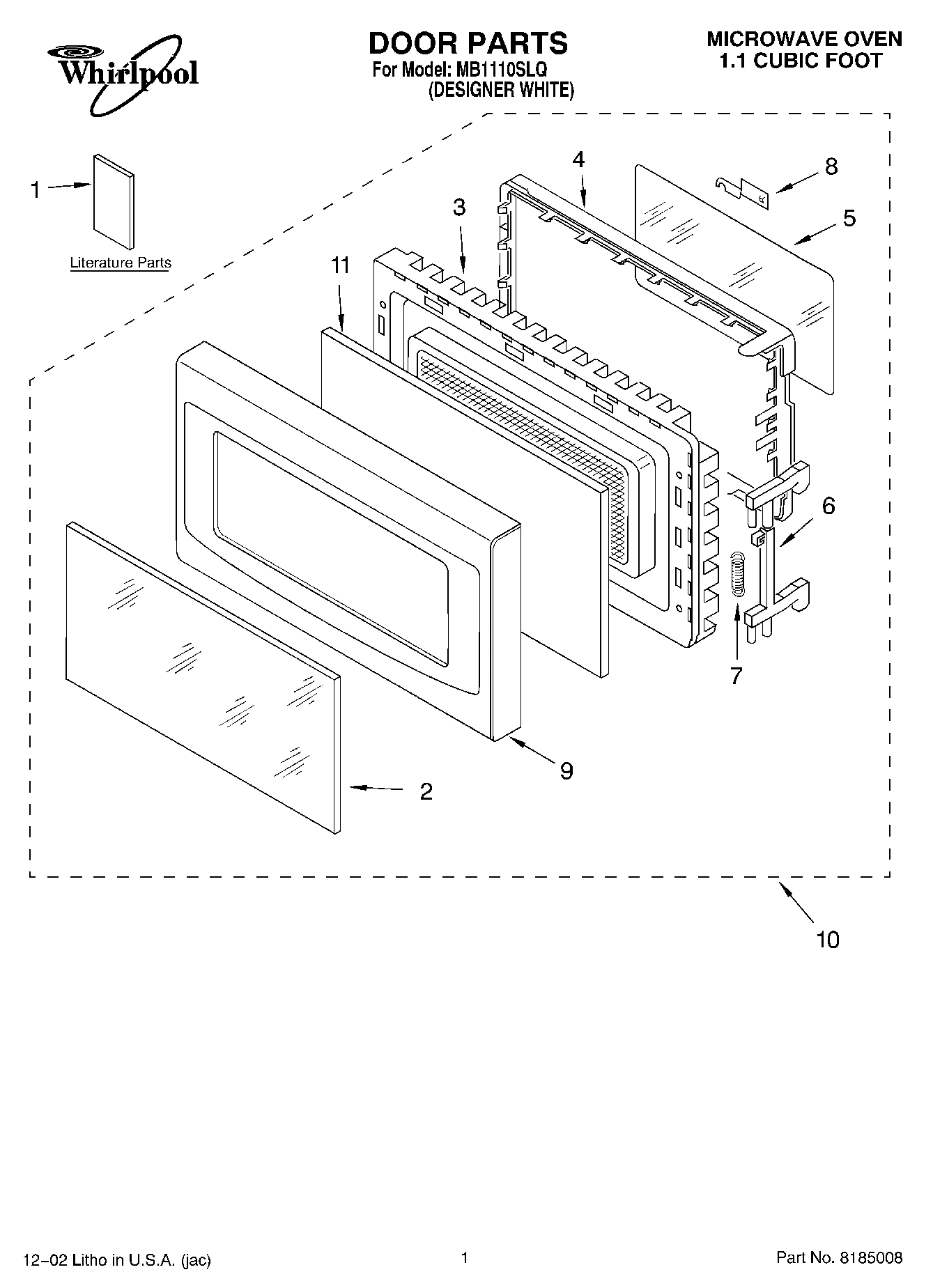

01 - DOOR PARTS

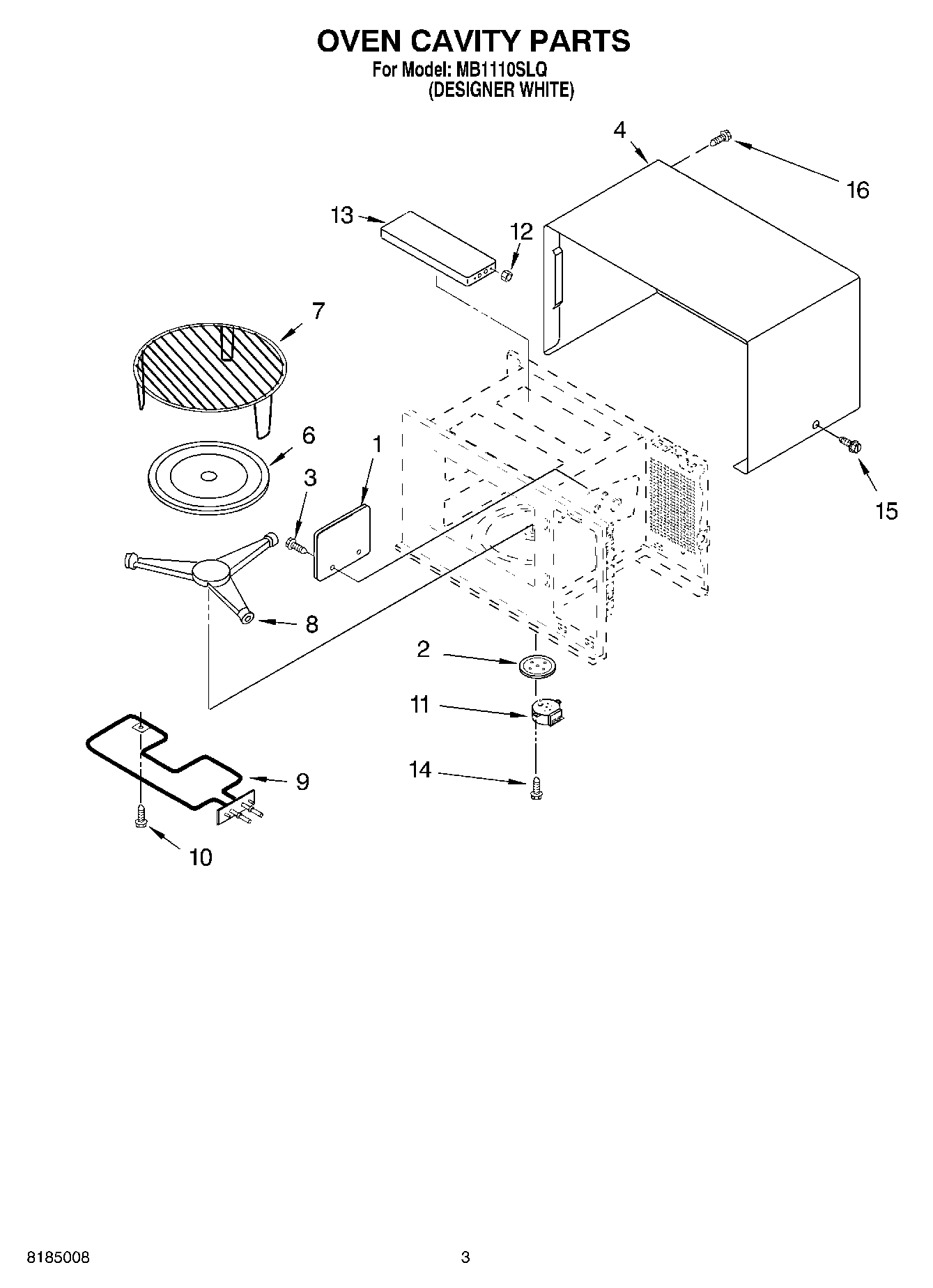

03 - OVEN CAVITY PARTS

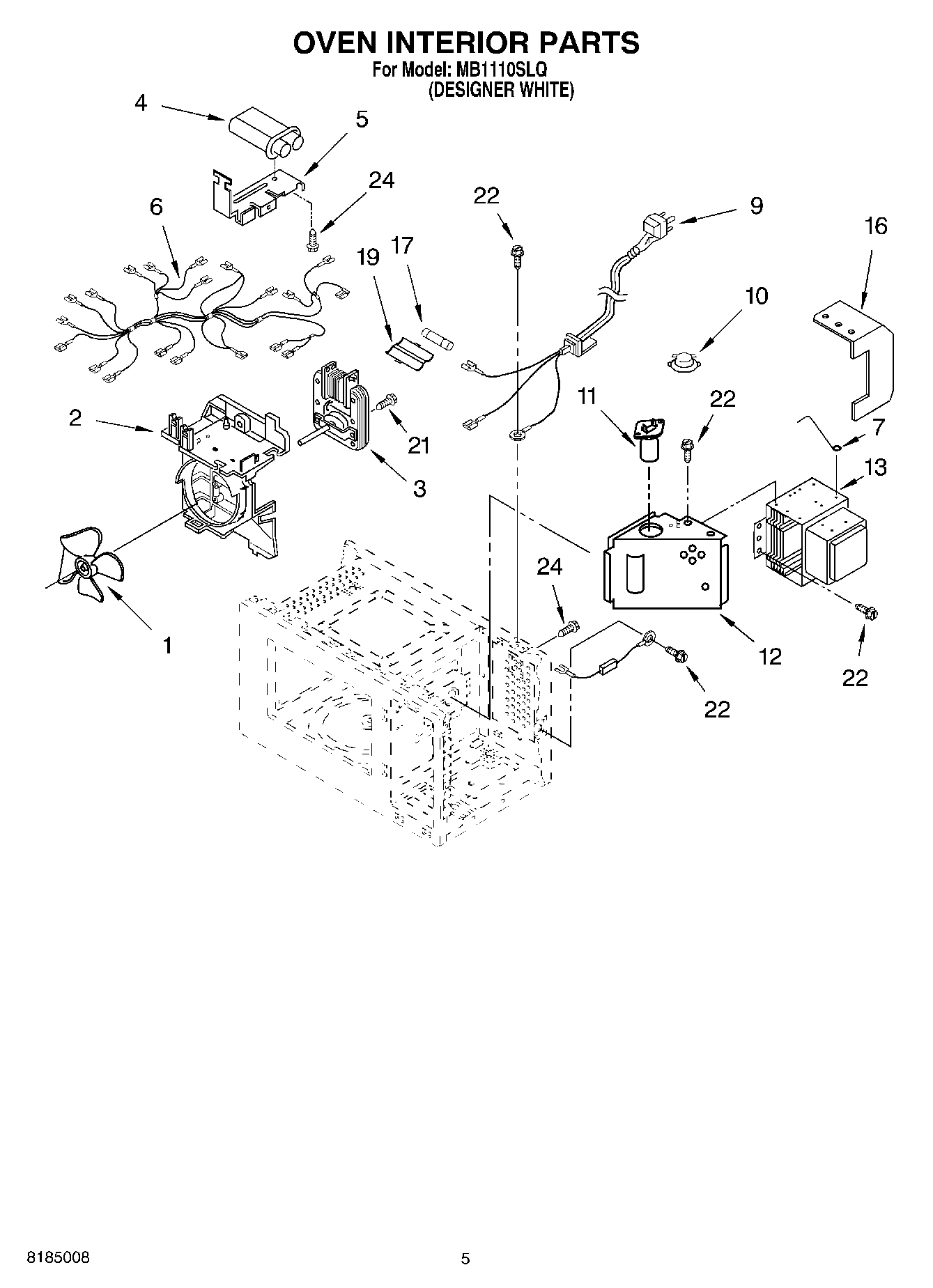

05 - OVEN INTERIOR PARTS

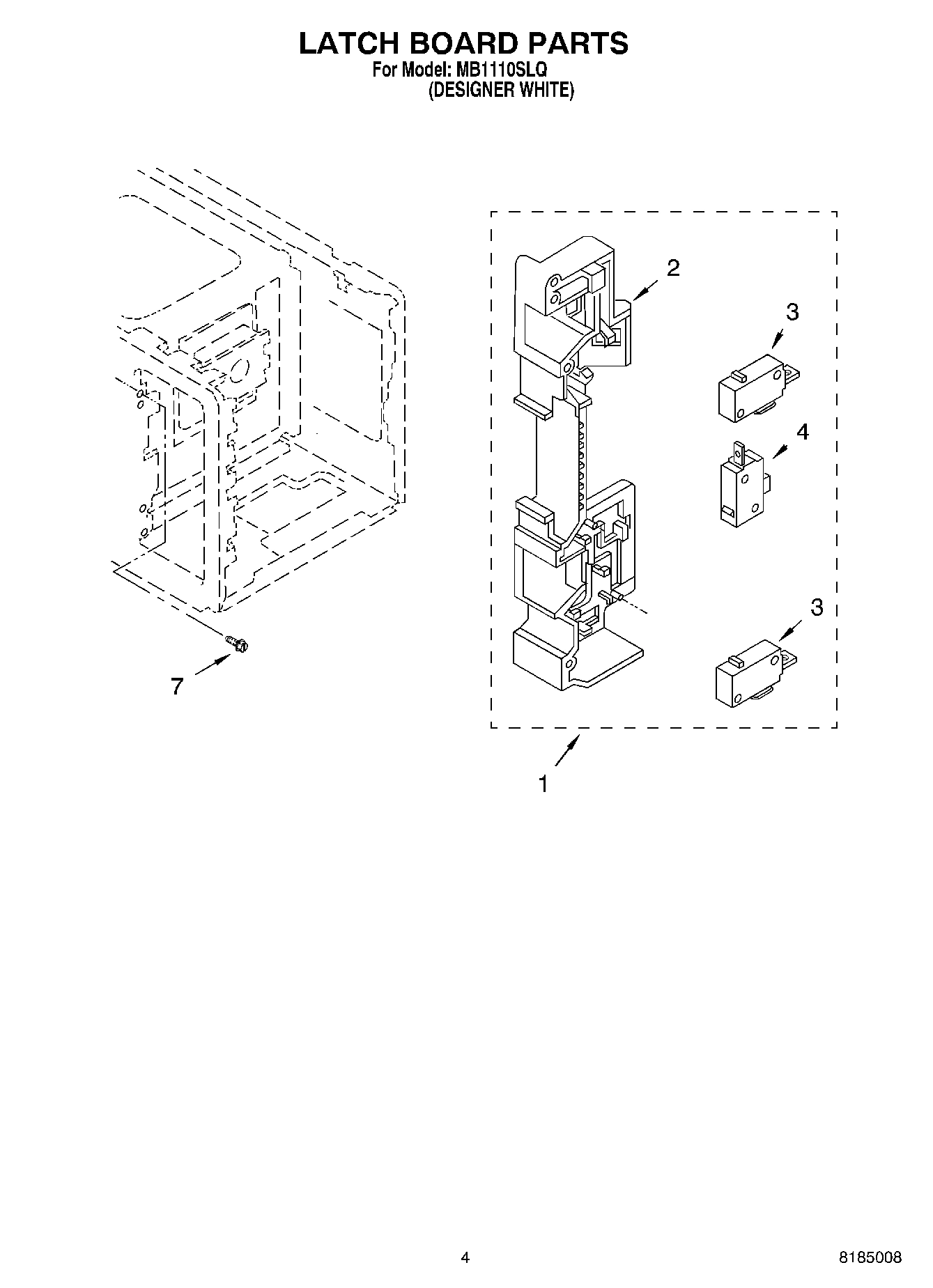

04 - LATCH BOARD PARTS

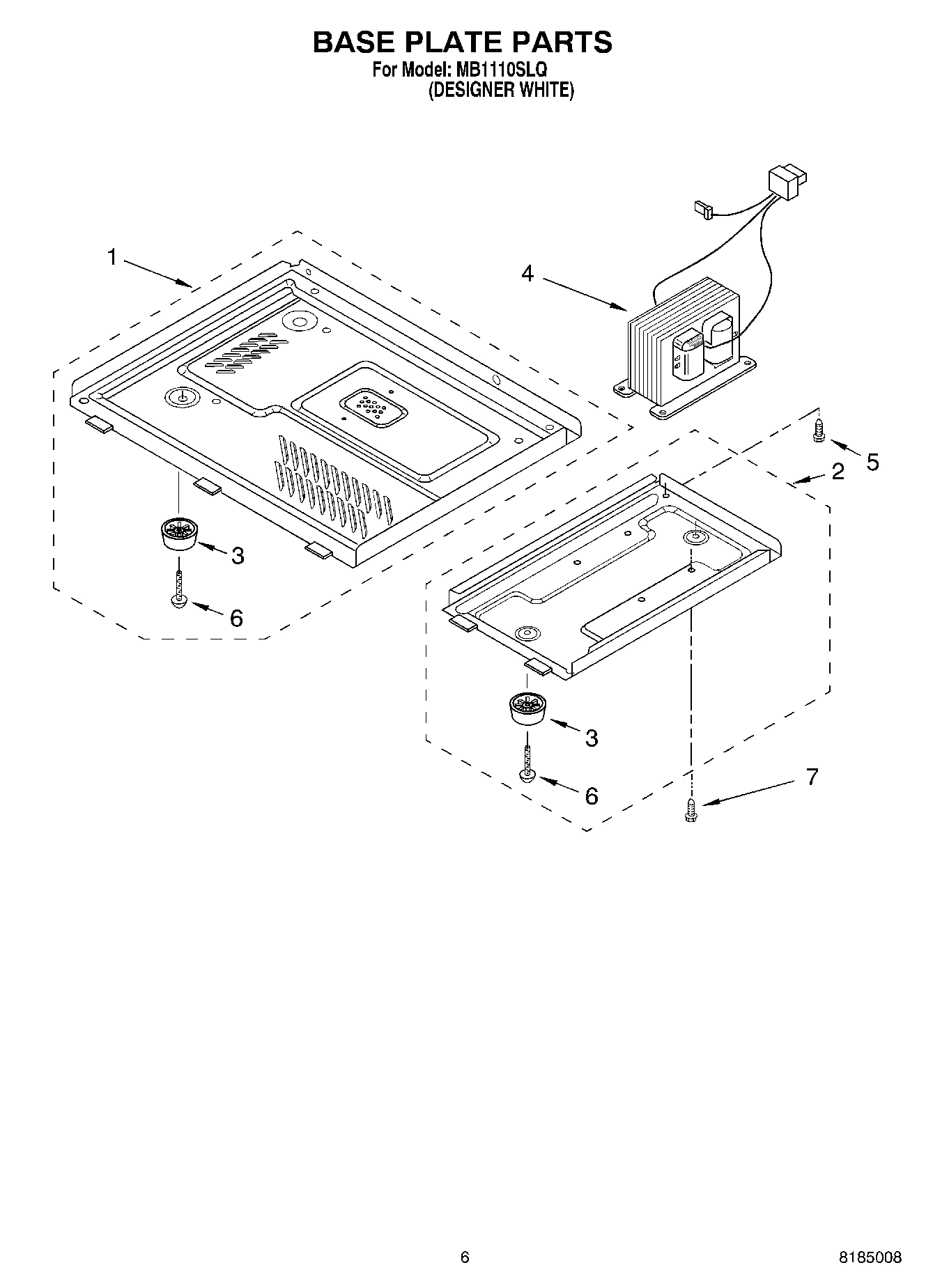

06 - BASE PLATE PARTS

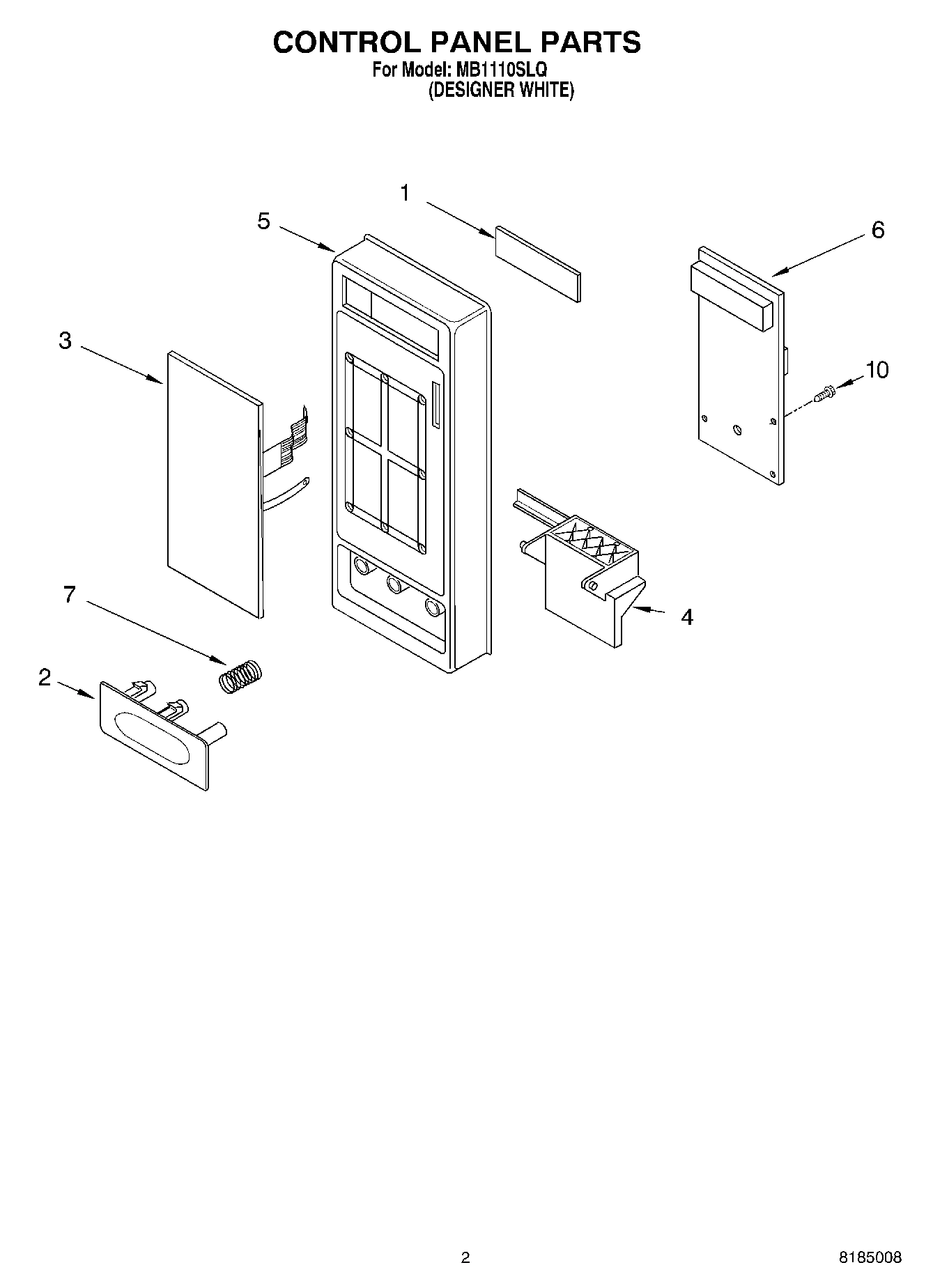

02 - CONTROL PANEL PARTS
Common parts from model Whirlpool MB1110SLQ MICROWAVE OVEN 1.1 CUBIC FOOT
1
Canopy WPL 8171983 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI117872A Contact Us For Availability
1
Base Plate (L) WPL 8171812 Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
2
Mount WPL 8171804 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Base Plate (R) WPL 8171811 Contact Us For Availability
2
Button WPL 8185142 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Switch, Membrane WPL 8185143 Contact Us For Availability
4
Outer Case WPL 8185130 Contact Us For Availability
4
H.V. Capacitor WPL 4359049 Contact Us For Availability
4
Transformer WPL 8184338 Contact Us For Availability
4
Lever, Release WPL 8185141 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Control Panel WPL 8185140 Contact Us For Availability
6
Tray, Glass WPL 8171807 Contact Us For Availability
6
Leadwire Assembly WPL 8185127 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
Microcomputer WPL 8185144 Contact Us For Availability
7
Spring WPL 4158178 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Rack, F/S WPL 8185129 Contact Us For Availability
7
Bracket, Support WPL 8185128 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Turntable Support WPL 4359782 Contact Us For Availability
9
Panel, Door WPL 8185137 Contact Us For Availability
9
Heater WPL 8185131 Contact Us For Availability
9
Power Cord WPL 8172064 Contact Us For Availability
10
Door Assembly WPL 8185138 Contact Us For Availability
10
Screw WPL 8185132 Contact Us For Availability
10
Thermostat WPL 4358698 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Baffle, Door WPL 8185139 Contact Us For Availability
11
Motor, Synchronous WPL 8183612 Contact Us For Availability
12
Nut WPL 8185133 Contact Us For Availability
12
Duct, Air WPL 8171986 Contact Us For Availability
13
Cover WPL 8185145 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
16
Bracker, Mounting WPL 8183508 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
