Model Maytag MAT15MNAWW0 WASHER – Common Parts & Diagrams

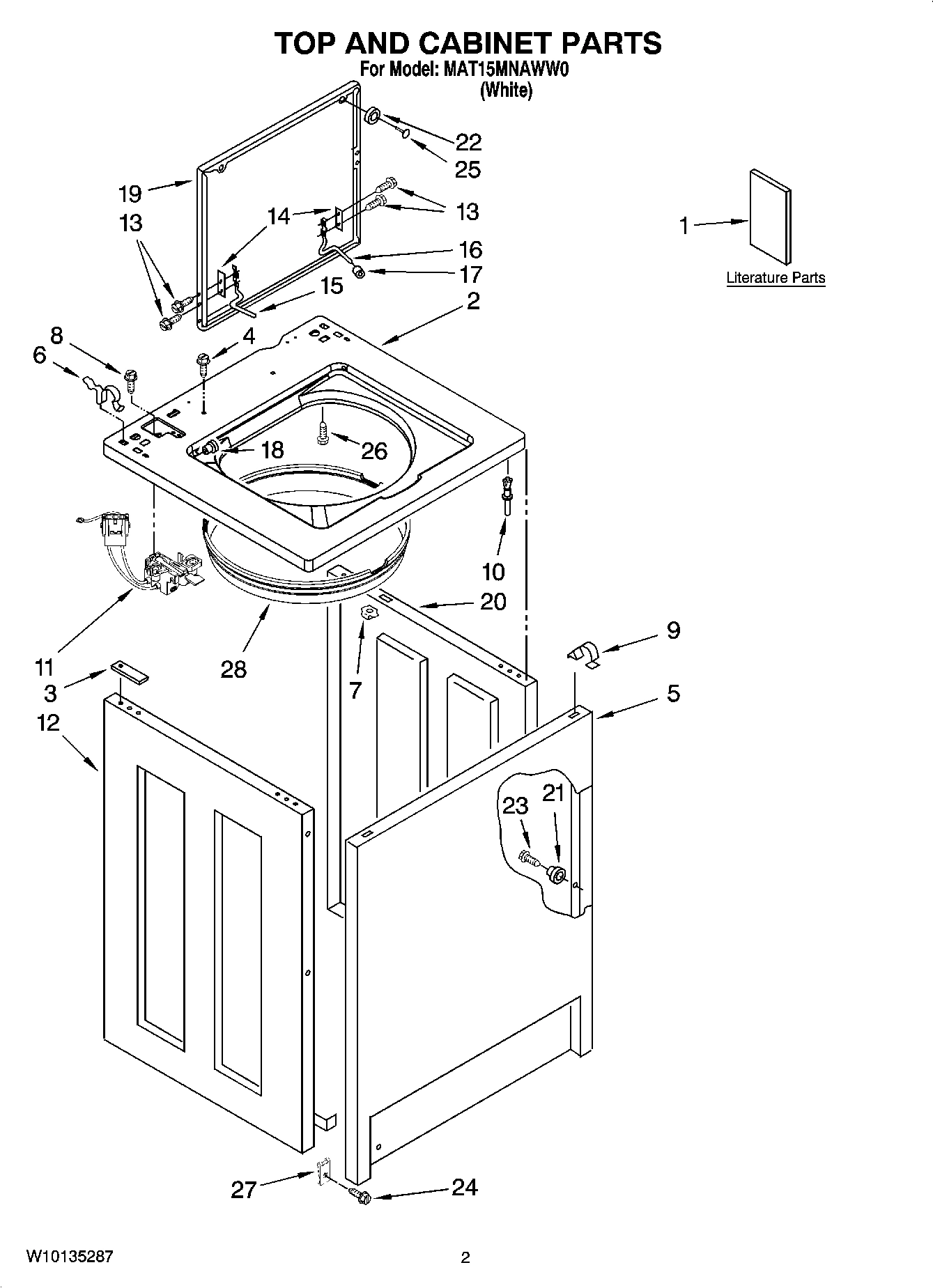

01 - TOP AND CABINET PARTS

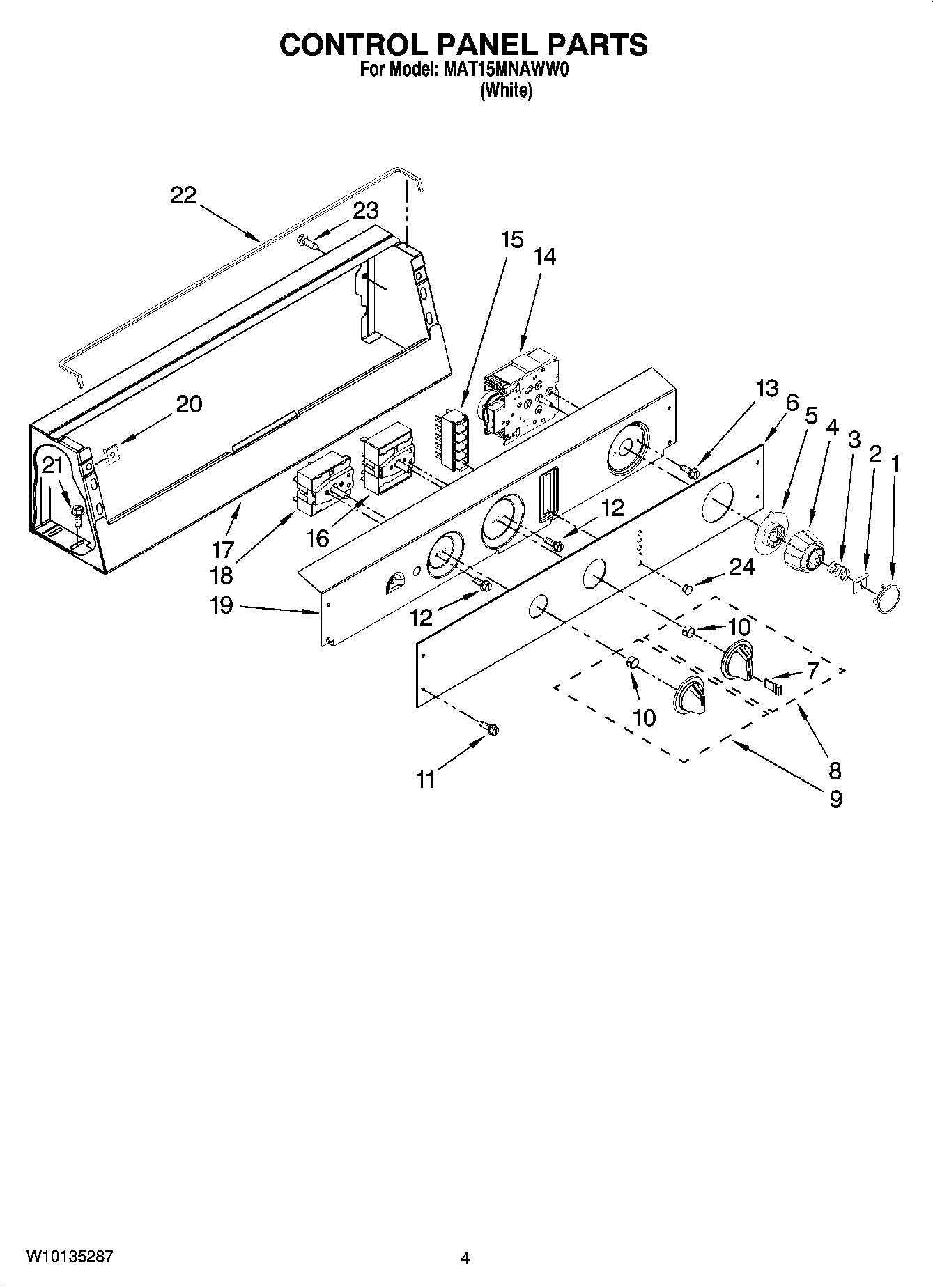

02 - CONTROL PANEL PARTS

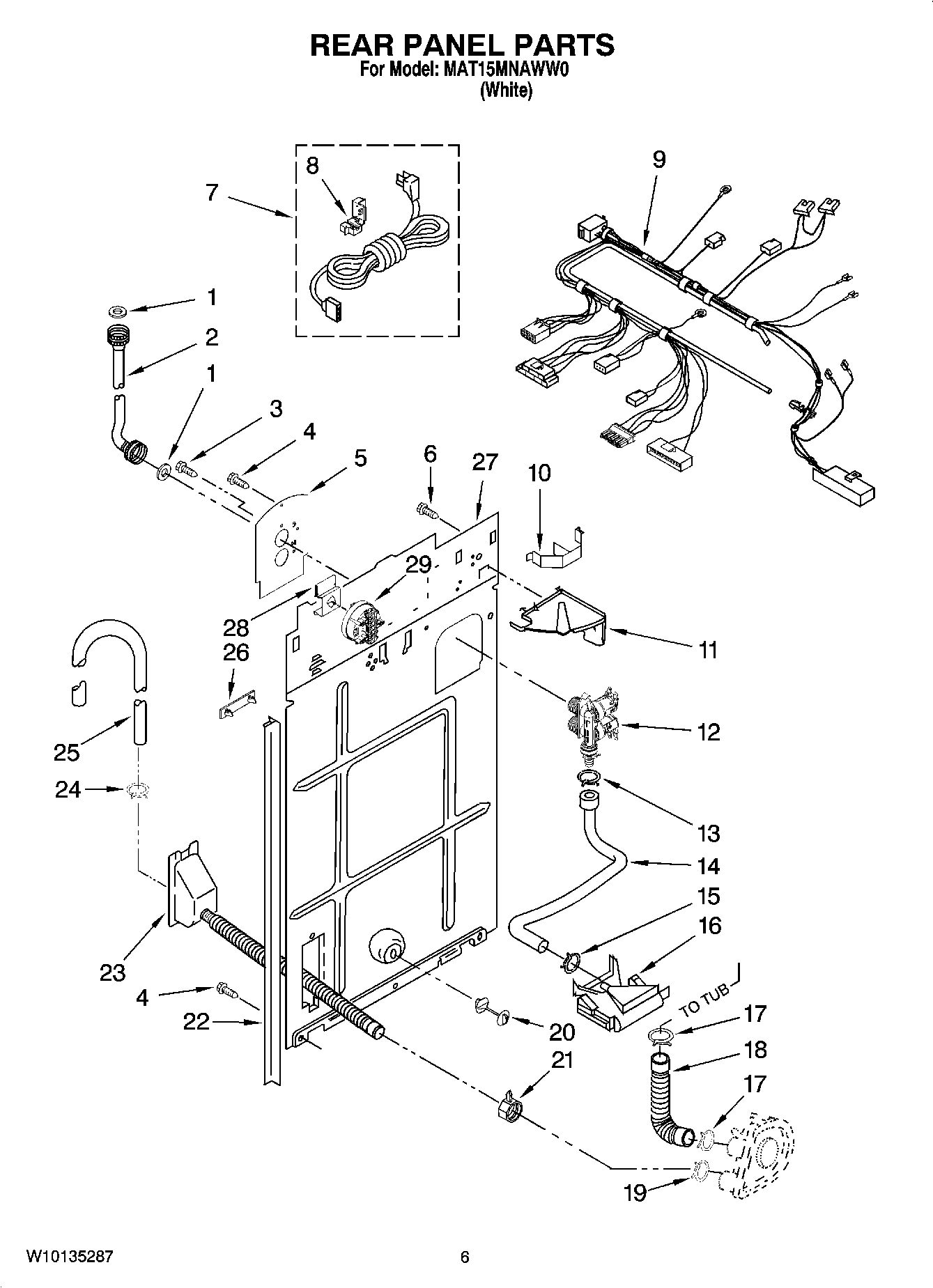

03 - REAR PANEL PARTS

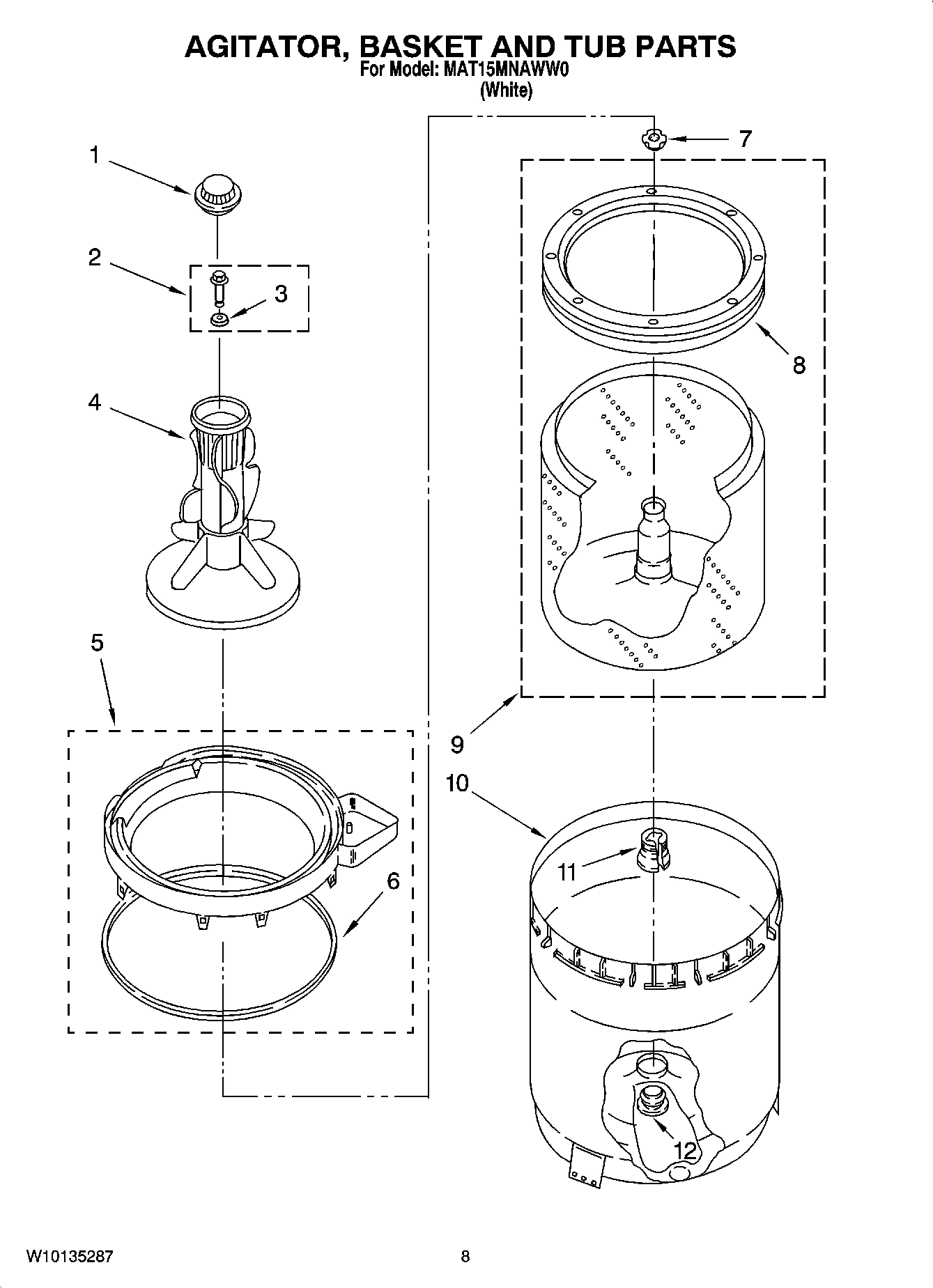

04 - AGITATOR, BASKET AND TUB PARTS

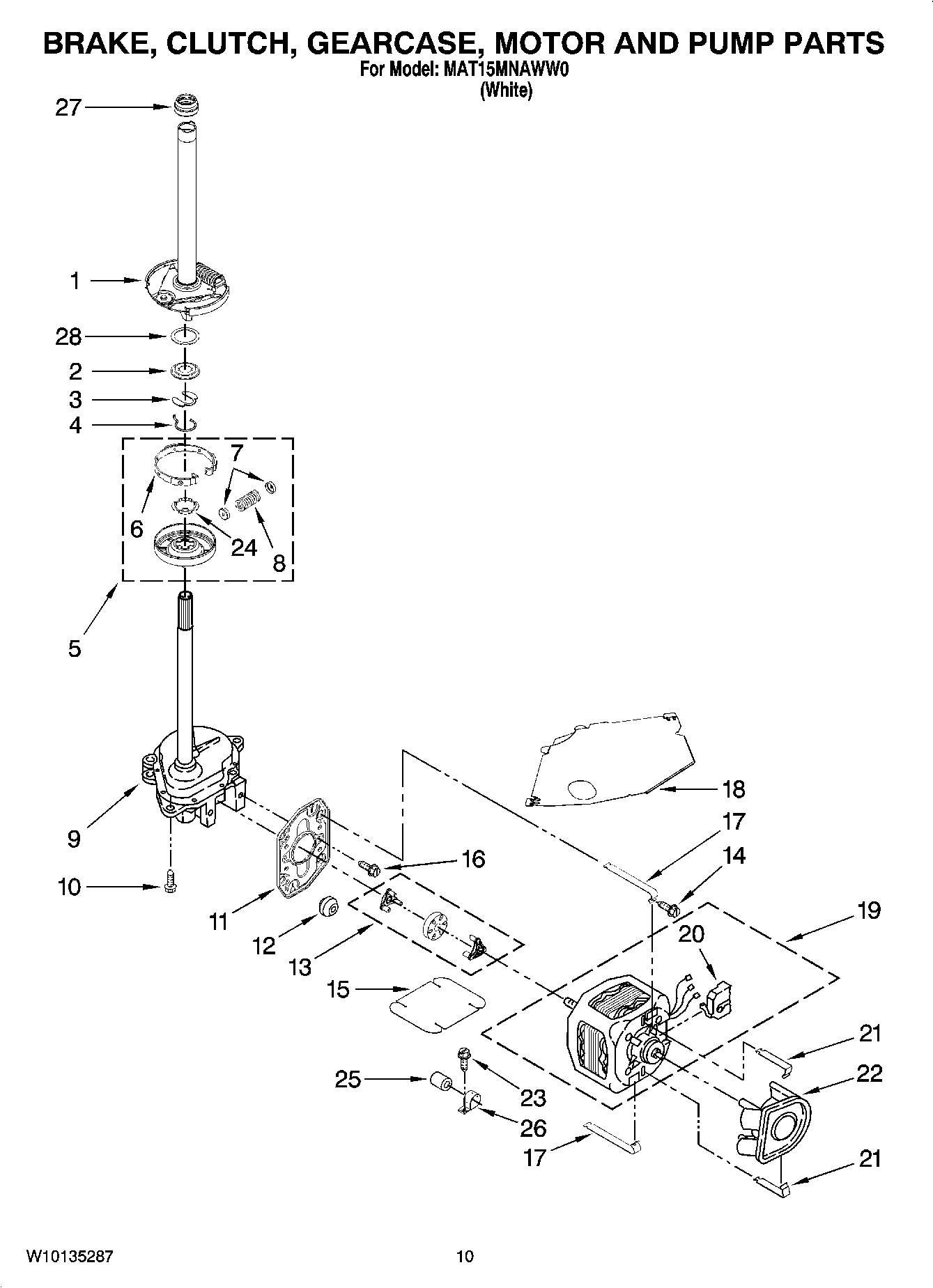

05 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

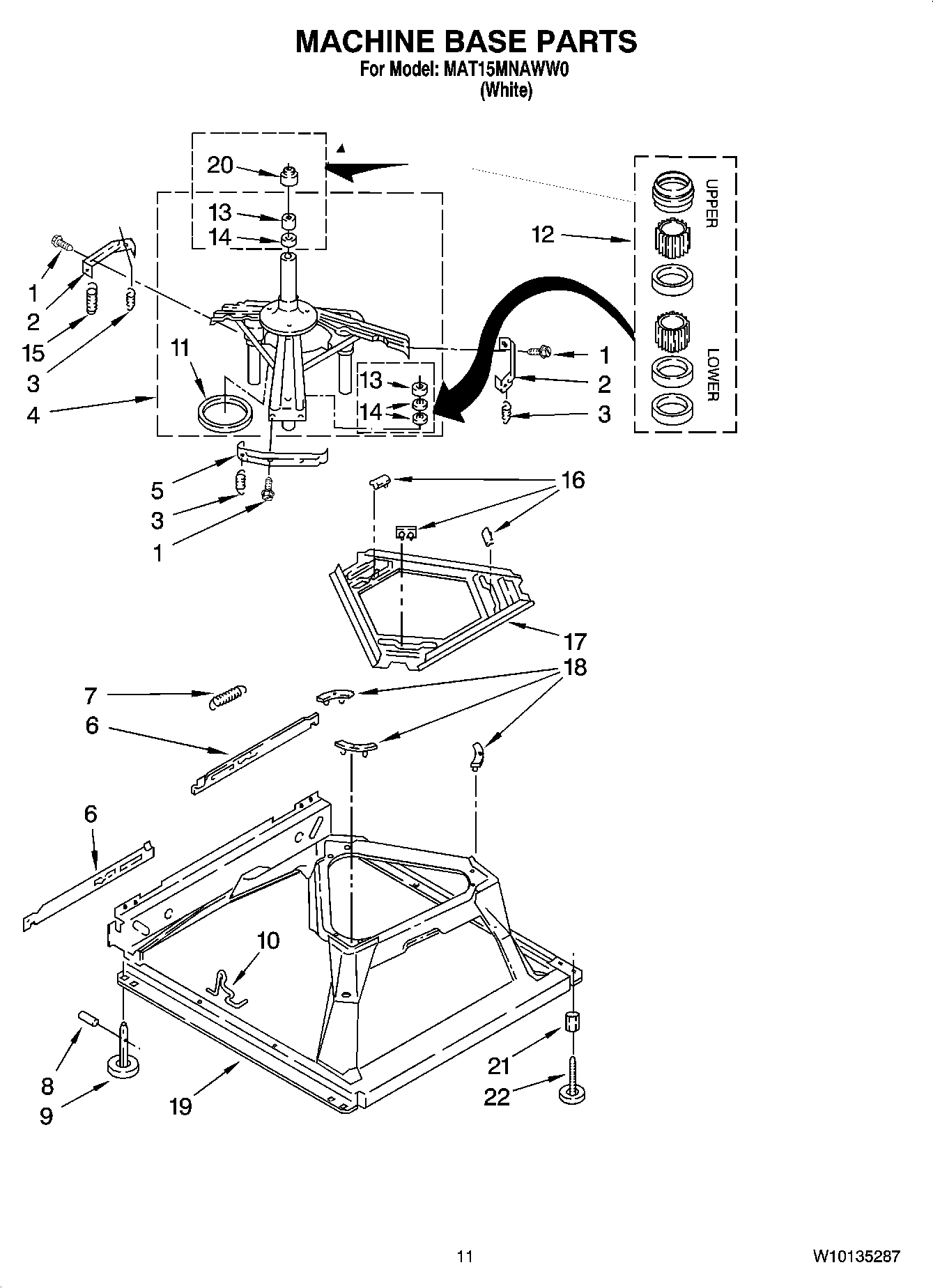

06 - MACHINE BASE PARTS

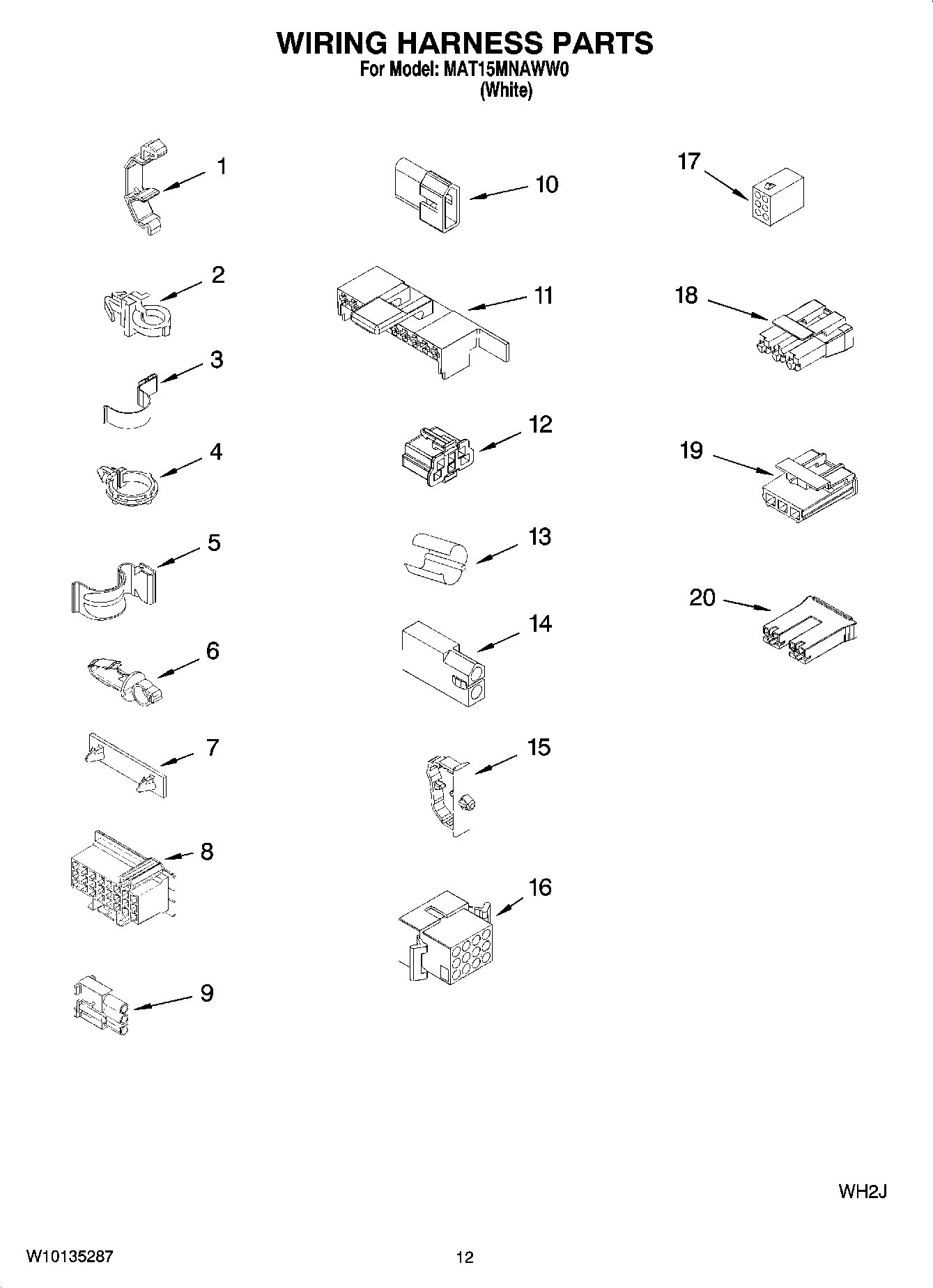

07 - WIRING HARNESS PARTS

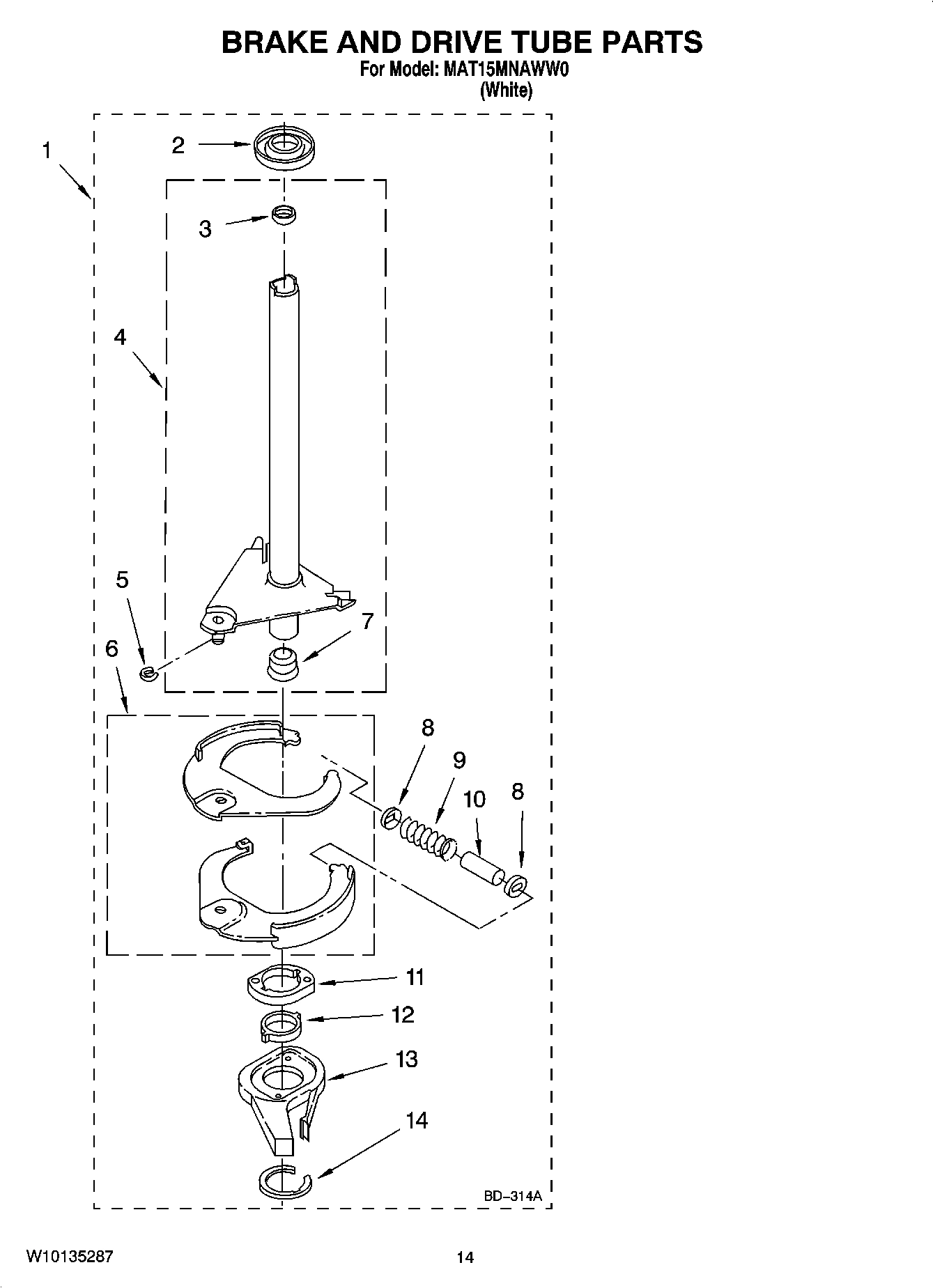

08 - BRAKE AND DRIVE TUBE PARTS

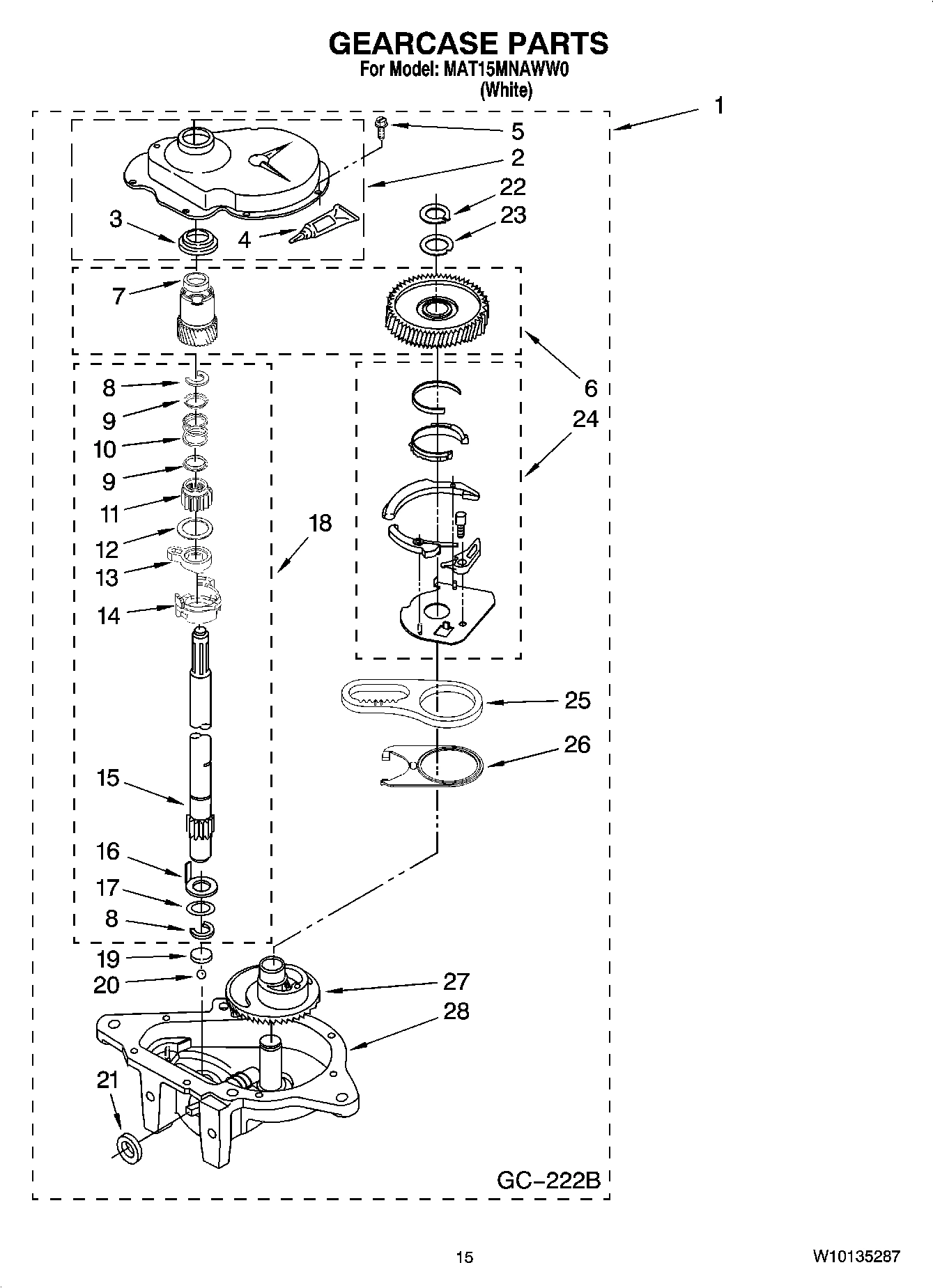

09 - GEARCASE PARTS

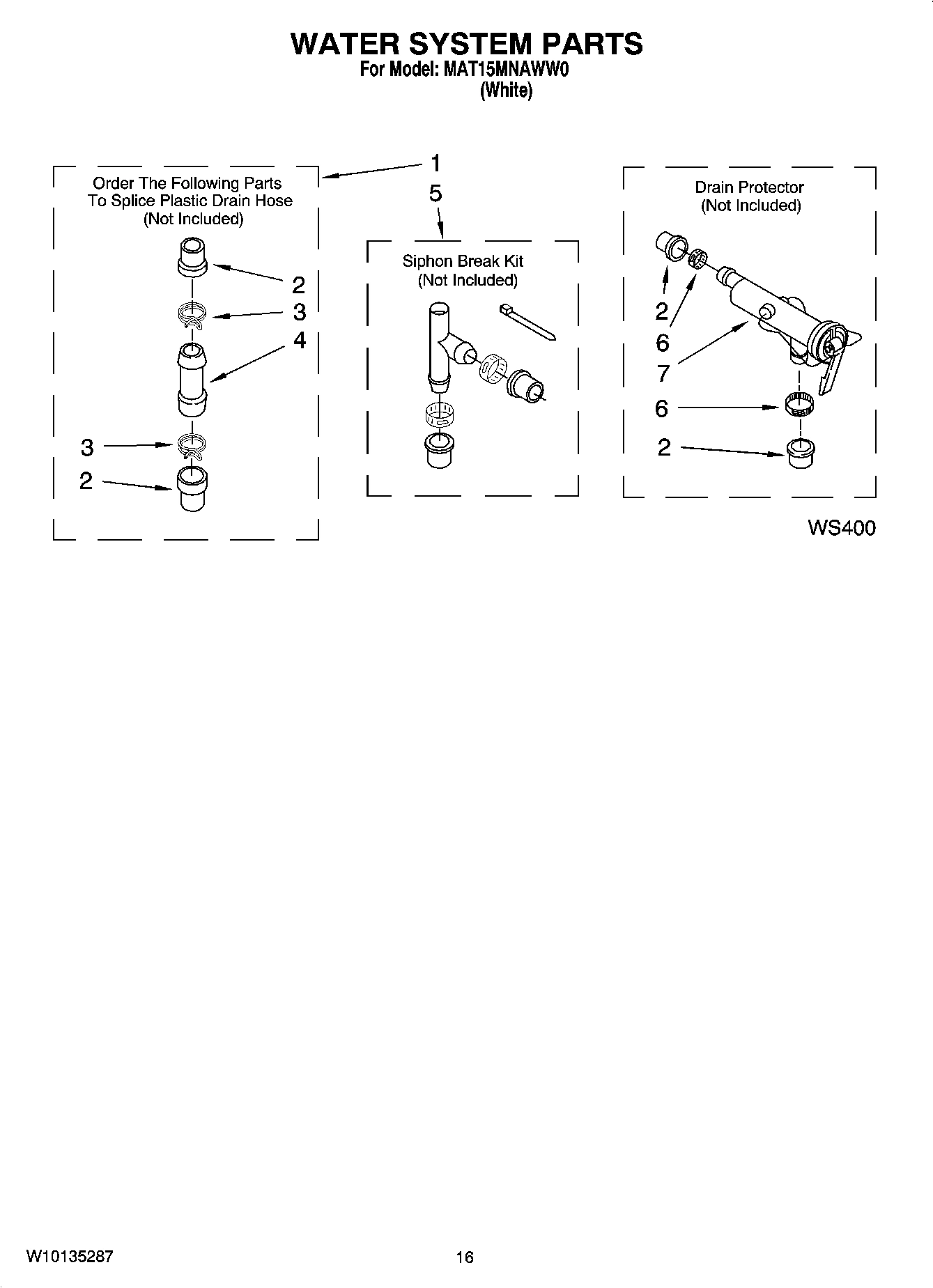

10 - WATER SYSTEM PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MAT15MNAWW0 WASHER
Lubricant (Use Only in Brake Shoe Assembly On MAY 285208 Contact Us For Availability
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
MAY 350572 MAY 350572 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
MAY 389236 MAY 389236 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
1
MAY W10130354 MAY W10130354 Contact Us For Availability
1
MAY W10135287 MAY W10135287 Contact Us For Availability
1
MAY W10135294 MAY W10135294 Contact Us For Availability
1
MAY W10133501 MAY W10133501 Contact Us For Availability
1
MAY 3400076 MAY 3400076 Contact Us For Availability
1
WASHER, WATER INLET HOSE (4) 1-1/16 X 5/8 MAY 3976300 Contact Us For Availability
1
MAY W10131111 MAY W10131111 Contact Us For Availability
1
Brake & Drive Tube (Complete) (Refer to Page MAY 388952 Contact Us For Availability
1
Gearcase (Complete) MAY W10140301 Contact Us For Availability
1
Retainer, Harness MAY 3349557 Contact Us For Availability
1
Brake And Drive Tube (Complete) MAY 388951 Contact Us For Availability
1
MAY 285442 MAY 285442 Contact Us For Availability
2
MAY W10136709 MAY W10136709 Contact Us For Availability
2
MAY W10137328 MAY W10137328 Contact Us For Availability
2
MAY 3949380 MAY 3949380 Contact Us For Availability
2
MAY 3949381 MAY 3949381 Contact Us For Availability
2
MAY W10003790 MAY W10003790 Contact Us For Availability
2
MAY 63292 MAY 63292 Contact Us For Availability
2
MAY 64067 MAY 64067 Contact Us For Availability
2
MAY 388498 MAY 388498 Contact Us For Availability
2
MAY 62658 MAY 62658 Contact Us For Availability
2
MAY 285202 MAY 285202 Contact Us For Availability
2
MAY 285321 MAY 285321 Contact Us For Availability
3
MAY 3353950 MAY 3353950 Contact Us For Availability
3
MAY W10133497 MAY W10133497 Contact Us For Availability
3
MAY 9740848 MAY 9740848 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY 62697 MAY 62697 Contact Us For Availability
3
SPRING, SUSPENSION(3) MAY 63907 Contact Us For Availability
3
MAY 3347812 MAY 3347812 Contact Us For Availability
3
MAY 356427 MAY 356427 Contact Us For Availability
3
MAY 3349985 MAY 3349985 Contact Us For Availability
3
MAY 370447 MAY 370447 Contact Us For Availability
4
MAY W10133500 MAY W10133500 Contact Us For Availability
4
MAY W10131112 MAY W10131112 Contact Us For Availability
4
MAY 63283 MAY 63283 Contact Us For Availability
4
MAY 3362087 MAY 3362087 Contact Us For Availability
4
Clip, Harness (Push-In) MAY 3352501 Contact Us For Availability
4
MAY 64027 MAY 64027 Contact Us For Availability
4
MAY 16272 MAY 16272 Contact Us For Availability
5
SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X MAY 3351614 Contact Us For Availability
5
Panel, Front MAY 3358500 Contact Us For Availability
5
MAY W10133496 MAY W10133496 Contact Us For Availability
5
MAY 8541624 MAY 8541624 Contact Us For Availability
5
Tub Ring MAY 8528150 Contact Us For Availability
5
MAY 8299642 MAY 8299642 Contact Us For Availability
5
MAY 64065 MAY 64065 Contact Us For Availability
5
Clip, Harness (Half-Harness) MAY 90016 Contact Us For Availability
5
MAY 64035 MAY 64035 Contact Us For Availability
5
MAY 285320 MAY 285320 Contact Us For Availability
6
MAY 62780 MAY 62780 Contact Us For Availability
6
MAY W10135337 MAY W10135337 Contact Us For Availability
6
MAY 3976308 MAY 3976308 Contact Us For Availability
6
Band & Lining Assembly MAY 3951993 Contact Us For Availability
6
MAY 63466 MAY 63466 Contact Us For Availability
6
MAY 3390496 MAY 3390496 Contact Us For Availability
6
MAY 64232 MAY 64232 Contact Us For Availability
6
MAY W10172898 MAY W10172898 Contact Us For Availability
6
MAY 65349 MAY 65349 Contact Us For Availability
7
Cage Nut MAY 90406 Contact Us For Availability
7
MAY W10141516 MAY W10141516 Contact Us For Availability
7
MAY 3976231 MAY 3976231 Contact Us For Availability
7
Retainer, Harness MAY 389379 Contact Us For Availability
7
MAY 21366 MAY 21366 Contact Us For Availability
7
MAY 62646 MAY 62646 Contact Us For Availability
7
MAY 62597 MAY 62597 Contact Us For Availability
7
MAY 62703 MAY 62703 Contact Us For Availability
7
MAY 367031 MAY 367031 Contact Us For Availability
8
Screw & Washer, Lid Switch (2) MAY 3400611 Contact Us For Availability
8
MAY W10133503 MAY W10133503 Contact Us For Availability
8
Strain Relief, Power Cord To Rear Panel MAY 3952821 Contact Us For Availability
8
MAY 387240 MAY 387240 Contact Us For Availability
8
MAY 8559387 MAY 8559387 Contact Us For Availability
8
MAY 62837 MAY 62837 Contact Us For Availability
8
MAY 352089 MAY 352089 Contact Us For Availability
8
Timer, Block Disconnect (Natural) MAY 3948614 Contact Us For Availability
8
MAY 3353956 MAY 3353956 Contact Us For Availability
8
MAY 90369 MAY 90369 Contact Us For Availability
9
Lock (2) MAY 18776 Contact Us For Availability
9
MAY W10133504 MAY W10133504 Contact Us For Availability
9
MAY W10177765 MAY W10177765 Contact Us For Availability
9
MAY 8526017 MAY 8526017 Contact Us For Availability
9
MAY 62596 MAY 62596 Contact Us For Availability
9
Receptacle, Terminal (3-Way) MAY 62889 Contact Us For Availability
9
MAY 62647 MAY 62647 Contact Us For Availability
9
Retainer, Spring (2) MAY 62677 Contact Us For Availability
10
MAY 3353949 MAY 3353949 Contact Us For Availability
10
MAY W10140928 MAY W10140928 Contact Us For Availability
10
MAY 8055003 MAY 8055003 Contact Us For Availability
10
MAY W10135425 MAY W10135425 Contact Us For Availability
10
MAY 3357334 MAY 3357334 Contact Us For Availability
10
MAY W10145155 MAY W10145155 Contact Us For Availability
10
Plug, Terminal (3-Way) MAY 353424 Contact Us For Availability
10
MAY 3355360 MAY 3355360 Contact Us For Availability
10
MAY 62676 MAY 62676 Contact Us For Availability
11
MAY 8054980 MAY 8054980 Contact Us For Availability
11
Screw, 8-18 x 1/2 MAY W10131119 Contact Us For Availability
11
MAY 8539874 MAY 8539874 Contact Us For Availability
11
Block, Drive MAY 389140 Contact Us For Availability
11
MAY 62611 MAY 62611 Contact Us For Availability
11
MAY 63134 MAY 63134 Contact Us For Availability
11
Block, Disconnect (Motor 2 Speed) MAY 62505 Contact Us For Availability
11
MAY 661516 MAY 661516 Contact Us For Availability
11
Gear, Agitate (Includes 15 & 17) MAY W10110245 Contact Us For Availability
12
Panel L.H. MAY 3976382 Contact Us For Availability
12
Screw, 8-32 X 1/4 MAY W10139100 Contact Us For Availability
12
Valve, Water Inlet W/BI Metal MAY W10151480 Contact Us For Availability
12
MAY 383727 MAY 383727 Contact Us For Availability
12
MAY 62691 MAY 62691 Contact Us For Availability
12
Centerpost Bearing Kit (Includes Illus. 13, 1 MAY 285203 Contact Us For Availability
12
Block, Disconnect MAY 3347243 Contact Us For Availability
12
MAY 63022 MAY 63022 Contact Us For Availability
12
MAY 62619 MAY 62619 Contact Us For Availability
13
MAY W10119828 MAY W10119828 Contact Us For Availability
13
MAY 301958 MAY 301958 Contact Us For Availability
13
Coupling, Motor And Isolation MAY 3978849 Contact Us For Availability
13
Bearing, Centerpost MAY 8546455 Contact Us For Availability
13
MAY 63523 MAY 63523 Contact Us For Availability
13
MAY 64194 MAY 64194 Contact Us For Availability
13
MAY 62580 MAY 62580 Contact Us For Availability
14
MAY 21097 MAY 21097 Contact Us For Availability
14
MAY W10130353 MAY W10130353 Contact Us For Availability
14
MAY 8317974 MAY 8317974 Contact Us For Availability
14
MAY 3387485 MAY 3387485 Contact Us For Availability
14
MAY 357409 MAY 357409 Contact Us For Availability
14
Connector (2-Way) MAY 717252 Contact Us For Availability
14
MAY 90368 MAY 90368 Contact Us For Availability
14
Cam, Agitate (Includes 13) MAY 3976349 Contact Us For Availability
15
MAY 8524784 MAY 8524784 Contact Us For Availability
15
MAY W10135690 MAY W10135690 Contact Us For Availability
15
MAY 370450 MAY 370450 Contact Us For Availability
15
MAY 3946532 MAY 3946532 Contact Us For Availability
15
Spring, Counterweight MAY 8534035 Contact Us For Availability
15
MAY 3352944 MAY 3352944 Contact Us For Availability
15
MAY 389231 MAY 389231 Contact Us For Availability
16
HINGE, LID R.H. MAY 54583 Contact Us For Availability
16
MAY W10135589 MAY W10135589 Contact Us For Availability
16
Vacuum Break MAY 387606 Contact Us For Availability
16
MAY 3400516 MAY 3400516 Contact Us For Availability
16
MAY 62568 MAY 62568 Contact Us For Availability
16
Block, Disconnect (12-Way) MAY 3390423 Contact Us For Availability
16
MAY 62618 MAY 62618 Contact Us For Availability
17
MAY 19119 MAY 19119 Contact Us For Availability
17
MAY W10137300 MAY W10137300 Contact Us For Availability
17
MAY 3363366 MAY 3363366 Contact Us For Availability
17
MAY W10086010 MAY W10086010 Contact Us For Availability
17
MAY 3946509 MAY 3946509 Contact Us For Availability
17
Receptacle (6-Way) MAY 3347730 Contact Us For Availability
17
MAY 388815 MAY 388815 Contact Us For Availability
18
MAY 21258 MAY 21258 Contact Us For Availability
18
MAY W10135588 MAY W10135588 Contact Us For Availability
18
Hose, Pump To Tub (Includes Item 17) MAY 3951449 Contact Us For Availability
18
MAY 3362089 MAY 3362089 Contact Us For Availability
18
MAY 3363660 MAY 3363660 Contact Us For Availability
18
Connector (T.P.A.) (3-Circuit) MAY 3948617 Contact Us For Availability
18
MAY 389387 MAY 389387 Contact Us For Availability
19
MAY W10135387 MAY W10135387 Contact Us For Availability
19
MAY W10124212 MAY W10124212 Contact Us For Availability
19
MAY W10142630 MAY W10142630 Contact Us For Availability
19
MAY W10153111 MAY W10153111 Contact Us For Availability
19
BASE ASSEMBLY (INCLUDES ILLUS, 6, 7, 8, 9, 10 MAY W10135411 Contact Us For Availability
19
Plug (T.P.A) (3-Circuit) (Pressure Switch) MAY 3360056 Contact Us For Availability
19
MAY 16018 MAY 16018 Contact Us For Availability
20
Panel R.H. MAY 3976380 Contact Us For Availability
20
Nut, 8 U-Type MAY W10131123 Contact Us For Availability
20
MAY 8519200 MAY 8519200 Contact Us For Availability
20
MAY 3952056 MAY 3952056 Contact Us For Availability
20
MAY 8577376 MAY 8577376 Contact Us For Availability
20
Block, Connector (Natural) MAY 3354925 Contact Us For Availability
20
Block, Connector (Red) MAY 3354926 Contact Us For Availability
20
MAY 85529 MAY 85529 Contact Us For Availability
21
MAY 3353812 MAY 3353812 Contact Us For Availability
21
MAY 3390631 MAY 3390631 Contact Us For Availability
21
Clamp, Hose MAY 3976395 Contact Us For Availability
21
MAY 8546127 MAY 8546127 Contact Us For Availability
21
Nut, Lock (3/8-16) MAY 3359452 Contact Us For Availability
21
MAY W10111745 MAY W10111745 Contact Us For Availability
22
Bumper, Lid MAY 356908 Contact Us For Availability
22
Foam-Seal MAY 8318396 Contact Us For Availability
22
MAY 3354204 MAY 3354204 Contact Us For Availability
22
MAY 3363394 MAY 3363394 Contact Us For Availability
22
MAY W10001130 MAY W10001130 Contact Us For Availability
22
MAY 3362552 MAY 3362552 Contact Us For Availability
23
Screw (4) MAY 718258 Contact Us For Availability
23
SCREW 8-18 X 1/2 MAY 489290 Contact Us For Availability
23
MAY 62863 MAY 62863 Contact Us For Availability
23
Drain Hose Assy. (Includes Item 21) MAY 8317959 Contact Us For Availability
23
MAY 285766 MAY 285766 Contact Us For Availability
24
SCREW 10-16 X .500 MAY 3400077 Contact Us For Availability
24
Lens, Amber Indicator MAY W10133502 Contact Us For Availability
24
MAY 8317496 MAY 8317496 Contact Us For Availability
24
MAY 3355454 MAY 3355454 Contact Us For Availability
24
MAY 388253 MAY 388253 Contact Us For Availability
25
Rivet, Plastic MAY 356907 Contact Us For Availability
25
MAY W10141216 MAY W10141216 Contact Us For Availability
25
Capacitor MAY 8572717 Contact Us For Availability
25
MAY 8546456 MAY 8546456 Contact Us For Availability
26
Screw 10-16 X .690 MAY 3353993 Contact Us For Availability
26
MAY 3949496 MAY 3949496 Contact Us For Availability
26
MAY 62621 MAY 62621 Contact Us For Availability
27
Clip, U-Bend (2) MAY 98234 Contact Us For Availability
27
MAY 8541652 MAY 8541652 Contact Us For Availability
27
MAY 8577374 MAY 8577374 Contact Us For Availability
28
Shield Assembly MAY 8271956 Contact Us For Availability
28
MAY W10133269 MAY W10133269 Contact Us For Availability
28
MAY 8578981 MAY 8578981 Contact Us For Availability
29
MAY W10153112 MAY W10153112 Contact Us For Availability
× ![]()
