Model Maytag MAH22PDAXW1 WASHER – Common Parts & Diagrams

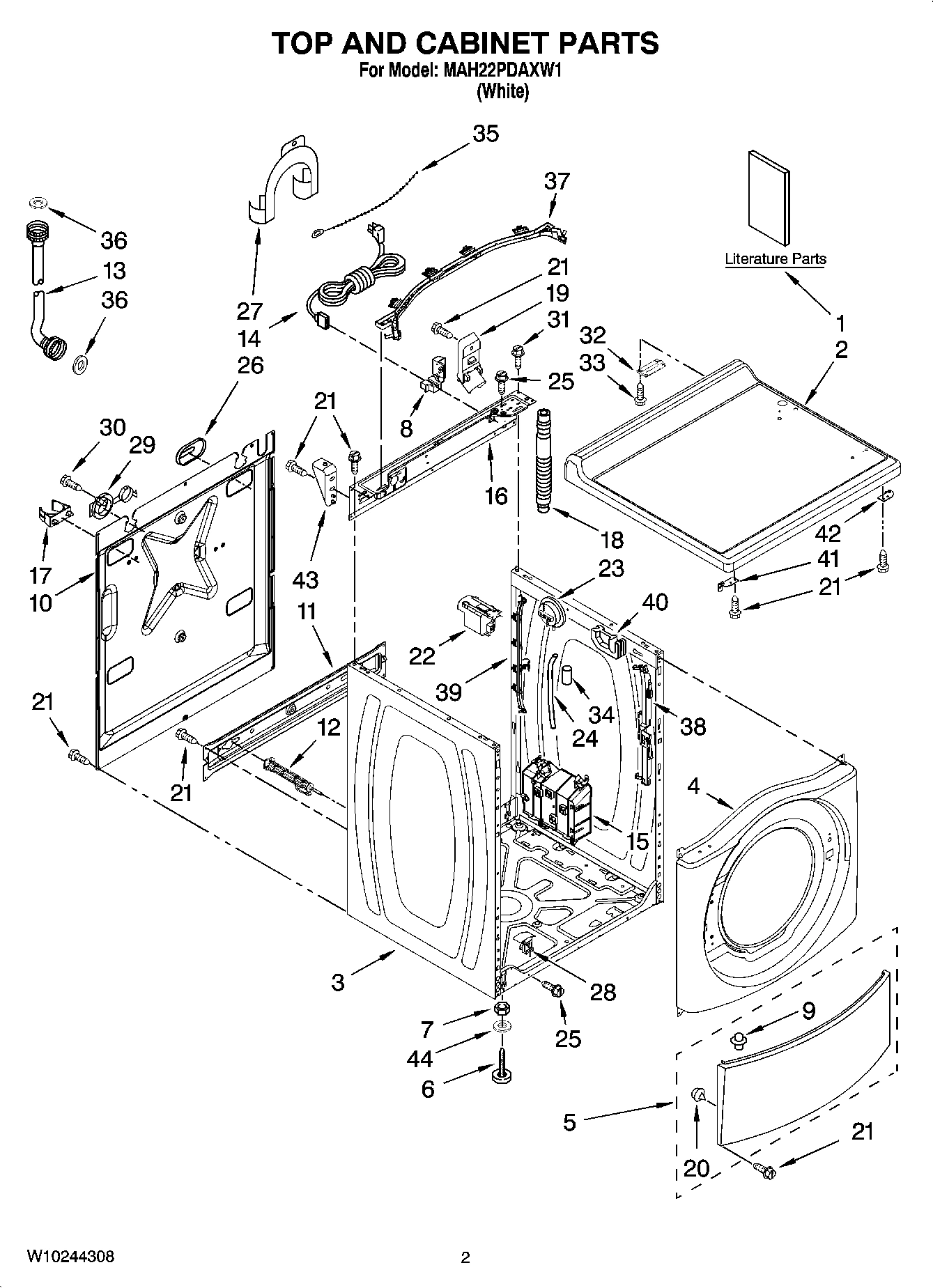

01 - TOP AND CABINET PARTS

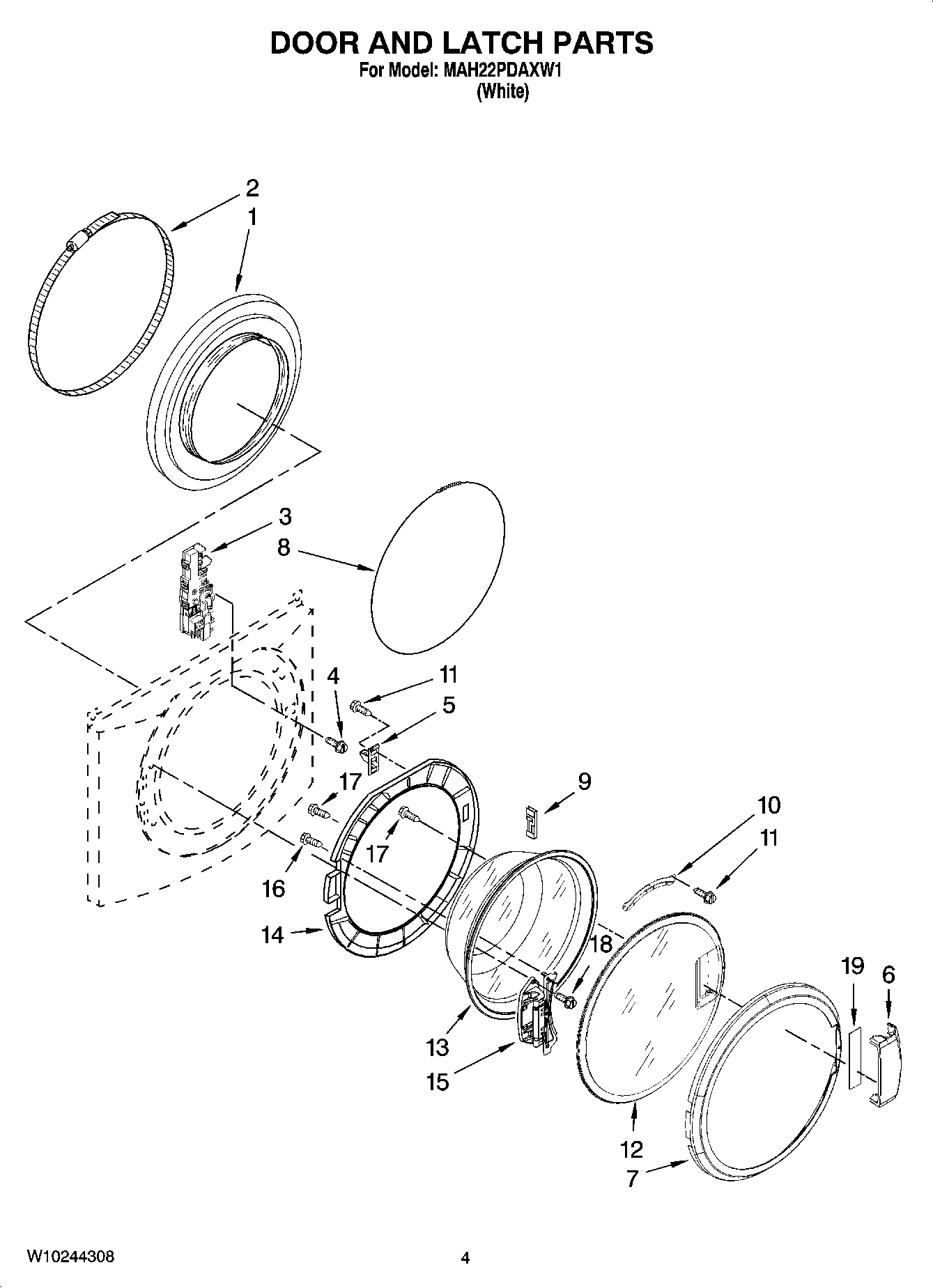

02 - DOOR AND LATCH PARTS

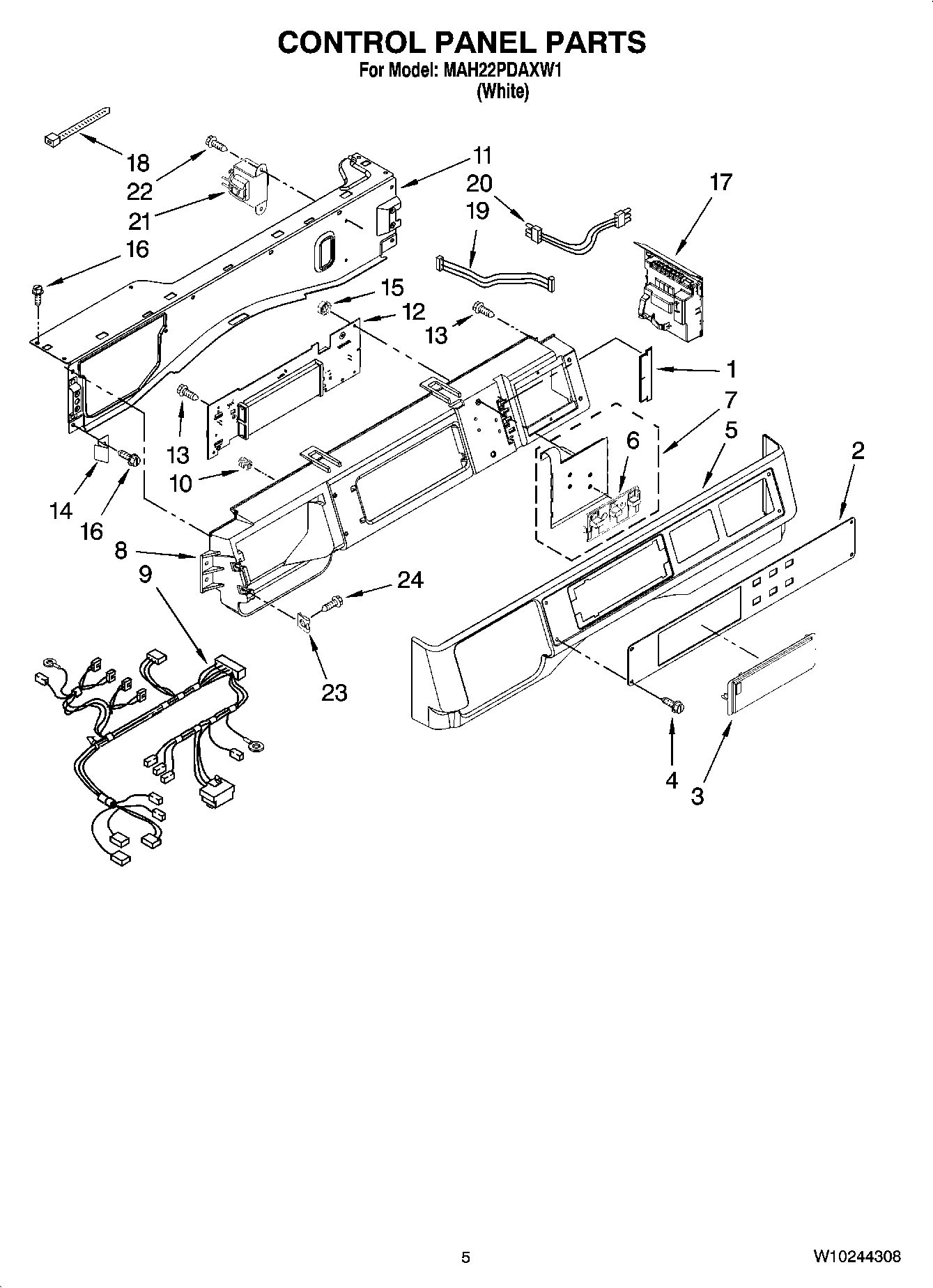

03 - CONTROL PANEL PARTS

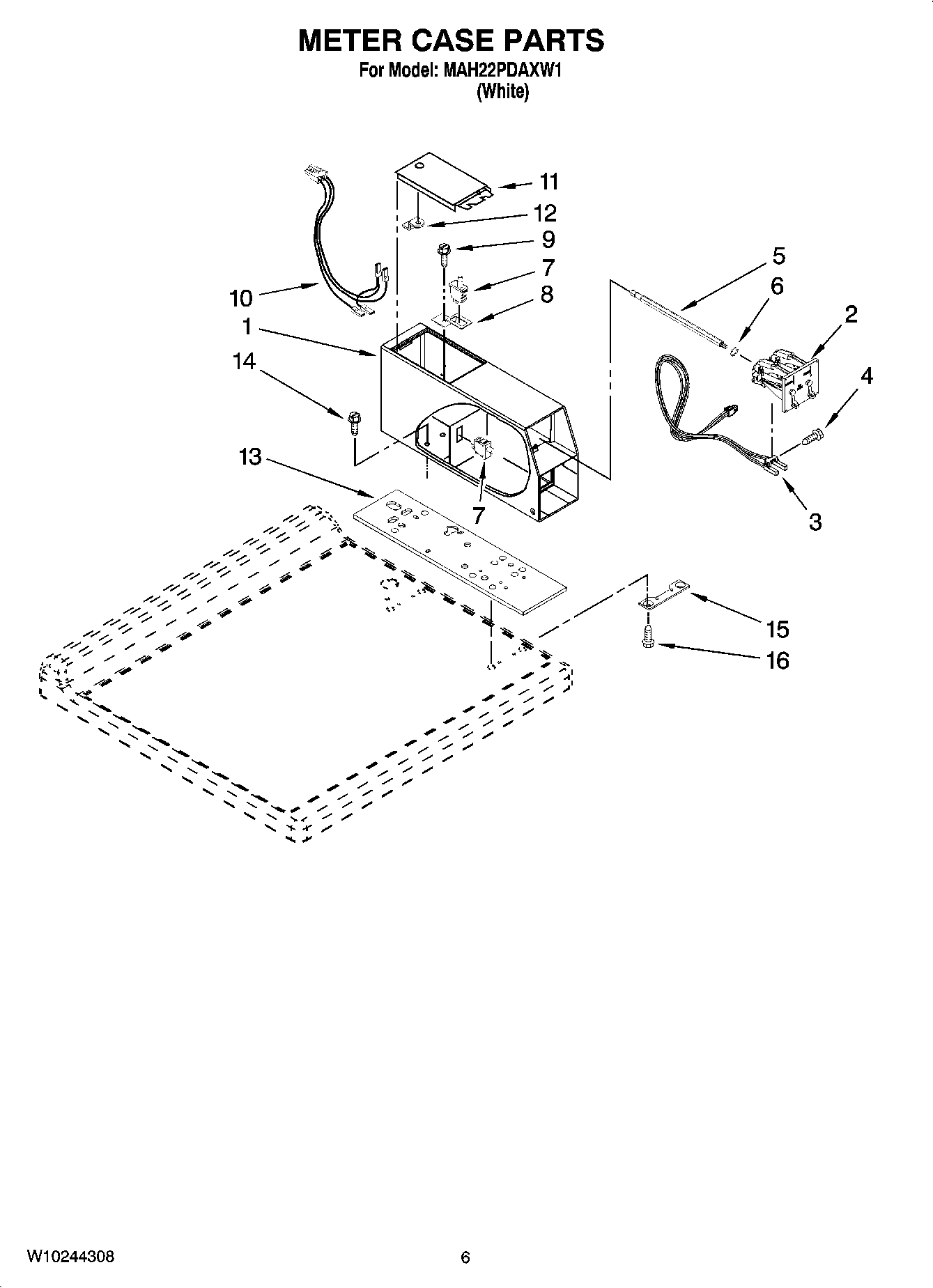

04 - METER CASE PARTS

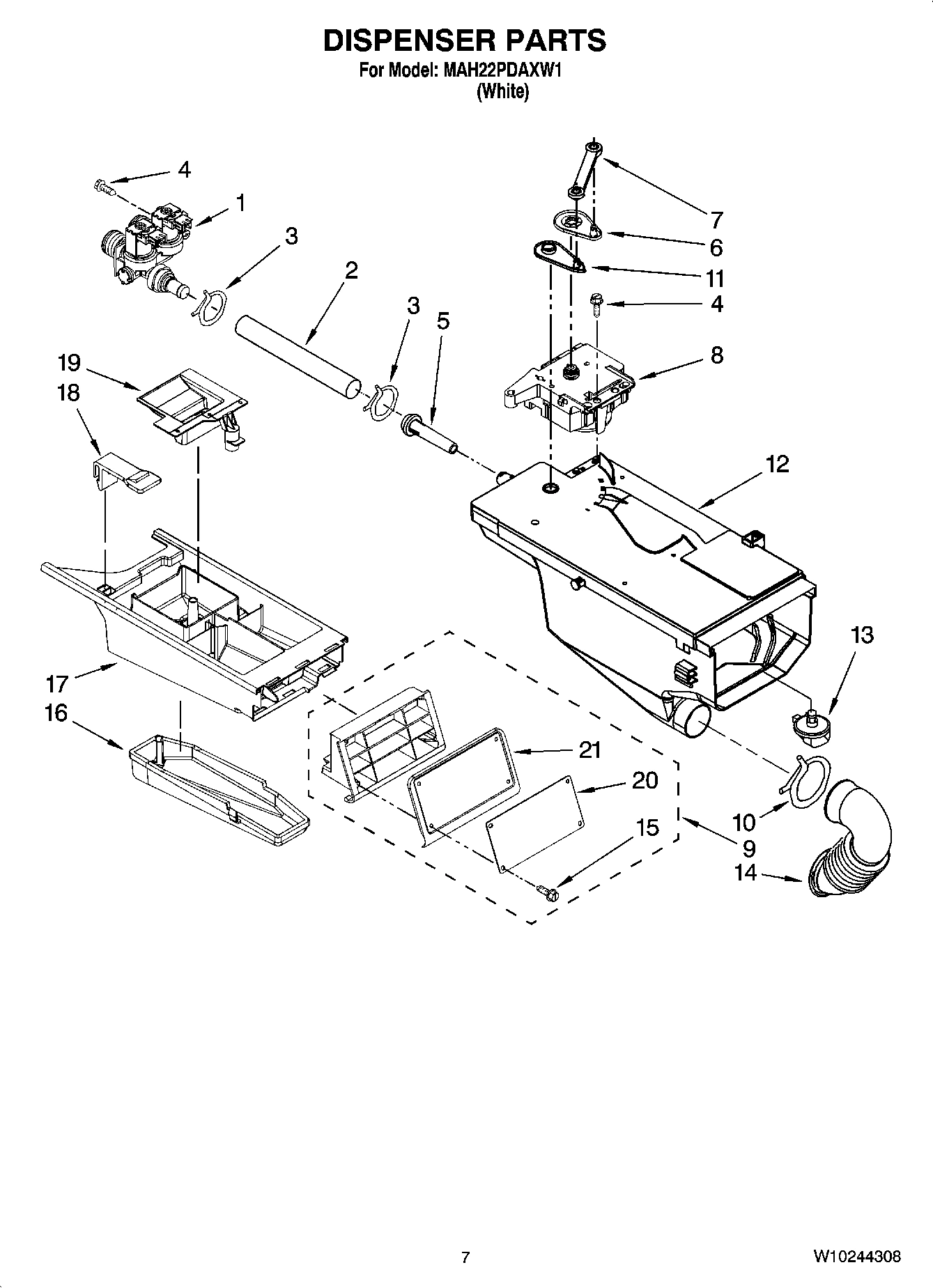

05 - DISPENSER PARTS

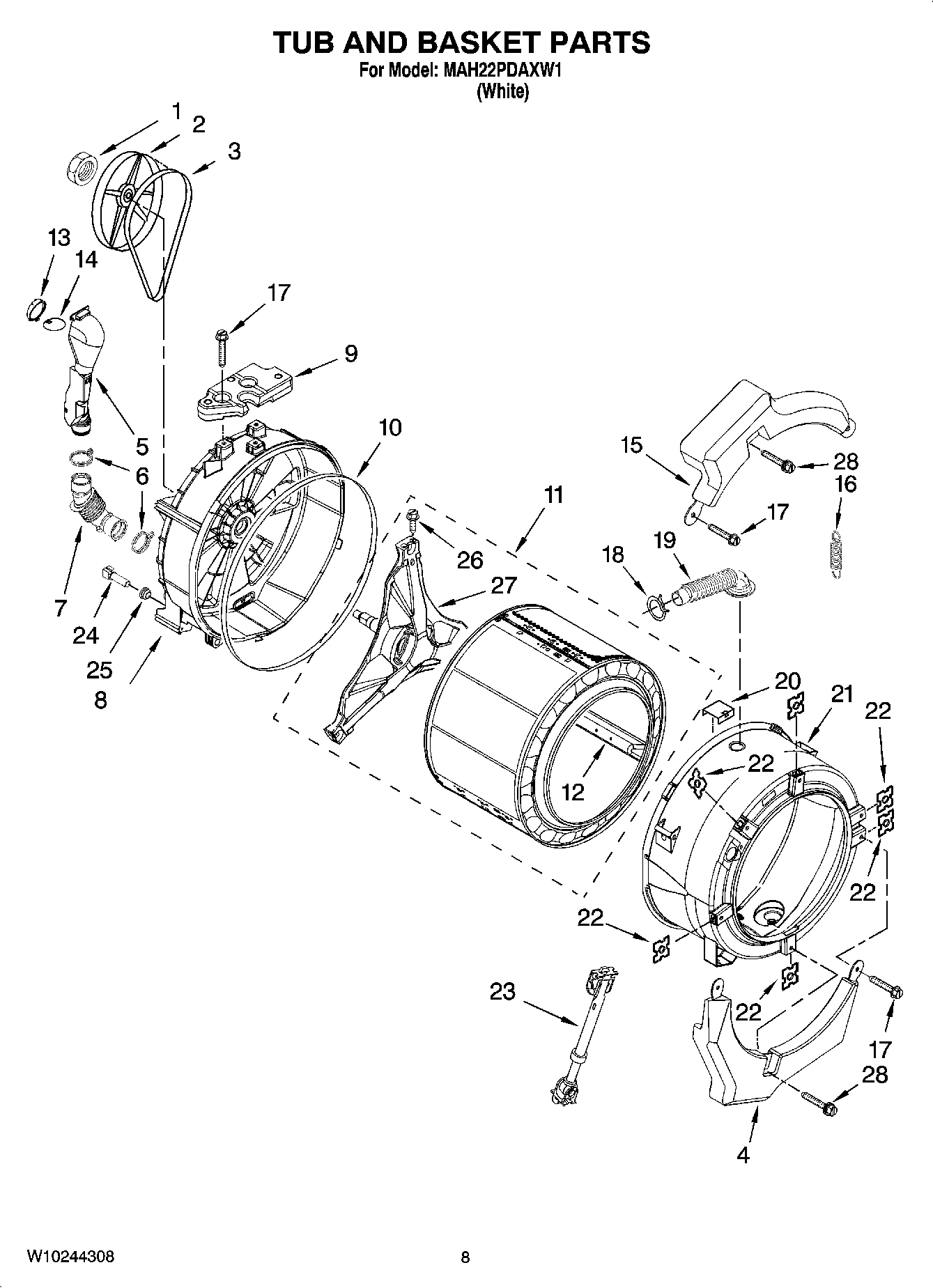

06 - TUB AND BASKET PARTS

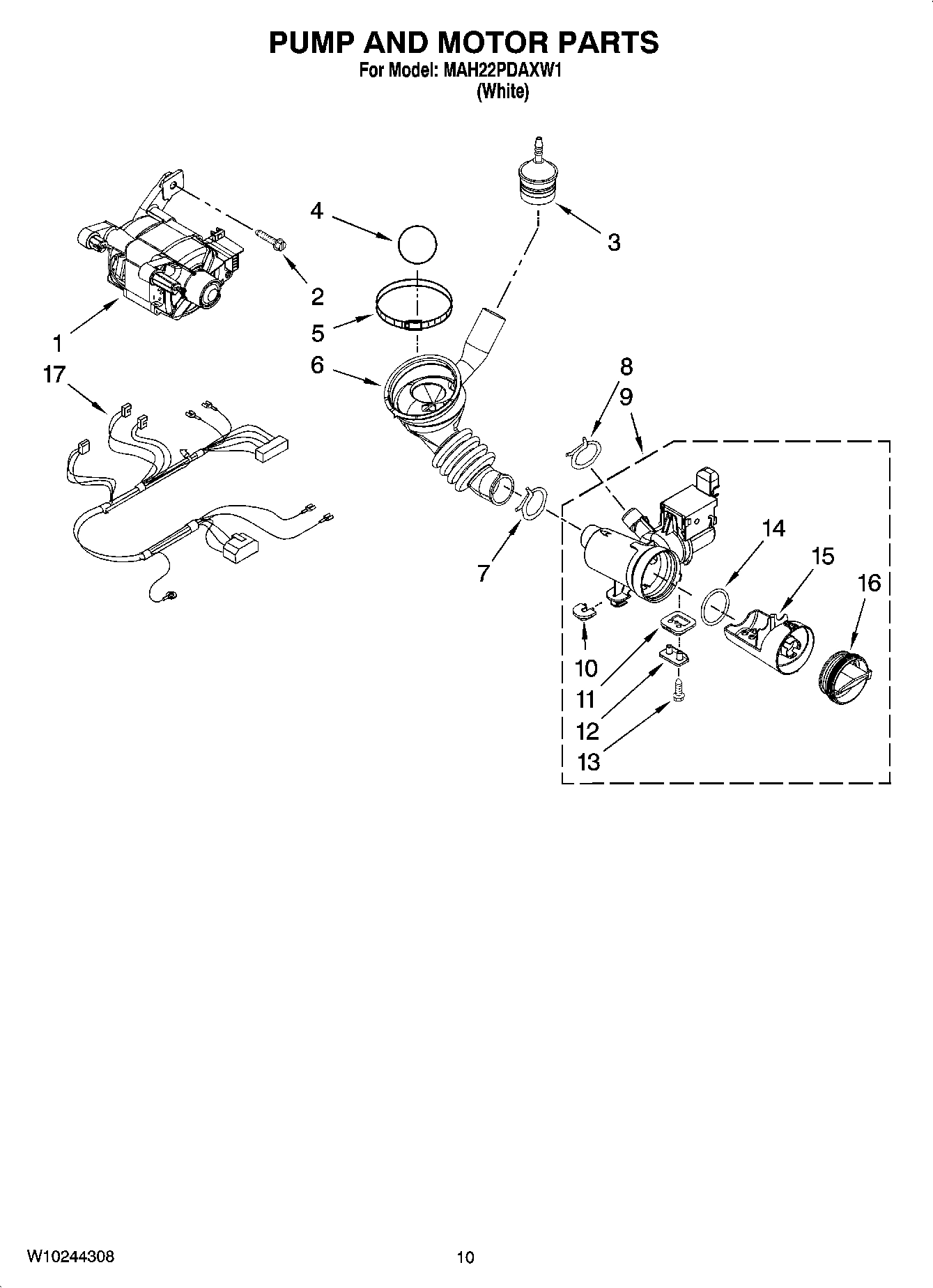

07 - PUMP AND MOTOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MAH22PDAXW1 WASHER
1
MAY W10165326 MAY W10165326 Contact Us For Availability
1
MAY W10165327 MAY W10165327 Contact Us For Availability
1
MAY W10194214 MAY W10194214 Contact Us For Availability
1
MAY W10244308 MAY W10244308 Contact Us For Availability
1
MAY W10130455 MAY W10130455 Contact Us For Availability
1
SEAL-CONSOLE MAY W10187276 Contact Us For Availability
1
MAY W10171128 MAY W10171128 Contact Us For Availability
1
MAY 8540751 MAY 8540751 Contact Us For Availability
1
MAY 8533999 MAY 8533999 Contact Us For Availability
1
MAY W10140579 MAY W10140579 Contact Us For Availability
2
TOP MAY W10137411 Contact Us For Availability
2
Clamp, Bellow MAY 8540108 Contact Us For Availability
2
MAY W10137436 MAY W10137436 Contact Us For Availability
2
Coin Drop Assembly MAY W10133245 Contact Us For Availability
2
MAY 8540065 MAY 8540065 Contact Us For Availability
2
MAY 8540088C MAY 8540088C Contact Us For Availability
2
MAY 8540134 MAY 8540134 Contact Us For Availability
3
MAY W10201831 MAY W10201831 Contact Us For Availability
3
MAY W10153867 MAY W10153867 Contact Us For Availability
3
Cover, Display MAY W10131114 Contact Us For Availability
3
Sensor Assembly, Coin Optic (2) MAY W10130178 Contact Us For Availability
3
MAY 370450 MAY 370450 Contact Us For Availability
3
MAY W10116215 MAY W10116215 Contact Us For Availability
3
MAY 8540180 MAY 8540180 Contact Us For Availability
4
MAY W10112948 MAY W10112948 Contact Us For Availability
4
MAY 8540725 MAY 8540725 Contact Us For Availability
4
MAY 8540282 MAY 8540282 Contact Us For Availability
4
Screw, 8-32 X 1/2 MAY W10137457 Contact Us For Availability
4
Screw, 6.20 x 1.00 (2) MAY W10142655 Contact Us For Availability
4
MAY W10151304 MAY W10151304 Contact Us For Availability
4
MAY 8540013 MAY 8540013 Contact Us For Availability
5
Toe Panel MAY 8540813 Contact Us For Availability
5
MAY 8540221 MAY 8540221 Contact Us For Availability
5
MAY W10137458 MAY W10137458 Contact Us For Availability
5
Bolt, Hex Bar (2) MAY W10137319 Contact Us For Availability
5
MAY 8540042 MAY 8540042 Contact Us For Availability
5
MAY W10142720 MAY W10142720 Contact Us For Availability
5
MAY 8540008 MAY 8540008 Contact Us For Availability
6
MAY W10121677 MAY W10121677 Contact Us For Availability
6
MAY W10117474 MAY W10117474 Contact Us For Availability
6
MAY W10131113 MAY W10131113 Contact Us For Availability
6
Washer (2) MAY W10068270 Contact Us For Availability
6
MAY 8540393 MAY 8540393 Contact Us For Availability
6
MAY 8540010 MAY 8540010 Contact Us For Availability
6
MAY 8540012 MAY 8540012 Contact Us For Availability
7
Nut, Lock (4) MAY 3359452 Contact Us For Availability
7
MAY W10112914 MAY W10112914 Contact Us For Availability
7
MAY W10135389 MAY W10135389 Contact Us For Availability
7
MAY W10131838 MAY W10131838 Contact Us For Availability
7
MAY 8540394 MAY 8540394 Contact Us For Availability
7
MAY 8540019 MAY 8540019 Contact Us For Availability
7
MAY 370448 MAY 370448 Contact Us For Availability
8
MAY W10110676 MAY W10110676 Contact Us For Availability
8
MAY 8540107 MAY 8540107 Contact Us For Availability
8
MAY W10137426 MAY W10137426 Contact Us For Availability
8
MAY W10133508 MAY W10133508 Contact Us For Availability
8
MAY W10143587 MAY W10143587 Contact Us For Availability
8
MAY W10202942 MAY W10202942 Contact Us For Availability
8
Clamp, Drain Hose MAY 356138 Contact Us For Availability
9
MAY 8518891 MAY 8518891 Contact Us For Availability
9
MAY 8540115 MAY 8540115 Contact Us For Availability
9
MAY W10153921 MAY W10153921 Contact Us For Availability
9
Screw, 8-18 x 5/16 MAY W10139210 Contact Us For Availability
9
MAY W10137428 MAY W10137428 Contact Us For Availability
9
MAY 8540602 MAY 8540602 Contact Us For Availability
9
MAY 8540094 MAY 8540094 Contact Us For Availability
9
MAY W10130913 MAY W10130913 Contact Us For Availability
10
MAY 8540582 MAY 8540582 Contact Us For Availability
10
Clamp, Glass (2) MAY 8540114 Contact Us For Availability
10
Insert MAY W10189313 Contact Us For Availability
10
MAY W10139456 MAY W10139456 Contact Us For Availability
10
MAY 8281276 MAY 8281276 Contact Us For Availability
10
MAY 8540090 MAY 8540090 Contact Us For Availability
10
MAY W10191886 MAY W10191886 Contact Us For Availability
11
MAY W10189659 MAY W10189659 Contact Us For Availability
11
MAY 8540513 MAY 8540513 Contact Us For Availability
11
MAY W10137396 MAY W10137396 Contact Us For Availability
11
Service Door Assembly MAY 3351136 Contact Us For Availability
11
MAY 8540395 MAY 8540395 Contact Us For Availability
11
MAY W10165321 MAY W10165321 Contact Us For Availability
11
MAY W10191880 MAY W10191880 Contact Us For Availability
12
MAY 8540199 MAY 8540199 Contact Us For Availability
12
MAY W10137404 MAY W10137404 Contact Us For Availability
12
MAY W10137414 MAY W10137414 Contact Us For Availability
12
Cam - Lock MAY W10145154 Contact Us For Availability
12
MAY 8540058 MAY 8540058 Contact Us For Availability
12
MAY W10118982 MAY W10118982 Contact Us For Availability
12
MAY W10190649 MAY W10190649 Contact Us For Availability
13
Hose, Water Inlet (Blue Coupler) MAY 8571377 Contact Us For Availability
13
Hose, Water Inlet (Red Coupler) MAY 8571378 Contact Us For Availability
13
MAY W10112078 MAY W10112078 Contact Us For Availability
13
Screw, 3-24 X 3/8 MAY 489136 Contact Us For Availability
13
MAY W10137448 MAY W10137448 Contact Us For Availability
13
MAY 8540053 MAY 8540053 Contact Us For Availability
13
CONNECTOR - VENTILATION MAY W10142721 Contact Us For Availability
13
Screw, 10-16 x 1.00 (2) MAY W10167905 Contact Us For Availability
14
MAY W10029820 MAY W10029820 Contact Us For Availability
14
Frame, Door Back Support MAY W10138523 Contact Us For Availability
14
MAY W10137488 MAY W10137488 Contact Us For Availability
14
Screw, 5/16-24 x 1 MAY 3349065 Contact Us For Availability
14
MAY 8540063 MAY 8540063 Contact Us For Availability
14
Flap - Ventilation MAY W10142722 Contact Us For Availability
14
MAY W10201457 MAY W10201457 Contact Us For Availability
15
MAY W10197864 MAY W10197864 Contact Us For Availability
15
MAY W10118967 MAY W10118967 Contact Us For Availability
15
NUT, 6-32 MAY W10139046 Contact Us For Availability
15
Plate, Meter Case Mounting (2) MAY 3347825 Contact Us For Availability
15
Screw, 8-18 X 1/2 MAY W10137456 Contact Us For Availability
15
MAY W10151303 MAY W10151303 Contact Us For Availability
15
Filter (Includes Items 14 & 16) MAY W10190647 Contact Us For Availability
16
MAY W10161694 MAY W10161694 Contact Us For Availability
16
Screw, 8-18 x 5/8 MAY W10015090 Contact Us For Availability
16
MAY 8540284 MAY 8540284 Contact Us For Availability
16
MAY 98445 MAY 98445 Contact Us For Availability
16
MAY 8540399 MAY 8540399 Contact Us For Availability
16
MAY W10010360 MAY W10010360 Contact Us For Availability
16
Cap, Filter (Includes Items 14 & 15) MAY W10190648 Contact Us For Availability
17
MAY 8540093 MAY 8540093 Contact Us For Availability
17
MAY W10141556 MAY W10141556 Contact Us For Availability
17
MAY 8540402 MAY 8540402 Contact Us For Availability
17
Bolt, Counterweight Mtg. MAY W10094780 Contact Us For Availability
17
MAY W10166995 MAY W10166995 Contact Us For Availability
18
MAY W10114608 MAY W10114608 Contact Us For Availability
18
Cable Tie MAY 3429563 Contact Us For Availability
18
MAY W10137402 MAY W10137402 Contact Us For Availability
18
MAY 3363365 MAY 3363365 Contact Us For Availability
19
MAY 8540607 MAY 8540607 Contact Us For Availability
19
MAY W10112927 MAY W10112927 Contact Us For Availability
19
MAY W10155150 MAY W10155150 Contact Us For Availability
19
MAY 8540429 MAY 8540429 Contact Us For Availability
19
MAY 8540015 MAY 8540015 Contact Us For Availability
20
Bumper (2) MAY 238614 Contact Us For Availability
20
MAY W10155149 MAY W10155149 Contact Us For Availability
20
FACIA/OVERLAY, DRAWER MAY W10137430 Contact Us For Availability
20
MAY 8540092 MAY 8540092 Contact Us For Availability
21
TRANSFORMER, 120 TO 22.5 (VAC) MAY W10131839 Contact Us For Availability
21
MAY W10137460 MAY W10137460 Contact Us For Availability
21
MAY W10112659 MAY W10112659 Contact Us For Availability
22
MAY 8540230 MAY 8540230 Contact Us For Availability
22
Screw, 8-18 X 7/16 MAY 8540329 Contact Us For Availability
22
MAY 8540072 MAY 8540072 Contact Us For Availability
23
MAY W10163980 MAY W10163980 Contact Us For Availability
23
Nut, U-Type (2) MAY 9781235 Contact Us For Availability
23
MAY W10163171 MAY W10163171 Contact Us For Availability
24
MAY 8540294 MAY 8540294 Contact Us For Availability
24
Screw, 8-18 x 1/2 MAY W10131119 Contact Us For Availability
24
MAY 8540226 MAY 8540226 Contact Us For Availability
25
MAY 8540479 MAY 8540479 Contact Us For Availability
25
MAY 8540766 MAY 8540766 Contact Us For Availability
26
MAY 8540268 MAY 8540268 Contact Us For Availability
26
MAY 8540382 MAY 8540382 Contact Us For Availability
27
MAY 8540021 MAY 8540021 Contact Us For Availability
27
MAY 8540457 MAY 8540457 Contact Us For Availability
28
Microswitch (2) MAY W10085220 Contact Us For Availability
28
Bolt Assembly, Counterweight Center Hole MAY W10174473 Contact Us For Availability
29
Sleeve, Cord Support (2) MAY 8540728 Contact Us For Availability
30
Screw, 3 x 8 mm MAY 8540727 Contact Us For Availability
32
MAY 8565018 MAY 8565018 Contact Us For Availability
33
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
34
Sleeve, Pressure Switch Hose MAY 2161302 Contact Us For Availability
35
MAY 3347868 MAY 3347868 Contact Us For Availability
36
Washer, Water Inlet Hose (4) 1-1/16 x 5/8 MAY 16123 Contact Us For Availability
37
MAY W10168548 MAY W10168548 Contact Us For Availability
38
MAY W10168546 MAY W10168546 Contact Us For Availability
39
MAY W10168547 MAY W10168547 Contact Us For Availability
40
MAY 8540643 MAY 8540643 Contact Us For Availability
41
BRACKET, TOP PANEL (LEFT) MAY W10137445 Contact Us For Availability
42
BRACKET, TOP PANEL (RIGHT) MAY W10137444 Contact Us For Availability
43
MAY W10137398 MAY W10137398 Contact Us For Availability
44
Washer, Nylon (4) MAY 487576 Contact Us For Availability
NI
Drain Extension MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
× ![]()
Login and Registration Form
