Model Whirlpool MACQ244XP0 AIR CONDITIONER – Common Parts & Diagrams

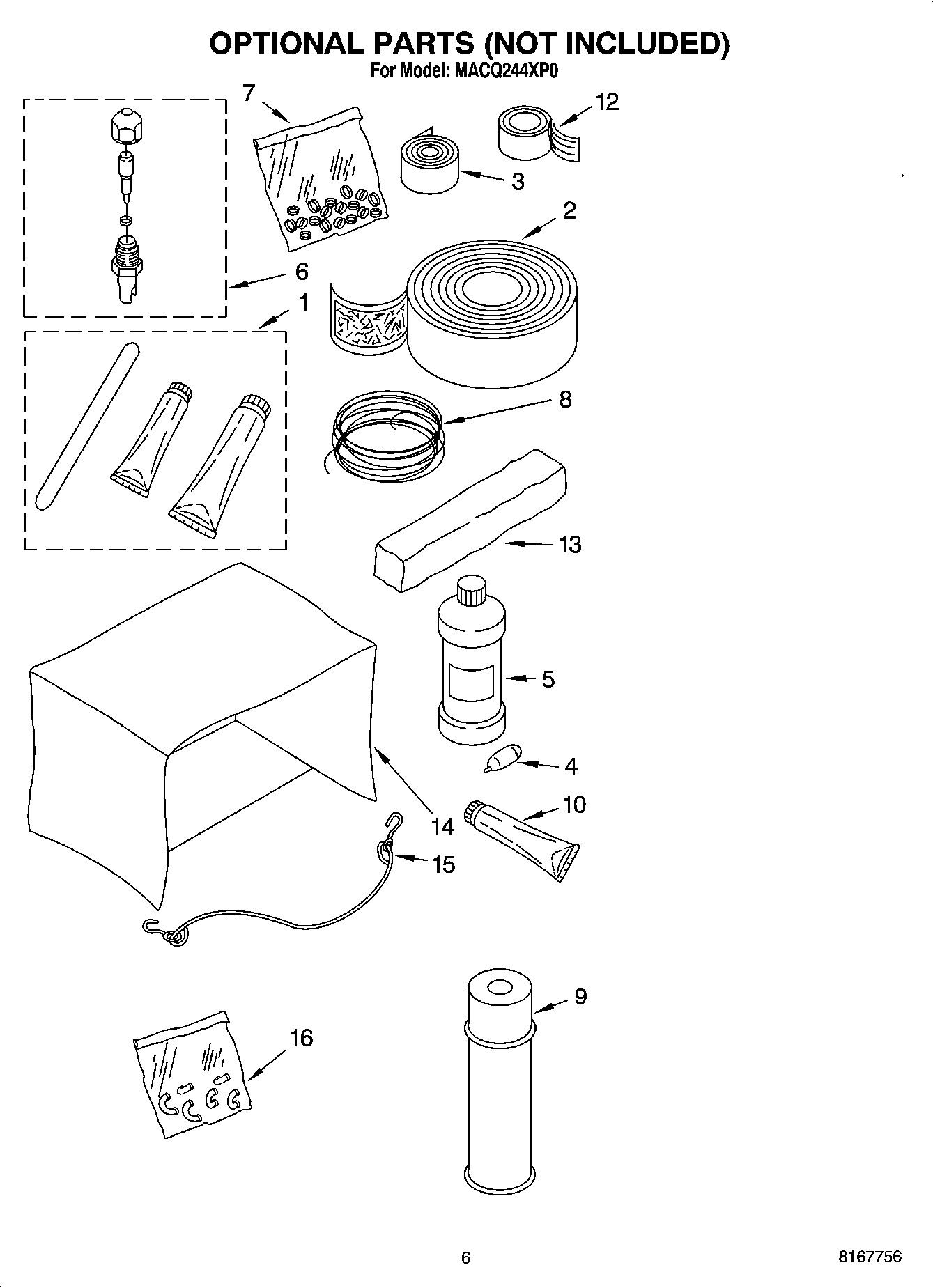

04 - OPTIONAL PARTS (NOT INCLUDED)

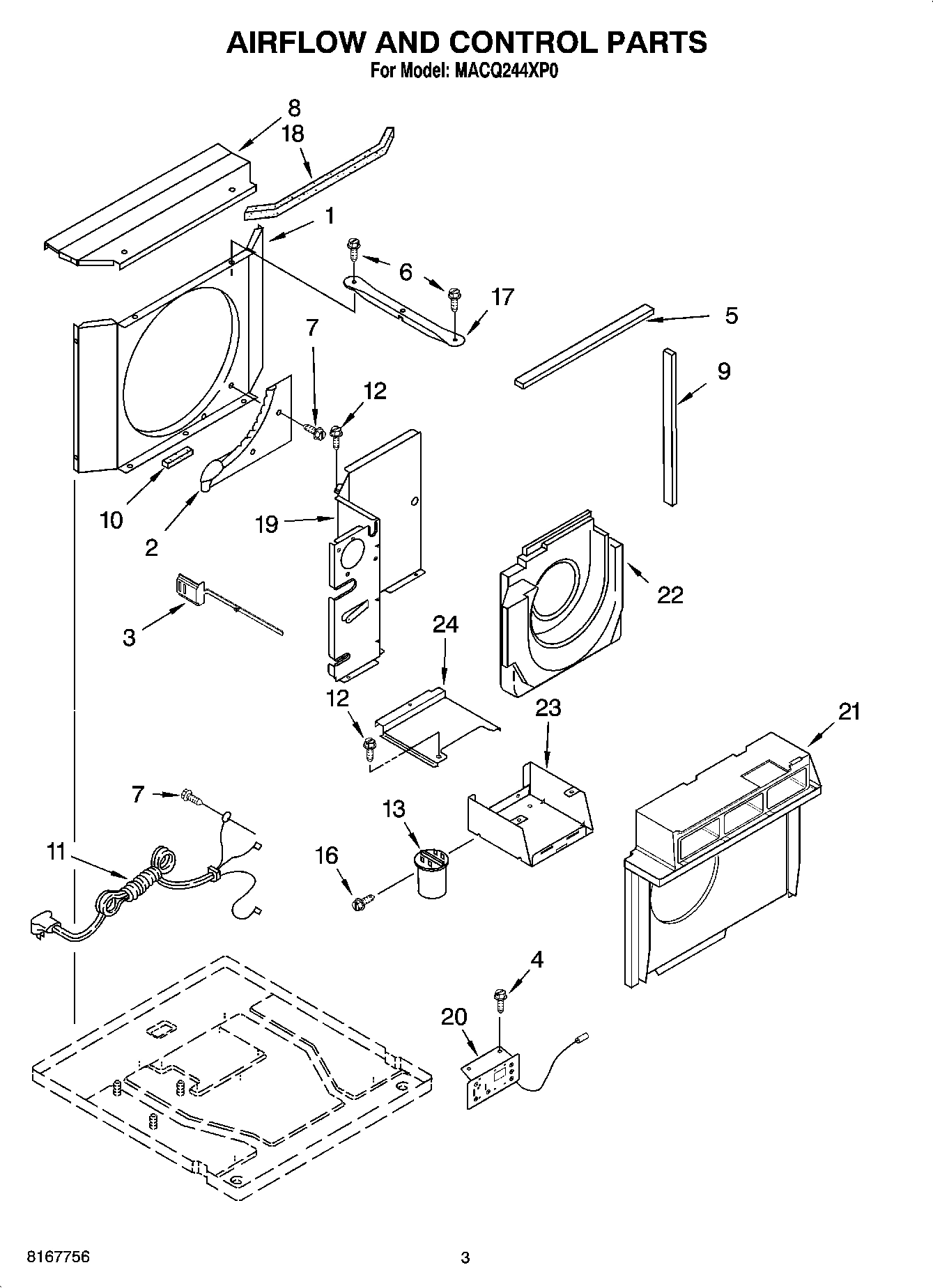

02 - AIRFLOW AND CONTROL PARTS
01 - UNIT PARTS
03 - CABINET PARTS
Common parts from model Whirlpool MACQ244XP0 AIR CONDITIONER
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1185264 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT1186898 Contact Us For Availability
1
Energy Guide WPL LIT1187245 Contact Us For Availability
1
Cabinet WPL 1185518 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Cup, Condensate WPL 1160684 Contact Us For Availability
2
Gasket, Terminal Cover WPL 1182356 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Door, Exhaust WPL 1185506 Contact Us For Availability
3
Screw, 8 x 3/8 (3) WPL 1159222 Contact Us For Availability
3
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Seal, Front Small WPL 1181735 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
5
Seal, Front Large WPL 1187359 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1186540 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Angle, Top Mounting WPL 1168490 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Seal, Suction Tube WPL 1185481 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Nameplate WPL 1187171 Contact Us For Availability
10
Seal, Cup WPL 1163332 Contact Us For Availability
10
Motor, Fan WPL 1187770 Contact Us For Availability
11
Cord, Appliance WPL 1186594 Contact Us For Availability
11
Bag, Accessory WPL 1186155 Contact Us For Availability
12
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
12
Control, Remote WPL 1186156 Contact Us For Availability
13
Capacitor WPL 1186639 Contact Us For Availability
13
Evaporator WPL 1186027 Contact Us For Availability
13
Louver, Verticle WPL 1185541 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Gasket, Nut WPL 1182120 Contact Us For Availability
14
Link, Verticle Louver (2) WPL 8011106 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Wet, Loop WPL 1185519 Contact Us For Availability
16
Condenser WPL 1185737 Contact Us For Availability
16
Door, Filter WPL 1187336 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
17
Front, Complete WPL 1187335 Contact Us For Availability
18
Filter WPL 1185523 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
18
Base WPL 1185503 Contact Us For Availability
19
Dividing Wall WPL 1185505 Contact Us For Availability
19
Wire, Ground WPL 1186627 Contact Us For Availability
20
Control, Electronic WPL 1186193 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1187118 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1187338 Contact Us For Availability
21
Compressor WPL 1186521 Contact Us For Availability
22
Housing, Air WPL 1187339 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
23
Control Box WPL 1185529 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
24
Cover, Control Box WPL 1186664 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
26
Distributor WPL 1184612 Contact Us For Availability
27
Tube, Crossover WPL 1185265 Contact Us For Availability
28
Cover, Terminal WPL 1182355 Contact Us For Availability
29
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1185543 Contact Us For Availability
32
Manifold, Suction WPL 1186028 Contact Us For Availability
34
Tube, Suction WPL 1186641 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
42
Clip, Thermistor WPL 1185337 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1182750 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
51
Tube, Feeder WPL 1186002 Contact Us For Availability
52
Tube, Feeder WPL 1186003 Contact Us For Availability
53
Tube, Flow Divider WPL 1159832 Contact Us For Availability
53
REFRIGERANT CHARGE 42.0 OZ. WPL ARI159200A Contact Us For Availability
× ![]()
