Model Whirlpool MACQ244XL1 AIR CONDITIONER – Common Parts & Diagrams

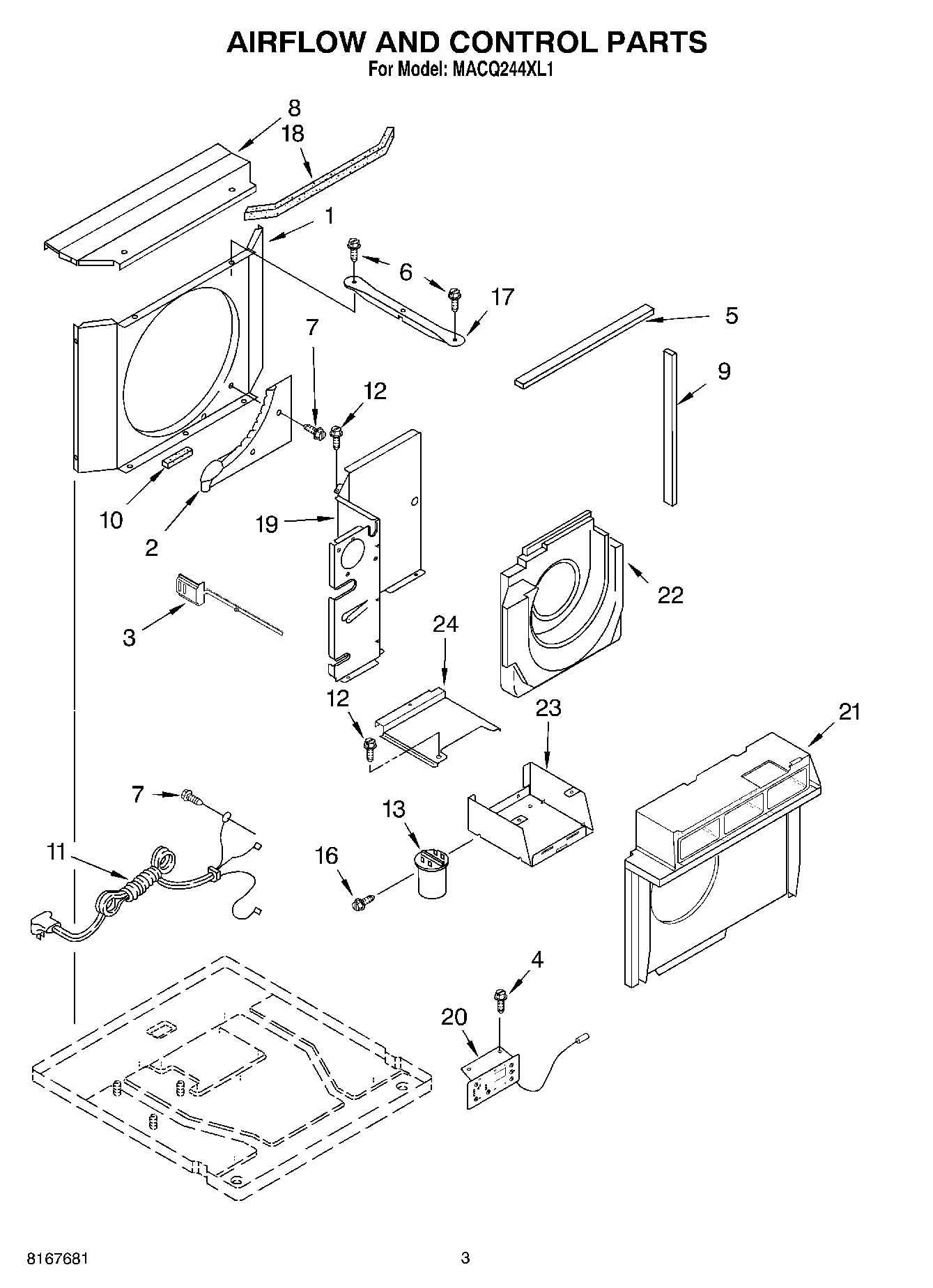

02 - AIRFLOW AND CONTROL PARTS

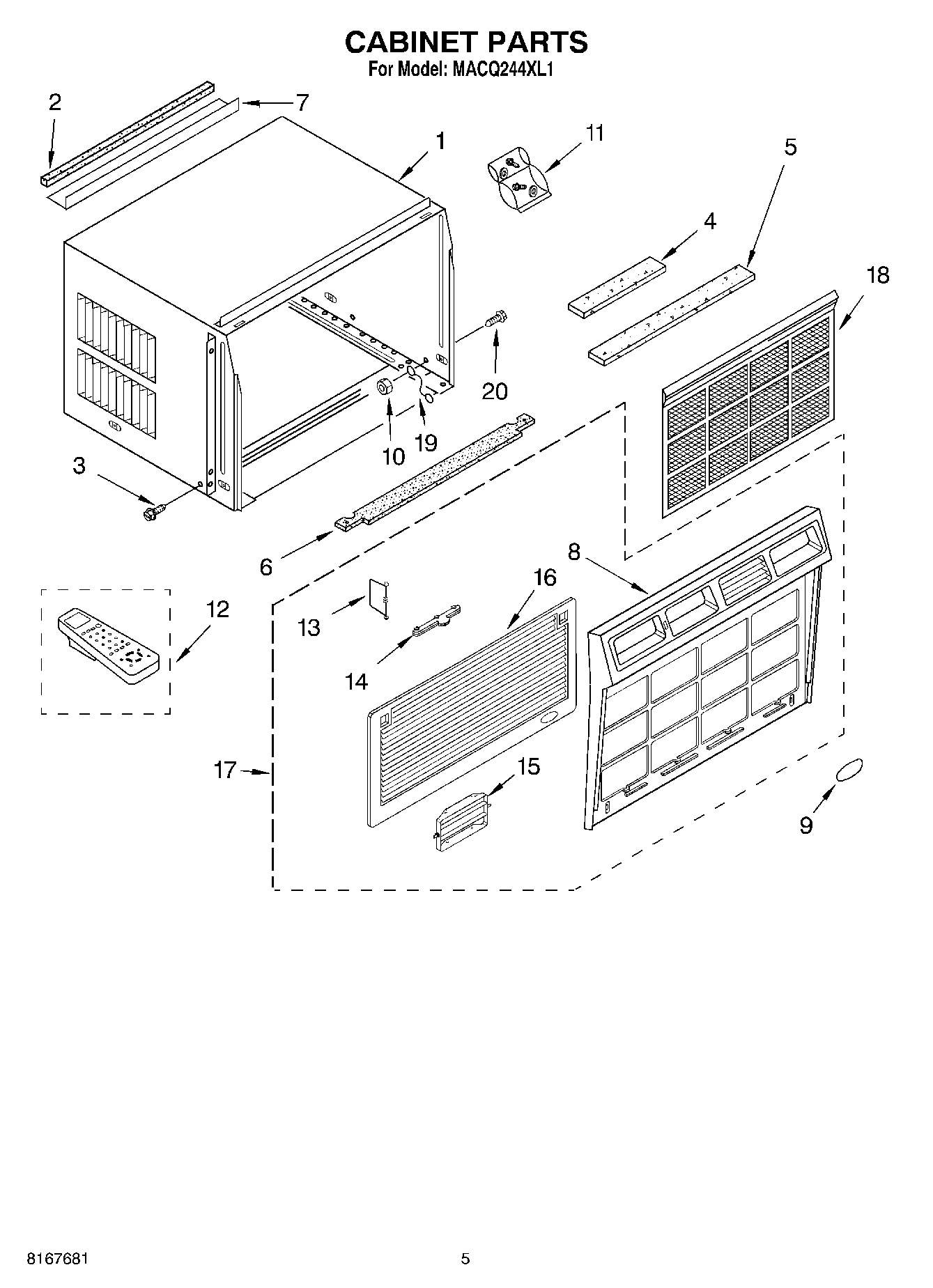

03 - CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

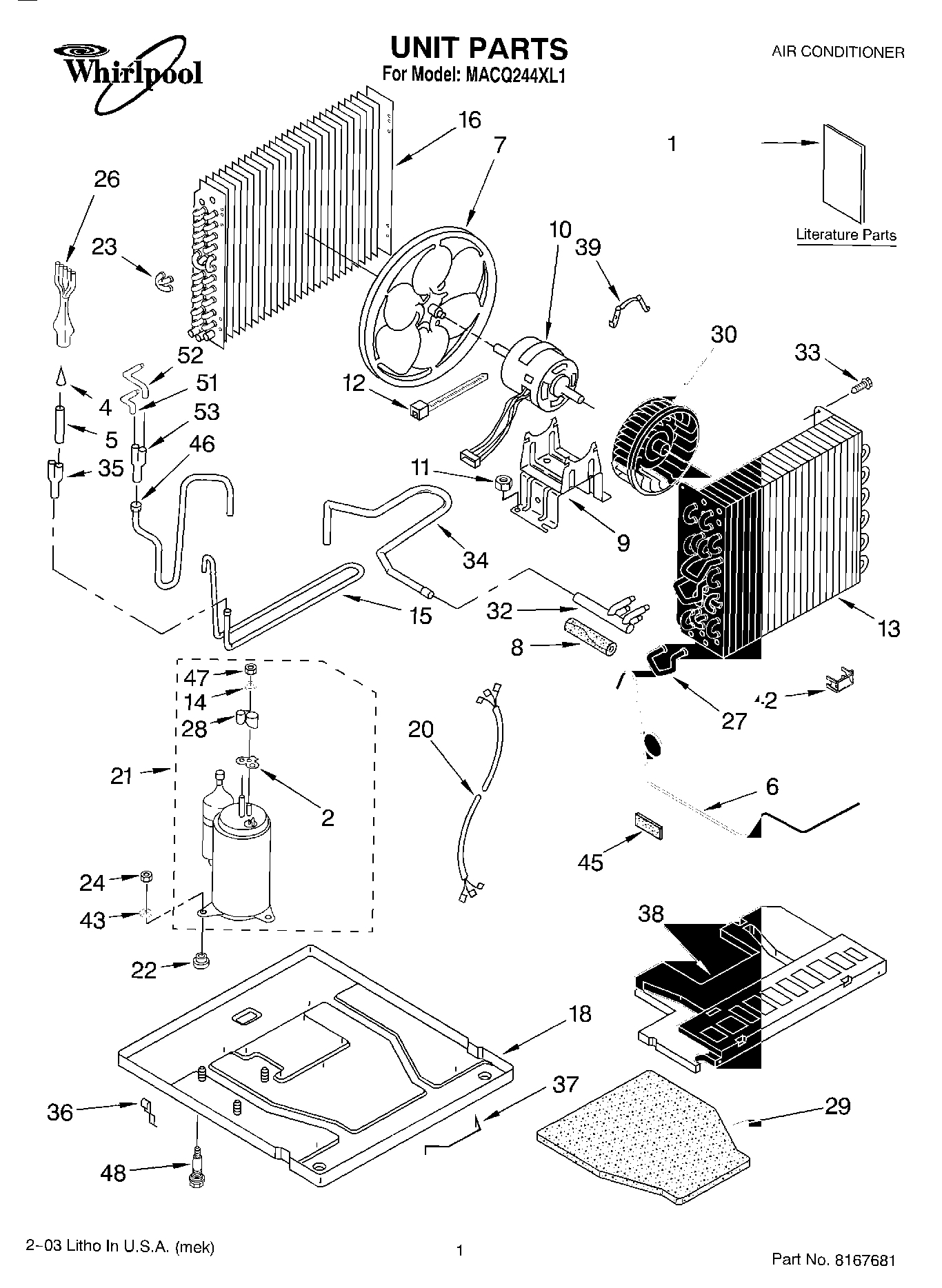

01 - UNIT PARTS
Common parts from model Whirlpool MACQ244XL1 AIR CONDITIONER
1
Cabinet WPL 1185518 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1185264 Contact Us For Availability
1
Energy Guide WPL LIT1186891 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT1187056 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Gasket, Terminal Cover WPL 1182356 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Screw, 8 x 3/8 (3) WPL 1159222 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Seal, Front Small WPL 1186487 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Seal, Front Large WPL 1186486 Contact Us For Availability
5
Oil, Turbine 8 Oz. WPL 99243 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1186540 Contact Us For Availability
7
Angle, Top Mounting WPL 1168490 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Frame, Front WPL 1185650 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Seal, Suction Tube WPL 1185481 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
10
Motor, Fan WPL 1186579 Contact Us For Availability
11
Bag, Accessory WPL 1186155 Contact Us For Availability
12
Control, Remote WPL 1186156 Contact Us For Availability
13
Louver, Verticle WPL 1185541 Contact Us For Availability
13
Evaporator WPL 1186027 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Link, Vertic WPL 8011106 Contact Us For Availability
14
Gasket, Nut WPL 1182120 Contact Us For Availability
15
WPL 1185540 WPL 1185540 Contact Us For Availability
15
WPL 813610 WPL 813610 Contact Us For Availability
15
Wet, Loop WPL 1185519 Contact Us For Availability
16
WPL 1186931 WPL 1186931 Contact Us For Availability
16
WPL 4388784 WPL 4388784 Contact Us For Availability
16
WPL 4388785 WPL 4388785 Contact Us For Availability
16
Condenser WPL 1185737 Contact Us For Availability
17
WPL 1186930 WPL 1186930 Contact Us For Availability
18
WPL 1185523 WPL 1185523 Contact Us For Availability
18
Base WPL 1185503 Contact Us For Availability
19
WPL 1186627 WPL 1186627 Contact Us For Availability
20
Harness, Wiring (Compressor) WPL 1187118 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1185547 Contact Us For Availability
21
Compressor WPL 1186521 Contact Us For Availability
22
Housing, Air WPL 1185546 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
23
Control Box WPL 1185529 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
24
Cover, Control Box WPL 1186664 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
26
Distributor WPL 1184612 Contact Us For Availability
27
Tube, Crossover WPL 1185265 Contact Us For Availability
28
Cover, Terminal WPL 1182355 Contact Us For Availability
29
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1185543 Contact Us For Availability
32
Manifold, Suction WPL 1186028 Contact Us For Availability
34
Tube, Suction WPL 1186641 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
42
Clip, Thermistor WPL 1185337 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1182750 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
51
Tube, Feeder WPL 1186002 Contact Us For Availability
52
Tube, Feeder WPL 1186003 Contact Us For Availability
53
Tube, Flow Divider WPL 1159832 Contact Us For Availability
53
REFRIGERANT CHARGE 42.0 OZ. WPL ARI159199A Contact Us For Availability
× ![]()
