Model Whirlpool MACQ122XP0 AIR CONDITIONER – Common Parts & Diagrams

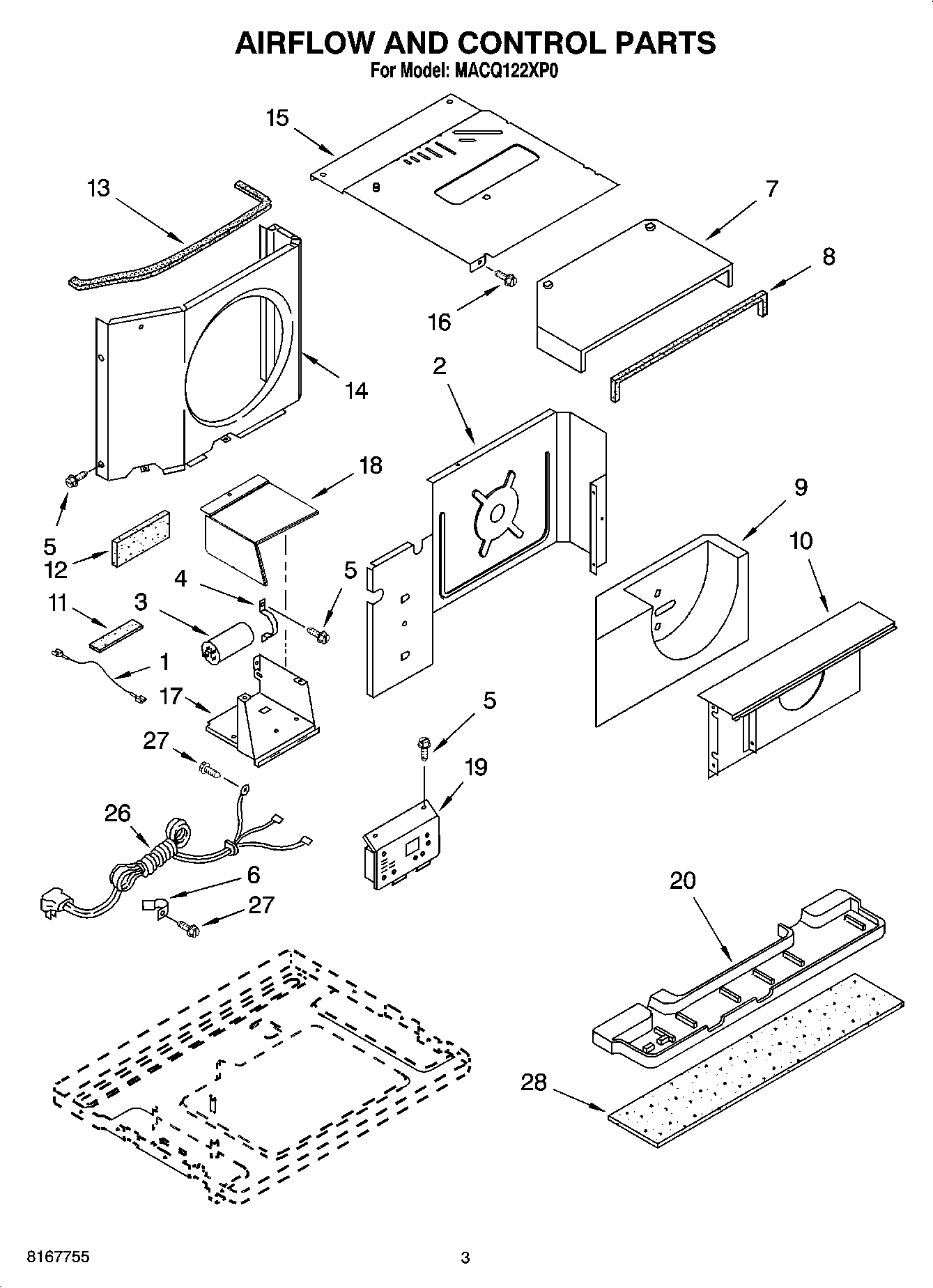

02 - AIR FLOW AND CONTROL PARTS

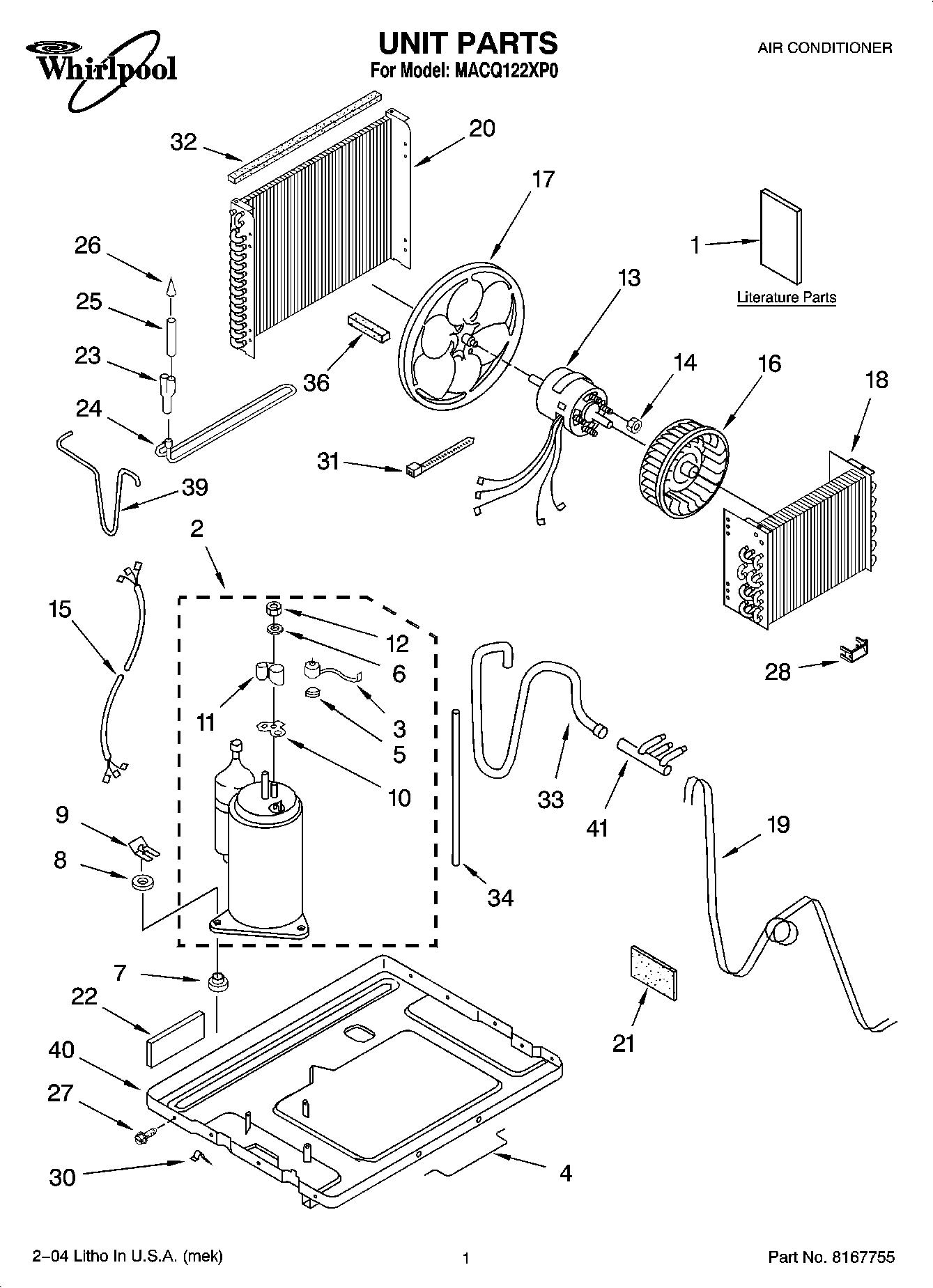

01 - UNIT PARTS
03 - CABINET PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool MACQ122XP0 AIR CONDITIONER
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1185264 Contact Us For Availability
1
Use & Care Guide WPL LIT1187094 Contact Us For Availability
1
Energy Guide WPL LIT1187308 Contact Us For Availability
1
Cabinet WPL 8031388 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 1185612 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Nameplate WPL 1187171 Contact Us For Availability
4
Handle, Base WPL 8031320 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Spring, Overload WPL 1185795 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer WPL 1185794 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
7
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Washer, Nylon WPL 8011418 Contact Us For Availability
8
Front WPL 1187333 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
10
Grille, Front WPL 1187325 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Cover, Terminal WPL 1185792 Contact Us For Availability
13
Motor, Fan WPL 1186566 Contact Us For Availability
13
Wire, Ground WPL 1186626 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Control, Remote WPL 1186156 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Wiring Harness, Compressor WPL 1186575 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Wheel, Blower WPL 1158443 Contact Us For Availability
16
Return Bend Replacement Kit ((5/16 Inch Tubin WPL 4388784 Contact Us For Availability
16
Return Bend Replacement Kit ((3/8 Inch Tubing WPL 4388785 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
19
Tube, Restrictor WPL 1184498 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
20
Condenser WPL 8031226 Contact Us For Availability
21
Seal, Anti-Rub WPL 1184625 Contact Us For Availability
22
Seal WPL 1162616 Contact Us For Availability
22
Seal, Cabinet Side (2) WPL 8031519 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Seal, Cabinet Top WPL 8031322 Contact Us For Availability
24
Tube, Wet Loop WPL 8031238 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950816 Contact Us For Availability
26
Cable, Appliance WPL 1187511 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
27
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
28
Clip, Thermistor WPL 1185337 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
32
Seal WPL 1181735 Contact Us For Availability
33
Tube, Suction WPL 1186873 Contact Us For Availability
34
Seal, Suction Tube WPL 1185481 Contact Us For Availability
39
Tube, Discharge WPL 1186874 Contact Us For Availability
40
Base WPL 8031392 Contact Us For Availability
41
Tube, Flow Divider WPL 8031259 Contact Us For Availability
41
REFRIGERANT CHARGE 20.50 oz. WPL ARI159194A Contact Us For Availability
× ![]()
