Model Whirlpool MACM052XK1 AIR CONDITIONER – Common Parts & Diagrams

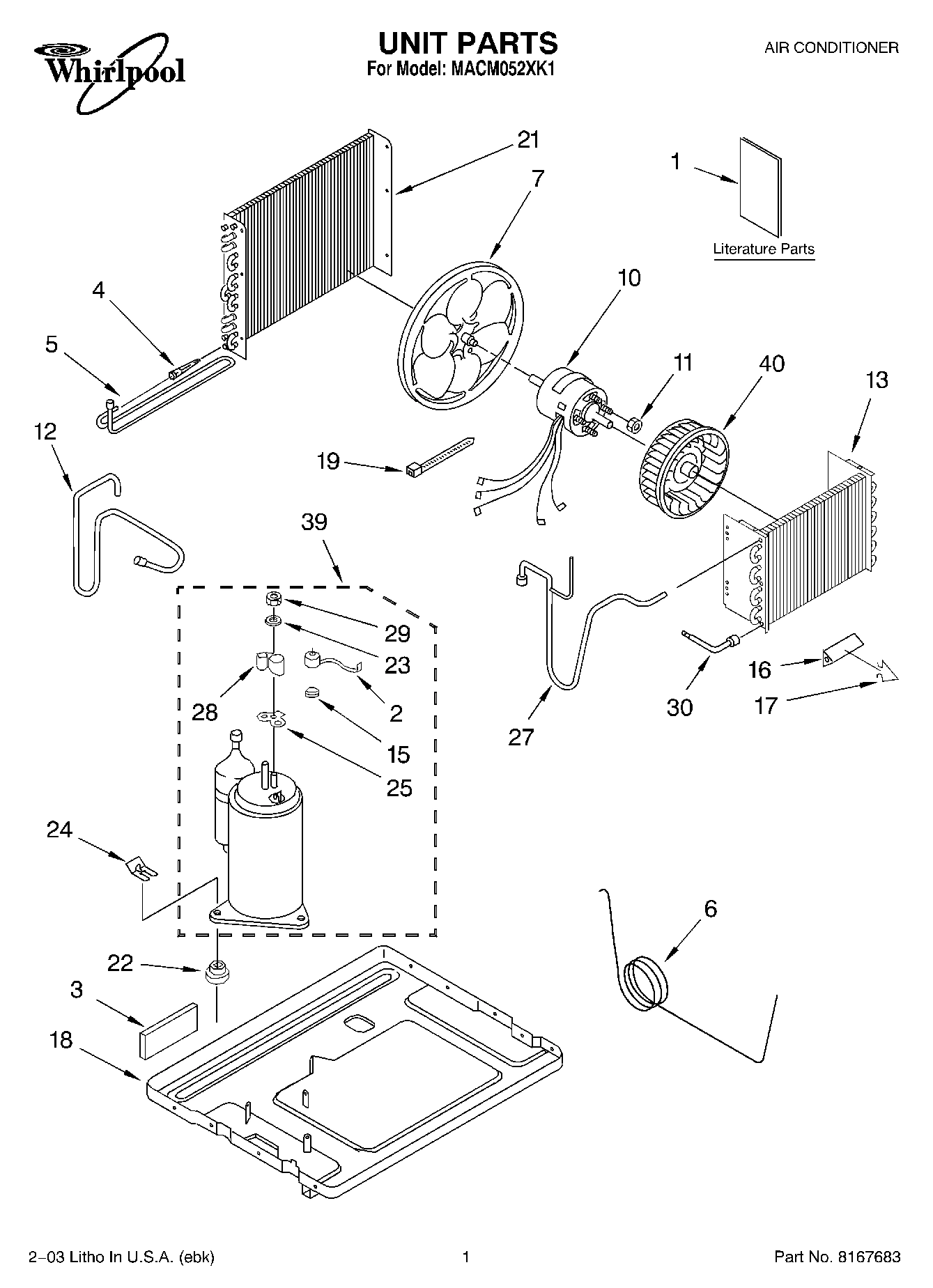

01 - UNIT PARTS

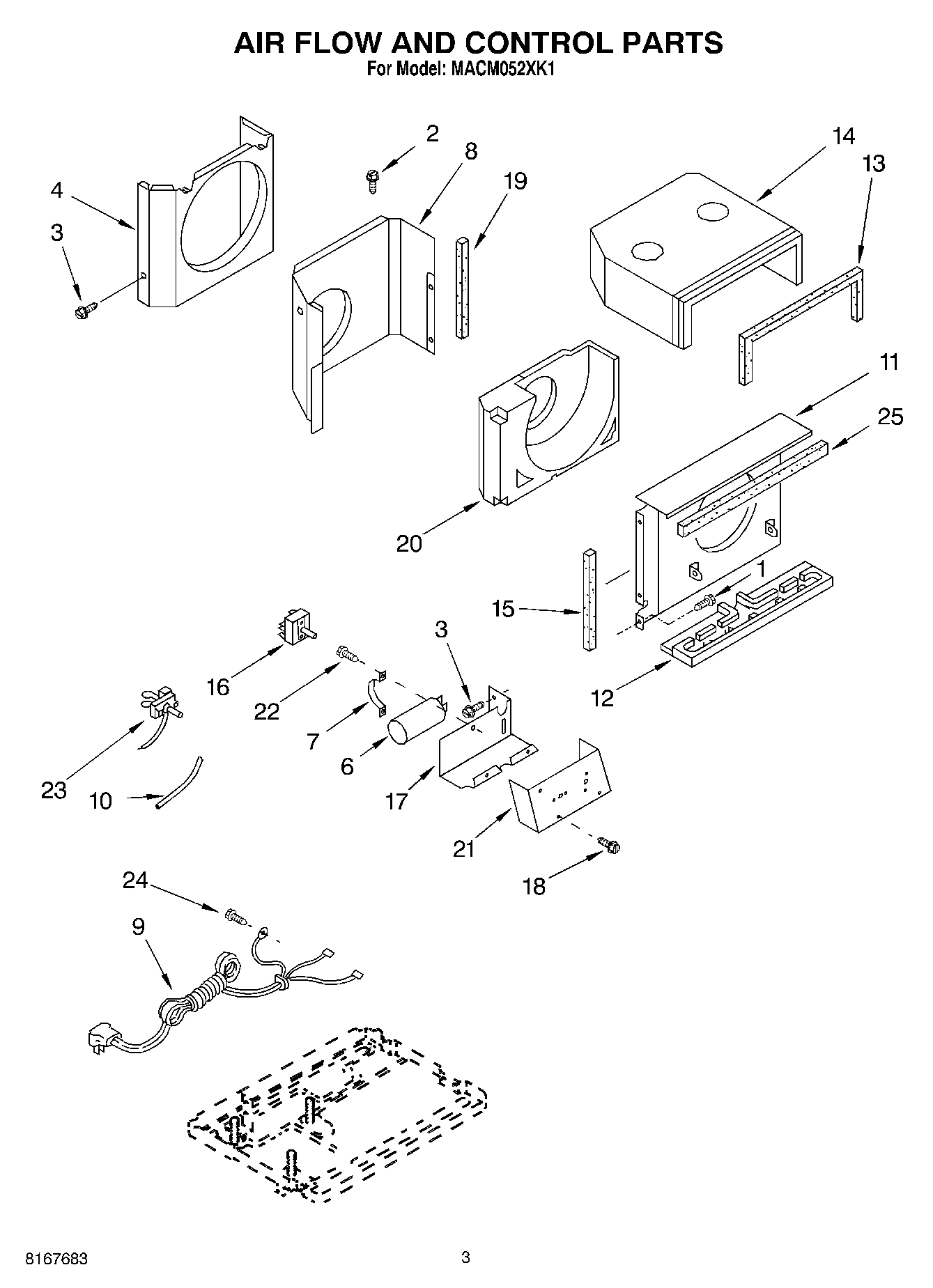

02 - AIR FLOW AND CONTROL PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
03 - CABINET PARTS
Common parts from model Whirlpool MACM052XK1 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Cabinet WPL 8011107 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
4
Shroud, Condenser WPL 8011266 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Channel, Top WPL 8011307 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Capacitor, Running WPL 1186513 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Front, Cabinet Assembly WPL 1187085 Contact Us For Availability
7
Screw WPL 488624 Contact Us For Availability
7
Bracket, Capacitor WPL 1167611 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Wall, Dividing WPL 8011422 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Curtain (R.S.) WPL 8011308 Contact Us For Availability
8
Curtain (L.S.) WPL 8011311 Contact Us For Availability
9
Cord, Appliance WPL 1186825 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Sleeve, Insulator WPL 8011238 Contact Us For Availability
10
Insulation, Top WPL 8011385 Contact Us For Availability
11
Filter WPL 8011314 Contact Us For Availability
11
Shroud, Evaporator WPL 8011265 Contact Us For Availability
12
Pan, Evaporator WPL 8011133 Contact Us For Availability
12
Grille, Front WPL 1187086 Contact Us For Availability
13
Seal Hood, Front WPL 1181735 Contact Us For Availability
14
Cover, Winter (22``x15``x3 to 18``) WPL 484184 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Hood, Air Housing WPL 8011401 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Foam, Condenser WPL 8011386 Contact Us For Availability
15
Seal, Left Side WPL 8011399 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
Switch, Rotary WPL 8031150 Contact Us For Availability
16
Return Bend Replacement Kit (5/16`` Tube) WPL 4388784 Contact Us For Availability
16
Return Bend Replacement Kit (3/8`` Tube) WPL 4388785 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Box, Control WPL 8011188 Contact Us For Availability
17
Louver, Assembly WPL 8011189 Contact Us For Availability
18
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
20
Housing, Air WPL 8011400 Contact Us For Availability
21
Condenser WPL 8011210 Contact Us For Availability
21
Panel, Control WPL 8031113 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Control, Temp. WPL 8031115 Contact Us For Availability
23
Washer WPL 1185794 Contact Us For Availability
23
Screw, (2) WPL 1161561 Contact Us For Availability
24
Clip, Compressor WPL 8011446 Contact Us For Availability
24
Screw WPL 1159222 Contact Us For Availability
25
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
25
Seal WPL 1158515 Contact Us For Availability
25
Escutcheon WPL 1184590 Contact Us For Availability
27
Tube, Suction WPL 1185346 Contact Us For Availability
27
Bag, Accessory WPL 476180 Contact Us For Availability
28
Cover, Terminal WPL 1185792 Contact Us For Availability
28
Bag, Accessory (Curtains) WPL 1185948 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 8011208 Contact Us For Availability
39
Compressor Assembly WPL 1185907 Contact Us For Availability
40
Wheel, Blower WPL 8011324 Contact Us For Availability
40
REFRIGERANT CHARGE 9.00 oz. WPL ARI159187A Contact Us For Availability
× ![]()
