Model LG MA-782M – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2

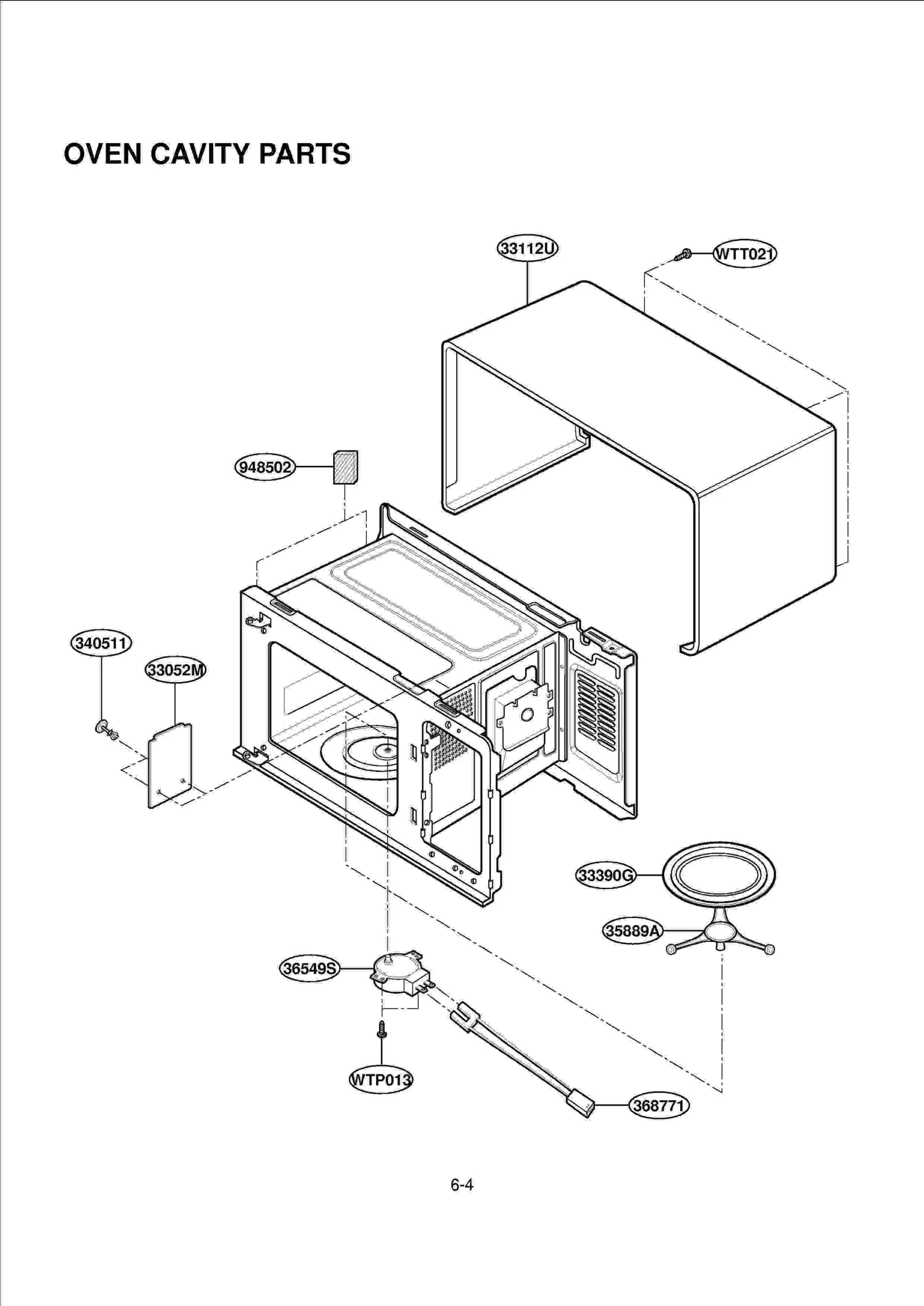

Diagram 3

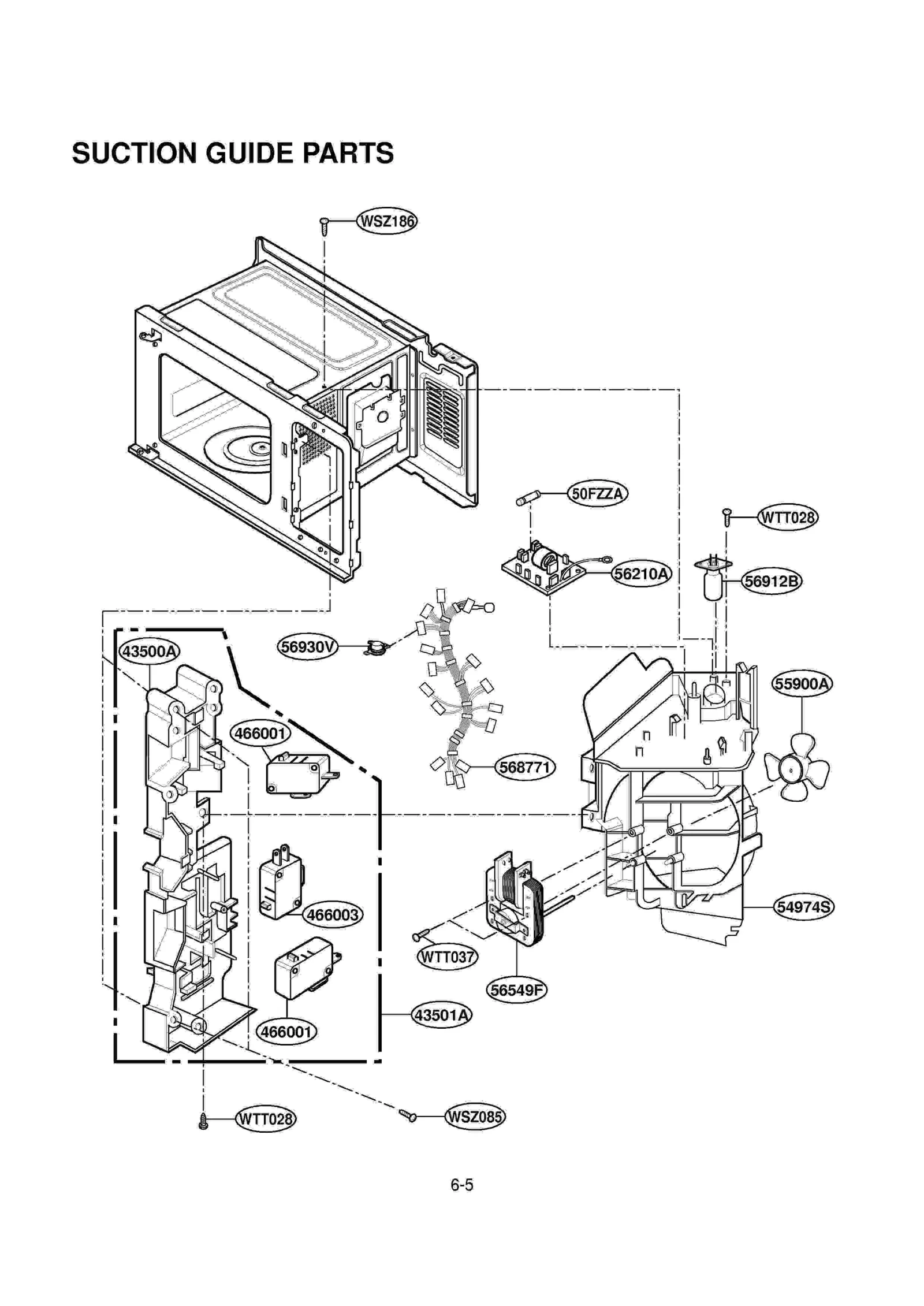

Diagram 4

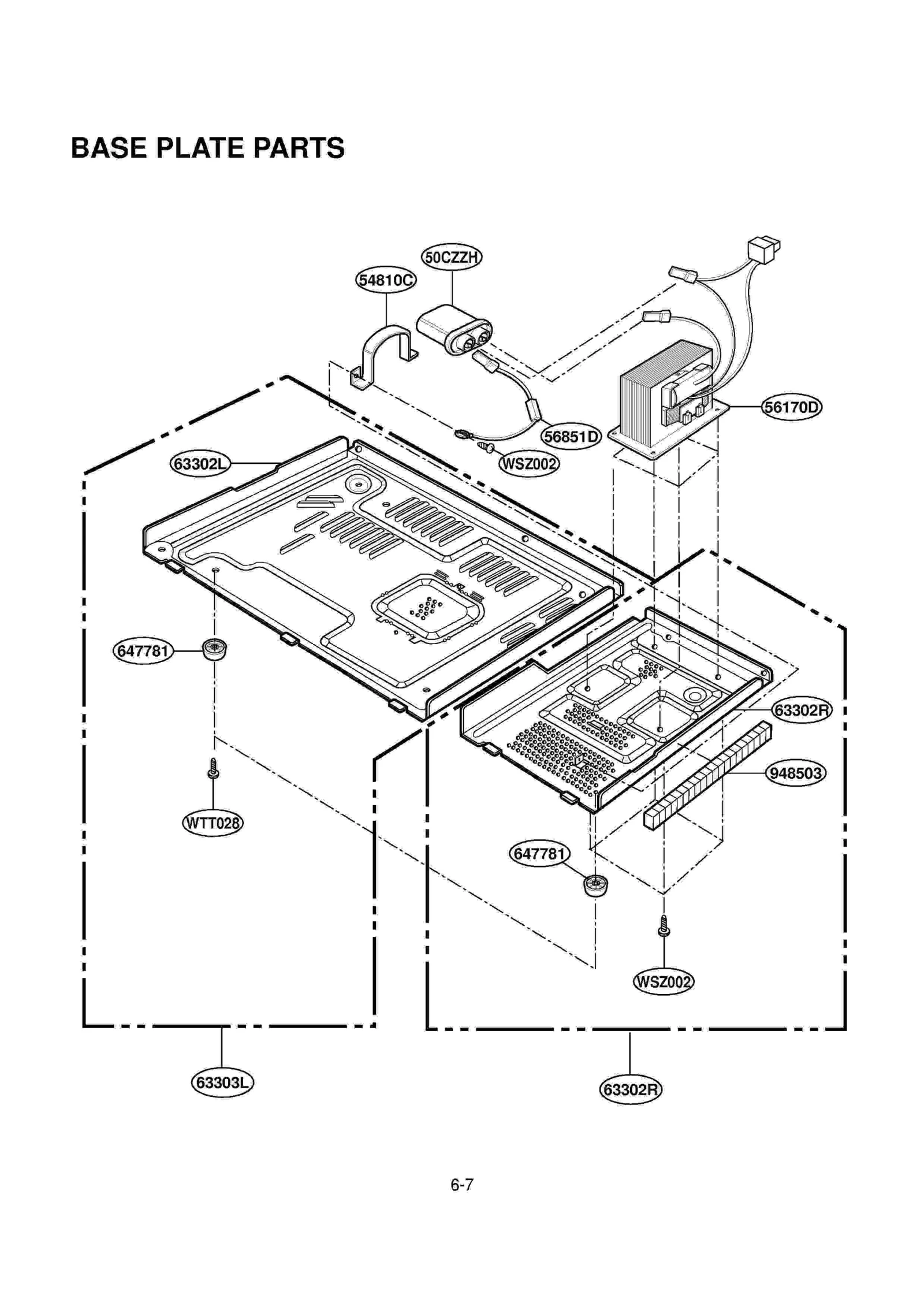

Diagram 5

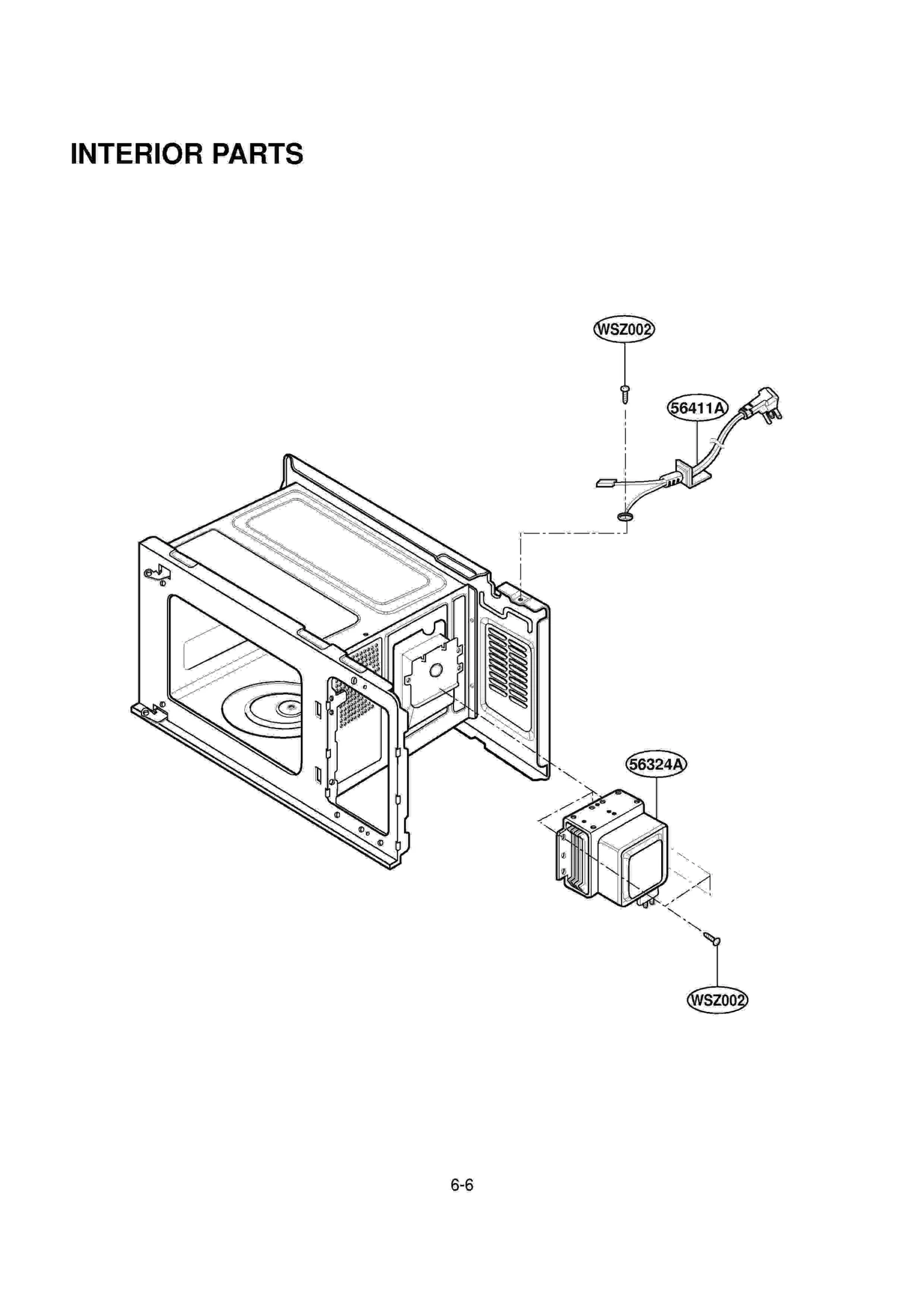

Diagram 6
Common parts from model LG MA-782M
*01
LGE 3828W5A1113 LGE 3828W5A1113 Contact Us For Availability
*02
LGE 3828W5S1045 LGE 3828W5S1045 Contact Us For Availability
*10
BOX,YELLOW LGE 3890W3Y003F Contact Us For Availability
50CZZH
H.V. CAPACITOR 0.76UF/2100V LGE 6120W3H003C Contact Us For Availability
50FZZA
FUSE LGE 3B70856G Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
LGE 4781W1M142W LGE 4781W1M142W Contact Us For Availability
26638A
LGE 6638W2A224A LGE 6638W2A224A Contact Us For Availability
33052M
CANOPY MICA MS-71MC MICA SHEET LGE 3052W3M005A Contact Us For Availability
33112U
LGE 3112W2U003U LGE 3112W2U003U Contact Us For Availability
33390G
GLASS TRAY LGE 3390W1G005A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ,3R LGE 2B72754M Contact Us For Availability
43500A
BOARD LATCH MA-880M/680M/681M LGE 3500WRA001A Contact Us For Availability
43501A
BOARD ASSY LATCH MA-6802,MA-68 LGE 3501WRA001E Contact Us For Availability
54810C
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
54974S
GUIDE,SUCTION LGE 4974W0S009C Contact Us For Availability
56170D
TRANSFORMER HIGH VOLTAGE 120V LGE 6010W2H100A Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56324A
MAGNETRON LGE 2B71732B Contact Us For Availability
56411A
POWER CORD ASSY A-2 LGE 6411W2A002G Contact Us For Availability
56549F
MOTOR FAN 120V/60HZ MS-71MD JC LGE 6549W2F017A Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
BASE PLATE ALL MS-72CM,LEFT MS LGE 3302W1A039A Contact Us For Availability
63302R
BASE PLATE ALL MS-72CM,RIGHT J LGE 3302W1A040A Contact Us For Availability
63303L
LGE 3303W1A019A LGE 3303W1A019A Contact Us For Availability
63303R
BASE PLATE ASSY,ALL LGE 3303W2A001A Contact Us For Availability
250201
BUTTON,MWO LGE 5020W3G098M Contact Us For Availability
268711
PCB ASSY LGE 6871W2S002C Contact Us For Availability
368771
LEAD WIRE ASSY TT MS-71CM(T/T LGE 6877WRT007D Contact Us For Availability
568772
LGE 6877W1T258A LGE 6877W1T258A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C03
LGE 0CE1076H638 LGE 0CE1076H638 Contact Us For Availability
C04
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C41
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C52
LGE 0CC4700K401 LGE 0CC4700K401 Contact Us For Availability
C71
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN2
LGE 6630W5YA19F LGE 6630W5YA19F Contact Us For Availability
CU1
CUSHION LGE 4850W4C001G Contact Us For Availability
D03
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D22
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1(B)
LED DISPLAY TOF-3491HG-B BK OA LGE 0DLZZW5A01B Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ(12 LGE 6010W2P044A Contact Us For Availability
Q23
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q41
LGE 0TR205300AB LGE 0TR205300AB Contact Us For Availability
Q42
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R03
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R22
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R23
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM LGE 0RD3901G608 Contact Us For Availability
R29
LGE 0RD2700G608 LGE 0RD2700G608 Contact Us For Availability
R38
LGE 0RD0472G608 LGE 0RD0472G608 Contact Us For Availability
R45
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R47
LGE 0RD1501G608 LGE 0RD1501G608 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD7500F608 Contact Us For Availability
R52
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R53
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R73
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
U01
LGE 0IHI404222J LGE 0IHI404222J Contact Us For Availability
WSZ186
Screw,Customized LGE 1SZZW3A001A Contact Us For Availability
ZD01
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD02
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
