Model LG MA-1103W – Common Parts & Diagrams
Diagram 0
Diagram 1

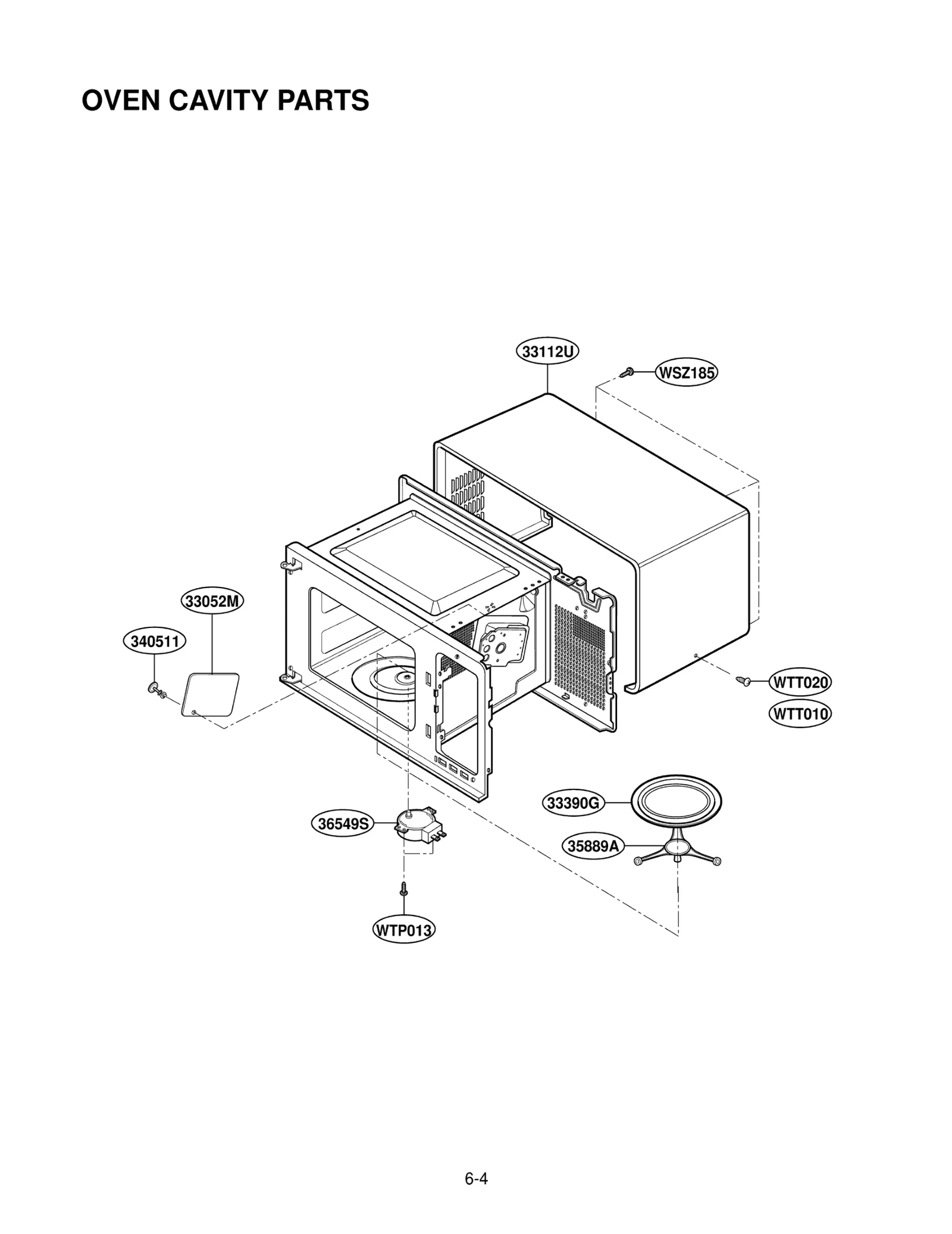

Diagram 2

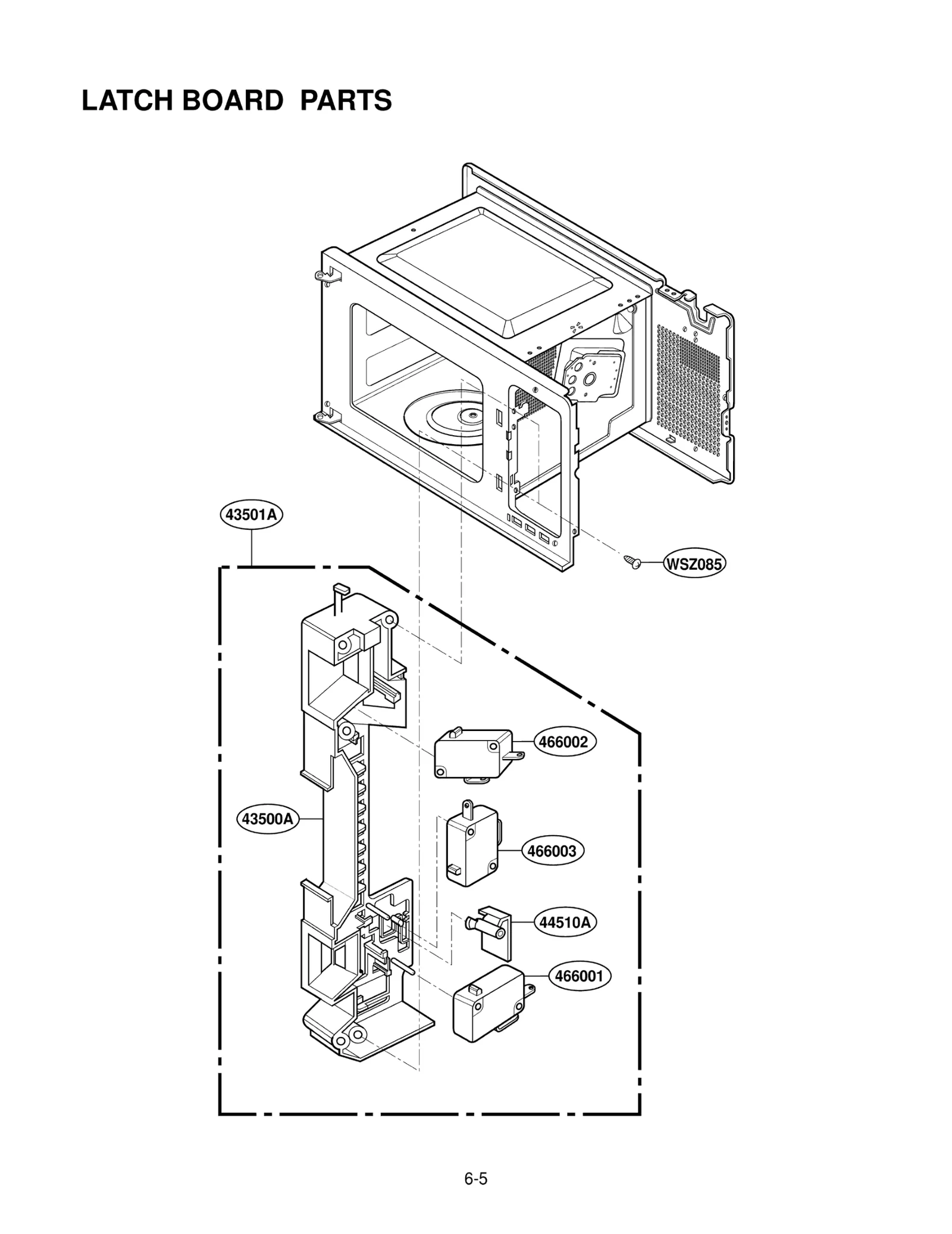

Diagram 3

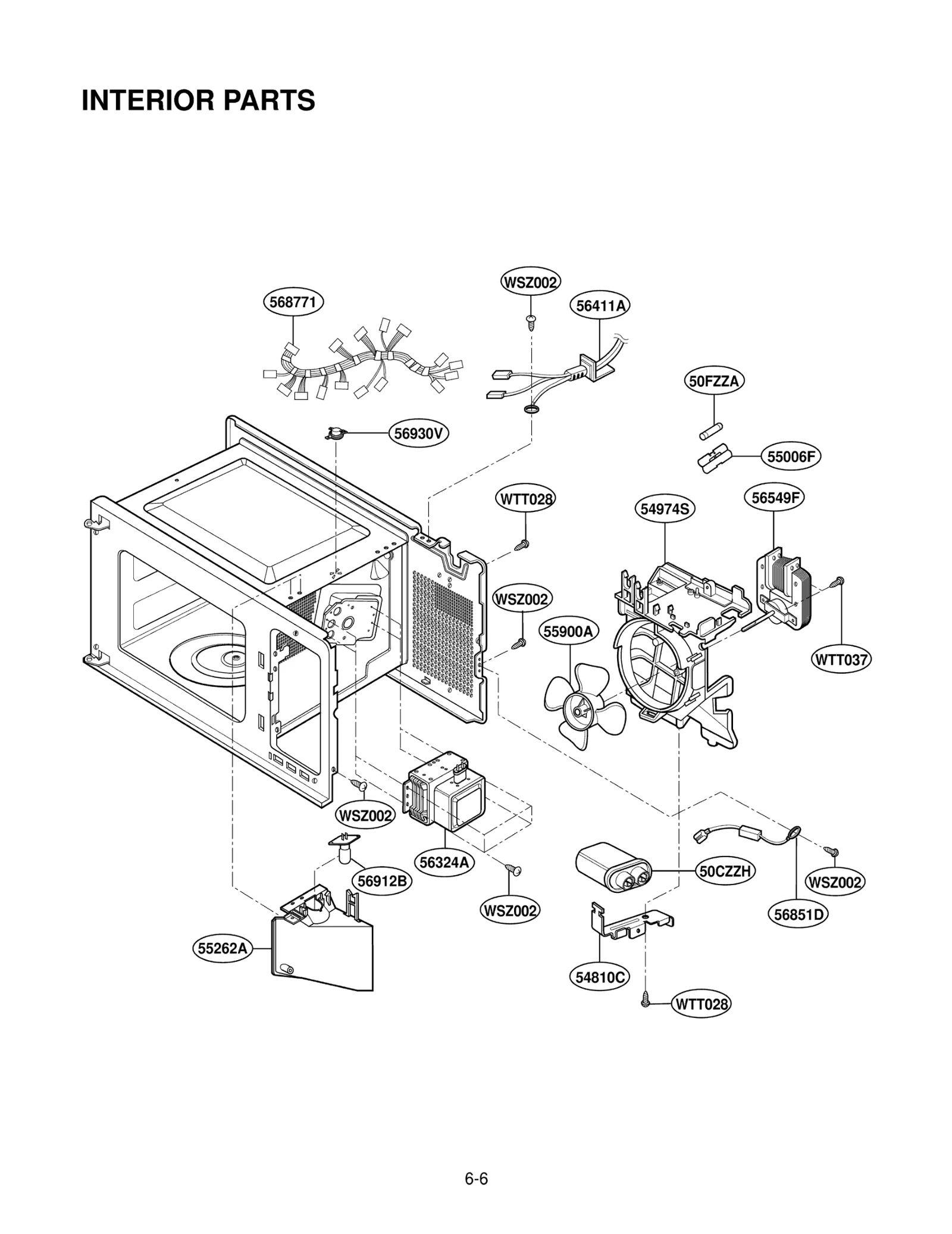

Diagram 4

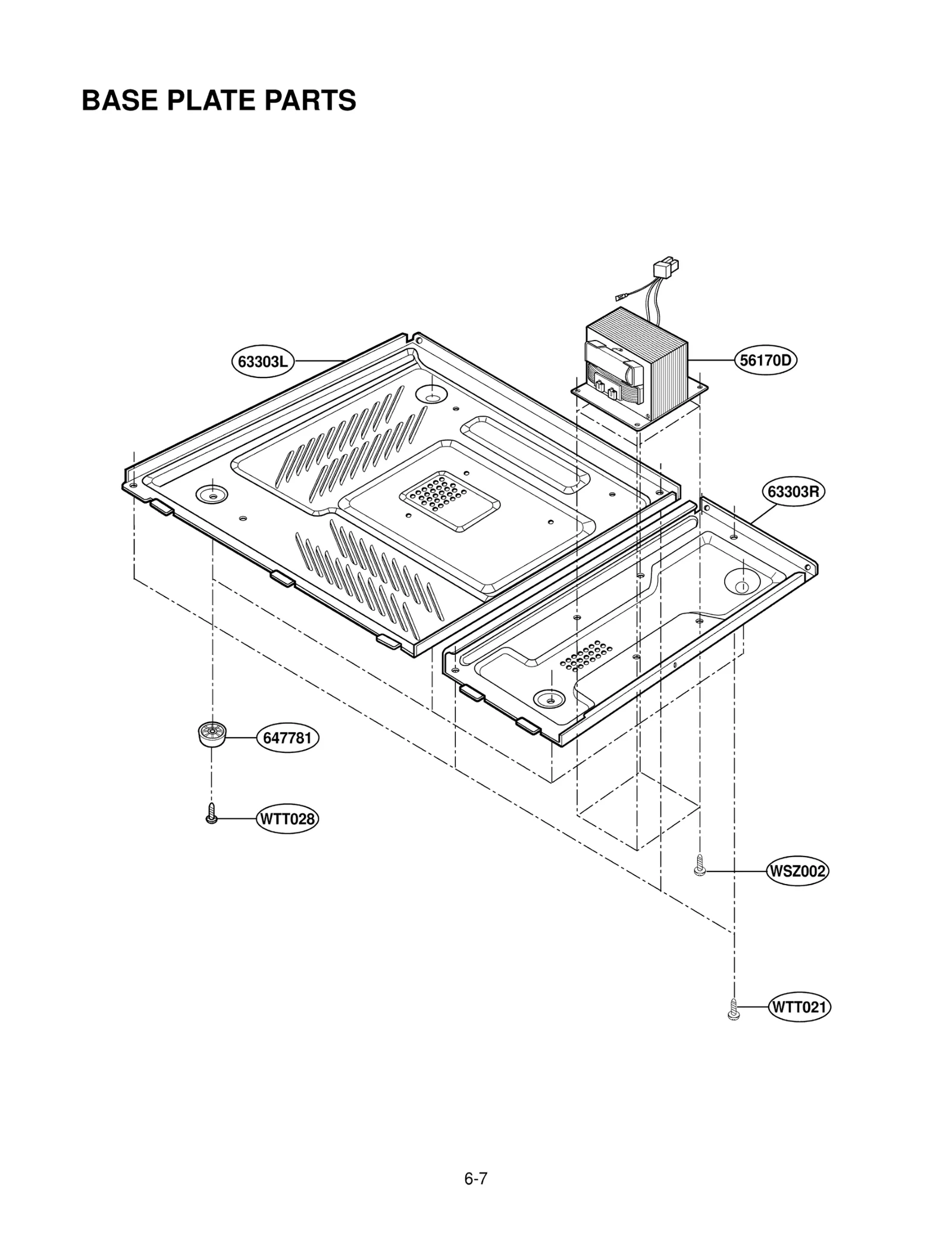

Diagram 5
Diagram 6
Common parts from model LG MA-1103W
*01
MANUAL,OWNERS(MWO) LGE 3828W5A1069 Contact Us For Availability
*02
MANUAL,SERVICE LGE 3828W5S0987 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W3Y007A Contact Us For Availability
50CZZH
CAPACITOR,[HIGH VOLTAGE] LGE 6120W3H003J Contact Us For Availability
33052M
CANOPY,MICA LGE 3052W3M011C Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W1U019N Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G003A Contact Us For Availability
33461Z
Cavity Assembly,Coating LGE 3461W0A024E Contact Us For Availability
34960A
MOUNT ALL LGE 4960W3G026A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR(CIRC),SYNCHRONOUS LGE 6549W1S011C Contact Us For Availability
43500A
LATCH BOARD LGE 3500W1A005A Contact Us For Availability
43501A
BOARD ASSY,LATCH LGE 3501W1A016F Contact Us For Availability
44510A
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55006F
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A041C Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
Transformer,high voltage LGE 6170W1D012G Contact Us For Availability
56324A
MAGNETRON LGE 6324W1A001A Contact Us For Availability
56411A
Power Cord Assembly LGE 2B72325H Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
LGE 6930WRT002C LGE 6930WRT002C Contact Us For Availability
63302L
BASE PLATE LGE 3302W1A035G Contact Us For Availability
63302L
BASE PLATE ALL LGE 3302W1A036A Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A028A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A004E Contact Us For Availability
568771
LEAD WIRE ASSY LGE 6877W1A182A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948502
CUSHION LGE 4B73438A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ4702G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
LGE 0CE1071K638 LGE 0CE1071K638 Contact Us For Availability
C03
CAPACITOR ELECTROLYT 220UF SME LGE 0CE2272H638 Contact Us For Availability
C06
LGE 0CE4761K638 LGE 0CE4761K638 Contact Us For Availability
C13
LGE 0CK1030H518 LGE 0CK1030H518 Contact Us For Availability
C14
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK2230H518 Contact Us For Availability
CN1
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
CN2
Connector,Wafer LGE 6630W5V009A Contact Us For Availability
D03
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D05
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D09
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
DP1
DIGITRON 6-BT-199GN(NEW DEMO) LGE 6302W5YA02A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q01
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
Q03
LGE 0TR181509AB LGE 0TR181509AB Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R05
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R06
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R09
Resistor,Carbon Film LGE 0RD7500F608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R11
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R15
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R16
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R19
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R25
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R33(OPTION
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R36
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R39
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
LGE 0IZZW5A006C LGE 0IZZW5A006C Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
