Model Maytag M9RXDGFYW11 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

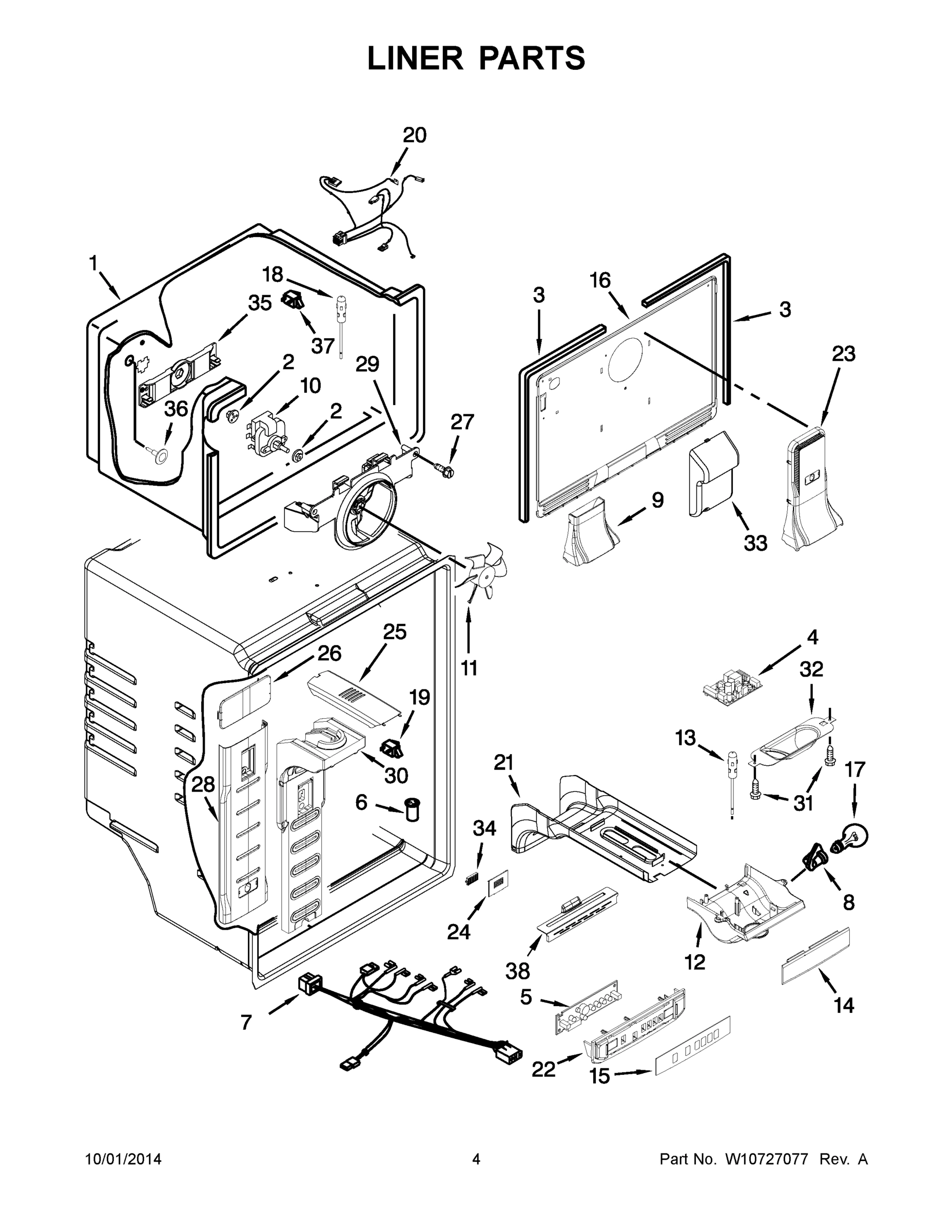

03 - LINER PARTS

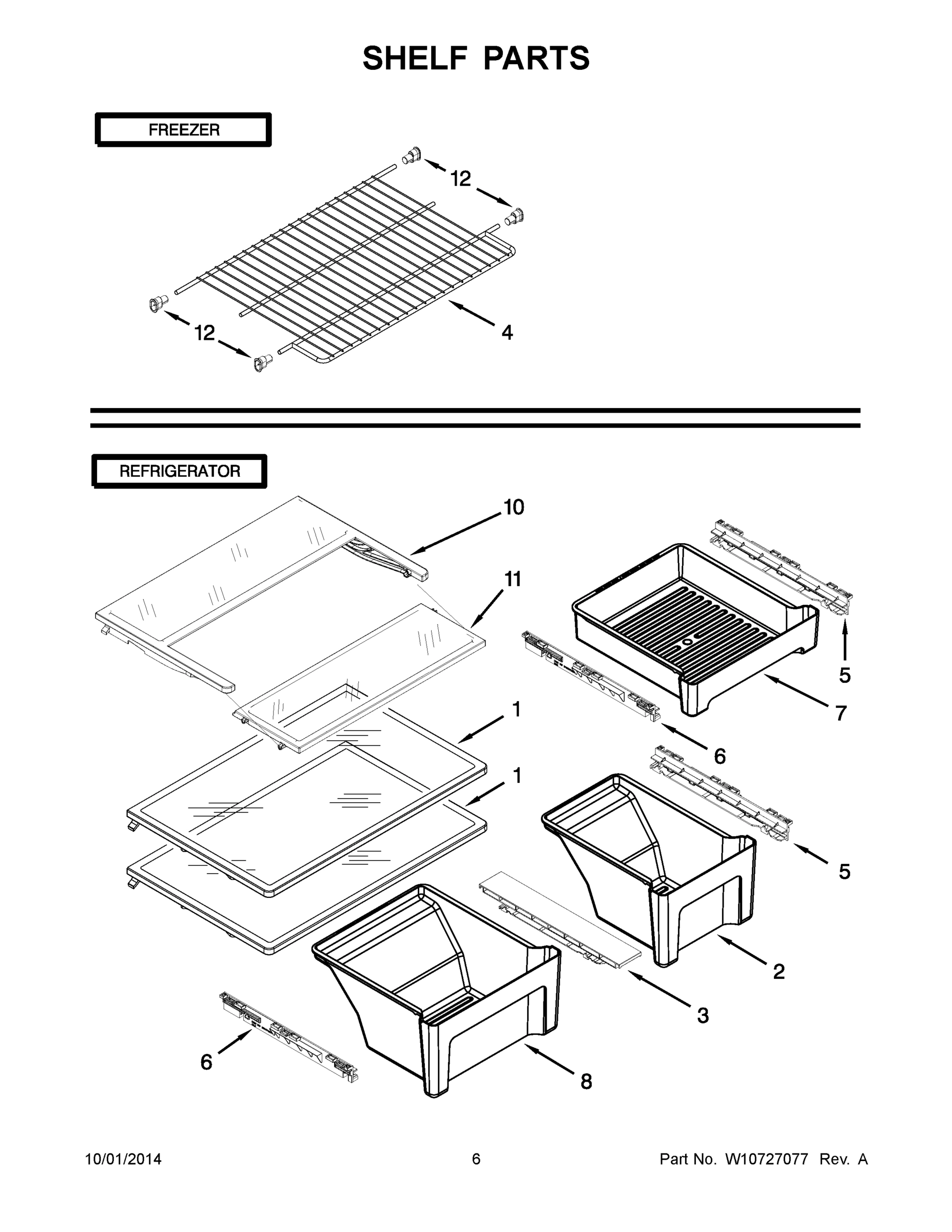

04 - SHELF PARTS

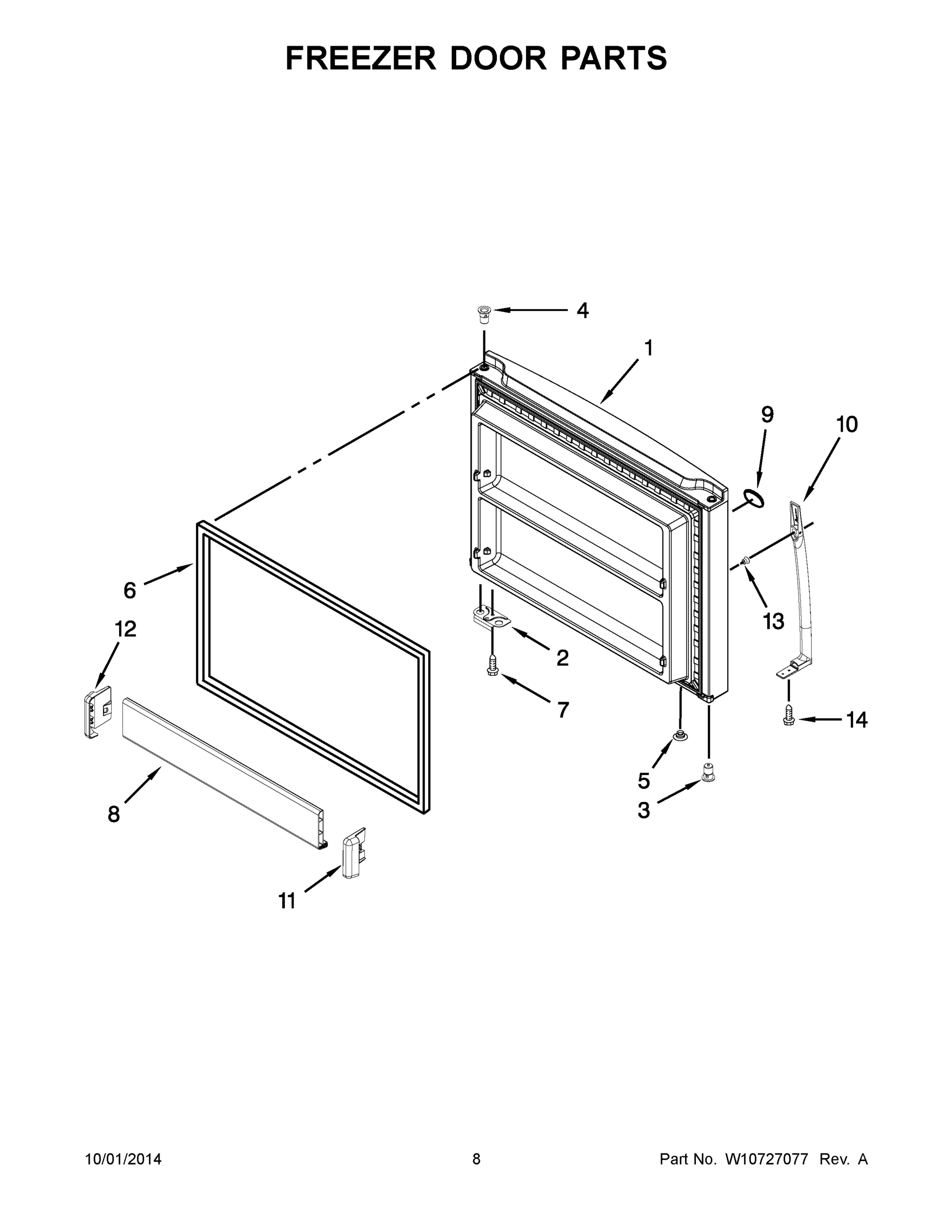

05 - FREEZER DOOR PARTS

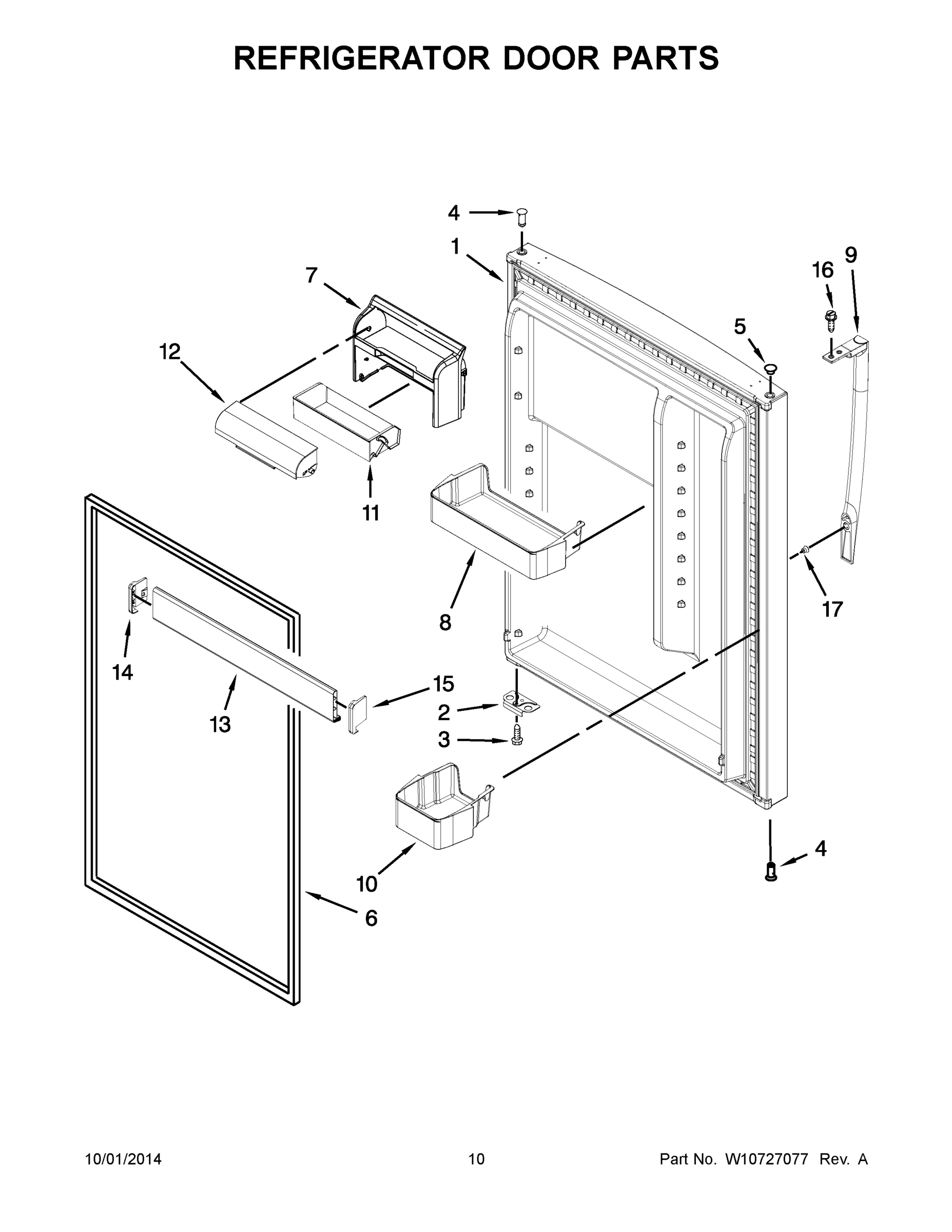

06 - REFRIGERATOR DOOR PARTS

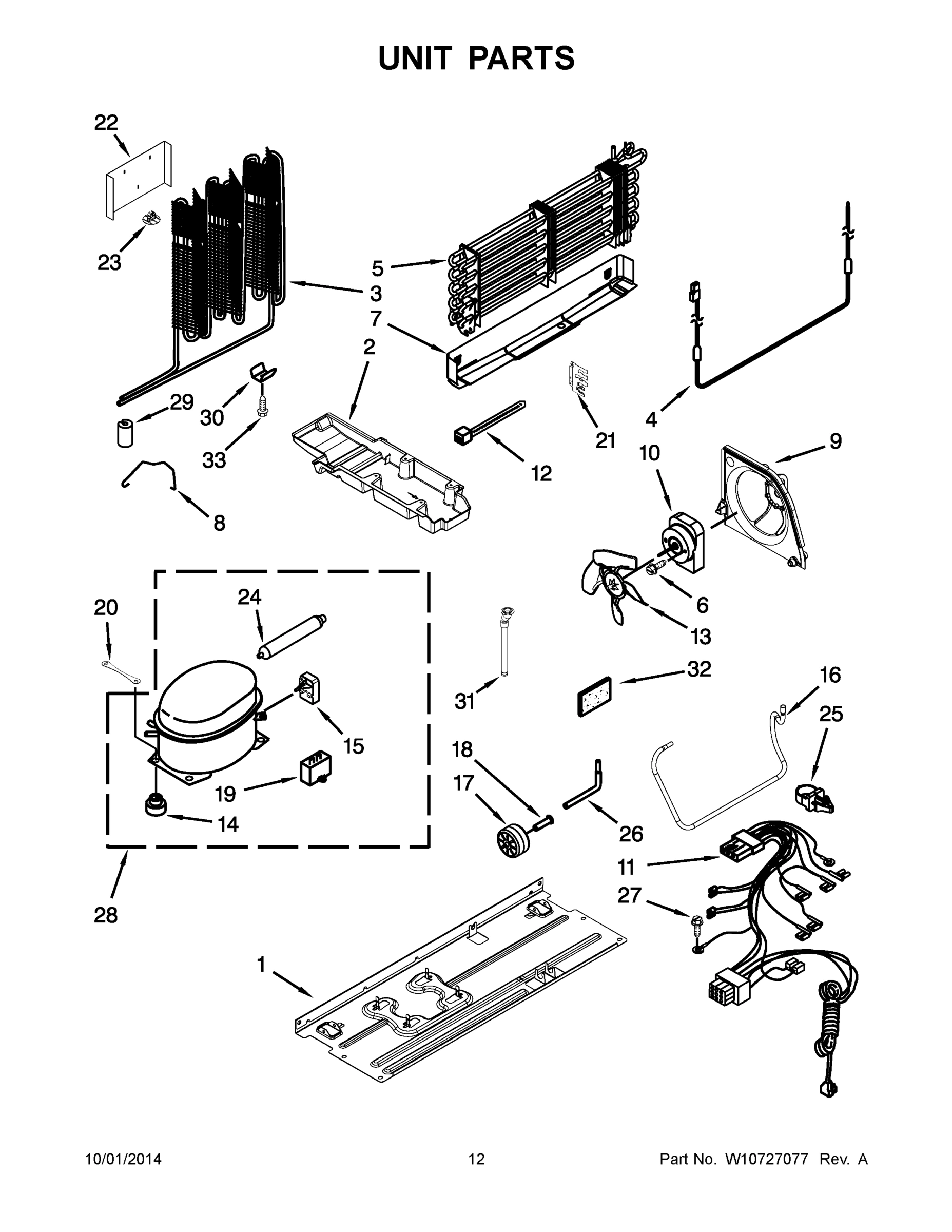

07 - UNIT PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag M9RXDGFYW11 REFRIGERATOR
1
MAY W10714380 MAY W10714380 Contact Us For Availability
1
ASSEMBLY, FULL SHELF (30") MAY W10486290 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (WHITE) MAY W10329576 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 4 & 6) (WH MAY W10329581 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
1A
ENERGY GUIDE MAY W10422358 Contact Us For Availability
1A
MAY W10576468 MAY W10576468 Contact Us For Availability
1A
MAY W10576480 MAY W10576480 Contact Us For Availability
1B
MAY W10551695 MAY W10551695 Contact Us For Availability
2
ASSEMBLY, TOP RIGHT HINGE MAY W10300065 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
CRISPER PAN 8" MAY W10373950 Contact Us For Availability
2
MAY 2189202 MAY 2189202 Contact Us For Availability
2
MAY W10466213 MAY W10466213 Contact Us For Availability
3
ASSEMBLY, ROLLER MAY W10327136 Contact Us For Availability
3
MAY W10468762 MAY W10468762 Contact Us For Availability
3
RAIL, TRACK (CENTER) MAY W10468557 Contact Us For Availability
3
THIMBLE MAY 2200087 Contact Us For Availability
3
MAY 489276 MAY 489276 Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
4
MAY W10331226 MAY W10331226 Contact Us For Availability
4
CONTROL, ELECTRONIC (HERCULES) MAY W10392193 Contact Us For Availability
4
MAY W10477088 MAY W10477088 Contact Us For Availability
4
THIMBLE, TOP (BLACK) MAY W10334042 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
5
MAY W10341559 MAY W10341559 Contact Us For Availability
5
RAIL, TRACK (RIGHT HAND) MAY W10468556 Contact Us For Availability
5
HOLE PLUG, HINGE (WHITE) MAY 2212648 Contact Us For Availability
5
ASSEMBLY, EVAPORATOR MAY W10314205 Contact Us For Availability
5A
MAY 2254517 MAY 2254517 Contact Us For Availability
6
MAY 2210509 MAY 2210509 Contact Us For Availability
6
RAIL, TRACK (LEFT HAND) MAY W10468555 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (BEIGE) MAY 2214966 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (BEIGE) MAY 2202874 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6A
MAY W10279559 MAY W10279559 Contact Us For Availability
6A
MAY W10279664 MAY W10279664 Contact Us For Availability
7
MAY 3400517 MAY 3400517 Contact Us For Availability
7
MAY W10557785 MAY W10557785 Contact Us For Availability
7
MAY W10308848 MAY W10308848 Contact Us For Availability
7
HOUSING, COMPARTMENT MAY W10308809 Contact Us For Availability
7
MAY W10314195 MAY W10314195 Contact Us For Availability
8
COVER, TOE GRILLE (WHITE) MAY W10339257 Contact Us For Availability
8
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
8
CRISPER PAN 16" MAY W10373948 Contact Us For Availability
8
MAY W10469910 MAY W10469910 Contact Us For Availability
8
MAY W10331763 MAY W10331763 Contact Us For Availability
8
STRAP, BALE MAY W10174383 Contact Us For Availability
8A
COVER, TOE GRILLE (GREY) MAY W10353932 Contact Us For Availability
9
MAY 489442 MAY 489442 Contact Us For Availability
9
ASSEMBLY, TOWER CONNECTION MAY W10396926 Contact Us For Availability
9
MAY W10170766 MAY W10170766 Contact Us For Availability
9
MAY W10366329 MAY W10366329 Contact Us For Availability
9
BRACKET, CONDENSER FAN MAY 2315541 Contact Us For Availability
9A
HANDLE (TITANIUM SPARKLE) MAY W10370624 Contact Us For Availability
10
SHIM, TOP HINGE MAY W10338247 Contact Us For Availability
10
MOTOR, EVAPORATOR FAN MAY 2315539 Contact Us For Availability
10
MAY W10476425 MAY W10476425 Contact Us For Availability
10
BIN SHORT MAY W10331762 Contact Us For Availability
10
MAY W10508362 MAY W10508362 Contact Us For Availability
11
WASHER, PLASTIC MAY 489341 Contact Us For Availability
11
BLADE, FAN MAY 2200509 Contact Us For Availability
11
MAY W10305243 MAY W10305243 Contact Us For Availability
11
MAY W10356444 MAY W10356444 Contact Us For Availability
11
MAY W10637520 MAY W10637520 Contact Us For Availability
12
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
12
MAY W10316942 MAY W10316942 Contact Us For Availability
12
CUP, SHELF MAY W10130299 Contact Us For Availability
12
LID, UTILITY FLIP MAY W10308843 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
THERMISTOR, REFRIGERATOR COMPARTMENT MAY W10384183 Contact Us For Availability
13
MAY W10469909 MAY W10469909 Contact Us For Availability
13
MAY W10139483 MAY W10139483 Contact Us For Availability
14
MAY 2254618 MAY 2254618 Contact Us For Availability
14
LENS, FASCIA MAY W10339195 Contact Us For Availability
14
CAP, TRIM END (LEFT HAND) MAY W10338485 Contact Us For Availability
14
GROMMET MAY 10835903 Contact Us For Availability
15
MAY 2183852 MAY 2183852 Contact Us For Availability
15
MAY W10356943 MAY W10356943 Contact Us For Availability
15
CAP, TRIM END (RIGHT HAND) MAY W10308871 Contact Us For Availability
15
DEVICE, START MAY W10448874 Contact Us For Availability
16
MAY 2262176 MAY 2262176 Contact Us For Availability
16
MAY W10385128 MAY W10385128 Contact Us For Availability
16
MAY 489357 MAY 489357 Contact Us For Availability
16
MAY W10510988 MAY W10510988 Contact Us For Availability
17
HINGE, BOTTOM MAY 2254473 Contact Us For Availability
17
MAY W10311528 MAY W10311528 Contact Us For Availability
17
SCREW MAY W10129563 Contact Us For Availability
17
ROLLER MAY 2150304 Contact Us For Availability
18
WASHER, PLASTIC MAY 487576 Contact Us For Availability
18
MAY W10383615 MAY W10383615 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
19
MAY W10520304 MAY W10520304 Contact Us For Availability
19
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
19
MAY W10590088 MAY W10590088 Contact Us For Availability
19A
MAY W10520307 MAY W10520307 Contact Us For Availability
20
CORNER FILLER (WHITE) MAY W10283959 Contact Us For Availability
20
MAY W10487766 MAY W10487766 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
20A
CORNER FILLER (GREY) MAY W10283961 Contact Us For Availability
21
GRILLE, TOE (WHITE) MAY W10326386 Contact Us For Availability
21
MAY W10305175 MAY W10305175 Contact Us For Availability
21
MAY W10314197 MAY W10314197 Contact Us For Availability
21A
GRILLE, TOE (GREY) MAY W10353938 Contact Us For Availability
22
COVER, TOE GRILLE (HINGE SIDE) (WHITE) MAY W10381059 Contact Us For Availability
22
MAY W10383443 MAY W10383443 Contact Us For Availability
22
COVER, CONDENSER (BOTTOM) MAY W10349514 Contact Us For Availability
22A
MAY W10381064 MAY W10381064 Contact Us For Availability
23
MAY W10384413 MAY W10384413 Contact Us For Availability
23
TOWER, AIR MAY W10305174 Contact Us For Availability
23
CLIP, BOTTOM COVER MAY W10296661 Contact Us For Availability
24
MAY W10330850 MAY W10330850 Contact Us For Availability
24
MAY W10669573 MAY W10669573 Contact Us For Availability
25
MAY W10348614 MAY W10348614 Contact Us For Availability
25
CLIP, HARNESS MAY 2219077 Contact Us For Availability
26
MAY W10336009 MAY W10336009 Contact Us For Availability
26
MAY VS20001 MAY VS20001 Contact Us For Availability
27
SCREW MAY 488208 Contact Us For Availability
27
MAY 488500 MAY 488500 Contact Us For Availability
28
TOWER, MULTIFLOW AIR MAY W10356895 Contact Us For Availability
28
MAY W10445423 MAY W10445423 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
29
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
30
MAY W10395376 MAY W10395376 Contact Us For Availability
30
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
31
MAY 489174 MAY 489174 Contact Us For Availability
31
MAY W10519112 MAY W10519112 Contact Us For Availability
32
MAY W10300161 MAY W10300161 Contact Us For Availability
32
MAY 2215468 MAY 2215468 Contact Us For Availability
33
MAY W10339203 MAY W10339203 Contact Us For Availability
33
MAY 8281232 MAY 8281232 Contact Us For Availability
34
FILTER, AIR MAY W10315189 Contact Us For Availability
35
BRACKET, EVAPORATOR FAN REAR MAY 2254454 Contact Us For Availability
36
PLUG, HOLE (WHITE) MAY 941839 Contact Us For Availability
37
SWITCH, ROCKER ARM MAY 2149954 Contact Us For Availability
38
MAY W10326336 MAY W10326336 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE, ICEMAKER ASSEMBL MAY 2155469 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3" X 24" X 48") MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") MAY 876370 Contact Us For Availability
NI
INSULATION, FIBERGLASS (63 1/2" X 35 1/2" X 2 MAY 978941 Contact Us For Availability
NI
MAY W10437916 MAY W10437916 Contact Us For Availability
NI
KIT, DOOR REVERSAL (STAINLESS) MAY W10437918 Contact Us For Availability
× ![]()
