Model Maytag M9RXDGFYM10 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - LINER PARTS

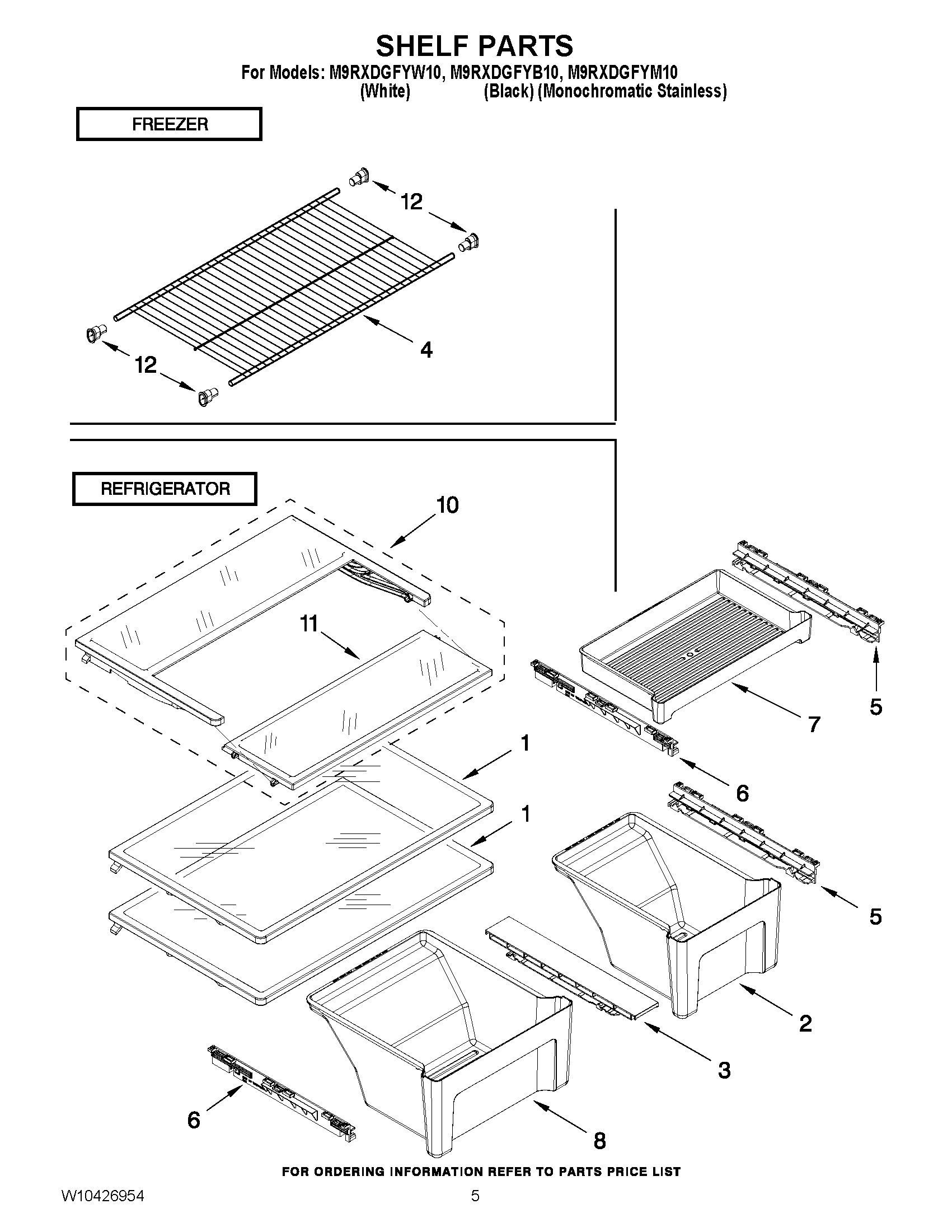

03 - SHELF PARTS

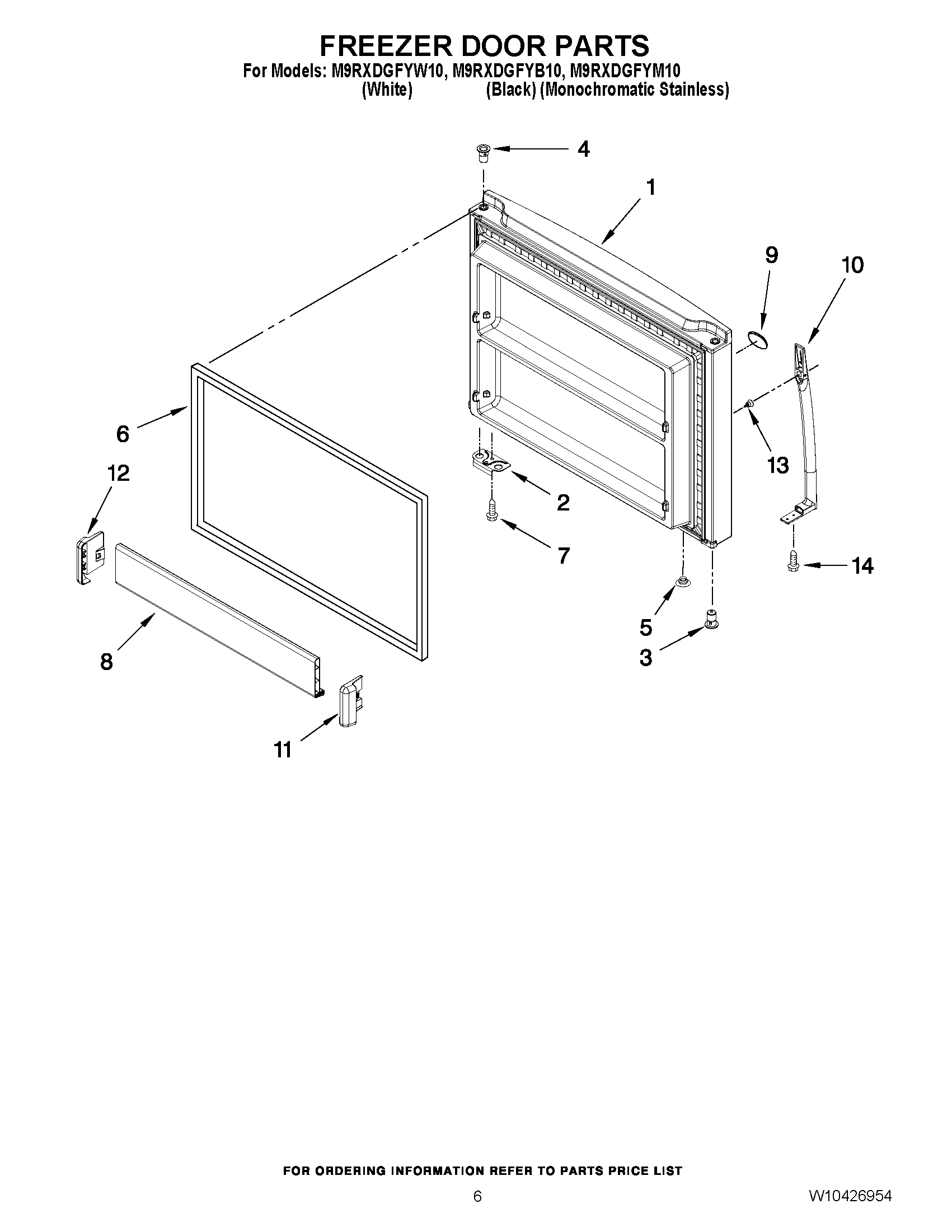

04 - FREEZER DOOR PARTS

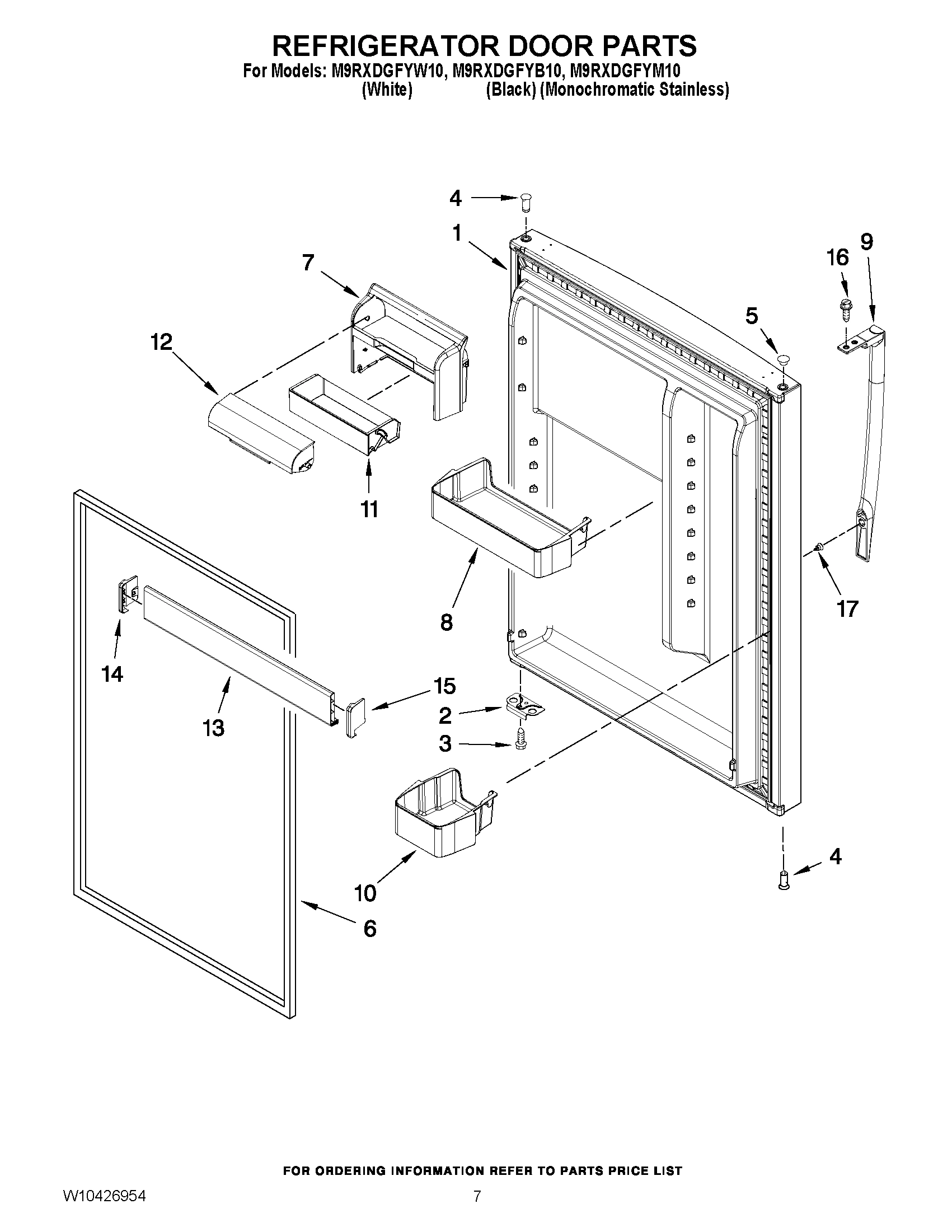

05 - REFRIGERATOR DOOR PARTS

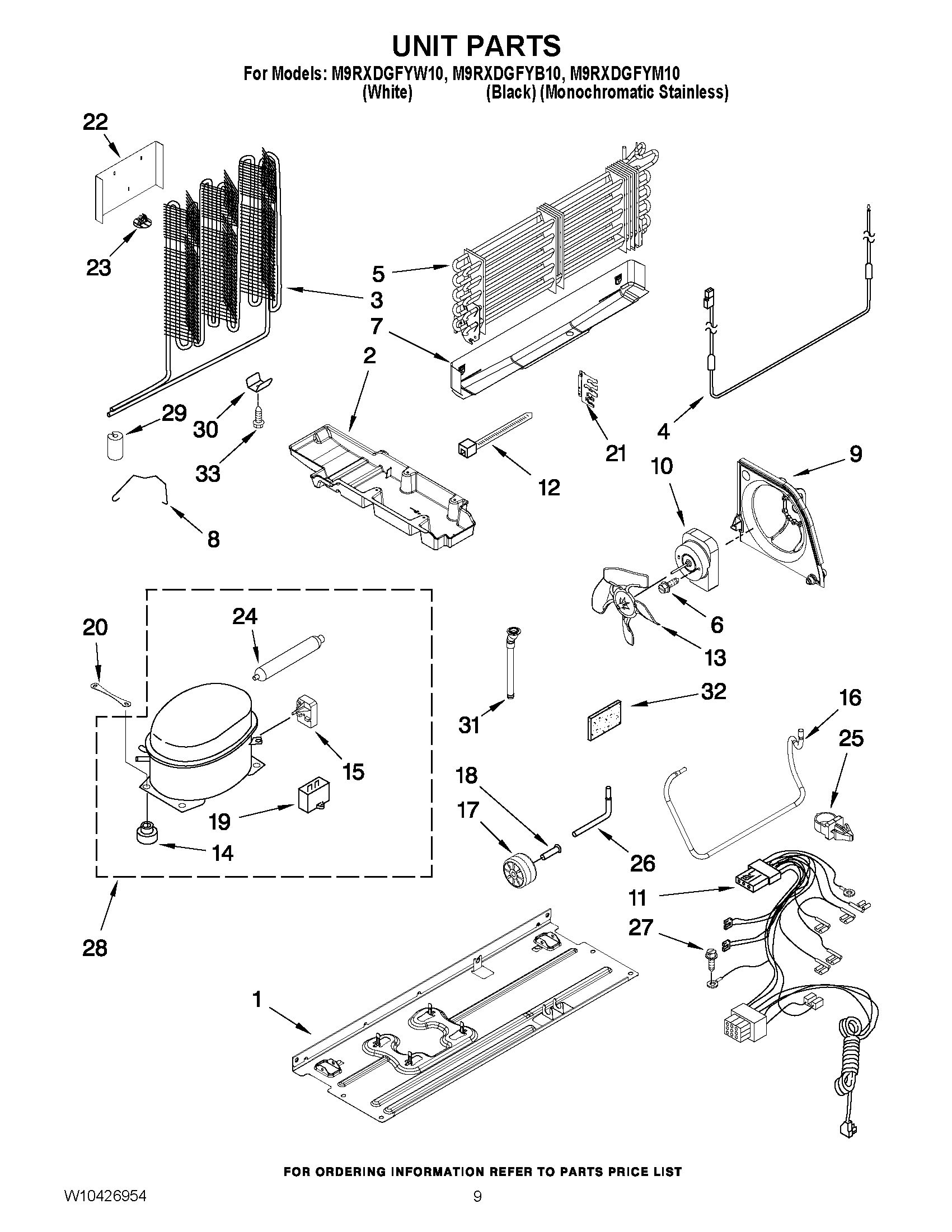

06 - UNIT PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag M9RXDGFYM10 REFRIGERATOR
1
MAY W10360533 MAY W10360533 Contact Us For Availability
1
MAY W10414768 MAY W10414768 Contact Us For Availability
1
MAY W10422358 MAY W10422358 Contact Us For Availability
1
SHELF ASSY 30`` MAY W10486290 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ITEMS 3, 4, 5 & 6) (WH MAY W10329576 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ITEMS 3, 4, 5 & 6) (BL MAY W10353302 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ITEMS 3, 4, 5 & 6) (ST MAY W10353321 Contact Us For Availability
1
MAY W10329581 MAY W10329581 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEMS 4, 5 & 6) ( MAY W10353883 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEMS 4, 5 & 6) ( MAY W10353894 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
2
MAY W10300065 MAY W10300065 Contact Us For Availability
2
MAY W10337503 MAY W10337503 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
MAY W10373950 MAY W10373950 Contact Us For Availability
2
MAY 2189202 MAY 2189202 Contact Us For Availability
2
EVAPORATOR TRAY MAY W10466213 Contact Us For Availability
3
MAY W10327136 MAY W10327136 Contact Us For Availability
3
MAY 2254359 MAY 2254359 Contact Us For Availability
3
TRACK RAIL CTR MAY W10404446 Contact Us For Availability
3
THIMBLE MAY 2200087 Contact Us For Availability
3
Screw, 8-18 x 3/4 MAY 489276 Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
4
MAY W10331226 MAY W10331226 Contact Us For Availability
4
CONTROL, HERCULES MAY W10392193 Contact Us For Availability
4
WIRE SHELF, FC MAY W10477088 Contact Us For Availability
4
MAY W10334042 MAY W10334042 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
5
COVER, HINGE (WHITE, RS) MAY W10331560 Contact Us For Availability
5
COVER, HINGE (WHITE, LS) MAY W10331654 Contact Us For Availability
5
COVER, HINGE (BLACK, RS) MAY W10353945 Contact Us For Availability
5
COVER, HINGE (MIDNIGHT GREY, RS) MAY W10353947 Contact Us For Availability
5
COVER, HINGE (BLACK, LS) MAY W10353948 Contact Us For Availability
5
COVER, HINGE (MIDNIGHT GREY, LS) MAY W10353950 Contact Us For Availability
5
CONTROL, OPAL MAY W10341559 Contact Us For Availability
5
TRACK RAIL RS MAY W10468556 Contact Us For Availability
5
HOLE PLUG, HINGE (WHITE) MAY 2212648 Contact Us For Availability
5
HOLE PLUG, HINGE (BLACK) MAY 2212651 Contact Us For Availability
5
HOLE PLUG, HINGE (APOLLO GREY) MAY 2254517 Contact Us For Availability
5
EVAPORATOR ASSY. MAY W10314205 Contact Us For Availability
6
Valve-Tube, Body MAY 2210509 Contact Us For Availability
6
TRACK RAIL LS MAY W10468555 Contact Us For Availability
6
MAY 2214966 MAY 2214966 Contact Us For Availability
6
MAY 2214968 MAY 2214968 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10279559 Contact Us For Availability
6
DOOR GASKET (WHITE) MAY 2202874 Contact Us For Availability
6
DOOR GASKET (BLACK) MAY 2202881 Contact Us For Availability
6
DOOR GASKET (APOLLO GREY) MAY W10279664 Contact Us For Availability
6
SCREW 8-18 X 3/4 MAY 8533961 Contact Us For Availability
7
SCREW 5/16 X 1.44 MAY 3400517 Contact Us For Availability
7
MAY W10292528 MAY W10292528 Contact Us For Availability
7
MEAT PAN 30`` MAY W10308848 Contact Us For Availability
7
UTILITY COMPART MAY W10308809 Contact Us For Availability
7
HEAT SHIELD MAY W10314195 Contact Us For Availability
8
COVER, TOE GRILLE (WHITE) MAY W10339257 Contact Us For Availability
8
MAY W10353930 MAY W10353930 Contact Us For Availability
8
COVER, TOE GRILLE (MIDNIGHT GREY) MAY W10353932 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY W10373948 MAY W10373948 Contact Us For Availability
8
TRIM DOOR SHELF MAY W10308873 Contact Us For Availability
8
BIN, LARGE MAY W10331763 Contact Us For Availability
8
BALE STRAP MAY W10174383 Contact Us For Availability
9
SCREW 8-18 X .600 MAY 489442 Contact Us For Availability
9
MAY W10396926 MAY W10396926 Contact Us For Availability
9
Nameplate MAY W10170766 Contact Us For Availability
9
MAY W10366329 MAY W10366329 Contact Us For Availability
9
HANDLE (BLACK) MAY W10370622 Contact Us For Availability
9
MAY W10370624 MAY W10370624 Contact Us For Availability
9
MAY 2315541 MAY 2315541 Contact Us For Availability
10
MAY W10338247 MAY W10338247 Contact Us For Availability
10
Fan Motor MAY 2315539 Contact Us For Availability
10
MAY W10352270 MAY W10352270 Contact Us For Availability
10
MAY W10331762 MAY W10331762 Contact Us For Availability
10
MAY 2188874 MAY 2188874 Contact Us For Availability
11
WASHER, PLASTIC MAY 489341 Contact Us For Availability
11
MAY 2200509 MAY 2200509 Contact Us For Availability
11
SHELF FRONT, FLIP MAY W10305243 Contact Us For Availability
11
MAY W10356444 MAY W10356444 Contact Us For Availability
11
MAY W10405935 MAY W10405935 Contact Us For Availability
12
MAY 549193 MAY 549193 Contact Us For Availability
12
MAY W10316942 MAY W10316942 Contact Us For Availability
12
Cup, Shelf MAY W10130299 Contact Us For Availability
12
MAY W10308843 MAY W10308843 Contact Us For Availability
12
MAY 2263990 MAY 2263990 Contact Us For Availability
13
SCREW 12-24 X .70 MAY 489497 Contact Us For Availability
13
MAY W10384183 MAY W10384183 Contact Us For Availability
13
MAY W10308872 MAY W10308872 Contact Us For Availability
13
FAN BLADE MAY W10139483 Contact Us For Availability
14
MAY 2254618 MAY 2254618 Contact Us For Availability
14
FASCIA, LENS MAY W10339195 Contact Us For Availability
14
ENDCAP, TRIM LS MAY W10338485 Contact Us For Availability
14
GROMMET (PRODUCTION) MAY 10835903 Contact Us For Availability
14
GROMMET (SERVICE) MAY 1100826 Contact Us For Availability
15
HINGE SHIM, CENTER MAY 2183852 Contact Us For Availability
15
MAY W10356943 MAY W10356943 Contact Us For Availability
15
ENDCAP, TRIM RS MAY W10308871 Contact Us For Availability
15
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10194431 Contact Us For Availability
15
START DEVICE, COMBINATION (START RELAY AND OV MAY W10330832 Contact Us For Availability
16
SCREW 8-18 X 1/2 MAY 8281265 Contact Us For Availability
16
COVER-EVAPORATOR MAY W10385128 Contact Us For Availability
16
SCREW 8-18 X 5/8 MAY 489357 Contact Us For Availability
16
MAY W10466683 MAY W10466683 Contact Us For Availability
17
HINGE ASSY, BOTTOM MAY 2254473 Contact Us For Availability
17
LIGHT BULB MAY W10311528 Contact Us For Availability
17
MOUNTING SCREW MAY W10129563 Contact Us For Availability
17
ROLLER, REAR MAY 2150304 Contact Us For Availability
18
Washer, Nylon MAY 487576 Contact Us For Availability
18
THERMISTOR, FC MAY W10383615 Contact Us For Availability
18
AXLE, RIVET MAY 2179826 Contact Us For Availability
19
HOLE PLUG (BLACK) MAY 2183998 Contact Us For Availability
19
HOLE PLUG (WHITE) MAY 2201012 Contact Us For Availability
19
HOLE PLUG (APOLLO GREY) MAY 2254506 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2169373 MAY 2169373 Contact Us For Availability
19
Capacitor (Service) MAY 2264017 Contact Us For Availability
20
CORNER FILLER (WHITE) MAY W10283959 Contact Us For Availability
20
CORNER FILLER (BLACK) MAY W10283960 Contact Us For Availability
20
CORNER FILLER (APOLLO GREY) MAY W10283961 Contact Us For Availability
20
MAY W10283809 MAY W10283809 Contact Us For Availability
20
STRAP, CONDENSER MAY W10236396 Contact Us For Availability
21
GRILLE (WHITE) MAY W10326386 Contact Us For Availability
21
GRILLE (BLACK) MAY W10353936 Contact Us For Availability
21
GRILLE (MIDNIGHT GREY) MAY W10353938 Contact Us For Availability
21
AIR DIFFUSER COVER MAY W10305175 Contact Us For Availability
21
BRACKET, EVAP MAY W10314197 Contact Us For Availability
22
COVER, TOE GRILLE (HINGE SIDE) (WHITE) MAY W10381059 Contact Us For Availability
22
MAY W10381060 MAY W10381060 Contact Us For Availability
22
COVER, TOE GRILLE (HINGE SIDE) (MIDNIGHT GREY MAY W10381064 Contact Us For Availability
22
MAY W10383443 MAY W10383443 Contact Us For Availability
22
MAY W10349514 MAY W10349514 Contact Us For Availability
23
MAY W10384413 MAY W10384413 Contact Us For Availability
23
AIR TOWER MAY W10305174 Contact Us For Availability
23
CLIP, COVER MAY W10296661 Contact Us For Availability
24
GRILLE, AIR FILTER MAY W10330850 Contact Us For Availability
24
MAY W10143759 MAY W10143759 Contact Us For Availability
24
MAY W10177049 MAY W10177049 Contact Us For Availability
25
MAY W10348614 MAY W10348614 Contact Us For Availability
25
HARNESS CLIP MAY 2219077 Contact Us For Availability
26
SCREW CUP MAY W10336009 Contact Us For Availability
26
MAY 2212848 MAY 2212848 Contact Us For Availability
27
SCREW 8-15 X .813 MAY 488208 Contact Us For Availability
27
SCREW 8-32 X 3/8 MAY 488500 Contact Us For Availability
28
MULTIFLOW AIR TOWER MAY W10356895 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 14, 15, 19 & 24) ( MAY W10164016 Contact Us For Availability
29
FAN MOTOR BRACKET MAY W10321162 Contact Us For Availability
29
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
30
MAY W10395376 MAY W10395376 Contact Us For Availability
30
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
31
SCREW 8-15 X 2.00 MAY 489174 Contact Us For Availability
31
MAY W10316650 MAY W10316650 Contact Us For Availability
32
SHIELD, HEAT MAY W10300161 Contact Us For Availability
32
MAY 2215468 MAY 2215468 Contact Us For Availability
33
FITTING, TUBE COVER MAY W10339203 Contact Us For Availability
33
SCREW 8-18 X 1-1/4 MAY 8281232 Contact Us For Availability
34
MAY W10315189 MAY W10315189 Contact Us For Availability
35
BRACKET, EVAPORATOR FAN MAY 2254454 Contact Us For Availability
36
MAY 941839 MAY 941839 Contact Us For Availability
37
ROCKER ARM SWITCH MAY 2149954 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.0 OZS. (R134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (ECKMF94) MAY 2155469 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (ENAMEL, BL MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (ENAMEL, WH MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
KIT, TERMINAL CONNECTOR KIT, MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
DOOR REVERSAL (WHITE) MAY W10437916 Contact Us For Availability
NI
MAY W10437917 MAY W10437917 Contact Us For Availability
NI
DOOR REVERSAL (STAINLESS) MAY W10437918 Contact Us For Availability
× ![]()
