Model Maytag M9RXDGFYM00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - LINER PARTS

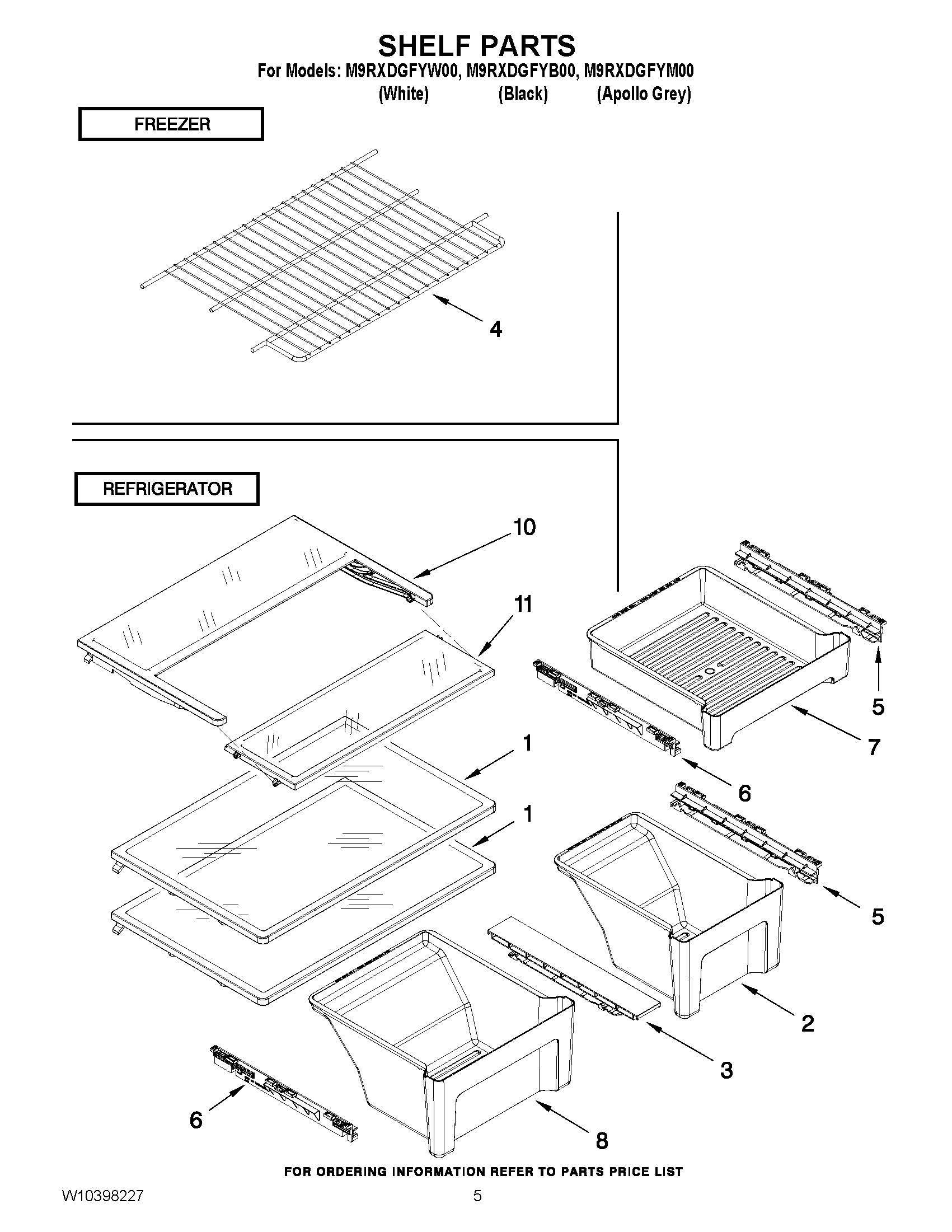

03 - SHELF PARTS

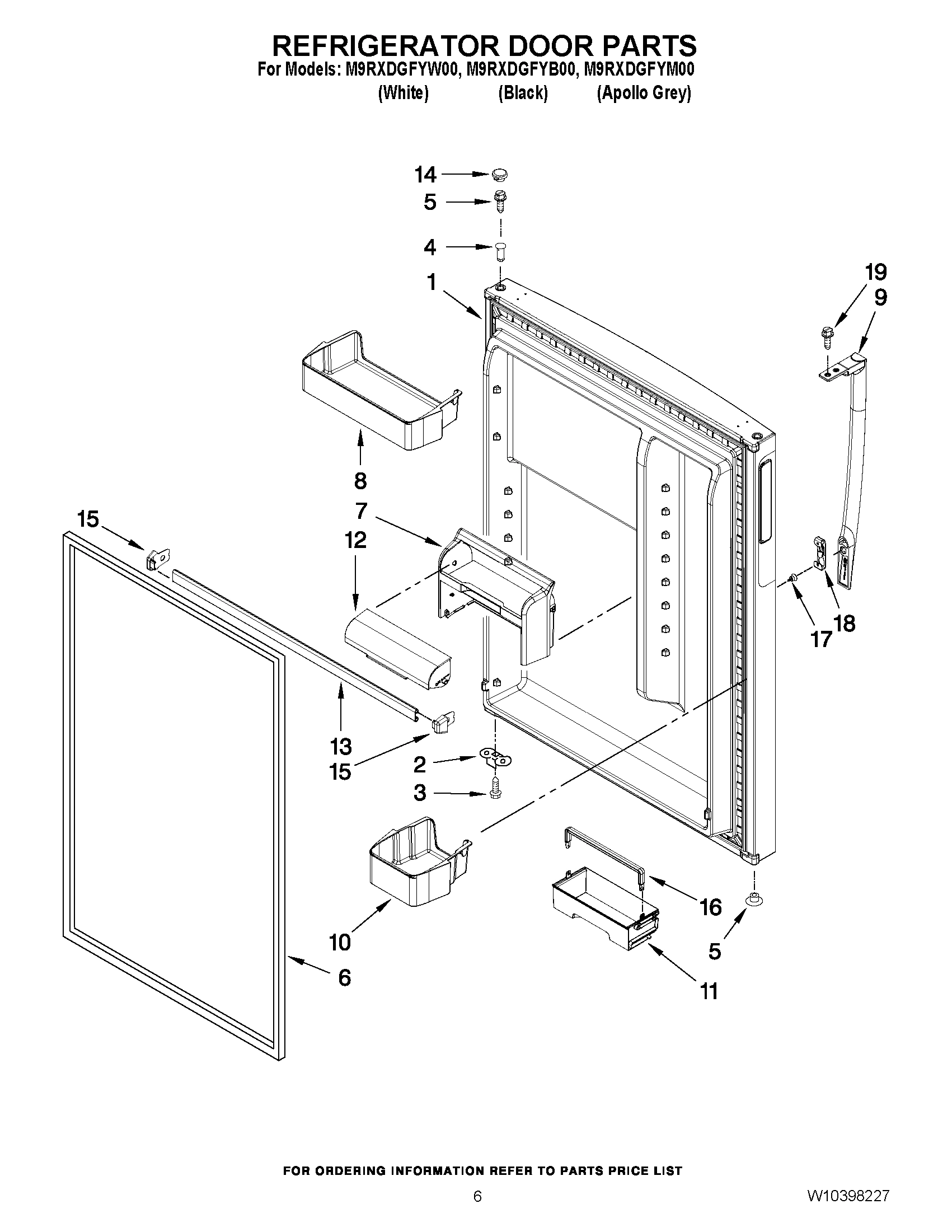

04 - REFRIGERATOR DOOR PARTS

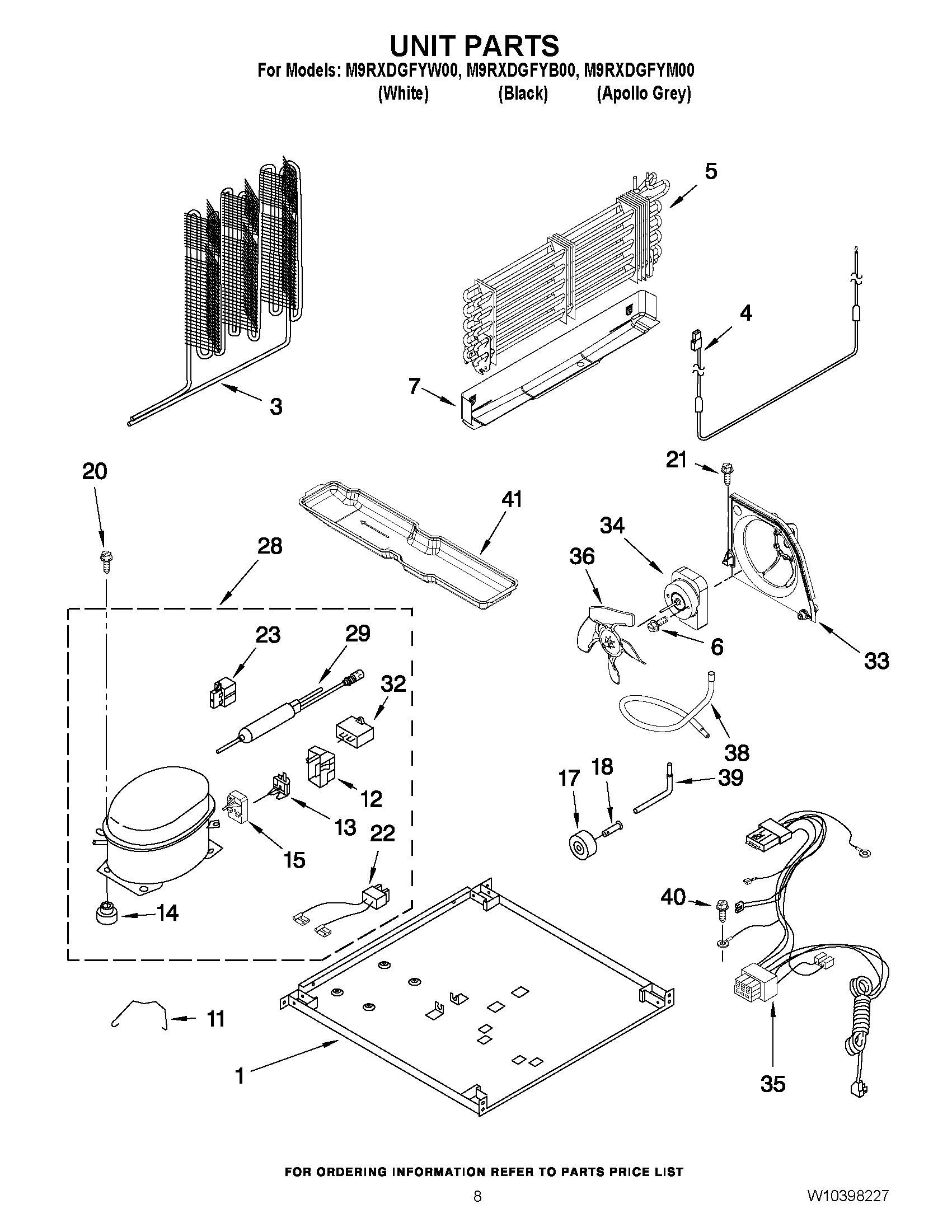

05 - UNIT PARTS

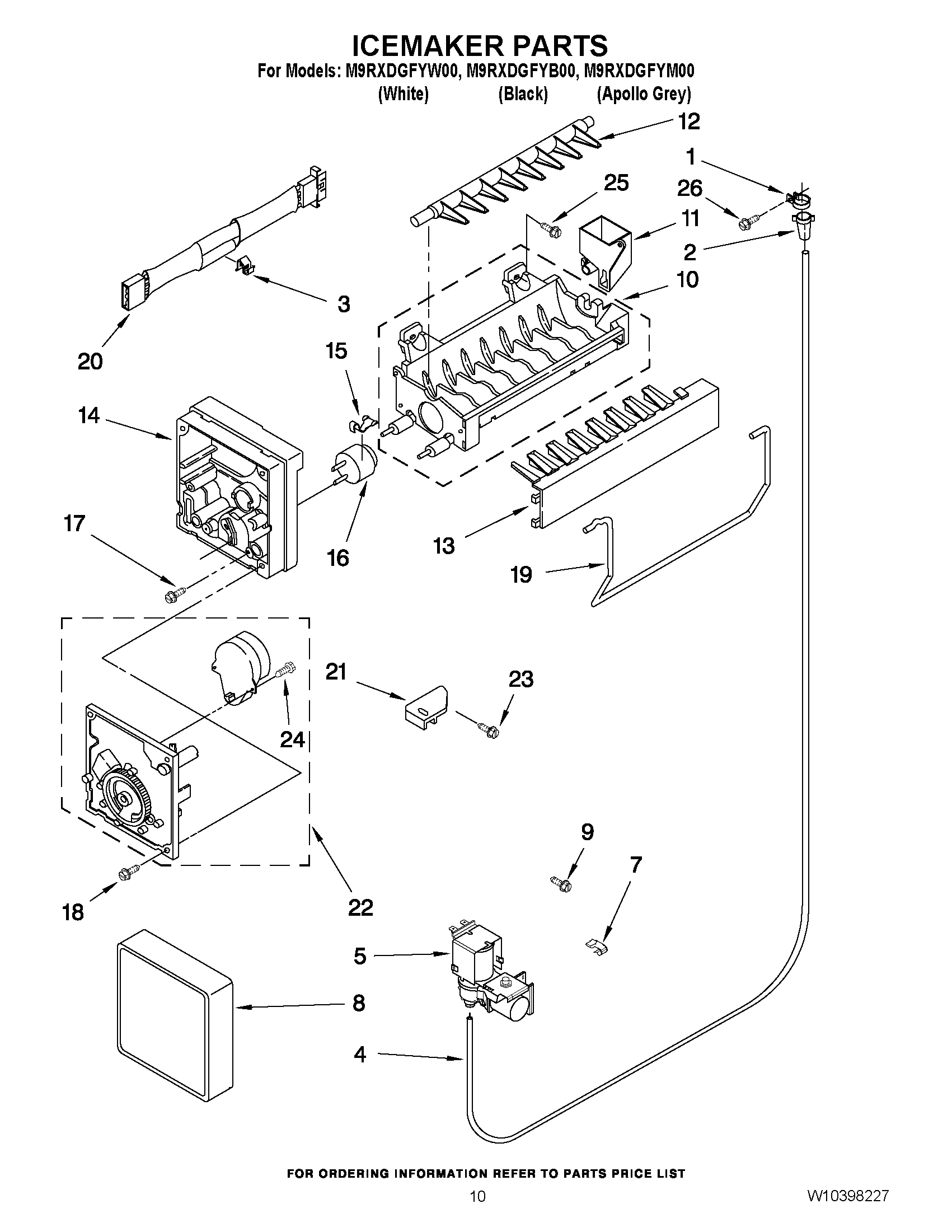

06 - ICEMAKER PARTS

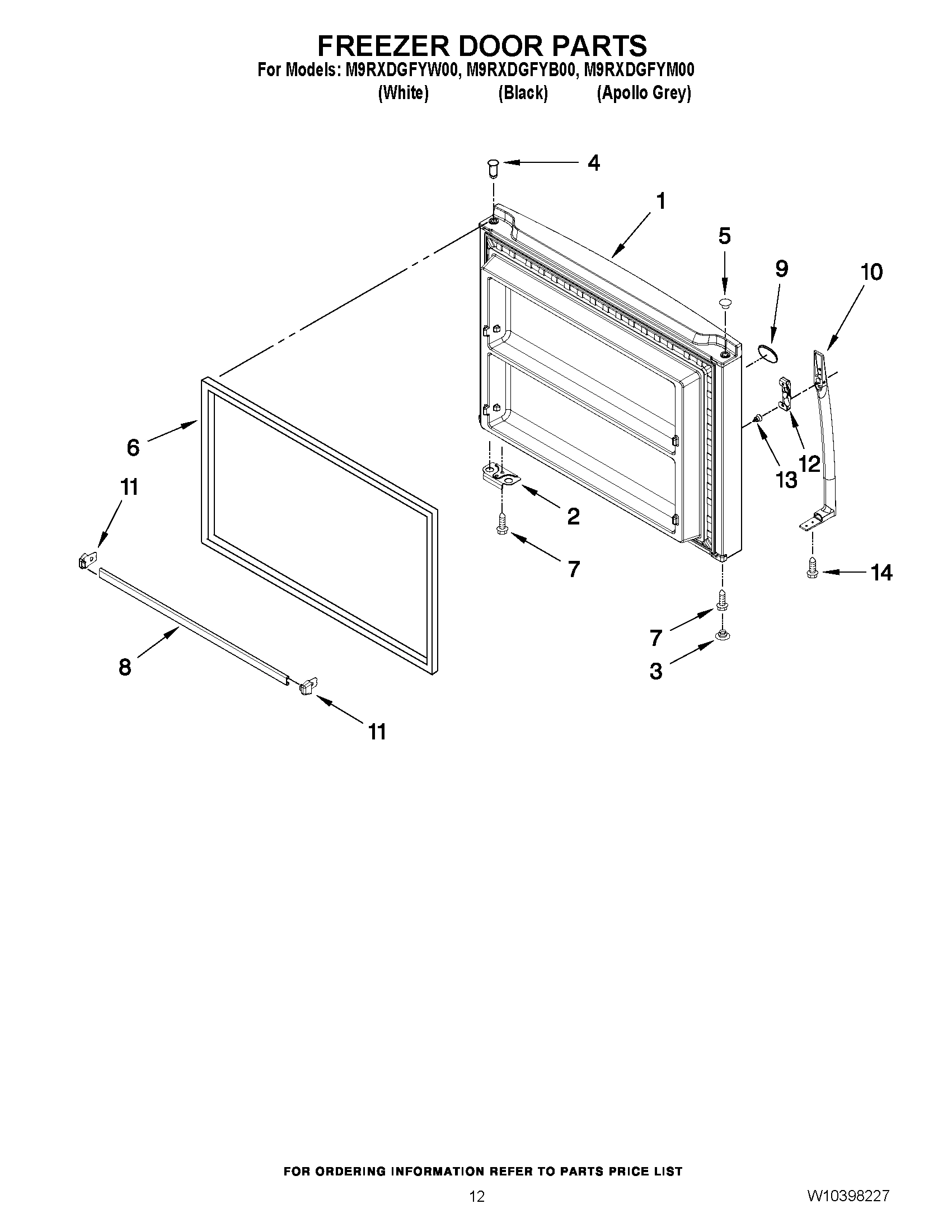

07 - FREEZER DOOR PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag M9RXDGFYM00 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10142085 MAY W10142085 Contact Us For Availability
1
MAY W10142142 MAY W10142142 Contact Us For Availability
1
MAY W10359298 MAY W10359298 Contact Us For Availability
1
MAY W10360533 MAY W10360533 Contact Us For Availability
1
SHELF ASSY 30`` MAY W10308850 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (WH MAY W10329581 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (BL MAY W10353883 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (ST MAY W10353894 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (WHITE) MAY W10329576 Contact Us For Availability
1
MAY W10353302 MAY W10353302 Contact Us For Availability
1
MAY W10353321 MAY W10353321 Contact Us For Availability
2
MAY W10300069 MAY W10300069 Contact Us For Availability
2
Grommet (2) MAY 2197380 Contact Us For Availability
2
MAY W10373950 MAY W10373950 Contact Us For Availability
2
MAY 2189202 MAY 2189202 Contact Us For Availability
2
MAY 2181939 MAY 2181939 Contact Us For Availability
3
MAY 2166108 MAY 2166108 Contact Us For Availability
3
Gasket, Evaporator Cover (2) MAY 2254359 Contact Us For Availability
3
MAY W10308864 MAY W10308864 Contact Us For Availability
3
MAY W10348220 MAY W10348220 Contact Us For Availability
3
MAY W10355196 MAY W10355196 Contact Us For Availability
3
MAY W10355197 MAY W10355197 Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
CONTROL MAY W10392193 Contact Us For Availability
4
MAY W10284383 MAY W10284383 Contact Us For Availability
4
MAY W10334042 MAY W10334042 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
4
MAY 2181943 MAY 2181943 Contact Us For Availability
5
MAY 489385 MAY 489385 Contact Us For Availability
5
CONTROL MAY W10341559 Contact Us For Availability
5
MAY W10308862 MAY W10308862 Contact Us For Availability
5
HOLE PLUG, HINGE (WHITE) MAY 2212648 Contact Us For Availability
5
HOLE PLUG, HINGE (BLACK) MAY 2212651 Contact Us For Availability
5
HOLE PLUG, HINGE (APOLLO GREY) MAY 2254517 Contact Us For Availability
5
EVAPORATOR ASSY. MAY W10314205 Contact Us For Availability
5
MAY 2315576 MAY 2315576 Contact Us For Availability
6
MAY 489427 MAY 489427 Contact Us For Availability
6
MAY W10396926 MAY W10396926 Contact Us For Availability
6
MAY W10308863 MAY W10308863 Contact Us For Availability
6
DOOR GASKET MAY 2183003 Contact Us For Availability
6
DOOR GASKET (WHITE) MAY 2202874 Contact Us For Availability
6
DOOR GASKET (BLACK) MAY 2202881 Contact Us For Availability
6
DOOR GASKET (APOLLO GREY) MAY W10279664 Contact Us For Availability
6
MAY 8533961 MAY 8533961 Contact Us For Availability
6
MAY 2214966 MAY 2214966 Contact Us For Availability
6
MAY 2214968 MAY 2214968 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10279559 Contact Us For Availability
7
MAY 3400504 MAY 3400504 Contact Us For Availability
7
MAY W10292528 MAY W10292528 Contact Us For Availability
7
MEAT PAN 30`` MAY W10308848 Contact Us For Availability
7
MAY 489276 MAY 489276 Contact Us For Availability
7
UTILITY COMPART MAY W10308809 Contact Us For Availability
7
DRAIN PAN MAY W10314200 Contact Us For Availability
7
MAY 2210495 MAY 2210495 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY W10373948 MAY W10373948 Contact Us For Availability
8
BIN, LONG MAY W10331763 Contact Us For Availability
8
MAY 2210484 MAY 2210484 Contact Us For Availability
8
TRIM DOOR SHELF MAY W10308873 Contact Us For Availability
9
MAY 489442 MAY 489442 Contact Us For Availability
9
MAY W10383443 MAY W10383443 Contact Us For Availability
9
Nameplate MAY W10170766 Contact Us For Availability
10
MAY 2221797 MAY 2221797 Contact Us For Availability
10
MAY W10208121 MAY W10208121 Contact Us For Availability
10
SHELF ASSY FD RR MAY W10305214 Contact Us For Availability
10
MAY W10327267 MAY W10327267 Contact Us For Availability
10
MAY W10351407 MAY W10351407 Contact Us For Availability
10
HANDLE (SPARKLE) MAY W10365031 Contact Us For Availability
10
MAY W10331762 MAY W10331762 Contact Us For Availability
10
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 SIL MAY W10122527 Contact Us For Availability
11
MAY 2200509 MAY 2200509 Contact Us For Availability
11
SHELF ASSY FD FRT MAY W10305243 Contact Us For Availability
11
MAY W10338827 MAY W10338827 Contact Us For Availability
11
ENDCAP TRIM RS WH MAY W10308871 Contact Us For Availability
11
ENDCAP TRIM LS WH MAY W10338485 Contact Us For Availability
11
STRAP MAY W10236396 Contact Us For Availability
11
MAY W10122561 MAY W10122561 Contact Us For Availability
12
MAY 549193 MAY 549193 Contact Us For Availability
12
MAY W10316942 MAY W10316942 Contact Us For Availability
12
MAY W10308843 MAY W10308843 Contact Us For Availability
12
CLIP MTG MAY 2255411 Contact Us For Availability
12
COVER ((SERVICE ONLY)) MAY 4387731 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
MAY W10268920 MAY W10268920 Contact Us For Availability
13
MAY W10308872 MAY W10308872 Contact Us For Availability
13
SCREW MAY W10170540 Contact Us For Availability
13
OVERLOAD ((SERVICE ONLY)) MAY 4390624 Contact Us For Availability
13
ICE STRIPPER MAY W10122563 Contact Us For Availability
14
MAY 2254618 MAY 2254618 Contact Us For Availability
14
FASCIA, LENS MAY W10339195 Contact Us For Availability
14
HOLE PLUG ENDCAP MAY 2218109 Contact Us For Availability
14
MAY 8534058 MAY 8534058 Contact Us For Availability
14
GROMMET (4) (SERVICE) MAY 10835903 Contact Us For Availability
14
MAY 1100826 MAY 1100826 Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
15
MAY 2183852 MAY 2183852 Contact Us For Availability
15
MAY 2225930 MAY 2225930 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
MAY 8281265 MAY 8281265 Contact Us For Availability
16
COVER-EVAPORATOR MAY W10385128 Contact Us For Availability
16
MAY W10356443 MAY W10356443 Contact Us For Availability
16
THERMOSTAT (ALSO ORDER 542369 CEMENT ALUMILAS MAY W10290336 Contact Us For Availability
17
MAY 2254473 MAY 2254473 Contact Us For Availability
17
LIGHT BULB (2) MAY W10311528 Contact Us For Availability
17
MAY 2150304 MAY 2150304 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
18
MAY 2179026 MAY 2179026 Contact Us For Availability
19
MAY 2183998 MAY 2183998 Contact Us For Availability
19
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
19
HOLE PLUG (6) (APOLLO GREY) MAY 2254506 Contact Us For Availability
19
Rocker Arm (2) Switch MAY 1118894 Contact Us For Availability
19
MAY 627792 MAY 627792 Contact Us For Availability
20
CORNER FILLER (WHITE) MAY W10283959 Contact Us For Availability
20
CORNER FILLER (BLACK) MAY W10283960 Contact Us For Availability
20
CORNER FILLER (APOLLO GREY) MAY W10283961 Contact Us For Availability
20
MAY W10336362 MAY W10336362 Contact Us For Availability
20
MAY 489373 MAY 489373 Contact Us For Availability
20
MAY 2187464 MAY 2187464 Contact Us For Availability
21
GRILLE (INCLUDES ILLUS. 4 & 24) (WHITE) MAY W10326386 Contact Us For Availability
21
GRILLE (INCLUDES ILLUS. 4 & 24) (BLACK) MAY W10353936 Contact Us For Availability
21
GRILLE (INCLUDES ILLUS. 4 & 24) (APOLLO GREY) MAY W10353938 Contact Us For Availability
21
MAY W10305175 MAY W10305175 Contact Us For Availability
21
MAY 3400518 MAY 3400518 Contact Us For Availability
21
MAY 628320 MAY 628320 Contact Us For Availability
22
Washer, Plain MAY 489341 Contact Us For Availability
22
Knob, Thermostat MAY 2202885 Contact Us For Availability
22
WIRE ASSEMBLY (SERVICE ONLY) MAY W10129791 Contact Us For Availability
22
MODULE ASSEMBLY (INCLUDES ITEM 24) MAY W10223929 Contact Us For Availability
23
Washer, Nylon MAY 487576 Contact Us For Availability
23
AIR TOWER MAY W10305174 Contact Us For Availability
23
MAY 489478 MAY 489478 Contact Us For Availability
23
Relay (Service Only) MAY 2183454 Contact Us For Availability
24
MAY 2189452 MAY 2189452 Contact Us For Availability
24
MAY 489136 MAY 489136 Contact Us For Availability
25
COVER, HINGE (WHITE, RS) MAY W10331560 Contact Us For Availability
25
COVER, HINGE (WHITE, LS) MAY W10331654 Contact Us For Availability
25
COVER, HINGE (BLACK, RS) MAY W10353945 Contact Us For Availability
25
COVER, HINGE (APOLLO GREY RS) MAY W10353947 Contact Us For Availability
25
COVER, HINGE (BLACK, LS) MAY W10353948 Contact Us For Availability
25
COVER, HINGE (APOLLO GREY LS) MAY W10353950 Contact Us For Availability
25
Screw MAY 488208 Contact Us For Availability
25
MAY 8534009 MAY 8534009 Contact Us For Availability
26
MAY W10356943 MAY W10356943 Contact Us For Availability
26
MAY 488886 MAY 488886 Contact Us For Availability
27
MAY W10384413 MAY W10384413 Contact Us For Availability
28
MAY 2321800 MAY 2321800 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 12,13,14,22, 23,29 MAY W10187125 Contact Us For Availability
29
MAY 2254453 MAY 2254453 Contact Us For Availability
29
DRIER (PRODUCTION) MAY 2199167 Contact Us For Availability
29
Drier (Service) MAY W10177049 Contact Us For Availability
31
MAY W10314195 MAY W10314195 Contact Us For Availability
32
Capacitor (Service) MAY 2169373 Contact Us For Availability
32
Capacitor (Production) MAY 2264017 Contact Us For Availability
33
MAY 2315541 MAY 2315541 Contact Us For Availability
34
MAY 2188874 MAY 2188874 Contact Us For Availability
35
MAY 2254454 MAY 2254454 Contact Us For Availability
35
WIRE ASSY, UNIT MAY W10315318 Contact Us For Availability
36
FAN BLADE MAY W10139483 Contact Us For Availability
38
MAY W10319864 MAY W10319864 Contact Us For Availability
39
MAY 2212848 MAY 2212848 Contact Us For Availability
40
MAY 488500 MAY 488500 Contact Us For Availability
41
Evaporator Tray MAY 2254574 Contact Us For Availability
44
Valve MAY 2210509 Contact Us For Availability
100
MAY W10190952 MAY W10190952 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.0 OZS. (R134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. MAY 4392900 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Biscuit ( MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
KIT, DOOR REVERSAL MAY W10395149 Contact Us For Availability
× ![]()
