Model Maytag M9BXXGMYM00 REFRIGERATOR – Common Parts & Diagrams

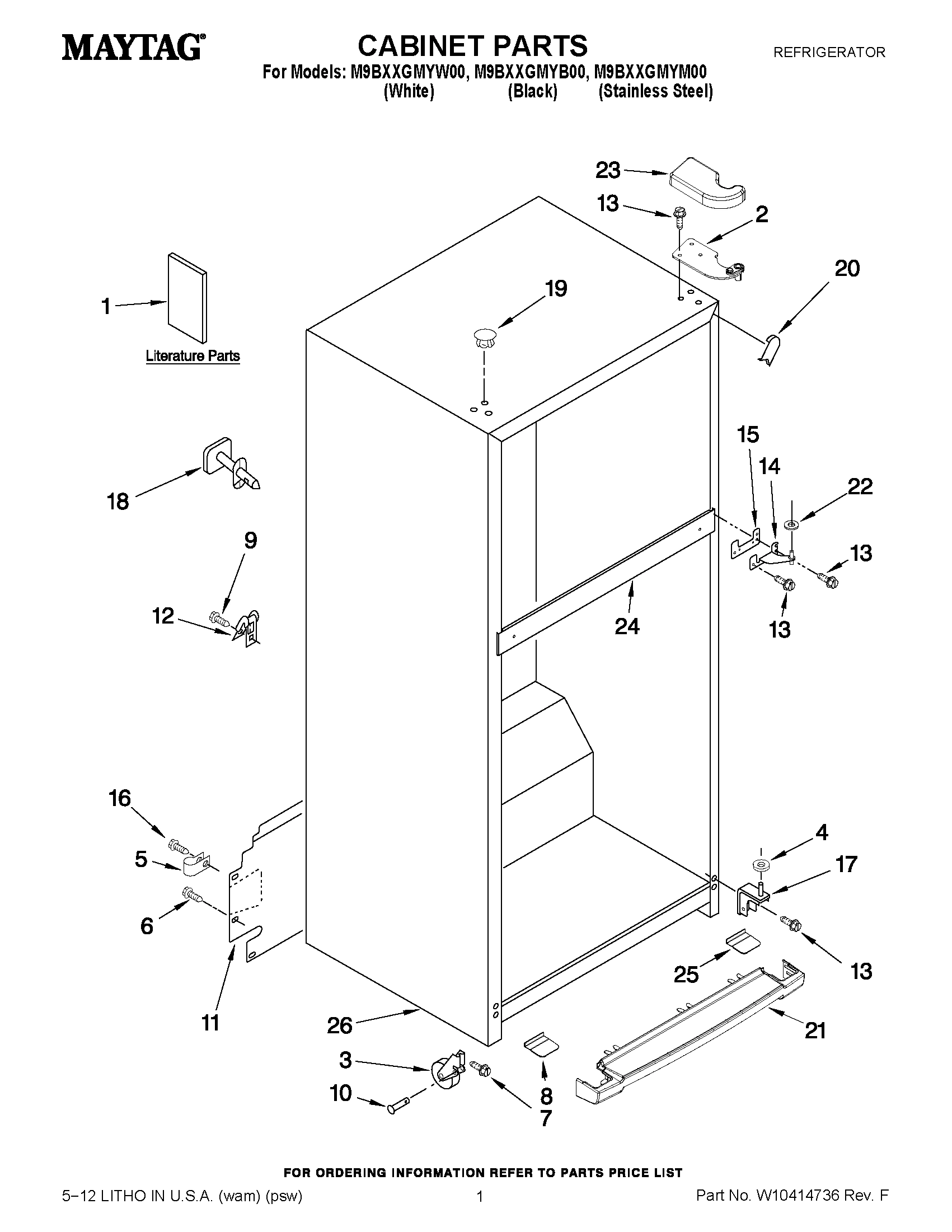

01 - CABINET PARTS

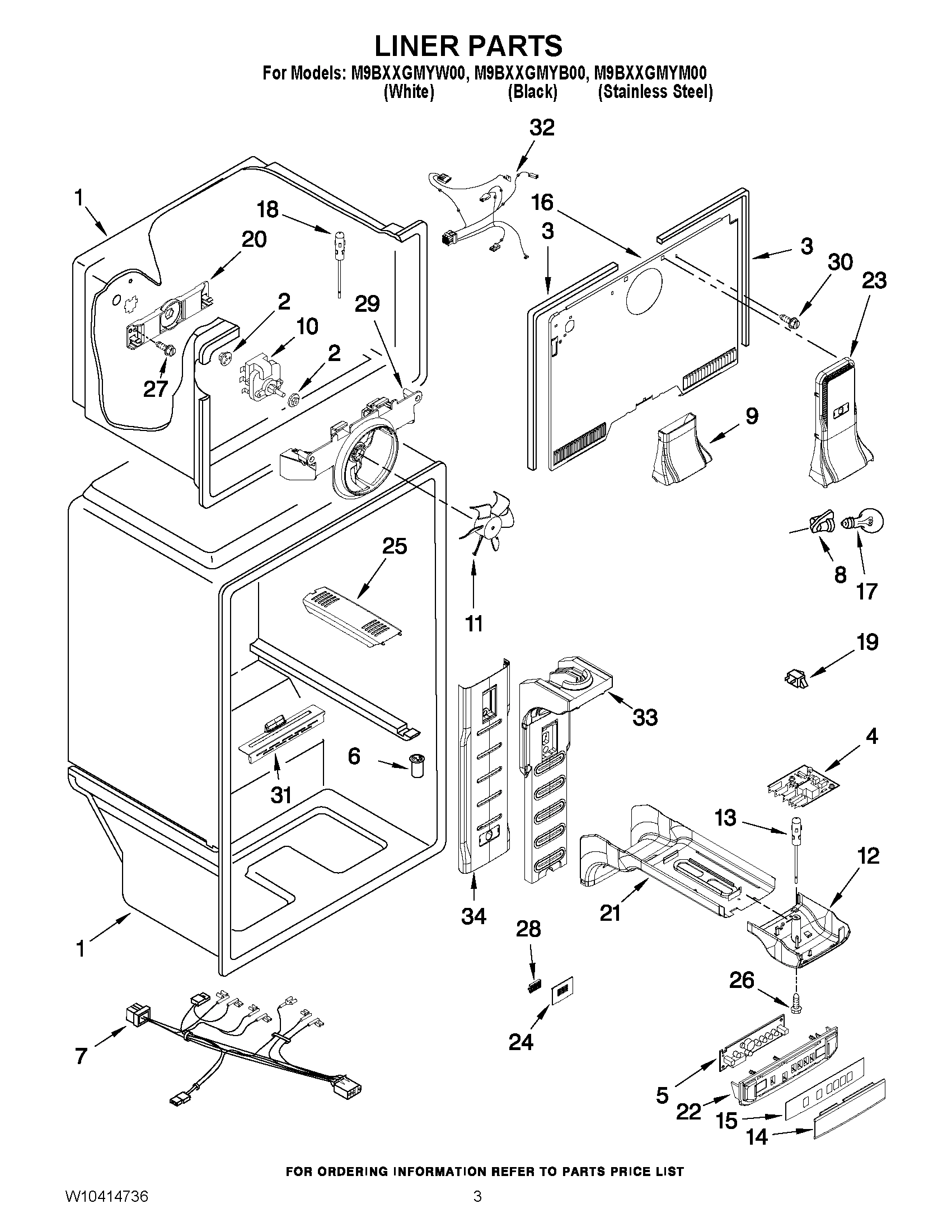

02 - LINER PARTS

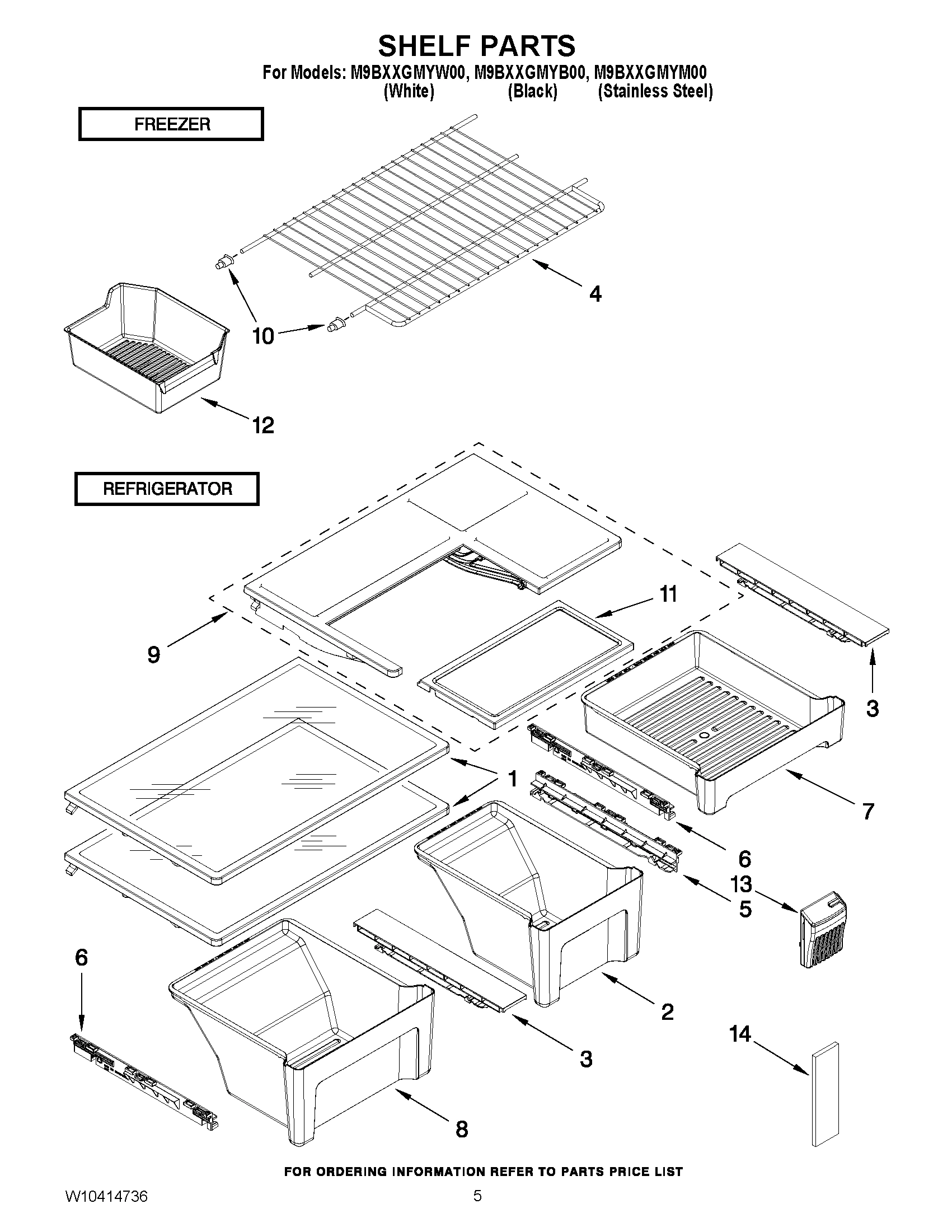

03 - SHELF PARTS

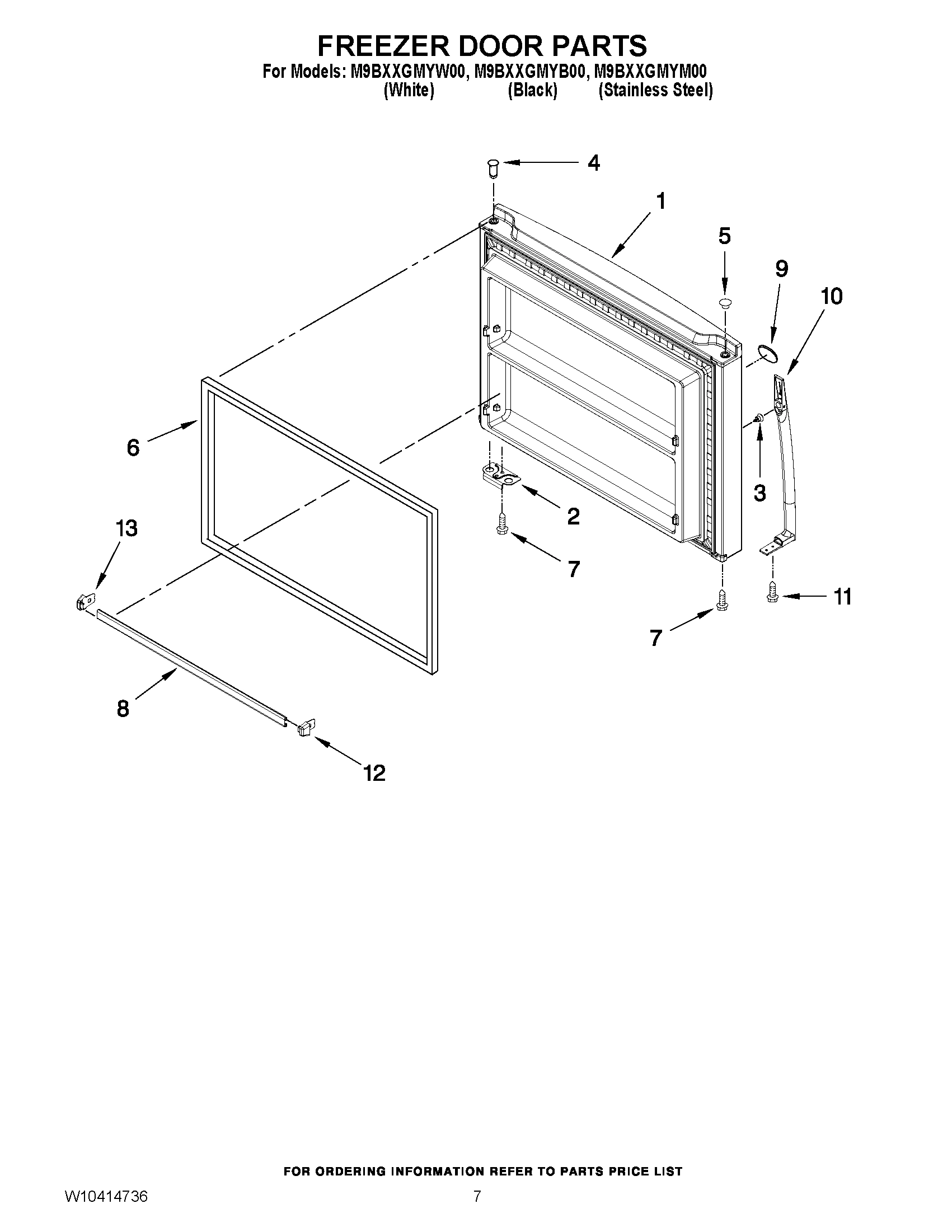

04 - FREEZER DOOR PARTS

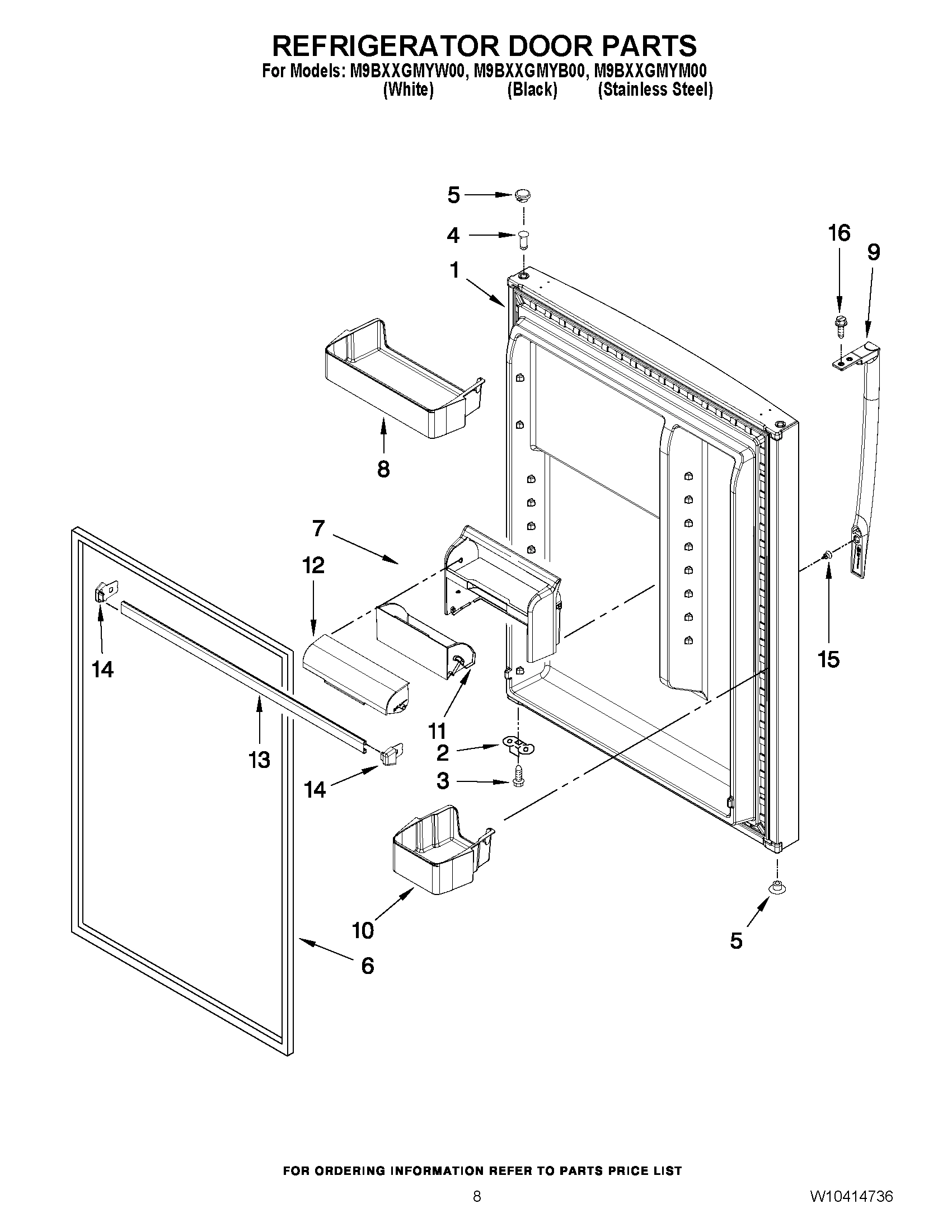

05 - REFRIGERATOR DOOR PARTS

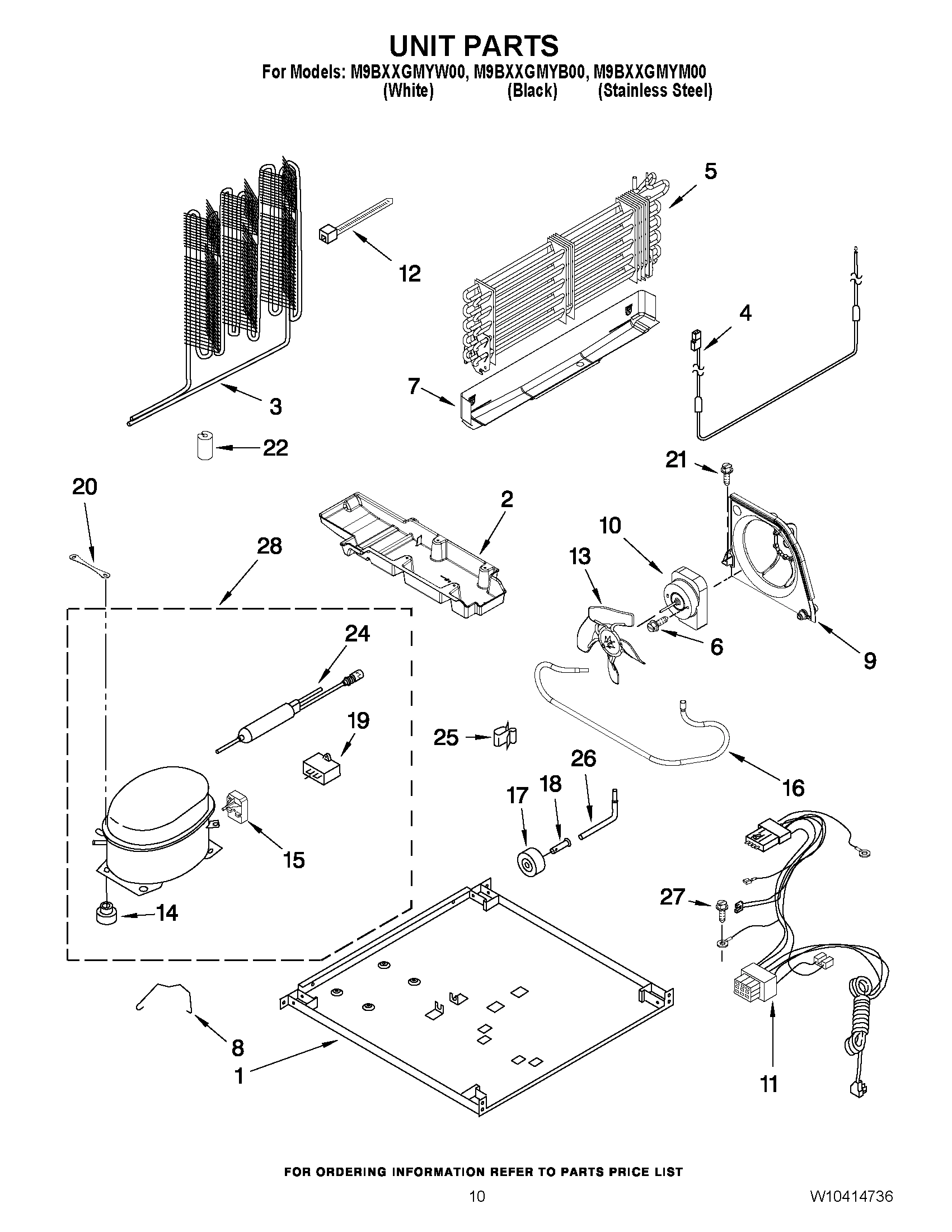

06 - UNIT PARTS

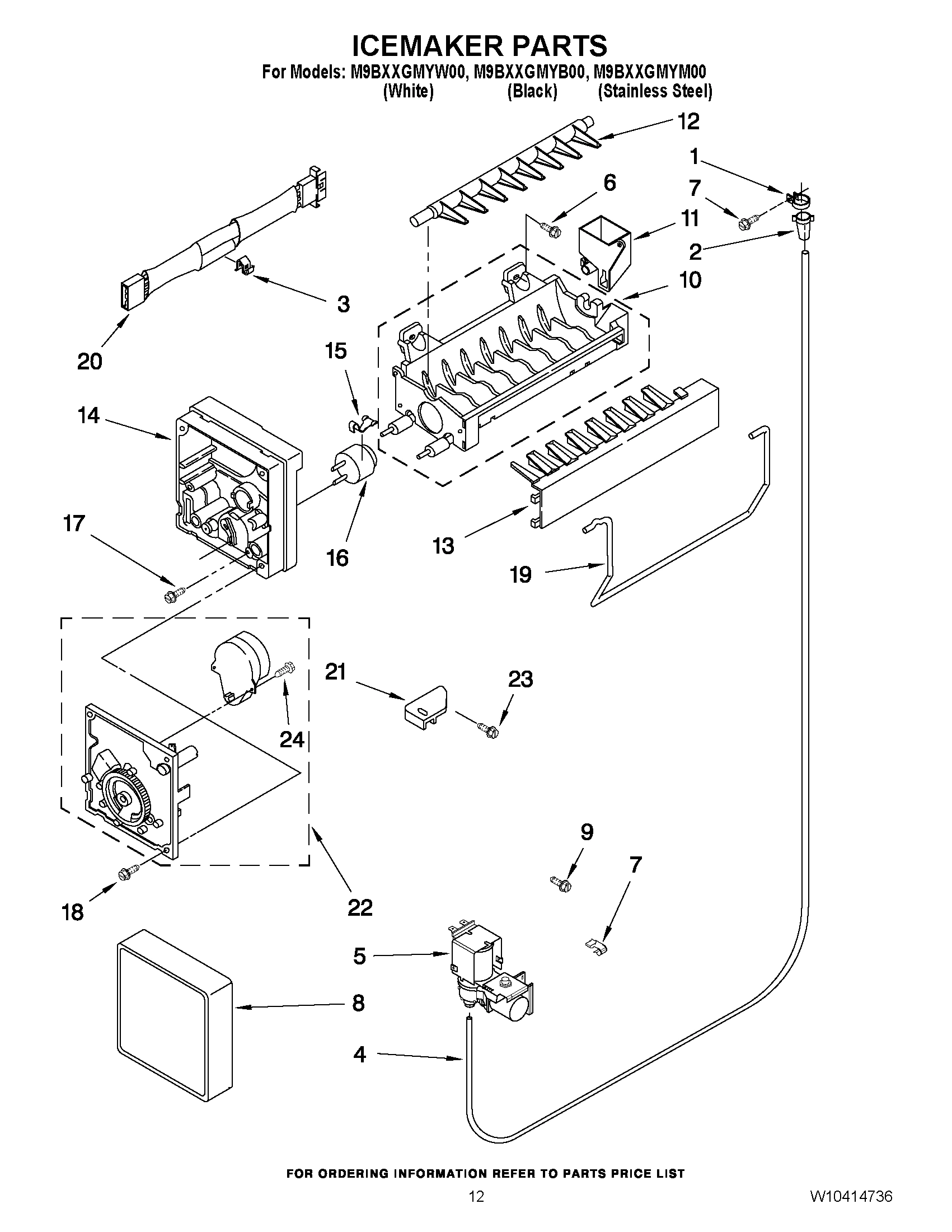

07 - ICEMAKER PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag M9BXXGMYM00 REFRIGERATOR
1
MAY 2225623 MAY 2225623 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10360533 MAY W10360533 Contact Us For Availability
1
MAY W10361783 MAY W10361783 Contact Us For Availability
1
MAY W10414768 MAY W10414768 Contact Us For Availability
1
SHELF, FULL MAY W10423887 Contact Us For Availability
1
FREEZER DOOR (INCLUDES ILLUS. 4 & 6) (WHITE) MAY W10329576 Contact Us For Availability
1
MAY W10353302 MAY W10353302 Contact Us For Availability
1
MAY W10353321 MAY W10353321 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 4 & 6) (WH MAY W10329581 Contact Us For Availability
1
MAY W10353883 MAY W10353883 Contact Us For Availability
1
MAY W10353894 MAY W10353894 Contact Us For Availability
1
MAY W10300116 MAY W10300116 Contact Us For Availability
1
MAY 488878 MAY 488878 Contact Us For Availability
2
MAY W10300069 MAY W10300069 Contact Us For Availability
2
MAY 2197380 MAY 2197380 Contact Us For Availability
2
CRISPER PAN W/SACHET MOUNT MAY W10373935 Contact Us For Availability
2
MAY 2189202 MAY 2189202 Contact Us For Availability
2
TRAY, EVAPORATOR MAY W10466213 Contact Us For Availability
2
MAY 2181939 MAY 2181939 Contact Us For Availability
3
ROLLER, FRONT MAY 2166108 Contact Us For Availability
3
GASKET, EVAPORATORV COVER MAY 2254359 Contact Us For Availability
3
MAY W10404446 MAY W10404446 Contact Us For Availability
3
MAY W10342567 MAY W10342567 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
Washer, Nylon MAY 487576 Contact Us For Availability
4
MAY W10392193 MAY W10392193 Contact Us For Availability
4
SHELF, WIRE CENTER MAY W10384383 Contact Us For Availability
4
THIMBLE MAY 2200087 Contact Us For Availability
4
MAY W10334042 MAY W10334042 Contact Us For Availability
4
MAY W10316428 MAY W10316428 Contact Us For Availability
4
TUBE WATER MAY 2181944 Contact Us For Availability
5
MAY 489385 MAY 489385 Contact Us For Availability
5
SWITCH ASSEMBLY MAY W10341559 Contact Us For Availability
5
TRACK RAIL RS MAY W10404450 Contact Us For Availability
5
HOLE PLUG, HINGE (WHITE) MAY 2212648 Contact Us For Availability
5
HOLE PLUG, HINGE (BLACK) MAY 2212651 Contact Us For Availability
5
HOLE PLUG, HINGE (APOLLO GREY) MAY 2254517 Contact Us For Availability
5
EVAPORATOR ASSY. MAY W10314205 Contact Us For Availability
5
VALVE SOLENOID (SINGLE) MAY W10279909 Contact Us For Availability
6
MAY 489427 MAY 489427 Contact Us For Availability
6
Valve MAY 2210509 Contact Us For Availability
6
Screw MAY 488208 Contact Us For Availability
6
TRACK RAIL LS MAY W10404449 Contact Us For Availability
6
MAY 2214966 MAY 2214966 Contact Us For Availability
6
MAY 2214968 MAY 2214968 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10279559 Contact Us For Availability
6
MAY 2202874 MAY 2202874 Contact Us For Availability
6
MAY 2202881 MAY 2202881 Contact Us For Availability
6
DOOR GASKET, MAGNETIC (APOLLO GREY) MAY W10279664 Contact Us For Availability
7
SCREW MAY W10142287 Contact Us For Availability
7
MAY W10292528 MAY W10292528 Contact Us For Availability
7
MEAT PAN MAY W10310944 Contact Us For Availability
7
COMPARTMENT MAY W10308809 Contact Us For Availability
7
HEAT SHIELD MAY W10314195 Contact Us For Availability
7
SCREW MAY 488886 Contact Us For Availability
8
ENDCAP, GRILLE (WHITE) MAY W10339257 Contact Us For Availability
8
ENDCAP, GRILLE (BLACK) MAY W10353930 Contact Us For Availability
8
ENDCAP, GRILLE (MIDNIGHT GREY) MAY W10353932 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
CRISPER PAN MAY W10373950 Contact Us For Availability
8
MAY W10308873 MAY W10308873 Contact Us For Availability
8
BIN, LONG MAY W10331763 Contact Us For Availability
8
BALE, STRAP MAY W10174384 Contact Us For Availability
8
COVER MAY W10289690 Contact Us For Availability
9
MAY 489442 MAY 489442 Contact Us For Availability
9
TOWER CONN ASSY MAY W10396926 Contact Us For Availability
9
SHELF 2/3 FLIP ASSEMBLY MAY W10352270 Contact Us For Availability
9
Nameplate MAY W10170766 Contact Us For Availability
9
MAY W10366329 MAY W10366329 Contact Us For Availability
9
HANDLE (BLACK) MAY W10370622 Contact Us For Availability
9
HANDLE (TITANIUM SPARKLE) MAY W10370624 Contact Us For Availability
9
MAY 2315541 MAY 2315541 Contact Us For Availability
10
MAY 2221797 MAY 2221797 Contact Us For Availability
10
Fan Motor MAY 2315539 Contact Us For Availability
10
Cup, Shelf Mount MAY W10130299 Contact Us For Availability
10
MAY W10331762 MAY W10331762 Contact Us For Availability
10
MAY 2188874 MAY 2188874 Contact Us For Availability
10
MAY W10122527 MAY W10122527 Contact Us For Availability
11
MAY W10384413 MAY W10384413 Contact Us For Availability
11
MAY 2200509 MAY 2200509 Contact Us For Availability
11
SHELF 2/3 FLIP MAY W10305243 Contact Us For Availability
11
MAY W10356444 MAY W10356444 Contact Us For Availability
11
WIRE ASSEMBLY, UNIT MAY W10405935 Contact Us For Availability
11
MAY W10122561 MAY W10122561 Contact Us For Availability
12
MAY 549193 MAY 549193 Contact Us For Availability
12
MAY W10316942 MAY W10316942 Contact Us For Availability
12
PAN, ICE CUBE MAY 2254352 Contact Us For Availability
12
MAY W10308843 MAY W10308843 Contact Us For Availability
12
MAY 2263990 MAY 2263990 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
MAY W10384183 MAY W10384183 Contact Us For Availability
13
HOLDER, SACHET MAY W10408748 Contact Us For Availability
13
MAY W10308872 MAY W10308872 Contact Us For Availability
13
FAN BLADE MAY W10139483 Contact Us For Availability
13
ICE STRIPPER MAY W10122563 Contact Us For Availability
14
MAY 2254618 MAY 2254618 Contact Us For Availability
14
FASCIA, LENS MAY W10339195 Contact Us For Availability
14
SACHET BAG MAY W10346771 Contact Us For Availability
14
ENDCAP, TRIM RS MAY W10308871 Contact Us For Availability
14
ENDCAP, TRIM LS MAY W10338485 Contact Us For Availability
14
GROMMET (PRODUCTION) MAY 10835903 Contact Us For Availability
14
GROMMET (SERVICE) MAY 1100826 Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
15
MAY 2183852 MAY 2183852 Contact Us For Availability
15
MAY W10356943 MAY W10356943 Contact Us For Availability
15
MAY W10129563 MAY W10129563 Contact Us For Availability
15
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10194431 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
MAY 8281265 MAY 8281265 Contact Us For Availability
16
MAY W10305172 MAY W10305172 Contact Us For Availability
16
MAY 489357 MAY 489357 Contact Us For Availability
16
MAY W10319864 MAY W10319864 Contact Us For Availability
16
THERMOSTAT (ALSO ORDER 542369 CEMENT ALUMILAS MAY W10290336 Contact Us For Availability
17
MAY 2254473 MAY 2254473 Contact Us For Availability
17
LIGHT BULB MAY W10311528 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
18
THERMISTOR, FC MAY W10383615 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
18
MAY 2179826 MAY 2179826 Contact Us For Availability
19
MAY 2183998 MAY 2183998 Contact Us For Availability
19
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
19
HOLE PLUG (6) (APOLLO GREY) MAY 2254506 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2169373 MAY 2169373 Contact Us For Availability
19
Capacitor (Service) MAY 2264017 Contact Us For Availability
19
MAY 627792 MAY 627792 Contact Us For Availability
20
CORNER FILLER (2) (WHITE) MAY W10283959 Contact Us For Availability
20
MAY W10283960 MAY W10283960 Contact Us For Availability
20
CORNER FILLER (2) (APOLLO GREY) MAY W10283961 Contact Us For Availability
20
MAY 2254454 MAY 2254454 Contact Us For Availability
20
MAY W10236396 MAY W10236396 Contact Us For Availability
20
MAY W10309399 MAY W10309399 Contact Us For Availability
21
GRILLE (INCLUDES (WHITE) MAY W10326386 Contact Us For Availability
21
MAY W10353936 MAY W10353936 Contact Us For Availability
21
GRILLE (INCLUDES (MIDNIGHT GREY) MAY W10353938 Contact Us For Availability
21
MAY W10305175 MAY W10305175 Contact Us For Availability
21
MAY 8533961 MAY 8533961 Contact Us For Availability
21
MAY 628320 MAY 628320 Contact Us For Availability
22
Washer, Plain MAY 489341 Contact Us For Availability
22
MAY W10383443 MAY W10383443 Contact Us For Availability
22
GROMMET, COND MAY 2319835 Contact Us For Availability
22
MODULE ASSEMBLY (INCLUDES ITEM 24) MAY W10223929 Contact Us For Availability
23
COVER, HINGE (WHITE, RS) MAY W10331560 Contact Us For Availability
23
COVER, HINGE (WHITE, LS) MAY W10331654 Contact Us For Availability
23
COVER, HINGE (BLACK, RS) MAY W10353945 Contact Us For Availability
23
COVER, HINGE (MIDNIGHT GREY, RS) MAY W10353947 Contact Us For Availability
23
COVER, HINGE (BLACK, LS) MAY W10353948 Contact Us For Availability
23
COVER, HINGE (MIDNIGHT GREY, LS) MAY W10353950 Contact Us For Availability
23
AIR TOWER MAY W10305174 Contact Us For Availability
23
MAY 489478 MAY 489478 Contact Us For Availability
24
GRILLE, AIR FILTER MAY W10330850 Contact Us For Availability
24
MAY W10143759 MAY W10143759 Contact Us For Availability
24
MAY W10177049 MAY W10177049 Contact Us For Availability
24
MAY 489136 MAY 489136 Contact Us For Availability
25
ENDCAP, GRILLE (WHITE) MAY W10381059 Contact Us For Availability
25
ENDCAP, GRILLE (BLACK) MAY W10381060 Contact Us For Availability
25
ENDCAP, GRILLE (MIDNIGHT GREY) MAY W10381064 Contact Us For Availability
25
LIGHT COVER, RC MAY W10348614 Contact Us For Availability
25
MAY 2326941 MAY 2326941 Contact Us For Availability
26
MAY W10274306 MAY W10274306 Contact Us For Availability
27
MAY 488500 MAY 488500 Contact Us For Availability
28
MAY W10315189 MAY W10315189 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 14, 15, 19 & 24) MAY W10164016 Contact Us For Availability
29
MAY W10321162 MAY W10321162 Contact Us For Availability
31
MAY W10326336 MAY W10326336 Contact Us For Availability
32
WIRE ASSY EVAP FAN MAY W10283809 Contact Us For Availability
33
MAY W10395376 MAY W10395376 Contact Us For Availability
34
AIR TOWER MAY W10356895 Contact Us For Availability
100
MAY W10190952 MAY W10190952 Contact Us For Availability
NI
REFRIGERANT CHARGE (R134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER,WRITER (12 MAY 350942 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. MAY 4392900 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Biscuit ( MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
MAY W10395149 MAY W10395149 Contact Us For Availability
× ![]()
